ST120889.1 - Toaster Emerio - Free user manual and instructions

Brand	Emerio
Model	ST120889.1
Product type	Toaster / Sandwich maker
Power supply	220-240 V ~ 50-60 Hz
Power	750 W
Plate coating	Non-stick (Teflon)
Number of plates	2 (upper and lower)
Indicator lights	Red light (power), green light (temperature)
Functions	Toast sandwiches, heat food
Locking	Closing latch
Maximum surface temperature	Approximately 200 °C (estimated)
Cleaning	Soft damp cloth, soft brush for crumbs
Maintenance	Do not immerse, do not use metal utensils
Safety	Automatic thermostat shut-off, hot surface (caution)
Capacity	2 slices of bread (one sandwich)
Housing material	Heat-resistant plastic
Cable length	Approximately 80 cm (estimated)
Weight	Approximately 1.2 kg (estimated)
Dimensions (L x W x H)	Approximately 25 x 25 x 10 cm (estimated)
Warranty	2 years
Included accessories	None (spatula not included, recommended in wood/plastic)
Usage	Household use only

Frequently Asked Questions - ST120889.1 Emerio

How to use the appliance for the first time?

Remove all packaging, clean the plates with a damp cloth, unwind the cable and plug in the appliance. It may emit smoke and a smell during the first heating: this is normal. Wait for the green light to turn off before toasting.

Why does the green light turn on and off?

The green light indicates that the thermostat is regulating the temperature. It turns on when the plates are heating and turns off when the ideal temperature is reached. This cycle is normal during cooking.

What utensils should be used to remove sandwiches?

Use a plastic or wooden spatula. Never use metal or sharp utensils (knives, metal spatulas) as they would damage the non-stick coating.

How to clean the appliance?

Unplug the appliance and let it cool completely. Clean the plates with a soft damp cloth. For crumbs, use a very soft brush. Never immerse the appliance in water and do not use abrasive products.

What to do if the sandwich does not close?

If the bread slices are too loaded, the appliance will not close. Remove some filling and never force the latch. The ingredients should be evenly distributed.

Can I use the appliance with an external timer?

No, the appliance is not intended to be used with an external timer or a separate remote control system, as indicated in the safety instructions.

What types of bread and fillings are recommended?

Use regular slices of bread. Recommended fillings: cheese, ham, pineapple, tomatoes, cooked meats, onions, herbs and spices. Butter the outer sides for a crispy result.

How long does it take to toast a sandwich?

Cooking time is approximately 4 to 6 minutes, depending on the filling and desired level of toasting. Monitor cooking and wait for the green light to turn off before opening.

What to do if the power cord is damaged?

If the cord is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person to avoid any hazard. Do not use the appliance.

Is the appliance suitable for children?

Children aged 8 years and older may use it under supervision. Children under 8 years should be kept away from the appliance and the cord. Cleaning should not be performed by children without supervision.

USER MANUAL ST120889.1 Emerio

Exterior view of a black and white electric vacuum cleaner (no visible text or symbols)

Sandwich toaster (EN)

Sandwichtoaster (DE)

Grille-Sandwichs (FR)

Sandwich toaster (NL)

Toster do kanapek (PL)

Content – Inhalt – Teneur – Inhoud – Treść

Instruction manual – English ...... - 2 -

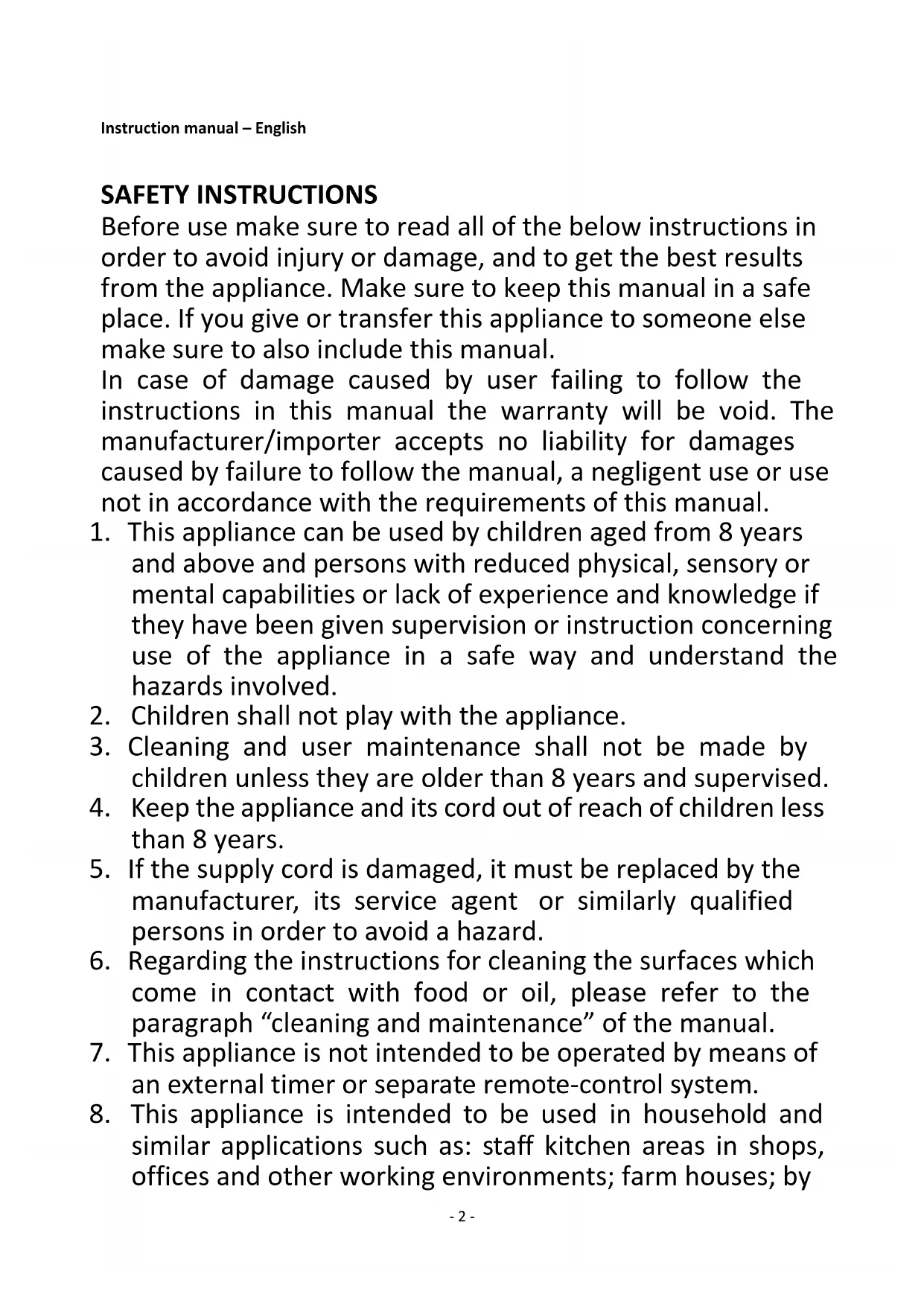

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph “cleaning and maintenance” of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.
8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by

clients in hotels, motels and other residential type environments; bed and breakfast type environments.

1. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

2. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

3. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

4. Always plug the appliance into an earthed plug socket.

5. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

6. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

7. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

8. Do not touch the appliance if it falls into water. Remove the plug from its socket and send it to an authorized service center for repair.

9. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

10. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

11. Never leave the appliance unattended during use.

12. This appliance is not designed for commercial use.

13. Do not use the appliance for other than intended use.

14. Do not wind the cord around the appliance and do not bend it.

15. Place the appliance on a stable, level surface from which it cannot fall off.

16. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

1. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

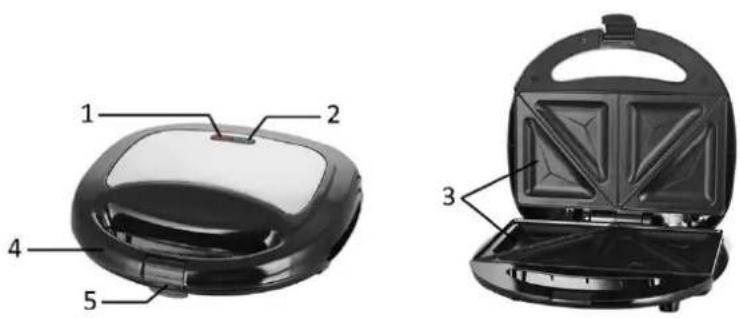

PARTS DESCRIPTION

1. Red power light
2. Green control light
3. Non-stick cooking plates
4. Handle
5. Catch

BEFORE INITIAL USE

1. Remove all packaging.
2. Clean the toasting surfaces with a soft damp cloth and then dry them.
3. Unwind the mains cable completely.

NOTE: When your appliance is heated for the first time, it may emit slight smoke or odor. This is normal with many heating appliances. This does not affect the safety or your appliance.

OPERATING INSTRUCTIONS

1. Connect the appliance to an appropriate socket. Both of the indicator lights will illuminate and the toasting surface begins to heat.
2. As soon as the appliance has heated up, the green control light goes off.
3. The appliance must be heated up before you toast a sandwich. In the meantime prepare your sandwich.
4. Open the appliance at the handle by unlocking the catch.
5. Put the slices of bread on the lower toasting surface. Ensure that the buttered sides are facing outwards.
6. Now put the filling on the bread slices (e.g. cheese, ham, pineapple, etc.) and cover this with the second slice of bread. Once again, ensure that the buttered sides are facing outwards.
7. Close the appliance making sure the catch is engaged.
8. Caution: If the slices of bread have too much filling on them, it will not be possible to close the appliance. Take some of the filling off. Never use force to close the appliance.
9. During toasting the temperature regulating thermostat switches off and on again. The green control light also switches off and on again.
10. After completion of the toasting process (approx. 4-6 minutes) open the appliance and remove the sandwiches with the help of a flat wooden or plastic spatula. Never use sharp or metal objects (e.g. knives, metal spatulas, etc.) as this will damage the non-stick coating.
11. If you wish to toast more sandwiches, close the appliance again and wait until the toasting surfaces have reheated sufficiently, repeat the toasting process as described above.
12. After use, disconnect the mains plug immediately. With the appliance open, allow it to cool down.

TIPS FOR TASTY SANDWICHES

1. Allow the appliance to heat up completely before you begin toasting.
2. Lay the buttered side facing outwards.
3. With fruit fillings the toasted bread will be crispier if you sprinkle a little sugar on the buttered side.
4. The following ingredients are particularly recommended: cheese, ham, pineapple, tomatoes, cooked meat, onions, herbs and spices.

CLEANING AND MAINTENANCE

1. First, disconnect the mains plug!
2. Only clean when the appliance has completely cooled down.
3. Clean the housing surface and the toasting surfaces of the sandwich toaster with a soft, damp cloth.
4. It is easiest to remove toast or food crumbs with a very soft brush.
5. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush or knife) for cleaning.
6. Caution: Do not immerse the appliance in water or other liquids. There is danger to life due to electric shock!

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power: 750W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Manufactured by: Emerio B.V.

Zomervaart 1A, 2033 DA Haarlem, The Netherlands

SICHERHEITSHINWEISE

Black griddle oven with open lid and side panel, labeled with number 3 (no text or symbols on the appliance itself)

Warning sign with yellow triangle and black line indicating steam or heat release

1. Attention, surface chaude.

Black griddle oven with open lid and side panel, labeled with number 3 (no text or symbols on the appliance itself)

AVANT LA PREMIERE UTILISATION

Interior view of a black griddle with open lid and side panels, labeled with number 3 (no text or symbols on the griddle itself)

VOOR EERSTE GEBRUIK

Warning sign depicting steam rising inside a yellow triangle, indicating caution or hazard level

Diagram of a grating with labeled parts including one open and three closed, showing internal compartments and casing structure.

PRZED PIERWSZYM UŻYCIEM
