TO112695.3 - Toaster Emerio - Free user manual and instructions

Brand	Emerio
Model	TO112695.3
Product type	Toaster
Number of slots	2
Extra wide slots	Yes
Browning control	Electronic, 7 levels (1 to 7)
Cancel button	Yes
Eject button	Yes
Bun warmer	Yes
Crumb tray	Yes, removable full length
Automatic shut-off	Yes
Power supply	220-240 V ~ 50-60 Hz
Power	700 W
Dimensions (L x W x H)	27 x 17 x 19 cm
Weight	1.1 kg
Cord length	80 cm
Housing material	Plastic
Cleaning	Removable crumb tray, exterior damp cloth
Safety	Automatic shut-off, overheat protection
Warranty	2 years
Domestic use	Yes

Frequently Asked Questions - TO112695.3 Emerio

How to clean the toaster?

Before cleaning, unplug the appliance and let it cool down. Remove the crumb tray to empty and clean it. Wipe the exterior with a slightly damp cloth then dry it. Never immerse the toaster in water. For the inside, turn it upside down over a sink and shake to remove crumbs.

Why doesn't my toaster turn on?

Check that the plug is properly inserted and that the power outlet is live. The eject lever only engages when the appliance is plugged in. If the toaster does not heat up, try another outlet. If the problem persists, contact customer service.

How to adjust the browning level?

Use the electronic control to select a level between 1 (light) and 7 (dark). For first use, start at level 4. The setting depends on the bread type and your preferences.

What to do if the bread gets stuck?

Never use a metal object to remove the bread. Unplug the appliance, let it cool down, then gently remove the bread by turning it over. Crumbs can be removed via the crumb tray.

The toaster produces smoke during first use, is this normal?

Yes, this is normal. During first use, run the toaster without bread once or twice to burn off manufacturing residues. A slight smoke and smell may occur, this disappears after a few cycles.

Can I use the toaster without the crumb tray?

No, the crumb tray must always be installed during use. It collects crumbs and prevents them from accumulating inside, which could pose a fire hazard. Clean it regularly.

How to use the bun warmer?

Place rolls or other foods on the bun warmer located above the toaster. Do not place them directly on the toasting slots. Select the browning level and lower the lever. The toaster will warm the rolls while toasting the slices.

What to do if the power cord is damaged?

A damaged cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not use the appliance if the cord is damaged.

Can I toast rolls?

Yes, but use the bun warmer provided for this purpose. Do not place rolls directly on the slots as they could fall or jam the mechanism. Make sure they do not exceed the height of the slots.

How to stop toasting?

Press the cancel button (CANCEL) to immediately stop the toasting process. This will automatically raise the toast. You can also wait for the cycle to end automatically.

USER MANUAL TO112695.3 Emerio

Black and white photo of a standard black toaster with metal handles and a handle, no visible text or symbols on the device itself.

Toaster (EN)

Toaster (DE)

Grille-pain (FR)

Tostapane (IT)

Content – Inhalt – Contenu – Contenuto

Instruction manual – English....- 2 -

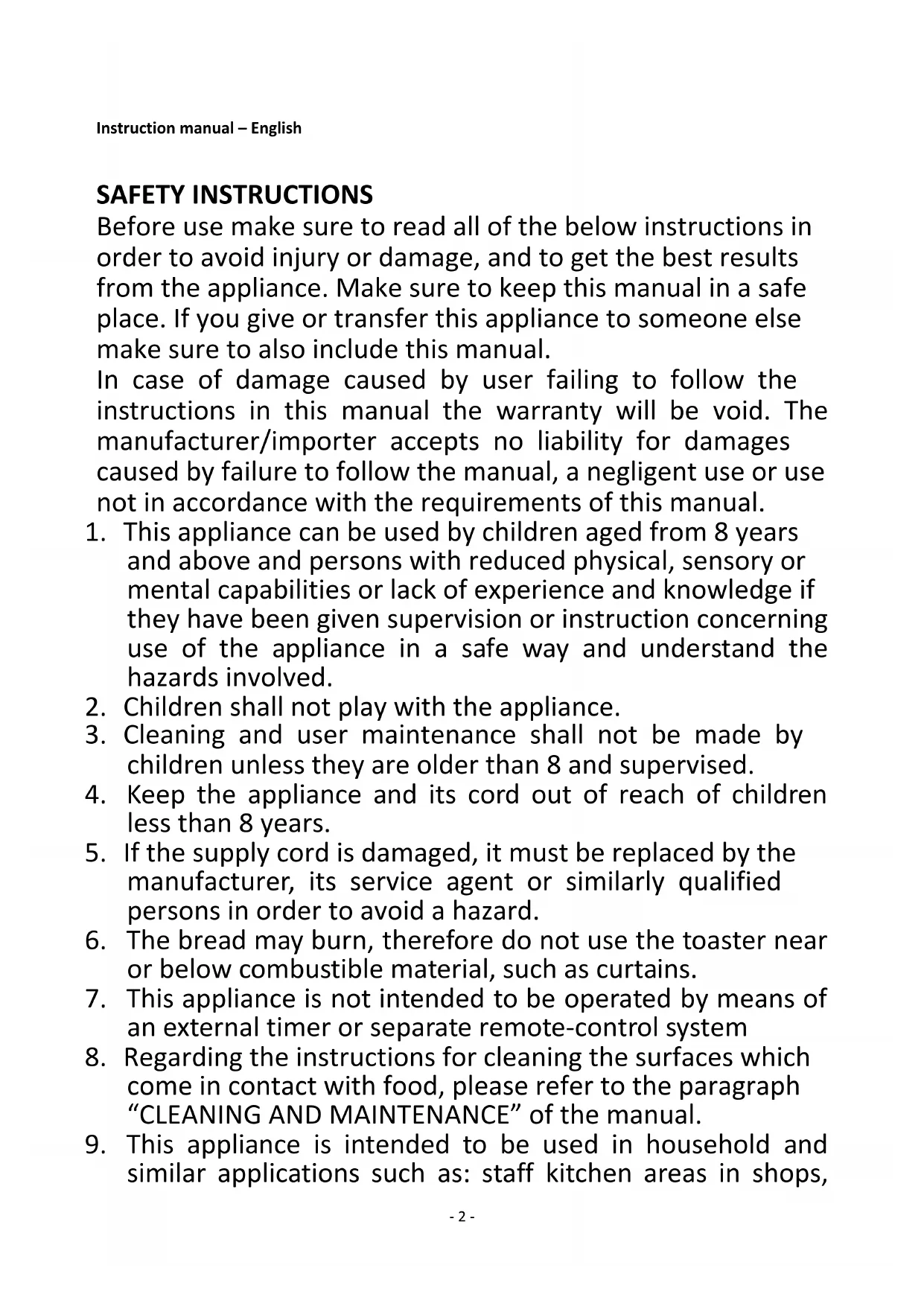

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. The bread may burn, therefore do not use the toaster near or below combustible material, such as curtains.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system
8. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph "CLEANING AND MAINTENANCE" of the manual.
9. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops,

offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

1. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

2. Always plug the appliance into an earthed plug socket.

3. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

4. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

5. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

6. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

7. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

8. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

9. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

10. Never leave the appliance unattended during use.

11. This appliance is not designed for commercial use.

12. Do not use the appliance for other than intended use.

13. Do not wind the cord around the appliance and do not bend it.

14. Warning!! Should any pieces of toast or other items happen to get stuck in the toaster, never try to remove them with a knife or any other object, since contact with live parts can cause an electric shock. Let the appliance cool down and take the plug out of the socket before removing the bread.

15. Regarding the details on how to remove breadcrumbs, thanks to refer to the below paragraph of the manual.

FUNCTIONAL CHARACTERISTICS

1. Extra-wide toast aperture
2. Cancel switch
3. Electric browning control
4. Full-length crumb collector
5. Eject switch
6. Bun warmer

Labeled diagram of a black toaster with numbered parts, showing internal structure and part assembly.

BEFORE USE

1. Place the toaster on a flat and heat resistant surface. Make sure that there is enough ventilation around the toaster.
2. Make sure the crumb collector is placed tightly on the bottom of the toaster.
3. Operate without bread once or twice to burn off production residues. When your appliance is heated for the first time, it may emit slight smoke or odour. This is normal with many heating appliances. This does not affect the safety or your appliance.

INSTRUCTIONS FOR USE

1. Insert the power plug and cable into the socket and turn on the toaster.
2. Insert up to two slices of bread in the browning slot.
3. Use the browning control switch to select the desired degree of browning between 1 and 7 (1 = lightest; 7 = darkest degree of browning). No. 4 is recommended for first use. The degree of browning chosen depends on the type of bread and individual taste.
4. Press the toasting lever down until it engages. The toasting process starts automatically.
5. Please remember that the toasting lever will not engage if the power plug is not inserted in the socket and the toaster is not switched on.
6. The toaster switches itself off automatically and the toasted bread is ejected when the desired degree of browning has been reached. The "CANCEL" switch can always be used to cancel the browning process.
   Do not place any rolls etc. directly on the toast aperture but place them on the bun warmer.

CLEANING AND MAINTENANCE

1. Before cleaning, make sure that you have switched off the appliance and removed the power plug and cable from the socket. Let the toaster cool down first.
2. Pull the crumb collector out to clean it up, reset it before using the appliance again.
3. Clean the outside of the toaster with a slightly damp cloth and wipe dry with a soft cloth. Never dip the toaster in water to clean it!
4. To clean the inside, turn it upside down and shake it over the sink until any crumbs adhering to the inside fall out.
   Clean the crumb collector regularly to avoid crumbs accumulating inside.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power consumption: 700W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

SICHERHEITSHINWEISE

Labeled diagram of a black toaster with numbered parts, showing internal structure and part view

VOR DER BENUTZUNG

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

CONSIGNES DE SÉCURITÉ

Labeled diagram of a black toaster with numbered parts, showing internal structure and part assembly.

AVANT L'UTILISATION

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

Labeled diagram of a black toaster with numbered parts, showing internal structure and part assembly.

PRIMA DELL'USO

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland
