ST109562.17 - Toaster Emerio - Free user manual and instructions

Product Type	Sandwich Toaster
Brand	Emerio
Model	ST109562.17
Power Supply	220-240 V ~ 50/60 Hz
Power	900 W
Casing Color	Black (estimated)
Plate Material	Non-stick coating (Teflon)
Indicator Lights	Red power indicator and green control indicator
Main Function	Toasting sandwiches with filling
Cooking Time	Approximately 2 to 4 minutes
Capacity	2 bread slices (1 sandwich)
Locking System	Closing latch
Recommended Use	Domestic and similar (offices, hotels, etc.)
Cleaning	Soft brush, do not immerse, no abrasive products
Safety	Do not touch hot surfaces, do not use metal utensils, children over 8 years under supervision
Power Cord	Length not specified, do not coil
Warranty	2 years from date of purchase
After-sales Service	Contact by phone or Emerio website
Dimensions	Not specified (estimated: 25 x 15 x 10 cm)
Weight	Not specified (estimated: 1 kg)
Recycling	Do not dispose with household waste, follow directive 2012/19/EU

Frequently Asked Questions - ST109562.17 Emerio

How to use the appliance for the first time?

Remove all packaging, clean the plates with a damp cloth and dry them. Unwind the cord completely, plug in the appliance, wait for the green indicator to turn off (preheating) then prepare your sandwich.

What to do if the bread extends beyond the toasting surface?

The bread should not protrude. If it does, cut off the edges or use smaller slices. Protrusion may cause a fire hazard.

Why does the green light turn on and off during cooking?

This is normal. The thermostat regulates the temperature: the green light turns off when the temperature is reached and turns back on when the thermostat restarts heating.

Which utensils to use to remove the sandwiches?

Use a plastic or wooden spatula. Never use metal or sharp utensils as they would damage the non-stick coating.

How to clean the appliance?

Unplug it and wait for it to cool completely. Use a very soft brush to remove crumbs. Never immerse the appliance in water and do not use abrasive products.

Can I use the appliance with an extension cord?

Yes, but the extension cord must be suitable for the power of the appliance (900 W). Otherwise, it may overheat. Avoid tripping hazards.

The appliance fell into water, what to do?

Do not touch the appliance! Immediately unplug it. Take it to an authorized repair center. Do not reuse it until it has been checked.

Are the plates removable?

No, the plates are not removable. Cleaning should be done with a soft brush without disassembling the appliance.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by the manufacturer, its after-sales service or a qualified person to avoid any hazard.

How long does the warranty last?

The warranty is 2 years from the date of purchase. Keep your receipt. Damages due to improper use or repair by a third party are not covered.

USER MANUAL ST109562.17 Emerio

Black and white photo of a modern sandwich grater with a red button on top (no visible text or symbols)

XXL Sandwich toaster (EN)

XXL Sandwichtoaster (DE)

Grille-Sandwichs XXL (FR)

XXL Smörgåsgrill (SE)

XXL Sandwich toaster (NL)

Opiekacz do kanapek XXL (PL)

Instruction manual – English ...... - 2 -

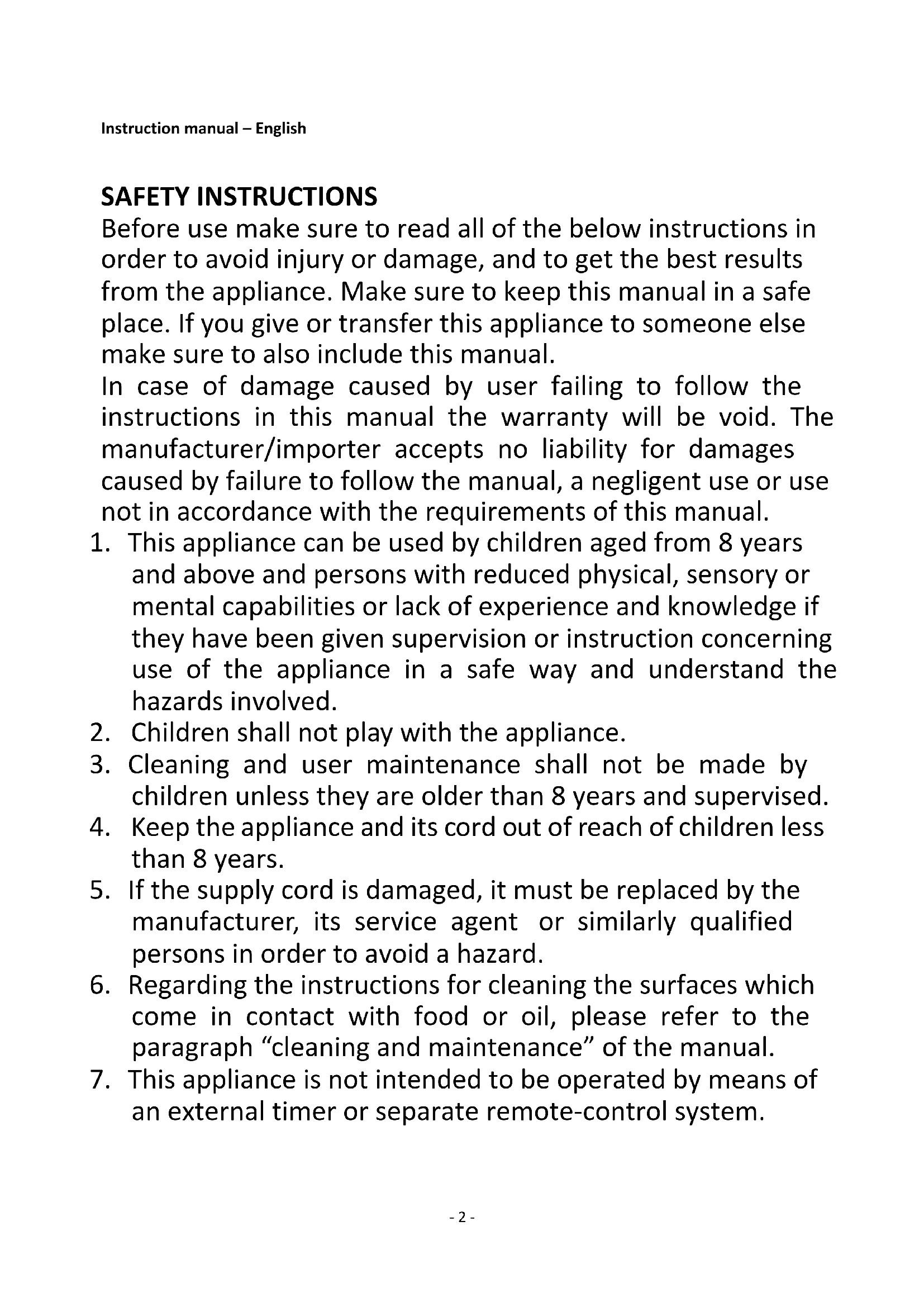

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph “cleaning and maintenance” of the manual.

7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

10. Always plug the appliance into an earthed plug socket.

11. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

12. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

13. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

14. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

15. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

16. Do not touch the appliance if it falls into water. Remove the plug from its socket and send it to an authorized service center for repair.

17. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

18. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

19. Never leave the appliance unattended during use.

20. This appliance is not designed for commercial use.

21. Do not use the appliance for other than intended use.

22. Do not wind the cord around the appliance and do not bend it.

23. Place the appliance on a stable, level surface from which it cannot fall off.

24. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

1. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. The bread shall not stick out of the toasting surface!

PARTS DESCRIPTION

1. Red power light
2. Green control light
3. Non-stick cooking plates
4. Handle

BEFORE INTITIAL USE

1. Remove all packaging.
2. Clean the toasting surfaces with a soft damp cloth and then dry them.
3. Unwind the mains cable completely.

USE

1. Connect the appliance to an appropriate socket. Both of the indicator lights will illuminate and the toasting surface begins to heat.
2. As soon as the appliance has heated up, the green control light goes off.
3. The appliance must be heated up before you toast a sandwich. In the meantime prepare your sandwich.
4. Open the appliance at the handle by unlocking the catch.
5. Put the slices of bread on the lower toasting surface. Ensure that the buttered sides are facing outwards. The bread shall not stick out of the toasting surface!
6. Now put the filling on the bread slices (e.g. cheese, ham, pineapple, etc.) and cover this with the second slice of bread. Once again, ensure that the buttered sides are facing outwards.
7. Close the appliance, making sure that the catch is engaged.
8. Caution: If the slices of bread have too much filling on, it will not be possible to close the appliance. Take some of the filling off. Never use force to close the appliance.
9. During toasting the temperature regulating thermostat switches off and on again. The green control light also switches off and on again.
10. After completion of the toasting process (approx. 2-4 minutes) open the catch and remove the sandwiches with the help of a flat wooden or plastic spatula. Never use sharp or metal objects (e.g. knives, metal spatulas, etc.) as this will damage the non-stick coating.
11. If you wish to toast more sandwiches, close the appliance again and wait until the toasting surfaces have reheated sufficiently, repeat the toasting process as described above.
12. After use, disconnect the mains plug immediately. With the appliance open, allow it to cool down.

TIPS FOR TASTY SANDWICHES

1. Allow the appliance to heat up completely before you begin toasting.
2. Lay the buttered side facing outwards.
3. With fruit fillings the toasted bread will be crispier if you sprinkle a little sugar on the buttered side.
4. The following ingredients are particularly recommended: cheese, ham, pineapple, tomatoes, cooked meat, onions, herbs and spices.

CLEANING AND MAINTENANCE

1. First, disconnect the mains plug!
2. Only clean when the appliance has completely cooled down.
3. Clean the housing surface and the toasting surfaces of the sandwich toaster with a soft, damp cloth.
4. It is easiest to remove toast or food crumbs with a very soft brush.
5. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush or knife) for cleaning.
6. Caution: Do not immerse the appliance in water or other liquids. There is danger to life due to electric shock!

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power: 900W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.
