USER MANUAL AC125508.1 Emerio

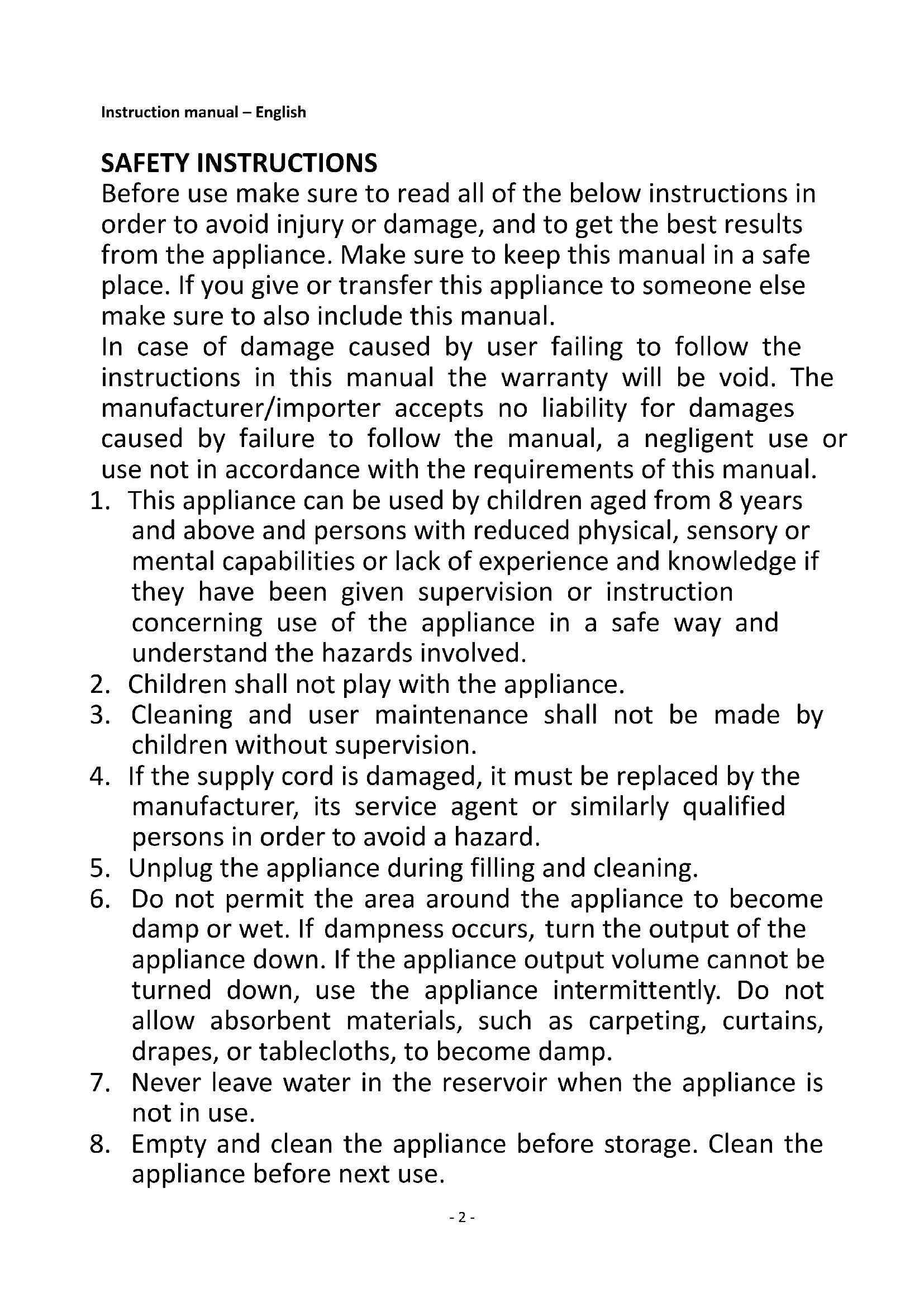

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by

children without supervision.

4. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. Unplug the appliance during filling and cleaning.

6. Do not permit the area around the appliance to become

damp or wet. If dampness occurs, turn the output of the appliance down. If the appliance output volume cannot be turned down, use the appliance intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes, or tablecloths, to become damp.

7. Never leave water in the reservoir when the appliance is

8. Empty and clean the appliance before storage. Clean the

appliance before next use.- 3 -

9. Before inserting the plug into the mains socket, please

check that the voltage and frequency comply with the specifications on the rating label.

10. If an extension cord is used it must be suited to the power

consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

11. Disconnect the mains plug from the socket when the

appliance is not in use and before cleaning.

12. Ensure that the mains cable is not hung over sharp edges

and keep it away from hot objects and open flames.

13. Do not immerse the appliance or the mains plug in water

or other liquids. There is danger to life due to electric shock!

14. To remove the plug from the plug socket, pull the plug. Do

not pull the power cord.

15. Do not plug or unplug the appliance from the electrical

outlet with a wet hand.

16. Never attempt to open the housing of the appliance, or to

repair the appliance yourself. This could cause electric shock.

17. Never leave the appliance unattended during use.

18. This appliance is not designed for commercial use.

19. Do not use the appliance for other than intended use.

20. Do not wind the cord around the appliance and do not

the holes of the plastic shell.

22. The appliance should be placed on a flat and stable

surface when operating to avoid overturning.

23. Do not let the air inlet be too close to the wall, curtain and

other objects. Otherwise, it will block the air flow and affect the wind effect.

24. Choose the socket that is up to more than 10A current. Do

not use the same socket with other machines.- 4 -

25. Please turn off the power before pulling out the plug. Do

not pull the plug directly in order to avoid a short-circuit, fire or electric shock.

26. Do not use the appliance outdoors or around the bath,

27. At anytime, the water level of the water tank must be less

than “MAX”. When the cooling function is used, the water level of the water tank must be more than “MIN”.

28. After the water tank is filled with water, please do not tilt

or bump the appliance while moving it.

29. Do not put anything on the appliance. Do not cover the air

inlet and air outlet of the appliance.

30. Pour out the water when the appliance is not is use.

31. Empty and clean the appliance before storage. Clean the

3. Water level window

4. Front wheels with brake

9. Rear wheels without brake

7. Indicator light of power

8. Indicator light of low wind speed

9. Indicator light of medium wind speed

10. Indicator light of high wind speed- 6 -

Remote control This unit has a remote control. One piece of CR2025 battery will be provided with the remote control. Before starting to use the remote control, remove the plastic protection from the battery. If you want to change the battery, please refer to the instruction behind the remote control. If it is not in use for a long time, please take the battery out of the remote control. The functions of the remote control buttons are the same as the functions of the buttons on the control panel. During use, align the remote control to the control panel (the remote control receiver is on the control panel); the remote control will not work if the control panel is blocked. BEFORE USE

1. Pull the appliance out from the carton and place it on a solid heat-resistant horizontal surface.

2. Check if the accessories are complete including: two ice boxes, one remote control, two wheels with brake

and two wheels without brake.

3. Insert four wheels into the corner holes and ensure the wheels are assembled tightly. Make sure the two

wheels with brake are assembled at the front side of the appliance. (If you need to lock the wheels, just press down the brake lever.)

1. Turn the water tank lock to the horizontal position. Pull out the water tank slowly to leave 1/3 of the water

tank in the appliance body. Add water into the water tank. If you need the air sent out much cooler, put the ice boxes (add water and frozen first) into the water. Make sure the water level is between the MIN and MAX line. Check the water level from the water level window in the front side of the appliance. Important! Use of the ice boxes: Add water into the ice boxes; do not exceed the MAX line on the ice box when adding water into it. Screw the cap tightly to make sure there is no leakage of water droplet. Keep the ice boxes away from children to prevent ingestion. Freeze the ice boxes by placing them horizontally instead of standing vertically in the freezer to avoid deformation.

Warning: the water level of the water tank must be less than “MAX” after the ice boxes are put into the

2. Plug the appliance into the appropriate power outlet. A beep sound will be heard and the indicator light of

power will be on. The appliance is in standby mode.

Press the power button to start the appliance. The appliance will work at low wind speed and the corresponding indicator light will be on. Press the button again. The appliance will enter into standby mode. Note: In standby mode, the unit will retain speed setting, swing function, cooling function and working mode of the former settings when turn on the unit again; but if you pull out the plug from the socket, the former settings will all be lost.

4. Wind speed button:

Press the wind speed button to adjust the wind speed: “Low” = low wind speed; “Mid” = medium wind speed; “High” = high wind speed. The corresponding indicator light will be on.

Press the swing button to turn on the swing function. The corresponding indicator light will be on. The air flow will swing left and right. Press the swing button again to cancel the swing and fix the air flow at a specific direction horizontally. To adjust the air flow direction vertically, just lift up or press down the louver outside.- 7 -

Press the cool button to turn on the cooling function. The corresponding indicator light will be on. This function is only effective when the water tank has ice box(es) inside. Do not activate this function when the water in the water tank is below the “MIN” level; add enough water into the water tank first.

Press the timer button to set the shutdown time from 1 to 7 hours. Each time you press this button the timer value will be added by one hour and the corresponding indicator light will be on.

Press the mode button to switch the working mode among normal, sleep and natural. The corresponding indicator light will be on. (Normal mode has no indicator light.) - Normal mode: The appliance works with the same wind speed all the time. - Sleep mode: When you set the wind speed to “Low” the wind speed will switch automatically between medium wind speed and low wind speed with short time suspended. When you set the wind speed to “Mid” or “High” the wind speed will change randomly among low wind speed, medium wind speed and high wind speed. - Natural mode: When you set the wind speed to “Low” the wind speed will switch automatically between medium wind speed and low wind speed with short time suspended. When you set the wind speed to “Mid” or “High” the wind speed will change randomly among low wind speed, medium wind speed and high wind speed with short time suspended. “Turn-off delay” function: This appliance is equipped with a “Turn-off delay” function. It works when the cooling function is off less than approx. 5 minutes before the appliance is turned off. For example: - If the appliance is turned off without the cooling function is off beforehand, the appliance will delay the shutdown and the fan inside the appliance will keep working for approx. 5 minutes to dry the machine. - If the appliance is turned off after the cooling function is off for approx. 2 minutes, the appliance will delay the shutdown and the fan inside the appliance will keep working for approx. 3 minutes to dry the machine. - If the appliance is turned off after the cooling function is off for approx. 6 minutes, the appliance will shut down immediately and no delay. NOTES:

1. It is recommended to change water and clean water tank frequently.

2. Activating the cooling function with insufficient water may cause malfunction of the water pump inside the

3. Do not take out the water tank immediately after the appliance is just turned off. Wait several minutes to

avoid the water dripping out from the cooling pad.

CLEANING AND MAINTENANCE

Unplug the appliance during filling and cleaning. Make sure there is no water on the control panel. ◼ Clean the air filter and cooling pad

1. Loosen and take off the screws on the air filter.

2. Pull the tab (A) to take off the air filter (B) and the cooling pad (C).

3. Use a neutral cleaner and a soft brush to clean the air filter and the cooling pad. Rinse with clear water

4. Put back the cooling pad and air filter in place after cleaning. If you will not use the appliance immediately

after cleaning, please dry them before putting back. Important: in order to avoid leak, the cooling pad must be installed smoothly.

Note: After long time operation, the cooling pad becomes clogged with dust and dirt, which will greatly affect the performance of the appliance. It is recommended to clean the cooling pad frequently. ◼ Clean the water tank (The water pump is fixed by screws in the water tank. Under normal operation, there is no need to detach it from the water tank.)

1. Pull out the water tank.

2. Clean the water tank with a soft cloth and a little mild detergent, then clean it with clear water.

3. Put back the water tank in place after cleaning.

Note: After some time of operation, the water tank may have dust and dirt. It is recommended to change water and clean the water tank frequently. ◼ Clean the main body

1. For slight dirt, wipe if off with a soft damp cloth. For greasy dirt, squeeze a little mild detergent on a soft

damp cloth, then wipe the dirt off.

2. Let the main body dry completely before next use.

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.- 9 - Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT DISPOSE OR IN FIRE OR SHORT CIRCUIT. Manufactured by: Emerio Deutschland GmbH Lerchenweg 3, 40789 Monheim am Rhein, Deutschland- 10 - ERP information (EN) Supplier: Emerio Deutschland GmbH Lerchenweg 3 40789 Monheim am Rhein Deutschland Declare that the product detailed below: Information requirements Information to identify the AC-125508.1 to which the information relates to [Air Cooler] Description Symbol Value Unit Maximum fan flow rate

Satisfies the requirement of the Council Directives: COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans
