USER MANUAL PLF215SL PROLINE

刘金利PLF215WH, PLF215SL

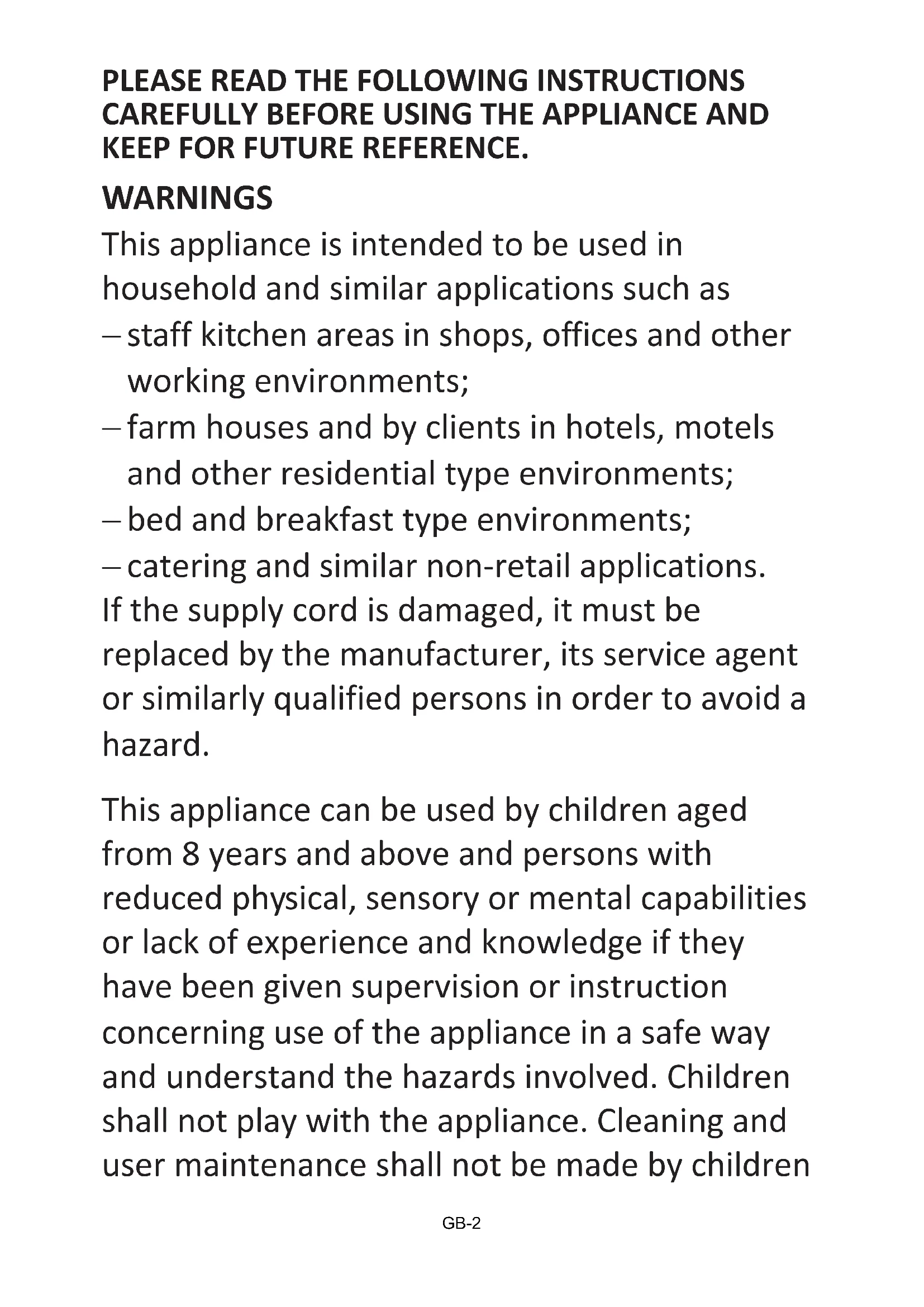

REPAIR AND SPARE PARTS SERVICE...........................................................................................................^^24 }_}4^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^25GB-2 WARNINGS This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This appliance can be used by children aged from 8 years and above and persons with reduced phy sical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children

KEEP FOR FUTURE REFERENCE.GB-3

without supervision. Regarding the details instructions for cleaning the surfaces in contact with food and splash area, refer to the section “Cleaning and Maintenance” in page GB-20. The appliance shall not be exposed to rain.

WARNING: Keep ventilation openings, in the

appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or

other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant

WARNING: Do not use electrical appliances

inside the food storage compartments of the appliance, unless they are of the typeGB-4 recommended by the manufacturer. Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance. CAUTION: The cooling system is under high pressure. Do not touch it. Cont+3ed maintenance services before disposal.

INSTALLATION: DO NOT INSTALL THIS

APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS. For disposal of the appliance: To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material

&^~2"2GB-5 For installaon, servicing: Appliance should be placed on a horizontal oor 22"&" contact the waste treatment center nearest your home for more details on the correct procedures for disposal. and keep the ven&la&on freely. Don’t try to replace or repair any components by yourself, ask the service agency for help if necessary. For handling: Always handle the appliance to avoid any damage.

WARNING: For making ice (ice cubes), use

potable water only. Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted.

WARNING: To avoid a hazard due to instability of

the appliance, it must 3xed in accordance with the inst&.Regarding the instructions for the method of fixing and the correct dimensions, refer to the section “INSTALLATION”. The plug must be remained easily accessible after installation of the appliance. GB-6GB-7

IMPORTANT SAFETY INSTRUCTIONS

xIf you are discarding an old fridge freezer with a lock / catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing. xUnplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance. xDo not insert oversized food as this could cause incorrect operation. xExtreme caution must be used when moving the appliance. xDo not give children ice-cream and water ices direct from the freezer compartment as the low temperature may cause ‘freezer burns’ on the lips.

Do not stand or support yourself on the base or door, etc.

AAB("$GH&'"#"$HA ()!)*

Dispose of your old appliance Fridge freezers contain refrigerant and gases in the insulation. Refrigerant and blowing gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

GB-8 Recommended food arrangement Refrigerator compartment (4°C) Cold air sinks so the bottom part is the coldest. Store your food in the optimal space to enjoy the fresh taste. Top section: Middle section: Bottom section: canned food, bread, cake… dairy products, readymade food, desserts… meat, meat products, delicatessen … Refrigerator door shelves (2°C ~ 8°C) Top section: eggs, butter, cheese… Middle section: beverages, cans, bottles… Bottom section: beverages, cans, bottles…

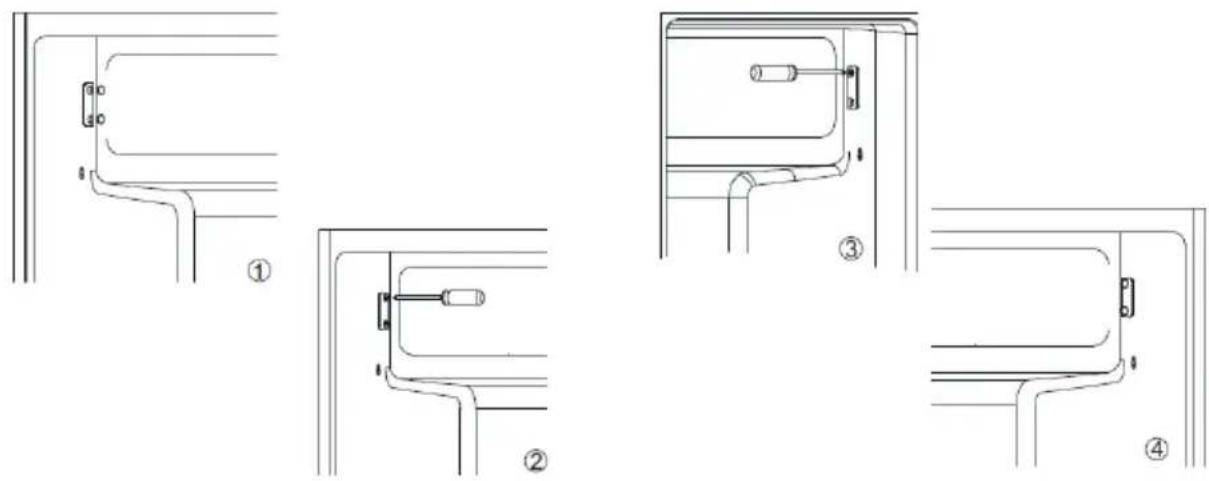

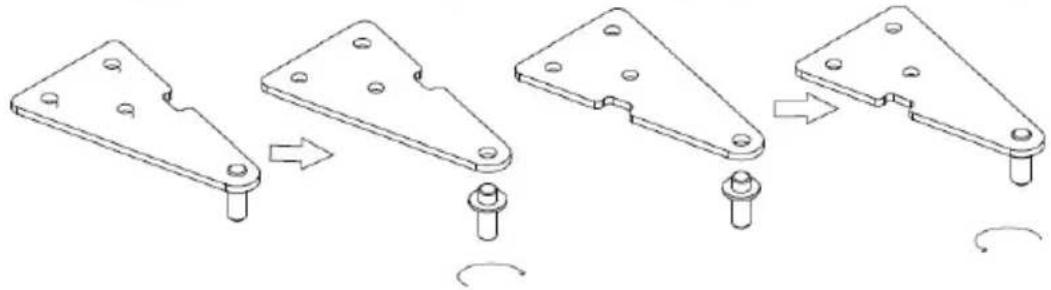

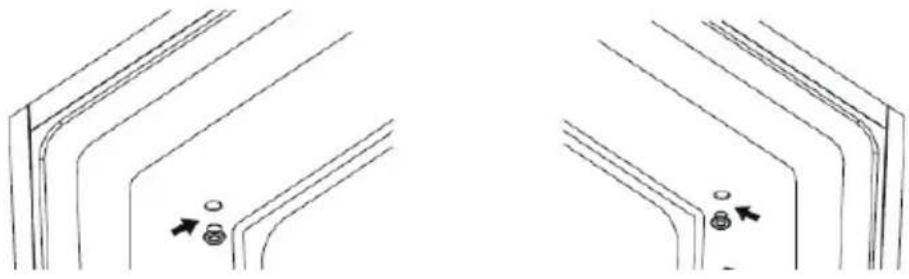

DOOR CONVERSION If you need to hinge the doors on the opposite sides it is recommended that you call your local authorised service agent to make this conversion or ask a technician. Before you reverse the doors, you should ensure the appliance is unplugged and empty. It is recommended to use a crosshead screwdriver and a spanner (both not supplied). . Li the door o0 the appliance and then place it on a padded surface to avoid scratching. 1.Frozen Compartment 2.Temperature control knob with light assembly 3.Glass shelf 4.Vegetable container cover 5.Vegetable container 6.Door shelvesGB-9

. Remove the hinge of freezer c ompartment door. @. Lift the freezer compartment door off the hinge pin and place the door on a soft pad to avoid scratching.

. Remove screw covers and unscrew the freezer compartment door holder. Then refit them to the opposite side. . Transfer and fit the hinge hole covers to the opposite side. . Secure the hinge on the opposite side. Reverse the freezer compartment door and set it on the hinge.9.

efore connecng your appliance to the power supply, check that the voltage stated on the rang label of your appliance corresponds to the voltage in your home. A dierent voltage could damage the appliance. The plug is the only way to unplug the appliance and should therefore be accessible at all mes. To turn o main power to the appliance, turn it o and then detach the plug from the outlet. The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding. INSTALLATION AMBIENT TEMPERATURE This appliance is designed to operate in ambient temperature between 16°C and 3°C. If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer compartment will rise above -18°C and food spoilage may occur.

BEFORE PLACING FOOD IN THE APPLIANCE

Remove all packaging. Allow the appliance to run empty for 2 – 3 hours so the com partments can cool to the appropriate temperature.

for less than 6,5 hours. Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.GB-12

MOVING YOUR APPLIANCE

If the appliance is turned o for any reason, wait for 10 minutes before turning it back on. This will allow the refrigerasystem pressures to equalise before restarng. Turn o the appliance and unplug it from the mains socket. Remove all food. Also remove all mobile parts (shelves, accessories, etc.) or x them into the appliance to avoid any shock. Relocate and install. If the appliance has been le on its side for any length of e, leave it standing upright for at least 10 minutes before turning on. Your appliance uses isobutane (R600a) as a refrigerant. Although R600a is an environmentally friendly and natural gas, it is explosive. Therefore you should be careful during shipment and installaon to prevent your appliance’s cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your appliance from open e or heat sources and venlate the room where the appliance is located for a few minutes.

COMPARTMENT Using the freezer compartment To store deep-frozen food To make ice cubes Note: Ensure that the freezer compartment door has been closed properly. Purchasing frozen food Packaging must not be damaged. Use by the ‘use by /best before/best by/’ date. If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer drawers. Storing frozen food Store at -18°C or colder. Avoid opening the freezer compartment door unnecessarily. GB-13Packing frozen food To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.

4. Label packaging with contents and dates of freezing.

Suitable packaging: Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers. These products are available from specialist outlets. Recommended storage times of frozen food in the freezer compartment These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C). GB-14Food Storage time Bacon, casseroles, milk 1 month Bread, ice cream, sausages, pies, prepared shellfish, oily fish 2 months Non-oily fish, shellfish, pizza, scones and muffins 3 months Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw) 6 months Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes 12 months Never forget: x Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen. x Once defrosted, food should be consumed quickly.

Fill the ice cube tray (not supplied) with ¾ full of drinking water and place in the freezer compartment. If the ice cube tray is stuck to the freezer compartment, loosen with a blunt tool only. To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water. GB-15STORIN

G FOOD IN THE FRIDGE COMPARTMENT

The appl iance hel ps to extend the storage times of fresh perishabl e foods. Fresh food care For best results: x Store foods that are very fresh and of good quality. x Ensure that food is well wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing taste and will help maintain freshness. It will also prevent odour transfer. x Make sure that strong smelling foods are wrapped or covered and stored away from foods such as butter, milk and cream which can be tainted by strong odours. x Cool hot foods down before placing them in the refrigerator compartment. Dairy foods and eggs x Most pre-packed dairy foods have a recommended ‘use by /best before/best by/’ date stamped on them. Store them in the refrigerator compartment and use within the recommended time. x Butter can become tainted by strong smelling foods so it is best stored in a sealed container. x Eggs can be stored in the refrigerator compartment. Red meat x Place fresh red meat on a plate and loosely cover with waxed paper, plastic wrap or foil. GB-16x Store cooked and raw meat on separate plates. This will prevent any juice lost from the raw meat from contaminating the cooked product. Poultry x Fresh whole birds should be rinsed inside and out with cold running water, dried and placed on a plate. Cover loosely with plastic wrap or foil. x Poultry pieces should also be stored this way. Whole poultry should never be stuffed until just before cooking, otherwise food poisoning may result. x Cool and refrigerate cooked poultry quickly. Remove stuffing from poultry and store separately. Fish and seafood x Whole fish and fillets should be used on the day of purchase. Until required, refrigerate on a plate loosely covered with plastic wrap, waxed paper or foil. x If storing overnight or longer, take particular care to select very fresh fish. Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry with paper towels. Place whole fish or fillets in a sealed plastic bag. x Keep shellfish chilled at all times. Use within 1 – 2 days. GB-17Precooked foods and leftovers x These should be stored in suitable covered containers so that the food will not dry out. x Keep for only 1 – 2 days. x Reheat leftovers only once and until steaming hot. Vegetable and fresh fruit x The vegetable container is the optimum storage location for fresh fruit and vegetables. x Take care not to store the following at temperatures of less than 7°C for long periods: Citrus fruit, melons, aubergines, pineapple, papaya, courgettes, passion fruit, cucumber, peppers, tomatoes x Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying. x Do not refrigerate avocados (until they are ripe), bananas, and mangoes. DEFROSTING The fridge compartment defrosting process is carried out automatically every time the compressor stops. The defrost water is automatically routed to the drain port and into a tray placed on the top of the compressor to the rear of the appliance from which it evaporates. GB-18GB-19 Make sure the drain port on the fridg e at the rear of the appliance is kept clear. Freezer compartment defrosting The freezer compartment will need defrosting periodically or when the frost is more than 3mm thick. Do not scrape off hoarfrost or ic e with a knife or pointed object. Doing this may damage the refrigerant tubes. 1.Remove the frozen food and place temporarily in a cool location. 2.Set the temperature control knob to the 0 position and disconnect the mains plug from the mains socket. 3.Wipe up condensation with a cloth or sponge. 4.Wipe dry the freezer compartment. 5.Plug in the appliance and adjust the temperature control knob as desired.

TIPS FOR SAVING ENERGY

For the most energy efficient use of your appliance: xEnsure your appliance has adequate ventilation as recommended in the installation instructions. xAllow warm food and drinks to cool down before placing in the appliance. xThaw frozen food in the fridge compartment and use the low temperature of the frozen food to cool refrigerated food. xKeep door openings to a minimum. xOpen the appliance as briefly as possible. xEnsure that the doors are always closed properly. OPERA TING NOISE

Normal noises xMotors are running. xRefrigerant is flowing through the tubing.GB-20

CLEANING AND MAINTENANCE

Do not use abrasive cleaning agents or solvents. 1.Unplug the appliance from the mains socket. 2.Take out the food and store in a cool location. 3.Clean the appliance with a soft cloth, warm water and detergent. 4.Wipe the door seal with clear water only and then wipe dry thoroughly. 5.After cleaning, reconnect and adjust the temperature as desired. 6.Put the food back into the appliance. The LED lights in the fridge cannot be replaced by the user. If the LED lights stop working, please contact the local authorised service agent.TROUBLESHOOTING If there is a problem with your appliance, please check the following points before contacting customer service. Problem Possible causes Possible solution Appliance does not operate. No electricity at power outlet. Check that the plug is correctly connected and power switched on. Appliance is noisy. Cabinet not stable or level. See “Installation” section. Appliance not cool Temperature setting not correct. Frequent door openings. Large amount of food recently added. See “Temperatures Control” section. Minimise door openings to allow temperatures to stabilise. 3kg 6,5 SPECIFICATIONS Electric shock protection class I Rated voltage and frequency 220-240V~ 50Hz Rated current 0.75A Rated power input 10W Maximum lamp power 1,5W Refrigerant/Amount R600a/ 29 g GB-21 Replaceable (LED only) light source by a professional This product contains a light source of energy efficiency class G.GB-22 Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances Supplier’s name or trade mark: Etablissements Darty & fils © | Proline Supplier’s address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France Model identifier: PLF215WH PLF215SL Type of refrigerating appliance: Low-noise appliance: no Design type: freestanding Wine storage appliance: no Other refrigerating appliance: yes General product parameters: Parameter Value Parameter Value Overall dimensions (millimeter) Height

Annual energy consumption (kWh/a) 178 Climate class: temperate/ subtropical Minimum ambient temperature (°C), for which the refrigerating appliance is suitable

Maximum ambient temperature (°C), for which the refrigerating appliance is suitable

Winter setting no Compartment Parameters: Compartment type Compartment parameters and values Compartment Volume (dm

or l) Recommended temperature setting for optimised food storage (°C) Freezing capacity (kg/24 h) Defrosting type (auto-defrost = A, manual defrost = M) Pantry no — — — — Wine storage no — — — — Cellar no — — — — Fresh food yes 176,0 4 — M Chill no — — — —Climate class: – Temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’. – Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’. GB-23 This refrigerating appliance is not intended to be used as a built-in appliance. This refrigerating appliance is not suitable for freezing foodstuffs. To find the model information in the product database : Click the link https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/814722 https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/814740 0-star or ice-making no — — — — 1-star no — — — — 2-star no — — — — 3-star no — — — — 4-star yes 14,0 -18 2,0 M 2-star section no — — — — Variable temperature compartment

For 4-star compartments Fast freeze facility no For wine storage appliances Number of standard wine bottles — Light source parameters (

Type of light source LED Energy efficiency class G Minimum duration of the guarantee offered by the manufacturer : 24 months Additional information: Weblink to the supplier’s website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found : www.darty.com

) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015.REPAIR AND SPARE PARTS SERVICE Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury. To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service. Spare parts for your appliances will be delivered within 15 working days after having received the order. Please Note ! All appliances have a 2-year warranty. Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair. Contact us at : www.darty.com

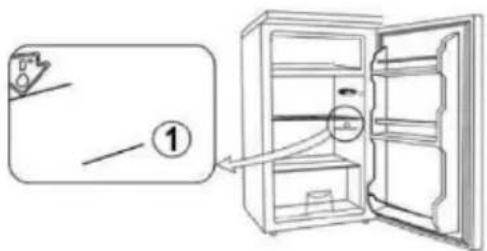

8 AM – 6 PM Mon to Sat Slesbroekstraat 101 1600 Sint-Pieters-Leeuw Belgium GB-24Etablissements Darty & fils ©, 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France 18/03/2022 GB-25THE COLDEST PART OF THE REFRIGERATOR The symbol indicates the location of the coldest part of your refrigerator. This area is in between the vegetable compartment at the bottom and the symbol at the top, or the shelf at the same height. In order to maintain the temperature in this area, make sure not to change the position of this shelf. In pulsed air refrigerators (equipped with a fan) or No Frost models, the coldest area symbol is not shown because the temperature is uniform throughout the interior. INSTALLING THE TEMPERATURE INDICATOR To help you adjust your refrigerator correctly, it is equipped with a temperature indicator that you can use to control the average temperature in the coldest area. WARNING: This indicator is only intended for use in your refrigerator. Do not use it in another refrigerator (as the coldest area will not be the same) or for any other purpose. TEMPERATURE INDICATOR: THE COLDEST PART OF YOUR REFRIGERATOR CHECKING THE TEMPERATURE IN THE COLDEST AREA

• Using the temperature indicator, you should regularly check that the temperature is correct in the coldest part of your refrigerator. The temperature inside your refrigerator depends on a number of factors, such as the outside room temperature, how full your refrigerator is, and how often you open the door. Take these factors into consideration when adjusting your appliance. When the indicator shows "OK", it means your thermostat is set properly and the temperature inside your refrigerator is correct. If the indicator is white it means the temperature is too high, so you should increase the thermostat and wait for 12 hours before checking the indicator again. After loading the refrigerator or opening the door, the indicator may turn white for a few seconds.

Correct setting Temperature too high – adjust the thermostat GB-26NL
