UFZ167 - Freezer PROLINE - Free user manual and instructions

Product Type	Freezer
Brand	Proline
Model	UFZ167
Total Volume	168 L
Dimensions (H x W x D)	1426 x 544 x 571 mm
Net Weight	43 kg
Power Supply	220-240 V ~ 50 Hz, 0.7 A, 100 W
Energy Class	F
Annual Consumption	238 kWh/year
Refrigerant	R600a (60 g)
Storage Autonomy	16.5 hours
Freezing Capacity	7.8 kg/24 h
Defrosting	Manual
Climate Class	Temperate/Subtropical (16 °C to 38 °C)
Number of Drawers	3
Door Reversibility	Yes (procedure described in the manual)
Warranty	2 years
Spare Parts	Available via FNAC DARTY after-sales service (delivery within 15 working days)
Cleaning and Maintenance	Clean with a soft cloth and warm soapy water. Do not use abrasive products.
Safety	Do not use mechanical tools for defrosting, do not damage the refrigeration circuit. Keep out of reach of children.

Frequently Asked Questions - UFZ167 PROLINE

How to adjust the freezer temperature?

Use the thermostat adjustment button located inside. Turn it from MIN (cold) to MAX (coldest). For first use, set to MAX for 2 hours before adding food.

What to do in case of power outage?

Do not open the door. Frozen food will stay frozen for up to 16.5 hours. If the outage lasts longer, do not refreeze thawed food.

How to defrost the freezer?

Set thermostat to MIN (off), unplug, remove food. Place a pot of hot water inside to speed up. Wipe away condensation water. Replug and set temperature.

How to reverse the door opening direction?

Unplug the appliance. Remove the upper and lower hinges, remove adjustable feet, invert the lower hinge bracket. Reassemble everything checking alignment. Refer to the manual for details.

What foods can be frozen?

Cakes, fish, meat, blanched vegetables, fruits, cooked dishes. Do not freeze: lettuce, eggs in shell, yogurts, mayonnaise.

How to clean the inside?

Unplug, remove food. Wash with a soft cloth dampened with warm water and mild detergent. Wipe thoroughly. Clean the door seal with clean water.

Is it normal for the appliance to make noise?

Yes, sounds from the running motor and circulating refrigerant are normal. If the appliance is unstable, check that it is level.

How to make ice cubes?

Fill an ice tray 3/4 full with drinking water and place it in the freezer. To release, twist the tray or run under warm water.

What are the exact dimensions of the appliance?

Height 1426 mm, width 544 mm, depth 571 mm.

What to do if the appliance does not cool?

Check that the plug is powered and the thermostat is set correctly. Ensure the door is closed properly and ventilation openings are clear.

USER MANUAL UFZ167 PROLINE

Exterior view of a modern kitchen appliance with white panels and appliances in the background (no visible text or symbols)

MANUEL D'UTILISATION HANDLEIDING

TABLE DES MATIÈRES

ATTENTION....p. 02

MISES EN GARDE IMPORTANTES......p. 05

Emballages possibles:

Simple line drawing of a tool with a handle and arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing no text or symbols

Mechanical diagram showing a tool interacting with a bracket (no text or symbols visible)

FR

NL

EN

Simple line drawing of a folded corner with a dashed arc indicating a curved edge (no text or symbols)

Line drawing of a car with a circular inset showing two people near the vehicle (no text or symbols)

Pure technical line drawing of a mechanical assembly (no text or symbols)

Simple line drawing of a rectangular object with two downward arrows indicating orientation or alignment (no text or symbols)

Abstract geometric diagram with overlapping squares and arrows, no text or symbols present

CONSEILS D'ÉCONOMIE D'ÉNERGIE

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/978048

SERVICE DE RÉPARATION ET PIÈCES DE RECHANGE

NORMAL MIN MAX

MIN is de koude stand

NORMAL is de kouder stand

MAX is de koudste stand

UW APPARAAT VERPLAATSEN

Simple line drawing of a tool with a handle and arrow indicating direction (no text or symbols)

Line drawing of a screwdriver inserted into a component, with no visible text or symbols

Mechanical diagram showing a tool interacting with a bracket (no text or symbols visible)

Simple line drawing of a 3D rectangular block with a curved dashed line and marked points (no text or symbols)

Line drawing of a vehicle with a circular inset showing a mechanical component (no text or symbols)

Mechanical assembly diagram showing a tool interacting with a bracket (no text or symbols visible)

Simple line drawing of a folded paper or panel with two arrows pointing to the edges (no text or symbols)

Simple line drawing of a rectangular frame with curved arrows indicating rotation or movement (no text or symbols)

TIPS OM ENERGIE TE BESPAREN

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/978048

SERVICE VOOR REPARATIES EN RESERVEONDERDELEN

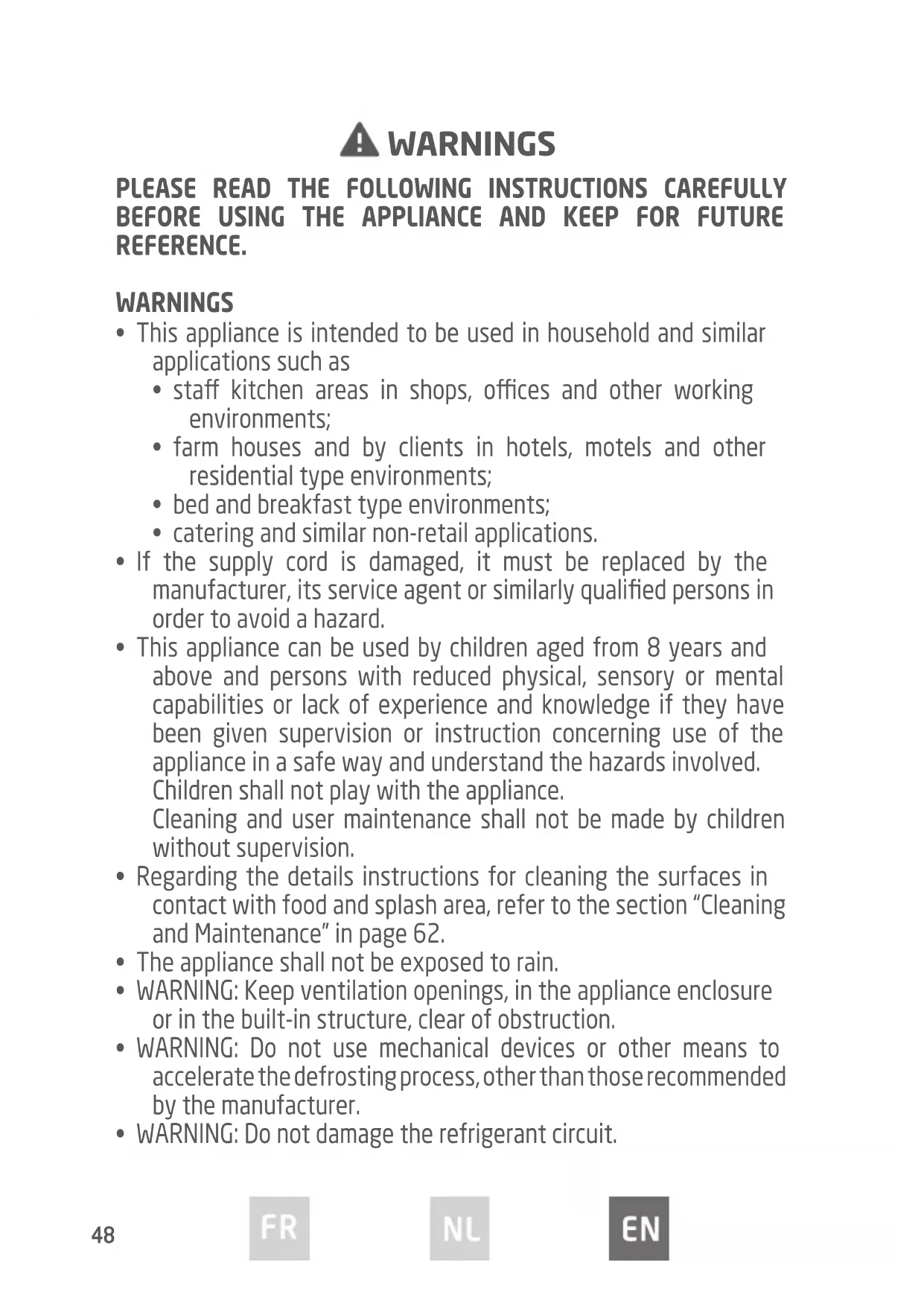

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

WARNINGS

- This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
  • catering and similar non-retail applications.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• Regarding the details instructions for cleaning the surfaces in contact with food and splash area, refer to the section "Cleaning and Maintenance" in page 62.
• The appliance shall not be exposed to rain.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• WARNING: Do not damage the refrigerant circuit.

• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• WARNING: For making ice (ice cubes), use potable water only.
• CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualified maintenance services before disposal.
• INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS.
• Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted.
  • For disposal of the appliance:

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should only be done through public collection points; contact the waste treatment centre nearest your home for more details on the correct procedures for disposal.

- For installation, servicing:

Appliance should be placed on a horizontal surface and keep the ventilation freely. Don't try to replace or repair any components by yourself, ask the service agency for help if necessary.

- For handling:

Always handle the appliance to avoid any damage.

WARNING; Risk of fire / flammable materials.

• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
- To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

IMPORTANT SAFETY INSTRUCTIONS

• If you are discarding an old freezer with a lock / catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.
• Unplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance.
• Do not insert oversized food as this could cause incorrect operation.
• Extreme caution must be used when moving the appliance.
• Do not give children ice-cream and water ices direct from the freezer as the low temperature may cause 'freezer burns' on the lips.
• Do not use pointed or sharp-edged tools to remove frost or layers or ice. Use a plastic scraper.
• Do not stand or support yourself on the base or doors, etc.
• Effervescent drinks should not be stored in the freezer.

Dispose of your old appliance

Freezers contain refrigerant and gases in the insulation.

Refrigerant and blowing gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

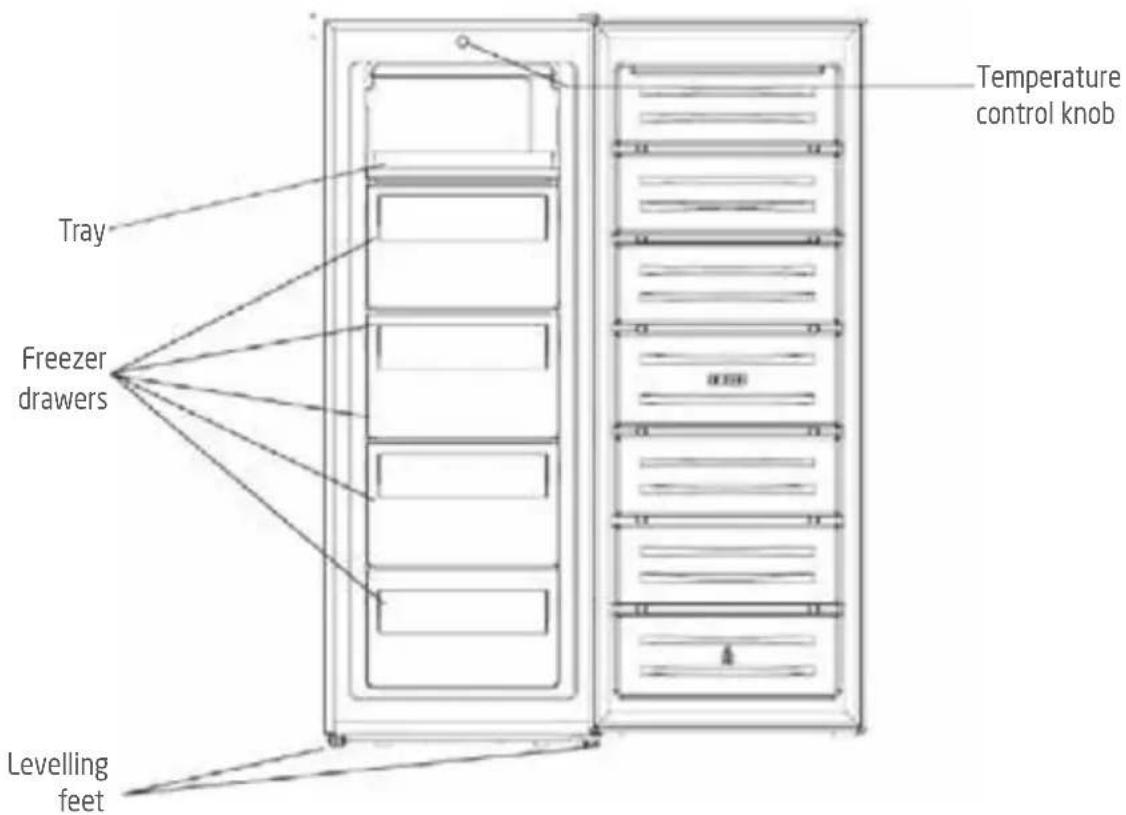

NAMES OF PARTS

Tray Freezer drawers Levelling feet Temperature control knob

Recommended food arrangement

Freezer compartment (-18°C)

Top / middle drawers:	Cakes and pastriesDairy products such as cheese and butter
Bottom drawer :	Cooked meat and fish

BEFORE INSTALLING THE FREEZER

Before connecting your freezer to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home.

Ensure that the plug remains accessible after installation.

The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

INSTALLATION

Install the appliance in a dry, well-ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc.

To ensure adequate ventilation for the appliance, allow a minimum of 10 cm of airspace on each side of the cabinet.

For uneven surfaces, front feet can be aligned.

AMBIENT TEMPERATUE

This appliance is designed to operate in ambient temperature between 16^ C and 38^ C. If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer will rise above -18^ C and food spoilage may occur.

• Remove all packaging.
• Allow the appliance to run empty for 2 - 3 hours so the compartment can cool to the appropriate temperature.
• Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust.

POWER FAILURE

If there is a power failure, do not open the door. Frozen food should not be affected if the power failure lasts for less than 16.5 hours.

Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

TEMPERATURE CONTROL

The freezer is controlled with a temperature control knob located at the back of the appliance.

Adjust the control knob as desired to suit your individual preference.

MIN is cold setting

NORMAL is colder setting

MAX is coldest setting

The running time and temperature are affected by where the freezer is located, how often the door is opened and the temperature of the room the freezer is located in.

When you use the appliance for the first time or after defrosting, adjust the control knob to the coldest setting for at least 2 hours before introducing food to be stored, and then readjust to the middle setting.

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

• Turn off the appliance and unplug it from the mains socket. Remove all food.
• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.
  Your appliance uses isobutane (R600a) as a refrigerant. Although R600a is an environmentally friendly and natural gas, it is explosive. Therefore you should be careful during shipment and installation to prevent your appliance's cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your freezer from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

FREEZING AND STORING FOOD

• To store deep - frozen food.
- To make ice cubes.
- To freeze food.

Note: Ensure that the freezer compartment door has been closed properly.

Purchasing frozen food

• Packaging must not be damaged.
• Use by the 'use by/ best before/ best by/ date.
• If possible, transport deep - frozen food in an insulated bag and place quickly in the freezer.

Storing frozen food

Store at - 18°C or colder. Avoid opening the freezer door unnecessarily.

Freezing fresh food

Freeze fresh and undamaged food only.

To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing.

Aubergines, peppers, zucchini and asparagus do not require blanching.

Note: Keep food to be frozen away from food which is already frozen.

• The following foods are suitable for freezing:
  Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts.
• The following foods are not suitable for freezing:
  Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food

To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing.

Suitable packaging:

Plastic film, tubular film made of polyethylene, aluminium foil. These products are available from specialist outlets.

Recommended storage times of frozen food in the freezer

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

Food Storage time
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shell fish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Never forget:

• When you freeze fresh foods whit a 'use by /best before/best by/' date, you must freeze them before the expiry of this date.
• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.
• Once defrosted, food should be consumed quickly.

MAKING ICE CUBES

Fill the ice cube tray (not supplied) with 3/4 full of drinking water and place in the freezer. If the ice cube tray is stuck to the compartment, loosen with a blunt tool only.

To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water.

DEFROSTING

The freezer does not defrost automatically, otherwise the frozen food would start thawing.

A layer of frost in the compartment impairs refrigeration of the frozen food and increases power consumption. Remove the layer of hoarfrost regularly.

Do not scrape off hoarfrost or ice with a knife or pointed object. Doing this may damage the refrigerant tubes.

1. Remove the frozen food and place temporarily in a cool location.
2. Set the temperature control knob to the off position (MIN) and disconnect the mains plug from the mains socket.
3. To accelerate the defrosting process, place a pan of hot water on a stand in the freezer.
4. Wipe up condensation with a cloth or sponge.
5. Wipe dry the compartment.
6. Plug in the appliance and adjust the temperature control knob as desired.
7. Put the frozen food back in the freezer.

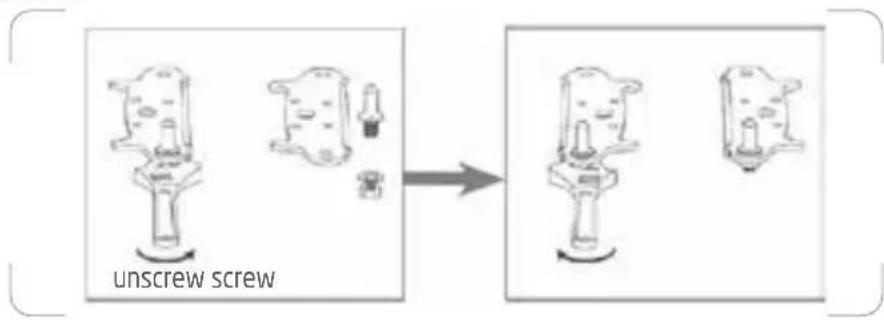

DOOR CONVERSION

If you need to hinge your door on the opposite side it is recommended that you call your local authorised service agent to make this conversion or ask a technician.

Before you reverse the door, you should ensure the appliance is unplugged and empty. It is recommended to use a crosshead screwdriver and a spanner (both not supplied).

1. Remove the upper hinge cover.

Simple line drawing of a tool with a handle and arrow indicating direction (no text or symbols)

1. Remove the screws that fix the upper hinge. Remove the upper hinge.

Line drawing of a mechanical assembly with a tool and component (no text or symbols)

1. Remove the top left screw cover.

Simple line drawing of a mechanical lever with a fulcrum and lever handle (no text or symbols)

1. Move the core cover from left side to right side. And then lift the upper door and place it on a padded surface to prevent it from scratching.

Simple line drawing of a 3D rectangular block with a curved dashed line and corner markers (no text or symbols)

1. Unscrew bottom hinge. Then remove the adjustable feet from both sides.
2. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

unscrew screw

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.

Line drawing of a car with a circular inset showing a person climbing a rope (no text or symbols)

1. Re-fit the upper hinge while refitting the upper door. Do not fully tighten the screws.

Line drawing of a mechanical assembly with a tool inserted, no text or symbols present

1. Check the door is aligned horizontally and vertically and that all seals make good contact with the cavity all the way around the cavity opening before finally tightening the hinges. Re-fit the hinge cover and screw cover. Re-adjust the levelling feet, if necessary.

Simple line drawing of a folded paper or panel with two arrows indicating direction (no text or symbols)

1. Detach the door gasket and then attach it after rotating.

Simple line drawing of a square frame with arrows indicating rotation or direction (no text or symbols)

TIPS FOR SAVING ENERGY

For the most energy efficient use of your appliance:

1. Ensure your freezer has adequate ventilation as recommended in the installation instructions.
2. Allow warm food and drinks to cool down before placing in the appliance.
3. Keep door openings to a minimum.
4. Open the appliance as briefly as possible.
5. Regularly defrost the freezer compartment to remove the layer of frost.
6. Ensure that the freezer door is always closed properly.

OPERATING NOISES

Normal noises

• Motors are running.
  • Refrigerant is flowing through the tubing.

CLEANING AND MAINTENANCE

Do not use abrasive cleaning agents or solvents.

1. Set the temperature control knob to the off position (MIN) and disconnect the mains plug from the mains socket.
2. Take out the food and store in a cool location.
3. Clean the appliance with a soft cloth, warm water and detergent.
4. Wipe the door seal with clear water only and then wipe dry thoroughly.
5. After cleaning reconnect and adjust the temperature control knob as desired.
6. Put the food back into the appliance.

Cleaning tips

• Remove the tray and drawers from the appliance. Wash them in warm soapy water with a soft sponge. Rinse and dry thoroughly.
• Wipe the interior parts (including door switch and temperature control knob) with a damp cloth soaked in a mixture of warm water and dishwashing liquid. For stubborn stains, use baking soda.
• Wipe down the doors, including edges, with a microfiber cloth dampened with a mild dishwashing liquid and water. Use a wet sponge and soft brush (such as toothbrush) to remove any stuck-on food.

TROUBLESHOOTING

If there is a problem with your appliance, please check the following points before contacting customer service.

Problem Possible causes Possible solution
Appliance does not operate.	No electricity at power outlet.	Check that the plug is correctly connected and power switched on.
Noises	Cabinet not stable or level.Freezer is defrosting.	See installation section.
Appliance not cool	Temperature setting not correct.Frequent door openings.Large amount of food recently added.	See temperature control section.Minimise door openings to allow temperatures to stabilise.

SPECIFICATIONS

Electric shock protection class	I
Rated voltage and frequency	220-240V~ 50Hz
Input power	100W
Refrigerant/Amount	R600a / 60g
Rated current	0,7A
Net weight	43kg
Insulation blowing gas	Cyclopentane
Power failure safe storage time	16,5 hours

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances
Supplier's name or trade mark: Etablissements Darty & fils © | Proline
Supplier's address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France
Model identifier: UFZ167
Type of refrigerating appliance:

Low-noise appliance:	no	Design type:	freestanding
Wine storage appliance:	no	Other refrigerating appliance:	yes

General product parameters:

Parameter Value Parameter Value
Overall dimensions (millimeter)	Height 1426		Total volume (dm3 or l)	168
	Width 544
	Depth 571
EEI		125	Energy efficiency class	F
Airborne acoustical noise emissions (dB(A) re 1 pW)		40	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		238	Climate class:	temperate/subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting		no

Compartment Parameters:

Compartment type		Compartment parameters and values
		Compartment Volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C)	Freezing capacity (kg/24 h)	Defrosting type (auto-defrost = A, manual defrost = M)
Pantry	no — —
Wine storage	no — —
Cellar	no — —
Fresh food	no — —
Chill	no — —
0-star or ice-making	no — —
1-star	no — —
2-star	no — —
3-star	no — —
4-star	yes 168 -18 7,8 M
2-star section	no — —
Variable temperature compartment	no — —
For 4-star compartments
Fast freeze facility no
For wine storage appliances
Number of standard wine bottles –
Light source parameters (a):
Type of light source –
Energy efficiency class –
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found : www.darty.com

(a) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015.

Climate class:

• Temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C'.
• Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’.

This refrigerating appliance is not intended to be used as a built-in appliance.

Click the link

https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/978048

REPAIR AND SPARE PARTS SERVICE

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at :

DARTY

Vanden Borre

in alle vertrouwen

www.darty.com

0978 970 970

24 Hours

7 Days a week

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations.

Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

EU Declaration of Conformity

Product Description:

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN 55014-1:2017+A11:2020

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

LVD :

EN 60335-1:2012+A11:2014+A13:2017+A14:2019+A1:2019+A2:2019

EN 60335-2-24:2010+A1:2019+A2:2019+A11:2020

EN 62233:2008

ErP :

(EU) 2019/2016

(EU) 2019/2019

(EU) 2021/340

(EU)2021/341

EN 62552-1:2020

EN 62552-2:2020

EN 62552-3:2020

EN 60704-1:2010+A11:2012

EN 60704-2-14:2013+A11:2015+A1:2019

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :

Ivry-sur-Seine, mars 18, 2022

ASSURANCE SERVICE QUALITY FNAC DARTY

PROLINE

Etablissements Darty & Fils @, 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France
