USER MANUAL BFZ36 PROLINE

(cru), poulet entier, agneau (cru), cake

KEEP FOR FUTURE REFERENCE. WARNINGS Q"*""!!+?&!"Q+&Q+!"!- *+"&*Q; <HH*Q""Q+>+HH*"!+Q+"4 "=+"-"J; <H-Q+&"!?Z*""Q+>-+"!+Q !"Z"=+"-"J; <?!"!?HZ"=+"-"J; <*"4"!-"+"<*+" If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Regarding the details instructions for cleaning the surfaces in contact with food and splash area, refer to the section “Cleaning and Maintenance” in page GB-13. The appliance shall not be exposed to rain. GB-2recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food

storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING: For making ice (ice cubes), use potable water only.

CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualified maintenance services before disposal. INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS. Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted.

WARNING: Keep ventilation openings, in the appliance

enclosure or in the built-in str ucture, clear of obstruction.

WARNING: Do not use mechanical devices or other means to

accelerate the defrosting process, other than those GB-3For disposal of the appliance: +="+?Q-+Q"=+"-"+Q&-"QQ H+-&"*+"+!!+>*Z*Q"* +"?Z++-+Q&"?&+H- +&*>QH4""!QH--?"&+" ?+"44Q!+Q+&!+"Z?!+"Q+&4Q &?**+*+"+"J*+"*Q-"*" "Z+&Q+-H+-+!+"Q*+*+*!& H+!+ For installation, servicing: Appliance should be placed on a horizontal floor and keep the ventilation freely. Don’t try to replace or repair any components by yourself , ask the service agency for help if necessary. For handling: Always handle the appliance to avoid any damage. GB-4x If you are discarding an old freezer with a lock / catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing. x Unplug the appliance from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance. x Do not insert oversized food as this could cause incorrect operation. x Extreme caution must be used when moving the appliance. x Do not give children ice-cream and water ices direct from the freezer as the low temperature may cause ‘freezer burns’ on the lips. x Do not use pointed or sharp-edged tools to remove frost or layers or ice. Use a plastic scraper. x Do not stand or support yourself on the base or doors, etc.

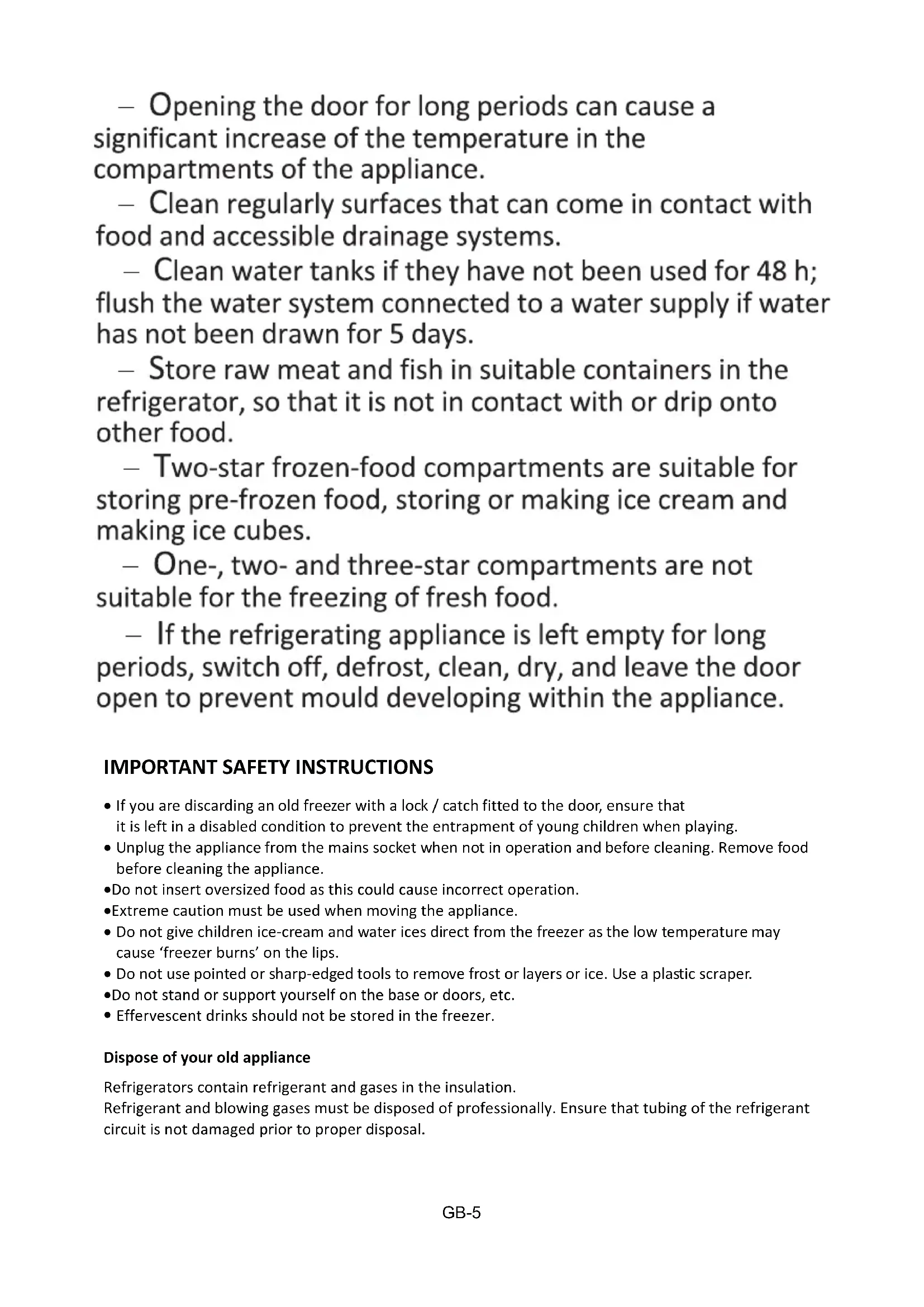

Dispose of your old appliance Refrigerators contain refrigerant and gases in the insulation. Refrigerant and blowing gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

Before connecting your to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. Ensure that the plug remains accessible after installation. The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding. Freezer compartment (-18°C ~ -22°C) Freezing, storage of frozen foodINSTALLATION Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc. To ensure adequate ventilation for the appliance, allow a minimum of 10 cm of airspace on each side of the cabinet. For uneven surfaces, front feet can be aligned. AMBIENT TEMPERATURE This appliance is designed to operate in ambient temperature between 16°C and 3 °C. If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer will rise above -18ć and food spoilage may occur. x Remove all packaging. x Allow the appliance to run empty for 2 – 3 hours so the compartment can cool to the appropriate temperature. x Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust.

If there is a power failure, do not open the door. Frozen food should not be affected if the power failure lasts for less than 7.5 hours. Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat. TEMPERATURE CONTROL The freezer is controlled with a temperature control knob located at the back of the appliance. Adjust the control knob as desired to suit your individual preference. is *+! setting is *+! setting is coldest setting The running time and temperature are affected by where the freezer is located, how often the door is opened and the temperature of the room the freezer is located in. When you use the appliance for the first time or after defrosting, adjust the control knob to the coldest setting for at least 2 hours before introducing food to be stored, and then readjust to the middle setting.

MOVING YOUR APPLIANCE

If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting. x Turn off the appliance and unplug it from the mains socket. Remove all food. x Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on.Your appliance uses isobutane (R600a) as a refrigerant. Although R600a is an environmentally friendly and natural gas, it is explosive. Therefore you should be careful during shipment and installation to prevent your appliance’s cooler elements from being damaged. In the event of a leak caused by damage to the cooler elements, move your freezer from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

FREEZING AND STORING FOOD

z To store deepϋfrozen food. z To make ice cubes. z To freeze food. GB-8Note: Ensure that the freezer compartment door has been closed properly. Purchasing frozen food z Packaging must not be damaged. z Use by the ‘use by /best before/best by/ date. z If possible, transport deepϋfrozen food in an insulated bag and place quickly in the freezer. Storing frozen food Store at ϋ18°C or colder. Avoid opening the freezer door unnecessaril

Freezing fresh food Freeze fresh and undamage d food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching. Note: Keep food to be frozen away from food which is already frozen. z The following foods are suitable for freezing: Cakes and pastries, fi sh and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fis

potato dishes, soufflés and desserts. z The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hardϋboiled eggs, yoghurt, soured milk, sour cream, and mayonnaise. GB-9Packing frozen food To prevent food from losing its flavour or drying out, place food in airtight packaging.

d date s of freezi ng. Suitable packaging: Plastic film, tubular film made of polyethylene, aluminium foil. These products are available from specialist outlets. Food Storage time Bacon, casseroles, milk 1 month Bread, ice cream, sausages, pies, prepared shellfish, oily fish 2 months Non-oily fish, shellfish, pizza, scones and muffins 3 months Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, mi nced meat (raw), pork (raw) 6 months 12 months Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes Never forget: Recommended storage times of frozen food in the freezer These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C). x When you freeze fresh foods whit a ‘use by /best before/ best by/’ date, you must freeze them before the expiry of this date. x Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen. GB-10x Once defrosted, food should be consumed quickly.

Fill the ice cube tray (not supplied) with ¾ full of drinking water and place in the freezer. If the ice cube tray is stuck to the compartment, loosen with a blunt tool only. To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water. DEFROSTING The freezer does not defrost automatically, otherwise the frozen food would start thawing. A layer of frost in the compartment impairs refrigeration of the frozen food and increases power consumption. Remove the layer of hoarfrost regularly. Do not scrape off hoarfrost or ice with a knife or pointed object. Doing this may damage the refrigerant tubes.

1. Remove the frozen food and place temporarily in a cool location.

2. Set the temperature control knob to the off position () and disconnect the mains plug from the mains

3. To accelerate the defrosting process, place a pan of hot water on a stand in the freezer.

4. Wipe up condensation with a cloth or sponge.

5. Wipe dry the compartment.

6. Plug in the appliance and adjust the temperature control knob as desired.

7. Put the frozen food back in the freezer.

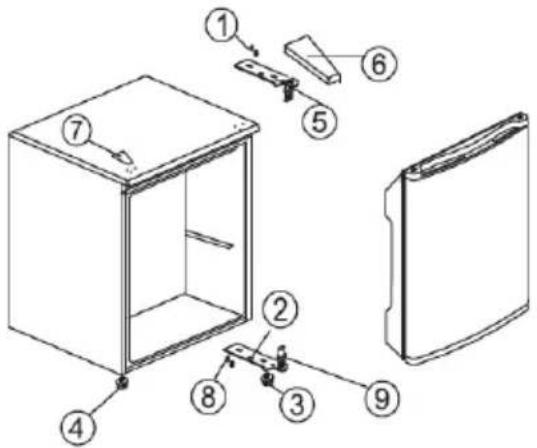

GB-11DOOR CONVERSION

If you need to hinge your door on the opposite side it is recommended that you call your local authorised service agent to make this conversion or ask a technician. Before you reverse the door, you should ensure the appliance is unplugged and empty. It is recommended to use a crosshead screwdriver and a spanner (both not supplied).

1. Remove the upper hinge cover (6).

2. Remove the screws (1) that hold the upper hinge (5) (right side) to the frame. Remove the upper

3. Lift the door off the appliance and place it on a padded surface to prevent it from being scratched.

4. Remove the screws (8) that hold the lower hinge (2) and remove the lower hinge.

5. Remove the left front foot (4) and transfer it to the right side.

6. Before fitting the lower hinge (2), remove the hinge pin (9) and then reverse the direction of the lower

7. Fit the lower hinge on the left side of the lower frame with screws (8).

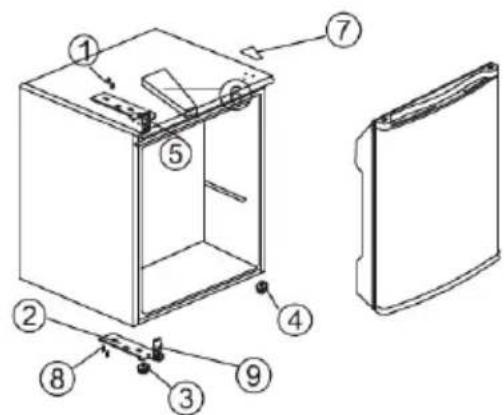

10. While holding the door in the closed position, secure the upper hinge (5) in the top frame of left side

with screws (1). x Make sure the door is properly aligned on the appliance before tightening the screws.

For the most energy efficient use of your appliance: x Ensure your freezer has adequate ventilation as recommended in the installation instructions. x Allow warm food and drinks to cool down before placing in the appliance. x Keep door openings to a minimum. x Open the appliance as briefly as possible. x Regularly defrost the freezer compartment to remove the layer of frost. x Ensure that the freezer door is always closed properly. OPERATING NOISES Normal noises x Motors are running. x Refrigerant is flowing through the tubing.

GB-12CLEANING AND MAINTENANCE

Do not use abrasive cleaning agents or solvents.

1. Set the temperature control knob to the off

position () and disconnect the mains plug from the mainssocket.

t the food and store in a cool location.

3. Clean the appliance with a soft cloth, warm water

4. Wipe the door seal with clear water only and then

wipe dry thoroughly.

5. After cleaning reconnect and adjust the

temperature control knob as desired.

6. Put the food back into the appliance.

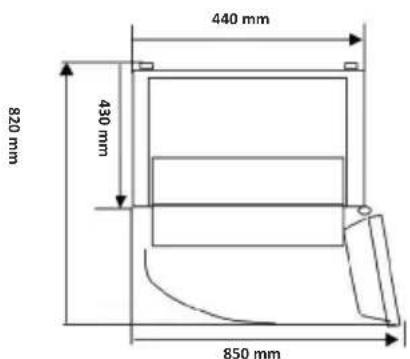

Insulation blowing gas Cyclopentane Power failure safe storage time 7.5hours SPECIFICATIONS Electric shock protection class I Rated voltage and frequency 220-240V~ 50Hz

TROUBLESHOOTING If there is a problem with your appliance, please check the following points before contacting customer service. Problem Possible causes Possible solution Appliance does not operate. No electricity at power outlet. Check that the plug is correctly connected and power switched on. Noises Cabinet not stable or level. Freezer is defrosting. See installation section. Appliance not cool Temperature setting not correct. Frequent door openings. Large amount of food recently added. See temperature control section. Minimise door openings to allow temperatures to stabilise. GB-14GB-15 Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances Supplier’s name or trade mark: Etablissements Darty & fils © | Proline Supplier’s address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France Model identifier: BFZ36 Type of refrigerating appliance: Low-noise appliance: no Design type: freestanding Wine storage appliance: no Other refrigerating appliance: yes General product parameters: Parameter Value Parameter Value Overall dimensions (millimeter) Height

Annual energy consumption (kWh/a) 185 Climate class: temperate/ subtropical Minimum ambient temperature (°C), for which the refrigerating appliance is suitable

Maximum ambient temperature (°C), for which the refrigerating appliance is suitable

Winter setting no Compartment Parameters: Compartment type Compartment parameters and values Compartment Volume (dm

to 32 °C’. – Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’. This refrigerating appliance is not intended to be used as a built-in appliance. To find the model information in the product database : Click the link https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/318120 0-star or ice-making no — — — — 1-star no — — — — 2-star no — — — — 3-star no — — — — 4-star yes 33,0 -18 2,4 M 2-star section no — — — — Variable temperature compartment

For 4-star compartments Fast freeze facility no For wine storage appliances Number of standard wine bottles — Light source parameters (

Type of light source — Energy efficiency class — Minimum duration of the guarantee offered by the manufacturer : 24 months Additional information: Weblink to the supplier’s website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found : www.darty.com

) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015.REPAIR AND SPARE PARTS SERVICE Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury. To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service. Spare parts for your appliances will be delivered within 15 working days after having received the order. Please Note ! All appliances have a 2-year warranty. Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair. Contact us at : www.darty.com

8 AM – 6 PM Mon to Sat Slesbroekstraat 101 1600 Sint-Pieters-Leeuw Belgium GB-17DISPOSAL As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment. You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life. Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge. We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of produ ct improvement and development. GB-18 Etablissements Darty & fils ©, 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France 21/03/2022Inhoudsopgave WAARSCHUWINGEN ......................................................................................................-------- BELANGRIJKE VEILIGHEIDSVOORZORGEN ..................................................................... 5
