USER MANUAL UFZ161NFWH PROLINE

AND KEEP FOR FUTURE REFERENCE. WARNINGS

• This appliance is intended to be used in household and similar applications such as - sta kitchen areas in shops, oces and other working environments; - farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Regarding the details instructions for cleaning the surfaces in contact with food and splash area, refer to the section “CLEANING AND MAINTENANCE” in page 65.

• The appliance shall not be exposed to rain.

• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• WARNING: Do not damage the refrigerant circuit.

IMPORTANT SAFETY INSTRUCTIONS51

• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.

• CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualied maintenance services before disposal.

• INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS.

• For disposal of the appliance: To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the ammable insulation blowing gases. The disposal should only be done through public collection points; contact the waste treatment centre nearest your home for more details on the correct procedures for disposal.

• For installation, servicing: Appliance should be placed on a horizontal surface and keep the ventilation freely. Don’t try to replace or repair any components by yourself, ask the service agency for help if necessary.

• For handling: Always handle the appliance to avoid any damage.

• WARNING: For making ice (ice cubes), use potable water only.

• Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted.

Warning; Risk of re / ammable materials

• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

• WARNING: Do not locate multiple portable socket-outlets or52 portable power supplies at the rear of the appliance.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• To avoid contamination of food, please respect the following instructions: - Opening the door for long periods can cause a signicant increase of the temperature in the compartments of the appliance. - Clean regularly surfaces that can come in contact with food and accessible drainage systems. - Store raw meat and sh in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. - Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes. - One-, two- and three-star compartments are not suitable for the freezing of fresh food. - If the refrigerating appliance is left empty for long periods, switch o, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.53

• The plug must be accessible when the freezer is in position.

• Turn o and unplug the freezer from the mains socket when not in operation and before cleaning. Remove food and basket before cleaning.

• Never unplug the freezer by pulling the cord. Grip the plug rmly and pull it out.

• Place the freezer in a dry place – avoid areas of high moisture or humidity.

• Keep the freezer out of direct sunlight.

• Do not place the freezer near stoves, res or heaters.

• Do not use electrical appliances in the freezer.

• Keep burning candles, lamps and other items with naked

• ames away from the appliance so that do not set the appliance on re.

• Eervescent drinks should not be stored in the freezer.

• Never use the base, doors etc. to stand on or as supports.

• Frozen food must not be refrozen once it has been thawed out.

• Do not consume ice popsicles or ice cubes straight from the freezer as this can cause ice burn to the mouth and lips.

• The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless ammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is ammable.

• WARNING — Refrigerators and freezers contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal. SAFETY PRECAUTIONS54 PRODUCT OVERVIEW Recommended food arrangement Freezer compartment (-18°C): Top/middle section: Cakes and pastries Dairy products such as cheese and butter Bottom drawer : Cooked meat and sh Trays Freezer drawers Levelling feet Door Control panel55

BEFORE INSTALLING THE APPLIANCE

Before connecting your appliance to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A dierent voltage could damage the appliance. The plug is the only way to unplug the appliance and should therefore be accessible at all times. To turn o main power to the appliance, turn it o and then detach the plug from the outlet. The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding. INSTALLATION Install the appliance in a dry, well-ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc. To ensure adequate ventilation for the appliance, allow a minimum of 10 cm of airspace on each side of the cabinet. Adjust the feet to keep the freezer level.56 AMBIENT TEMPERATUE POWER FAILURE

This appliance is designed to operate in ambient temperature between 10°C and 38°C. If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer will rise above -18°C and food spoilage may occur. If there is a power failure during the storage of frozen foods, keep the door closed. Frozen food should not be aected if the power failure lasts for less than 11 hours. Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat. Before placing food in the appliance - Remove all packaging. - Allow the appliance to run empty for 2 – 3 hours so the compartment can cool to the appropriate temperature. - Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust. Temperature control The freezer is controlled with a control panel inside it.57 Repeatedly press to set the desired temperature in the freezer compartment in a cycle of -14°C, -16°C, -18°C, -20°C, -22°C. The temperature will be conrmed after ashing for 5 seconds. The runnning time and temperature are aected by where the freezer is located, how often the door is opened and the temperature of the room the freezer is located in. When you use the appliance for the rst time, adjust the temperature to the coldest setting (-22°C) for at least 2 hours before introducing food to be stored, and then readjust to the middle setting (-18°C). Super freezing mode This mode will help food to freeze quickly and retain its nutrients, vitamins, avours and appearance. To activate this mode, press and hold for about 3 seconds until the SUPER indicator light illuminates.

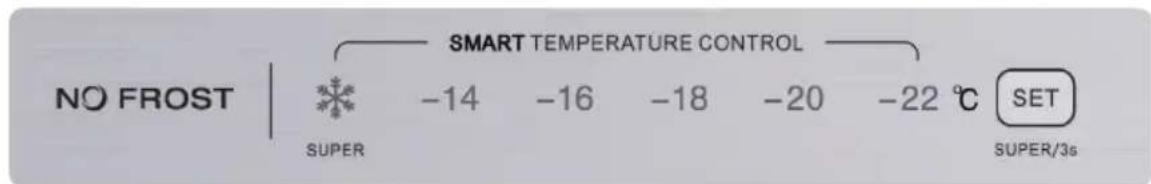

• This mode will be automatically deactivated after 50 hours of operation and the appliance will restore to the original temperature setting. To manually deactivate this mode, press and hold for about 3 seconds until the SUPER indicator light goes out. Door opening alarm If the door is left open for approximately 90 seconds, the alarm will sound. To turn o the alarm, you can close the door. Temperature alarm If high internal temperature of the appliance is detected, high temperature alarm will sound. High temperature alarm will switch o automatically only when detected temperature goes back to normal. To stop the alarm, press

Moving your appliance If the appliance is turned o for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

• Turn o the appliance and unplug it from the mains socket. Also remove all mobile parts or x them into the appliance to avoid any shock.

• Relocate and install. If the appliance has been left on its side for any length of time, leave it standing upright for at least 10 minutes before turning on. Freezing and storing food Using the freezer

• To store deep-frozen food

• To freeze food Note: Ensure that the freezer door has been closed properly. Purchasing frozen food

• Packaging must not be damaged.

• Use by the ‘use by/best before/best by/’ date.

• If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer. Storing frozen food Store at -18°C or colder. Avoid opening the freezer door unnecessarily. Freezing fresh food Freeze fresh and undamaged food only. To retain the best possible nutritional value, avour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching. Note: Keep food to be frozen away from food which is already frozen.59

• The following foods are suitable for freezing: Cakes and pastries, sh and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and sh, potato dishes, soués and desserts.

• The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard- boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise. Packing frozen food To prevent food from losing its avour or drying out, place food in airtight packaging.

1. Place food in packaging.

4. Label packaging with contents and dates of freezing.

Suitable packaging: Plastic lm, tubular lm made of polyethylene, aluminium foil. These products are available from specialist outlets. Recommended storage times of frozen food in the freezer These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).60 Food Storage time Bacon, casseroles, milk 1 month Bread, ice cream, sausages, pies, prepared shellsh, oily sh 2 months Non-oily sh, shell sh, pizza, scones and mufns 3 months Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months Butter, vegetables (blanched), eggs whole and yolks, cooked craysh, minced meat (raw), pork (raw) 6 months Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes 12 months Never forget:

• When you freeze fresh foods with a ‘use by/best before/best by/’ date, you must freeze them before this date expires.

• Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen.

• Once defrosted, food should be consumed quickly. Making ice cubes Fill the ice cube tray (not supplied) with 3/4 full of drinking water and place in the freezer. If the ice cube tray is stuck to the compartment or drawer, loosen with a blunt tool only. To loosen the ice cubes, twist the ice cube tray slightly or hold briey under owing water. Operating noises Normal noises

• Refrigerant is owing through the tubing. Energy saving tips For the most energy ecient use of your appliance:61

• Ensure your freezer has adequate ventilation as recommended in the installation instructions.

• Allow warm food and drinks to cool down before placing in the appliance.

• Keep door openings to a minimum.

• Open the appliance as briey as possible.

• Regularly defrost the freezer to remove the layer of frost.

• Ensure that the door is always closed properly.62 DOOR CONVERSION If you need to hinge your door on the opposite side it is recommended that you call your local authorised service agent to make this conversion or ask a technician. Before you reverse the door, you should ensure the appliance is unplugged and empty. It is recommended to use a crosshead screwdriver and a spanner (both not supplied).

1. Remove the upper hinge cover.

2. Remove the screws that x the upper hinge. Remove the upper hinge.

3. Remove the top left screw cover.

4. Move the core cover from left side to right side. And then lift the door and

place it on a padded surface to prevent it from scratching.63

5. Unscrew bottom hinge. Then remove the adjustable feet from both sides.

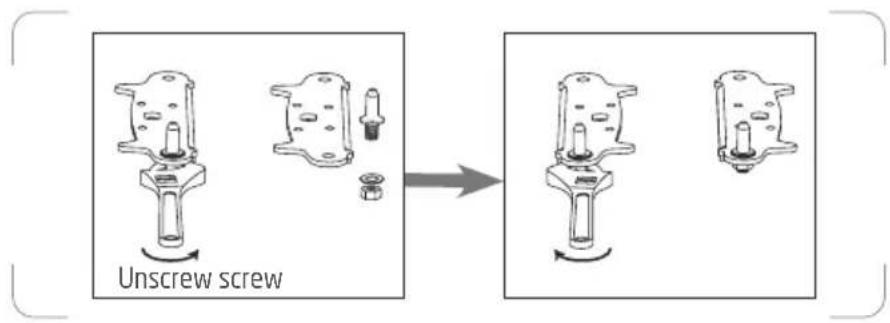

6. Unscrew and remove the bottom hinge pin, turn the bracket over and

8. Re-t the upper hinge while retting the door. Do not fully tighten the

screws. Unscrew screw64

9. Check the door is aligned horizontally and vertically and that all seals make

good contact with the cavity all the way around the cavity opening before nally tightening the hinges. Re-t the hinge cover and screw cover. Re-adjust the levelling feet, if necessary.

10. Detach the door gasket and then attach it after rotating.

DEFROSTING This appliance is equipped with a frost free system. This system enables the freezer compartment to remain permanently ice-free, however, the food stored in the freezer drawers will not defrost.65

• Upon installation of your new appliance, it is recommended to clean it thoroughly.

• It is recommended to clean the freezer each time it is defrosted to help keep the freezer run eciently. Do not use abrasive cleaning agents or solvents.

1. Disconnect the mains plug from the mains socket.

2. Take out the food and store in a cool location.

3. Clean the appliance with a soft cloth, warm water and detergent.

4. Wipe the door seal with clear water only and then wipe dry

5. Plug in the appliance. Adjust the temperature.

6. Put the food back into the appliance.

• Remove the drawers from the appliance. Wash them in warm soapy water with a soft sponge. Rinse and dry thoroughly.

• Wipe the interior parts with a damp cloth soaked in a mixture of warm water and dishwashing liquid. For stubborn stains, use baking soda.

• Wipe down the doors, including edges, with a microber cloth dampened with a mild dishwashing liquid and water. Use a wet sponge and soft brush (such as toothbrush) to remove any stuck- on food.

CLEANING AND MAINTENANCE66

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks according to below table before calling for service. Warning ! Do not try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualied electrician, authorized service engineer or the store where you purchased the product. TROUBLESHOOTING Problem Solution Appliance does not operate.

• Check that the freezer is plugged into the mains socket properly and that the outlet is switched on.

• Check the fuse is not blown.

• Check the circuit breaker is not tripped. Freezer is noisy.

• Check that the freezer is placed on a level surface.

• Check that the appliance is not touching the wall or other objects. Move the appliance slightly.

• Check that a component, e.g. a pipe, on the rear of the appliance is not touching another part of the appliance or the wall. If necessary, carefully bend the component out of the way. Temperature inside the freezer is too high.

• Set the temperature control to a lower temperature and allow several hours for the temperature to stabilize.

• Door is kept open too long or is opened too frequently. Warm air enters the freezer every time the door is opened. Open the door less often.

• Check that the door is closed completely.

• Ensure that the door gasket does not seal properly.

• A large amount of warm or hot food might have been stored recently. Wait until the freezer has reached its set temperature. Door seal fails to be tight. Remove foreign matters on the door seal. Heat the door seal and then cool it for restoration. (or blow it with an electrical drier or use a hot towel for heating)67

PRODUCT INFORMATION SHEET

Design type: freestanding Wine storage appliance:

Energy efciency class

Annual energy consumption (kWh/a)

Climate class: Extended temperate/ Temperate/ Subtropical Minimum ambient temperature (°C), for which the refrigerating appliance is suitable

Maximum ambient temperature (°C), for which the refrigerating appliance is suitable

Winter setting no68 Compartment Parameters: Compartment type Compartment parameters and values Compartment Volume (dm

Type of light source — Energy eciency class — Minimum duration of the guarantee offered by the manufacturer: 24 months Additional information: Weblink to the supplier’s website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found : www.darty.com69

) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015. Climate class: - Extended temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’. - Temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’. - Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’. This refrigerating appliance is not intended to be used as a built-in appliance. To nd the model information in the product database: Click the link https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1288731 Rated voltage and frequency 220-240V~ 50Hz Refrigerant/Amount R600a / 34g Insulation blowing gas Cyclopentane Rated current 1,3A Electric shock protection class Class I Input power 140W Temperature rise time Power cut safe 11h Net weight 41kg70 Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury. To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service. Spare parts for your appliances will be delivered within 15 working days after having received the order. Please Note ! All appliances have a 2-year warranty. Warranty does not cover damages caused due to improper installation, unauthorized modication, self-repair or non-professional repair. Contact us at :

8 AM – 6 PM Mon to Sat Slesbroekstraat 101 1600 Sint-Pieters-Leeuw Belgium71 DISPOSAL As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment. You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life. Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge. We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development. Etablissements Darty & ls ©, 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France 20/07/2022Etablissements Darty & ls ©, 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France
