Product Type	PCI Express Video Capture Card
Interface	PCI Express 2.0 (x1)
Input Connectors	1 x SDI (BNC)
Supported Video Resolutions	Up to 1080p60, 1080i, 720p, NTSC, PAL
Supported Audio Formats	SDI Embedded Audio (48 kHz, 24-bit)
Supported Operating Systems	macOS, Windows 8/10 64-bit, Linux
Included Software	Blackmagic Desktop Video, Media Express, Blackmagic Disk Speed Test
Power	PCIe Bus Powered
Dimensions	Half-height card, approximately 10 x 7 cm
Weight	Approximately 100 g
Operating Temperature	0°C to 40°C
Warranty	3 years (parts and labor)
Cleaning	Use a dry, lint-free cloth. Do not use solvents.
Spare Parts and Repairability	No user-serviceable parts. Contact technical support.
General Information	Designed for uncompressed HD video capture. Easy installation in 10 minutes.

Frequently Asked Questions - DeckLink Mini Recorder HD Blackmagic Design

How to install the DeckLink Mini Recorder HD card?

Turn off the computer and insert the card into a free PCIe slot (x1 or larger). Make sure it is fully seated. Turn on the computer and install the Desktop Video software from the Blackmagic Design website. Restart after installation.

Which software is compatible with the DeckLink Mini Recorder HD?

The card is compatible with editing and color grading software such as DaVinci Resolve, Adobe Premiere Pro, Final Cut Pro X, Avid Media Composer, as well as applications like After Effects and Photoshop.

Can I capture and play simultaneously with this card?

The DeckLink Mini Recorder HD is an input-only card. It allows video capture but does not have video output. For playback, you will need a card with output or another device.

How to update the card's firmware?

The Desktop Video software automatically checks the firmware version during installation. If an update is needed, a window appears. Click 'Update' and follow the instructions. Do not disconnect power during the update.

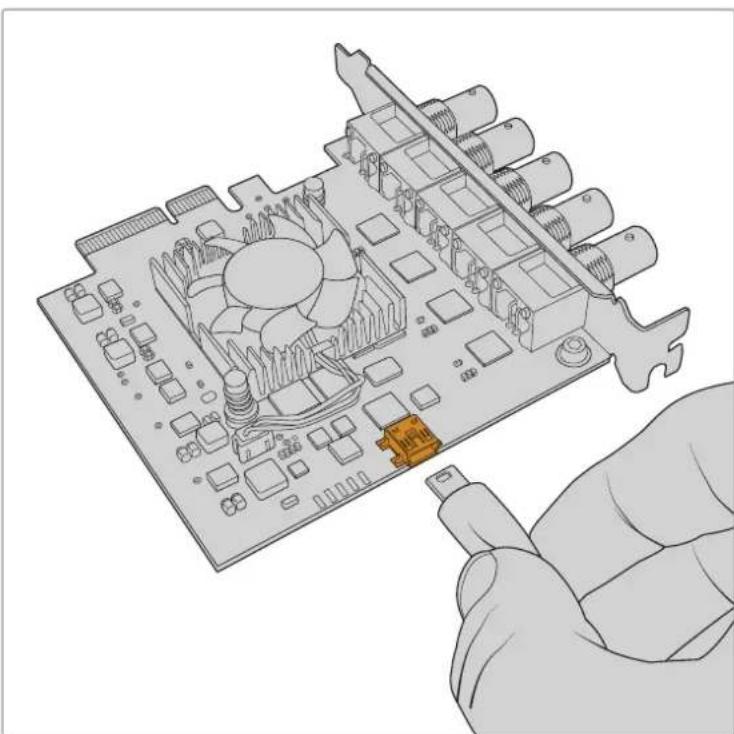

What to do if the card is not recognized after an interrupted update?

Unplug the computer, remove the card from the PCIe slot, then connect it to a USB port on the computer via the USB port (mini-B or USB-C) located on the card. Turn on the computer and follow the instructions to reinstall the firmware.

What cables are needed to connect a video source?

Use an SDI (BNC) cable to connect your source (camera, VCR) to the SDI input of the card. The cable must be of good quality for high data rates.

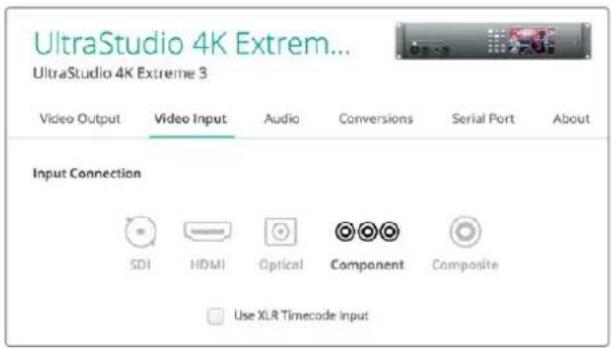

How to configure video settings in Desktop Video Setup?

Open Blackmagic Desktop Video Setup. Select the card on the home page. You can configure video input, video format (resolution, frame rate), audio settings, conversions, and reference information.

Does the card support 4K resolutions?

No, the DeckLink Mini Recorder HD is limited to HD (up to 1080p60). For 4K, you would need a model like the DeckLink 4K Extreme.

What disk speed is needed for capture?

Uncompressed HD video requires a data rate of about 200 MB/s. Use an SSD drive or a fast RAID. The Blackmagic Disk Speed Test tool can test if your disk is fast enough.

How to clean the DeckLink card?

Use a dry, lint-free cloth to gently wipe the card and connectors. Do not use liquids, solvents, or abrasive products. Handle the card by the edges.

USER MANUAL DeckLink Mini Recorder HD Blackmagic Design

Interior of an office with a woman standing near large windows and a framed picture on the wall (no visible text or symbols)

Languages

To go directly to your preferred language, simply click on the hyperlinks listed in the contents below.

English 3

日本語 77

Français 152

Deutsch 227

Español 302

中文 377

한국어 452

Русский 527

Italiano 602

Português 677

Türkçe 752

Circular portrait photo of a smiling man in a dark shirt against a gray background (no text or symbols)

Welcome

We hope you share our dream for the television industry to become a truly creative industry by allowing anyone to have access to the highest quality video.

Previously, high end television and post production required investment in millions of dollars of hardware, however with Blackmagic Design video hardware, even Ultra HD 60p is now easily affordable. We hope you get years of use from your new UltraStudio, DeckLink or Intensity and have fun working with some of the world's hottest television and design software!

This instruction manual should contain all the information you'll need on installing your Blackmagic Design video hardware. If you're installing a PCI Express card, it's always a good idea to ask a technical assistant for help if you have not installed hardware cards into computers before. As Blackmagic Design video hardware uses uncompressed video and the data rates are quite high, you'll need fast disk storage and a high end computer.

We think it should take you approximately 10 minutes to complete installation. Before you install Blackmagic Design video hardware, please check our website at www.blackmagicdesign.com and click the support page to download the latest updates to this manual and Desktop Video driver software. Lastly, please register your Blackmagic Design video hardware when downloading software updates. We would love to keep you updated on new software updates and new features. Perhaps you can even send us your latest show reel of work completed on your Blackmagic Design video hardware and any suggestions for improvements to the software. We are constantly working on new features and improvements, so we would love to hear from you!

Grant Petty

Grant Petty

CEO Blackmagic Design

Contents

Getting Started 5 Adobe After Effects CC 34

Introduction to Desktop Video 5 Adobe Photoshop CC 36

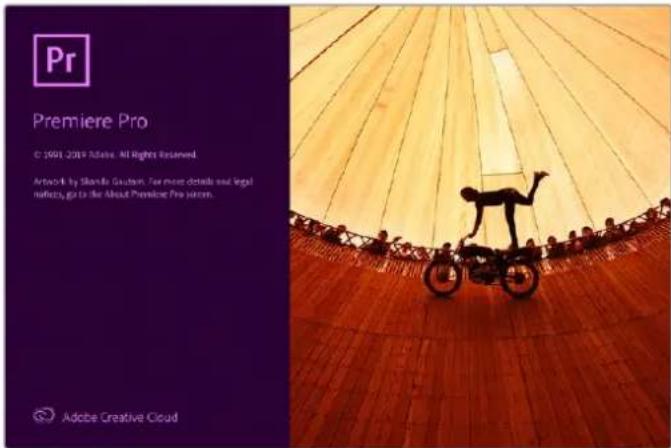

System Requirements 5 Adobe Premiere Pro CC 37

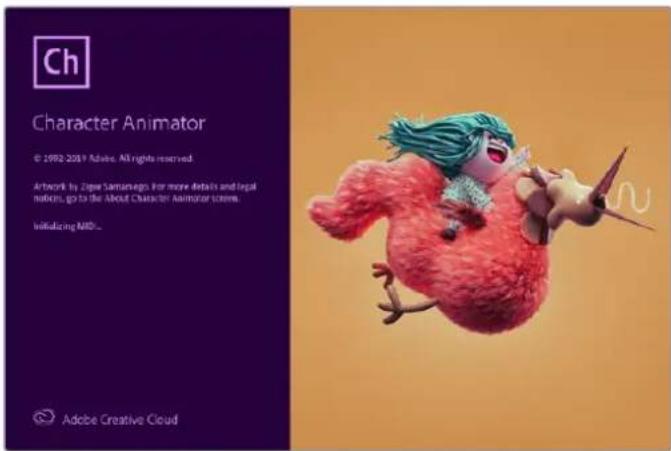

Connecting Power 5 Adobe Character Animator CC 42

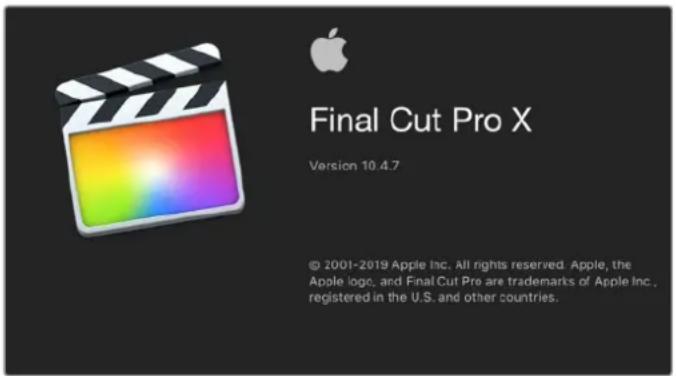

Connecting Video Hardware 6 Final Cut Pro X 43

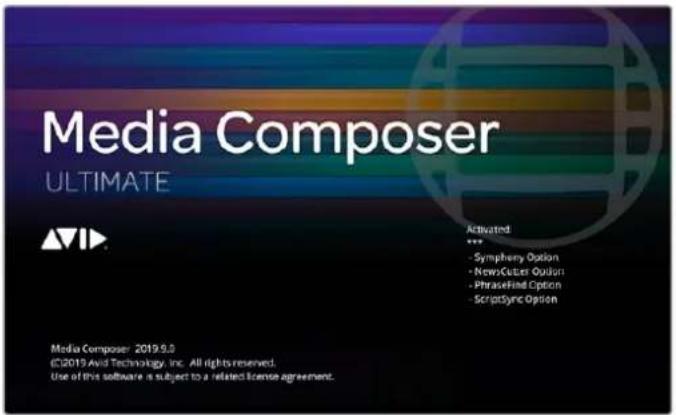

Installing the Desktop Video Software 10 Avid Media Composer 46

Capturing and Playing Back Video 15 Blackmagic Media Express 53

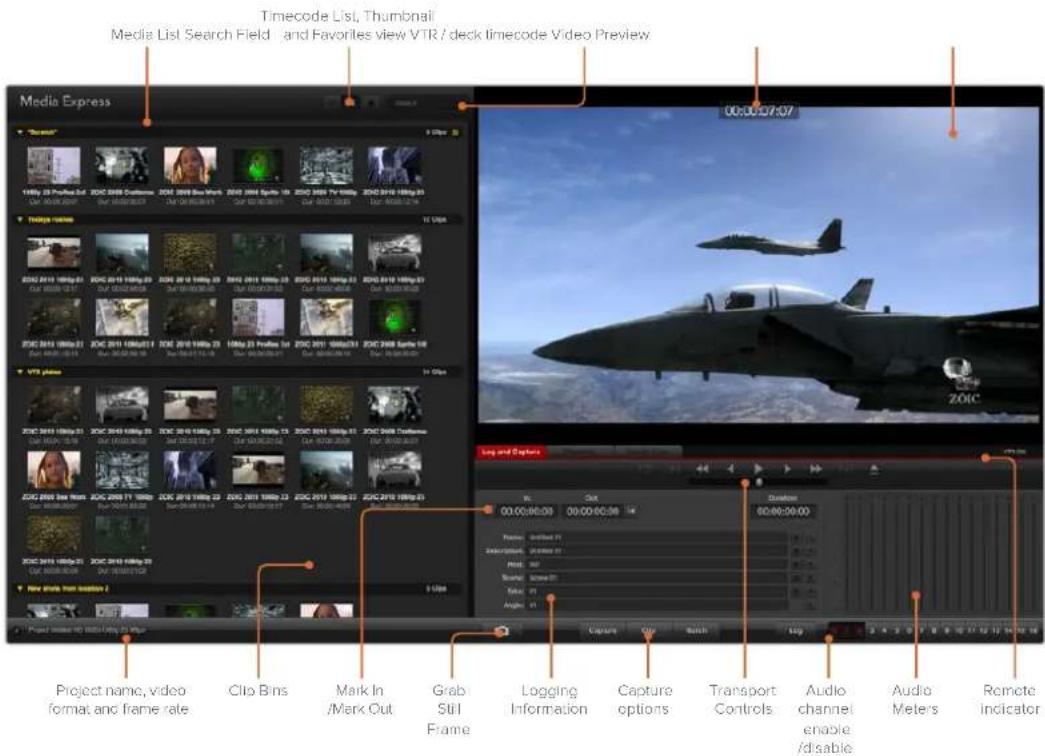

Blackmagic Desktop Video Setup 16 What is Blackmagic Media Express? 53

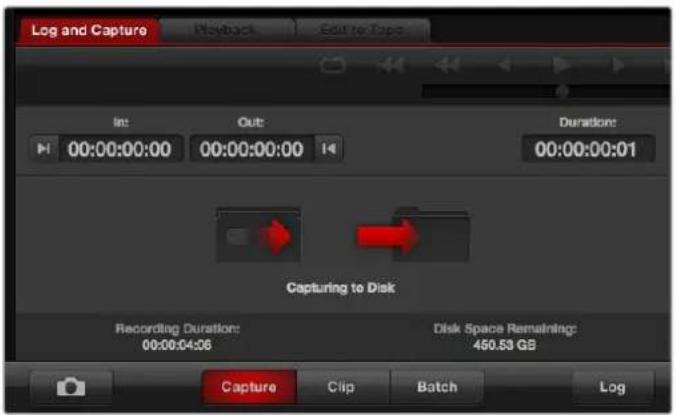

Introducing Blackmagic Desktop Capturing Video and Audio Files 53

Video Setup 16 Playing back Video and Audio Files 58

Video Settings 18 Browsing Media 60

Connector Mapping for DeckLink Editing Video and Audio Files to Tape 63

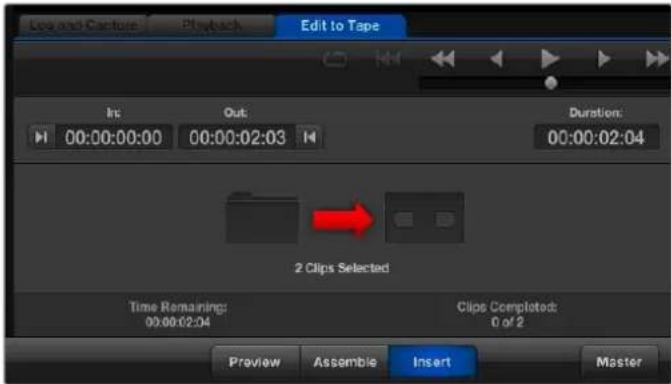

Quad 2 22 Editing Video and Audio Files to Tape 63

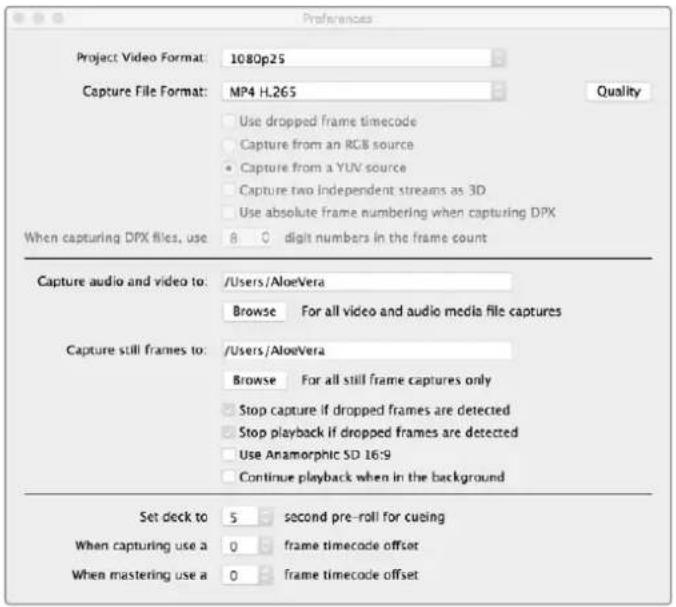

Audio Settings 23 Capturing H.205 Video

Conversions Settings 25 H.203 Hardware Encoder 65

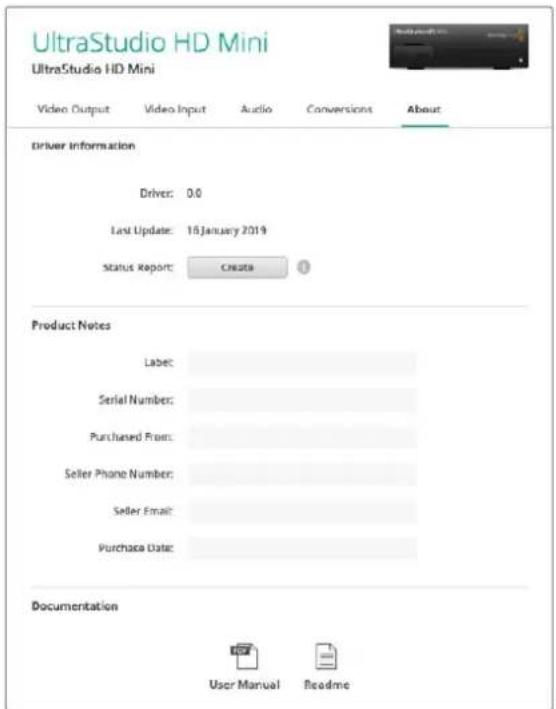

About 26 Capturing H.203 Video with UltraStudio 4K Extreme 65

Teranex Mini Smart Panel 27 Blackmagic Disk Speed Test 66

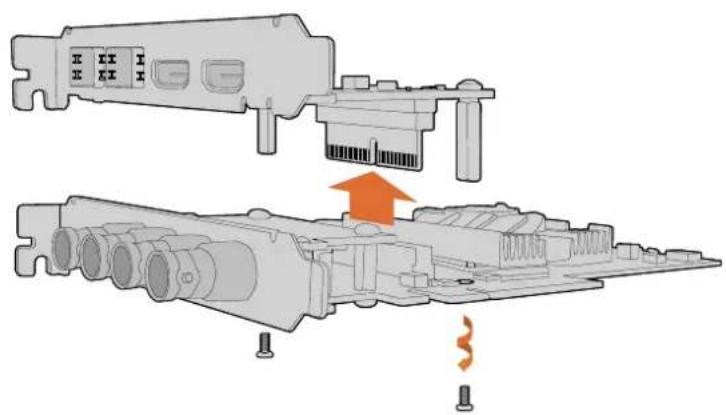

Attaching a Teranex Mini Smart Panel 27 Removing the Mezzanine Card

Smart Panel Features 29 from DeckLink 4K Extreme 12G 69

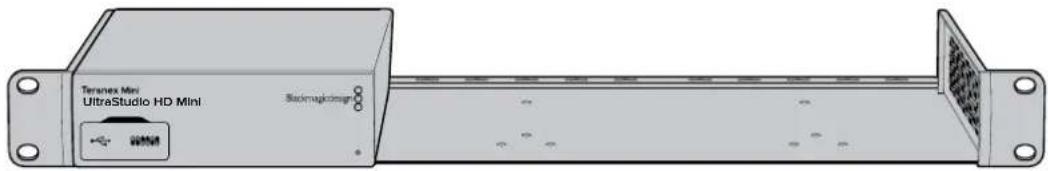

Teranex Mini Rack Shelf 29 Recovering a DeckLink Card

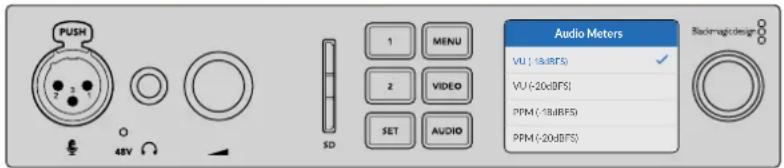

Using UltraStudio 4K Mini's from an interrupted Update

Front Control Panel 30 Help 72

DaVinci Resolve 31 Developer Information 73

Live Grading with DaVinci Resolve 31 Regulatory Notices 74

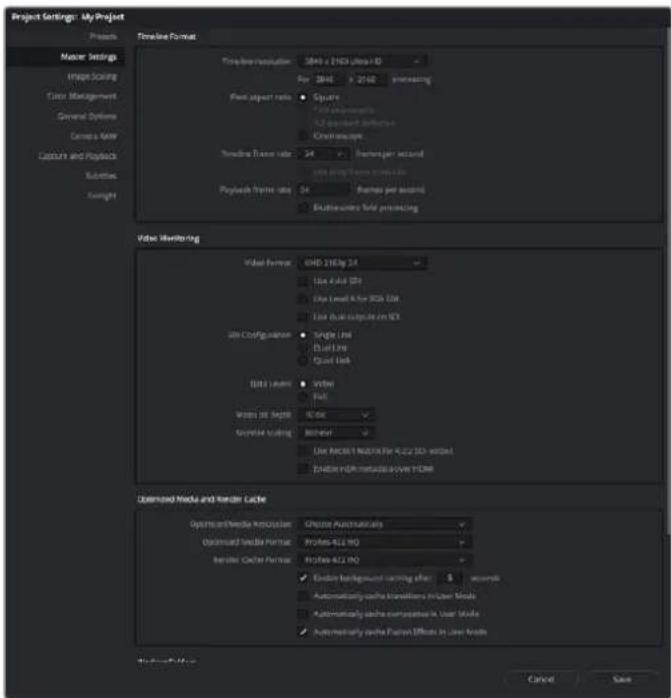

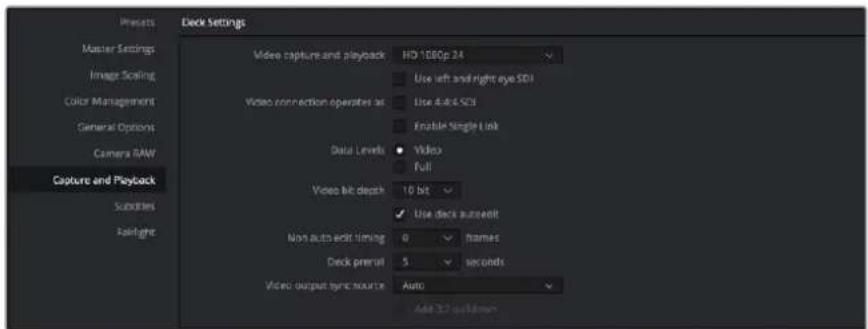

Editing with DaVinci Resolve 32 Safety Information 75

Using your Favorite 3rd Party Software 34 Warranty 76

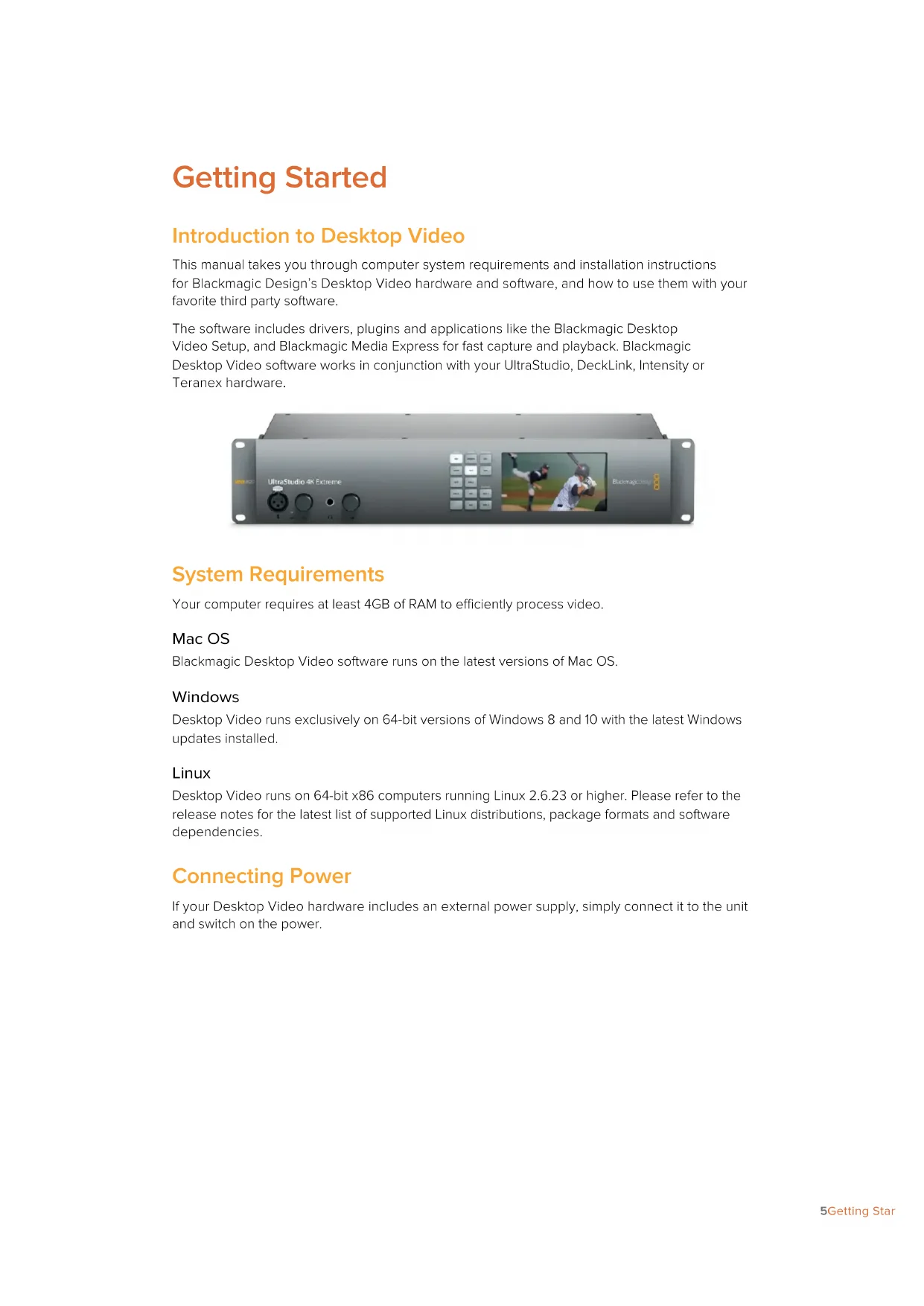

Getting Started

Introduction to Desktop Video

This manual takes you through computer system requirements and installation instructions for Blackmagic Design's Desktop Video hardware and software, and how to use them with your favorite third party software.

The software includes drivers, plugins and applications like the Blackmagic Desktop Video Setup, and Blackmagic Media Express for fast capture and playback. Blackmagic Desktop Video software works in conjunction with your UltraStudio, DeckLink, Intensity or Teranex hardware.

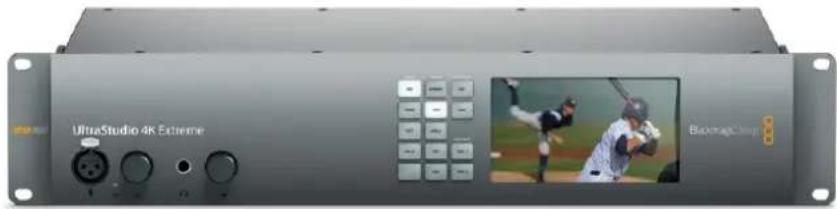

Front view of a UltraStudio 4K Extreme audio workstation with a video player on the screen (no readable text or symbols beyond branding)

System Requirements

Your computer requires at least 4GB of RAM to efficiently process video.

Mac OS

Blackmagic Desktop Video software runs on the latest versions of Mac OS.

Windows

Desktop Video runs exclusively on 64-bit versions of Windows 8 and 10 with the latest Windows updates installed.

Linux

Desktop Video runs on 64-bit x86 computers running Linux 2.6.23 or higher. Please refer to the release notes for the latest list of supported Linux distributions, package formats and software dependencies.

Connecting Power

If your Desktop Video hardware includes an external power supply, simply connect it to the unit and switch on the power.

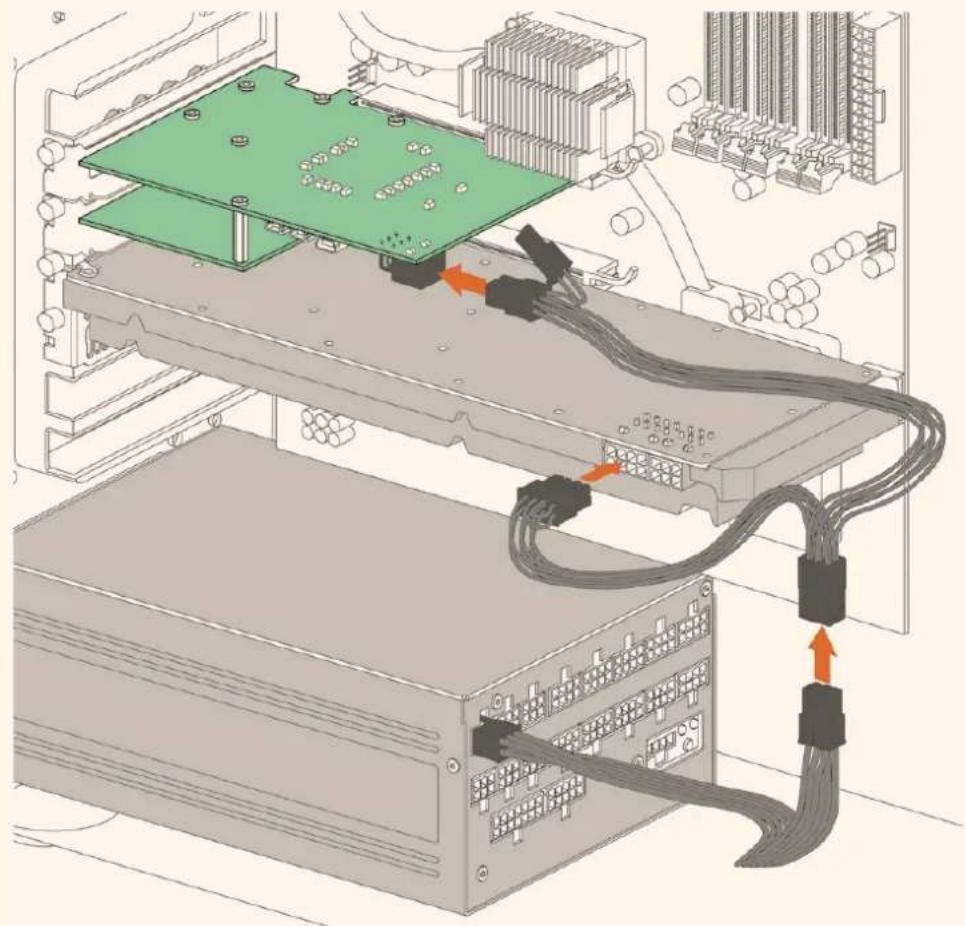

TIP DeckLink 4K Extreme 12G can also be connected to additional power using the power adapter cable included with the card. DeckLink 4K Extreme 12G is very powerful and we are always looking for ways to provide additional features, such as mezzanine cards for expanded connectivity. For this purpose, we have included a power adapter cable so you can plug in additional power if future hardware expansion on your DeckLink card draws more power than your computer's PCIe slot can provide.

Diagram of an electronic device showing a circuit board with connectors and connected cables (no text or symbols visible)

If you need to supply external power to your DeckLink 4K Extreme 12G you can easily use the supplied power adapter cable. Simply disconnect the power from your graphics card and plug it into the adapter cable. The plug will only connect to one end so there's no way to connect it incorrectly.

Connecting Video Hardware

There are three types of connectors your Blackmagic Desktop Video hardware may use to connect to your computer depending on your model. These connection types include Thunderbolt, USB 3.0, or PCIe.

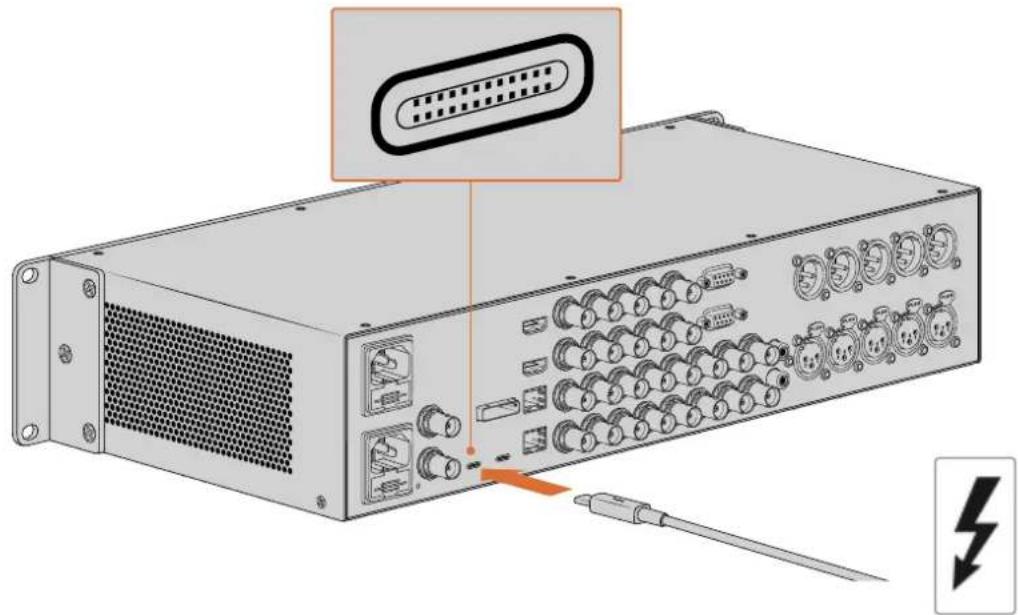

Connecting via Thunderbolt

Blackmagic UltraStudio 4K and UltraStudio 4K Extreme feature two Thunderbolt* 2 ports so if your computer only has a single Thunderbolt port, you can use the additional port to attach a RAID or other device.

Blackmagic UltraStudio 4K Extreme 3 has two Thunderbolt™ 3 ports and UltraStudio HD Mini has one Thunderbolt 3 port, for up to 40Gb/s data speeds. When connecting via Thunderbolt 3, connect your Blackmagic Desktop Video hardware directly to the Thunderbolt 3 port on your computer using a Thunderbolt 3 cable. Connecting to a Thunderbolt 2 port on your computer via a Thunderbolt 3 to Thunderbolt 2 adapter is not supported on bus-powered products like UltraStudio HD Mini.

Illustration of a server rack with multiple ports and connectors, showing an orange arrow pointing to a specific port (no text or symbols present)

Make sure your computer is Thunderbolt 3 compatible by looking for the Thunderbolt Icon near Its USB-C connector, as shown on the right.

Connecting via USB 3.0

Connect a SuperSpeed USB 3.0 cable into the USB 3.0 port on the unit. Plug the other end of the cable into your computer's USB 3.0 port.

Rackup design 120MHz 1.7V 7.5V 6.5V 5.3GHz 100MHz 1.4GHz 4.8GHz 4.5GHz Rackup design

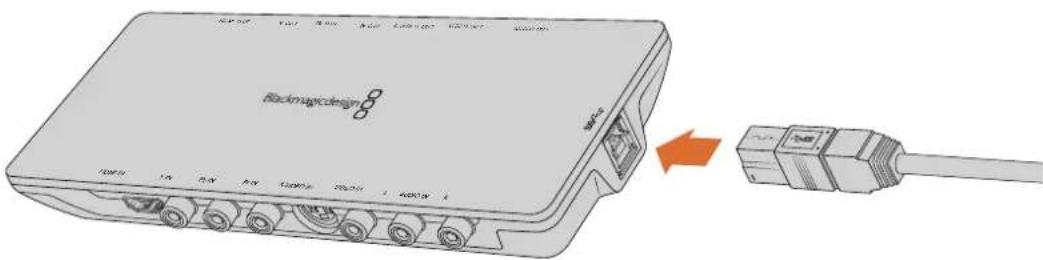

Connecting a SuperSpeed USB 3.0 cable to Intensity Shuttle

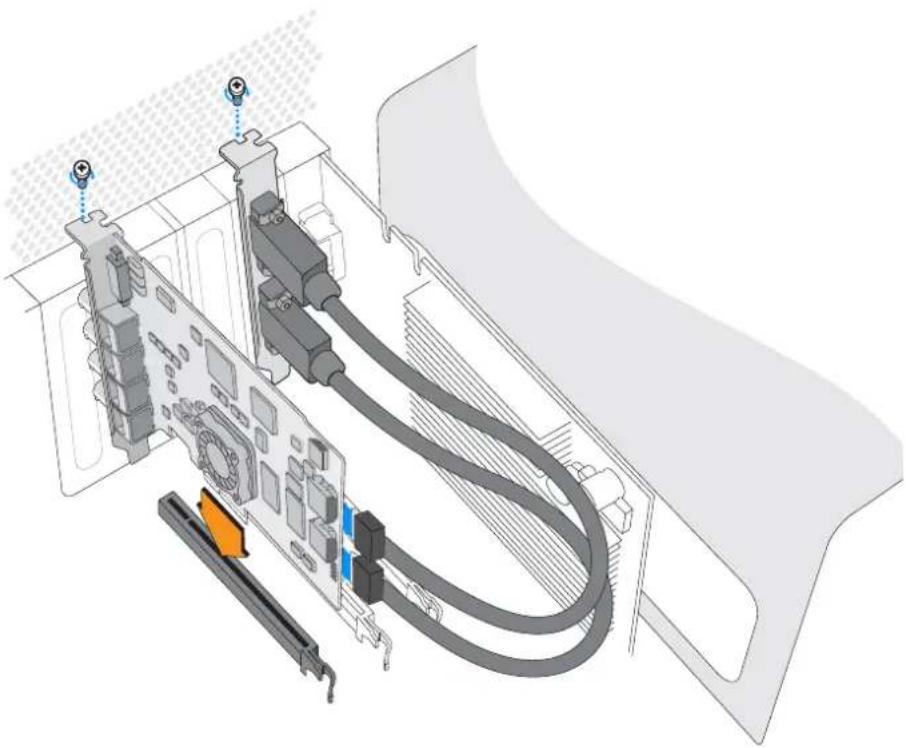

Connecting via PCIe

Blackmagic Design PCIe cards plug into a PCIe slot in your computer. Check the information printed on your card's box to determine the number of PCIe lanes your card requires. For example, depending on your PCIe card, it will require a x1, x4 or x8 PCIe slot.

It's worth noting that you can insert PCIe cards into higher capacity slots than they require. For example, a x4 lane PCIe card can be inserted into a x16 lane PCIe slot, though not the other way around.

If you can't find the information you need on the box, you can find the number of lanes your card requires, plus other helpful information about your card, in the tech specs at www.blackmagicdesign.com/products.

Diagram of a computer motherboard showing cable routing and connector components (no text or labels)

Install a Blackmagic Design PCIe card in a spare PCIe slot. If your card includes an HDMI bracket, it can be installed in any spare PCIe mount and connects to the rear of the card with the supplied HDMI cables.

Please be careful when installing your DeckLink PCIe card to avoid damaging delicate components on the card.

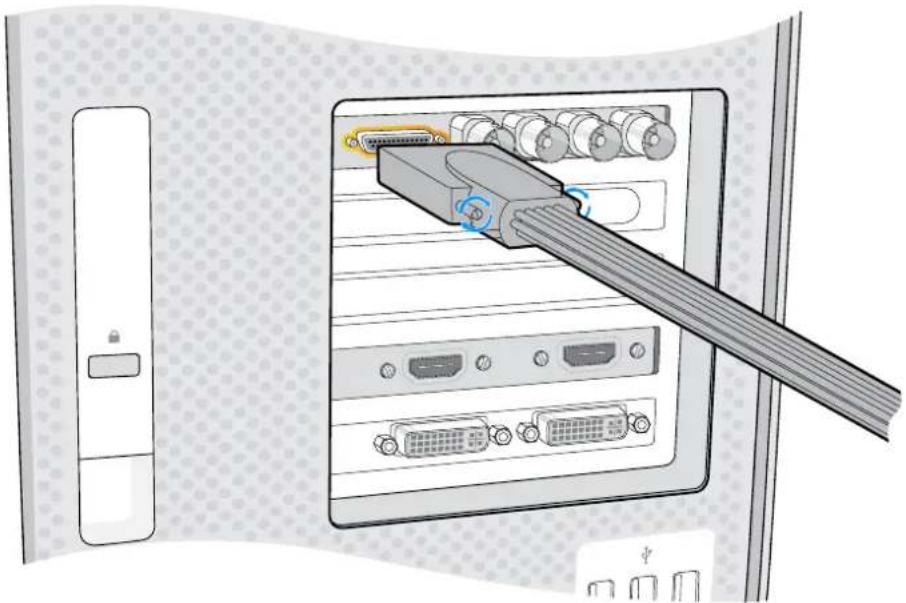

Illustration of a computer tower internal panel with a cable inserted, showing ports and connectors (no text or symbols)

If your card includes a breakout cable, simply plug it into your card's breakout cable connector.

Connecting UltraStudio 4K Extreme via PCIe

UltraStudio 4K Extreme and UltraStudio 4K Extreme 3 can also connect to your computer via PCIe using a PCIe adapter card and cable. Both UltraStudio 4K Extreme and UltraStudio 4K Extreme 3 need to be connected to a PCIe Gen 2 slot in your computer. The Blackmagic PCIe Cable Kit contains a PCIe cable and the PCIe adapter card and is available from your nearest Blackmagic Design reseller.

For the original UltraStudio 4K Extreme, you can use either the Blackmagic PCIe Cable Kit, or purchase a standard PCIe adapter card from your nearest computer store.

Illustration of a server rack with multiple ports and connectors, no text or symbols present

UltraStudio 4K Extreme features a PCIe port for connection to an external PCIe adapter card that is installed in your computer

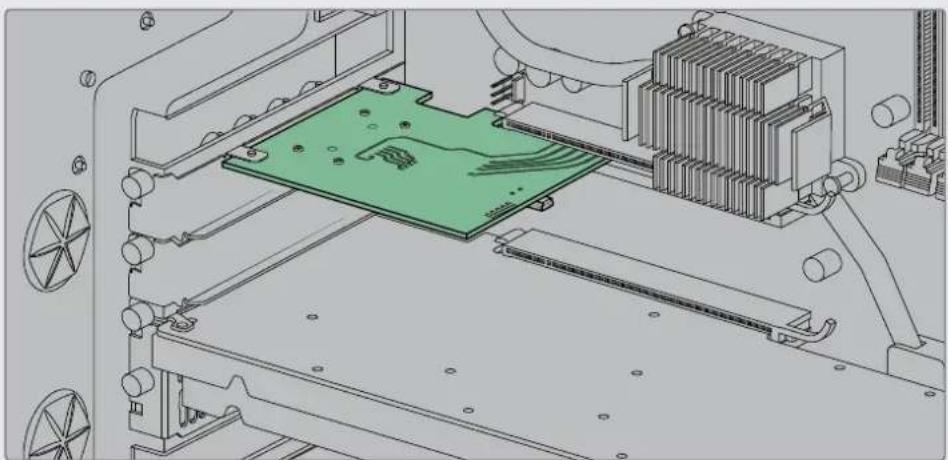

Technical line drawing of a computer motherboard with a green circuit board and cooling unit (no text or symbols)

The PCIe adapter card is inserted into a PCIe Gen 2 slot inside your computer

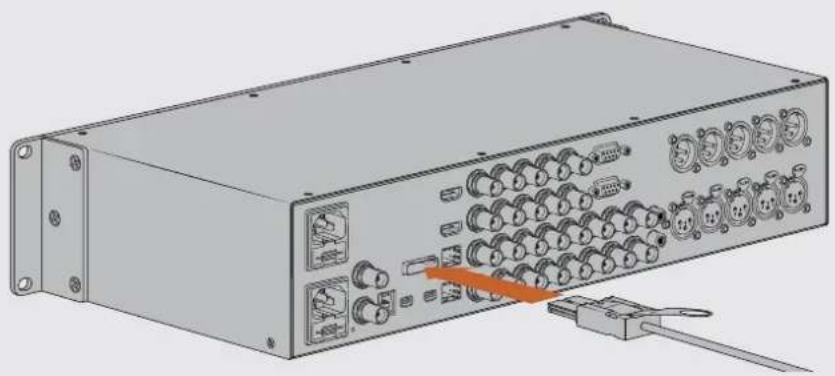

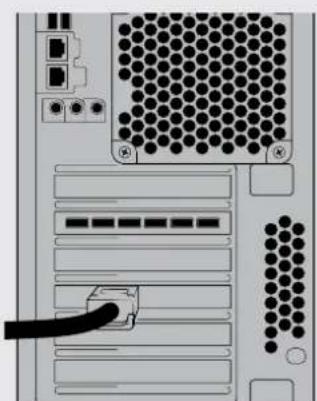

Back view of a server rack with ports, connectors, and a cable inserted (no visible text or labels)

Connect the other end of the PCIe cable to the PCIe port located at the back of your computer

Installing the Desktop Video Software

Applications, Plugins and Drivers

The Blackmagic Design Desktop Video software includes all the drivers, plugins and applications needed to use your Desktop Video hardware. Below is a list that shows all the software items that are installed on your computer.

Mac OS Windows Linux
BlackmagicDesktop Video drivers	BlackmagicDesktop Video drivers	BlackmagicDesktop Video drivers
Blackmagic Desktop Video Setup Blackmagic Desktop Video Setup Blackmagic Desktop Video Setup
Blackmagic Design LiveKey Blackmagic Design LiveKey –
Blackmagic Media Express Blackmagic Media Express Blackmagic Media Express
Blackmagic QuickTimeTM codecs	Blackmagic AVI and QuickTimeTM codecs	–
Blackmagic Disk Speed Test Blackmagic Disk Speed Test –
Adobe Premiere Pro CC,After Effects CC, Photoshop CCpresets and plug-ins	Adobe Premiere Pro CC,After Effects CC, Photoshop CCpresets and plug-ins	–
Final Cut Pro X plug-ins – –
Avid Media Composer plug-in Avid Media Composer plug-in –

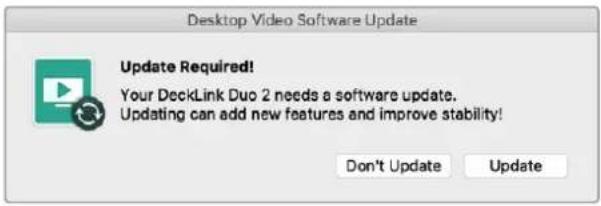

Automatic Updates

After installing the Desktop Video software and once your computer restarts, it will check the internal software on your Desktop Video hardware. If it doesn't match the version installed on your computer, the software will prompt you to update. Click 'ok' to start the update and restart your computer to complete the process.

NOTE If your DeckLink card is not working after an interrupted update, refer to the section near the end of this manual called 'recovering a DeckLink card from an interrupted update'.

The remainder of the Getting Started section will show you the Desktop Video software installation process for Mac OS, Windows and Linux.

Mac OS Installation

Make sure you have administrator privileges before installing any software.

1 Download the newest Desktop Video driver installer from www.blackmagicdesign.com/support
2 Launch the Desktop Video installer.
3 Click the 'continue', 'agree' and 'install' buttons to install the software. If you are installing Desktop Video for the first time, installation has a few extra steps that are described below.
4 Restart your computer to enable the new software drivers.

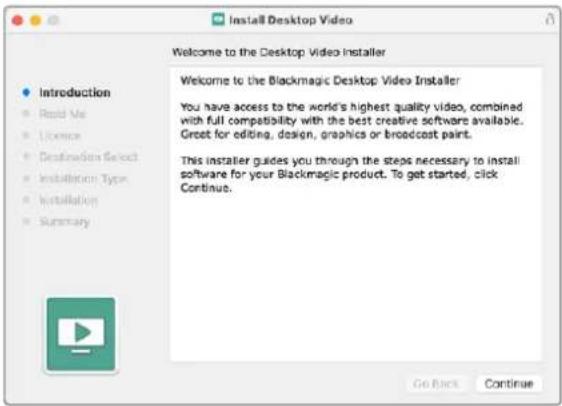

Install Desktop Video Welcome to the Desktop Video Installer Welcome to the Blackmagic Desktop Video Installer You have access to the world's highest quality video, combined with full compatibility with the best creative software available. Greet for editing, design, graphics or broadcast paint. This installer guides you through the steps necessary to install software for your Blackmagic product. To get started, click Continue. Go Back Continue

Desktop Video Installer for Mac

Installing on Mac OS for the First Time

When installing Desktop Video on a Mac for the first time, you will need to enable your Mac to use your Desktop Video equipment during the installation process.

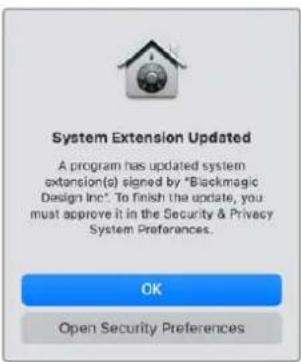

1 When instructed, click on 'open security preferences' or open 'system preferences' and click on 'security and privacy'.

System Extension Updated A program has updated system extension(s) signed by "Blackmagic Design Inc". To finish the update, you must approve it in the Security & Privacy System Preferences. OK Open Security Preferences

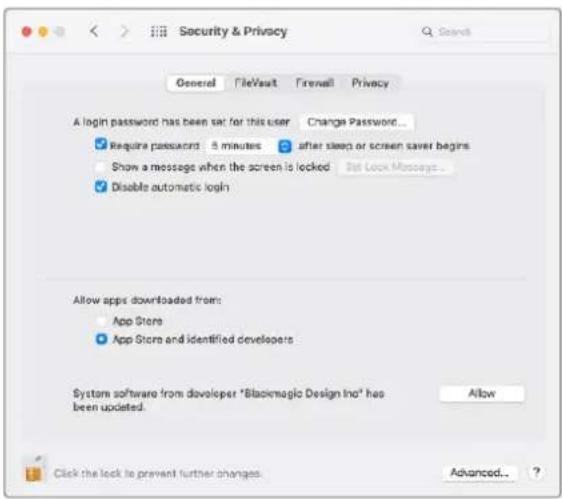

2 In the 'security and privacy' preferences, click 'allow' to enable the Desktop Video software on your computer.

Security & Privacy General FileVault Firewall Privacy A login password has been sat for this user Change Password... ✓ Require passwords 5 minutes after sleep or screen saver begins Show a message when the screen is locked Set Lock Messages... ✓ Disable automatic login Allow apps downloaded from: App Store App Store and identified developers System software from developer "Blackmagic Design Inc" has been updated. Allow Click the lock to prevent further changes Advanced... ?

Click 'allow' in the security and privacy preferences to enable the Desktop Video software on your computer

3 When instructed to restart, click 'not now'.

A restart is required before new system extensions can be used. Restart Not Now

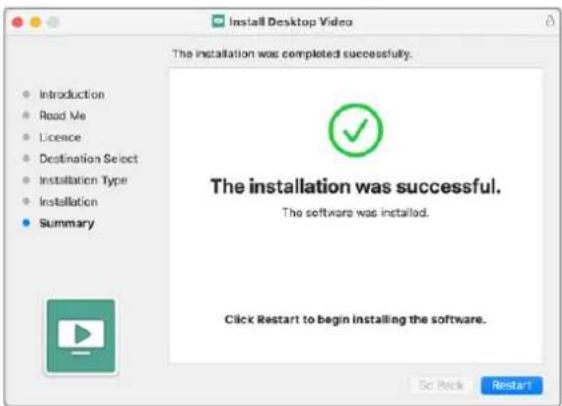

4 Back in Desktop Video Installer, complete the software installation by clicking 'restart'.

Install Desktop Video The installation was completed successfully. Introduction Read Me Licence Destination Select Installation Type Installation Summary The installation was successful. The software was installed. Click Restart to begin installing the software. Go Back Restart

Resetting System Security Policy on an M1 Mac

From Desktop Video 12.2 or later, it is no longer necessary to have 'reduced security' enabled as your Mac's system security policy. If you had 'reduced security' set when installing previous versions of Desktop Video, it is now advisable to reset your M1 Mac's security policy to 'full security'.

To do this, follow these steps:

1 Start the computer by pressing and holding the power button until you see 'loading startup options' displayed.

2 Click 'security policy'.
3 Select 'full security'.
4 Click OK.
5 A notification will appear informing you that your computer is applying the security policy. When the notification disappears, you can restart your computer normally.

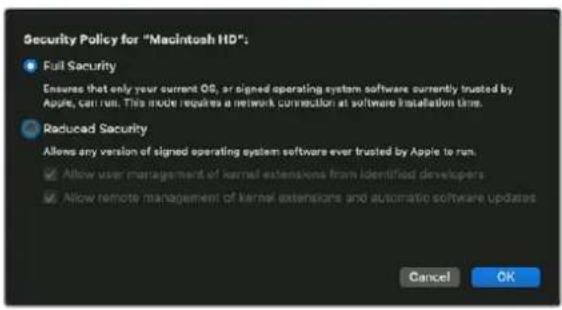

Security Policy for "Macintosh HD": ● Full Security Ensures that only your current OS, or signed operating system software currently trusted by Apple, can run. This mode requires a network connection at software installation time. ● Reduced Security Allows any version of signed operating system software ever trusted by Apple to run. ✓ Allow user management of kernel extensions from identified developers ✓ Allow remote management of kernel extensions and automatic software updates Cancel OK

Windows Installation

1 Ensure you have the very latest driver. Visit www.blackmagicdesign.com/support
2 Open the "Desktop Video" folder and launch the "Desktop Video" installer.
3 The drivers will now be installed on your system. An alert will appear: "Do you want to allow the following program to install software on this computer?" Click 'yes' to continue.
4 You will see a dialog bubble saying "found new hardware" and the hardware wizard will appear. Select "install automatically" and the system will find the required Desktop Video drivers.
5 After all drivers have been installed, a dialog bubble will appear saying "your new hardware is ready for use." Restart your computer to enable the new software drivers.

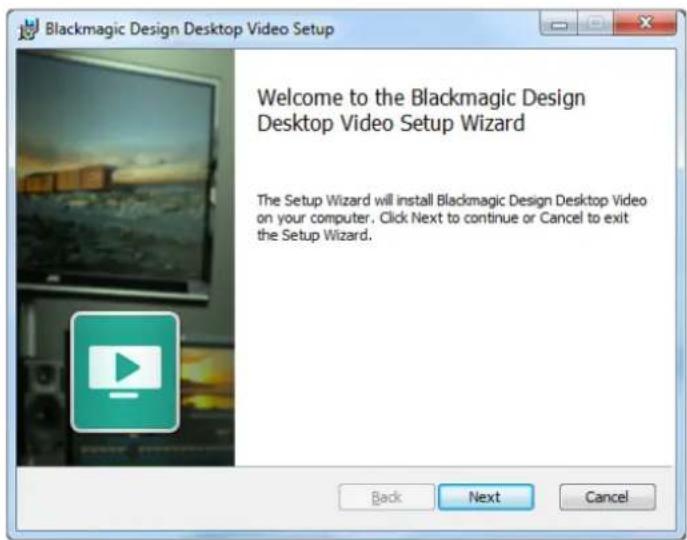

Welcome to the Blackmagic Design Desktop Video Setup Wizard The Setup Wizard will install Blackmagic Design Desktop Video on your computer. Click Next to continue or Cancel to exit the Setup Wizard.

Desktop Video Installer for Windows

Linux Installation

1 Download the latest Desktop Video software for Linux from www.blackmagicdesign.com/support
2 Open the Desktop Video folder and navigate to the packages required for your distribution and architecture. Note that 'amd64' refers to Intel and AMD 64 bit processors. There are three sets of packages provided:

• The desktopvideo package provides the core drivers and API libraries.
• The desktopvideo-gui package provides the Desktop Video Setup software.
  – The mediaexpress package provides a simple capture and playback utility.

3 Double click the packages you wish to install and follow the onscreen instructions. If you see any messages about missing dependencies, ensure they are installed first and then rerun the Desktop Video installer.

4 When the installer has finished it is recommended that you restart your computer to complete the installation process.

If you cannot find a native Desktop Video package for your Linux distribution, or if you prefer to install from a command line, refer to the ReadMe file for detailed installation instructions.

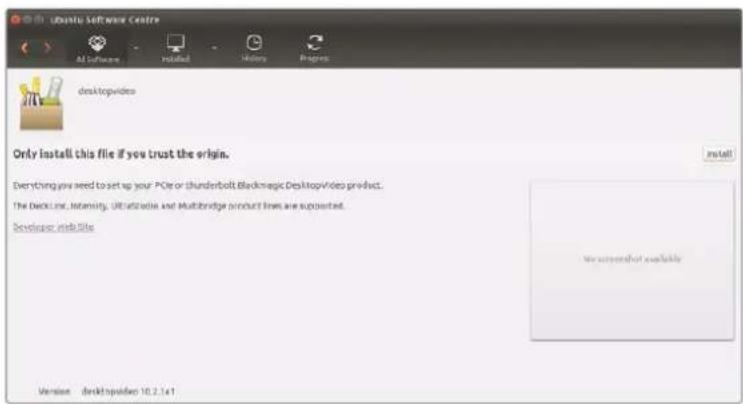

Ubuntu Software Centre All software Installed History Progress desktopvideos Only install this file if you trust the origin. Everything you need to set up your PCIe or Thunderbolt Blackmagic DesktopVideo product. The DeckLine, Intensity, Ultraviolet and Multibridge product lines are supported. Developer into file No support not available Version: desktopguides 10.2.1.e1

Desktop Video software ready to be installed from the Ubuntu Software Center.

Updates

If you have not installed the setup software, you can check the internal software is up to date using the BlackmagicFirmwareUpdater command line tool:

# BlackmagicFirmwareUpdater status

A message similar to the following will appear:

0: /dev/blackmagic/io0 [DeckLink SDI 4K] 0x73 OK

1: /dev/blackmagic/iol [DeckLink 4K Extreme 12G] 0x0A PLEASE_UPDATE

In this case you could update the internal software with the following command:

# BlackmagicFirmwareUpdater update 1

See the 'man' page for a more detailed description of the command's usage. e.g., for more info on the internal software updater command, type "man BlackmagicFirmwareUpdater".

That's all there is to getting started! Now that you have installed your Blackmagic Desktop Video hardware and software, you can start capturing and playing back video.

Capturing and Playing Back Video

Once the Desktop Video hardware and software is installed, you can start capturing and playing back clips straight away. First, plug your video source into the input on your Desktop Video hardware, then connect a monitor to the output.

A quick way to begin capture and playback is to record a clip in Blackmagic Media Express, which was installed on your computer when you installed the Desktop Video software.

Setting Up

1 Connect a monitor or TV to the video output of your Blackmagic Design hardware.
2 Connect a video source to the input of your Blackmagic Design hardware.

Ultra Studio HD Mini

URSA Mini Pro

HDTV

Connect a video monitor and source to your Blackmagic Design video hardware.

Testing Video Capture

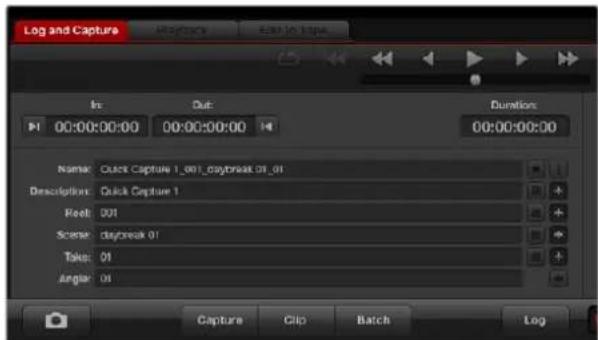

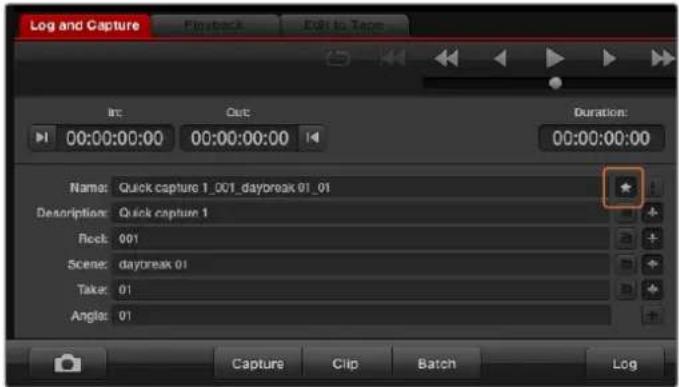

1 Launch Blackmagic Media Express. Click on the 'log and capture' tab. Your input video format is automatically detected and Media Express sets the project video format to match. Your video source will appear in the Media Express preview pane.
2 Click 'capture' at the bottom of the 'log and capture' window to perform the capture test. Click 'capture' again to finish the test. The captured clip is added to the media list on the left side of Media Express.

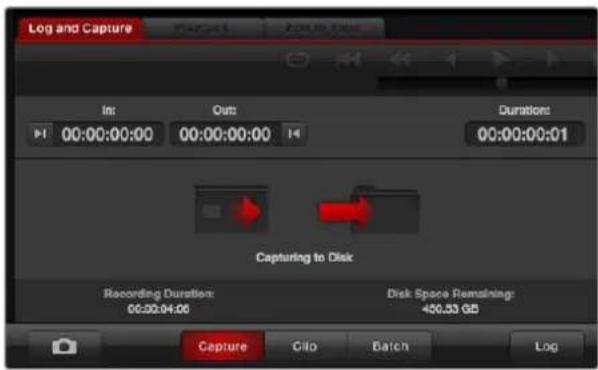

Log and Capture Playback Edit to Tape Int Out Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remaining: 450.53 GB Capture Clip Batch Log

Click the 'capture' button to commence recording.

Testing Video Playback

1 Click on the ' playback' tab.
2 Double click the test clip. The video and any present audio will be sent to the monitor connected to your hardware's output.

Blackmagic Desktop Video Setup

Introducing Blackmagic Desktop Video Setup

Blackmagic Desktop Video Setup provides a central location for configuring hardware settings, plus a real time status display showing the video connected to your hardware's inputs and outputs.

To launch Blackmagic Desktop Video Setup:

• On Mac OS, click Blackmagic Desktop Video in 'system preferences' or you can launch the utility from your 'applications' folder.
• On Windows 8, from the 'start' page type 'Blackmagic' and then click the Blackmagic Desktop Video Setup application. The Desktop Video Setup utility also launches from the Windows 8 'control panel'.
• On Windows 10, click the 'start' button>all programs>Blackmagic Design>Desktop Video and click the Desktop Video Setup application. The Desktop Video setup software also launches from the Windows 10 'control panel'.
• On Linux, go to 'applications' and then 'sound and video' and double click the Blackmagic Desktop Video Setup application.

When you first open Blackmagic Desktop Video Setup, the home page displays your connected hardware and provides an overview of all video activity on your hardware's input and output connections. If you are sending a video signal to your input, it will be automatically detected and the format will be displayed under the Video Input icon.

If you have multiple Blackmagic capture and playback devices connected, you can cycle through them by clicking the arrow buttons on the sides of the home page. To configure settings, simply click on the hardware image, or the settings icon located below the hardware name. The Desktop Video Setup utility only displays the settings that are relevant to your selected hardware, so you don't have to scroll through pages of menus to find the settings you want.

Desktop Video Setup Blackmagic design UltraStudio HD Mini UltraStudio HD Mini UltraStudio HD Mini VIDEO INPUT VIDEO OUTPUT NOT OUTPUT NTSC NTSC SIN ADAM

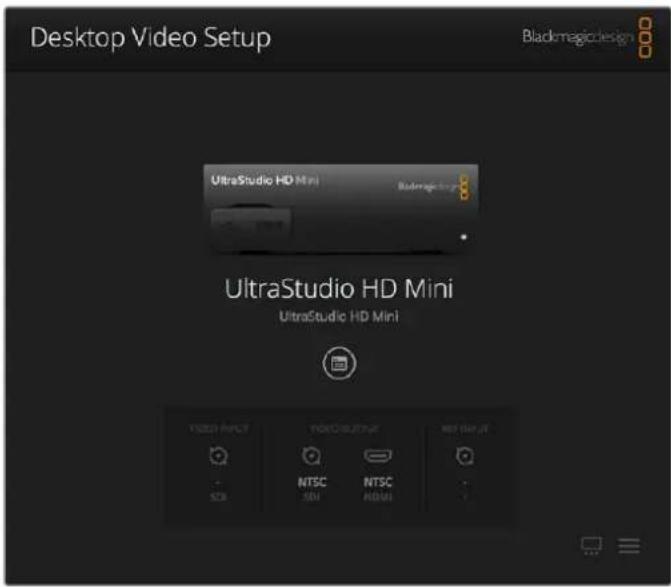

Blackmagic Desktop Video Setup home page

The following pages of this manual will show you how to adjust settings using Blackmagic Desktop Video Setup.

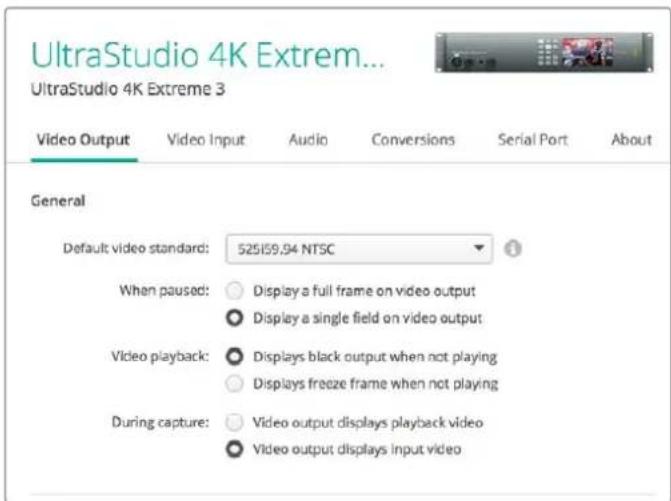

UltraStudio 4K Extrem... UltraStudio 4K Extreme 3 Video Output Video Input Audio Conversions Serial Port About General Default video standard: 525159.94 NTSC When paused: ○ Display a full frame on video output ○ Display a single field on video output Video playback: ○ Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ○ Video output displays input video

Blackmagic Desktop Video Setup lets you adjust video and audio input and output settings, apply up or down conversions during capture and playback, and provides information about the driver.

Video Settings

Video Input

Click on a connector icon to set the 'video input' connection for your Blackmagic Design hardware. Only the connectors that are built into your hardware will be shown. When a valid video signal is detected, the input and video format will be displayed on the Blackmagic Desktop Video Setup home page.

UltraStudio 4K Extrem... UltraStudio 4K Extreme 3 Video Output Video Input Audio Conversions Serial Port About Input Connection SDI HDMI Optical Component Composite Use XLR Timecode Input

Click on an icon to set your video input connection.

Use XLR Timecode

Select this setting to read timecode from the XLR input instead of the SDI stream.

Enable the checkbox to capture timecode from the dedicated XLR input

Analog Video Input Levels

Drag the 'video' and 'chroma' sliders to adjust the analog video input levels for component or composite video. Dragging the video slider affects the luma gain and the chroma sliders decrease or increase the color saturation. When using component video, you can adjust the Cb and Cr values independently. Click the 'link' icon to connect them if you want to adjust them simultaneously.

Analog Video Input Levels Y: 0.00 Cb: 0.00 Cr: 0.00

Video Output

Select the video standard and adjust other settings for your video output.

General

- Default Video Standard

To use broadcast monitoring with Final Cut Pro X, set the output format to match your Final Cut Pro X project.

- When Paused

Click to select whether to display a full frame or a single field on the output when paused.

- Video Playback

Click to select whether to display a freeze frame or black output when not playing.

During Capture

Click to select whether the video output displays the playback video or input video during capture. If you select the 'video output displays playback video' option, then your selection in the 'video playback' section will dictate what is displayed on your output. If you select the 'video output displays input video' option, then the input video will be displayed on your outputs.

During Playback

Some Desktop Video products are capable of converting Rec. 601 and Rec. 709 video outputs to Rec. 2020 for TVs and video monitors that may require it. If your Desktop Video hardware supports this feature, select 'convert to Rec. 2020' in the setup utility. If your video is already using the Rec. 2020 color space, or is displaying correctly, you can leave this setting set to 'keep default color gamut'.

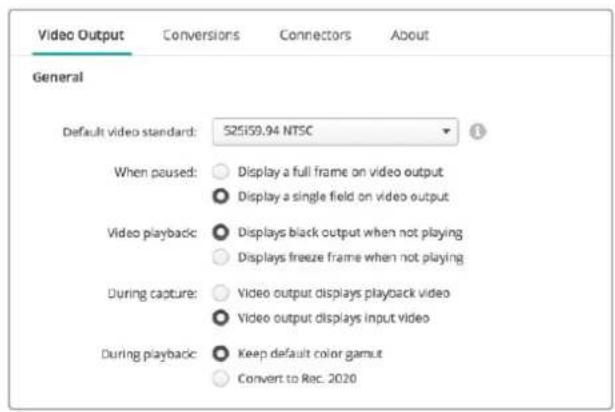

Video Output Conversions Connectors About General Default video standard: 525159.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video During playback: ● Keep default color gamut ○ Convert to Rec. 2020

Select what to display on the output when paused, during video playback and during capture

SDI Output

Color Space

Click to select the color space to convert to. Options are 4:4:4 RGB video or Y, Cb, Cr 4:2:2.

3G-SDI Formats

Click to select whether to output 3Gb/s SDI signals as SMPTE Level A direct mapping or to have 3Gb/s signals sent with Level B mapping.

1080p HD and 2K

Click to select whether 1080p HD and 2K are output as 1080p progressive video, or as progressive segmented frame video.

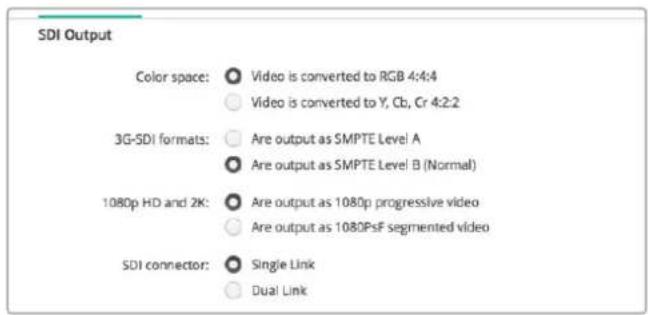

SDI Output Color space: ○ Video is converted to RGB 4:4:4 ○ Video is converted to Y, Cb, Cr 4:2:2 3G-SDI formats: ○ Are output as SMPTE Level A ● Are output as SMPTE Level B (Normal) 1080p HD and 2K: ○ Are output as 1080p progressive video ○ Are output as 1080PsF segmented video SDI connector: ○ Single Link ○ Dual Link

Use the SDI Settings to control the output of your SDI video.

- SDI Configuration

Select between single link, dual link and quad link for 3G, 6G or 12G-SDI output. Some professional color grading monitors and projectors only accept high bandwidth signals like 2160p60 or DCI 4K 4:4:4 via quad link. UltraStudio 4K Extreme can output quad link 3G-SDI and you can also get a Quad SDI add on card for DeckLink 4K Extreme 12G.

SDI connector:

Single Link

Dual Link

Quad Link

Choose whether to output via single link, dual link or quad link for 3G, 6G and 12G-SDI video signals

8K Formats

8K video is played back via quad link SDI and you can choose your desired quad link output format.

The two options available are:

Square Division Quad Split – The 8K image is distributed as four quadrant 4K images in a 2 x 2 multi view configuration. Each 4K quadrant image is supplied via SDI using a quad link connection and reconstructed at the destination to form a complete 8K image. This is also the selection to use if you want to send each output to a separate display to create a video wall of Ultra HD monitors.

Sample interleave – Alternate pixels from a single 8K image are distributed as four separate 4K images via quad link SDI, then combined at the destination to form one complete 8K image. Therefore, an added benefit of this format is the option to use any of the four outputs as a down converted 4K image.

4K and 8K formats:

Are output as Square Division Quad Split (SQ)

Are output as Sample Interleave (\$I)

When using desktop video equipment for 8K playback, set your desired quad link 8K output format

Set Analog Video Output

If your Blackmagic Design hardware has shared analog video connectors, you can choose whether to output your video via 'component', 'composite' or 's-video' by selecting between the 'analog video output' options.

HDMI 3D Output

This setting determines the 3D format for your HDMI monitoring.

- Top and Bottom

Arranges both left and right eye images vertically with 50% compression.

Frame Packing

Combines left and right eye images into a single frame without compression.

- Side by Side

Arranges both left and the right eye images horizontally with 50% compression.

- Left Eye

Only the left eye image is displayed.

Line by Line

The left and right eye images are carried on alternate video lines without compression.

Right Eye

Only the right eye image is displayed.

HDMI Output 3D output: Frame Packing

Set your HDMI 3D Output format.

Analog Video Output Levels

Drag the 'video' and 'chroma' sliders to adjust the analog video output levels for component or composite video. Dragging the video slider affects the luma gain and the chroma sliders decrease or increase the color saturation. When using component video, you can adjust the Cb and Cr values independently. Click the 'link' icon to connect them if you want to adjust them simultaneously.

Adjust the video slider to set composite analog video output levels, and the Cb and Cr sliders for controlling color balance when using component video.

- Use Betacam Levels

Blackmagic Design products use SMPTE component analog levels to maintain compatibility with most modern video equipment. Enable the checkbox if working with Sony Betacam SP decks.

NTSC IRE

Select the 7.5 IRE setup for the NTSC composite video used in the USA and other countries. Select the 0 IRE setup if you're working in Japan or countries that don't use the 7.5 IRE setup. PAL and high definition formats do not use this setting.

Use Betacam Levels NTSC IRE: 0.0 (Japan) 7.5 (USA)

Enable the 'use Betacam levels' checkbox when working with Sony Betacam SP decks. Select the relevant NTSC IRE level when using an NTSC composite video format.

Reference Input

The reference adjustment lets you adjust the timing of the video outputs of your hardware relative to the video reference input. This is commonly used in large broadcast facilities where the video output needs to be accurately timed. The reference adjustment is in samples so you can get an extremely accurate timing adjustment down to the sample level.

A common example of how this setting would be used is where all the hardware in your facility has a stable common reference connected and then all the devices would have the timing set so the video outputs all match perfectly. This would then make it possible to switch between devices on a downstream router or production switcher and would eliminate any glitching when switching is performed.

Reference Input Offset 0 Pixels

If locking to a reference, adjust this setting to time the video output relative to the reference input.

Connector Mapping for DeckLink Quad 2

If you have a DeckLink Quad 2 installed in your computer, you can input or output SDI signals over 8 independent mini BNC connectors. This gives you the ability to capture or play back 8 separate video streams, similar to having 8 capture and playback devices in a single product. This is why your DeckLink Quad 2 appears in Desktop Video Setup as 8 individual DeckLink Quad devices which makes it easier to configure your inputs and outputs. You can even name each device so you can keep track of which DeckLink Quad device is being used for a specific video signal.

SDI connectors can be mapped to each device using the 'connector mapping' settings in the Desktop Video Setup utility, but it's important to know that specific connectors are dedicated to specific devices. For example, SDI 1 is dedicated to DeckLink Quad (1), and SDI 2 is dedicated to DeckLink Quad (1) and DeckLink Quad (5).

Connector Mapping Connector: SDI 1 & SDI 2

If you have a DeckLink Quad 2 installed, the 'connector mapping' setting lets you assign SDI connectors to each DeckLink Quad device.

You can see which SDI connectors are dedicated to each DeckLink Quad device by looking at the table below, where you can also check the mapping options for them.

Mapping Options

DeckLink Quad Devices Dedicated SDI Connectors

DeckLink Quad (1) SDI 1 and 2 or SDI 1

DeckLink Quad (2) SDI 3 and 4 or SDI 3

DeckLink Quad (3) SDI 5 and 6 or SDI 5

DeckLink Quad (4) SDI 7 and 8 or SDI 7

DeckLink Quad (5) SDI 2 or none

DeckLink Quad (6) SDI 4 or none

DeckLink Quad (7) SDI 6 or none

DeckLink Quad (8) SDI 8 or none

It's worth mentioning that when configuring an SDI connector for a specific device, it will also affect the device sharing that connector. For example, if DeckLink Quad (1) is set to use SDI 1 and 2, DeckLink Quad 5 will automatically be set to 'none' because its shared SDI connector is being used. Alternatively, if you select SDI 2 on DeckLink Quad (5), DeckLink Quad (1) will automatically be set to SDI 1. For this reason, it's important to note which SDI inputs or

outputs are being used by each device to avoid accidentally interrupting the input or output of another device.

TIP If you have an original DeckLink Quad installed in your facility and are using a custom designed SDK application, you can be confident that installing DeckLink Quad 2 will work in your system without having to make any changes to your application. Additional mapping features in your DeckLink Quad 2 will allow you to build on your existing system to provide even more input and output configurations if you need them.

Audio Settings

Audio Input

Click on a connector icon to set your 'audio input' connection for your Blackmagic Design hardware. You can select from the following inputs:

- Embedded

Includes audio channels as part of video signals. SDI and HDMI are capable of carrying embedded audio.

- AES/EBU

Is a digital audio signal that can carry 2 audio channels over a single connector.

- XLR

Is a three pin audio connector that is predominantly used by professional analog audio equipment.

- RCA or HIFI

Is a connector used to connect unbalanced analog audio to and from consumer audio equipment, such as HiFi systems, DVD players and televisions.

- Microphone

Phantom power supplies power through microphone cables and is a convenient power source for condenser microphones.

Enable the 'use +48V phantom power' option if your microphone requires phantom power. If you're unsure whether your mic needs phantom power or not, it's best to leave this box unchecked as there is a risk of causing damage to microphones that are self powered. An LED on the front of UltraStudio 4K Extreme will illuminate when phantom power is active. Be sure to wait at least 10 seconds for phantom power to discharge after disconnecting before plugging in a self powered microphone. Older ribbon type microphones and dynamic microphones are not suitable for phantom power usage.

Video Output Video Input Audio Conversions Serial Port About Audio Input Embedded AES/ESU XLR HiFi Microphone

Click on a connector icon to set your 'audio input' connection.

Microphone Input Level: ○ —— 1 dB Use +48V Phantom Power ⓣ

Drag the 'input level' slider to control your microphone input level.

HDMI Audio Output

This setting lets you remap the 5.1 audio channels in your project to match the configuration used by your HDMI monitoring equipment. For example, some home theatre AV receivers require your surround sound audio to be mapped to specific channels. If you are working on a project that uses a different surround sound channel ordering, such as SMPTE ordering, you can enable the 'Use 5.1 surround channel ordering' checkbox to ensure compatibility with your HDMI AV receiver.

HDMI Audio Output Use 5.1 surround channel ordering

Enable 'use 5.1 surround channel ordering' to ensure compatibility with other HDMI monitoring equipment

AES/EBU

Drag the sliders to adjust the 'ref' level, or gain, for the AES/EBU audio inputs and outputs. Press the reset icon to reset the gain to 0 dB.

AES/EBU Output Level 0.00 dB

Drag the 'output level' slider to control your AES/EBU digital output level.

Analog Audio Input Levels

Channel 1/Channel 2

These settings adjust the gain for the analog audio inputs when capturing. Click the 'link' icon to adjust them simultaneously.

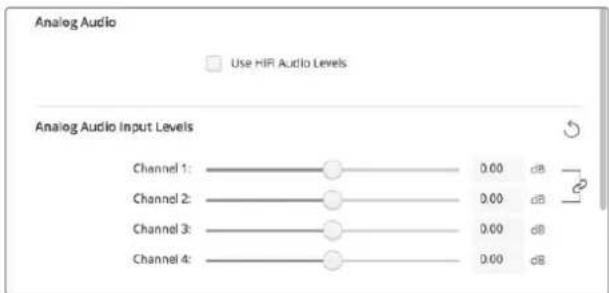

Use HiFi Audio Levels

Professional XLR connectors are standard on UltraStudio and DeckLink models. If you want to connect consumer audio equipment to the XLR connectors, make sure you enable the 'use HiFi audio levels' checkbox as the audio levels between professional and consumer equipment differ. You'll also need to use an RCA to XLR adapter.

Analog Audio Use HIR Audio Levels Analog Audio Input Levels Channel 1: —— ○ —— 0.00 dB Channel 2: —— ○ —— 0.00 dB Channel 3: —— ○ —— 0.00 dB Channel 4: —— ○ —— 0.00 dB

Adjust the input channel sliders to control your analog audio input levels. Enable the 'use HiFi audio levels' checkbox if connecting consumer audio equipment.

Analog Audio Output Levels

Channel 1/Channel 2

These settings adjust the strength of the audio signal, or gain, for the analog audio outputs while playing back video. Click the 'link' icon to adjust them simultaneously.

Reset Icon

When adjusting sliders, you may want to cancel your change. The reset icon is the circular arrow located at the right of each settings' title bar. Press the reset icon in each setting to restore the gain sliders to 0 dB.

Conversions Settings

Input Conversion

This setting enables real time up and down conversion during capture. Select your desired conversion from the 'input conversion' dropdown menu.

Input conversion results in up to a 2 frame delay, so you'll need to adjust your editing software's timecode offset to ensure frame accuracy.

Display As

Select how you would like your converted video presented. Depending on your input video's original aspect ratio, options may include letterbox, anamorphic, center cut, pillarbox, 16:9 zoom or 14:9 zoom.

Output Conversion

This setting enables real time up and down conversion during playback. Select your desired conversion from the dropdown menu.

Output conversion results in up to a 2 frame delay, so you'll need to adjust your editing software's timecode offset to ensure frame accuracy.

Convert Analog Outputs

Enable this checkbox to also perform your conversion on the analog video outputs.

Display As

Select how you'd like your converted video presented. Depending on your video's original aspect ratio, options may include letterbox, anamorphic, center cut, pillarbox, 16:9 zoom or 14:9 zoom.

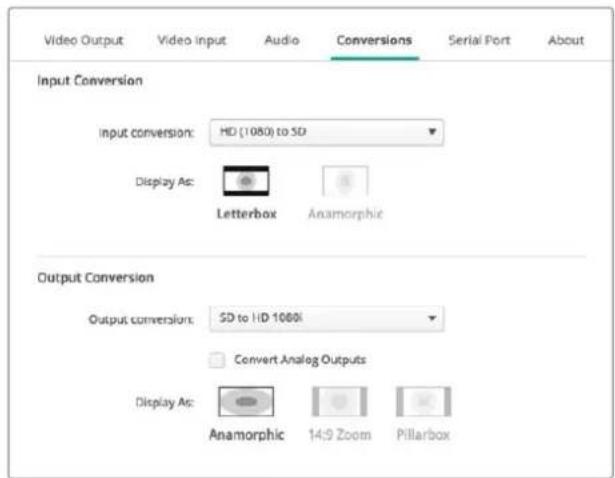

Video Output Video Input Audio Conversions Serial Port About Input Conversion Input conversion: HD (1080) to SD Display As: Letterbox Anamorphic Output Conversion Output conversion: SD to HD 1000 Convert Analog Outputs Display As: Anamorphic 14:9 Zoom Pillarbox

To set your up or down conversion settings, select your input or output conversion from the respective dropdown menu, and click on the desired aspect ratio selection. Remember to click 'save' to apply your settings.

The following table outlines the different aspect ratio selections available during conversions.

Down Conversion	Source Image	Converted Image
Letterbox			Scales the entire 16:9 HD image into a 4:3 SD frame leaving black bars on the top and bottom.
Anamorphic			Horizontally squeezes the 16:9 HD image into a 4:3 SD frame.
Center Cut			This setting cuts a 4:3 SD frame from the 16:9 HD image. This aspect ratio setting discards a portion from each side of the 16:9 image.
Pillarbox			Displays a 4:3 SD image inside an 16:9 HD frame. Black bars feature on the sides.
16:9 Zoom			Scales the 4:3 SD image to fill the 16:9 HD frame.
14:9 Zoom			A compromise between Pillarbox and 16:9 Zoom. Minimal black bars with slight crop top and bottom.

About

Driver

The ‘about’ page in Blackmagic Desktop Video Setup provides information about your hardware’s current driver and the last time your hardware was updated.

TIP You can generate a status report by clicking on the status report 'create' button, which lets you save a file containing technical information such as the video format detected on your input and output reference, color space, color sampling and bit depth, driver information, operating system and machine information. This report can be useful if you ever need to contact our technical support team. The file is also very small so can be easily emailed.

Product Notes

Changing the name of your Blackmagic Design equipment lets you identify each unit in the Desktop Video Setup software and keep track of where and how it's being used. This is useful if you have the same hardware in various locations on a network, plus it can be handy to name the different units for their purposes, e.g., Edit Suite 2, Color Suite 1, etc.

When you enter a name for your hardware in the label field, it is saved to the

Blackmagic Desktop Video Setup home page and displayed beneath the hardware image.

You can also enter important information that you may want to refer to later, such as the hardware serial number, where and when your hardware was purchased, as well as the seller's contact details.

UltraStudio HD Mini UltraStudio HD Mini Video Output Video Input Audio Conversions About driver information Driver: 0.0 Last Update: 16 January 2019 Status Report: Create Product Notes Label: Serial Number: Purchased From: Seller Phone Number: Seller Email: Purchase Date: Documentation User Manual Readme

The 'about' section provides valuable information such as the driver version, user manual and release notes. You can also generate a status report and enter product notes specific to your hardware.

Teranex Mini Smart Panel

Attaching a Teranex Mini Smart Panel

Blackmagic UltraStudio HD Mini is a small capture and playback solution that shares a similar form factor to other Blackmagic equipment like Teranex Mini converters and recording decks such as HyperDeck Studio Mini. These products are designed to be portable and modular so you can take them with you on location, mount them on your desk, or attach them to a Teranex Mini Rack Shelf. The rack shelf lets you mount the equipment in a rack.

Attaching an optional Teranex Mini Smart Panel to your UltraStudio HD Mini allows you to preview video and audio directly from the front of the unit during playback and capture.

The built in LCD on the Teranex Mini Smart Panel displays the input image as well as audio meters, which allow you to preview your audio levels.

The Panels are hot swappable so you don't even need to turn off your Blackmagic UltraStudio HD Mini when installing it.

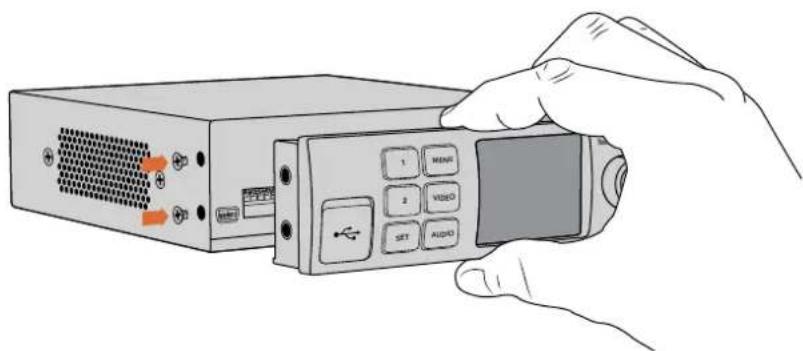

1 Remove the two M3 screws on each side of your Blackmagic UltraStudio HD Mini's basic front panel using a Pozidriv 2 screwdriver and gently pull the panel away from the front of your the unit.

2 On the inside of the basic panel, you'll notice a small clear plastic tube attached to the bottom corner. This tube directs light from the LED inside the unit to illuminate the status indicator on the basic panel. This tube should stay attached to the basic front panel.

TIP If reattaching the basic front panel, make sure the light tube is aligned with the slot in the front of the unit.

3 Align the connector on the rear of the Teranex Mini Smart Panel with the corresponding connector on the face of your UltraStudio HD Mini and gently push the Smart Panel towards the unit until the connectors are firmly seated. The Teranex Mini Smart Panel should make a firm connection and fit neatly inside the face of your UltraStudio HD Mini.

4 Re-insert the M3 screws from the original panel.

Illustration of a hand holding a remote control unit with labeled buttons (MENU, VIDEO, SET, AUDIO) and ports (no text or symbols on the device itself)

When Installing the Téranex Mini Smart Panel to your Blackmagic UltraStudio HD Mini, holding the panel with your fingers and thumb aligned with the panel's rear connector will help guide it into place

If your UltraStudio HD Mini is installed in a Teranex Mini Rack Shelf, you will need to remove the unit from the rack shelf to access the front panel screws.

See the 'Teranex Mini Rack Shelf' section for more information.

The original basic panel is very strong, so if you need to mount your Blackmagic UltraStudio HD Mini in the back of a rack system or in areas where there are lots of cables or activity, you can always reinstall the original basic panel.

Smart Panel Features

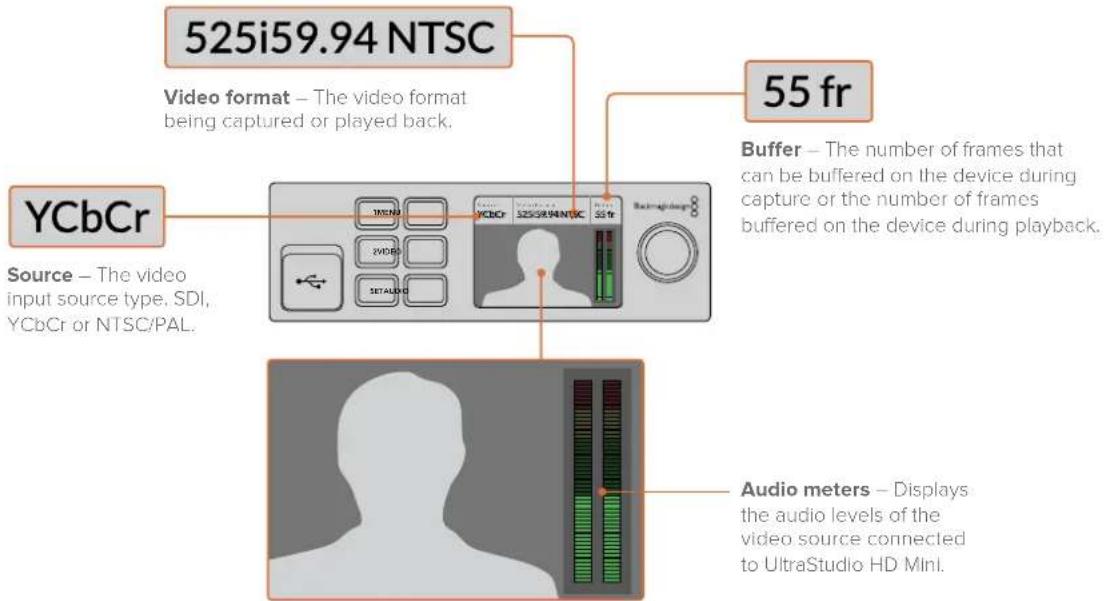

LCD Display

The home screen is the first feature you'll see on your Teranex Mini Smart Panel's LCD display. The home screen shows you important information, including:

525i59.94 NTSC Video format – The video format being captured or played back. 55 fr YCbCr Source – The video input source type, SDI, YCbCr or NTSC/PAL. Buffer – The number of frames that can be buffered on the device during capture or the number of frames buffered on the device during playback. Audio meters – Displays the audio levels of the video source connected to UltraStudio HD Minl.

Video monitor – Displays the input video source that is connected to UltraStudio HD Mini.

Teranex Mini Rack Shelf

When using Blackmagic UltraStudio HD Mini with other equipment like Blackmagic ATEM Television Studio HD or Blackmagic Teranex Mini converters, you can use Teranex Mini Rack Shelf to install your units into a broadcast rack or road case. Up to three Teranex Mini sized units can fit neatly onto each 1RU Teranex Mini Rack Shelf.

UltraStudio HD Mini is installed into the rack shelf by removing the unit's rubber feet, if attached, and screwing the unit into the base of the shelf using the mounting holes on the underside.

Illustration of a Teranex Mini UltraStudio HD Mini device with ports and connectors (no text or symbols on the device itself)

The Teranex Mini Rack Shelf ships with two original blank panels which you can use to cover gaps if you don't need to install additional units.

For more information, check the Blackmagic Design website at www.blackmagicdesign.com

Using UltraStudio 4K Mini's Front Control Panel

On UltraStudio 4K Mini, most of the settings that can be changed in the Desktop Video Setup utility are also available via the LCD menu on the front panel. To navigate through the settings, press the 'menu' button to open the menu, then scroll through the options using the settings knob. To enter submenus and confirm a setting, press the 'set' button.

To exit the menu, keep pressing the 'menu' button to step back through the menus and return to the home screen.

TIP You can also navigate directly to the video or audio settings by pressing the 'video' or 'audio' buttons. This lets you go directly to the relevant settings without scrolling through the settings list, which can save time.

PUSH 1 MENU 2 VIDEO SET AUDIO Audio Meters VU ( 18uBFS ) VU (-20dBFS ) PPM (-18uBFS ) PPM (-20dBFS ) Backmag design

Use the LCD menu on UltraStudio 4K Mini's front panel to change settings

Audio Settings

UltraStudio 4K Mini also has additional audio settings in the LCD menu. These settings let you change the type of audio meters displayed on the LCD during capture and playback. The two audio meter types are VU and PPM.

vU

The VU meter, or 'volume units' meter, averages out short peaks and troughs in your audio signal. If you are using VU metering, adjust the output levels of your source so that the meter peaks at the 0db indicator on the audio meter. This maximizes the signal to noise ratio and ensures your audio is at the highest quality. If your audio peaks beyond the 0dB indicator there is a high risk of sound distortion. If you are using the analog audio inputs of the UltraStudio 4K Mini, the input levels can be adjusted in the LCD menu or setup utility.

PPM

PPM meters, or 'peak programme meters', display a 'peak hold' feature that momentarily holds the signal peaks with a slow fall back so you can easily see the audio level at which your audio is peaking.

Both VU and PPM meters can be set to use reference levels of -18dB or -20dB so you can monitor your audio to suit different international broadcasting standards.

SD Card Slot

UltraStudio 4K Mini's front panel also features an SD card slot that reads and writes files when the unit is connected to a Mac or Windows computer. This slot can be used just like a typical SD card reader or writer and is detected by your computer as another drive. This means you can quickly import clips from your camera's SD card or set Media Express to capture a clip to portable media.

DaVinci Resolve

Live Grading with DaVinci Resolve

Desktop Video 10 allows simultaneous capture and playback on Blackmagic Design 4K and 8K hardware. This is great for users who want to use the live grading feature within DaVinci Resolve, as it means you don't require two separate devices for input and output.

DAVINCI RESOLVE STUDIO 16 STARTING UP © 2013 BLACKMAGIC Studio BY LTD. All rights reserved. BLACKMAGIC DESIGN: DRIVERSIDE POWER HANDLING, POWER GRAVE, POWER CHINA, AND PROCESSED BY BLACKMAGIC DESIGN. PUEESE EQUITY, SOLO, 501-502, 501-503, BRITORS: GROSSAGE, COSTSAGE, HANDICAT, MASCATOR, EPHAFECTRIC BLACKMAGIC URSA MINI PRO 4.GK

When using live grading on set, simply connect the output of the camera to the input of your Blackmagic Design hardware. Then connect the hardware's output to an on set monitor for grading evaluation and viewing.

Setting Up

1 Launch DaVinci Resolve. From the preferences menu, select the 'video and audio I/O' tab and select your hardware from the 'for Resolve Live use' option. Save your preferences and restart DaVinci Resolve to apply your changes.
2 Start a project and open the 'project settings' window. From the 'master settings' tab set the timeline resolution and frame rate to match your camera.
3 Go to the 'capture and playback' tab and select your desired format from the 'video capture and playback' menu.

Presents Master Settings Image Scaling Color Management General Options Camera RAW Capture and Playback Substites Light Deck Settings Video capture and playback HD 1080p 24 Use left and right eye SDI Video non-connection operators as Use 4.4.4.SDI Enable Single Link Data Levels Video Full Video bit depth 10 bit Use disk output Non auto exit timing 0 frames Deck preview 5 seconds Video output sync source Auto Add 37 out lines

Select your format from the 'video capture and playback' menu.

4 Go to the 'edit' page and select file>new timeline.
5 From the 'color' page, click on the 'color' menu and select Resolve live > on. You should now see live video within the viewer and a bright red 'Resolve Live' button will appear above the video.

Using Resolve Live

1 In Resolve Live mode, the 'freeze' button (snowflake icon) freezes the current incoming video frame, so you can grade it without being distracted by motion occurring during the shoot.
2 Once you're happy with a grade, clicking the 'snapshot' button (camera icon) saves a snapshot of the current still in the viewer, the incoming timecode value, and your grade into the timeline. Snapshots are simply one frame clips. Once you've taken your snapshot, press the snowflake icon again to resume playing until you find the next shot you want to grade.

TIP Please refer to the DaVinci Resolve manual for more information on Resolve Live.

Editing with DaVinci Resolve

Blackmagic DaVinci Resolve features an editor friendly interface with all the tools to edit and finish projects. Whether you use the mouse to drag and drop clips, or your keyboard for precision editing, DaVinci Resolve features all of the functionality professional editors require.

Setting Up

1 Launch DaVinci Resolve. From the 'preferences' menu, select the 'video and audio I/O' tab and select your Blackmagic Design hardware from the 'for capture and playback use' option. Save your preferences and restart DaVinci Resolve to apply your changes.
2 Load a project, open 'project settings' from the file menu and under 'master settings', set your 'timeline resolution', 'timeline frame rate' and 'playback frame rate'.
3 Under the 'video monitoring' section, set your 'video format'. Blackmagic Desktop Video Setup will automatically change to the video format you choose for output to your Blackmagic Design video hardware.
4 Click the 'save' button to save the changes and close the project settings window.

Project Settings: My Project Projects Timeline Format Timeline resolution: 2044 x 1963 Ultra ID For: 2044 Intersecting First output ratio Square First output type Multi-contrast effective Extraneous Timeline frame rate: 24 Duration period Short time frame rate: 54 Frames per second Playback frame rate: 54 Extraneous total processing Video Monitoring Value format: EHD 216.8g 24 Use dual DPI Use Level A for 3Gb DDR Use dual output on V3 Data settings: Write Fill View at degree: Wise Audio Audio Link Audio Record Number For 0.22 GB/width Enable high metadata over HTML Download Media and Render Cache Options/Media Recognition: Choose AudioMaterials Download Media Format: Profiles-R22-NO Render Cable Format: Profiles-R22-NO Endo background scanning after 5 seconds Automatically update Transitions in User Mode Automatically update Compression in User Mode Automatically update Pattern Effects in User Mode Cancel Save

Use the 'project settings' window to set your timeline format and video monitoring options.

Editing

1 Use the media storage browser on the 'media' page to load your clips into the media pool.
2 On the 'edit' page, select file>new timeline, name your timeline and click the 'create' button.
3 Now you can drag a clip from the media pool to the source viewer on the left hand side.
4 You can set the in and out points in source clips by using the I and O keys and dragging the playhead in the bar below the viewer window.
5 To edit the clip into the timeline, simply drag and drop the clip from the source viewer into the timeline.

TIP Refer to the Blackmagic DaVinci Resolve manual for more detailed information on how to edit with DaVinci Resolve.

Using your Favorite 3rd Party Software

Adobe After Effects CC

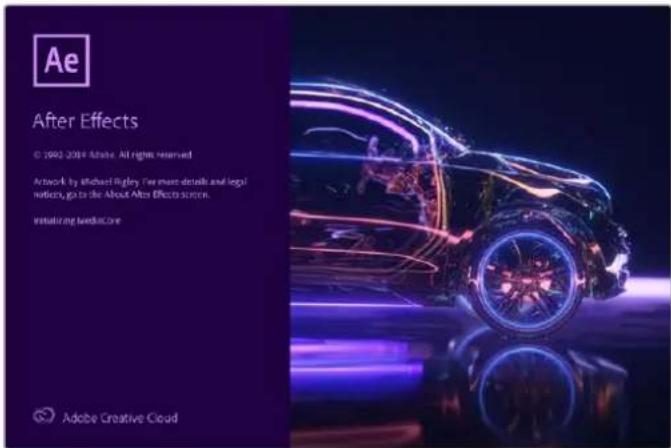

Ae After Effects © 2003-2014 Adobe. All rights reserved. Artwork by Michael Rigley: The most details and legal notions, go to the About After Effects session. Initiating media.com Adobe Creative Cloud

After Effects CC

How to Preview Video

To display your composition in real time through your Blackmagic Design hardware, go to preferences > video preview. 'Enable Mercury Transmit' must be ticked in order to use your Blackmagic Design hardware with After Effects CC. Under 'video device', select Blackmagic Playback. You can now use a broadcast monitor to view your After Effects compositions in the correct video colorspace.

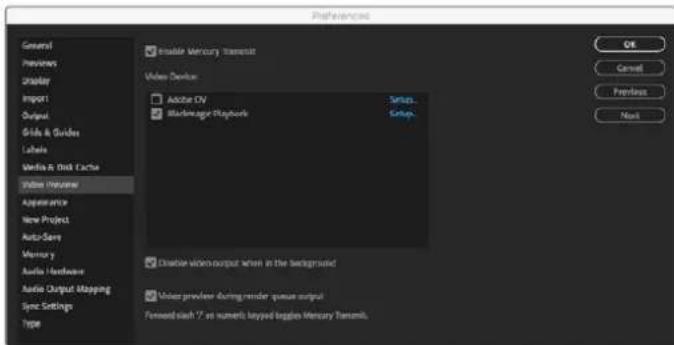

Preferences General Previews Display Import Output Grid & Guides Labels Media & Disk Cache Video Preview Appearance New Project Auto-Serve Memory Audio Hardware Audio Output Mapping Sync Settings Type Enable Mercury Transport Video Device: Adobe DV Blackimage Playbook Settings Setup. Disable video output when in the background Video preview during render-queue output Forward each 7, as numerically keyed logbin Mercury Prompts. OK Cancel Preview Next

'Video Preview' preferences

If you work with unsupported or non standard frame sizes, these can also be correctly outputted by your Blackmagic Design hardware. Go to preferences > video preview and click the 'setup' button next to 'Blackmagic playback'. The 'Blackmagic device selection' window will appear. You can scale your image up or down to the next closest video standard supported by your hardware. For example, if you are using UltraStudio 4K and your After Effects composition is set to a resolution of 2048 x 1152, scaling down will output DCI 2K, scaling up will output Ultra HD.

Rendering

When you have completed your composition, you can render a DPX image sequence or any of the following codecs:

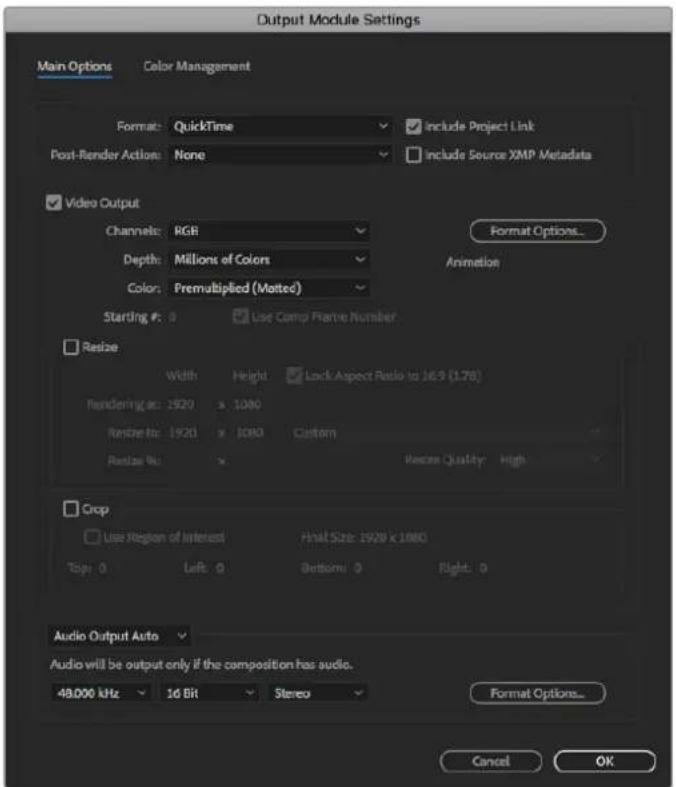

Output Module Settings Main Options Color Management Format: QuickTime Include Project Link Post-Render Action: None Include Source XMP Metadata Video Output Channels: RGB Depth: Millions of Colors Color: Premultiplied (Motted) Starting #: 0 Use Comp Frame Number Resize Width Height Lock Aspect Ratio to 16.9 (1.76) Rendering at: 1920 x 1080 Restore at: 1920 x 1080 Custom Restore By: Resize Quality High Crop Use Region of Interest Final Size: 1929 x 1880 Top: 0 Left: 0 Bottom: 0 Right: 0 Audio Output Auto Audio will be output only if the composition has audio. 48.000 kHz 16 Bit Stereo Format Options... Cancel OK

'Output Module Settings' rendering options

QuickTime codecs on Mac OS

• Blackmagic RGB 10 bit (uncompressed)
  • Apple Uncompressed YUV 10 bit 4:2:2
  • Apple Uncompressed YUV 8 bit 4:2:2
  • Apple Photo - JPEG (compressed)
• Apple DV - NTSC (compressed)
  • Apple DV - PAL (compressed)

Other codecs including ProRes and DVCPRO HD will be available if you have Final Cut Pro installed.

AVI codecs on Windows

• Blackmagic 10 bit 4:4:4 (uncompressed)
• Blackmagic 10 bit 4:2:2 (uncompressed)
• Blackmagic HD 8 bit 4:2:2 (uncompressed)
• Blackmagic SD 8 bit 4:2:2 (uncompressed)
• Blackmagic 8 bit MJPEG (compressed)

Other codecs including DVCPRO HD and DVCPRO50 will be available if you have Premiere Pro CC installed.

QuickTime codecs on Windows

• Blackmagic RGB 10 bit (uncompressed)
• Blackmagic 10 bit (uncompressed)
• Blackmagic 8 bit (uncompressed)
  • Apple Photo-JPEG (compressed)
• Apple DV - NTSC (compressed)
• Apple DV - PAL (compressed)

Adobe Photoshop CC

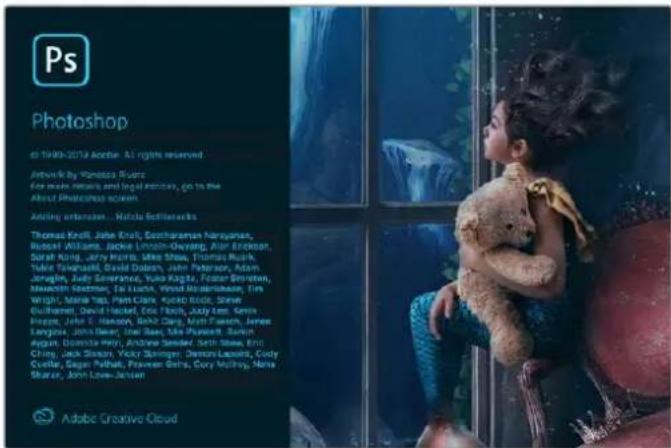

Ps Photoshop © 1990-2018 Acctor. At rights reserved. Artwork by Vanilla Fuers For make news and legal articles, go to the About Photoshop screen. Adding attention... Macia Bostlerakka Thomas Knoll, Joe Knoll, Sootharamsn Narayama, Russel Williams, Jackie Lincoln-Owyrang, Alan Erickson, Sarah Aring, Jerry Harris, Mike Shea, Thomas Ruik, Julie Tsangravski, David Dolson, John Patterson, Adam, Jongjun, Judy Severance, Yuko Kagta, Peter Brinsten, Mawden Sootma, Tsi Luca, Vinod Bozroshaoe, Ties Wright, Maria Tab, Piyi Clark, Kyoto Rock, Steve, Ruthman, David Hockel, Colin Finah, Judy Lee, Gess Higges, John S. Hespoon, Jokhi Clark, Matt Faisch, James Langola, John Baker, Jim Baer, Tike Pauwell, Barkin Aegun, Donnita Herri, Andrew Seider, Seth Shea, Eric Chiny, Jack Stean, Vicky Springer, Dawa Lasola, Cody Caulier, Rajm Aithal, Praveer Gath, Cory McInoy, Hans Sharaz, John Love-Jansen Adobe Creative Cloud

Photoshop CC

How to Import and Export Video Frames

Import an image into Photoshop CC

1 Select file > import > Blackmagic image import.
2 Select the 'video input format' and the 'image bit depth' and then click 'import image'.

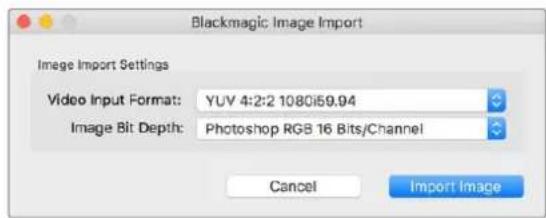

Blackmagic Image Import Image Import Settings Video Input Format: YUV 4:2:2 1080i59.94 Image Bit Depth: Photoshop RGB 16 Bits/Channel Cancel Import Image

Image Capture

Export an image from Photoshop CC

1 Select file > export > Blackmagic image export.
2 Select 'video output format' and then click 'export image'.

Blackmagic Image Export Image Export Settings Video Output Format: YUV+K 4:2:2 1080i59.94 Cancel Export Image

Image Export

Once you have set the 'import' or 'export' options, subsequent imports and exports will not display the settings window. However, you can still change your settings, by holding the Option [Mac] or Ctrl [Win] key, when selecting import or export.

Adobe Premiere Pro CC

Pr Premiere Pro © 1993. 2018 Adobe. All Rights Reserved. Artwork by Sisiko Gauton. For more details and legal notes, go to the About Premiere Pro journal. Adobe Creative Cloud

Premiere Pro CC

Setting Up a Blackmagic Design Project

1 Open Premiere Pro and click on 'new project'. Type in a name for the project and select a storage location for it.

2 If your graphics card is supported by Premiere Pro CC's Mercury Playback Engine, the renderer option will be available and you should switch it to Mercury Playback Engine GPU acceleration.

3 In the 'capture format' drop down menu, select 'Blackmagic capture'. Click the 'settings' [mac] or 'properties' [windows] button to set the video and audio capture settings. Select the video standard and video format. Click 'ok' to return to the 'new project' window.

4 Click on the 'scratch disks' tab to set the locations for your captured video, captured audio, video and audio previews. Click 'ok' and your new project will open.

5 Now check your default system audio is not set to Blackmagic Desktop Video.

On Mac OS, open 'system preferences', click on the 'sound' option and in the output tab, make sure your Blackmagic device is not selected. In the input tab, select your microphone input, making sure your Blackmagic product is not selected.

On Windows, go to the task bar and right click on the audio 'speaker' icon to open the sound settings. Click on the ' playback' tab and set your PC to use the on board sound hardware or a sound output device other than your Blackmagic Design hardware. Click on the 'recording' tab and set the computer to use a recording device other than your Blackmagic Design hardware.

6 Back in Adobe Premiere Pro, click on the 'preferences' menu and select 'audio hardware'. Set your 'default output' to 'built-in output' using the dropdown menu. Under 'output mapping', map output for 'Adobe desktop audio'.

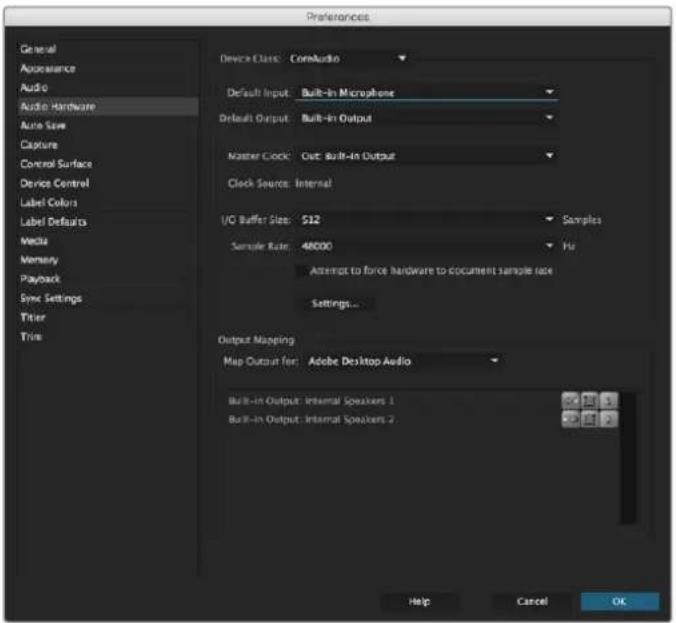

Preferences General Appearance Audio Audio Hardware Auto Save Capture Control Surface Device Control Label Colors Label Defaults Media Memory Playback Sync Settings Titier Time Device Class: CoreAudio Default Input: Built-In Microphone Default Output: Built-In Output Master Clock: Out: Built-In Output Clock Source: Internal I/O Buffer Size: 512 Samples Sample Rate: 46000 Hz Attempt to force hardware to document sample case Settings... Output Mapping Map Output Type: Adobe Desktop Audio Built-in Output: Internal Speakers 1 Built-in Output: Internal Speakers 2 Help Cancel OK

When setting up Adobe Premiere Pro's audio hardware preferences, make sure the default audio output and output mapping settings are set to 'built-in output'.

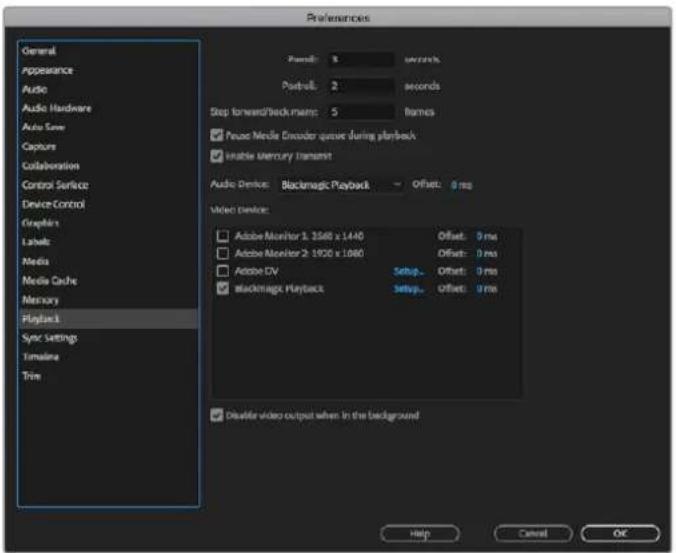

7 In the ' playback' menu under preferences, select 'Blackmagic playback' from the 'audio device' dropdown menu and check the 'Blackmagic playback' box under 'video device'. Press 'ok'.

Preferences General Appearance Audio Audio Hardware Audio Save Capture Collaboration Control Service Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Panel: 3 seconds Postroll: 2 seconds Step forward/back menu: 5 frames □ Pseudo Medie Encoder queue during playback □ Enable Mercury transmit Audio Device: Blackmagic Playback - Offset: 0 ms Video Device: □ Adobe Monitor 1: 1060 x 1440 Offset: 0 ms □ Adobe Monitor 2: 1020 x 1060 Offset: 0 ms □ Adobe DV Setup: Offset: 0 ms □ blackmagic Playback Setup: Offset: 0 ms □ Divide video output when in the background Help Cancel OK

Set Adobe Premiere Pro's ' playback' audio device to ' Blackmagic Playback' and be sure to check the ' Blackmagic Playback' checkbox in the ' video device' settings.

8 To create a new sequence, click file > new > sequence. Select the desired preset, give the sequence a name and then click 'ok'.

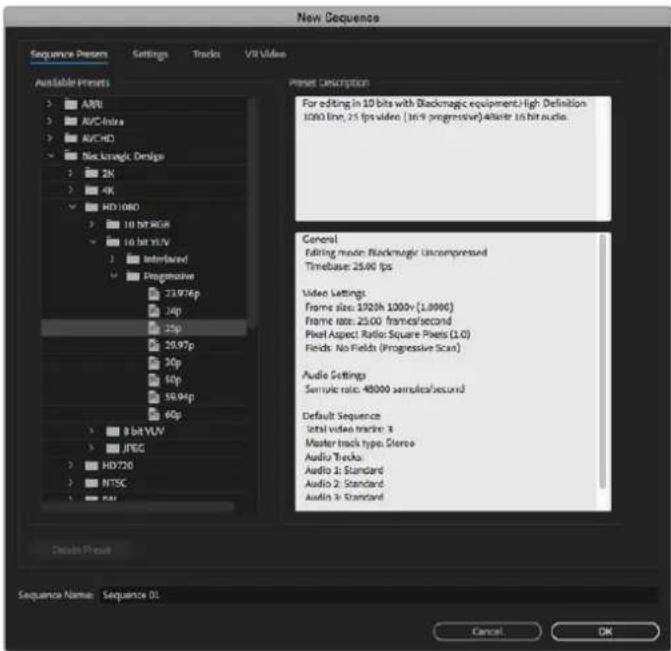

New Sequence Sequence Presets Settings Tracks VH Video Available Presets A/RB A/C-Intra A/C-HD Blackmagic Design 2K 4K HD:1080 10 bit HCR 10 bit YUV Interlaced Programmive 33.976p 24p 25p 29.97p 30p 60p 50.94p 60p 8 bit YUV JPEG HD720 NTSC RGB Reset Description For editing in 10 bits with Blackmagic equipment: High Definition 1080 line, 25 fps video (16.9 progressive) adder 10 bit audio. General Editing mode: Blackmagic Uncompressed Timebase: 25.00 fps Video Settings Frame size: 1920h 1000v (1.0000) Frame rate: 25.00 frames/second Pixel Aspect Ratio Square Pixels (L0) Fields: No Fields (Progressive Scan) Audio Settings Sample ratio: 40000 samples/second Default Sequence Total video tracks: X Master track type: Stereo Audio Tracka: Audio 2: Standard Audio 2: Standard Audio 3: Standard Sequence Name: Sequence 01 Cancel OK

Create a new sequence from the Blackmagic Design presets

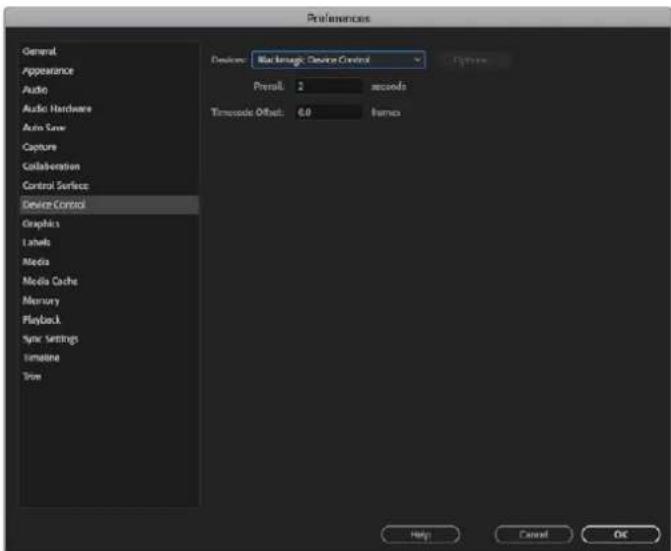

Device Control

Many Blackmagic Design capture and playback models feature RS-422 device control for controlling decks. Click preferences > device control, and check that Blackmagic device control has been selected from the 'devices' menu. Click 'ok'.

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback New Settings Timeline Trim Device: MacImage Device Control Preview: 2 seconds Timecode Offset: 6.0 frames Help Cancel OK

Playback

If you work with unsupported or non-standard frame sizes, these can also be correctly outputted from your Blackmagic Design hardware. Go to preferences > playback, and click the 'setup' button next to 'Blackmagic playback'. The 'Blackmagic device selection' window will appear. You can scale your image up or down to the next closest video standard supported by your hardware. For example, if you are using UltraStudio 4K and your Premiere sequence is set to a resolution of 3996 x 2160, scaling down will output Ultra HD, scaling up will output DCI 4K.

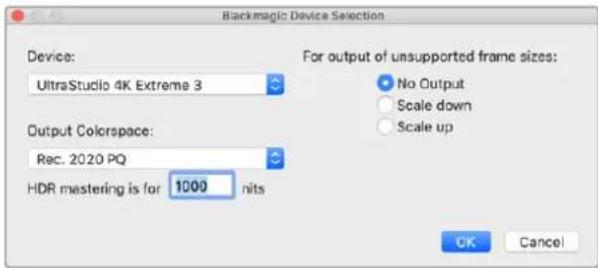

Blackmagic Device Selection Device: UltraStudio 4K Extreme 3 Output Colorspace: Rec. 2020 PQ HDR mastering is for 1000 nits For output of unsupported frame sizes: No Output Scale down Scale up OK Cancel

Select an option to output unsupported frame sizes.

If your Desktop Video device supports HDR, you can also set the color gamut and transfer function for HDR projects. These include HLG and PQ for Rec 2020. The HDR mastering display setting should be set to the maximum nits your monitor or television is capable of displaying.

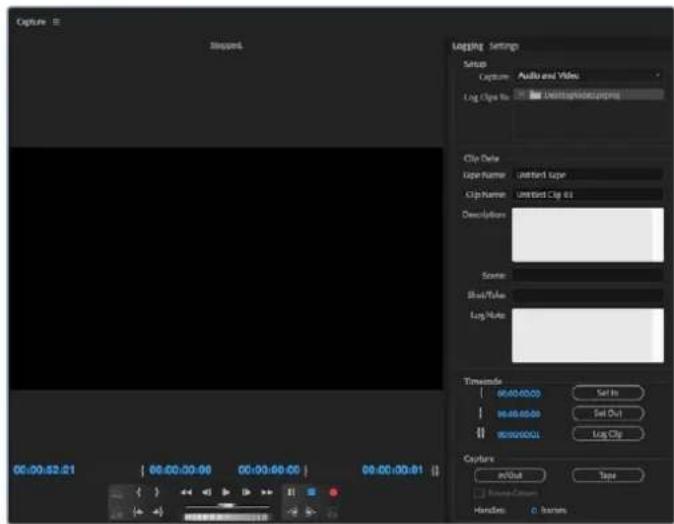

Capture

To capture choose:

File > capture [F5]

Enter your desired tape and clip name.

Capture Bitmaps Locking Settings Setup Capture Audio and Video Log Clips No: Unlnting/Decoupling Clip Drop Layer Name: Instant Layer Clip Name: Instant Clip 03 Descolutions Scene: Short/Tube Log Note: Timecode: 00:00:00:00 Set In 96:00:00:00 Set Out 96:00:00:01 Log Clip Captors: m/mat Type Uniform Color Handles: C Samples

Set your capture and device control settings in the capture window

To immediately capture, or to capture from a non-controllable device, click the red record button [G].

If you wish to log the clip using RS-422 deck control, enter the desired in and out points using the 'set in' and 'set out' buttons, or by manually typing the timecode and clicking 'log clip'. Enter a clip name and press 'ok'. The empty clip will now appear in the 'project' window. Repeat this until you have logged all of the clips you wish to batch capture.

Then choose: File > batch capture [F6]. To set handles on the clips, enable the option to capture with handles and type the number of additional frames you require at the start and end of each clip and click 'ok'. You will now be prompted to enter your tape. Click 'ok' and your clips will now be captured.

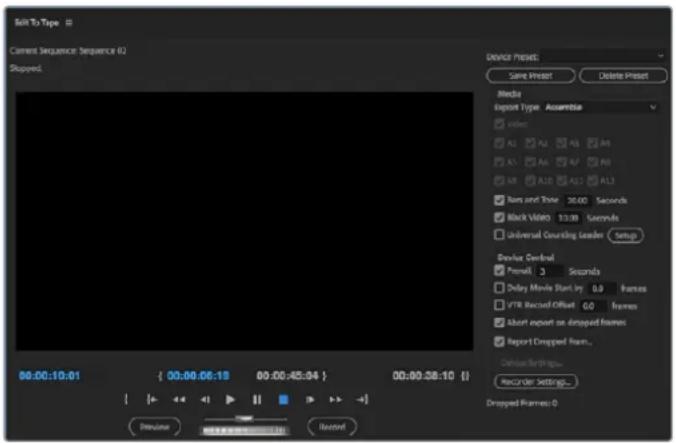

Export to Tape

If you want to edit your timeline to an external deck, you can do so using Premiere Pro's 'edit to tape' feature. Choose between two export types: insert and assemble. Insert editing requires unbroken timecode for the duration of the project which is to be laid to tape, and is also a great solution when you want to replace a shot on an existing tape. In assemble mode, the tape needs only to be "blacked" until a point just beyond the starting timecode of the sequence. As assemble editing erases the tape ahead of the record heads, it should not be used where other projects already exist on the tape after the out point of your edit.

Edit To Type Current Sequence: Sequence 02 Stopped. Device Preset: Same Preset Delete Preset Media Export Type: Assertive video A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 Bottom Tone 30.00 Seconds Black Video 13.38 Seconds Universal Counseling Leader Setup Device Control Pencil 3 Seconds Delay Movie Start by 0.9 frames VTR Record Offset 6.0 frames Short export on dropped frames Report Dropped from... Offside Settings... Recorder Settings... Dropped Frames: 0 00:00:10:01 { 00:00:06:15 00:00:45:04 } 00:00:38:10 | Preview Next > Next > Preview

Use the 'edit to tape' feature to export your edit to an external deck

TIP When exporting to tape using the assemble mode, it's always good to add at least 30 seconds of black to the end of your sequence. This assists with tape post roll functions and prevents unwanted media appearing directly after your footage.

To export to tape via RS-422 deck control:

1 Make sure the Adobe Premiere Pro preferences are configured correctly as described in 'setting up a Blackmagic Design project' earlier in this section.
2 Open Premiere Pro's 'edit to tape' window by clicking File > export > tape (serial device). Click on 'recorder settings', select Blackmagic capture from the dropdown menu and click 'settings'. Choose your video standard and format along with audio settings. Click 'ok'. If the capture format does not match the output format, it can cause confusion for the deck during preroll and audio might not be exported.
3 Now choose your 'export type' by selecting 'assemble' or 'insert' from the dropdown menu, enter the desired in point timecode and click 'record'.

When editing to tape, the software waits at the first frame of your project for the deck to drop into record at the predetermined timecode. Should you find that either the first frame of your program is repeated or lost during the edit to tape procedure, you will need to adjust the 'playback > video device > offset' setting to bring the deck and computer in sync. You should only need to do this once with any combination of deck and computer and the correct setting will be retained.

Adobe Character Animator CC

Some Desktop Video capture and playback devices let you connect graphics generated by Adobe Character Animator CC to other video equipment such as a confidence monitor. For example, you may want to use the performance of a virtual character in a video edit and monitor the performance in realtime.

This section shows you how to set the output options in Adobe Character Animator CC.

Ch Character Animator © 2002-2019 Adobe. All rights reserved. Artwork by Zigee Samanega, for more details and legal notices, go to the About Character Animator system. Initializing MID... Adobe Creative Cloud

1 In Adobe Character Animator, select Character > Preferences > Live Output.
2 Ensure 'enable Mercury transmit and syphon' is checked.
3 Ensure 'Blackmagic playback' is checked.
4 Select 'setup' next to 'Blackmagic playback'.
5 In the 'output mode' drop down menu, choose a mode from the following options.

Playback

Outputs a signal directly from Adobe Character Animator CC without any keying.

Internal Keying

This option allows you to superimpose your animated character over another video source using your Desktop Video device's internal keyer. For example, the background could be a video of a location relevant to a news story and the character could be superimposed over the top providing a live interview. Another option would be to have the character superimposed over the broadcast feed and sit in the bottom corner like a logo or watermark, providing reactions to the content that is being broadcast.

Fill/Key

If you want to perform the keying using an external switcher, for example an ATEM switcher, you can set the output mode to fill/key. The fill signal is the animated character and the key signal is the grayscale mask that tells a keyer to make the space around the character transparent. This allows the keyer to superimpose the character over a background.

Final Cut Pro X

You can use the A/V output option in Final Cut Pro X to output your video through Blackmagic Design video hardware. If you are using a Desktop Video device that supports HDR, you can also view and edit HDR video with a wide color gamut on a compatible television or monitor.

Final Cut Pro X Version 10.4.7 © 2001-2019 Apple Inc. All rights reserved. Apple, the Apple logo, and Final Cut Pro are trademarks of Apple Inc., registered in the U.S. and other countries.

Final Cut Pro X

Setting Up Final Cut Pro X

1 Ensure you are running Final Cut Pro X 10.0.4 or later with the latest version of Mac OS.
2 Open Blackmagic Desktop Video Setup. Click on the 'video standard' drop down menu and then set the same format that you will use in your Final Cut Pro X project. For example, 2160p29.97. The format should be the same as the video format of your clips. The video standard setting also determines the monitoring video output mode.

Final Cut Pro X

Video standard:

2160p29.97

Pixel format:

10-bit YUV 4:2:2

Color gamut:

Rec. 2020 PQ

Set the 'output format' to match your Final Cut Pro X project format.

3 Click on the 'pixel format' drop down menu and set it to match a format your TV or external monitor will accept. For example, if you are working with a wide HDR color gamut, choose '10-bit YUV 4:2:2' or '10-bit RGB 4:4:4' based on your monitor's compatibility requirements.
4 Click on the 'color gamut' drop down menu and set this to match the color gamut your project is using. If you are working with a standard or high definition project with a standard dynamic range, choose 'Rec. 601/Rec. 709'. If you are using a Desktop Video device that supports HDR and you are editing a 4K or high dynamic range project, select 'Rec. 2020'. For projects that are both 4K and high dynamic range, choose either 'Rec. 2020 HLG' or 'Rec. 2020 PQ'. This should also be a format your TV or monitor is capable of displaying.

Now that you have set your output display settings using Desktop Video Setup, you can create a new project in Final Cut Pro X.

To create a new project:

1 Launch Final Cut Pro X. In the library properties, you will notice the default untitled standard project name. Click on its corresponding 'modify' icon. Create a new library by going to the file menu, then selecting new and library.

TIP If after creating a new library, the library properties on the right side of the screen are hidden, enable them by clicking the clapper board icon in the top left corner. This opens the libraries sidebar.

2 Select the new library in the libraries sidebar and click its corresponding 'modify' icon.

An options window will appear asking you to set the color space for your project. Select 'standard' for an SD or HD project using a standard color gamut. If you are intending to create a wide color gamut HDR movie, select 'wide gamut HDR'.

3 Click 'change' to confirm your setting.

4 Create a new project by right clicking the library name in the libraries sidebar and selecting, 'new project'. Type a name and choose an event to place your project in. If you haven't already created one, you can choose the default event, which is named as the current date.

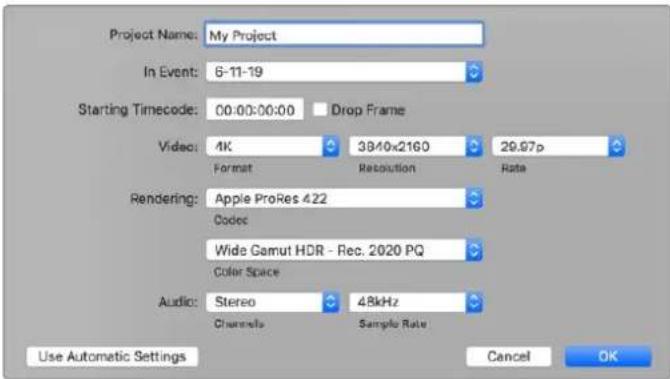

5 Click 'use custom settings'. Set the 'video format', 'resolution' and 'rate' to match the video standard and frame rate you set in Blackmagic Desktop Video Setup.

Project Name: My Project In Event: 6-11-19 Starting Timecode: 00:00:00:00 Drop Frame Video: 4K 3840x2160 29.97p Format Resolution Rate Rendering: Apple ProRes 422 Codes Wide Gamut HDR - Rec. 2020 PQ Color Space Audio: Stereo 48kHz Channels Sample Rate Use Automatic Settings Cancel OK

6 Set 'rendering' to your preferred Apple ProRes codec or 'uncompressed 10-bit 4:2:2' for an uncompressed workflow.

7 If your project is standard HD, you don't have to change the color space as Final Cut Pro selects the standard HD Rec. 709 color space for you. If you are working on an HDR project with a wide color gamut, select the color space and either PQ or HLG according to what your TV or monitor is able to display.

8 Set the audio channels to stereo, or you can choose 'surround' for 6 audio channels. Set the audio sample rate to the television rate of 48kHz.

9 Click OK to complete the creation of your new project.

If you have an external HDMI or SDI monitor connected, you will need to ensure your new project displays correctly.

To set the output display settings in Final Cut Pro X:

1 Go to the Final Cut Pro menu, choose 'preferences' and then click the 'playback' tab. Ensure the 'A/V Output' setting has 'Blackmagic' selected and the video standard matches your project. Close the preferences.
2 In the menu bar, select 'window' and click on 'A/V Output' to enable the video output via your Blackmagic Design video hardware.

To configure the audio output on Mac OS:

1 Open the Mac OS 'system preferences' and click on the 'sound' icon.
2 Click on the 'output' tab and select 'Blackmagic Audio' for the sound output.

TIP You can also monitor audio via your Desktop Video hardware.

Playback

1 Import some clips in to your new project.
2 You can now use the Final Cut Pro X timeline on your computer monitor and view the video preview on the monitor or TV connected to the output of your Blackmagic Design video hardware.

Capturing Video and Audio

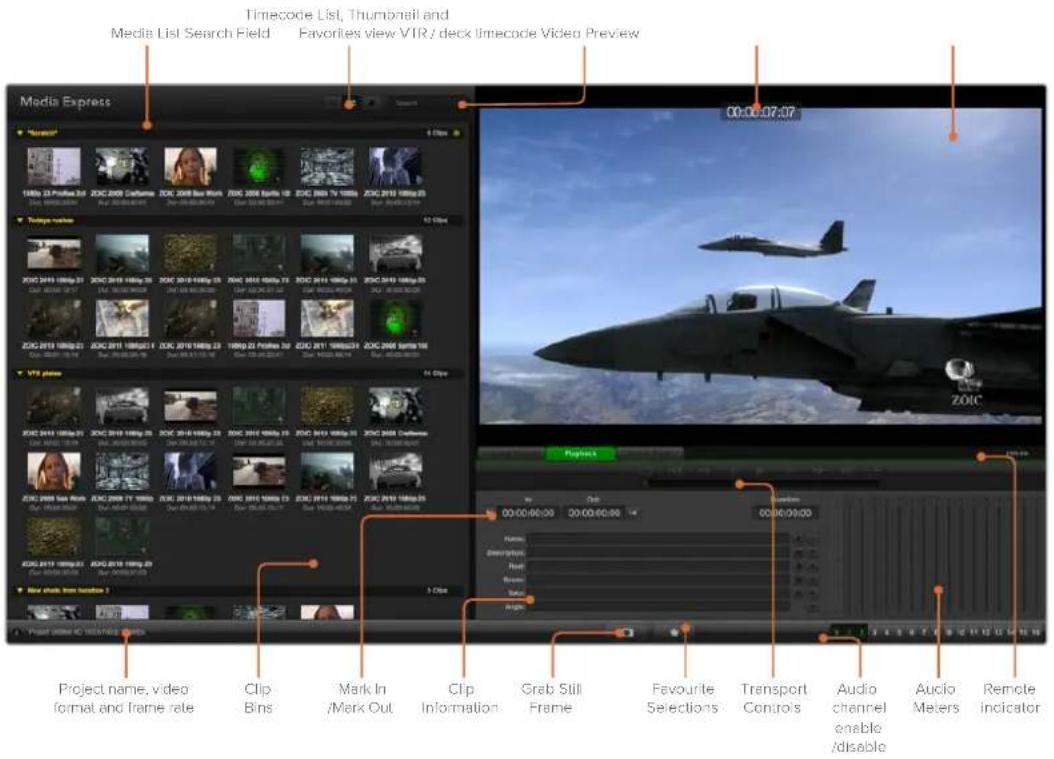

You can use Blackmagic Media Express to capture video and audio with your Blackmagic Design video hardware. Once you have captured the clips, you can import them into Final Cut Pro X for editing.

When capturing clips with Media Express, make sure you choose one of the video formats that is also supported by Final Cut Pro X. For example, Apple ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, ProRes 422 LT or uncompressed 10-bit 4:2:2.

Editing to Tape

Once you have completed a project in Final Cut Pro X, you can render the project to a movie file and then use Blackmagic Media Express to master the movie to tape with your Blackmagic Design video hardware.

1 Select your clips from the timeline in Final Cut Pro X.
2 Go to file>share>master file and the 'master file' window opens.

3 Click 'settings' and select your desired video codec from the dropdown menu.

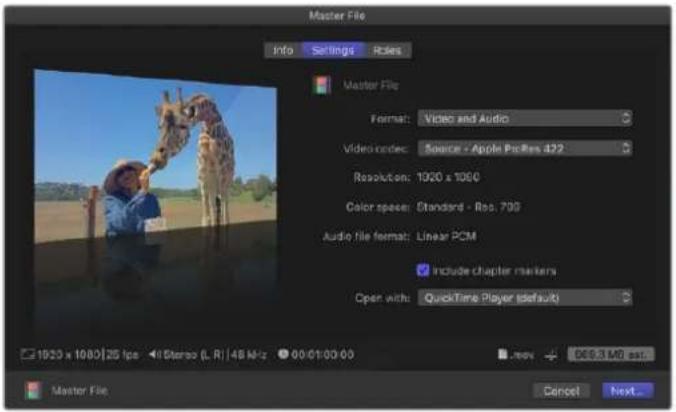

Master File Info Settings Roles Master File Format: Video and Audio Video nodes: Source - Apple ProRes. 422 Resolution: 1000 x 1000 Color space: Standard - Res. 799 Audio file format: Linear PCM Include chapter markers Open with: QuickTime Player (default) 1920 x 1080 | 25 fps 1Stereo (L R) | 48 MHz 00:01:00:00 确定 Next... Master File

4 Click 'next...' and select a location for your movie and then click 'save'.
5 Open Media Express and import the clip that was exported from Final Cut Pro X.
6 Refer to the Blackmagic Media Express section of this manual for 'Editing video and audio files to tape'.

Avid Media Composer

Avid Media Composer captures and plays back up to 4K video and audio with Blackmagic Design video hardware and also supports RS-422 deck control. Blackmagic plugins for Media Composer are automatically installed if Media Composer is installed before the Desktop Video software.

Media Composer ULTIMATE Activated: *** - Symphony Option - NewCeller Option - PhraseFind Option - ScriptSync Option Media Composer: 2019.9.0 ©2019 Avid Technology, Inc. All rights reserved. Use of this software is subject to a related Service agreement.

Avid Media Composer

Setting Up

1 Launch Media Composer and the 'select project' dialog box will appear.
2 Choose your preferred 'user profile' if you have previously created one.
3 Select a private, shared or external project location for your project.
4 Click the 'new project' button.
5 Type a project name and set the project options including format, color space and stereoscopic. Click 'ok'. The color space and stereoscopic settings can be changed later in the 'format' tab of the project.

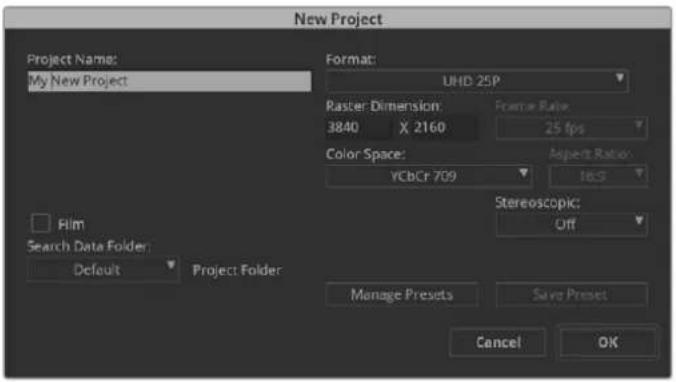

New Project Project Name: My New Project Format: UHD 25P Raster Dimension: 3840 X 2160 Frame Rate 25 fps Color Space: VCBCr 709 Aspect Ratio: H&S Film Search Data Folder: Default Project Folder Stereoscopic: Off Manage Presets Save Preset Cancel OK

Type a project name and set the project options.

6 Double click the project name in the 'select project' dialog box. The Media Composer interface will appear along with the project window for your new project. You have completed setting up your project.

Playback

As a quick test to make sure everything is connected correctly, go to the 'help menu', click 'read me' and select the Media Composer Editing Guide. Follow the 'Importing Color Bars and Other Test Patterns' section. Double click the imported file to play it. You should now see the image on both your computer monitor and your Blackmagic Design hardware output.

If you can't see any video on your Blackmagic Design hardware output, check the connections again and ensure you have the correct output settings configured within Blackmagic Desktop Video Setup by choosing tools > hardware setup from within Media Composer. Make sure the hardware icon above the timeline is enabled.

NOTE If you are using an external Blackmagic video device such as Blackmagic UltraStudio 4K, make sure it is powered and connected prior to starting Media Composer.

Capture from Non-Controllable devices

Many video sources including all kinds of modern cameras and disk recorders, as well as old cameras and VHS tape players, do not have any device control.

To capture video without deck control:

1 Choose file > input > tape capture to open the 'capture tool'.
2 Click the 'toggle source' button so that the button's icon of a deck shows the satellite button, an earth icon with plus symbol. This symbol indicates that deck control has been disabled.

V A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 D TC Video: Blackmagic Audio: Blackmagic No source tape selected. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Macintosh HD Disk (04:09:42:00) Delay audio: 0 frames 16:59:42:03 Timecode Source: Auto Detect Tape Name?

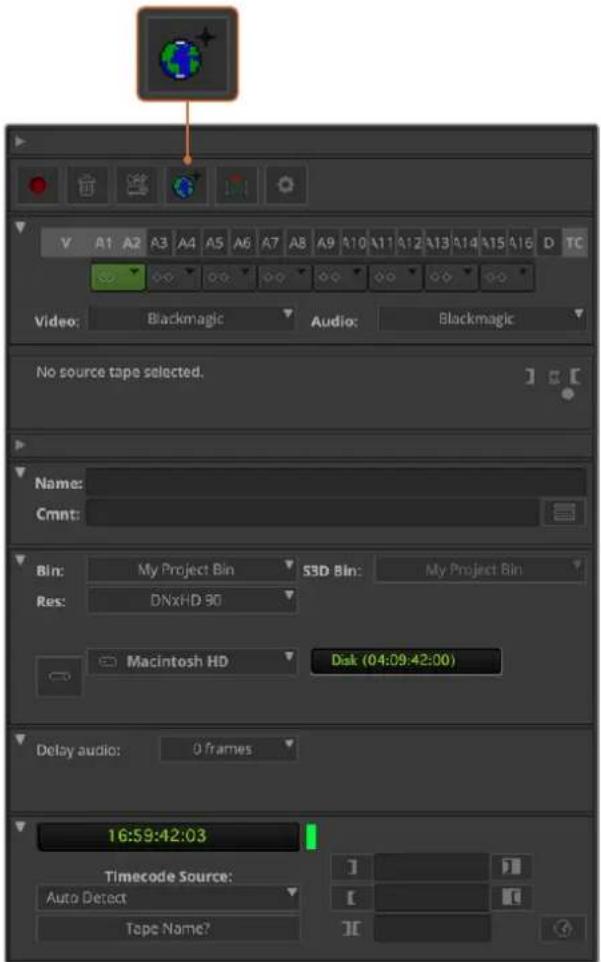

Set up the 'capture tool' to capture video without deck control by clicking the 'toggle source' button.

3 Select the video and audio source tracks you wish to capture. These are labeled 'V' and 'A1', 'A2', etc. Using the dropdown menus below, select Blackmagic for both video and audio.
4 Use the 'bin' menu to select a target bin from the list of open bins.
5 From the resolution menu labeled 'res', choose which codec you wish to use for your captured clips. In this example, select DNxHD175x for 10-bit HD video.
6 Select the disk storage for your captured video and audio. Use the 'single/dual drive mode' button to choose if video and audio will be stored together on a single drive or on separate drives. Select the drives for your captured media from the 'target drives' menu.
7 Click the 'tape name?' button at the bottom of the window to open the 'select tape' dialog box. Add a tape name, or select from the list if you've used the tape before.
8 Ensure your video and audio source is ready or playing and then click the 'capture' button. The capture button will flash red while recording. Click the capture button again to end the capture.

Capture from Controllable Devices with UltraStudio, DeckLink and Teranex

If you have a deck that connects via RS-422, you will need to configure the deck settings before performing a capture with deck control.

1 Connect an RS-422 serial cable from your Blackmagic Design video hardware and your deck. Set the deck to 'remote'. If you're using an external Blackmagic Video device, make sure it it connected and powered prior to starting Media Composer.
2 From your project window, click the settings tab and double click on 'deck configuration'.
3 In the 'deck configuration' dialog box, click 'add channel' and then set the channel type to 'direct' and the port to 'RS-422 deck control'. Click 'ok' and choose 'no' when asked, 'do you want to autoconfigure the channel now?'
4 Click 'add deck' and then select your brand and model of deck from the device menus and also set the desired preroll. Click 'ok' and then 'apply'.
5 Under the settings tab, double click on 'deck preferences'.
6 If you plan to make assemble edits to tape, enable the option to 'allow assemble edit and crash record for digital cut'. If this option is left unchecked, you will only be able to perform insert edits. Click 'ok'.

TIP If Media Composer fails with the error, 'failed to find coincidence point on tape', you can check the 'relax coincidence point detection' option in deck preferences to continue.

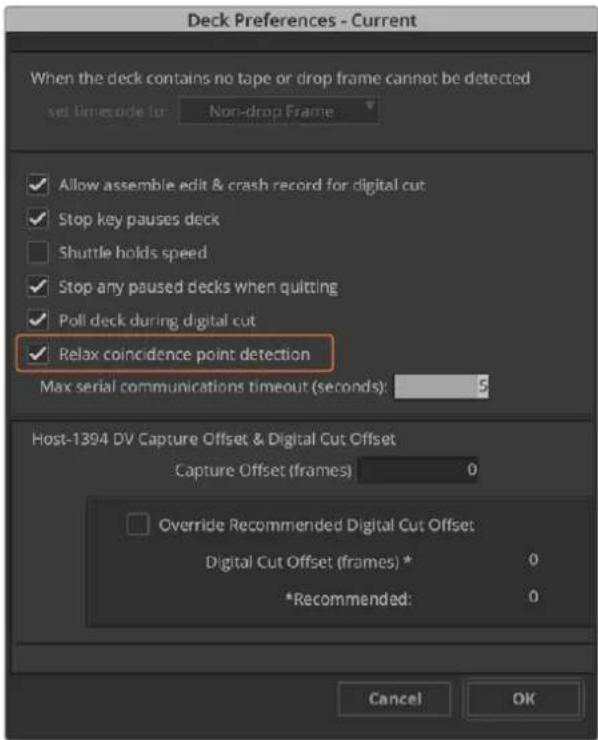

Deck Preferences - Current When the deck contains no tape or drop frame cannot be detected set Timercode for: Non-drop Frame ✓ Allow assemble edit & crash record for digital cut ✓ Stop key pauses deck □ Shuttle holds speed ✓ Stop any paused decks when quitting ✓ Poll deck during digital cut ✓ Relax coincidence point detection Max serial communications timeout (seconds): 5 Host-1394 DV Capture Offset & Digital Cut Offset Capture Offset (frames) 0 □ Override Recommended Digital Cut Offset Digital Cut Offset (frames) * 0 *Recommended: 0 Cancel OK

In the 'deck preferences', enable the option to 'relax coincidence point detection'.

To capture with deck control on the fly:

1 Choose file > input > tape capture to open the 'capture tool'. If a connected deck is recognized and contains a tape or disk, you will be prompted to enter a tape name, or you can choose it from the list.

2 The 'toggle source' button should show the icon of a deck. If the satellite icon is present, click the button to enable deck control and make the deck icon appear.

3 The 'capture/log mode' button should show the 'cap' icon. If this button displays a 'log' icon, click the button to switch to capture mode and the cap icon should appear.

4 If 'no deck' is displayed in the timecode window, or a deck name appears in italics underneath, click the dropdown menu and select 'check decks'. When deck control is re-established, the deck name will appear without italics. Now try the standard J, K, L shortcut keys to control the deck.

5 Select Blackmagic for the video and audio input. Select your video and audio source tracks, target bin, res, target drive and tape name the same way as in 'capture from non-controllable devices'.

6 Use the deck controller window in the 'capture tool' to cue the tape and start playing.

7 Click the 'capture' button. The capture button will flash red while recording. Click the capture button again to end the capture.

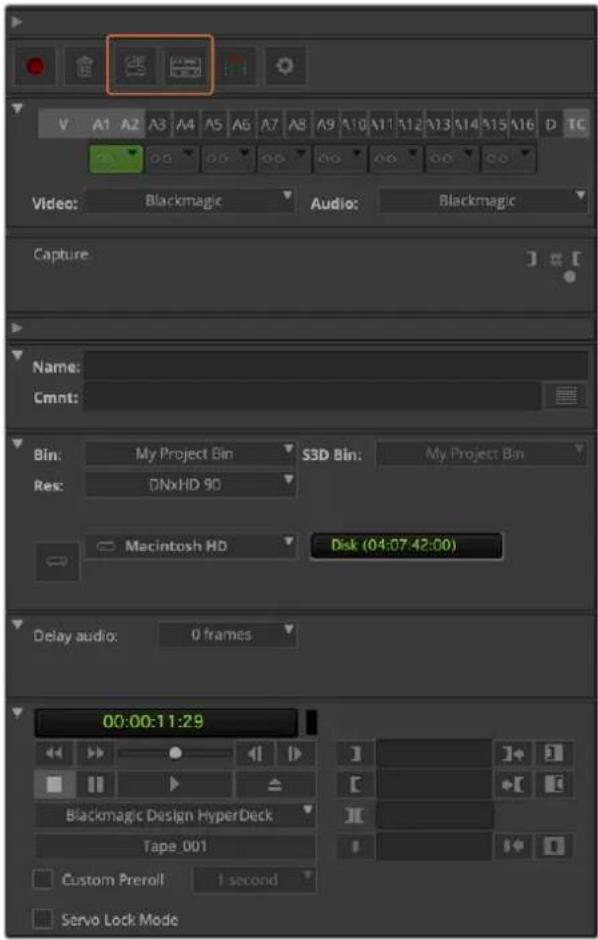

Video: Blackmagic Audio: Blackmagic Capture Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNHD 90 Macintosh HD Disk (04:07:42:00) Delay audio: 0 frames 00:00:11:29 Blackmagic Design HyperDeck Tape_001 Custom Preroll 1 second Servo Lock Mode

Set the 'cap' and 'toggle source' buttons to use deck control.
Use the 'deck controller window' to cue the tape and start playing.

Batch Capture with UltraStudio and DeckLink

To log clips for batch capture:

1 Choose file > input > tape capture to open the 'capture tool'.
2 If the deck is in satellite mode, click the toggle source button to change it to deck mode. Click on the 'capture/log mode' button so it displays the 'log' pencil icon.
3 Configure video and audio input, video and audio source tracks, target bin, res, target drive and tape name the same way as in 'capture from non-controllable devices'.
4 Use the 'deck controller window', or use the standard j, k, l shortcut keys, to shuttle backwards, pause and shuttle forwards on the deck and locate the video you want to capture.

5 Click the 'mark in/out' button, to the left of the log button. The icon will alternate between in and out so you only have to click the one button to mark all your in and out points and log your clip. This can be more convenient that using the separate 'mark in' and 'mark out' buttons in the deck controller window. Alternatively use the 'i' and 'o' keys on the keyboard to mark in and out points, and the keyboard shortcut 'F4' to log the clip.

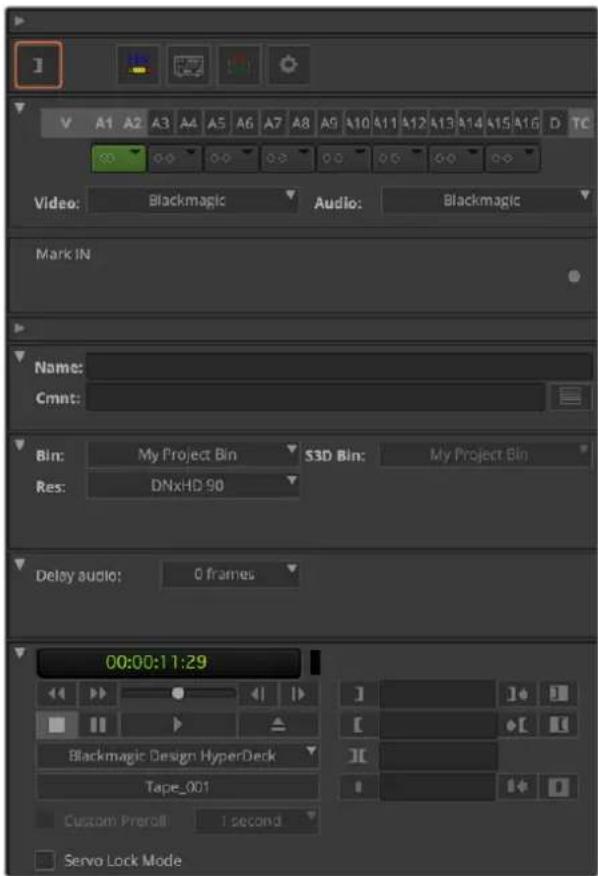

Video: Blackmagic Audio: Blackmagic Mark IN Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Delay audio: 0 frames 00:00:1 1:29 Blackmagic Design HyperDeck Tape_001 Custom Preroll I second Servo Lock Mode

Click on the 'mark in/out' button or use the 'i' and 'o' keys on the keyboard to mark in and out points.

6 When you have finished logging your clips, close the capture tool, open the logging bin and select the clips you want to capture.
7 From the 'clip' menu, choose batch capture, select the desired options in the resulting dialog box and click 'ok'.

Recording to Tape with UltraStudio and DeckLink

Once you have captured your clips, dragged them in to the timeline, edited them and applied and rendered any effects, you will want to record the completed project to tape.

1 Double click your sequence, to open it into the timeline window.
2 Choose file > output > digital cut to open the 'digital cut tool'.
3 Set 'output mode' to real time and bit depth to 10-bit. Check 'entire sequence' to record your whole sequence, and check the 'remote' deck control option.
4 Choose 'insert edit' or 'assemble edit' for precise edits onto a timecode striped tape. Alternatively choose 'crash record' for a simple way to record. If 'insert edit' is the only option, go to the settings tab in your project, double click on 'deck preferences' and enable 'allow assemble edit & crash record for digital cut'.
5 If a deck name appears in italics or 'no deck' is displayed, click the menu and select 'check decks' until the deck is listed without italics and deck control is re-established.
6 Press the 'play digital cut' button (red triangle icon) to record your sequence to tape.

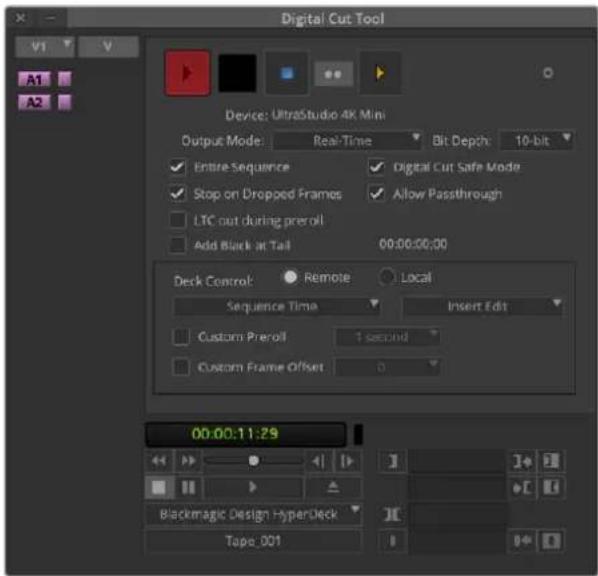

Digital Cut Tool Device: UltraStudio 4K Mini Output Mode: Real-Time Bit Depth: 10-bit Entire Sequence Digital Cut Safe Mode Stop on Dropped Frames Allow Passthrough LTC out during preroll Add Black at Tail 00:00:00:00 Deck Control: Remote Local Sequence Time Insert Edit Custom Preroll 1 second Custom Frame Offset 00:00:11:29 Blackmagic Design HyperDeck Tape_001

The 'digital cut tool' is used for recording to tape.

Blackmagic Media Express

Close-up of a metallic film reel with six circular blades and metal fittings (no text or symbols visible)

What is Blackmagic Media Express?

Blackmagic Media Express software is included with every UltraStudio, DeckLink and Intensity as well as every ATEM Switcher, Blackmagic Camera, H.264 Pro Recorder, Teranex Processor and Universal Videohub. Media Express is a great tool when you don't need the complexity of NLE software but simply want to capture, play back and output clips to tape.

Capturing Video and Audio Files

Setting Up a Project

Media Express automatically detects your input video format and sets the 'project video format' to match. If you want to set the project video format manually:

1 Go to Media Express>preferences on Mac, or edit>preferences on Windows or Linux. Select your 'project video format' from the dropdown menu at the top of the preferences window. You can choose from a range of compressed and uncompressed capture formats, or even a DPX image sequence from the 'capture file format' drop down menu. Video will be captured in the chosen format and saved as a QuickTime movie. You can also choose to capture an RGB source using a YUV codec or vice versa.

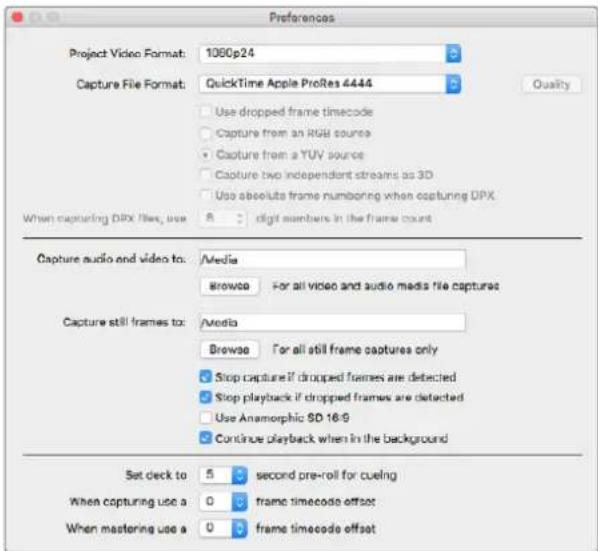

Preferences Project Video Format: 1060p24 Capture File Format: QuickTime Apple ProRes 4444 Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8-digit numbers in the frame count Capture audio and video to: /Media Browse For all video and audio media file captures Capture still frames to: /Media Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16-9 Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Use the preferences window to set project video format, capture file format, storage location and other settings.

2 Set the storage location for your captured video and audio. Click the 'browse' button to point the software to a folder on your computer.
3 Choose whether to stop capture or playback if dropped frames are detected.

Standard definition projects use the 4:3 aspect ratio unless you enable the 'use anamorphic SD 16:9' checkbox.

Applications will normally stop playing video if you send them to the background. Tick the checkbox 'continue playback when in the background' if you want Media Express to keep playing video even if you open another application.

The final options relate to tape decks with RS-422 deck control and include pre-roll and timecode offsets.

Timecode List, Thumbnail Media List Search Field and Favorites view VTR / deck timecode Video Preview Media Express 00:00:07:07 Project name, video format and frame rate Clip Bins Mark In /Mark Out Grab Still Frame Logging Information Capture options Transport Controls Audio channel enable /disable Audio Meters Remote indicator

Capture

To capture video, all you need to do is connect a video source, wait for Blackmagic Media Express to detect your input and press the 'capture' button.

Log and Capture In Out Duration 00:00:00:00 00:00:00:00 00:00:00:00 Name: Quick Capture 1_001_daybreak 01_01 Description: Quick Capture 1 Reel: 001 Scene: daybreak 01 Token: 01 Angle: 01 Capture Clip Batch Log

Enter a description for your video.

1 Start by connecting your video source to an input of your Blackmagic Design hardware. Launch Desktop Video Setup and check that the 'input connection' is the same as your video source, e.g., SDI, HDMI, Component, etc.

2 Open Media Express and click the red 'log and capture' tab.

3 Your source video will appear in the preview pane. Enter a description into the 'description' field.

4 Click the '+' button next to the description to add it to the automatic 'name' field. Click the '+' button next to any of the other fields that you wish to add to the name field.

• To increment the value in each of these fields, click the corresponding clapper board icon. Alternatively, type directly into any field to customize its name and number.
• The text in the automatic name field will be applied to the clip(s) about to be captured.
• To log the clip as a favorite, click the star icon next to the name field.
• For a clip name confirmation prompt to appear before every capture, click the ‘!’ icon next to the name field.

5 Set the desired number of audio channels to be captured.

V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Set the desired number of audio channels to be captured.

6 Click the 'capture' button to start recording. To stop the capture and keep the clip, click the 'capture' button again or press esc. The captured clips are added to the media list on the left side of Media Express.

Log and Capture In: Out: Duration: 00:00:00:00 00:00:00:00 14 00:00:00:01 Capturing to Disk Recording Duration: 06:00:04:06 Disk Space Remaining: 450.33 GB Capture Cilo Batch Log

Click the 'capture' button to begin capturing.

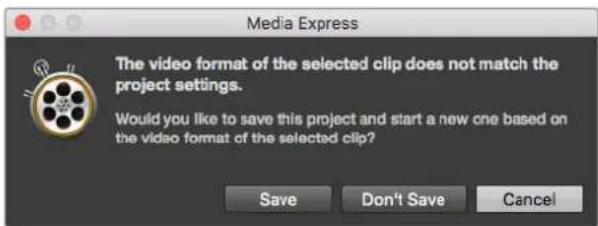

If the video input format changes from the project video format, Media Express will automatically detect it and will prompt you to save the current project and create a new one.

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Blackmagic Media Express will automatically detect if you change your ATEM switcher's program output format and will give you the option to save and start a new project.

Logging clips

Ensure an RS-422 serial cable is connected between your Blackmagic Design video hardware and the deck.

Ensure the deck's remote/local switch is set to remote. Use the standard j, k, l shortcut keys to shuttle backwards, pause and shuttle forwards.

• Click the 'mark in' button to mark the in point, or use the shortcut key i.
• Click the 'mark out' button to mark the out point, or use the shortcut key o.
• Click the 'log clip' button to log the clip, or use the shortcut key p. The entry should now appear in the media list with a red X in its icon to indicate the media is offline.

Batch Capture

After logging a clip, you can click the 'clip' button to capture a single clip.

To capture multiple clips, continue logging the clips for batch capture.

Select the logged clips in the media list and do one of the following:

• Click the 'batch' button.
• Right click on the selection and select batch capture.
• Go to the 'file' menu and choose batch capture.

Media Express will capture the clip from the in to out timecode.

DPX Capture

If you want to capture a DPX image sequence rather than a movie file, open the Media Express preferences and set the 'capture file format' to DPX 10-Bit RGB.

• Create a DPX project by setting the capture file format to DPX.
• Capture.

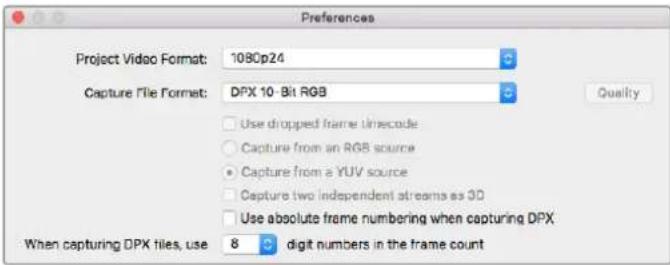

Preferences Project Video Format: 1080p24 Capture File Format: DPX 10-Bit RGB Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

DPX capture preferences.

When the capture has been completed, a single thumbnail will appear in the media list representing the entire frame sequence. The sequence of DPX frames will be stored in its own folder in your disk storage. Audio will be stored in a .wav file in the same folder.

By default, DPX captures are assumed to be from YUV sources. If you are capturing from an RGB source, select 'capture from an RGB source'.

If you want the DPX frame numbers to be based on the timecode of the captured video, rather than just starting from zero, enable the option to 'use absolute frame numbering when capturing DPX'.

If you aren't performing long DPX captures, you may wish to reduce the number of zeroes in the frame numbers by changing the option, 'when capturing DPX files, use (2-8) digit numbers in the frame count'.

3D Capture

When Media Express is used with a Blackmagic Design video hardware model that supports dual stream 3D, you can create left and right eye 3D video clips by capturing 2 streams of HD-SDI video simultaneously.

• Create a 3D project which matches the frame rate of your dual stream 3D video source.
• If capturing from an SDI source, make sure you have 2 discrete HD-SDI video inputs to the Blackmagic video hardware.
• Capture.

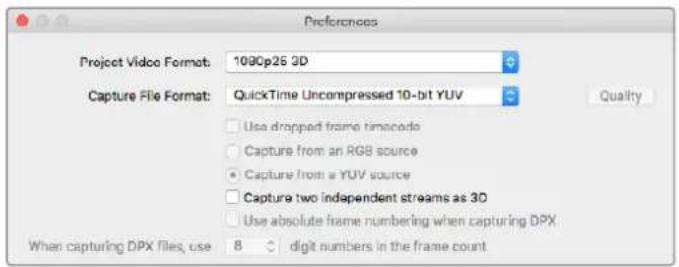

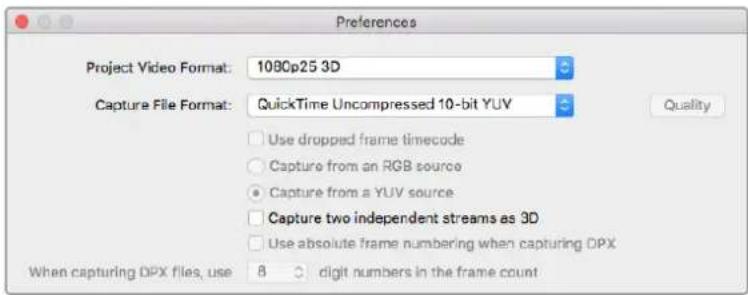

Preferences Project Video Format: 1080p25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Select a project video format with "3D" In its name to capture dual stream stereoscopic 3D video clips.

When capturing and logging dual stream 3D in Media Express, the clip name will be applied to the left eye video. The right eye video will be appended with '_right' text. For example, if you name the stereo clip "Clip 1", the left eye clip will be called "Clip 1.mov" and the right eye clip will be called "Clip 1_right.mov".

The Media List presents an eye catching indication that the captured clip is a 3D clip:

• In thumbnail view, the left and right eye clips are connected by a 3D indicator and presented as a single, large icon.
• In timecode list view, the left and right eye clips are listed on two lines and linked together by a 3D indicator.

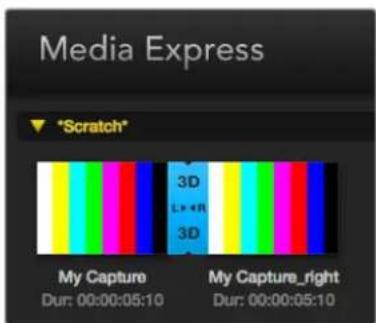

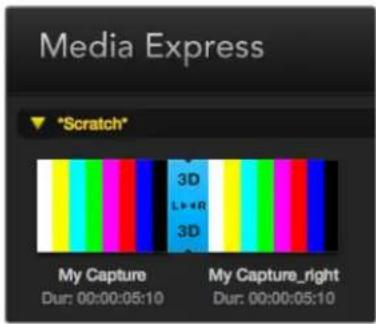

Media Express "Scratch" My Capture Dur: 00:00:05:10 My Capture_right Dur: 00:00:05:10

In Thumbnail view, the left and right eye clips are connected by a 3D indicator and presented as a single, large icon.

Timecode List, Thumbnail and Media List Search Field Favorites view VTR / deck timecode Video Preview Media Express 00:06:07:07 Project name, video format and frame rate Clip Bins Mark In /Mark Out Clip Information Grab Still Frame Favourite Selections Transport Controls Audio channel enable/disable Audio Meters Remote indicator

Playing back Video and Audio Files

Playing back single and multiple clips

To play back a single clip, double click the clip in the media list. Alternatively, select the clip in the media list and press the space bar on your keyboard or the play button in the transport controls.

Play236x +00:10:21:46

You can use the transport controls to play, stop, jump to the next or previous clip and loop playback.

To play back multiple clips, select the clips in the media list and then press the space bar on your keyboard or the play button in the transport controls.

Your video will play back in the video preview pane of Media Express and on all the video outputs of your Blackmagic Design video hardware. During playback, the audio channels being monitored can be switched on or off via the track enable/disable buttons.

Importing clips

You can play back your video and audio files after importing media into Media Express in any of the following ways:

• Double click an empty area of the media list, browse to your file's location and click 'open'.
• Right click an empty area of the media list and select 'import clip' from the contextual menu.
• Go to the 'file' menu, select 'import' and then 'media files'.

Select the video and audio clip(s) you wish to import and press 'open'. The clips will appear in the 'scratch' area of the media list. If you have created your own bins in the media list, you can drag the clips into the desired bin.

To import directly to a bin, right click within the desired bin and select 'import clip' from the contextual menu.

If the files being imported do not match the frame rate and size of existing clips in the media list, you will be prompted to create a new project and to save the current project.

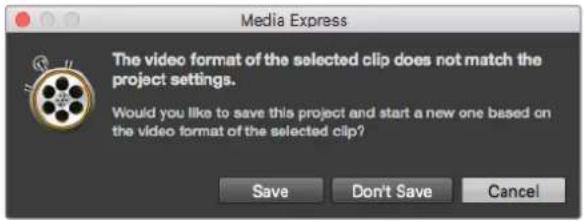

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

If the imported clips do not match the existing clips, you will be prompted to create a new project.

TIP Media Express also supports the import of multichannel audio only files recorded at 48kHz in the uncompressed WAVE and AIFF formats.

Another way to import media is to use an XML file exported from an NLE such as Final Cut Pro 7 or Final Cut Pro X. Go to the 'file' menu, select 'import' and then either Final Cut Pro 7 XML or Final Cut Pro X XML. Open the desired XML and all the bins and media from the Final Cut Pro project will appear in the media list.

Media Express also supports the import of CMX EDL files to batch capture clips using EDL files from other video software. Go to the 'file' menu, select 'import' and then CMX EDL. Select the EDL and open it.

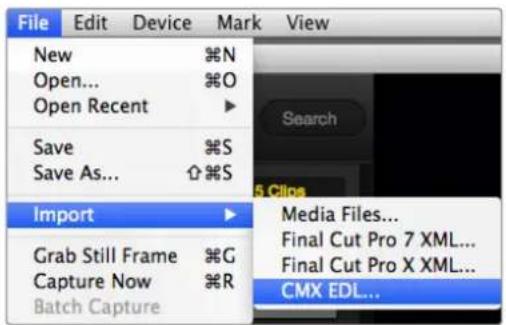

File Edit Device Mark View New %N Open... %O Open Recent ▶ Save %S Save As... ⬆%S Import ▶ Grab Still Frame %G Capture Now %R Batch Capture Search 5 Clips Media Files... Final Cut Pro 7 XML... Final Cut Pro X XML... CMX EDL...

You can import media directly, or import with an XML or EDL.

The logging information will appear in the media list. Select the logged clips and perform a batch capture to import the clips from your deck.

Browsing Media

Thumbnail view

Thumbnails are the most intuitive way to display your clips. Hover your mouse over the clip's thumbnail and then click on the popup info icon at the bottom right of the thumbnail. Click the info bubble to hide it.

'Scratch' Horse Dur Rail Journey_1_2012-04-24_1723_G0000 In: 17:23:59:00 Out: 17:36:40:00 Dur: 00:12:41:01 Info: 1080p 24, ProRes 422 HQ, 1920x1080 Desc: None Take: Angle:

Click a thumbnail's popup info icon to view the info bubble.

List view

You can view your clips in 'timecode list' view by clicking on the 'timecode list' button at the top right of the media list. Use the horizontal scroll bar to view all the columns of information for your clips.

Media Express Search

In the media list, choose to view your clips in 'timecode list' view or 'thumbnail' view. Click the 'favorites' button to show only your favorite clips. Type in the search field to find your favorite clips.

Creating and using bins

To create a bin, right click an empty spot in the media list and select 'create bin'. Name the new bin.

You can move clips around by dragging the clip icons to the desired bin. If you want a clip to appear in more than one bin, import the same clip again by right clicking on the bin and choosing 'import clip'.

By default, logged clips appear in the 'scratch'. If you want to log clips and have them appear in a new bin, right click the new bin and choose 'select as log bin'.

Creating and using favorites

In the 'log and capture' tab, click the 'star' icon next to the name field if you want to tag a clip as a favorite.

In the ' playback' tab, clicking the star icon will make the clip a favorite if it is selected in the media list. Click the star icon again to deselect it as a favorite.

Clips marked as favorites will show a yellow star in their icon in 'timecode list' view and 'thumbnail' view.

Once you have marked clips as favorites, click on the 'show only favorites' button at the top of the media list. The star icon will turn yellow. All clips will be hidden except for those marked as favorites.

Log and Capture Playback Edit to Tape Inc Out Duration: 00:00:00:00 00:00:00:00 00:00:00:00 Name: Quick capture 1_001_daybreak 01_01 Description: Quick capture 1 Rest: 001 Scene: daybreak 01 Take: 01 Angle: 01 Capture Clip Batch Log

In the 'log and capture' tab, click the 'star' icon next to the name field if you want to log the clip as a favorite.

Linking an audio clip to a video clip

To link an audio clip to a video clip in the media list:

• Select a video clip which contains no audio channels.
• Right click on the video clip and select 'link audio file' from the contextual menu.
• Browse to the audio file you want to link to and click 'open'. The video and audio will link in the media list view.

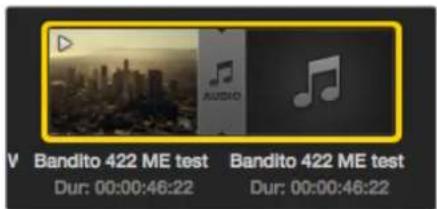

V Bandito 422 ME test DUR: 00:00:46:22 Bandito 422 ME test DUR: 00:00:46:22

The media list presents a highly visible indication that the video and audio clips are linked.

You can now play back the combined clip or master it to tape.

Deleting clips and bins

To delete clips, select the unwanted clips and press the backspace button on your keyboard.

This will only delete the clips from the media list and they will safely remain on your disk storage.

To delete bins, right click within a bin and choose 'delete bin'. This action will delete the bin and any clips it contained. This will only delete the clips from the media list and they will safely remain on your disk storage.

Creating a 3D clip

To add a stereoscopic 3D clip to the media list:

- Select a 3D project video format that is the same frame rate as your 3D media.

- Import the 'left eye' file into the media list.

- Right click on the left eye file and select "set right eye clip" from the contextual menu. If the right eye clip was previously captured by Media Express, the right eye video will be appended with '_right' text.

Preferences Project Video Format: 1080p25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timeoutcode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Select a 3D project video format.

The media list presents a highly visible indication that the imported clip is a 3D clip. The left and right eye clips are displayed side by side in the 'video preview' window, indicating a 3D video project.

Media Express *Scratch* My Capture Dur: 00:00:05:10 3D L+R 3D My Capture_right Dur: 00:00:05:10

The media list presents a highly visible indication that the imported clip is a 3D clip.

If you find the left and right eyes of a 3D stereo clip have been loaded the wrong way around:

• Right click the 3D clip in the media list.
• Select 'swap eyes' from the contextual menu.

Searching the Media List

Clips can easily be found in a project by typing the name of your clips in the search field at the top of the media list. When used in conjunction with the favorites feature, the search will be confined to your favorite clips so you will see a shorter list of found clips.

Type in the search field to find clips.

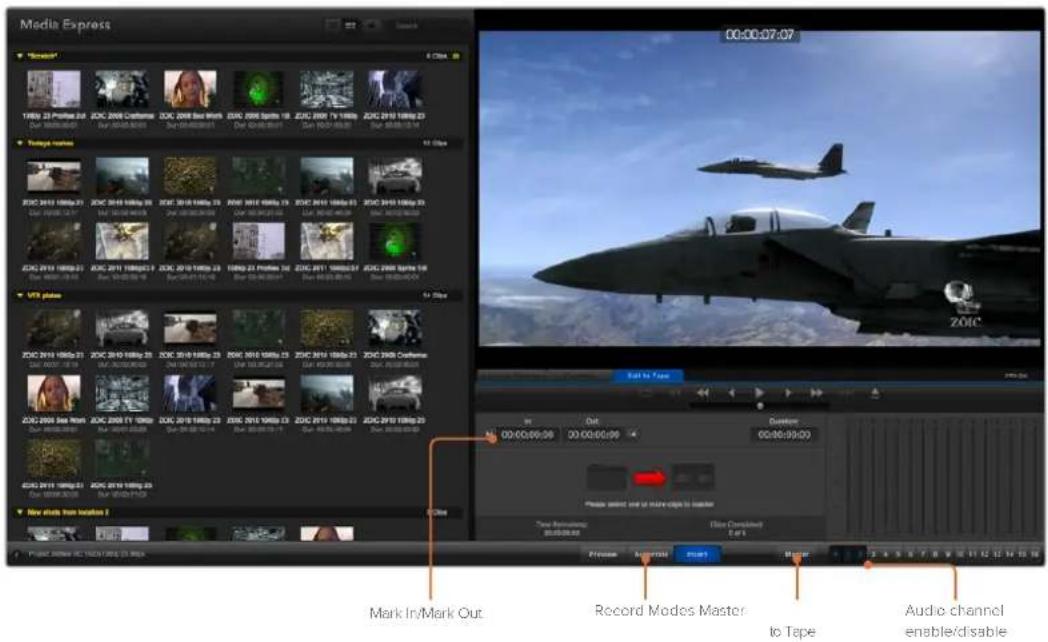

Media Express 00:00:07:07 VISA Mark In/Mark Out Record Modes Master to Tape Audio channel enable/disable

Editing Video and Audio Files to Tape

While we usually talk about mastering or editing to "tape", it doesn't matter if your deck uses tapes or disks. To master your clips:

• Select the clips you want to send to tape.
• Click the blue 'edit to tape' tab.
• Set the in point and type of edit.
• Master to tape.

Selecting clips to master

From the media list, select the clips you wish to master to tape. You can even insert multichannel audio only clips to replace the master audio track on a master tape. If you only want to send your favorite clips to tape, click the favorite (star) icon at the top of the media list to show your favorites and hide all other clips. Then select the favorite clips you wish to send to tape.

Search

Click the favorite (star) icon at the top of the media list to show only your favorites.

Insert and Assemble to tape

Click the 'edit to tape' tab. Enter the in point of the tape by entering timecode into the 'in' point field, or by cueing the tape to the desired in point via the transport control and then clicking the 'mark in' button.

If no 'out' point is entered, Media Express will set the duration of the edit to the total length of the clips in the media list. If an out point is defined, Media Express will stop recording once the 'out' point timecode is reached, even if some clips have not been output.

Lew and Capture Playback Edit to Tape Int Out: Duration: 00:00:00:00 00:00:02:03 00:00:02:04 2 Clips Selected Time Remaining: 00:00:02:04 Clips Completed: 0 of 2 Preview Assemble Insert Master

Two clips have been selected for output to tape.

Choose to master to tape using 'assemble' or 'insert' edit. Then press the 'master' button.

Preview mode mimics the edit process but does not record to tape. This mode lets you check the edit point. Preview edit operations should always be checked on monitors connected directly to the output of the deck. This lets you view the video already on tape in conjunction with the new video.

If 'record inhibit' is enabled either on the deck or on the tape, Media Express will report this when you click the 'master' button. Disable 'record inhibit' before trying again.

Select the video and audio channels you wish to output via the track enable/disable buttons. Deselect the video channel if you only want to output audio.

V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Set the desired number of audio channels to be mastered.

Click the favorite (star) icon at the top of the media list to show only your favorites.

Two clips have been selected for output to tape.

Set the desired number of audio channels to be mastered.

Capturing H.265 Video

To capture video using Blackmagic UltraStudio 4K Extreme's built in H.265 encoder:

1 Open Media Express 'preferences' and set the 'capture file format' to MP4 H.265.
2 Set the bitrate for your H.265 capture by clicking on the 'quality' button located next to the H.265 setting and dragging the 'encoding settings' slider left or right. Close the 'encoding settings' window to confirm your setting.

TIP For more information about H.265 capture and bitrate settings, refer to the next section in this manual, 'H.265 Hardware Encoder'.

H.265 Hardware Encoder

Capturing H.265 Video with UltraStudio 4K Extreme

Blackmagic UltraStudio 4K Extreme has a powerful built in H.265 hardware encoder that lets you capture the latest H.265 video in real time. This gives you the ability to capture video using encoding technology that maintains stunning video quality at the lowest possible bitrate.

Preferences Project Video Format: 1080p25 Capture File Format: MP4 HL265 Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 C digit numbers in the frame count Capture audio and video to: /Users/AloeVera Browse For all video and audio media file captures Capture still frames to: /Users/AloeVera Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16:9 Continue playback when in the background Set deck to 5 second pre-roll for curing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

To capture H.265 video using Blackmagic UltraStudio 4K Extreme, set the capture file format in Media Express preferences to MP4 H.265.

To capture video using the built in H.265 encoder:

1 Launch the Blackmagic Media Express software. Open Media Express 'preferences' and set the 'capture file format' to MP4 H.265.
2 Set the bitrate for your H.265 capture by clicking on the 'quality' button located next to the H.265 setting and dragging the 'encoding settings' slider left or right. Close the 'encoding settings' window to confirm your setting. Your Blackmagic UltraStudio 4K Extreme is now ready to encode H.265 video using Blackmagic Media Express. For information about how to capture and play back video using Media Express, refer to the 'Blackmagic Media Express' section of this manual.

Setting the Bitrate

The default bitrate is set to 15 Mb/s which is a good choice for high quality Ultra HD video that is streamed online, but you can set it anywhere between 3 to 50 Mb/s. For online streaming of HD video, a good choice is between 3 to 5 Mb/s.

Drag the 'encoding settings' slider to the left if you need to capture video with a smaller file size and a lower bitrate, or drag to the right if file sizes are not an issue and you want the best possible video quality. Setting the bitrate too low will result in compression artifacts in your picture, such as visible macro blocking, pixelation or banding. However, the H.265 hardware encoder is very efficient and keeps artifacts to a minimum, so you can set the bitrate lower than you normally would for H.264 video and still retain great video quality.

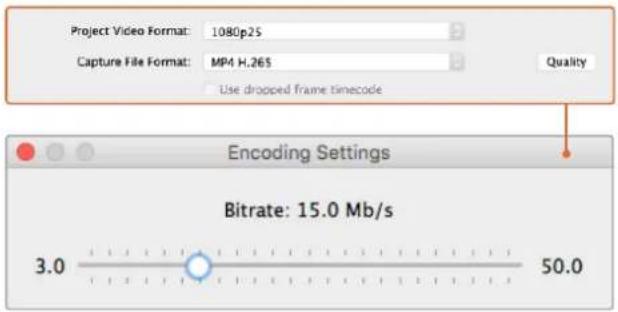

Project Video Format: 1080p25 Capture File Format: MP4 H.265 Quality Use dropped frame timecode Encoding Settings Bitrate: 15.0 Mb/s 3.0 50.0

Set the bitrate for H.265 capture by clicking on the 'quality' button and dragging the 'encoding settings' slider left or right.

When encoding H.265 video, or any type of video encoding for online streaming, it's often helpful to consider a few things, such as the bandwidth of your intended delivery system, the amount of movement and contrast between frames in your video, and the frame rate of your video. For example, if there is a large number of people streaming your video, you may need to lower the bitrate in your encoding so audience members with slower internet connections can watch without download interruptions. Higher bitrates are better for video content with lots of contrast and movement between frames, such as bright to dark, or high energy sporting events and graphics. Video with high frame rates also require higher bitrates compared to video at lower frame rates.

Choosing a bitrate for your encoding can often be an experimental process to achieve the best video quality in the smallest file size, so it's worth testing a variety of bitrate settings for the best results.

Blackmagic Disk Speed Test

Blackmagic Disk Speed Test measures the read and write performance of storage media in video frame sizes. Disk Speed Test is included with your Desktop Video software and can be downloaded free from the App Store for Mac OS.

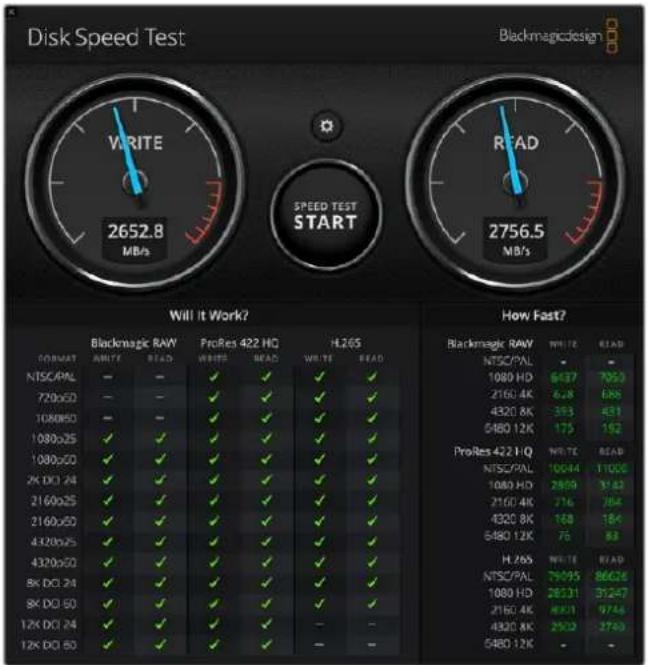

Disk Speed Test WRITE 2652.8 MB/s Speed Test START 2756.5 MB/s Will It Work? Blackmagic RAW Write PrRes 422 HQ Write H265 How Fast? Blackmagic RAW Write READ NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VALE NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VELE NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/VAL NTSC/THELE NTSC/THELE NTSC/THELE NTSC/THELE NTSC/THELE NTSC/THELE NTSC/THELE NTSC/THELE NTSC/THELE NTSC/THELE NTSC/THELE NTSC/THELE NTSC/THELE NTSC/THELE NTSC/THELE NTSC/THELE NTSC/THELE NTSC THELE NTSC THELE NTSC THELE NTSC THELE NTSC THELE NTSC THELE NTSC THELE NTSC THELE NTSC THELE NTSC THELE NTSC THELE NTSC THELE NTSC THELE NTSC THELE NTSC THELE NTSC THELE NTSC THELE HTC 265 265 265 265 265 265 265 265 265 265 265 265 265 265 265 265 265 265 265 265 265 265 265 265 265 260 260 260 260 260 260 260 260 260 260 260 260 260 260 260 260 260 260 260 260 260 260 260 260 260 261 261 261 261 261 261 261 261 261 261 261 261 261 261 261 261 261 261 261 2743 2743 2743 2743 2743 2743 2743 2743 2743 2743 2743 2743 2743 2743 2743 2743 2743

Access the Disk Speed Test settings by clicking on the 'settings' gear icon, located just above the 'start' button.

Select Target Drive...Save Screenshot... %S

Stress

1 GB

2 GB

3 GB

4 GB

✓ 5 GB

Disk Speed Test HelpAbout Disk Speed Test

Quit

Open the Settings menu by clicking the gear icon.

Select Target Drive

Click 'select target drive' and ensure you have read and write permissions.

Save Screenshot

Click 'save screenshot' to save a screenshot of the results.

Stress

The stress level can be set between 1GB and 5GB. 5GB is the default setting and will provide the most accurate results.

Disk Speed Test Help

Click 'Disk Speed Test help' to launch the PDF manual for Blackmagic Disk Speed Test.

About Disk Speed Test

About Disk Speed Test displays which version of the Disk Speed Test software you are running.

SPEED TEST START

Start

Click the 'start' button to commence the test. Disk Speed Test will write and then read a temporary file to the selected target drive. Disk Speed Test will continue writing and reading until you stop the test by clicking the 'start' button again.

Will it Work?

The 'will it work?' panel shows common video formats and displays a check mark or cross to indicate if disk performance is adequate. Be sure to do several test cycles to reveal any video formats for which the disk performance might be marginal. If a video format exhibits a check mark switching between a cross, it indicates that the disk storage cannot reliably support the video format.

How Fast?

The 'how fast?' results panel shows the frame rates your drive can achieve and should be read in conjunction with the 'will it work?' panel. If the 'will it work?' panel shows a green check mark for 2K DCI 24 using H.265, but the 'how fast?' panel shows that a maximum of 24fps will be supported, the disk storage performance is too marginal to be reliable.

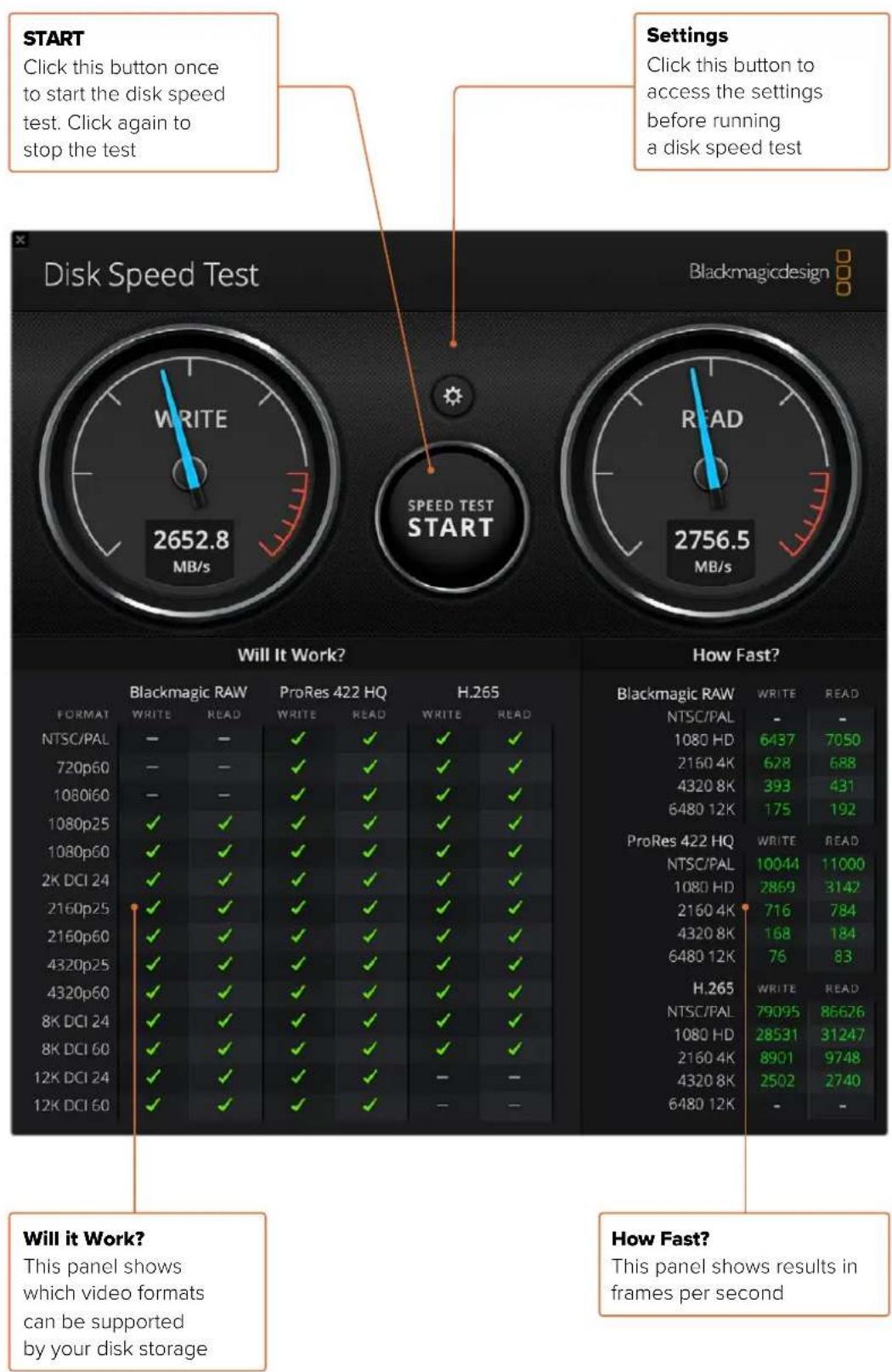

START Click this button once to start the disk speed test. Click again to stop the test Settings Click this button to access the settings before running a disk speed test Disk Speed Test 2652.8 MB/s Speed Test START Blackmagicdesign 2756.5 MB/s Will It Work? How Fast? This panel shows which video formats can be supported by your disk storage Will it Work? This panel shows results in frames per second

Removing the Mezzanine Card from DeckLink 4K Extreme 12G

How to Remove the Mezzanine Card

If you don't have enough room on your motherboard to fit a dual slot PCIe card, you can easily remove DeckLink 4K Extreme 12G's mezzanine card.

To remove the mezzanine card:

1 Ensure that you are statically discharged. Place the DeckLink card on its side on a flat, clean surface, with the gold PCIe contacts facing up.
2 On the underside of the DeckLink card, locate the two screws for the mezzanine card's stand off supports. They are the two screws furthest away from the BNC connectors. Gently remove the screws using a Phillips head screwdriver.
3 Hold the base DeckLink card by its edges and gently lift the mezzanine card until its bridge connector is released from the slot.
4 Ensure the bridge connector is firmly seated in the mezzanine card in case you'd like to reattach it.
5 Keep the two screws fastened to their stand off supports, place the mezzanine card in an anti static bag and store in a secure place.

You can now install your DeckLink 4K Extreme 12G card into your computer using one PCIe slot.

To reattach the mezzanine card:

1 Align the two mezzanine card stand off supports with the screw holes on each side of the base DeckLink card and gently secure the mezzanine card to the bridge connector slot. Ensure the mezzanine card is properly seated in the bridge connector slot.
2 Fasten the stand off supports to the base DeckLink card by tightening their screws using a Phillips head screwdriver. Be careful not to over tighten the screws.

If you need assistance or have any questions please visit the Blackmagic Design support center at www.blackmagicdesign.com/support.

Technical illustration of a mechanical assembly showing internal components and a highlighted section (no text or symbols)

DeckLink 4K Extreme 12G's mezzanine card can easily be removed.

Recovering a DeckLink Card from an Interrupted Update

If you are updating a DeckLink card and the update process is interrupted, for example power is accidentally disconnected from your computer, this can leave your card in a disabled state. However, many DeckLink cards have a special USB port that will let you perform an update recovery.

If your DeckLink card supports USB recovery, the USB port will be located on the rear or side of the card. This USB port will let you plug into your computer and update the card directly.

To recover an interrupted update on a DeckLink card:

1 Shut down your computer and disconnect the power.

2 Gently remove your DeckLink card from your computer's PCIe slot and place it safely on a stable surface, such as a desk or workbench. We recommend placing the card on an anti-static bag and wearing an anti-static earthing wrist band to avoid the risk of damaging the card with a potential electric shock.

3 Plug a USB cable into the USB-C or mini B USB port on the rear or side of your DeckLink card

Illustration of a computer motherboard with CPU socket and connectors, no text or symbols present

Remove the DeckLink card from your computer's PCIe slot and plug it into your computer using the USB-C or mini B USB port on the rear or side of the card

4 Plug the other end of the USB cable into your computer's USB port.

5 Power your computer and turn it on. After your computer's start up sequence an alert window will appear asking you to update the card.

Desktop Video Software Update Update Required! Your DeckLink Duo 2 needs a software update. Updating can add new features and improve stability! Don't Update Update

Click 'update'.

Desktop Video Software Update Updating Software... Do not unplug while updating.

A progress bar will indicate the update process and will let you know when the update is complete.

Once complete, disconnect the USB cable and reinstall the card into your computer's PCIe slot.

NOTE Don't forget to shut down your computer and disconnect power before accessing the PCIe slot.

With your card reinstalled you can now power your computer. The DeckLink card will be recognized by your computer and you can continue with your production.

Help

Getting Help

The quickest way to obtain help is to check the latest support material for your specific hardware at the Blackmagic Design online support pages.

Blackmagic Design Online Support Pages

The latest manual, software and support notes can be found at the Blackmagic Design support center at www.blackmagicdesign.com/support.

Contacting Blackmagic Design Support

If you can't find the help you need in our support material, please use the "send us an email" button on the support page to email a support request. Alternatively, click on the "find your local support team" button on the support page and call your nearest Blackmagic Design support office.

Checking the Version Currently Installed

To check which version of Blackmagic Desktop Video Setup software is installed on your computer, open Blackmagic Desktop Video Setup.

• On Mac OS, open ‘Blackmagic Desktop Video Setup’ within your ‘applications’ folder. The software version number appears by clicking on the ‘about Blackmagic Desktop Video Setup’ menu heading.
• On Windows 8 and 8.1, from the 'start' page type "Blackmagic" and then click the Blackmagic Desktop Video Setup application. The software version number appears by clicking on the 'about Blackmagic Desktop Video Setup' menu heading.
• On Windows 10, click the 'start' button and type 'Blackmagic' in the search box. Click the Blackmagic Desktop Video Setup application. The software version number appears by clicking on the 'about Blackmagic Desktop Video Setup' menu heading.
  – On Linux, go to ‘applications’ and then ‘sound and video’ and double click the Blackmagic Desktop Video Setup application. The software version number appears by clicking on the ‘about Blackmagic Desktop Video Setup’ menu heading.

How to Get the Latest Updates

After checking the version of Blackmagic Desktop Video Setup installed on your computer, please visit the Blackmagic Design support center at www.blackmagicdesign.com/support to check for the latest updates. While it is advisable to run the latest updates, you should avoid updating software when in the middle of an important project.

To see when you last updated your driver, click on the 'about' tab in the Blackmagic Desktop Video Setup utility. You can also generate a driver status report by clicking on the status report 'create' button.

Developer Information

Developing Custom Software using Blackmagic Design Hardware

The DeckLink SDK is available for developers to control Blackmagic video hardware with their own custom software. The DeckLink SDK supports the UltraStudio, DeckLink and Intensity products.

Red toolbox with 'SDK' logo and 'C++' text, no other symbols or text visible

The DeckLink SDK provides both low level control of hardware and high level interfaces to allow developers to easily perform common tasks. The DeckLink SDK supports technologies including:

• DeckLink API
• Apple QuickTime
• Apple Core Media
• Microsoft DirectShow

Downloading the Free Blackmagic Design SDK

The DeckLink SDK can be downloaded at: www.blackmagicdesign.com/support

Joining the Blackmagic Design Software Developers Forum

If you're looking for answers, feedback or suggestions regarding technologies used by Blackmagic Design, such as codecs, core media, APIs, SDK and more, visit the Blackmagic Design Software Developers forum. The forum is a helpful place for you to engage with both Blackmagic Design support staff and other forum members who can answer developer specific questions and provide further information. The Software Developers forum can be found within the Blackmagic Design Forum at: forum.blackmagicdesign.com

Contacting Blackmagic Design Developer Assistance

If you wish to ask questions outside of the Blackmagic Design Software Developers forum, please contact us at: [e-mail]

Regulatory Notices

Disposal of Waste of Electrical and Electronic Equipment Within the European Union.

The symbol on the product indicates that this equipment must not be disposed of with other waste materials. In order to dispose of your waste equipment, it must be handed over to a designated collection point for recycling. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city recycling office or the dealer from whom you purchased the product.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this product in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at personal expense.

Operation is subject to the following two conditions:

1 This device may not cause harmful interference.
2 This device must accept any interference received, including interference that may cause undesired operation.

ICES-3 (A) NMB-3 (A)

ISED Canada Statement

This device complies with Canadian standards for Class A digital apparatus.

Any modifications or use of this product outside its intended use could void compliance to these standards.

Connection to HDMI interfaces must be made with high quality shielded HDMI cables.

This equipment has been tested for compliance with the intended use in a commercial environment. If the equipment is used in a domestic environment, it may cause radio interference.

Safety Information

For protection against electric shock, the equipment must be connected to a mains socket outlet with a protective earth connection. In case of doubt contact a qualified electrician.

To reduce the risk of electric shock, do not expose this equipment to dripping or splashing.

Product is suitable for use in tropical locations with an ambient temperature of up to 40 °C.

Ensure that adequate ventilation is provided around the product and that it is not restricted.

When rack mounting, ensure that the ventilation is not restricted by adjacent equipment.

No operator serviceable parts inside product. Refer servicing to your local Blackmagic Design service center.

Some products have the facility to connect small form-factor transceiver (SFP) optical fibre modules. Only use Laser class 1 optical SFP modules.

Recommended Blackmagic Design SFP modules:

- 3G-SDI: PL-4F20-311C

- 6G-SDI: PL-8F10-311C

- 12G-SDI: PL-TG10-311C

Use only at altitudes not more than 2000m above sea level.

State of California statement

This product can expose you to chemicals such as trace amounts of polybrominated biphenyls within plastic parts, which is known to the state of California to cause cancer and birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov.

Warning for Authorized Service Personnel

Disconnect power from both power inlets before servicing!

Caution - Double Pole/ Neutral Fusing

The power supply contained in this equipment has a fuse in both line and neutral conductors and is suitable for connection to the IT power distribution system in Norway.

Warranty

Limited Warranty

Blackmagic Design warrants that UltraStudio, DeckLink and Multibridge family products will be free from defects in materials and workmanship for a period of 36 months from the date of purchase excluding connectors, cables, cooling fans, fiber optic modules, fuses, keyboards and batteries which will be free from defects in materials and workmanship for a period of 12 months from the date of purchase. Blackmagic Design warrants that Intensity family products will be free from defects in materials and workmanship for a period of 12 months from the date of purchase. If a product proves to be defective during this warranty period, Blackmagic Design, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.

In order to obtain service under this warranty, you the Customer, must notify Blackmagic Design of the defect before the expiration of the warranty period and make suitable arrangements for the performance of service. The Customer shall be responsible for packaging and shipping the defective product to a designated service center nominated by Blackmagic Design, with shipping charges pre paid. Customer shall be responsible for paying all shipping charges, insurance, duties, taxes, and any other charges for products returned to us for any reason.

This warranty shall not apply to any defect, failure or damage caused by improper use or improper or inadequate maintenance and care. Blackmagic Design shall not be obligated to furnish service under this warranty: a) to repair damage resulting from attempts by personnel other than Blackmagic Design representatives to install, repair or service the product,b) to repair damage resulting from improper use or connection to incompatible equipment, c) to repair any damage or malfunction caused by the use of non Blackmagic Design parts or supplies, or d) to service a product that has been modified or integrated with other products when the effect of such a modification or integration increases the time or difficulty of servicing the product. THIS WARRANTY IS GIVEN BY BLACKMAGIC DESIGN IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED. BLACKMAGIC DESIGN AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. BLACKMAGIC DESIGN'S RESPONSIBILITY TO REPAIR OR REPLACE DEFECTIVE PRODUCTS IS THE WHOLE AND EXCLUSIVE REMEDY PROVIDED TO THE CUSTOMER FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES IRRESPECTIVE OF WHETHER BLACKMAGIC DESIGN OR THE VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES. BLACKMAGIC DESIGN IS NOT LIABLE FOR ANY ILLEGAL USE OF EQUIPMENT BY CUSTOMER. BLACKMAGIC IS NOT LIABLE FOR ANY DAMAGES RESULTING FROM USE OF THIS PRODUCT. USER OPERATES THIS PRODUCT AT OWN RISK.

© Copyright 2022 Blackmagic Design. All rights reserved. 'Blackmagic Design', 'DeckLink', 'HDLink', 'Workgroup Videohub', 'Videohub', 'DeckLink', 'Intensity' and 'Leading the creative video revolution' are registered trademarks in the US and other countries. All other company and product names may be trade marks of their respective companies with which they are associated.

Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and/or other countries.

Desktop Video

Interior of a modern office with a woman standing near large windows and a framed picture on the wall (no visible text or symbols)

Circular portrait photo of a smiling man in a dark shirt against a gray background (no text or symbols)

ようこそ

Blackmagic Design CEO

グラント・ペティ

目次

はじめに 80

Front view of a UltraStudio 4K Extreme audio workstation (no visible text or symbols on the device body)

システム要件

Diagram of an electronic device showing a green circuit board connected to a server rack with multiple USB connectors and cable routing (no text or symbols visible)

Illustration of a server rack with multiple ports and connectors, showing an orange cable and a lightning bolt symbol (no text or labels present)

Diagram of a computer motherboard showing CPU socket, connectors, and drive slots (no text or labels)

Illustration of a computer monitor with an attached cable showing the internal components (no text or symbols)

Illustration of a server rack with multiple ports and connectors, no text or symbols present

Technical line drawing of a mechanical assembly with a green circuit board and cooling unit (no text or symbols)

Back view of a server rack with an attached cable pointing to a network drive (no text or symbols visible)

Install Desktop Video Welcome to the Desktop Video Installer Introduction Read Me License Destination Select Installation Type Installation Summary Welcome to the Blackmagic Desktop Video Installer. You have access to the world's highest quality video, combined with full compatibility with the best creative software available. Great for editing, design, graphics or broadcast paint. This installer guides you through the steps necessary to install software for your Beckmagic product. To get started, click Continue. Go Back Continue

System Extension Updated A program has updated system extension(s) signed by "Blackmagic Design Inc". To finish the update, you must approve it in the Security & Privacy System Preferences. OK Open Security Preferences

Security & Privacy General FileVault Firewall Privacy A login password has been set for this user Change Password... Require password 5 minutes after sleep or screen saver begins Show a message when the screen is locked Set back Message... Disable automatic login Allow apps downloaded from: App Store App Store and identified developers System software from developer "Blackmagic Design Inc" has been updated. Allow Click the lock to prevent further changes Advanced... ?

A restart is required before new system extensions can be used. Restart Not Now

Install Desktop Video The installation was completed successfully. Introduction Read Me Licence Destination Select Installation Type Installation Summary The installation was successful. The software was installed. Click Restart to begin installing the software. Go Back Restart

Security Policy for "Macintosh HD": ● Full Security Ensures that only your current OS, or signed operating system software currently trusted by Apple, can run. This mode requires a network connection at software installation time. ● Reduced Security Allows any version of signed operating system software ever trusted by Apple to run. ✓ Allow user management of kernel extensions from identified developers ✓ Allow remote management of kernel extensions and automatic software updates Cancel OK

Windowsにインストール

Welcome to the Blackmagic Design Desktop Video Setup Wizard The Setup Wizard will install Blackmagic Design Desktop Video on your computer. Click Next to continue or Cancel to exit the Setup Wizard.

Ubuntu Software Centre All software Installed History Progress desktopvideos Only install this file if you trust the origin. Everything you need to set up your PCIe or Thunderbolt Blackmagic DesktopVideo product. The DeckLine, Immunity, Ultrasonic and Multibridge product lines are supported. Developer web files No support that available Version: desktopguides 10.2.1.e1

0: /dev/blackmagic/io0 [DeckLink SDI 4K] 0x73 OK

1: /dev/blackmagic/iol [DeckLink 4K Extreme 12G] 0x0A PLEASE_UPDATE

Log and Capture Playback Edit to Tape Inc Out Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 02:00:04:06 Disk Space Remaining: 450.63 GB Capture Clip Batch Log

UltraStudio 4K Extrem... UltraStudio 4K Extreme 3 Video Output Video Input Audio Conversions Serial Port About General Default video standard: 525159.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video

Video Output Conversions Connectors About General Default video standard: 525159.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ○ Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video During playback: ○ Keep default color gamut ○ Convert to Rec. 2020

SDI Output Color space: ○ Video is converted to RGB 4x4 ○ Video is converted to Y, Cb, Cr 4x2.2 3G-SDI formats: ○ Are output as SMPTE Level A ● Are output as SMPTE Level B (Normal) 1080p HD and 2K: ○ Are output as 1080p progressive video ○ Are output as 1080PsF segmented video SDI connector: ○ Single Link ○ Dual Link

Are output as Square Division Quad Split (SQ)

Are output as Sample Interleave (SI)

Connector Mapping Connector: SDI 1 & SDI 2

Video Output Video Input Audio Conversions Serial Port About Audio Input Embedded AES/EBU XLR HiFi Microphone

HDMI Audio Output Use 5.1 surround channel ordering

AES/EBU Output Level 0.00 dB

Analog Audio Use HIF Audio Levels Analog Audio Input Levels Channel 1: 0.00 dB Channel 2: 0.00 dB Channel 3: 0.00 dB Channel 4: 0.00 dB

UltraStudio HD Mini UltraStudio HD Mini Video Output Video Input Audio Conversions About Driver Information Driver: 0.0 Last Update: 16 January 2019 Status Report: Create Product Notes Label: Serial Number: Purchased From: Seller Phone Number: Seller Email: Purchase Date: Documentation User Manual Readme

Illustration of a hand inserting a remote control into a computer drive (no text or symbols visible)

Illustration of a Teranex Mini UltraStudio HD Mini computer chassis with external connectors (no text or symbols on the device body)

Presets Master Settings Image Scaling Color Management General Options Camera RAW Capture and Playback Substitutes Fairlight Deck Settings Video capture and playback HD-1080p 24 Use left and right eye SDI Video connection operates at Use 4.6.4 SDI Enable Single Link Data Levels Videos Full Video bit depth 10 bit Use deck autoedit Non auto-edit timing 0 frames Deck preview 5 seconds Video output sync source Auto Add 3.2 subpage

Project Settings: My Project Project Timeline Format Timeline resolution: 3040 x 2160 bytes ID For: 3040 x 2160 processing Project impact info: Pure system Use spatial profile Use spatial profile Cometrapsys Timeline frame size: 24 frames per second Use time: 24 seconds per second Playback frame size: 24 frames per second Enable video field processing Video Monitoring Value format: UHD 116.8g 5A Use Level 8/4 for 20k 50% Use dual output on 50% Size Configurations: Single line Dual line Quant Link Data level: Within Full Width at depth: 10.0% Acceleration setting: Linear Load RISC1 Active For RLC2 100 MHz Load RISC1 Metable Only T-DM Optimized Media and Radio Cache Optimized Media Allocation: Original Automaticity Optimized Media Rate: Presses RLC2 MΩ Remote Colors Rate: Presses RLC2 MΩ ✓ Enable background cooling effect - 5 seconds Automatically cache transition in User Mode Automatically cache compositions in User Mode ✓ Automatically cache Foreign Effects in User Mode Cancel Save

Ae After Effects © 1992-2019 注册。 All rights reserved Artwork by Michael Rigley. I'm more details and legal notices, go to the About After Effects screen. Initiating mediacore Adobe Creative Cloud

After Effects CC

ビデオの再生方法

Preferences General Preferences Display Import Output Grids & Glinders Labels Word4 & Disk Cache Video Preview Appearance New Project Auto-Save Mercury Audio Hardware Audio Output Mapping Sync Settings Type Disable Mercury Transport Video DevLink: Adobe DV Backstage Playback Setup... Setup... Disable video output when in the background! Video preview during render space output Forward each 7" an nutrients labeled logbin Mercury Transport. OK Cancel Preview Next

環境設定の「ビデオプレビュー」画面

Output Module Settings Main Options Color Management Format: QuickTime Include Project Link Post-Render Action: None Include Source XMP Metadata Video Output Channels: RGB Format Options... Depth: Millions of Colors Animation Color: Premultiplied (Motted) Starting #: 0 Use Comp Frame Number Resize Width Height Lock Aspect Ratio to 12.9 (1.78) Rendering at: 1920 x 1080 Noise to: 1920 x 1080 Custom Noise %: Resist Quality: High Crop Use Region of Interest Final Size: 1920 x 1080 Top: 0 Left: 0 Bottom: 0 Right: 0 Audio Output Auto Audio will be output only if the composition has audio. 48.000 kHz 16 Bit Stereo Format Options... Cancel OK

Ps Photoshop © 1990-2014 Another & Rights Reserved. Anthony Kroll, Vanessa Ryder Get more natural and legal resources, go to the About Photoshop screen. Adding interactions... Holda Bottlerrecks. Thomas Knoll, John Knoll, Samharamen Narayama, Russel Williams, Jackie Lincoln-Owang, Alan Erickson, Sarah Kong, Jerry Harris, Mike Shaw, Thomas Raulk, Julie Qipanski, David Dobon, Oak Patterson, Adam Jongjin, Judy Severance, Yukia Khita, Foster Brontan, Mawenin Shakme, Fat Luana, Vinot Maasimahan, Ties Wright, Maria Yab, Pam Clark, Kucup Boda, Steve Chichanet, David Hotel, Joe Hock, Judy Lee, Kevin Huguen, John S. Harrison, David Cary, Matt Fassam, James Langlias, John Sheer, Joel Seel, Jim Prescott, Baron Aguan, Demanda Reu, Andrew Sender, Seth Shaw, Eric Ching, Jack Shean, Yaky Dominger, James Larami, Cody Cuedle, Sara Ahaik, Pravson Beira, Cory Maitong, Hans Sharaz, John Love-Jeiss Adobe Creative Cloud

Photoshop CC

ビデオフレームの読み込み/書き出し

Blackmagic Image Import Image Import Settings Video Input Format: YUV 4:2:2 1080i69.94 Image Bit Depth: Photoshop RGB 16 Bits/Channel Cancel Import Image

イメージキャプチャー

Pr Premiere Pro © 1991-2019 Adobe. All Rights Reserved. Artwork by Skanda Gautam, For more details and legal reflects, go to the About Premiere Pro journal. Adobe Creative Cloud

Premiere Pro CC

Preferences General Appearance Audio Audio Hardware Auto Save Capture Control Surface Device Control Label Colors Label Defaults Media Memory Playback Sync Settings Titier Trip Device Class: CoreAudio Default Input: Built-In Microphone Default Output: Built-In Output Master Clock: Out: Built-In Output Clock Source: Internal VO Buffer Size: 512 Samples Sample Rate: 48000 Hz Attempt to force hardware to document sample rate Settings... Output Mapping Map Output Fee: Adobe Desktop Audio Built-In Output: Internal Speakers 1 Built-In Output: Internal Speakers 2 Help Cancel OK

New Sequence Sequence Presets Settings Tracks VTI Video Available Presets ARX AVC-Vina AVC-HD Nex-Inorganic Design 2K 4K HD 1080 10 bit REGR 10 bit VLV interlaced Progressive 33.976p 24p 25p 26.97p 30p 60p 59.94p 60p 8 bit VLV JPEG HD720 NTSC RAR Preset Description For editing in 10 bits with Blackmagic equipment: High Definition 1080 line, 25 fps video (16.9 progressive) adapter 10 bit audio. General Editing mode: Blackmagic Uncompressed Timebase: 25.00 fps. Video Settings: Frame size: 1020h 1000v (1.0000) Frame rate: 25.00 frames/second Pixel Aspect Ratio: Square Pixels (1.0) Fields: No Fields (Progressive Scan.) Audio Settings Sample ratio: 40000 samples/second Default Sequence Initial video tracks: 1 Master track type: Stereo Audio Tracks. Audio 1: Standard Audio 2: Standard Audio 3: Standard Source Preset Sequence Name Sequence 01 Cancel OK

Preferences General Appearance Audio Audio Hardware Auto Slave Capture Collaboration Control Surface Device Control Graphers Labels Nextie Nextie Color Memory Playback Sync Settings Timeline Film Devices: Macromagic Device Control Prefix: 2 Timecode Offset: 6.0 frames Options... Help Cancel OK

再生

Backmagic Device Selection Device: UltraStudio 4K Extreme 3 Output Colorspace: Rec. 2020 PQ HDR mastering is for 1000 bits For output of unsupported frame sizes: No Output Scale down Scale up OK Cancel

Capture 30:00:06 Logging Settings Scene Capture: Audio and Video log Clips Inc: Photogram/Photography Clip Date Type Frame: Untitled Type Clip Frame: Untitled Clip 03 Descriptions: Scene Short/Video Log Name: Histogram 00:00:02:21 ( 00:00:00:00 00:00:00:00 ) 00:00:00:01 ( ) Histogram Retina In/Out Type

Edit To Type 5 Current Sequence Sequence ID Stopped 86:00:10:01 ( 00:00:06:19 00:00:45:04 ) 00:00:58:19 ( ) Dropped Device Preset: Save Preset Delete Preset Media Import Type Assemble Video Auto Audio Audio Audio Sens and Timer 36.00 Seconds Block Video 17.00 Seconds Universal Culling Marker Setup Device Control Previll 3 Seconds Delay Movie Start by 0.0 Frames VTR Record Offset 0.0 Frames Short export as dropped frames Report Droped From... Record Settings... Dropped Frames: 0

Final Cut Pro X Version 10.4.7 © 2001-2019 Apple Inc. All rights reserved. Apple, the Apple logo, and Final Cut Pro are trademarks of Apple Inc., registered in the U.S. and other countries.

Final Cut Pro X

Project Name: My Project In Event: 6-11-19 Starting Timecode: 00:00:00:00 Drop Frame Video: 4K 3840x2160 29.97p Format Resolution Rate Rendering: Apple ProRes 422 Codec Wide Gamut HDR - Rec. 2020 PQ Color Space Audio: Stereo 48kHz Channels Sample Rate Use Automatic Settings Cancel OK

Master File Info Settings Rules Master File Format: Video and Audio Video codec: Source - Apple ProRes. 432 Resolution: 1000 x 1000 Color space: Standard - Res. 700 Audio file format: Linear PCM ✓ include chamber markers Open with: QuickTime Player (default) 1020 x 1000/25 fps 1Stereo (L R) 48 MHz 00:01:00:00 . Rev 669.3 MB est. Master File Cancel Next_

Media Composer ULTIMATE Activated *** - Symphony Option - NewCutter Option - PhraseFiled Option - ScriptSync Option Media Composer: 2019.5.0 (C:\2019\Avd Technology, Inc. All rights reserved. Use of this software is subject to a related license agreement.

Avid Media Composer

セットアップ

Deck Preferences - Current When the deck contains no tape or drop frame cannot be detected set time/second to: Non-drop Frame ✓ Allow assemble edit & crash record for digital cut ✓ Stop key pauses deck □ Shuttle holds speed ✓ Stop any paused decks when quitting ✓ Poll deck during digital cut ✓ Relax coincidence point detection Max serial communications timeout (seconds): 5 Host-1394 DV Capture Offset & Digital Cut Offset Capture Offset (frames) 0 □ Override Recommended Digital Cut Offset Digital Cut Offset (frames) * 0 *Recommended: 0 Cancel OK

Digital Cut Tool Device: UltraStudio 4K Mini Output Mode: Real-Time Bit Depth: 10-bit Entire Sequence Digital Cut Safe Mode Stop on Dropped Frames Allow Passthrough LTC out during preroll Add Black at Tail 00:00:00:00 Deck Control: Remote Local Sequence Time Insert Edit Custom Preroll 1 second Custom Frame Offset 00:00:11:29 Blackmagic Design HyperDeck Tape_001

Close-up of a classic film reel with six blades and metallic rim (no text or symbols visible)

Preferences Project Video Format: 1060p24 Capture File Format: QuickTime Apple ProRes 4444 Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use: B ● digit numbers in the frame count Capture audio and video to: /Media Browse For all video and audio media file captures Capture still frames to: /Media Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16-9 Continue playback when in the background Set deck to: 5 second pre-roll for cueing When capturing use a: 0 frame timecode offset When mastering use a: 0 frame timecode offset

Log and Capture In Out Duration 00:00:00:00 00:00:00:00 00:00:00:00 Name: Quick Capture 1 901 daybreak 01 01 Description: Quick Capture 1 Reel: 001 Scene: daybreak 01 Take: 01 Angle: 01 Capture Clip Batch Log

ビデオに関する情報を入力

Log and Capture Push to Fold to Space In Out Directions 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Durations 00:00:04:08 Disk Space Remainings 460.59 GB Capture Clip Batch Log

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel!

Preferences Project Video Format: 1080p24 Capture File Format: DPX 10-Bit RGB Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

DPXキャプキャーの設定

Preferences Project Video Format: 1080p25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

MayBack Add to YouTube

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Log and Capture File Back Edit to Table Inc Cut Duration 00:00:00:00 00:00:00:00 00:00:00:00 Name: Quick capture 1_001_daybreak 01_01 Description: Quick capture 1 Recb: 001 Scene: daybreak 01 Take: 01 Angle: 01 Capture Clip Batch Log

Preferences Project Video Format: 1090p26 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent ctroams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Media Express

Logged Capture Edit to Tape In: Out: Duration: 00:00:00:00 00:00:02:03 00:00:02:04 2 Clips Selected Time Remaining: 00:00:02:04 Clips Completed: 0 of 2 Preview Assemble Insert Master

Preferences Project Video Format: 1080p25 Capture File Format: MP4 H.265 Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 0 digit numbers in the frame count Capture audio and video to: /Users/AloeVera Browse For all video and audio media file captures Capture still frames to: /Users/AloeVera Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16:9 Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Project Video Format: 1080p25 Capture File Format: MP4 H.265 Quality Use dropped frame timecode Encoding Settings Bitrate: 15.0 Mb/s 3.0 50.0

Exploded view diagram of a mechanical assembly showing internal components and motion arrows (no text or labels)

Illustration of a computer motherboard with CPU socket and cooling fan, showing a hand holding a tool (no text or symbols)

Desktop Video Software Update Update Required! Your DeckLink Duo 2 needs a software update. Updating can add new features and improve stability! Don't Update Update

「Update」をクリックします。

Desktop Video Software Update Updating Software... Do not unplug while updating.

Red toolbox with 'SDK' logo and 'C++' text, containing documents and a pen (no readable text beyond logos)

- 6G-SDI:PL-8F10-311C

- 12G-SDI: PL-TG10-311C

Interior of a modern office with a woman standing near large windows and a framed picture on the wall (no visible text or symbols)

Circular portrait photo of a smiling man in a dark shirt against a gray background (no text or symbols)

Bienvenue

Front view of a UltraStudio 4K Extreme audio workstation (no visible text or symbols on device body)

Diagram of a computer setup showing a green circuit board connected to an external network device via cable, with no visible text or symbols.

Illustration of a server rack with multiple ports and connectors, showing an orange arrow pointing to a specific port (no text or symbols present)

Diagram of a computer motherboard showing cable routing and ventilation slots (no text or labels)

Illustration of a computer tower with an attached USB drive (no text or symbols visible)

Illustration of a server rack with multiple ports and connectors, no text or symbols present

Technical line drawing of a mechanical assembly with a green circuit board and cooling unit (no text or symbols)

Back view of a server rack with network ports and a USB cable inserted (no visible text or labels)

Install Desktop Video Welcome to the Desktop Video Installer Welcome to the Blackmagic Desktop Video Installer You have access to the world's highest quality video, combined with full compatibility with the best creative software available. Great for editing, design, graphics or broadcast paint. This installer guides you through the steps necessary to install software for your Blackmagic product. To get started, click Continue.

System Extension Updated A program has updated system extension(s) signed by "Blackmagic Design Inc". To finish the update, you must approve it in the Security & Privacy System Preferences. OK Open Security Preferences

Security & Privacy General FileVault Firewall Privacy A login password has been set for this user Change Password... ✓ Require passwords 5 minutes after sleep or screen saver begins Show a message when the screen is locked Set Lock Message... ✓ Disable automatic login Allow apps downloaded from: App Store App Store and identified developers System software from developer "Blackmagic Design Inc" has been updated. Allow Click the lock to prevent further changes. Advanced... ?

A restart is required before new system extensions can be used. Restart Not Now

Install Desktop Video The installation was completed successfully. Introduction Read Me Licence Destination Select Installation Type Installation Summary The installation was successful. The software was installed. Click Restart to begin installing the software. Go Back Reset

Security Policy for "Macintosh HD": ● Full Security Ensures that only your current OS, or signed operating system software currently trusted by Apple, can run. This mode requires a network connection at software installation time. ● Reduced Security Allows any version of signed operating system softwares ever trusted by Apple to run. ✓ Allow user management of kernel extensions from identified developers ✓ Allow remote management of kernel extensions and automatic software updates Cancel OK

Welcome to the Blackmagic Design Desktop Video Setup Wizard The Setup Wizard will install Blackmagic Design Desktop Video on your computer. Click Next to continue or Cancel to exit the Setup Wizard.

Ubuntu Software Centre All Software Installed Binary Programs desktopvideo Only install this file if you trust the origin. Everything you need to set up your PCIe or thunderbolt Blackmagic Desktop/Video product. The desktop, Internet, UIOS, audio and Multistage product lines are supported. Developed/ treated file File contents available Version: desktopvideo 10.2.1a1

0: /dev/blackmagic/io0 [DeckLink SDI 4K] 0x73 OK

1: /dev/blackmagic/io1 [DeckLink 4K Extreme 12G] 0x0A PLEASE _ UPDATE

Log and Capture Playback Edit to Tape Inc Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remaining: 450.53 GB Capture Clip Batch Log

UltraStudio 4K Extrem... UltraStudio 4K Extreme 3 Video Output Video Input Audio Conversions Serial Port About General Default video standard: 52S159.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video

Video Output Conversions Connectors About General Default video standard: 525159.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video During playback: ● Keep default color gamut ○ Convert to Rec. 2020

SDI Output Color space: ○ Video is converted to RGB 4:4:4 ○ Video is converted to Y, Cb, Cr 4:2:2 3G-5D1 formats: ○ Are output as SMPTE Level A ○ Are output as SMPTE Level B (Normal) 1080p HD and 2K: ○ Are output as 1080p progressive video ○ Are output as 1080PsF segmented video SDI connector: ○ Single Link ○ Dual Link

SDI connector: ○ Single Link ○ Dual Link ● Quad Link

4K and 8K formats: ○ Are output as Square Division Quad Split (SQ) ● Are output as Sample Interleave (SI)

Use Betucum Levels NTSC IRE: 0.0 (Japan) 7.5 (USA)

Connector Mapping Connector: SOI 1 & SOI 2

Video Output Video Input Audio Conversions Serial Port About Audio Input Embedded AES/EBU XLR HiFi Microphone

HDMI Audio Output Use 5.1 surround channel ordering

AES/EBU Output Level 0.00 csi

UltraStudio HD Mini UltraStudio HD Mini Video Output Video Input Audio Conversions About Driver Information Driver: 0.0 Last Update: 16 January 2019 Status Report: Create Product Notes Label: Serial Number: Purchased From: Seller Phone Number: Seller Email: Purchase Date: Documentation User Manual Readme

Illustration of a hand holding a remote control device with labeled buttons (MENU, VIDEO, SET, AUDIO) and ports (no text or symbols on the device itself)

Illustration of a Teranex Mini UltraStudio HD Mini device with external ports and connectors (no text or symbols on the device itself)

Presents Master Settings Image Scaling Color Management General Options Camera RAW Capture and Playback Substitutes Fairlight Deck Settings Video capture and playback HD 1080p 24 Live left and right eye SDI Video connection operates ac Live d/d 4 SDI Enable Single Link Data Levers Video Full Video bit depth 10 bit ✓ Live deck autsedit Non auto editing frames Deck prech 5 seconds Video output sync source Auto Add 3D default
