| Product Type | Dynamic Microphone |
| Brand | SE Electronics |
| Model | DynaCaster DCM 6 |
| Capsule | Dynamic moving coil with copper and neodymium magnet |
| Polar Pattern | Cardioid |
| Frequency Response | 40 Hz – 18 kHz |
| Sensitivity (with DYNAMITE preamp off) | 2.5 mV/Pa (-52 dBV) |
| Sensitivity (with DYNAMITE preamp on) | 79 mV/Pa (-22 dBV) |
| Power Supply | Phantom power +48 V (required for DYNAMITE preamp) |
| Power Consumption | 3.1 mA |
| Impedance (passive) | 600 ohms |
| Impedance (with DYNAMITE) | 135 ohms |
| Connectivity | 3-pin XLR male connector |
| Dimensions (L x W x H) | 158 x 86 x 62 mm |
| Weight | 518 g |
| Box Contents | Microphone, thread adapter, DYNAMITE preamp (integrated) |
| Pop Filter | Integrated, removable for cleaning |
| Suspension | Integrated shock absorption |
| Integrated Preamp (DYNAMITE) | +30 dB of clean and transparent gain, activated/deactivated by red button |
| Care and Cleaning | Clean the foam windscreen with lukewarm water; grid with damp soft cloth |
| Safety | Do not open or modify the device; keep out of reach of children under 4 years |
| Compliance | RoHS, WEEE, CE |
| Warranty | Limited manufacturer's warranty; registration possible for extension to 3 years |
Frequently Asked Questions - DynaCaster DCM 6 SE Electronics
User questions about DynaCaster DCM 6 SE Electronics
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Microphone in PDF format for free! Find your manual DynaCaster DCM 6 - SE Electronics and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DynaCaster DCM 6 by SE Electronics.
USER MANUAL DynaCaster DCM 6 SE Electronics


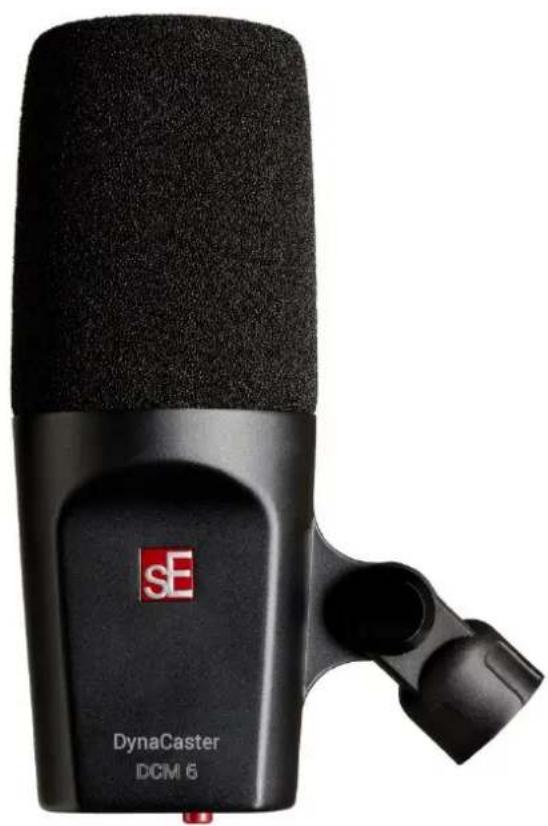

DynaCaster DCM 6
User Manual
Thank you
Thank you for choosing an sE microphone! In addition to some basic safety precautions, this manual includes details and specifications to help you get the most out of your microphone. Please take a few minutes to read through it.
Capturing excellent audio is our passion. We sincerely hope you'll enjoy the sound of this mic as much as we've enjoyed designing and building it for you.
Happy Broadcasting,
The sE Team
Brief description
The DynaCaster DCM 3 and DCM 6 are front-addressed dynamic microphones that are ideal for streaming and broadcasting applications. Their dynamic DMC3A capsule has been custom-designed to provide a smooth, natural sound for any voice and ensures high intelligibility, even in noisy environment. Both models are not just microphones for designated for speech alone. They are also the perfect choice for singing, acoustic instruments, and miking amplifiers.
For obstruction-free camera shots, the integrated pop filter eliminates the need for a bulky external pop filter. Moreover, the integrated shock absorption system efficiently prevents mechanical vibration from acting on the capsule. As a result, bulky external shock-mounts are no longer required.
The DynaCaster DCM 3 and DCM 6's sleek design ensures effortless compatibility and professional appeal using any desk boom.
The DynaCaster DCM 6 only: The integrated DYNAMITE preamp provides an explosive +30dB of clean, transparent gain, eliminating the need for expensive and bulky inline preamps. This provides for better sonic reproduction, more sensitivity, and less noise than the standards of decades past.
What's in the box
- Microphone
- Microphone stand thread adapter
DYNAMITE preamp (The DynaCaster DCM 6 only)

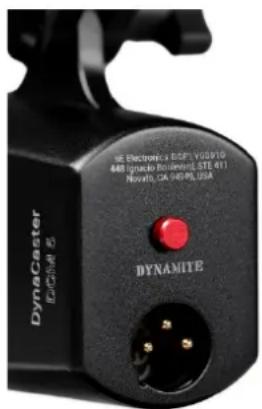

The DynaCaster DCM 6 only: The red push button on the back of the microphone controls the internal DYNAMITE preamp. If the switch is "in," the DynaCaster's internal DYNAMITE preamp is active and provides 30 dB of additional gain, which is ideal for speech and softer sources. Please note that this requires Phantom power. If the switch is "out," the internal DYNAMITE preamp is deactivated and functions as a completely passive microphone, not requiring any external or Phantom power.

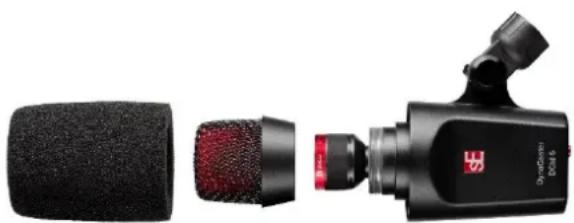

Integrated pop filter
Broadcast microphones are essential elements for social media channel videos and audio recordings. The design of the DynaCaster DCM 3 and DCM 6, addresses the issue of visual disruption caused by external windscreens and pop filters. To keep your video pristine and crystal clear, both models are equipped with an integrated pop filter. This concept has been extensively tested to effectively suppress plosives without the need for any external protection.
The pop filter and microphone grille can be easily removed and cleaned as needed. Simply pull off the foam wind screen and turn the microphone grille counterclockwise to remove it. Submerge the foam into lukewarm water. Do not use any cleaning agents or aggressive liquids. Now, carefully rub the foam material until it is clean. Then rinse it with lots of water. Lastly, squeeze it carefully to remove the water and let it dry in a
Powering
The DynaCaster DCM 6 only: To ensure proper operation, your sE product requires a Phantom power source that provides 48 Volts according to IEC 61938.
Risk of damage
Do not connect your sE product to any power supply other than a Phantom power source (input with Phantom power or external IEC standard Phantom power supply) with a floating connector, using a balanced cable with studio-grade connectors to IEC 268-12 only. This is the only way to ensure safe and reliable operation.
Please be aware that Phantom power cannot pass through TRS connectors. A balanced microphone cable with XLR connectors at both sides is required to provide Phantom power to your sE product.
Safety and maintenance
Warning
The product may contain small, detachable parts, which may cause choking, personal injury, or death, especially in children. Please exercise care in the use and handling of small parts and keep them away from children under four years of age.
- This product is safe under normal and reasonably foreseeable operating conditions.
- Do not open or modify the product.
•The product must be returned to the manufacturer or destined vendors for any service or repair. - Do not disassemble or attempt to service this product.
- This is not a children's product and is not intended to be used by children under 14 years old.
Risk of damage
Please make sure that any piece of equipment to which your sE product will be connected fulfills the safety regulations enforced in your country and is fitted with a ground lead.
Compliance
This product complies with relevant legal requirements for Restriction of Hazardous Substances (RoHS) and management of waste electronic and electrical equipment (WEEE).
For RoHS and WEEE information, go to http://www.seelectronics.com/compliance
Maintenance is not required for product compliance.
Batteries, electronic and electrical equipment should not be disposed of with household waste. Wherever possible, they should be separated and brought to an appropriate collection point to be recycled and to avoid potential impact on the environment and/or human health. For more information, contact your local authorities or place of purchase, or visit
http://www.seelectronics.com/recycling
CE Made in China
Warranty
sE Electronics warrants that its hardware product shall be free from defects in materials and workmanship beginning from the date of original retail purchase.
See http://www.seelectronics.com/warranty for specific warranty information about your product and procedures for a warranty claim.
sE Electronics' entire liability and your exclusive remedy for any breach of warranty shall entail, at sE Electronics' option, to repair or replace a functional equivalent of the product, or to refund the price paid, provided that the hardware is returned to the purchased location along with a receipt.
Warranty protections are in addition to rights provided under local consumer laws and may vary among countries. See the full warranty information to know your consumer rights and the additional protections provided by this product warranty.
Our headquarters:
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA
Our R&D and manufacturing center:
EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China
Full Warranty Information:
https://www.seelectronics.com/warranty
Technical specifications
| DynaCaster DCM 3 | DynaCaster DCM 6 | |
| Capsule | Dynamic | |
| Voice coil | Copper | |
| Magnet | Neodymium | |
| Polar Pattern | Cardioid | |
| Frequency range | 40 Hz - 18 kHz | |
| Sensitivity | 2.5 / (-52 dBV) | 2.5 / 79 mV/Pa (-52 / -22 dBV) |
| Powering | - | +48V Phantom power |
| Current consumption | - | 3.1 mA |
| Electrical impedance | 600 Ohms | 600 / 135 Ohms |
| Recommended load impedance | >1k Ohms | |
| Connectivity | 3-pin male XLR connector | |
| Dimensions | 158 x 86 x 62 mm (L x W x H)6.22 x 3.39 x 2.44 in. (L x W x H) | |
| Weight | 512 g / 18.06 oz. | 518 g / 18.27 oz. |

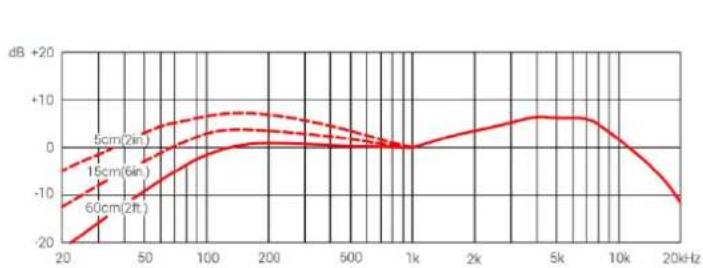

Frequency Response
Polar Pattern
line
| Frequency (kHz) | 5cm(2ft) | 15cm(6ft) | 60cm(2ft) | | --------------- | -------- | --------- | --------- | | 20 | -10 | -15 | -20 | | 50 | -5 | -8 | -10 | | 100 | 0 | 5 | -5 | | 200 | 5 | 10 | 0 | | 500 | 0 | 0 | -5 | | 1k | 0 | 0 | 0 | | 2k | 5 | 5 | 5 | | 5k | 10 | 10 | 10 | | 10k | 5 | 5 | 5 | | 20k | -10 | -10 | -15 |
radar
| Frequency | Angle (°) | Value | |---|---|---| | 100Hz | 0 | 25 | | 100Hz | 45° | 25 | | 100Hz | 90° | 25 | | 100Hz | 135° | 25 | | 200Hz | 0 | 25 | | 200Hz | 45° | 25 | | 200Hz | 90° | 25 | | 200Hz | 135° | 25 | | 500Hz | 0 | 25 | | 500Hz | 45° | 25 | | 500Hz | 90° | 25 | | 500Hz | 135° | 25 | | 1kHz | 0 | 25 | | 1kHz | 45° | 25 | | 1kHz | 90° | 25 | | 1kHz | 135° | 25 | | 2kHz | 0 | 25 | | 2kHz | 45° | 25 | | 2kHz | 90° | 25 | | 2kHz | 135° | 25 | | 5kHz | 0 | 25 | | 5kHz | 45° | 25 | | 5kHz | 90° | 25 | | 5kHz | 135° | 25 | | 10kHz | 0 | 25 | | 10kHz | 45° | 25 | | 10kHz | 90° | 25 | | 10kHz | 135° | 25 | | The chart displays a single data series with no explicit title or axis labels. The frequency values are estimated based on the provided code. The angle of each data point is calculated based on the number of occurrences in the 'Hz' column.Support
In case you have any questions about your new sE product, please do not hesitate to contact us directly:
http://www.seelectronics.com/contact-us
In the event that your new sE product is operating improperly, it must be returned to us as the manufacturer or to a destined vendor for any service or repair. For the fastest and most direct service, please contact your dealer first. If authorized service is required, it will be arranged by that dealer:
http://www.seelectronics.com/dealers
If you are experiencing difficulties with support or assistance, please do not hesitate to contact us directly:
http://www.seelectronics.com/contact-us
Lastly, please remember to register your new gear with sE to extend your warranty to a full three years: http://www.seelectronics.com/registration
Contact
Feel free to contact us:
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA
Our international distributors & sales representatives: http://www.seelectronics.com/contact-us
