USER MANUAL SS21210 Sogo

Black desktop fan with a circular grille and black stand (no text or symbols visible)

COOL WAVE®

Caution: please read and preserve these important instructions

ref. SS-21210

Technical diagram of a mechanical device with numbered parts, likely a valve or pump assembly.

Instructions for use

Dear Customer, Please read this instruction manual carefully.

IMPORTANT SAFEGUARDS

This instruction manual can also be downloaded from our web page www.sogo.es When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions carefully and save these instruction manual for futur reference.
• To protect against electric shock, do not immerse cord, plug or fan into water or any other liquid.
• Do not use appliance for other than intended use.
• Use the appliance only on the voltage specified on its rating plate (220-240V \~ 50Hz).
• Unplug from outlet when not in use and before cleaning.
• Do not pull the plug out of the socket by pulling the connection cord.
• Do not use outdoors.
• Do not use an extension cord, unless the cord has been checked and tested by your electrical authority or a qualified technician.
• Close supervision is necessary when any appliance is used by or near children.
  • Always use your appliance on a suitable

level and dry plataforma.

- Avoid using an appliance where it can fall or be pushed into water.

- Never reach for an appliance after it has fallen into water. Switch off at the mains power point und unplug immediately.

- Never attempt to insert any object through the grille when the fan is operating.

- Always disconnect fan when moving from one location to another.

- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner, please connect with manufacturer or local distributor.

- Do not cover the grille.

- If the fan is to be stored for an extended period of time or not used regularly, replace it in the original packaging (or similar) and store it in a dry and clean place. Before using again, check if the unit is clean and dry if the fan blades rotates freely.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
- Keep the appliance and its cord out of reach of children.

HOW TO INSTALL

Check before installation

• Unpack the product to check if all the accessories are available.
• Check the voltage shown in the nameplate to see if it accords with the local situation.
• Check the motor if it can move smoothly.

INSTALL

• Assemble the pole on the screws.
• Fix the base on the black screw (If it is available).
- Unscrew Pipe Locker, Pull the stainless pipe at proper beight and then tighten the pine locker again.
- Unscrew the pipe holder. Connect the body firmly on the top of the atainless pipe and fasten the pipe holder again.
- Please take off the nut and put the re guard into the front of the motor house, tighten the nut firmly, then put the blade into the motor axis (be sure to put the horizontal bolt into blade groove) and tighten the blade screw anti-clockwise.
- Put front guard and close or screw grills ring to secure guards together.

TECHNICAL INFORMATION

Voltage / Frequency: 220-240V \~ 50Hz

Output Power: 45W

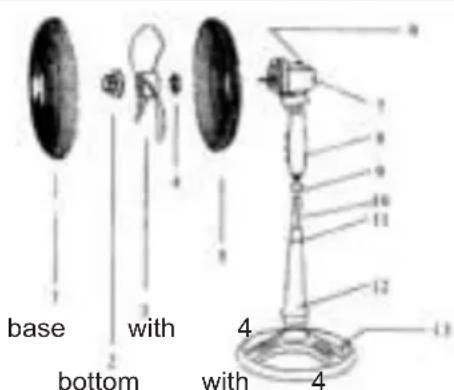

DRAWING

base with 4 bottom with 4

1. Front Guard
2. Blade Screw
   ânBlade
3. Nut
4. Rear Guard
5. Oscillation Nob
6. Motor House
   8aSwitch Box
7. Pipe Holder
8. Stainless Pipe
9. Pipe Locker
10. Pole
11. Circle Base

Mode d'emploi

ATTENTION

Technical diagram of a mechanical device with numbered parts and labeled parts

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with Directive 2006/95/EC Low Voltage Directive 2004/108/EC Electromagnetic Compatibility with Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, CIF: B98753056, Spain

Made in P.R.C
