USER MANUAL Ultimate EZ Clean FR7008 TEFAL

Black-and-white photo of a white square<|im_start|> Guyan°F<|im_start|> Greenland electric oven with food items on the side (no visible text or symbols)

English

Important safeguards Page 2
Description Page 3
Use of the Oil box button Page 4
Before first use Page 5
Preparing the fryer Page 6
Frying process Page 7
Cleaning and Maintenance Page 9
If your fryer does not work properly Page 11
Warranty Page 12

Français

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use the handles or knobs.
3. To protect against electric shock do not immerse cord, plugs, or this appliance in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Call our Consumer Service Department for examination.

7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

12. Always attach plug to appliance first, then plug cord in the wall outlet. To disconnect, turn any control to "off," then remove plug from wall outlet.

13. Do not use appliance for other than intended use.

14. Extreme caution must be used when moving fryer containing hot oil.

15. Be sure handles are properly assembled to basket and locked in place. See detailed assembly instructions.

16.SAVE THESE INSTRUCTIONS.

1. The oil level must always be between the MIN and MAX markings.
2. Do not overload the basket. For safety reasons never exceed the maximum quantity.
3. Never operate your fryer without any oil or fat.

4. The cooking times are given as guidelines only.

5. The oil must be filtered regularly and changed after 8 to 12 uses.

6. Do not mix different types of shortening or oils.
7. If you use solid vegetable shortening, cut it into pieces and melt it over slow heat in a separate pot beforehand, then slowly pour it into the deep fryer pot. Never pour shortening directly into the deep fryer pot or basket as this will lead to deterioration of the appliance.
8. If the fryer has a removable pot, never remove it while the deep fryer is on.
9. If you have any problems, contact the Consumer Service Department or visit internet address www.t-fal.com.
10. Caution: Overtightening can result in stripping of screws or nuts or cracking of handle or feet.
11. Please check the tightening of the handles and feet screws every 25 uses or 4 times per year.

Polarization instructions

If this appliance has a polarized plug (one blade is wider than the other) it is to reduce the risk of electric shock. This plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

Short Cord instructions

Do not use with an extension cord. A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

Magnetic connector: (depending on model)

The cord is equipped with a detachable magnetic connector. The magnetic connector should be attached directly to the fryer. THIS SHOULD BE DONE PRIOR TO PLUGGING THE CORD INTO THE WALL OUTLET.

FOR HOUSEHOLD

USE ONLY

Warning: Possible eruption. Water's reaction to hot oil is extremely volatile. Please ensure, no matter what the recipe states, food must be dried thoroughly before immersing in hot oil.

13. 13.a 13.b T-FAL Ultimate EZ Clean Deep Fryer

Description

1. Lid

a. Permanent filter

b. Filter cover

c. Handle

d. Viewing window

1. Removable control unit and heating element

2. Frying basket

a. Handle

b. MAX food level marker

1. Removable bowl

2. MIN and MAX oil level markers

3. Basket high position

4. Fixed oil filter grid

5. Safety carrying handles

6. Oil box control button

7. Housing

8. Oil box

a. Lid

b. Cap

1. Feet

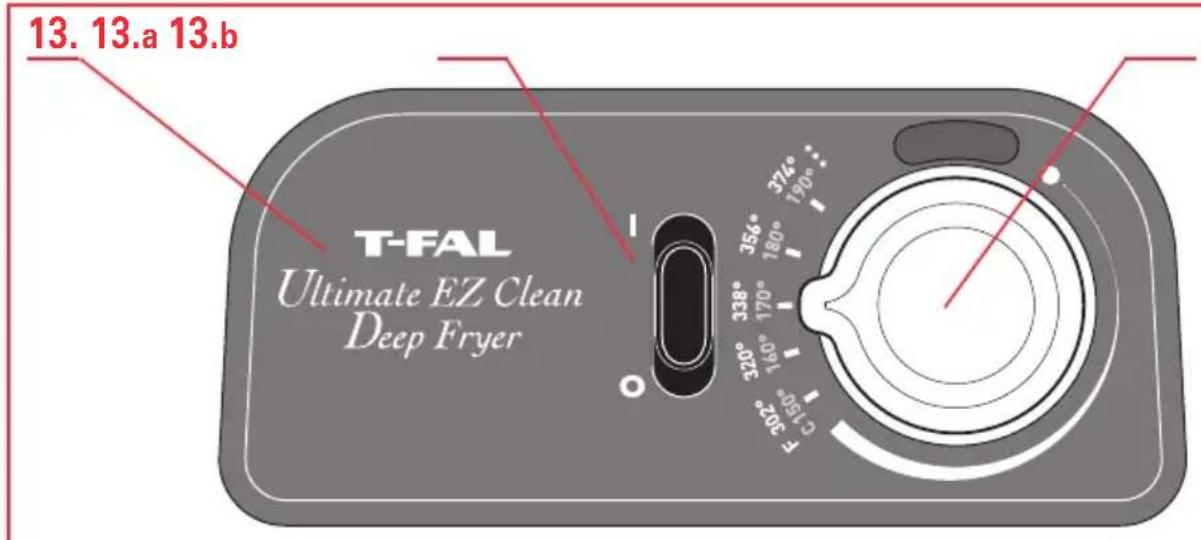

2. Panel

a. On/Off switch

b. Adjustable thermostat

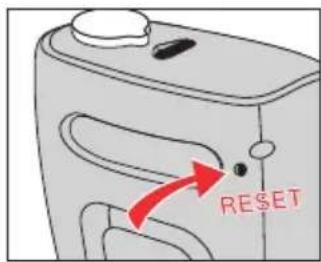

RESET function: Your appliance is equipped with an overheating security feature if you use your fryer without oil. If the overheat

RESET

function is activated, the appliance will shut off automatically. Wait until the heating element has completely cooled.

To reset the fryer, push the RESET button (found on the back of the control unit) with a toothpick or similar non-metallic object after the bowl has been filled with oil. If the overheating security feature is activated several times, please contact the T-FAL Consumer Service Department for assistance.

Filtration, drainage and automatic storage of oil/shortening

Your fryer is fitted with an exclusive and patented system for filtration and automatic drainage, suitable for most types of oils and shortenings used for cooking.

● The drainage of oil is completely automatic and safe.
- The automatic patented filtration system ensures your oil/shortening stays clean and lasts longer for healthier frying.
- The Oil box container enables you to store your oil and keep it until you next want to use it and to avoid any transfer of flavors.

Ultra easy cleaning

Your fryer is easy to handle and to dismantle.

●All the parts (except the control unit) are dishwasher safe.
●Thanks to the patented automatic filtration and oil storage system, your fryer can go into the dishwasher after each use, making it clean as new after each use.

Using the Oil box container control button

fry

automatic oil filtration

oil box

- The Oil box control button has 3 positions.

Fry Position: to fry.

Automatic Oil Filtration Position: to drain and filter the oil into the oil box.

Oil box Position: to allow for removal of the oil box container.

Before first use

Diagram of a kitchen appliance with directional arrows indicating motion (no text or symbols)

Diagram showing a kitchen appliance with a red arrow pointing to the interior, alongside a stack of labeled storage bins.

Line drawing of a hand holding a small object connected to a device with wires (no text or symbols)

OK

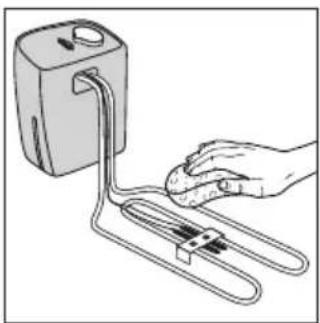

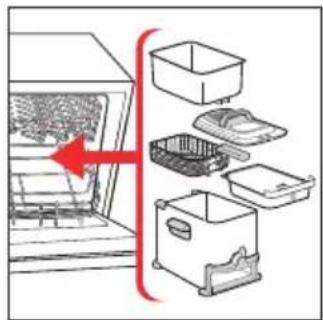

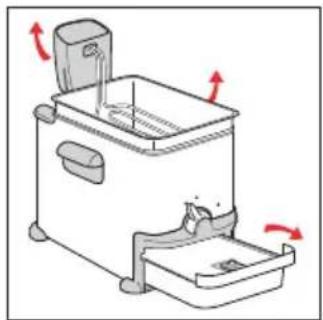

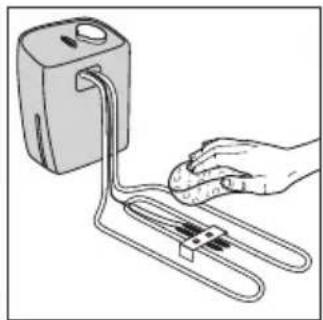

- The fryer can be completely dismantled. Remove the lid. Remove the frying basket, the control unit and the bowl. Remove the oil box by positioning the Oil box control button on the Oil box position.

- Clean the lid, the bowl, the housing, the frying basket and the Oil box with soap and water or put them in the dishwasher. Clean the control unit and the heating element with a damp cloth. Dry thoroughly.

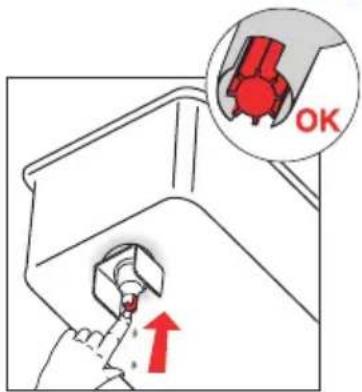

• After cleaning, press on the red button under the fryer to release any water in the bowl.

Do not immerse the control unit with the heating element in water.

Check that the red button has gone back to its original position.

Illustration of a hand placing a rectangular container into a machine with arrows indicating downward motion (no text or symbols)

Illustration of a hand pouring liquid into a container with a red arrow indicating flow direction (no text or symbols)

Illustration of hands operating a mechanical device with a red arrow indicating motion (no text or symbols)

CLICK

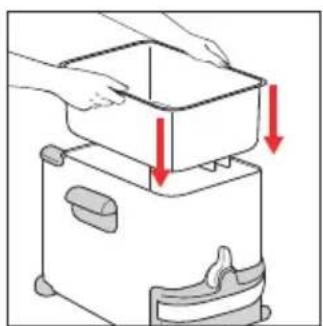

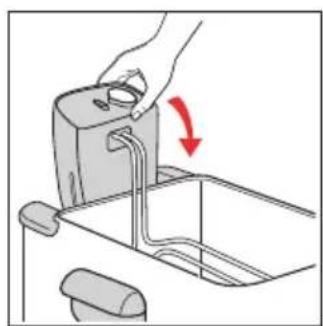

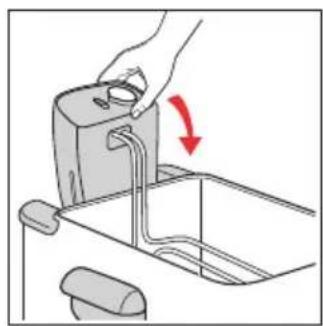

- Place the bowl and the heating element in position.

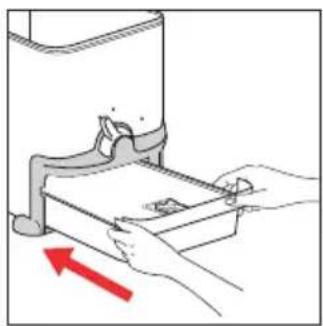

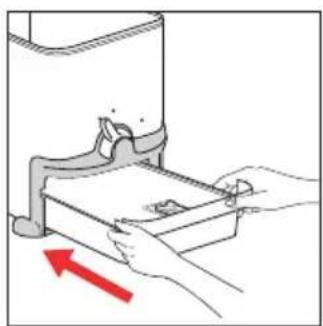

- Place the Oil box control button on the Oil box position and insert the empty Oil box into the fryer.

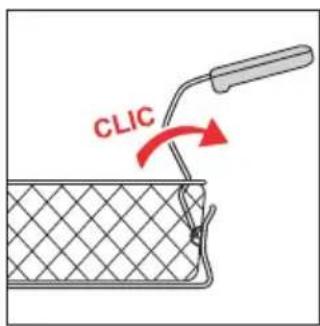

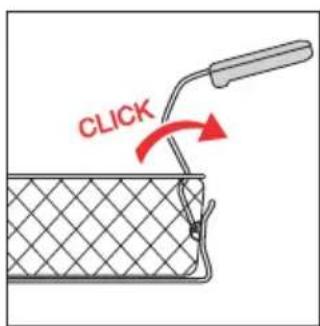

- Completely unfold the basket handle; a "click" indicates that it is correctly positioned.

Make sure that the control unit is correctly positioned otherwise the fryer cannot function.

Preparing the fryer

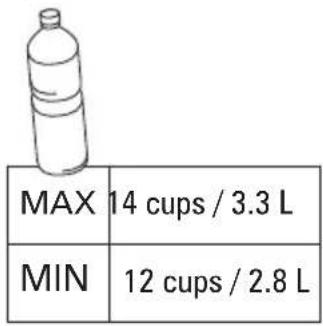

MAX 14 cups / 3.3 L MIN 12 cups / 2.8 L

Illustration of a hand pouring liquid into a square basin with a stand (no text or symbols)

Diagram of a water dispenser with liquid flow and a red arrow indicating direction (no text or symbols)

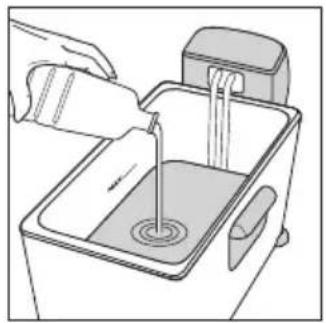

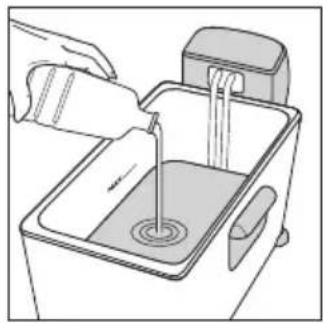

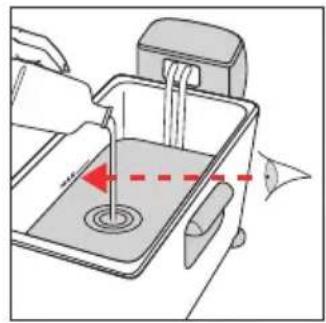

- Fill the bowl with oil.

The oil level should always be between the MIN and MAX level of the bowl.

Do not exceed the maximum fill line as boiling oil may overflow during frying and can cause severe burns.

- For best results we recommend vegetable oil.

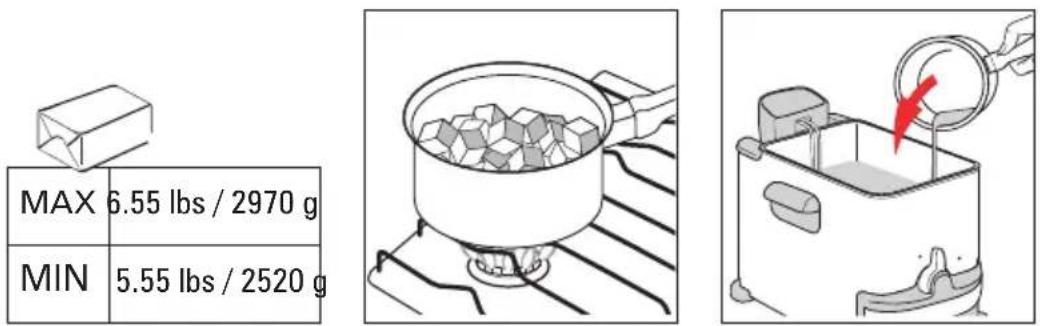

- If you use solid vegetable shortening:

Cut it into small pieces, melt it in a separate pan then pour the melted shortening into the fryer bowl.

Never use different types of oil at the same time as this may cause the oil to overflow.

Never melt the shortening on the heating element or in the frying basket. If you melt the shortening on the heating element or in the frying basket, the safety cut-out would be activated. Press the "reset" button, which is located at the back of the fryer.

Frying process

Diagram illustrating a process with labeled components and directional arrows, including a 'dry' container and a device.

Illustration of a hand inserting a plug into a device with a switch, showing electrical connections (no text or symbols)

36° 40° 50°

Close-up of a camera lens with red motion arrows indicating rotation (no text or symbols)

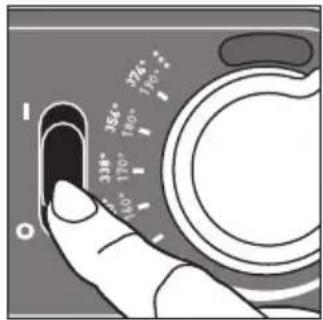

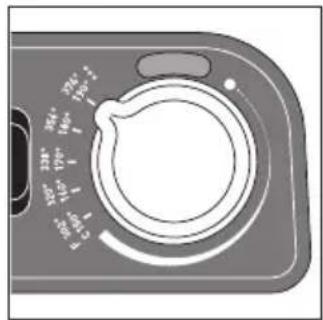

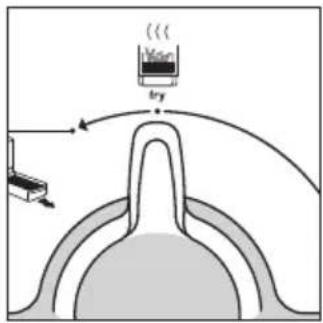

• Place the Oil box control button on the Fry position.

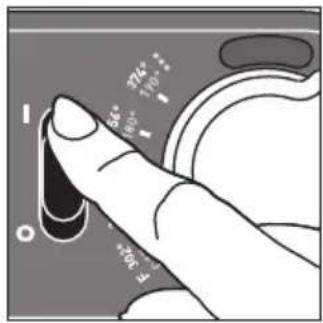

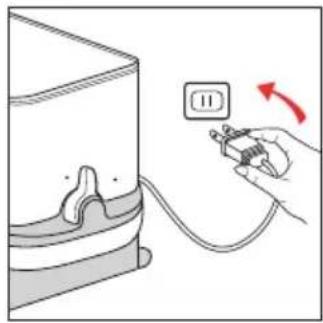

  • After the bowl has been filled with oil, plug in the fryer without the frying basket. Set the On/Off switch button to position I and the temperature indicator light will switch on. Turn the adjustable thermostat to the desired temperature (see cooking tables).
  • The fryer will now start to heat the oil.

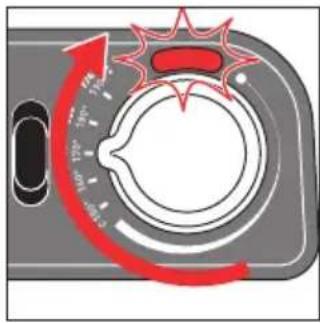

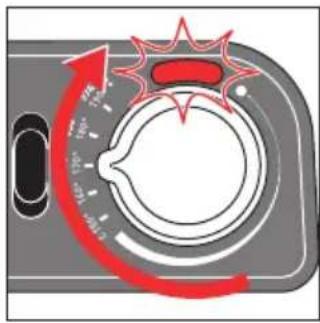

• Note : the temperature indicator light will switch off when the desired temperature is reached.

	Fresh potato or French fries	Frozen potato or French fries
Maximum safety capacity 2	65 lbs / 1.2 kg (in 2 batches)	2 lbs / 900g
Recommended capacity 1.3	lbs / 600 g 1 lb / 450g

Line drawing of a two-wet grater with mesh basket and handle, no text or symbols present

Close-up of a camera dial with no visible text or symbols on the dial face (pure technical drawing)

Illustration of a toaster oven with a hand operating it, showing internal structure and a red downward arrow indicating cooling (no text or symbols present)

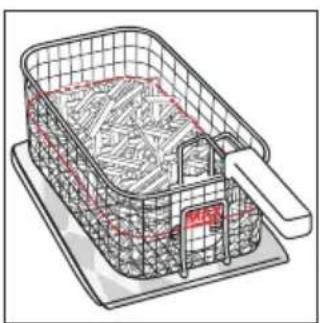

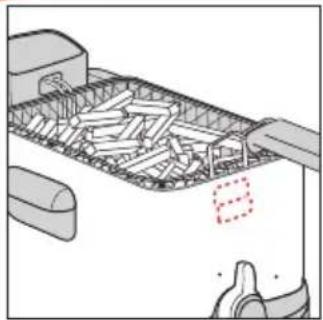

- Place food in the basket without overfilling. Notice the MAX food level marking on the basket.

Reduce the quantities for frozen foods.

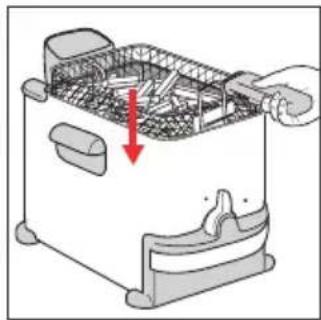

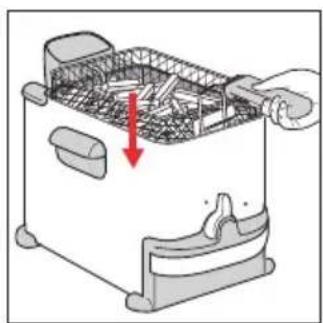

• After the temperature light has gone off, place and lower the basket slowly into the frying oil. Plunging the basket too rapidly in the oil may cause it to overflow.
- Put the lid on the fryer.

Do not plug in the fryer without oil.

No matter what the recipe, food must be dried thoroughly before frying. This will prevent the oil overflowing and extend the life of the oil.

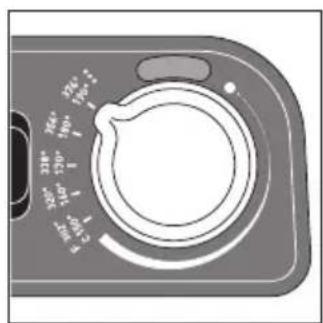

During cooking, it is normal for the temperature light to go on and off.

Technical line drawing of a mechanical assembly or conveyor system (no visible text or symbols)

Illustration of a hand pouring liquid into a container (no text or symbols visible)

I 338° 155° 160° 170° 180° 190° 200° 210° 220° 230° 240° 250° 260° 270° 280° 290° 300° 310° 320° 330° 340° 350° 360° 370° 380° 390° 400°

Illustration of hands using a tool to adjust or install a device, with red lines indicating alignment or repair (no text or symbols present)

- Frying is complete when the cooking time has elapsed and food is of the desired color and texture.

- Remove the lid. Allow excess oil to drain by hooking the basket on the support on the inner bowl.

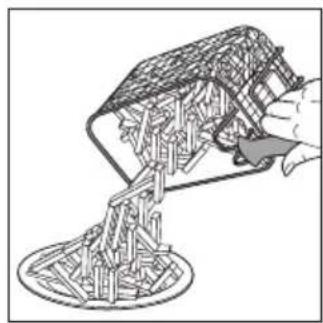

- Serve.

- When you have finished frying foods, set the On/Off switch on the O position.

- Unplug the appliance and let it cool for about 3 hours. For filtering and draining the oil, see the section on Cleaning and Maintenance.

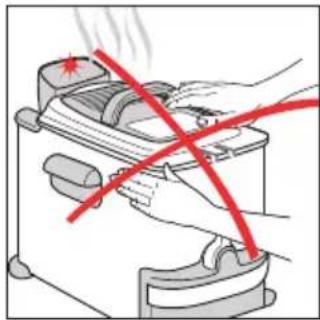

Do not touch the fryer when it is in use as it will be extremely hot and can cause severe burns. Steam coming from the filter is also extremely hot.

Cooking tables

The cooking times are a guide only. They could vary depending on quantity, taste, electricity supply etc...

It is important to fry hand made French fries twice for best results and to prevent the oil from overflowing: - a first cycle at 320 °F/160 °C - a second cycle at 374 °F/190 °C For safety and for the crispiest results, dry food items thoroughly before frying, especially frozen foods and freshly made fries. Large pieces of chicken or large fries need a longer cooking time. Set the temperature thermostat according to the table below, or follow the instructions on food packaging. Cooking tip: To prevent food from sticking together, do not use the basket when cooking battered foods or doughnuts.

FRESH FOODS Quantity Temperature Time

French fries (MAX safety capacity)	2.65 lbs / 1200 g	1st frying 2nd frying	160°C / 320°F 190°C / 374°F	12~15 min 6~8 min
French fries (MAX recommended capacity)	1.3 lb / 600 g		190°C / 374°F	9~11 min
Chicken nuggets 8 180°C / 356°F 18~20 min
Apple fritters 8~9 170°C / 338°F 6~7 min
Mushrooms	0.9 lb / 400 g 150°C / 302°F 10~12 min
Fish fillets	0.9 lb / 400 g 160°C / 320°F 5~6 min

FROZEN FOODS

Quantity Temperature Time

French fries (MAX safety capacity)	2 lbs / 900 g	190°C / 374°F	14~16 min
French fries (MAX recommended capacity)	1 lb / 450 g	190°C / 374°F	7~9 min
Fish fillets	0.75 lb / 350 g	190°C / 374°F 7~8 min
Fish nuggets	12	190°C / 374°F 5~6 min
Frozen shrimp	15	190°C / 374°F 4~5 min

We recommend that you:

• clean your oil after each use to avoid burnt crumbs
• change your oil regularly.

For quality and fast cooking, limit the quantity of French fries to 1/2 a basket at a time.

Cleaning and Maintenance

automatic oil filtration

Simple line drawing of a beaker with liquid and a droplet, no text or symbols present

oil box

Illustration of hands using a mechanical device to press or install a tray, with a red arrow indicating motion (no text or symbols present)

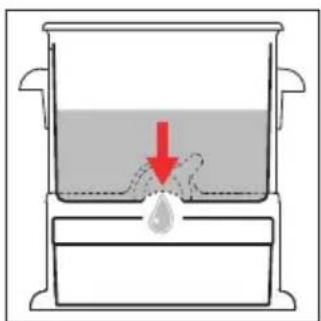

• For your safety, the appliance automatically drains all kinds of oils (or solid shortenings) when it is cool enough (approximatively 3 hours after the last cooking).
• When finished cooking, turn the Oil box control lever to the Automatic oil filtration position.
• Once the filtration is finished, you can store the container :

- In the appliance: Turn the Oil box control button on Fry position. The appliance must be carried and transported flat.

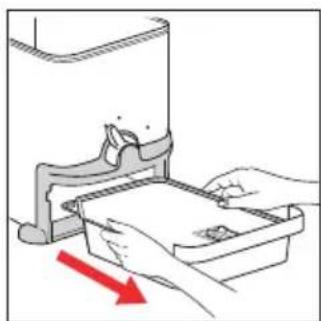

- Out of the appliance : Turn the Oil box control button to the Oil box position and then remove the container. Transport it with care.

- Store oil in a cool, dry place at a temperature no higher than room temperature.

Make sure that the oil container is empty before draining the fryer.

Carry the container with both hands. Store it in a cool dry place away from the light.

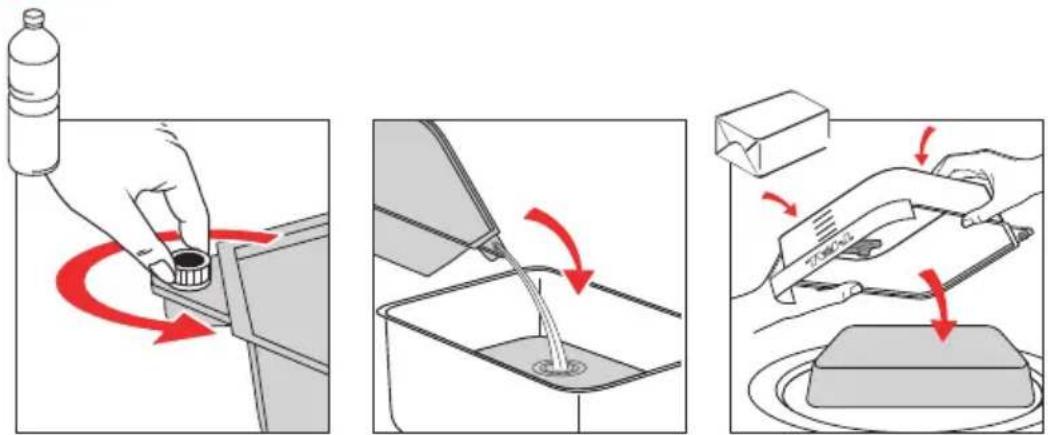

• To re-use the oil, remove the container with care. Unscrew the oil box cap and empty the oil in the fryer bowl.
- For the solid shortening, remove the lid from the container. Turn the container over and press it to loosen the shortening. Cut it into pieces and melt it in a separate pan.

- Insert the empty container in the fryer, with its lid and cap. Place the Oil box control button on the Fry position.

Never put the Oil box in the microwave oven.

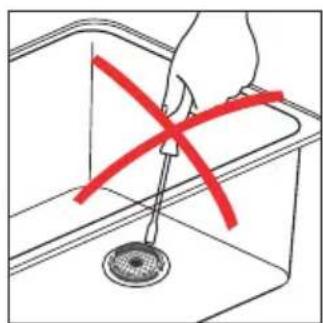

Do not pour used oil in the sink.

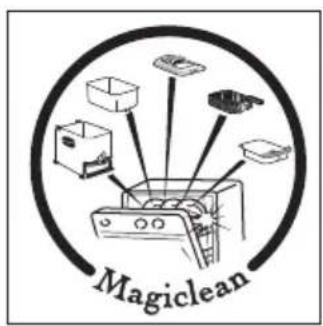

Magiclean

Simple line drawing of a hand using a tool to clean or wash a circular basin (no text or symbols)

Try position. OK

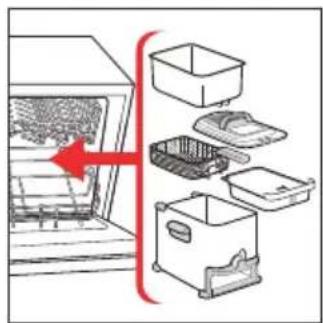

100% dishwasher safe (except the control unit)

- The lid, bowl, housing, frying basket and the Oil box are dishwasher safe.

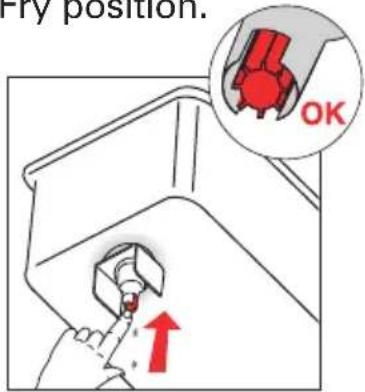

Before filling the fryer bowl, always check to ensure the red button under the fryer is in the right position.

If your fryer does not work properly

Problems and possible causes	Solutions
The fryer is not heating
The appliance is not plugged in.The safety cut-off is activated.	Plug in the appliance.Press the "reset" button, which is located at the back of the fryer. If the problem persits, please contact our Consumer Service Department.
The frying oil overflows
The MAX marker for filling the bowl has been ded.The MAX marker for filling the frying basket been exceeded.Food is wet or contains too much water (frozen food).Different types of oil/shortening have been mixed.	Check the oil level (MAX), and remove the exceed-excess.Check the MAX level of the frying basket, and has remove the excess.Remove any ice and dry the food thoroughly.Lower the basket slowly.Empty and clean the bowl. Refill the bowl with one type of oil.
The food does not become golden, and remains soft
The food is too thick and contains too much water.Too much food being cooked at the same time and the cooking oil is not at the right temperatureThe temperature of the frying oil may not be high enough: the temperature is set incorrectly.	Experiment by lengthening the cooking time or cut food into thinner pieces.Fry food in small quantities (especially when frozen).Set to the recommended temperature.
The French fries stick together
The French fries stick together.	Wash potatoes well and dry them thoroughly.
The bowl does not drain
The oil is still too hot.The Oil box control button is not on the Automatic Oil Filtration position.The filter grid is blocked or clogged.The shortening is solidified.	Wait for the temperature to go down (approximately 3 hours).Turn the Oil box control button on the Automatic Oil Filtration position.Empty the oil into a container and clean the filter grid with soap and water and a non-metallic brushPress on the red button under the fryer to let out water and crumbs.Allow the fryer to heat (4 to 5 minutes).
Oil leaks
The max (3.3 l) fill mark for the bowl has been exceeded.There is some oil left in the container or it is full.	Do not exceed the oil level (3.3 l). Clean the fryer ex-before any use.Turn the Oil box control button on the Oil box position, pull out the container and drain it.
Emits unpleasant smells
The oil has deteriorated.The oil is unsuitable.	Use new oil.Use a good quality blended vegetable oil.
Others problems
The indicator light does not come on.	Please contact our Consumer Service Department.

If you have any product problems, please contact our Consumer Service Department for expert help and advice: in the US 1800 395 8325 in Canada 1800 418 3325 Consult our web site: www.t-fal.com or www.t-fal.ca.

Any repairs must only be carried out by an Approved Service Center with the manufacturer's own replacement parts.

WARRANTY USA

One year limited warranty:

The manufacturer warrants this product to be defect-free in material and workmanship for a period of one year from the date of purchase. Defective products may be returned by the original purchaser or any subsequent owner within the warranty period, postage pre-paid together with proof of purchase (register receipt) to a T-FAL return facility. If product is returned without proof of purchase it will be renewed based on the manufacturing production week and year to determine warranty coverage. Defective products will be replaced at no charge including return postage if it falls within the warranty timeframe. The warranty does not apply to any unit that has been tampered with, nor to damages incurred through improper use and care, faulty packing or mishandling by any common carrier. Manufacturer's sole obligation and your exclusive remedy under this warranty are limited to such replacement. This is a limited warranty and is in lieu of all other warranties, express or implied, including merchantability. This warranty gives you specific legal rights. You may also have other legal rights varying from state to state.

If you have a claim:

1) Do not return the product to the retailer from which it was purchased.
2) Please contact our consumer service department (1-800-395-8325 M -Th 8:30 - 5 pm & Fr 8:30 - 4 pm EST) for assistance and to ensure the fastest possible resolution to the problem. Please have the model or type number of your product on hand.
3) If it is determined that you should return your product for replacement - you will be asked to send the product along with the original proof of purchase and a description of the nature of the defect to the closest T-FAL authorized return facility.
4) Be sure to include your name, address and home telephone number with your shipment.
5) Returns must be sent with all shipping charges pre-paid. We suggest that you carefully wrap your package for shipping and send it by insured or by traceable means.

What happens to my return?

If the inspection shows that the product is defective, under our Limited Warranty, the return facility will notify T-Fal to replace the defective part or product at no cost to you. Comparable substitutions are based on replacement product availability and at the sole discretion of the Manufacturer.

If the inspection shows that the product is not defective under our Limited Warranty we will notify you. Shipping charges may apply to product not covered under warranty.

Please allow 5 - 10 business days to process your return. You will be notified if a repair will take longer.

If problem persists, or for any other problem. Contact T-FAL Customer Service :

in the U.S. (1-800-395-8325) or www.t-falusa.com

WARRANTY CANADA

One year limited warranty:

T-FAL warrants this product to be defect-free in material and workmanship for a period of one year. Should any defect be discovered within one year of date of purchase, the following should be used in claiming the warranty :

1) Return your fryer to the retailer from whom it was purchased along with proof of purchase.
Or
2) Take your fryer to the nearest authorized T-FAL Service Center, along with proof of purchase.
3) T-FAL Canada agrees to repair or replace the defective part or product at no charge, provided that the product is returned with all shipping charges prepaid to :

CANADA

GROUPE SEB CANADA

345 Passmore Avenue Toronto,

ON M1V 3N8

1-800-418-3325

accompanied by proof of purchase and a letter detailing the nature of the defect. Be certain that the fryer is wrapped carefully when shipping. The T-FAL Customer Service Department should be contacted by mail or by telephone [phone]), prior to any action, in the event that it is possible to correct the defect without returning the unit.

If the problem persists, or for any other problem, contact T-FAL Customer Service :

in Canada (1-800-418-3325) or www.t-fal.ca

PRÉCAUTIONS IMPORTANTES

at live at hot water at hot water

fry

automatic oil filtration

oil box

Diagram of a small kitchen appliance with directional arrows indicating motion (no text or symbols)

Diagram showing a kitchen oven with a red arrow pointing to a storage unit, illustrating the process of food or material handling.

Line drawing of a hand using a handheld device to connect two cables (no text or symbols present)

OK

Illustration of a hand placing a rectangular container onto a food processor with red arrows indicating downward motion (no text or symbols)

Illustration of a hand pouring liquid into a container with a red arrow indicating direction (no text or symbols)

Illustration of hands operating a mechanical device with a red directional arrow indicating movement (no text or symbols present)

CLIC

MAX 3,3L / 14 tasses MIN 2,8L / 12 tasses

Illustration of a hand pouring liquid into a square basin with a stand mixer (no text or symbols)

Diagram of a washing machine with liquid and a red arrow indicating flow direction (no text or symbols)

Diagram illustrating a process with labeled components and directional arrows, including a 'try' label near the top.

Illustration of a hand inserting a plug into a device with a power cord (no text or symbols)

72° 100° 45° 100° F-30k+

Diagram of a camera with red starburst pattern and curved arrow indicating rotation (no text or symbols)

3D wireframe illustration of a rectangular food basket with mesh and red contents, placed on a flat base (no text or symbols)

Close-up of a camera dial with no visible text or symbols on the dial face (pure technical drawing)

Illustration of a hand using a griddlepan to generate food, with a red arrow indicating the process (no text or symbols present)

Illustration of hands using a portable device with red diagonal lines indicating crossed-out or blocked operation (no text or symbols)

Technical line drawing of a mechanical assembly or conveyor system (no text or symbols visible)

Illustration of a hand pouring liquid into a container (no text or symbols visible)

I 338° 150° 170° 180° 200° 220° 240° 260° 280° 300° 320° 340° 360° 380° 400° 420° 440° 460° 480° 500°

automatic oil filtration

Simple line drawing of a beaker with liquid and a droplet, no text or symbols present

oil box

Illustration of hands using a device to press or download a tray, with a red arrow indicating the process (no text or symbols present)

345 Passmore Avenue Toronto,

ON M1V 3N8

1-800-418-3325
