USER MANUAL KD-R571 JVC

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

13/7/2015 8:52:04 AM Declaration of Conformity with regard to the EMC Directive Declaration of Conformity with regard to the RoHS Directive 2011/65/EU Manufacturer: JVC KENWOOD Corporation 3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan EU Representative: JVC Technical Services Europe GmbH Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel, Germany

Data Size: Book Size:

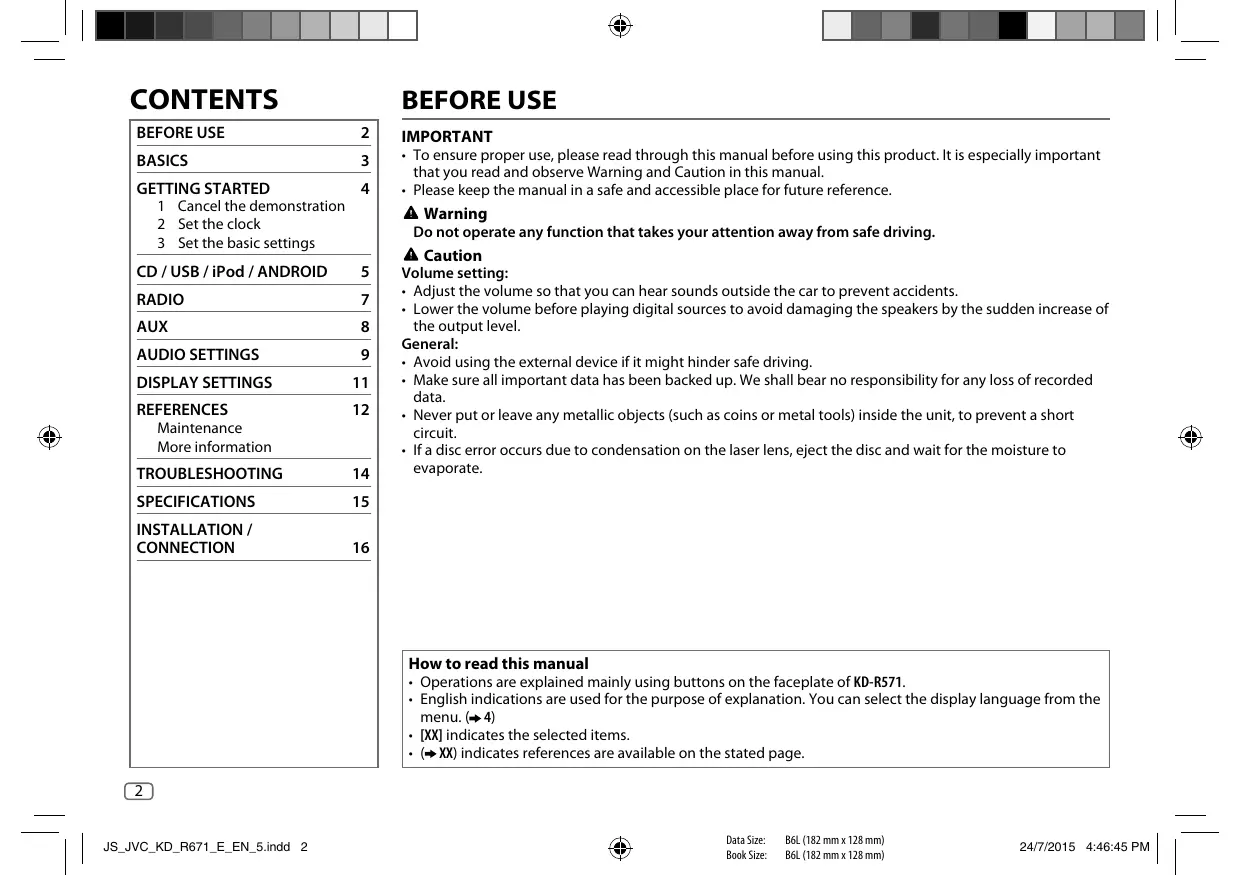

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual. • Please keep the manual in a safe and accessible place for future reference.

1 Cancel the demonstration 2 Set the clock 3 Set the basic settings

Warning Do not operate any function that takes your attention away from safe driving.

Volume setting: • Adjust the volume so that you can hear sounds outside the car to prevent accidents. • Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level. General: • Avoid using the external device if it might hinder safe driving. • Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data. • Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit. • If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

How to read this manual • Operations are explained mainly using buttons on the faceplate of KD-R571. • English indications are used for the purpose of explanation. You can select the display language from the menu. ( 4) • [XX] indicates the selected items. • ( XX) indicates references are available on the stated page.

JS_JVC_KD_R671_E_EN_5.indd 2

Data Size: Book Size:

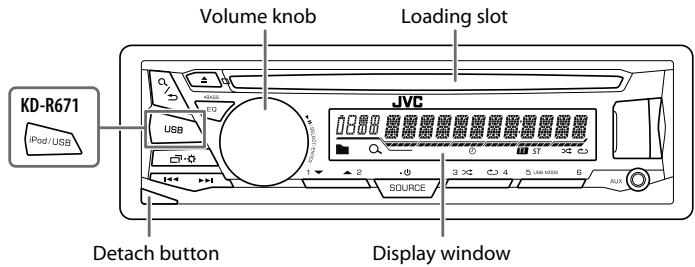

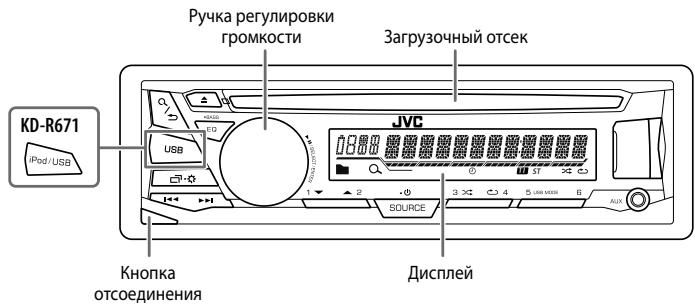

Display window Your preset adjustments will be erased except stored radio stations.

Press . • Press and hold to turn off the power.

repeatedly. , then turn the volume knob within 2 seconds. repeatedly. ( 13)

ENGLISH JS_JVC_KD_R671_E_EN_4.indd 3

Data Size: Book Size:

3 Repeat step 2 until the desired item is selected or activated. 4 Press to exit.

Cancel the demonstration

When you turn on the power (or after you reset the unit), the display shows: “CANCEL DEMO” “PRESS” “VOLUME KNOB” 1 Press the volume knob. [YES] is selected for the initial setup. 2 Press the volume knob again. “DEMO OFF” appears.

BT ADAPTER: Selects when the KS-BTA100 Bluetooth adapter is connected to the AUX jack. ( 8) ; ON: Enables AUX in source selection. ; OFF: Disables.

YES: Starts upgrading the firmware. ; NO: Cancels (upgrading is not activated). For details on how to update the firmware, see: <http://www.jvc.net/cs/car/>.

CLOCK CLOCK SYNC AUTO: The clock time is automatically set using the Clock Time (CT) data in FM Radio Data System signal. ; OFF: Cancels.

CLOCK DISP ON: The clock time is shown on the display even when the unit is turned off. ; OFF: Cancels.

Select the display language for menu and music information if applicable. By default, ENGLISH is selected.

Data Size: Book Size:

(Accessory of the iPod/iPhone)*1

*1 Do not leave the cable inside the car when not using. *2 When connecting an Android device, “Press [VIEW] to install JVC MUSIC PLAY APP” is shown. Follow the instructions to install the application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting. ( 12) *3 For ANDROID: Applicable only when [AUTO MODE] is selected. ( 6) 4 * For CD: Only for MP3/WMA files. This does not work for iPod/ ANDROID. *5 For iPod/ ANDROID: Applicable only when [HEAD MODE]/ [AUTO MODE] is selected. ( 6)

ENGLISH JS_JVC_KD_R671_E_EN_2.indd 5

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

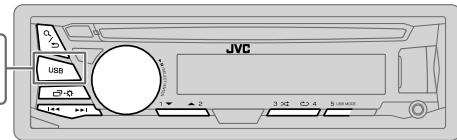

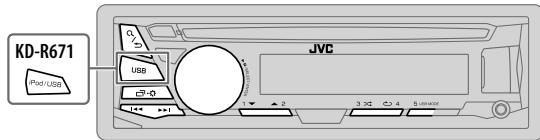

6/7/2015 12:26:41 PM CD / USB / iPod / ANDROID Select control mode While in USB-IPOD source, press repeatedly. HEAD MODE: Control iPod from this unit. IPHONE MODE: Control iPod using the iPod itself. However, you can still play/ pause or file skip from this unit.

Select a file from a folder/list . 1 Press 2 Turn the volume knob to select a folder/list, then press the knob.

3 Turn the volume knob to select a file, then press the knob.

While in ANDROID source, press repeatedly. AUTO MODE: Control Android device from this unit via JVC MUSIC PLAY application installed in the Android device. AUDIO MODE: Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause or file skip from this unit.

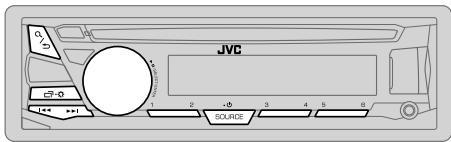

Quick Search If you have many files, you can search through them quickly. Turn the volume knob quickly to browse through the list quickly. – Not applicable for iPod. Alphabet search (applicable only for iPod): You can search for a file according to the first character. Press or turn the volume knob quickly to select the desired character (A to Z/ 0 to 9/ OTHERS). – Select “OTHERS” if the first character is other than A to Z, 0 to 9.

Select music drive Press repeatedly. Stored songs in the following drive will be played back. • Selected internal or external memory of a smartphone (Mass Storage Class). • Selected drive of a multiple drives device.

Change the playback speed of the Audiobook

To return to the previous setting item, press . To cancel, press and hold . For iPod, applicable only when [HEAD MODE] is selected. For ANDROID, applicable only when [AUTO MODE] is selected.

(For KD-R671) While listening to the iPod and [HEAD MODE] is selected.... 1 Press and hold . 2 Turn the volume knob to select [IPOD], then press the knob. 3 Press the volume knob to select [AUDIOBOOKS]. 4 Turn the volume knob to select an item, then press the knob. 0.5× SPEED / 1× SPEED / 2× SPEED: Select the desired playback speed of the Audiobooks sound file in your iPod/iPhone. (Default: Depends on your iPod/iPhone setting.) 5 Press to exit. To return to the previous setting item, press .

JS_JVC_KD_R671_E_EN_4.indd 6

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

14/7/2015 5:24:52 PM RADIO Other settings . 1 Press and hold 2 Turn the volume knob to select [TUNER], then press the knob.

3 Turn the volume knob to select an item (see the following table), then press the knob. “ST” lights up when receiving an FM stereo broadcast with sufficient signal strength.

Search for a station repeatedly to select FM or AM. 1 Press 2 Press to search for a station automatically. (or) Press and hold station manually.

until “M” flashes, then press repeatedly to search for a

4 Repeat step 3 until the desired item is selected/ activated or follow the instructions stated on the selected item. 5 Press to exit. To return to the previous setting item, press .

Default: XX RADIO TIMER Turns on the radio at a specific time regardless of the current source. 1 ONCE/ DAILY/ WEEKLY/ OFF: Select how often the timer will be turned on. 2 FM/ AM: Select the band. 3 01 to 18 (for FM)/ 01 to 06 (for AM): Select the preset station. 4 Set the activation day *1 and time. “M” lights up when complete. Radio Timer will not activate for the following cases. • The unit is turned off. • [OFF] is selected for [AM] in [SRC SELECT] after Radio Timer for AM is selected. ( 4)

SSM SSM 01 – 06 / SSM 07 – 12 / SSM 13 – 18: Automatically presets up to 18 stations for FM. “SSM” stops flashing when the first 6 stations are stored. Select SSM 07 – 12 / SSM 13 – 18 to store the following 12 stations.

Settings in memory You can store up to 18 stations for FM and 6 stations for AM.

Store a station While listening to a station.... Press and hold one of the number buttons (1 to 6). (or) 1 Press and hold the volume knob until “PRESET MODE” flashes. 2 Turn the volume knob to select a preset number, then press the knob. The preset number flashes and “MEMORY” appears.

Select a stored station Press one of the number buttons (1 to 6). (or) 1 Press . 2 Turn the volume knob to select a preset number, then press the knob to confirm.

*1 Selectable only when [ONCE] or [WEEKLY] is selected in step 1.

ENGLISH JS_JVC_KD_R671_E_EN_1.indd 7

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

23/6/2015 4:31:26 PM AUX RADIO Default: XX LOCAL SEEK ON: Searches only FM stations with good reception. ; OFF: Cancels. • Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again.

IF BAND AUTO: Increases the tuner selectivity to reduce interference noises from adjacent FM stations. (Stereo effect may be lost.) ; WIDE: Subjects to interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain.

MONO ON: Improves the FM reception, but the stereo effect will be lost. ; OFF: Cancels.

ON: The unit will temporarily switch to News Programme if available. ; OFF: Cancels.

ON: Switches to another station only in the specific region using the “AF” control. ; OFF: Cancels.

ON: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor. ; OFF: Cancels.

ON: Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up). ; OFF: Cancels.

Select a PTY code (see below). If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

PTY code: NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT *2 Only for FM source.

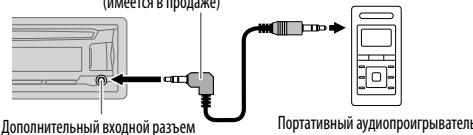

Use a portable audio player 1 Connect a portable audio player (commercially available). 3.5 mm stereo mini plug with “L” shaped connector (commercially available)

Auxiliary input jack

Portable audio player

2 Select [ON] for [AUX] in [SRC SELECT]. ( 4) 3 Press repeatedly to select AUX. 4 Turn on the portable audio player and start playback. Use a 3-core plug head stereo mini plug for optimum audio output.

Use a Bluetooth® device 1 Connect the Bluetooth adapter, KS-BTA100 (separately purchased).

Blue/white Black Brown

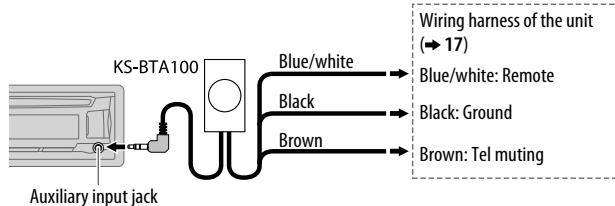

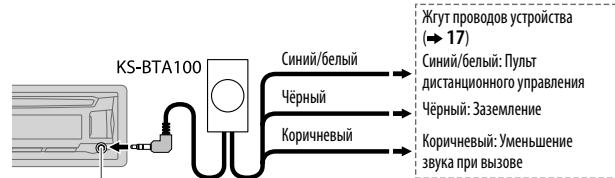

Wiring harness of the unit ( 17) Blue/white: Remote Black: Ground Brown: Tel muting

Auxiliary input jack Register (pair) the Bluetooth device with KS-BTA100. Select [BT ADAPTER] for [AUX] in [SRC SELECT]. ( 4) Press repeatedly to select BT AUDIO. Start using the Bluetooth device. For details, refer to the instruction manual of KS-BTA100.

Data Size: Book Size:

13/7/2015 9:16:19 AM AUDIO SETTINGS Default: XX EQ SETTING Select a preset equalizer Press repeatedly. (or) Press , then turn the volume knob within 5 seconds. Preset equalizer: FLAT (default), HARD ROCK, HIP HOP, JAZZ, POP, R&B, TALK, USER,

VOCAL BOOST / BASS BOOST / CLASSICAL / DANCE EASY EQ Adjust your own sound settings. The settings are stored to [USER]. SUB.W SP *1*2: 00 to +06 (Default: 03 SUB.W *1*3: –08 to +08 00 BASS LVL: –06 to +06 00 MID LVL: –06 to +06 00 TRE LVL: –06 to +06 00)

1 BASS / MIDDLE / TREBLE: Select a sound tone. 2 Adjust the sound elements of the selected sound tone. (Default: 80 HZ BASS Frequency: 60/ 80/ 100/ 200 HZ Level: –06 to +06 00 Q: Q1.0/ Q1.25/ Q1.5/ Q2.0 Q1.0) MIDDLE Frequency: 0.5/ 1.0/ 1.5/ 2.5 KHZ (Default: 1.0 KHZ Level: –06 to +06 00 Q: Q0.75/ Q1.0/ Q1.25 Q1.25) TREBLE Frequency: 10.0/ 12.5/ 15.0/ 17.5 KHZ (Default: 10.0 KHZ Level: –06 to +06 00 Q: Q FIX Q FIX)

Store your own sound settings to enter EASY EQ setting. 1 Press and hold 2 Turn the volume knob to select an item, then press the knob. Refer to [EASY EQ] for setting and the result is stored to [USER]. • To return to the previous setting item, press . • To exit, press .

Other settings . 1 Press and hold 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press to exit. To return to the previous setting item, press .

AUDIO BASS BOOST +01 — +05 (+01): Selects your preferred bass boost level. ; OFF: Cancels. LOUD

01 / 02: Boosts low or high frequencies to produce a well-balanced sound at low volume. ; OFF: Cancels.

*1 Displayed only when [SUB.W] is set to [ON]. ( 10) *2 Displayed only when [SPK/PRE OUT] is set to [SUB.W/SUB.W]. ( 10) *3 Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W] or [SUB.W/SUB.W]. ( 10)

ENGLISH JS_JVC_KD_R671_E_EN_6.indd 9

Data Size: Book Size:

SPK-OUT *5 PRE-OUT *6

00 to +06 (+03): Adjusts the output level of the subwoofer connected via speaker lead. ( 17) –08 to +08 (00): Adjusts the output level of the subwoofer connected to the lineout terminals (REAR/SW) through an external amplifier. ( 17)

Speaker output settings Select the output setting for the speakers [SPK/PRE OUT], base on the speaker connection method.

Connection via lineout terminals For connections through an external amplifier. ( 17) (For KD-R671)

ON / OFF: Turns on or off the subwoofer output.

THROUGH: All signals are sent to the subwoofer. ; LOW 55HZ / MID 85HZ / HIGH 120HZ: Audio signals with frequencies lower than 55 Hz/ 85 Hz/ 120 Hz are sent to the subwoofer.

Setting on [SPK/PRE OUT]

REVERSE (180°)/ NORMAL (0°): Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance. (Selectable only if a setting other than [THROUGH] is selected for [SUB.W LPF].)

REAR/REAR REAR/SUB.W SUB.W/SUB.W FADER R06 — F06 (00): Adjusts the front and rear speaker output balance.

L06 — R06 (00): Adjusts the left and right speaker output balance.

–15 — +06 (00): Preset the initial volume level of each source (compared to the FM volume level). Before adjustment, select the source you want to adjust. (“VOL ADJ FIX” appears if FM is selected.)

AMP GAIN LOW POWER: Limits the maximum volume level to 25. (Select if the maximum power of each speaker is less than 50 W to prevent damaging the speakers.) ; HIGH POWER: The maximum volume level is 35.

D.T.EXP (Digital Track Expander)

ON: Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression. ; OFF: Cancels.

ON: Mutes the sounds while using the cellular phone (not connected through KS-BTA100). ; OFF: Cancels.

SPK/PRE OUT Depending on the speaker connection method, select the appropriate setting to get the desired output. ( Speaker output settings)

Displayed only when [SUB.W] is set to [ON]. Displayed only when [SPK/PRE OUT] is set to [SUB.W/SUB.W]. Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W] or [SUB.W/SUB.W]. This adjustment will not affect the subwoofer output. Does not work if [BT ADAPTER] is selected for [AUX] in [SRC SELECT]. ( 4)

(For KD-R571 / KD-R474 / KD-R472 / KD-R471) Setting on [SPK/PRE OUT]

Connection via speaker leads For connections without using an external amplifier. However, with this settings you can also enjoy the subwoofer output. ( 17) Audio signal through rear speaker lead L (left) R (right) REAR/REAR Rear speakers output Rear speakers output REAR/SUB.W Rear speakers output Rear speakers output SUB.W/SUB.W Subwoofer output (Mute) If [SUB.W/SUB.W] is selected: – [HIGH 120HZ] is selected in [SUB.W LPF] and [THROUGH] is not available. – [R01] is selected in [FADER] and selectable range is [R06] to [00] Setting on [SPK/PRE OUT]

JS_JVC_KD_R671_E_EN_5.indd 10

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

24/7/2015 5:00:59 PM DISPLAY SETTINGS

1 Press and hold . 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press to exit. To return to the previous setting item, press .

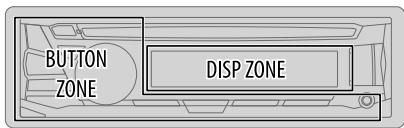

PRESET Select a color for the buttons illumination. • COLOR 01 to COLOR 49 [COLOR 08] • USER: The color you have created for [DAY COLOR] or [NIGHT COLOR] is shown. • COLOR FLOW01 to COLOR FLOW03: Color changes at different speeds.

DAY COLOR Make your own day and night colors for the buttons illumination. 1 RED / GREEN / BLUE: Select a primary color. 2 00 to 31: Select the level. Repeat steps 1 and 2 for all primary colors. • Your setting is stored to [USER] in [PRESET].

DISPLAY DIMMER Dim the display and buttons illumination. OFF: Dimmer is turned off. ON: Dimmer is turned on. Brightness changes to [NIGHT] setting. ( [BRIGHTNESS]) DIMMER TIME: Set the dimmer on and off time. 1 Turn the volume knob to adjust the [ON] time, then press the knob. 2 Turn the volume knob to adjust the [OFF] time, then press the knob. (Default: [ON]: 18:00 or 6:00 PM [OFF]:6:00 or 6:00 AM) AUTO: Dimmer turns on and off automatically when you turn off or on the car headlights. *1

*1 The illumination control wire connection is required. ( 17)

NIGHT COLOR MENU COLOR ON: Changes the button illumination in menu mode or when selecting a music file from a folder/list. ; OFF: Cancels.

[NIGHT COLOR] or [DAY COLOR] is changed by turning on or off your car’s headlight. *2 Some characters or symbols will not be shown correctly (or will be blanked).

ENGLISH JS_JVC_KD_R671_E_EN_6.indd 11

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

30/7/2015 4:01:45 PM REFERENCES Maintenance Cleaning the unit Wipe off dirt on the faceplate with a dry silicone or soft cloth. Cleaning the connector Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector. Connector (on the reverse Handling discs: side of the faceplate) • Do not touch the recording surface of the disc. • Do not stick tape etc. on the disc, or use a disc with tape stuck on it. • Do not use any accessories for the disc. • Clean from the center of the disc and move outward. • Clean the disc with a dry silicone or soft cloth. Do not use any solvents. • When removing discs from this unit, pull them out horizontally. • Remove burrs from the center hole and disc edge before inserting a disc.

More information Visit also the following website <http://www.jvc.net/cs/car/> for: – Latest firmware updates and latest compatible item list – Android™ application JVC MUSIC PLAY – Any other latest information About discs and audio files • This unit can only play the following CDs:

• This unit can play back multi-session discs; however, unclosed sessions will be skipped during playback.

• Unplayable discs: - Discs that are not round. - Discs with coloring on the recording surface or discs that are dirty. - Recordable/ReWritable discs that have not been finalized. - 8 cm CD. Attempting to insert using an adapter may cause malfunction. • DualDisc playback: The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product cannot be recommended. • Playable files: - File extensions: MP3 (.mp3), WMA (.wma) - Bit rate: MP3: 8 kbps — 320 kbps WMA: 32 kbps — 192 kbps - Sampling frequency: MP3: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz, 16 kHz, 12 kHz, 11.025 kHz, 8 kHz WMA: 8 kHz — 48 kHz - Variable bit rate (VBR) files. • Maximum number of characters for file/folder name: It depends on the disc format used (includes 4 extension characters—<.mp3> or <.wma>. - ISO 9660 Level 1 and 2: 32 characters - Romeo: 32 characters - Joliet: 32 characters - Windows long file name: 32 characters About USB devices • This unit can play MP3/WMA/WAV/FLAC files stored on a USB mass storage class device. • You cannot connect a USB device via a USB hub. • Connecting a cable whose total length is longer than 5 m may result in abnormal playback. • The maximum number of characters for: - Folder names: 64 characters - File names: 64 characters - MP3 Tag: 64 characters - WMA Tag: 64 characters - WAV Tag: 64 characters - FLAC Tag: 64 characters

JS_JVC_KD_R671_E_EN_6.indd 12

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

30/7/2015 4:01:46 PM REFERENCES • This unit can recognize a total of 15 000 files, 500 folders (999 files per folder including folder without unsupported files), and of 8 hierarchies. • This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A. About iPod/iPhone Made for - iPod touch (2nd, 3rd, 4th, and 5th generation) - iPod classic - iPod nano (3rd, 4th, 5th, 6th, and 7th generation) - iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C, 6, 6 Plus • It is not possible to browse video files on the “Videos” menu in [HEAD MODE]. • The song order displayed on the selection menu of this unit may differ from that of the iPod/ iPhone. About Android device • This unit supports Android OS 4.1 and above. • Some Android devices (with OS 4.1 and above) may not fully support Android Open Accessory (AOA) 2.0. • If the Android device supports both mass storage class device and AOA 2.0, this unit always playback via AOA 2.0 as priority.

Change the display information Each time you press , the display information changes. • If the information is unavailable or not recorded, “NO TEXT”, “NO NAME”, or other information (eg. station name) appears.

(For FM Radio Data System stations only) Station name (PS) Frequency Program type (PTY) Day/Clock (back to the beginning) CD or USB

(For CD-DA) Playing time Day/Clock (back to the beginning)

or ANDROID Playing time Day/Clock (back to the beginning)

AUX AUX BT AUDIO BT AUDIO Radio text+

Track title Track title

Available Cyrillic letters Available characters Display indications

ENGLISH JS_JVC_KD_R671_E_EN_2.indd 13

Data Size: Book Size:

6/7/2015 12:27:00 PM TROUBLESHOOTING CD / USB / iPod

• Adjust the volume to the optimum level. • Check the cords and connections.

“MISWIRING CHECK WIRING THEN PWR ON” appears.

Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.

“PROTECTING SEND SERVICE” appears.

Send the unit to the nearest service center.

The iPod/iPhone does not turn on or does not work.

• Check the connection between this unit and iPod/iPhone. • Detach and reset the iPod/iPhone using hard reset.

Correct characters are not displayed.

This unit can only display uppercase letters, numbers, and a limited number of symbols. ( 4)

• Sound cannot be heard during playback. • Sound output only from the Android device.

• Reconnect the Android device. • If in [AUDIO MODE], launch any media player application on the Android device and start playback. • If in [AUDIO MODE], relaunch the current media player application or use another media player application. • Restart the Android device. • If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. ( 13)

Cannot playback at [AUTO MODE].

• Make sure JVC MUSIC PLAY APP is installed on the Android device. ( 5) • Reconnect the Android device and select the appropriate control mode. ( 6) • If this does not solve the problem, the connected Android device does not support [AUTO MODE]. ( 13)

Source cannot be selected.

Check the [SRC SELECT] setting. ( 4)

• Radio reception is poor. • Static noise while listening to the radio.

Connect the antenna firmly.

Disc cannot be ejected.

Press and hold to forcibly eject the disc. Be careful not to drop the disc when it is ejected.

Make sure nothing is blocking the loading slot when you eject the disc.

“PLEASE” and “EJECT” appear alternately.

Press , then insert the disc correctly.

Playback order is not as intended.

The playback order is determined by the file name (USB) or the order in which files were recorded (disc).

Elapsed playing time is not correct.

This depends on the recording process earlier.

Playback is intermittent or sound skips.

“NOT SUPPORT” appears and track skips.

Check whether the track is a playable format. ( 12)

Sound cannot be heard.

“NO DEVICE” or “READING” • Switch off the developer options on the Android device. keeps flashing. • Reconnect the Android device. • If this does not solve the problem, the connected Android device does not support [AUTO MODE]. ( 13)

“READING” keeps flashing. • Do not use too many hierarchical levels and folders. • Reload the disc or reattach the USB device. “CANNOT PLAY” flashes and/or connected device cannot be detected.

• Check whether the connected device is compatible with this unit and ensure the files are in supported formats. ( 12) • Reattach the device.

Turn off the power saving mode on the Android device. • Make sure Android device contains playable audio files. • Reconnect the Android device. • Restart the Android device.

If you still have troubles, reset the unit. ( 3)

JS_JVC_KD_R671_E_EN_5.indd 14

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

24/7/2015 4:47:14 PM SPECIFICATIONS USB Standard

USB 1.1, USB 2.0 (Full speed)

Quieting Sensitivity (DIN S/N = 46 dB)

40 dB MW Frequency Range

Maximum Supply Current

Compliant with MPEG-1/2 Audio Layer-3

Compliant with Windows Media Audio

8 times over sampling

500 rpm — 200 rpm (CLV)

Below measurable limit

Frequency Response (±1 dB)

Total Harmonic Distortion (1 kHz)

Signal-to-Noise Ratio (1 kHz)

105 dB Dynamic Range

90 dB Channel Separation

Compliant with MPEG-1/2 Audio Layer-3

Compliant with Windows Media Audio

Usable Sensitivity (S/N = 20 dB)

87.5 MHz — 108.0 MHz (50 kHz step)

Subject to change without notice.

Maximum Output Power

50 W × 4 or 50 W × 2 + 50 W × 1 (Subwoofer = 4 Ω)

Full Bandwidth Power (at less than 1 % THD)

Operating Voltage (10.5 V — 16 V allowable)

14.4 V Maximum Current Consumption

10 A Operating Temperature Range

–10°C — +60°C Installation Size (W × H × D)

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

23/6/2015 4:31:32 PM INSTALLATION / CONNECTION Warning • The unit can only be used with a 12 V DC power supply, negative ground. • Disconnect the battery’s negative terminal before wiring and mounting. • Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit. • Insulate unconnected wires with vinyl tape to prevent a short circuit. • Be sure to ground this unit to the car’s chassis again after installation.

Installing the unit (in-dash mounting) Do the required wiring. ( 17)

Caution • For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer. • Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot. • Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel. • Connect speakers with a maximum power of more than 50 W. If the maximum power of the speakers is lower than 50 W, change the [AMP GAIN] setting to avoid damaging the speakers. ( 10) • Mount the unit at an angle of less than 30º. • If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key. • Keep all cables away from heat dissipate metal parts. • After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly. • If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has the same rating.

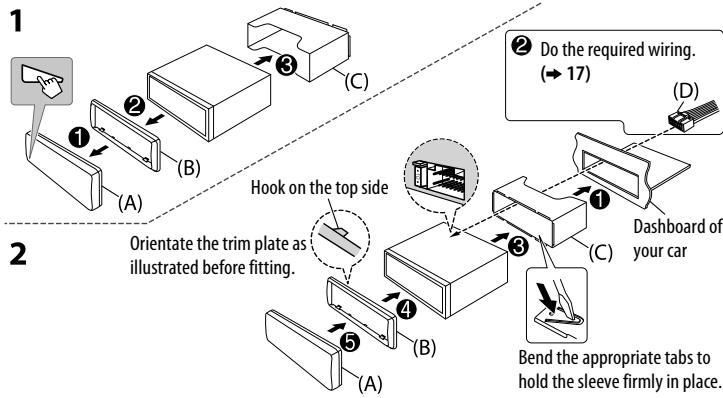

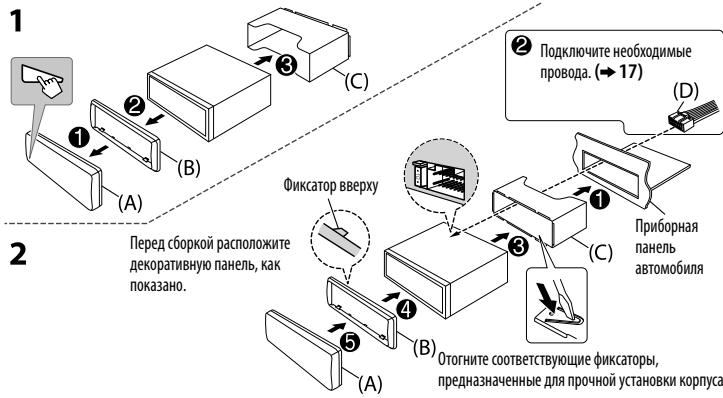

Basic procedure 1 Remove the key from the ignition switch, then 2 3 4 5

Hook on the top side Orientate the trim plate as illustrated before fitting.

Dashboard of your car

Bend the appropriate tabs to hold the sleeve firmly in place.

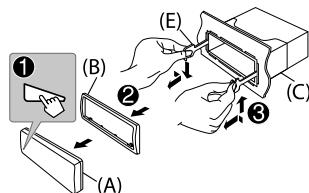

When installing without the mounting sleeve 1 Remove the mounting sleeve and trim plate from the unit.

2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available). Use only the specified screws. Using wrong screws might damage the unit.

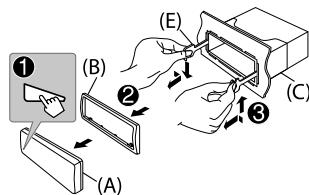

How to remove the unit

disconnect the terminal of the car battery. Connect the wires properly. See Wiring connection. ( 17) Install the unit to your car. See Installing the unit (in-dash mounting). Connect the terminal of the car battery. Reset the unit. ( 3)

JS_JVC_KD_R671_E_EN_7=F.indd 16

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

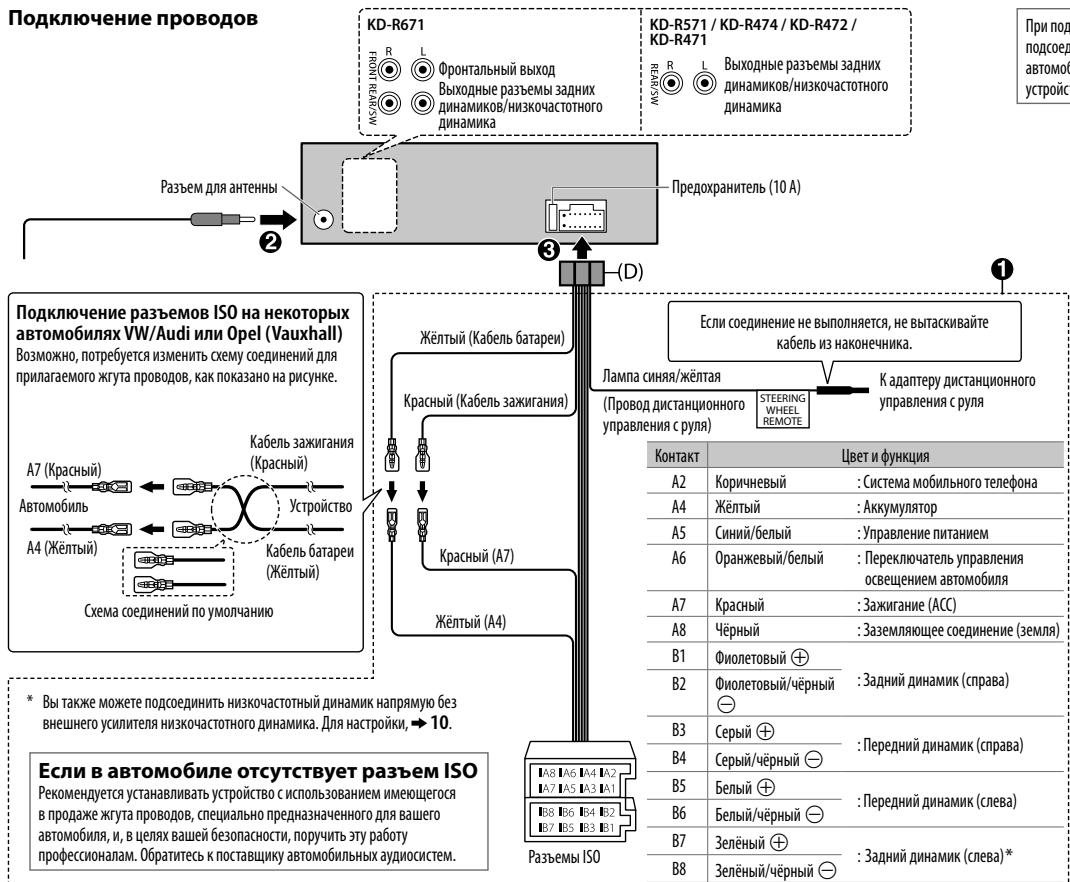

11/8/2015 3:39:33 PM Wiring connection

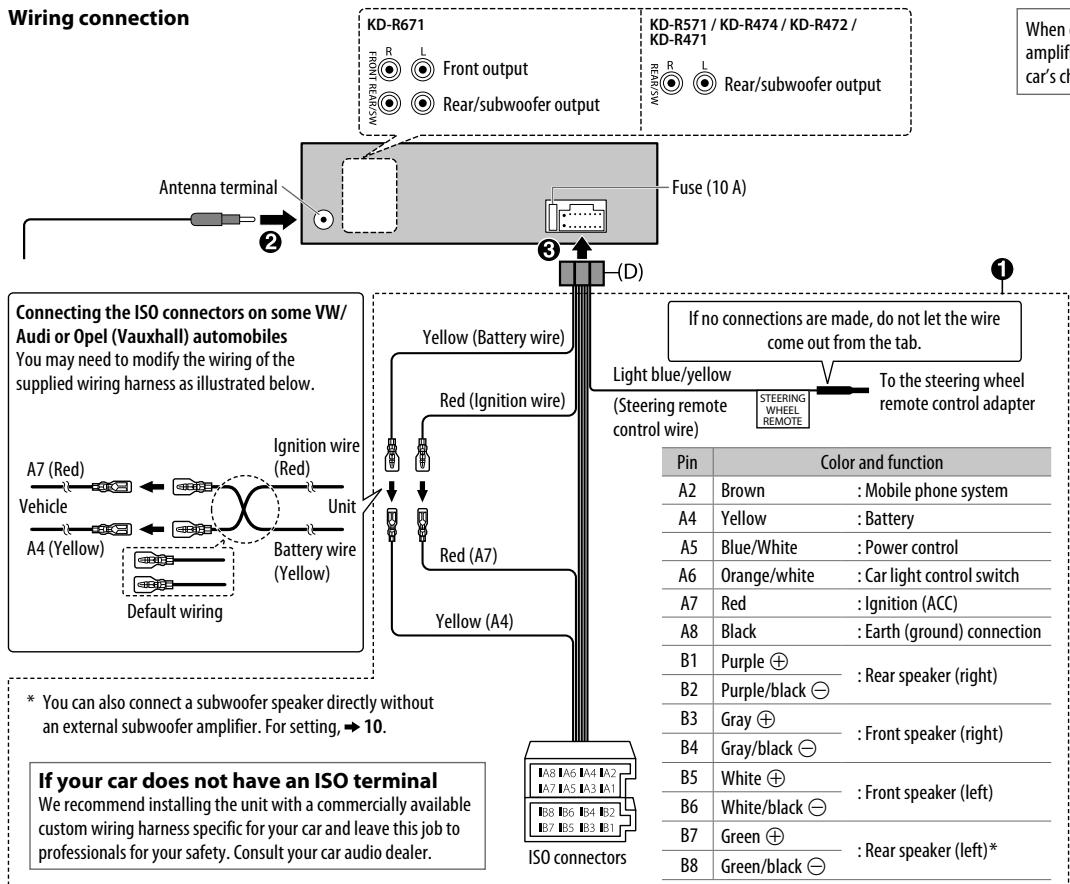

KD-R571 / KD-R474 / KD-R472 / KD-R471

When connecting to an external amplifier, connect its ground wire to the car’s chassis to avoid damaging the unit.

Rear/subwoofer output

Part list for installation Antenna terminal

Connecting the ISO connectors on some VW/ Audi or Opel (Vauxhall) automobiles You may need to modify the wiring of the supplied wiring harness as illustrated below.

If no connections are made, do not let the wire come out from the tab.

Battery wire (Yellow) Default wiring

Red (A7) Yellow (A4)

* You can also connect a subwoofer speaker directly without an external subwoofer amplifier. For setting, 10.

If your car does not have an ISO terminal We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer.

Pin A2 A4 A5 A6 A7 A8 B1 B2 B3 B4 B5 B6 B7 B8

To the steering wheel remote control adapter

STEERING WHEEL REMOTE Color and function Brown : Mobile phone system Yellow : Battery Blue/White : Power control Orange/white : Car light control switch Red : Ignition (ACC) Black : Earth (ground) connection Purple ] : Rear speaker (right) Purple/black [ Gray ] : Front speaker (right) Gray/black [ White ] : Front speaker (left) White/black [ Green ] : Rear speaker (left) * Green/black [

Data Size: Book Size:

Tragbarer Audioplayer

Data Size: Book Size:

REAR/REAR REAR/SUB.W SUB.W/SUB.W

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

11-Aug-15 4:00:55 PM

Data Size: Book Size:

B6L (182 mm x 128 mm) B6L (182 mm x 128 mm)

11-Aug-15 4:00:58 PM

Data Size: Book Size:

11-Aug-15 4:01:07 PM The marking of products using lasers The label is attached to the chassis/case and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit. Marquage des produits utilisant un laser L’étiquette est attachée au châssis/boîtier de l’appareil et indique que l’appareil utilise des rayons laser de classe 1. Cela signifie que l’appareil utilise des rayons laser d’une classe faible. Il n’y a pas de danger de radiation accidentelle hors de l’appareil. Kennzeichnung von Geräten mit Laser-Abtastern Das Etikett ist am Chassis/Gehäuse angebracht und besagt, dass sich die Komponente Laserstrahlen bedient, die als Laserstrahlen der Klasse 1 klassifiziert wurden. Dies weist darauf hin, dass sich das Gerät Laserstrahlen bedient, die einer schwächeren Klasse angehören. Das bedeutet, dass durch den sehr schwachen Laserstrahl keine Gefahr durch gefährliche Strahlungen außerhalb des Geräts besteht. Маркировка изделий, использующих лазеры К корпусу устройства прикреплена табличка, указывающая, что устройство использует лазерные лучи класса 1. Это означает, что в устройстве используются лазерные лучи слабой интенсивности. Они не представляют опасности и не распространяют опасную радиацию вне устройства.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. • “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. • iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. • Lightning is a trademark of Apple Inc. • Android is trademark of Google Inc. libFLAC Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007,2008,2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

JS_JVC_KD_R671_E_C_00.indd iii
