Product type	Stepper (indoor bike trainer)
Brand	VirtuFit
Model	ST10
Maximum user weight	100 kg
Power supply	1 LR44 button cell battery
Display	LCD screen
Displayed functions	STRIDES/MIN, SCAN, CNT, TIME, CAL
Automatic shut-off	After 4 minutes of inactivity
Operating temperature	10 °C to 35 °C
Storage temperature	5 °C to 45 °C
Material	Steel
Maintenance	Cleaning after each use, semi-annual bolt tightening, silicone spray
Safety	Automatic shut-off, do not wear loose clothing, use on flat surface
Warranty	Excludes unofficial repairs, negligence, improper maintenance
Usage	Indoor use only

Frequently Asked Questions - ST10 VirtuFit

How to assemble the VirtuFit ST10 stepper?

Follow the assembly instructions in the manual. Make sure the hex key is fully inserted into the bolts to prevent them from turning. Check that the tension cable is properly connected.

What battery does the display use?

The display uses an LR44 button cell battery. Replace it at the back of the display with correct polarity.

What to do if the display is unreadable?

Remove the battery for 15 seconds, then reinsert it correctly. If the problem persists, replace the battery with a new one.

How to maintain the stepper?

Clean the device after each use with a dry cloth. Check and tighten the bolts every six months. Use silicone spray on moving parts if necessary.

What is the maximum supported weight?

The maximum user weight is 100 kg, as stated in the specifications.

How to adjust the range of motion?

Turn the adjustment knob located on the stepper to change the pedal range of motion.

Why does the display turn off by itself?

The display automatically turns off after 4 minutes of inactivity to save battery. It turns back on as soon as you start pedaling again.

Can I use the stepper on a rug?

No, place the stepper on a clean, flat surface. A thick rug may obstruct ventilation and cause overheating.

What clothes to wear when using the stepper?

Wear fitted sportswear and clean shoes to avoid them getting caught in moving parts.

Are there any medical contraindications?

Consult your doctor before starting any exercise program, especially if you have health issues. Stop immediately if you experience nausea, chest pain, shortness of breath, or dizziness.

USER MANUAL ST10 VirtuFit

@virtufit_fitness
VirtuFit
www.virtufit.com

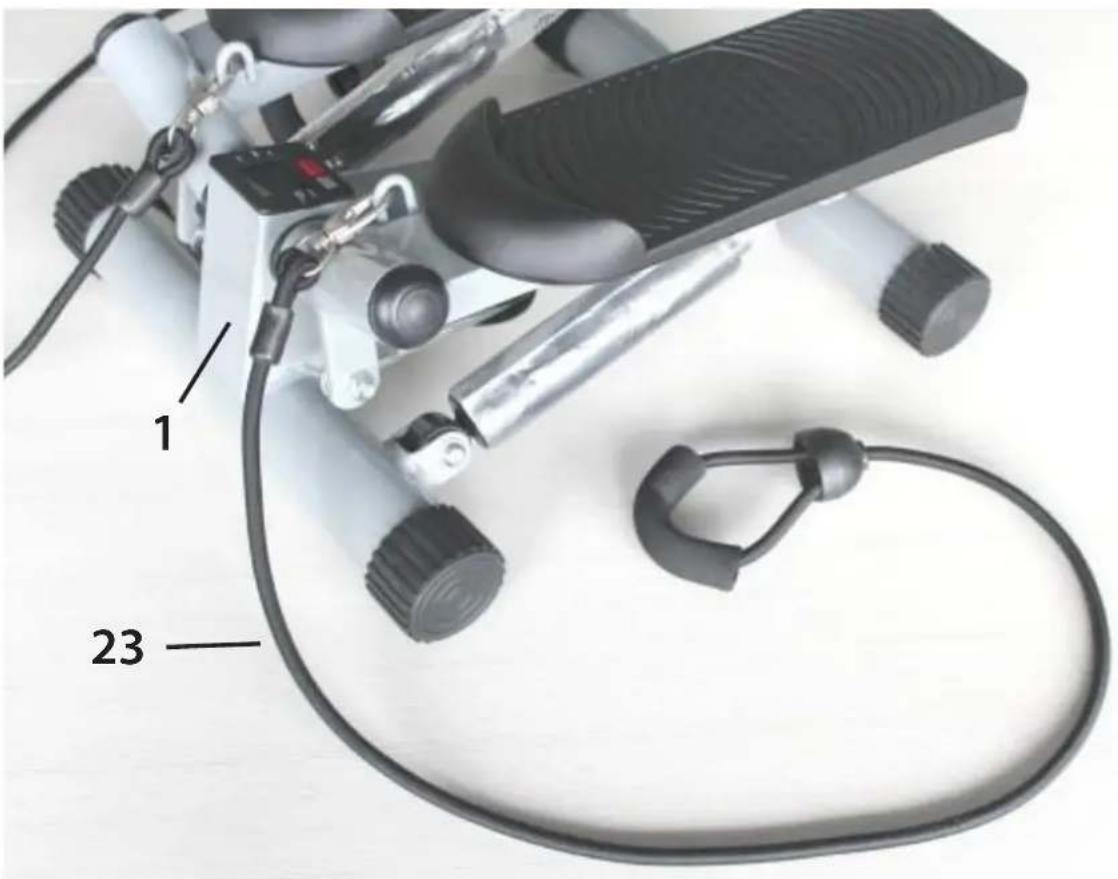

STEP 01

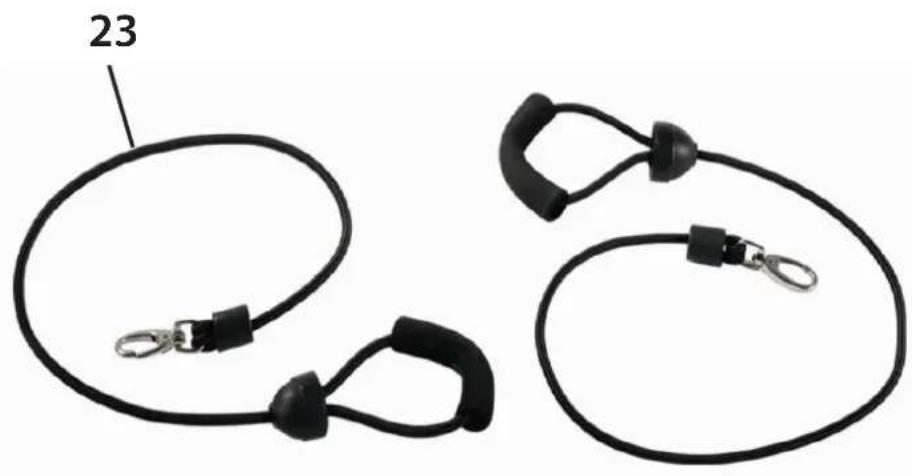

Two black resistance bandages with metal clips, labeled with number 23 (no text or symbols on the bands themselves)

Close-up of a medical or fitness equipment setup with a black-and-white device connected by chains, no visible text or symbols.

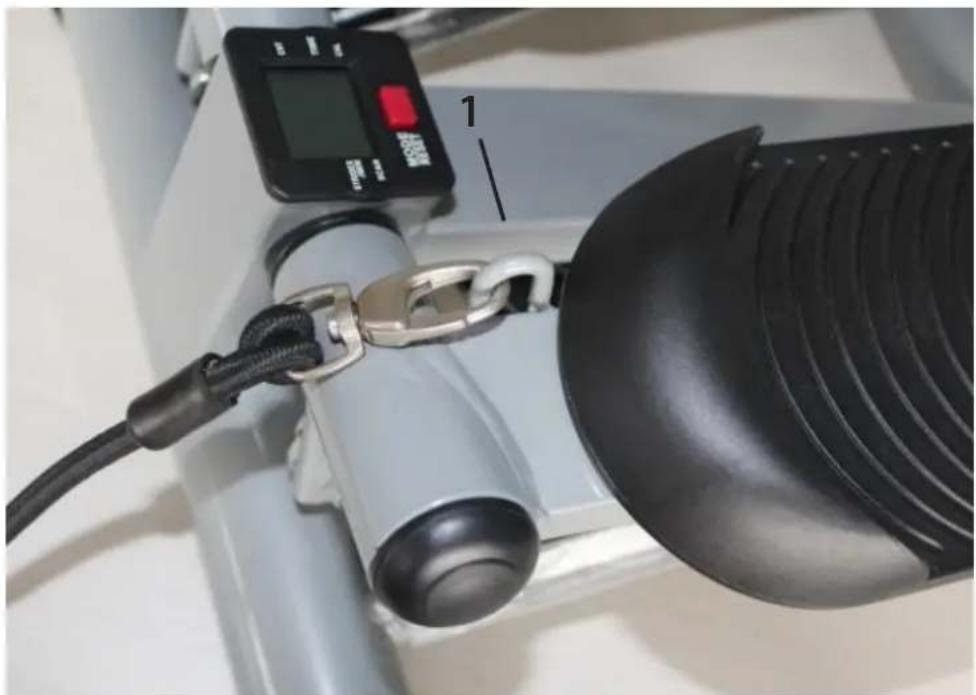

STEP 02

1 23

FIG. A

virtufit STOP 12 CNT STRIDES /MIN 17 TIME SCAN 17 CAL MODE RESET

FIG. B

Line drawing of a person bending forward with hands raised (no text or symbols)

1

Line drawing of a person sitting cross-legged, holding their head in thought (no text or symbols)

2

Line drawing of a person performing a seated stretch or exercise (no text or symbols)

3

Line drawing of a person in athletic attire performing a forward bend gesture (no text or symbols)

4

Line drawing of a person performing a stretching exercise with arms raised (no text or symbols)

5

INDEX

Safety	instructions		06
Guarantee		06
Assembly instructions	06
Adjusting			06
Maintenance		07
Console			07
Training	guidelines

SAFETY INSTRUCTIONS

WARNING!

Consult your doctor before you start exercising. This is particularly important for people with health problems. Please read all instructions before using the machine. VirtuFit assumes no responsibility for injury or property damage resulting from the use of this equipment. Please read this manual carefully before assembling and/or using the machine.

• Do not wear loose clothing to avoid getting caught in moving parts.
• Install and use the unit on a solid, level surface.
  • Always wear clean sports shoes when using the appliance.
• Keep children and pets away from the appliance when in use.
• Maintain your balance when using the device.
• Do not place your fingers or other objects in the moving parts.

- Before exercising, consult your physician to determine the appropriate frequency, duration and intensity of exercise for your age and physical condition. Stop exercising immediately if you experience nausea, shortness of breath, fainting, headache, chest pain, tightness or any other discomfort.

- This machine should only be used by one person at a time.

- This machine is designed for domestic use and the maximum user weight is 100 kg.

- Leave 1-2 metres of space behind the machine to avoid accidents.

- Place the machine on a clean, flat surface. Do not place it on a thick carpet, as this may hinder the ventilation of the machine.

Do not place the machine outdoors or near water.

• Keep the storage area dry, clean and level to prevent damage. Do not use the device for any purpose other than training.
• Use the device only in an environment where the ambient temperature is between 10^ and 35^ . Store the device only in an environment where the temperature is between 5^ and 45^ .

GUARANTEE

Warranty claims are excluded if the cause of the defect is the result of:

• Maintenance and repair work not carried out by an official dealer.
• Improper use, negligence and/or poor maintenance.
• Failure to maintain the appliance in accordance with the manufacturer's instructions.

ASSEMBLY INSTRUCTIONS (STEP 01-02)

Missing parts: If any parts are missing from the packaging, carefully check the polystyrene foam and the appliance itself. Some parts (bolts, screws, etc.) are already attached to the unit.

Hex head bolts: Make sure that the hex head spanner is pushed into the bolt before applying force. This will prevent the head of the socket bolt from turning.

ADJUSTING

Stepper

• Turn the adjusting knob to change the pedal's range of motion.
• Adjust the tension or the adjustment knob to ensure that the tension cable is properly connected for proper operation.

MAINTENANCE

Safe and efficient use can only be achieved if the appliance is properly installed and maintained. It is your responsibility to ensure that the appliance is maintained regularly. Parts that have been used and/or damaged must be replaced before the appliance is used again. The appliance should only be used and stored indoors.

ENGLISH

virtufit

Long-term exposure to weather and temperature/humidity changes can have a serious impact on the electrical components and moving parts of the unit. Always unplug the power cord from the unit before cleaning or servicing it.

Daily maintenance

• Clean and remove sweat and moisture after each use.
• Check that the unit is free of dust and dirt.
• Do not use aggressive cleaning agents and keep the device away from moisture.

Semi-annual maintenance

• Inspect all bolts and nuts connected to the moving parts of the unit. Tighten bolts and nuts as necessary and appropriate.
• Check the mobility of moving parts and components of the unit. Use silicone spray if necessary and appropriate.

We recommend the following:

• Clean the unit after use.
• Use a dry cloth to clean the control panel and the areas around the on/off switch.
• Use a soft, clean cloth and detergent to remove stubborn marks and dirt from the unit.
• Store the unit in a safe, dry place away from heat and water.

CAUTION! Repairs must be carried out by a professional technician, unless otherwise specified by the supplier or manufacturer.

Cleaning

General cleaning of the unit will extend its life. Keep the appliance clean by dusting it regularly. Regular maintenance will prolong the life of your appliance and prevent injuries! For more information, please visit https://www.virtufit.nl/service/faq/

CAUTION! Wear clean shoes to reduce the risk of soiling the machine. At least once a year, remove the cover to remove dust.

Battery

LR44 BUTTON CELL BATTERY

The display uses one LR44 button cell battery, which can be replaced on the back of the display. The battery must be inserted correctly.

Two metallic cylindrical electronic components with reflective surfaces, no visible text or symbols

If the screen is unreadable or only parts of the image work, proceed as follows:

• Remove the battery and wait 15 seconds.
• Replace the battery correctly.

Tips on using the battery

• Remove the battery from the screen when they are empty or when the console will not be used for a long period of time.
• Do not recharge, disassemble or dispose of battery in fire.
• Pay close attention to the + and - when inserting the battery.
• It is recommended to use alkaline battery, they have a longer life than normal batteries.
• Battery should be replaced when the display loses brightness or stops showing.

Battery replacement

• If the display is not accurate, it is recommended to replace the battery.
• Use 1 LR44 button cell battery.

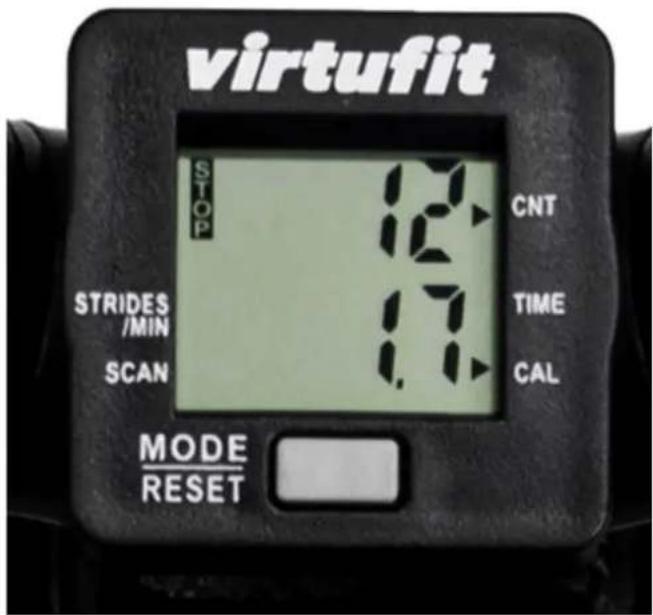

CONSOLE (FIG. A)

virtufit STRIDES /MIN SCAN 12 11 10 CNT TIME CAL MODE RESET

- MODE / RESET Press MODE/RESET button to select desired function. Press MODE/RESET for 4 seconds to reset the value.

Functions

• STRIDES/MIN Shows the repetitions per minute during the training session.
• SCAN Automatically scans each function in order.
• CNT Displays the total number of steps taken during the exercise session.
  • TIME Shows the workout time during the exercise.

- CAL Displays the calories burned during the exercise session. NOTE! This is an estimated measurement.

Computer

• The computer will automatically turn on when training starts.
• The computer will automatically turn off if there is no movement for 4 minutes.
• All functions will stop automatically, and a "STOP" sign will appear in the top left corner of the computer when there is no movement for 4 minutes. The functions will resume when exercise is restarted.

TRAINING GUIDELINES (FIG. B, 1-5)

A successful training program includes a warm-up, the actual training and a cool-down. Perform the complete training program at least twice, but preferably three times a week and keep a rest day between training sessions. After a few months, the intensity of the training can be increased, for example to four or five times a week.

The warm-up

The purpose of a warm-up is to prepare the body for training and to reduce the risk of injury. Warm up your body for two to five minutes before starting a cardio or strength training session. Do exercises that increase the heart rate and warm up the working muscles. Examples of this type of activity are running, jogging, jumping jacks, skipping and running in place.

Stretching

Stretching while the muscles are warm is very important after a good warm-up and cool-down. It reduces the risk of injury. Stretching exercises should be held for 15-30 seconds. Here are some examples of stretching exercises:

• Toe touch (Fig. B-1)
  • Inner thight stretch (Fig. B-2)
  • Hamstring stretch (Fig. B-3)
• Achilles stretch (Fig. B-4)
• Side stretch (Fig. B-5)

Cooling down

The purpose of the cool-down is to return the body to its (near) normal resting position at the end of the workout. A good cool-down slowly reduces your heart rate and promotes recovery.

INHOUD

Two metallic cylindrical batteries with visible internal structure (no text or symbols)

Two metallic cylindrical electronic components with reflective surfaces, no visible text or symbols

Two metallic cylindrical batteries with engraved markings, no visible text or symbols on the body.

Exploded view diagram of a mechanical assembly with numbered parts for identification

DESCRIPTION QTY.

1 Main frame 1
2 End cap (Ø50) 4
3 Pedal frame (L) 1
4 Pedal frame (R) 1
5 Pedal (L/R) 2
6 Bolt M8*25 2
7 Adjustment knob 1
8 Plastic bushring Ø40 4
9 Bolt cap 2
10	Bolt M6*20	2
11	Stopper	2
12	Bolt M5*20mm 4
13	Bolt M6*40mm 4
14	Bolt M5*10mm	1
15	Nut M8	4
16	Pulley bracket	1
17	Pulley 100	1
18	Pulley bolt M10*40mm	1
19	Nut M10	1
20	Cable 355mm	1
21	Oblique bushing Ø38	2
22	Computer	1
23	Bungee Cord	2
24	Magnet	1

virtufit

COMPANY INFORMATION

For an ongoing service request or to purchase parts, please visit; [e-mail]. Always state the service number (ITS number) with a question about the current application for a quick and efficient settlement. A service request must always be submitted via the service form. So the request not to request service via [e-mail].

Do you have a problem with your VirtuFit fitness equipment and would you like to submit a service request? Then scan the QR code on the right and fill in our service form.

VIRTUFIT

Twekkelerweg 263

7553 LZ Hengelo

The Netherlands

[e-mail]
