EB122158.3 - Egg cooker Emerio - Free user manual and instructions

Brand	Emerio
Model	EB122158.3
Category	Egg cooker
Product type	Electric egg cooker
Power supply	220-240 V ~ 50-60 Hz
Power	350 W
Capacity	Up to 14 eggs (2 trays of 7 eggs each)
Main functions	Cooking soft-boiled, medium-boiled, hard-boiled eggs; preparing steamed custard
Included accessories	2 egg trays, tray separator, custard bowl, measuring cup with egg piercer
Automatic shut-off	Yes, with audible signal at end of cooking
Indicator light	Yes, built-in On/Off switch
Material	Heat-resistant plastic, metal heating plate
Maintenance and cleaning	Accessories washable with soapy water; base cleaned with a damp cloth; descaling with diluted vinegar
Safety	Overheat protection, automatic shut-off, cool handle, very sharp egg piercer (caution)
Spare parts and repairability	Parts not supplied by the manufacturer; repair by authorized service only
Dimensions (approx.)	20 x 20 x 20 cm (estimation)
Weight (approx.)	0.8 kg (estimation)
Cable length	Approx. 80 cm
Warranty	36 months

Frequently Asked Questions - EB122158.3 Emerio

How many eggs can I cook at once?

You can cook up to 14 eggs using both trays. Each tray holds 7 eggs.

How to use the measuring cup?

The measuring cup has two sides: one for one tray (marks SOFT, MEDIUM, HARD, CUSTARD) and one for two trays (MEDIUM, HARD, CUSTARD). Fill with water up to the desired mark.

Do I need to pierce the eggs before cooking?

Yes, use the egg piercer at the bottom of the measuring cup to make a small hole in the large end of each egg to prevent them from bursting.

How to clean the appliance?

Unplug and let cool. Wash accessories with warm soapy water. Wipe the base with a damp cloth. Never immerse the base in water.

How to descale the heating plate?

Mix 1 part vinegar with 10 parts water, pour onto the plate, let sit for 30 minutes, empty and wipe with a damp cloth.

Can I prepare custard with this appliance?

Yes, use the provided custard bowl. Follow instructions: break two eggs, add salt and ingredients, fill with water up to the Max mark, place on the tray and use the 'CUSTARD' mark on the measuring cup.

What to do if the appliance does not turn off?

After cooking, turn off the switch and unplug. Otherwise, the thermostat may reset and the appliance may heat up again. Always ensure to turn it off manually.

Is the appliance suitable for children?

The appliance can be used by children over 8 years old under supervision. Children under 8 should be kept away. The egg piercer is very sharp, risk of injury.

What is the warranty?

The warranty is 36 months from the date of purchase. Keep the receipt. It covers material and manufacturing defects, but not damage due to misuse.

Can I use the appliance without water?

No, always pour the indicated amount of water onto the heating plate. Operating dry would damage the appliance.

USER MANUAL EB122158.3 Emerio

Electric food steamer with eggs inside a transparent housing (no text or symbols visible)

Eierkocher (DE)

Instruction manual – English ...... - 22 -

SICHERHEITSHINWEISE

Line drawing of a dome-shaped object with handles and a small circular component (no text or symbols)

A

Line drawing of a cylindrical container with lid and side handles (no text or symbols)

B

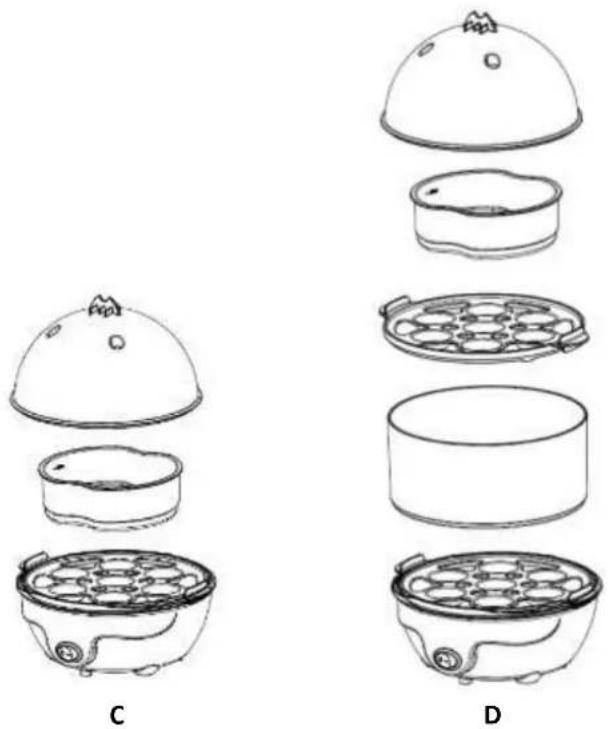

Line drawing of a three-step cooking process: lid, side dish, and steamer (no text or symbols)

C

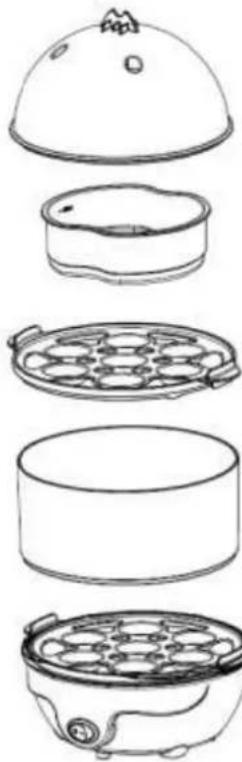

Line drawings of four different cooking or cooking utensils, showing top-down views from a dome to a steamer (no text or symbols)

D

REINIGUNG

Simple line drawing of a dome-shaped container with handles and a small outlet (no text or symbols)

A

Line drawing of a portable air conditioner unit (no text or symbols)

B

Line drawing of a dome-shaped object with a handle and small circular elements (no text or symbols)

A

Line drawing of a portable air conditioner unit with lid and cooling fins (no text or symbols)

B

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

2. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

3. Keep the appliance and its cord out of reach of children aged less than 8 years.

4. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

5. Children shall not play with the appliance.

6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

7. CAUTION: Avoid injuries from the egg pricking device. The piercing pin is very sharp; use with extreme caution!

8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm

houses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments.

1. Warning: Potential risk of injuries from misuse.

2. The heating element surface is subject to residual heat after use.

3. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

4. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

5. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

6. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

7. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

8. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

9. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

10. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

11. Never leave the appliance unattended during use.

12. This appliance is not designed for commercial use. It is for household use only. Do not use outdoors.

13. Do not use the appliance for other than intended use.

14. Do not wind the cord around the appliance and do not bend it.

15. Regarding the instructions for cleaning, please refer to the below paragraph of the manual.

16. Note the high temperature steam.

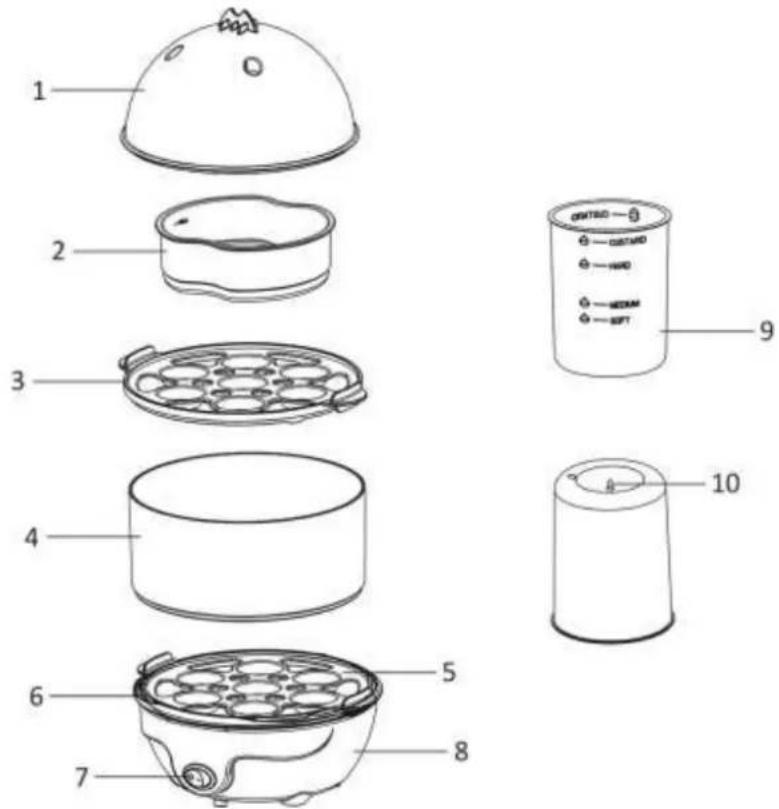

PARTS DESCRIPTION

1. Cover
2. Custard bowl
3. Upper egg tray
4. Egg tray separator
5. Bottom egg tray
6. Heating plate
7. On/off switch and indicator light
8. Base
9. Measuring cup
10. Egg piercer (on the bottom of the measuring cup)

BEFORE THE FIRST USE

Please clean the appliance completely. Put the attachments such as the cover, egg trays, measuring cup, etc. into the water (adding the proper cleanser) and clean them. Fill the appliance with a measuring cup of water, assemble all parts and begin to operate without eggs. When the water is boiling, discard the water. Extreme caution must be used when moving an appliance containing hot liquids.

Never immerse the base in the water for cleaning. Wipe the appearance of the base and the heating plate with a mild and damp cloth or cleaner, never use a poisonous cleaner.

Measuring cup:

There are two sides of the marks on the measuring cup. One side of the marks is for using one layer of the egg tray, marked with "SOFT", "MEDIUM", "HARD" and "CUSTARD"; the other side of the marks is for using two layers of the egg trays, marked with "MEDIUM", "HARD" and "CUSTARD". Chose the correct side for reference when using the measuring cup.

HOW TO USE YOUR EGG BOILER

1. Fill the heating plate with the required amount of cold water, using the measuring cup. The graduations on the measuring cup correspond to the amount of water required to obtain 1 to 14 soft, medium or hard-boiled eggs. Choose "SOFT", "MEDIUM" or "HARD" for reference.

For example: If you want to boil some eggs and the eggs must be tender, please fill the measuring cup with water to the mark "SOFT".

1. Place the egg tray above the heating plate.
2. Use the egg piercer to prick a small aperture into the big end of each egg. The piercing pin is very sharp, use with extreme caution. This prevents the eggshells bursting during boiling.
3. Put the eggs onto the egg tray by the small end facing downwards. Close the cover.

Note: Each egg tray can hold up to 7 eggs. If you only need to boil 7 eggs, the use of the bottom egg tray will be enough. Remove the upper egg tray and the egg tray separator during boiling. (See reference pic. A) If you need to boil more than 7 eggs, use the egg tray separator to assemble two layers of the egg trays. (See reference pic. B)

Line drawing of a dome-shaped object with handles and a small protrusion (no text or symbols)

A

Line drawing of a cylindrical container with lid and side handles, resembling a cooking pot or vessel (no text or symbols)

B

1. Plug in the appliance and press the on/off switch to position "I". The indicator light will be illuminated.
2. A buzzer sounds when the eggs are ready.
3. Press the on/off switch to position "O" and unplug the appliance.
4. Put the boiled eggs into the cool water rapidly so that peeled easily; egg is at its peak flavor immediately after boiling.

Warning: After eggs are finished cooking, please switch off and plug off the appliance. Otherwise, the thermostat inside the appliance will be reset automatically when the appliance is cooled down. The appliance will continue to heat with energy waste and safety risk.

Steaming egg custard

1. Break two eggs into the custard bowl, add 1\~2g salt and other ingredient and some oil. Mix smoothly.
2. Add the water into the mixture up to the level "Max" indicated on the inside of the custard bowl. Mix smoothly.
3. Fill the measuring cup with water to the mark "CUSTARD" and then pour the water into the heating plate.
4. Place the egg tray over the heating plate. Put the custard bowl on the egg tray, making sure the position is balanced. Put on the cover. (See reference pic. C)
5. Plug in the appliance and turn on the switch.
6. A buzzer sounds when the eggs are finished.
7. Turn off the switch. Wait for 30 seconds.
8. Take out the custard bowl and serve.

Note: If you want to boil the eggs and steam the egg custard at the same time, please put the eggs to be boiled on the bottom layer of the egg tray and put the custard bowl on the upper layer of the egg tray. (See reference pic. D) Additionally, take reference of the mark "CUSTARD" when using the measuring cup to fill the heating plate with water.

CLEANING INSTRUCTIONS

Always unplug the appliance and allow cooling before cleaning. Wash the attachments in hot soapy water, rinse and dry completely. However, the heating plate which is fixed to the bottom of the appliance can only be cleaned with a moistened towel.

Do not clean any part with abrasive cleaners, metal scouring pads or scouring powder.

Do not immerse the appliance in water!

When excessive scales are deposited on the heating plate, normal household vinegar can be used to remove the scales. Dilute the vinegar with water (add 1 part vinegar to 10 parts of water). Pour the solution onto the heating plate. Allow soaking for about 30 minutes. Then pour away the liquid. Wipe the heating plate clean with a moistened towel.

SAFETY MEASURES

The appliance should not be used when:

1. The cable is damaged.
2. The appliance can be visually seen damaged.
3. The appliance has been dropped onto the floor, even if visible damage is not seen.

Do not use the appliance except as stated in this manual.

TECHNICAL DATA

Operating voltage : 220-240V \~ 50-60Hz

Power consumption: 350W

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Electric steamer with three eggs inside a black frame, no visible text or symbols

Our products are produced according to strict quality control standards. If this product does not function correctly, contact the retailer or the service address overleaf. The product comes with a 36-month guarantee, which commences on the day of purchase. A fee will be charged for repairs conducted after the warranty expires. Please retain your receipt as proof of purchase. The guarantee only covers faults caused by material and manufacturing defects. Misuse, improper use, use of force and third-party tampering or repairs shall void the warranty. We shall not be liable for any subsequent consequential damages. In addition, we shall not be liable for material damages or injuries resulting from incorrect use or failure to observe the safety information. Damage to accessories does not mean that the entire device will be exchanged free of charge. In the event of such damage, contact our customer service staff. A fee will be charged to replace broken glass or plastic parts. Damage to consumables or expendable parts as well as cleaning, maintenance or replacement of such parts is not covered by the warranty and a charge shall apply. Your statutory rights are not affected by this guarantee.

Note: In the event of a warranty claim, please send the defective device together with the purchase receipt and guarantee card with a description of the defect.
