EB123177.8 - Egg cooker Emerio - Free user manual and instructions

Product Type	Electric Egg Cooker
Brand	Emerio
Model	EB123177.8
Power Supply	220-240 V ~ 50 Hz
Power	400 W
Capacity	Up to 7 eggs (estimated)
Cooking Types	Soft-boiled, medium-boiled, hard-boiled
Indicators	Indicator lights and voice messages
Automatic Shut-off	Yes, after about 16 minutes
Accessories	Measuring cup (70 ml), egg piercer
Cleaning	Lid and tray washable; heating plate cleaned with a damp cloth
Descaling	With diluted vinegar (1:10)
Safety	Automatic shut-off, hot surface, do not immerse
Warranty	2 years
Housing Material	Plastic (estimated)

Frequently Asked Questions - EB123177.8 Emerio

How to use the Emerio EB123177.8 egg cooker?

Pour 140 ml of water onto the heating plate, place the egg tray, pierce a hole in each egg with the egg piercer, place eggs point down, close the lid, plug in and press the power button. The appliance emits voice messages to indicate the different cooking stages.

How much water should I put in the cooker?

Always use two full measuring cups, i.e. 140 ml of water, regardless of the number of eggs.

How can I get soft-boiled, medium-boiled or hard-boiled eggs?

The appliance emits voice messages: after 8 minutes (soft-boiled), 10 minutes (medium-boiled), 15 minutes (hard-boiled). You can remove the eggs at the desired time.

What should I do if the appliance does not turn on?

Check that the plug is connected and that the switch is pressed. Make sure the lid is properly closed. If the problem persists, contact customer service.

How to clean the egg cooker?

Unplug the appliance and let it cool. Wash the lid and egg tray with soapy water. Clean the heating plate with a damp cloth. Never immerse the appliance in water.

How to descale the heating plate?

Mix 1 measure of white vinegar with 10 measures of water. Pour onto the plate, let it sit for 30 minutes, then discard the liquid and wipe with a damp cloth.

Why do I need to pierce the eggs before cooking?

Piercing a small hole in the larger end of the egg prevents the shell from exploding during cooking due to internal pressure.

Does the appliance turn off automatically?

Yes, after about 16 minutes (1 minute after the hard-boiled egg signal), all indicator lights go out and the appliance shuts off automatically.

Can I cook eggs of different sizes?

Yes, but cooking times may vary. Larger eggs require slightly longer time. Adjust according to your preferences.

What should I do if the power cord is damaged?

It must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any danger.

USER MANUAL EB123177.8 Emerio

Exterior view of a modern electric vacuum cleaner with a clear lid and control panel (no text or symbols visible on the device itself)

Smart Egg Boiler (EN)

Smarter Eierkocher (DE)

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
2. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
3. Keep the appliance and its cord out of reach of children aged less than 8 years.
4. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
5. Children shall not play with the appliance.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
7. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
8. CAUTION: Avoid injuries from the egg pricking device.

9. Warning: Potential risk of injuries from misuse.

10. The heating element surface is subject to residual heat after use.

11. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

12. Always plug the appliance into an earthed plug socket.

13. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

14. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

15. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

16. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

17. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

18. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

19. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

20. Never leave the appliance unattended during use.

21. This appliance is not designed for commercial use.

22. Do not use the appliance for other than intended use.

23. Do not wind the cord around the appliance and do not bend it.

24. The piercing pin is very sharp; use with extreme caution!

25. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

26. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph "CLEANING INSTRUCTIONS" of the manual.

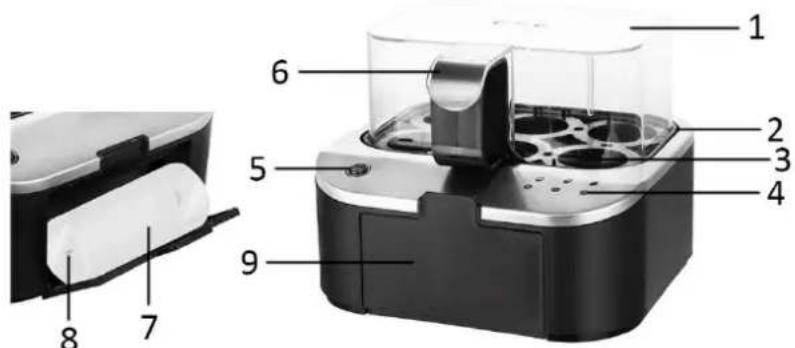

PARTS DESCRIPTION

1. Cover

2. Egg tray

3. Heating plate

4. Indicator lights

5. ON/OFF button

6. Handle

7. Measuring cup

8. Egg piercer

9. Socket for measuring cup

(You can pull out the socket cover to store the measuring cup.)

Labeled diagram of a digital kitchen appliance with numbered parts for identification

HOW TO USE

Warning: Please be careful when pouring out water from the appliance. Always unplug the egg boiler before moving and before pouring out water. Never let water run over the ON/OFF button and indicator lights.

1. Remove the cover and egg tray to pour water onto the heating plate. 1 measuring cup filled to the marking has a capacity of 70 ml. For each cooking cycle, regardless of the number of eggs or which hardness is to be achieved, always use 2 measuring cups or a total of 140 ml.

2. Place the egg tray above the heating plate.

3. Use the egg piercer to prick a small aperture into the big end of each egg. The piercing pin is very sharp, use with extreme caution. This prevents the eggshells bursting during boiling.

4. Put the eggs onto the egg tray by the small end facing downwards. Close the cover.

5. Plug in the appliance. Press the ON/OFF button to turn on the appliance. A notifying sound is played. The appliance starts to boil the eggs.

6. After 8 minutes, the voice tells you "Die weichen Eier sind fertig [The eggs are now soft boiled]." The first indicator light turns on.

7. One minute later, the notifying sound is played.

8. When the appliance has run for 10 minutes, the voice tells you "Die mittelweichen Eier sind fertig [The eggs are now medium boiled].". The first and second indicator lights turn on.

9. When the appliance has run for 12.5 minutes, the notifying sound is played again.

10. When the appliance has run for 15 minutes, the voice tells you "Die harten Eier sind fertig [The eggs are now hard boiled]." At this time, the three indicator lights all turn on.

11. After one more minute, all the lights go out and the appliance automatically turns off.

Notes:

- You will get 3 voice messages during the cooking time, soft, medium and hard-boiled egg. You will also hear 2 short signals in between the voice messages to give you the opportunity to find the perfect result. Think about that the result can differentiate depending on the size of the eggs. Bigger eggs need slightly longer cooking time.

- You can decide whether to take the egg(s) out during the process when it's soft/medium/hard boiled.

- To take eggs out, carefully remove the cover by the handle as it is very hot. Let the eggs cool. You can run eggs under cold water to peel them more easily.

CLEANING INSTRUCTIONS

Always unplug the appliance and allow cooling before cleaning. The egg tray and the cover can be washed normally. However, the cooking plate which is fixed to the bottom of the appliance can only be cleaned with a moistened towel. Never use abrasive cleaners. Do not use any metal tools or steel wool as they may cause damage.

Do not immerse the appliance in water!

When excessive scales are deposited on the heating plate, normal household vinegar can be used to remove the scales. Dilute the vinegar with water (add 1 part vinegar to 10 parts of water). Pour the solution onto the heating plate. Allow soaking for about 30 minutes. Then pour away the liquid. Wipe the cooking plate clean with a moistened towel.

SAFETY MEASURES

The appliance should not be used when:

1. The cable is damaged.
2. The appliance can be visually seen damaged.
3. The appliance has been dropped onto the floor, even if visible damage is not seen.

Do not use the appliance except as stated in this manual.

TECHNICAL DATA

Operating voltage : 220-240V \~ 50Hz

Power consumption: 400W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Emerio B.V.

Oudeweg 115

2031 CC Haarlem

The Netherlands

Customer service:

T: [phone]

www.emerio.eu/service

Kundeninformation:

T: [phone]

www.emerio.eu/service

Klantenservice:

T: [phone]

www.emerio.eu/service

Looking for spare parts? Have a look at www.spareparts.emerio.eu
