USER MANUAL Etappe 2.0i VirtuFit

IMPORTANT! Please read all instructions carefully before using this product. Retain this manual for future reference. The specifications of this product may vary slightly from the illustrations and are subject to change without notice.

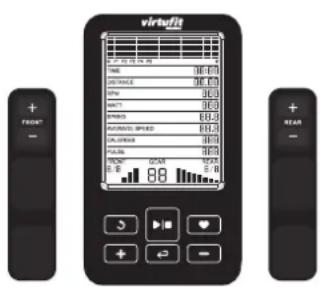

USER MANUAL FIG. A Description of instrument windowUSER MANUAL

8. In the training mode, press the <ST./SP.> key to stop the unit from running.

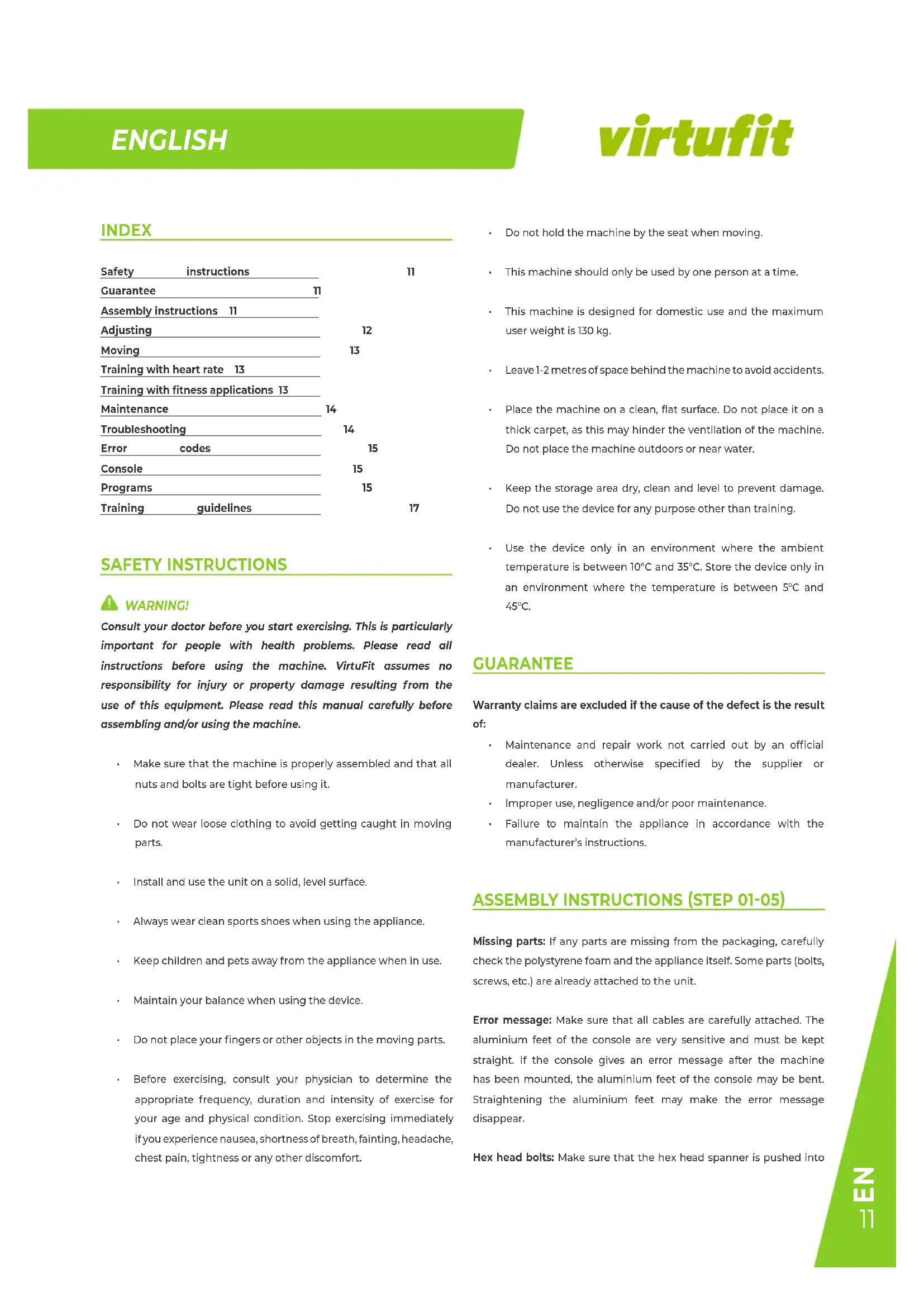

INDEX Safety instructions 11 Guarantee 11 Assembly instructions 11 Adjusting 12 Moving 13 Training with heart rate 13 Training with fitness applications 13 Maintenance 14 Troubleshooting 14 Error codes 15 Console 15 Programs 15 Training guidelines 17 SAFETY INSTRUCTIONS WARNING! Consult your doctor before you start exercising. This is particularly important for people with health problems. Please read all instructions before using the machine. VirtuFit assumes no responsibility for injury or property damage resulting from the use of this equipment. Please read this manual carefully before assembling and/or using the machine.

• Make sure that the machine is properly assembled and that all nuts and bolts are tight before using it.

• Do not wear loose clothing to avoid getting caught in moving parts.

• Install and use the unit on a solid, level surface.

• Always wear clean sports shoes when using the appliance.

• Keep children and pets away from the appliance when in use.

• Maintain your balance when using the device.

• Do not place your fingers or other objects in the moving parts.

• Before exercising, consult your physician to determine the appropriate frequency, duration and intensity of exercise for your age and physical condition. Stop exercising immediately if you experience nausea, shortness of breath, fainting, headache, chest pain, tightness or any other discomfort.

• Do not hold the machine by the seat when moving.

• This machine should only be used by one person at a time.

• This machine is designed for domestic use and the maximum user weight is 130 kg.

• Leave 1-2 metres of space behind the machine to avoid accidents.

• Place the machine on a clean, flat surface. Do not place it on a thick carpet, as this may hinder the ventilation of the machine. Do not place the machine outdoors or near water.

• Keep the storage area dry, clean and level to prevent damage. Do not use the device for any purpose other than training.

• Use the device only in an environment where the ambient temperature is between 10°C and 35°C. Store the device only in an environment where the temperature is between 5°C and 45°C. GUARANTEE Warranty claims are excluded if the cause of the defect is the result of:

• Maintenance and repair work not carried out by an official dealer. Unless otherwise specified by the supplier or manufacturer.

• Improper use, negligence and/or poor maintenance.

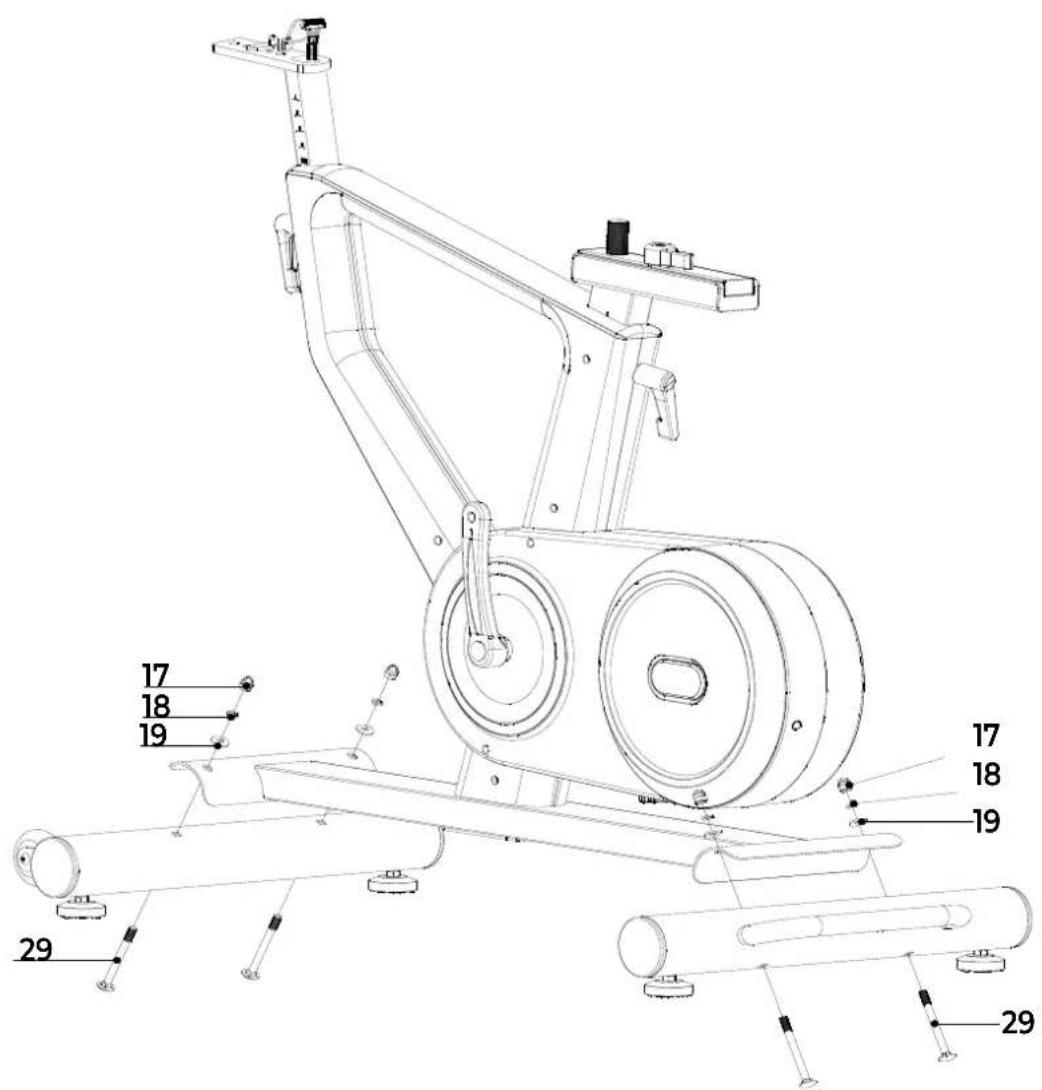

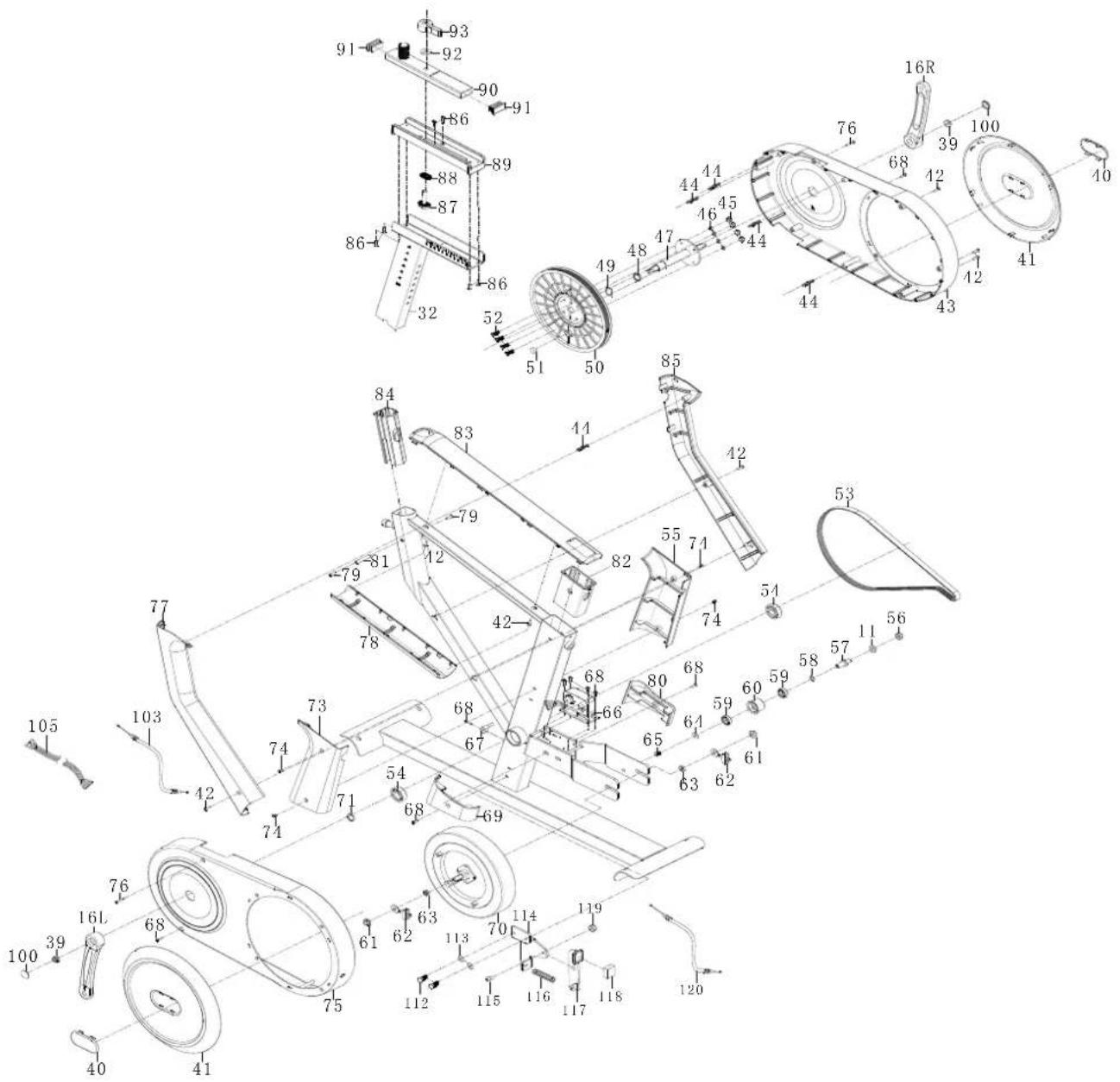

• Failure to maintain the appliance in accordance with the manufacturer’s instructions. ASSEMBLY INSTRUCTIONS (STEP 01-05) Missing parts: If any parts are missing from the packaging, carefully check the polystyrene foam and the appliance itself. Some parts (bolts, screws, etc.) are already attached to the unit. Error message: Make sure that all cables are carefully attached. The aluminium feet of the console are very sensitive and must be kept straight. If the console gives an error message after the machine has been mounted, the aluminium feet of the console may be bent. Straightening the aluminium feet may make the error message disappear. Hex head bolts: Make sure that the hex head spanner is pushed intoENGLISH

• The saddle comes off and can be adjusted to a horizontal position to adjust the distance between the saddle and the handlebars. • Tighten the adjustment knob by turning it clockwis

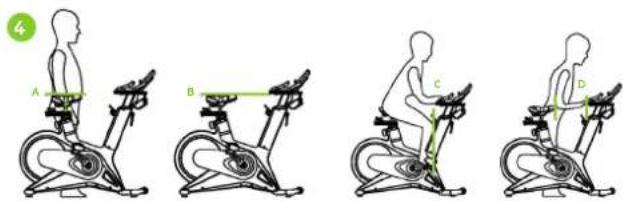

Follow the steps below to adjust the seat height (FIG. 4): • Stand next to the machine and adjust the seat to hip height (FIG. 4A). • The height of the saddle and handlebars should be the same (FIG. 4B). If not, adjust the handlebar height to match the saddle height. • Make sure your knee is just behind your foot when your foot is towards the front of the machine (FIG. 4C). • Adjust the handlebars so that the distance between the saddle and the handlebars is equal to the length of your forearm (FIG. 4D).

Leveling Make sure that the bike is always on a stable surface. If in doubt, a rubber mat can be placed underneath the exercise bike to ensure a better grip on the floor. The bike can be adjusted by turning the adjustable feet on either side of the bike (FIG. A). This allows the bike to compensate for unevenness in the floor. Safety straps

• Get on the bike. • Put your foot on the pedal and tighten the belt. the bolt before applying force. This will prevent the head of the socket bolt from turning. ADJUSTING Adjusting the elbow pads (1)
• Unlock the bolts of the elbow pads with the hexagonal key S5. • Adjust the elbow pads to a comfortable position. • Retighten the bolts. Unlock the bolts on Elbow pads by Allen wrench

Adjusting the handlebars (2) Before exercising, adjust the handlebar and saddle position to the height and distance that best suits the user.Follow the steps below to adjust the handlebars FIG (2): • Turn the adjustment knob (A) on the front of the main frame counter-clockwise.

• The handlebar is released and can be adjusted to the correct height. • Tighten the round adjustment knob by turning it clockwise. Unlock the bolts on Elbow pads by Allen wrench

Adjusting the saddle (3-4) Before riding, adjust the position of the handlebars and saddle to the height and distance that best suits the user.Follow the steps below to adjust the horizontal position of the saddle (FIG. 3):

• Turn the adjustment knob on the underside of the saddle counter-clockwise (anti-clockwise).ENGLISH

• A wireless heart rate monitor is not included as standard. Contact your dealer to purchase a wireless heart rate monitor.

• To avoid interference, never use the wireless heart rate monitor in combination with the hand sensors. WARNING!

• If you have a pacemaker, we recommend that you consult your physician before using a wireless heart rate monitor

• In rooms with multiple heart rate monitors, it is recommended that you keep enough distance to avoid interference between different devices.

• Always try to keep the wireless heart rate monitor within a range of 1 meter from the console for optimal reception.

• Always wear a wireless heart rate monitor directly on the body, under clothing.

TRAINING WITH FITNESS APPLICATIONS

VirtuFit does not provide service for third party fitness applications such as Kinomap, iConsole, FitShow etc. If you encounter problems with a third party fitness application, please contact the developer of the application in question. Instruction

• To scan the QR code with an Android or IOS phone or tablet, a QR code scanner is required. The app for scanning QR codes can be downloaded from the App Store or Google Play Store.

• Scan one of the QR codes below to go directly to the App Store or Google Play Store page where the fitness app can be downloaded.

• Scan the QR code on the right to access the fitness app manual. The manual describes step by step how to connect the fitness app to the device, how the fitness app works and what its capabilities are. Fitshow

• After pedalling, remember to press the safety button before unfastening the safety belt.

• You can now get off the bike safely. MOVING CAUTION! Store the unit in a dry place out of reach of children. Make sure the unit is stable and secure to prevent it from falling on children or animals. Push the handlebar down until the transport wheels of the front stabiliser touch the ground. When the transport wheels touch the ground, the bike can be easily moved to the desired location. 11Final inspection 1. Do not use until the machine has been fully assembled and inspected for correct performance in accordance with the Owner’s Manual.

2. Inspect your machine to ensure that all hardware is tight and components are properly assembled.

1. Remove the power cord.

2. Use the Transport Handle to carefully lift the machine onto the transport rollers.

3. Push the machine into position.

4. Carefully lower the machine into position.

Note: The machine may be moved by one or more persons depending on their physical abilities and capacities. Make sure that you and others are all physically fit and able to move the machine safely. Leveling the Machine The machine needs to be leveled if your workout area is uneven or if the Rail Assembly is slightly off the floor. To adjust:

1. Place the machine in your workout area.

2. Safely stand on the back of the Rail Assembly for approximately 20 seconds.

3. Step off the machine.

4. Loosen the locking nuts and adjust the levelers until they all contact the floor.

5. Adjust until the machine is level. Tighten the locking nuts.

Note: Do not adjust the levelers to such a height that they detach or unscrew from the machine. Injury to you or damage to the machine can occur. Make sure the machine is level and stable before you exercise.

TRAINING WITH HEART RATE

Hand sensors This VirtuFit fitness machine is equipped with hand sensors for measuring heart rate. The hand sensors are attached to the handle and only work if both sensors are held for a longer period of time. For optimal performance, it is important that the hands are slightly moist and exert constant pressure on the sensors. Hands that are too dry or moist may cause abnormal readings. NOTE! To avoid interference, never use the hand sensors with a wireless heart rate monitor. Wireless heart rate receiver (5 kHz) This VirtuFit fitness device is equipped with a wireless heart rate receiver. For the heart rate measurement with a wireless heart rate monitor, you use a heart rate monitor which works on a 5 kHz frequency. With a wireless heart rate monitor, it is important that the electrodes are slightly moist and the heart rate monitor fits well to your body. Refer to your heart rate monitor's user manual for proper instructions. Incorrect use of the heart rate monitor may result in abnormal readings.ENGLISH

Cleaning General cleaning of the unit will extend its life. Keep the appliance clean by dusting it regularly. Regular maintenance will prolong the life of your appliance and prevent injuries! For more information, please visit https://www.virtufit.nl/service/faq/ CAUTION! Wear clean shoes to reduce the risk of soiling the machine. At least once a year, remove the cover to remove dust. Opening the Chain Box

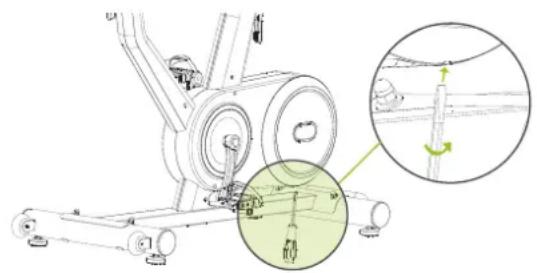

• Have a Phillips screwdriver and a flathead screwdriver ready.

• Locate the hole at the bottom of the chain case.

• Insert the flathead screwdriver into the hole.

• Pull the chain case open slightly while holding the handle of the flathead screwdriver.

• Remove the screws with the Phillips screwdriver. TROUBLESHOOTING The display does not show any values: Check that the sensor and console cables are properly attached and undamaged. If this does not solve the problem, contact the supplier. Device squeaks: Check that all bolts and nuts are tight. If necessary. Check whether the brake pad needs to be lubricated. Ticking noise when pedalling: This may be caused by one of the pedals. Remove the pedal(s) and mount it (them) correctly on the unit. Tighten the pedal(s) firmly. If this does not solve the problem, contact the supplier. NOTE! The "R" (right) pedal must be mounted clockwise and the "L" (left) pedal must be mounted counter-clockwise. Console does not work: If there is no signal when pedalling, check that the cable is correctly connected. Zwift

APP STORE GOOGLE PLAY MANUAL

MAINTENANCE Safe and efficient use can only be achieved if the appliance is properly installed and maintained. It is your responsibility to ensure that the appliance is maintained regularly. Parts that have been used and/or damaged must be replaced before the appliance is used again. The appliance should only be used and stored indoors. Long-term exposure to weather and temperature/humidity changes can have a serious impact on the electrical components and moving parts of the unit. Always unplug the power cord from the unit before cleaning or servicing it. Daily maintenance

• Clean and remove sweat and moisture after each use.

• Check that the unit is free of dust and dirt.

• Do not use aggressive cleaning agents and keep the device away from moisture. Semi-annual maintenance

• Inspect all bolts and nuts connected to the moving parts of the unit. Tighten bolts and nuts as necessary and appropriate. We recommend the following:

• Clean the unit after use.

• Use a dry cloth to clean the control panel and the areas around the on/off switch.

• Use a soft, clean cloth and detergent to remove stubborn marks and dirt from the unit.

• Store the unit in a safe, dry place away from heat and water. CAUTION! Repairs must be carried out by a professional technician, unless otherwise specified by the supplier or manufacturer.ENGLISH

• Start or stop training.

• FRONT Handlebar left. Increase or decrease front gear.

• REAR Handlebar right. Increase or decrease rear gear. Functions

• RPM Revolutions per minute.

• SPEED The current speed during exercise is displayed.

• TIME The time measured from the start of the exercise is displayed. If a training time has been set, the time will will be counted down.

• DISTANCE The distance covered during the exercise is displayed. displayed. If a distance is set, the distance will will be counted down.

• AVERAGE SPEED The average speed during the exercise.

• CALORIES The number of calories burned during the exercise is displayed. If a calorie target has been set, the number of calories will be counted down.

• PULSE When using a chest strap, the heart rate will be displayed during exercise. If a target heart rate is set, an alarm will sound when the target heart rate is reached.

• WATT Displays the wattage.

• GEAR 24 resistance levels.

• Press to display the different programs. P1 climb mode, P2 mountain mode, P3 highway mode, P4 interval mode, P5 relaxation mode, P6 circuit mode.

• Press to start the workout or press to enter the set mode.

• In set mode, press to select the set value. The selected value (time, distance, calories, age) will flash (in P1-P5).

• Press to increase or decrease the value and press to select the next item.

• Press to start the workout.

• During the workout, the resistance is automatically adjusted according to the program you set. If you are not happy with this, you can press to increase or decrease the value.

• If one of the settings is made, the corresponding value is counted down. If this value is 0, a signal sounds. Heart rate display does not function:

• The sensor cables from the heart rate sensor to the display are not properly fitted or have become loose during use.

• The sensors may have become damp, dirty or greasy. Clean them regularly. If there is no signal when you pedalling check that the cable is properly attached. ERROR CODES E1:

• Motor does not work (motor problems) Solution: Check that the motor wiring plug is connected correctly. Reconnect the plug. If this does not solve the problem, contact the supplier.

• Broken cable in the machine Solution: Check that the cables are not damaged or in danger of causing a short circuit. Replace the cable. If this does not solve the problem, contact the supplier.

• The console does not give a signal to the motor Solution: Replace the console. If this does not solve the problem, contact the supplier. E2 :

• After starting the body fat test, the hand sensor is not held fast enough with the hand. Solution: Hold the handheld sensor within 3 seconds of starting the test program. If this does not solve the problem, contact the supplier.

• The console does not display the heart rate value Solution: Check if a heart rate value is displayed in another mode. If this does not solve the problem, contact the supplier. CONSOLE (FIG. A) Description of instrument window

• Press to select a programme or increase/decrease values.

• Press to go to the main menu. Press and hold to reset all values.

• Recovery - Heart rate Recovery test.

• Press to increase or decrease the value.

• Press to start the workout. The resistance is automatically adjusted to the target heart rate.

• If one of the parameters is set, the corresponding value is counted down. When this value is 0, a beep will sound.

• During the workout, press to stop or pause the unit. NOTE! For best use of the HRC function, it is recommended that you wear a wireless chest belt during exercise. If the display does not detect the heart rate value, the resistance will not change automatically. User Program (FIG. B-4)

• Press to select the U1-U4 program.

• Press to start the workout or to enter the setting mode. The order of setting is: time -> distance -> calories -> resistance.

• Press to increase or decrease the value or to move to the next point.

• Press to start the workout and during the workout press to increase or decrease the resistance.

• When one of the parameters is set, the corresponding value is counted down. When this value is 0, a beep will sound.

• During the workout, press to stop or pause the workout. Recovery (FIG. B-5)

• During a workout, press when the heart rate value is displayed and monitor the heart rate.

• TIME displays "0:60" and begins counting down from 60 seconds. The system will begin the test.

• When TIME is at "0:00", F1 - F6 is displayed on the screen. This indicates your heart rate recovery level. F1 = 1.0 OPTIMUM

4.0 < F5 < 5.9 RELATIVELY BAD

F6 = 6.0 BAD NOTE! It is recommended that you perform the heart rate test within the aerobic heart rate range during training. This will not affect the test result.

• During exercise, press to stop or pause the machine. Body Fat (FIG. B-2)

• Press to select the programme. The order of setting is: gender -> height -> weight -> age.

• Press to increase or decrease the value.

• M means male and F means female.

• Press for 8 seconds to start the test and the display will show BMI, FAT%. CAUTION! Press the heart rate sensor in continuous display before testing.

B.M.R. (BASIC METABOLIC RATE) The average number of calories burned per day for the basic needs of life.

• Press to select the programme. The order of setting is:ENGLISH

resting position at the end of the workout. A good cool-down slowly reduces your heart rate and promotes recovery. Pulse SEE ALSO CHAPTER "TRAINING WITH HEART RATE". AGE TRAINING ZONEMIN-MAX (BPM) AGE TRAINING ZONEMIN-MAX (BPM)20 133 - 167 55 122 - 15525 132 - 166 60 121 - 15330 130 - 164 65 119 - 15135 129 - 162 70 118 - 15040 127 - 161 75 117 - 14745 125 - 159 80 115 - 14650 124 - 156 85 114 - 144 TRAINING GUIDELINES (FIG. C, 1-5) A successful training program includes a warm-up, the actual training and a cool-down. Perform the complete training program at least twice, but preferably three times a week and keep a rest day between training sessions. After a few months, the intensity of the training can be increased, for example to four or five times a week. The warm-up The purpose of a warm-up is to prepare the body for training and to reduce the risk of injury. Warm up your body for two to five minutes before starting a cardio or strength training session. Do exercises that increase the heart rate and warm up the working muscles. Examples of this type of activity are running, jogging, jumping jacks, skipping and running in place. Stretching Stretching while the muscles are warm is very important after a good warm-up and cool-down. It reduces the risk of injury. Stretching exercises should be held for 15-30 seconds. Here are some examples of stretching exercises:

• Toe touch (Fig. C-1)

• Inner thight stretch (Fig. C-2)

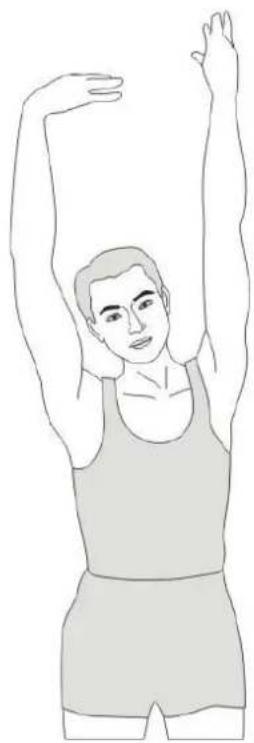

• Side stretch (Fig. C-5) Cooling down The purpose of the cool-down is to return the body to its (near) normalNEDERLANDS
