Product type	Automatic pool cleaner robot
Brand	Polaris
Model	8050 Sport
Dimensions (L x W x H)	41 x 42 x 25 cm (16 x 16.5 x 10 in)
Weight	9 kg (20 lb)
Power supply of control unit	100-125 VAC, 60 Hz
Robot power voltage	30 VDC
Installed power	150 W max
Floating cable length	15 m (50 ft)
Filtration system	All-purpose filter cartridge (clean after each cycle)
Cleaning cycle duration	1.5 hour
Cleaning functions	Bottom and walls, up to water surface
Surface Control System (SCS)	Wall grip adjustment: 4 levels (1 rough to 4 smooth)
Compatible pool types	Permanent pools (vinyl, fiberglass, concrete, pebble)
Safety stop	Automatic stop out of water; reverse if impeller in air
Electrical protection	Double insulation; requires outlet with ground fault circuit interrupter (GFCI)
Safety distance (U.S.)	Control unit 1.5 m (5 ft) from pool edge
Safety distance (Canada)	Control unit 3 m (10 ft) from pool edge
Error indicator	Flashing LED indicator (1, 2, or 3 flashes/second depending on issue)
Replaceable parts	PVC brushes (wear indicators), tracks, filter cartridge
Included accessories	Transport and storage cart, handle, control module
Recommended maintenance	Rinse cartridge after each cycle; wash robot with soapy water

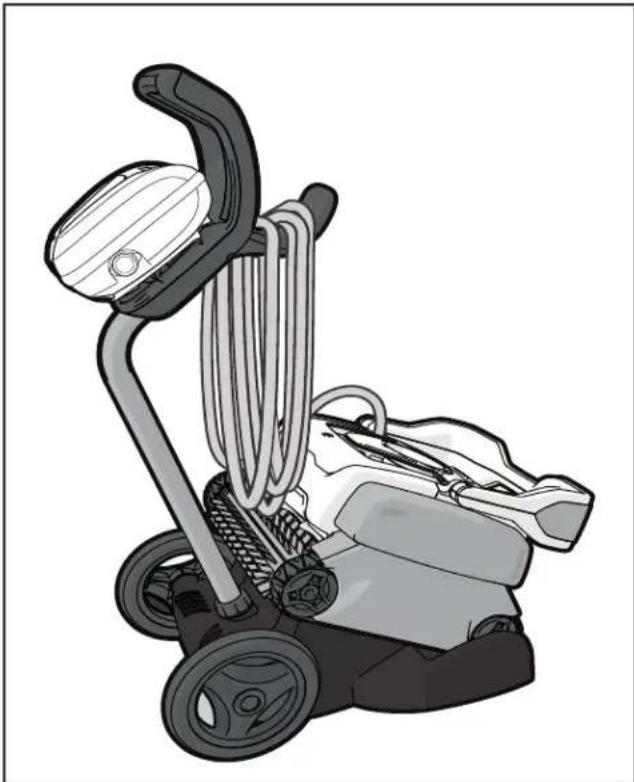

Storage	On the cart, protected from sun and weather

Frequently Asked Questions - 8050 Sport POLARIS

How to start the Polaris 8050 Sport pool cleaner?

After fully submerging the robot and laying out the cable without knots, select the surface to clean (floor or floor and walls) using the Floor/Wall button, then press START. The robot starts after a few seconds of initialization.

What to do if the robot doesn't climb the walls?

Check that the filter cartridge is not clogged. Adjust the Surface Control System (SCS) setting by pressing the SCS button: increase for better grip (rough walls) or decrease for smooth surfaces. If the problem persists, perform a shock treatment of the pool to remove slippery deposits.

How to clean the filter cartridge?

First unplug the power. Press the PUSH 'N' GO® button to release the handle, then remove the cartridge. Open the latches, remove the cover, and rinse the cartridge and its cover with a water jet. Use mild soap if necessary, rinse thoroughly, then reassemble.

What do the error indicator flashes mean?

The LED flashes at different rates: 1 flash/second indicates a floating cable connection problem; 2 flashes/second signals blocked wheels or brushes; 3 flashes/second corresponds to an obstruction in the impeller or filter. Refer to the troubleshooting table in the manual for detailed solutions.

Is it safe to leave the robot in the pool continuously?

No. Always remove the robot from the pool after each cleaning cycle. Do not leave it in the water permanently, especially during chemical treatments (shock chlorine, acid). The robot should be stored on its cart, protected from sun and weather.

How to properly submerge the robot before starting?

Hold the robot vertically underwater and move it gently sideways until no air bubbles escape. Then let it sink to the bottom. Check that it rests on the bottom; if it still floats, repeat the operation. The handle should always remain raised.

What to do if the cable gets tangled in the pool?

Unroll only the necessary cable length to reach the farthest point of the pool. After each cycle, untangle the cable starting from the robot head. Wrap it loosely around the cart hook to avoid knots.

How often to replace the brushes?

Inspect the brushes regularly: as soon as the wear indicator (groove near the connector) becomes smooth, replace them. Under normal use, it is recommended to change the brushes every 2 years to maintain good cleaning performance.

The robot stops for 20 seconds during the cycle: is this normal?

Yes, it is normal. The robot performs a position calibration in the pool. It stays still for up to 20 seconds, then resumes its path. No action is required from you, and this pause does not affect cleaning efficiency.

Can I use an extension cord for the control module?

No, never use an extension cord. Plug the control module directly into an outlet protected by a ground fault circuit interrupter (GFCI), located at the required distance (1.5 m in the US, 3 m in Canada) from the pool edge.

USER MANUAL 8050 Sport POLARIS

Line drawing of a tracked robotic vehicle with visible wheels and central hub (no text or symbols)

8050 Sport

TYPE EM27--

Robotic Pool Cleaner

OWNER'S MANUAL

ENGLISH | FRANÇAIS | ESPAÑOL

WARNING

FOR YOUR SAFETY - For anything other than the routine cleaning and maintenance described in this manual, this product must be serviced by a contractor who is licensed and qualified in pool equipment by the jurisdiction in which the product will be installed where such state or local requirements exist. In the event no such state or local requirement exists, the maintainer must be a professional with sufficient experience in pool equipment installation and maintenance so that all of the instructions in this manual can be followed exactly. Improper installation and/or operation will void the warranty.

Table of Contents

Section 1. Important Safety Instructions......3

Section 2. Cleaner Specifications ....4

Section 3. Assembly and Setup .... 4

3.1 Unpacking 4
3.2 Assembling the Transport Caddy .... 4
3.3 Connecting the Control Unit to the Caddy......6
3.4 Connecting to a Power Source....6

Section 4. Operation....7

4.1 The Cleaner Control Unit....8
4.2 Submerging the Cleaner 8
4.3 Starting the Cleaner 9
4.4 Wall Cleaning (Surface Control System ^TM )......9
4.5 Stopping the Cleaner and Removing from the Pool....10
4.6 Rinsing the Cleaner....10
4.7 Cleaning the Filter Canister....10
4.8 Storing the Cleaner 11

Section 5. Maintenance....12

5.1 Cord Tangling 12
5.2 Replacing the Brushes 13
5.3 Replacing the Tracks....14

Section 6. Replacement Parts .... 14

Section 7. Troubleshooting .... 15

7.1 Using the Cleaner Error Indicator....15
7.2 General Troubleshooting 16

THANK YOU FOR PURCHASING THE POLARIS CLEANER.

YOUR POLARIS ROBOTIC CLEANER HAS BEEN DESIGNED AND MANUFACTURED TO BE EASILY INSTALLED AND TO PROVIDE LOW MAINTENANCE OPERATION. PRIOR TO INSTALLING YOUR NEW POLARIS CLEANER, PLEASE DO THE FOLLOWING:

1) Complete and return the warranty registration card.
2) Record your purchase information on the spaces provided below.
3) Attach your invoice (or a copy) to this page.

Taking these steps will help ensure prompt warranty service, should it be required. If service is required, please contact your original dealer. If the original dealer does not perform warranty service, please visit www.polarispool.com to locate an independent service company near you. If you are unable to locate a service company, please call our Technical Support department at 1-800-822-7933.

RECORD YOUR POLARIS CLEANER DATA HERE:

Date of Purchase ____ Purchased From ____ Serial Number: ____

(located on machine head)

City ____ State/Province ____ Zip/Postal Code ____

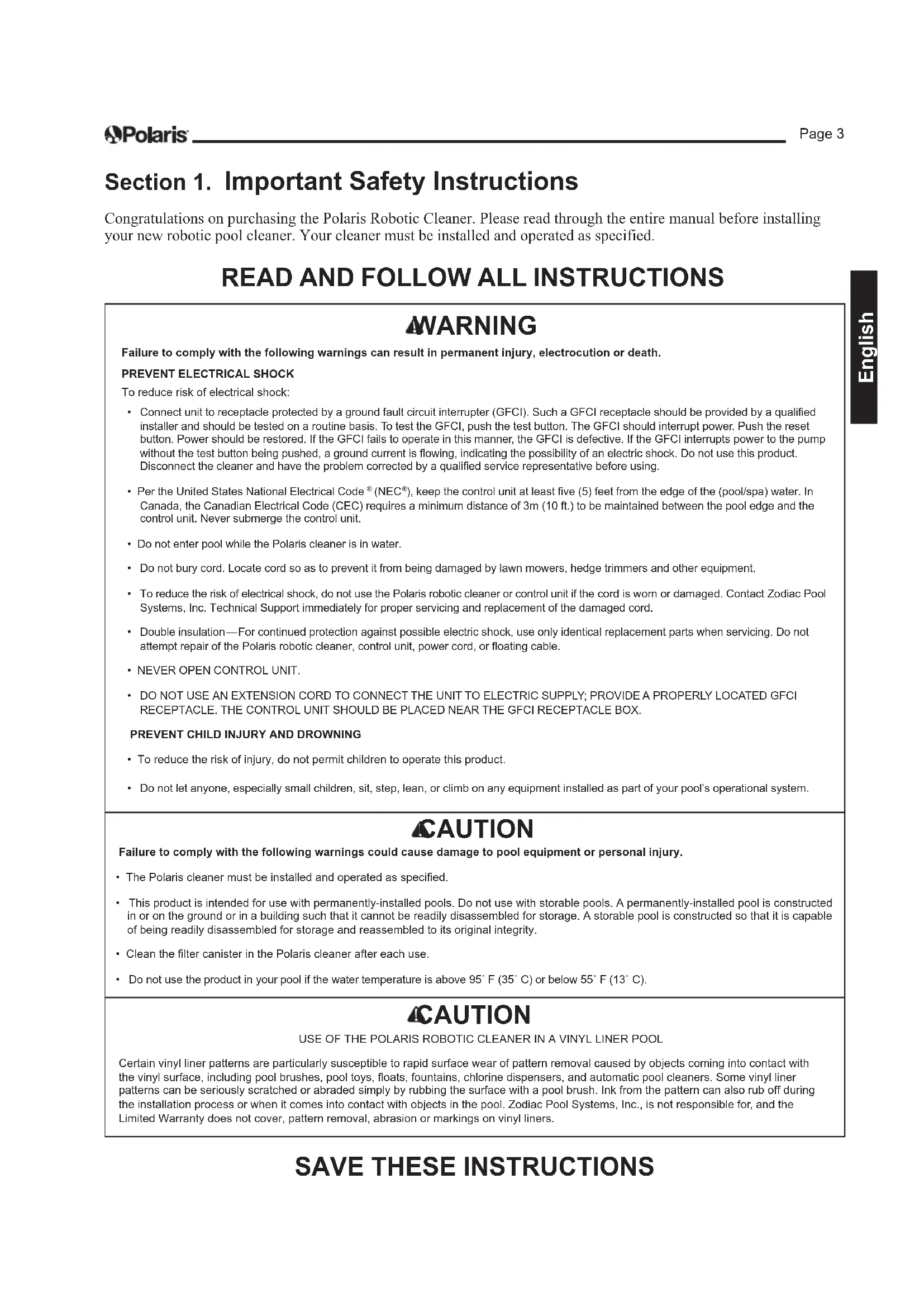

Section 1. Important Safety Instructions

Congratulations on purchasing the Polaris Robotic Cleaner. Please read through the entire manual before installing your new robotic pool cleaner. Your cleaner must be installed and operated as specified.

READ AND FOLLOW ALL INSTRUCTIONS

WARNING

Failure to comply with the following warnings can result in permanent injury, electrocution or death.

PREVENT ELECTRICAL SHOCK

To reduce risk of electrical shock:

• Connect unit to receptacle protected by a ground fault circuit interrupter (GFCI). Such a GFCI receptacle should be provided by a qualified installer and should be tested on a routine basis. To test the GFCI, push the test button. The GFCI should interrupt power. Push the reset button. Power should be restored. If the GFCI fails to operate in this manner, the GFCI is defective. If the GFCI interrupts power to the pump without the test button being pushed, a ground current is flowing, indicating the possibility of an electric shock. Do not use this product. Disconnect the cleaner and have the problem corrected by a qualified service representative before using.
• Per the United States National Electrical Code ^ (NEC ^ ), keep the control unit at least five (5) feet from the edge of the (pool/spa) water. In Canada, the Canadian Electrical Code (CEC) requires a minimum distance of 3m (10 ft.) to be maintained between the pool edge and the control unit. Never submerge the control unit.
• Do not enter pool while the Polaris cleaner is in water.
• Do not bury cord. Locate cord so as to prevent it from being damaged by lawn mowers, hedge trimmers and other equipment.
• To reduce the risk of electrical shock, do not use the Polaris robotic cleaner or control unit if the cord is worn or damaged. Contact Zodiac Pool Systems, Inc. Technical Support immediately for proper servicing and replacement of the damaged cord.
• Double insulation—For continued protection against possible electric shock, use only identical replacement parts when servicing. Do not attempt repair of the Polaris robotic cleaner, control unit, power cord, or floating cable.
• NEVER OPEN CONTROL UNIT.
• DO NOT USE AN EXTENSION CORD TO CONNECT THE UNIT TO ELECTRIC SUPPLY; PROVIDE A PROPERLY LOCATED GFCI RECEPTACLE. THE CONTROL UNIT SHOULD BE PLACED NEAR THE GFCI RECEPTACLE BOX.

PREVENT CHILD INJURY AND DROWNING

• To reduce the risk of injury, do not permit children to operate this product.
- Do not let anyone, especially small children, sit, step, lean, or climb on any equipment installed as part of your pool's operational system.

CAUTION

Failure to comply with the following warnings could cause damage to pool equipment or personal injury.

• The Polaris cleaner must be installed and operated as specified.
• This product is intended for use with permanently-installed pools. Do not use with storable pools. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity.
• Clean the filter canister in the Polaris cleaner after each use.
• Do not use the product in your pool if the water temperature is above 95^ (35°C) or below 55^ (13°C).

CAUTION

USE OF THE POLARIS ROBOTIC CLEANER IN A VINYL LINER POOL

Certain vinyl liner patterns are particularly susceptible to rapid surface wear of pattern removal caused by objects coming into contact with the vinyl surface, including pool brushes, pool toys, floats, fountains, chlorine dispensers, and automatic pool cleaners. Some vinyl liner patterns can be seriously scratched or abraded simply by rubbing the surface with a pool brush. Ink from the pattern can also rub off during the installation process or when it comes into contact with objects in the pool. Zodiac Pool Systems, Inc., is not responsible for, and the Limited Warranty does not cover, pattern removal, abrasion or markings on vinyl liners.

Section 2. Cleaner Specifications

Control box supply voltage	100-125 VAC, 60 Hz
Supply voltage 30 V	DC
Installed load 150 W	max
Cable length 50 ft (15 m)
Cleaner size (WxDxH)	16 x 16.5 x 10 in. (41 x 42 x 25 cm)
Weight of Cleaner 20	Ibs. (9 kg)
Filtration	All-purpose filter canister
Cycle lengths 1.5 hr

The cleaner power supply is double-insulated.. A double-insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to ground. Therefore, devices having double-insulated construction, such as this cleaner, do not utilize a grounded (three-prong) cord/plug.

Section 3. Assembly and Setup

3.1 Unpacking

The packaging should contain the following items:

• Robotic cleaner and floating power cable
  • Control unit with power cord
• Transport and storage caddy assembly components (Figure 1)
  (a) handle frame
  (b) support blocks (x 2)
  (c) wheels (x 2)
  (d) wheel locking clips (x 2)
  (e) wheel axle / hubcap (x 2)
  (f) base unit
  (g) caddy handle

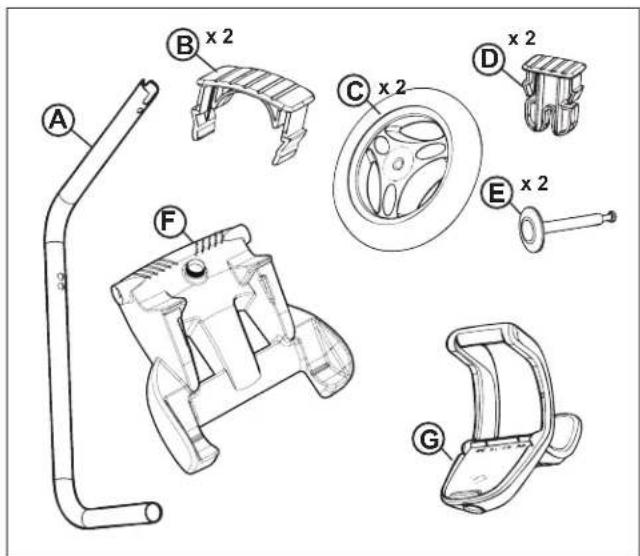

Technical diagram of a mechanical device with labeled parts A through G, including a multi-component assembly and a wheel.

Figure 1. Transport Caddy Assembly Components

When unpacking the cleaner and its components:

• Check to make sure each component is in the box.
• Check cleaner and components for damage.
  • If there are missing parts or damage, contact Polaris Technical Support:
  USA 1-800-822-7933
  Canada 1-888-647-4004.

3.2 Assembling the Transport Caddy

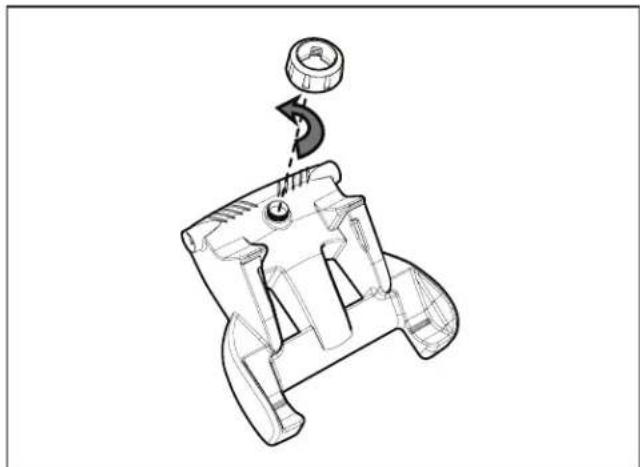

1. Unscrew the handnut from the base unit (Figure 2).

Technical line drawing of a mechanical device with a hook and circular component (no text or symbols)

Figure 2. Remove Handnut from Base Unit

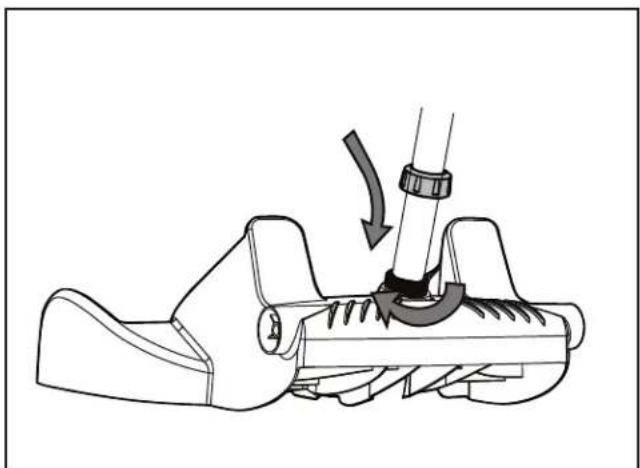

1. Insert the metal handle frame tubing into the base unit with notch end at the top, then rotate so the bends are away from you. (Figure 3).

2. Push base unit down (Figure 3) so the metal handle frame is seated in the recess on the underside of the base.

Diagram of a mechanical device with a lever and curved arm, showing motion arrows (no text or symbols)

Figure 3. Connect Metal Frame to Base Unit

1. Slide the handnut over the tube and twist to tighten onto base unit (Figure 4).

Mechanical diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols present)

Figure 4. Twist Handnut to Secure Frame

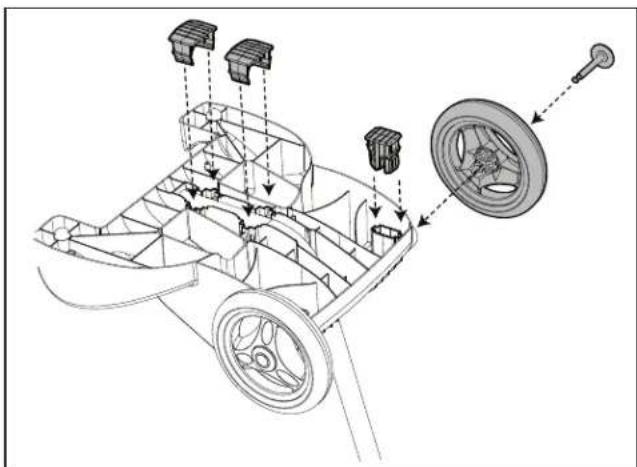

1. Snap two (2) support blocks into place (Figure 5).

2. Slide axle and hubcap piece through center of wheel and attach to base unit. Snap locking clip into place to secure wheel. Repeat to attach both wheels (Figure 5).

Technical line drawing of a vehicle chassis with labeled components and a wheel assembly (no text or symbols)

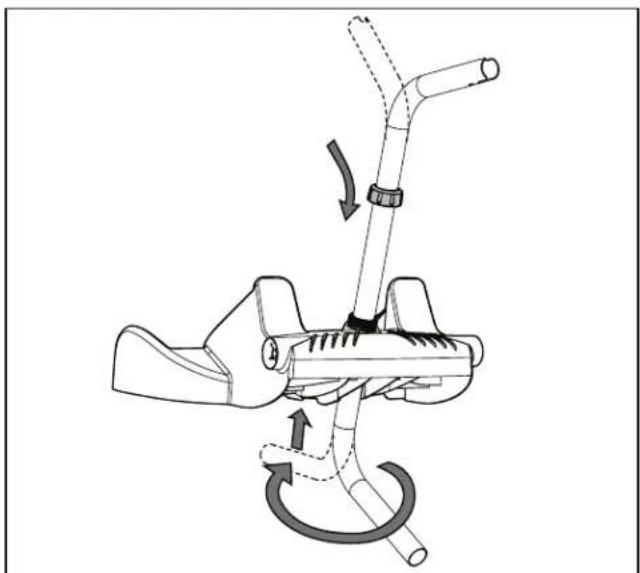

Figure 5. Snap in Support Blocks and Attach Wheels

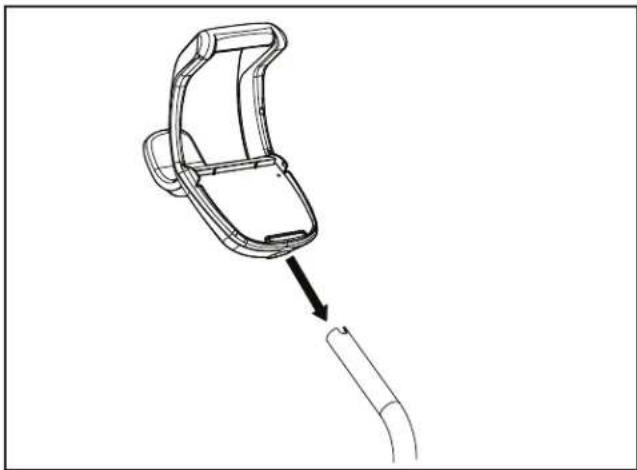

1. Slide the control unit base / caddy handle attachment down over the metal tubing until it snaps into place. (See Figure 6).

Line drawing of a mechanical device with a curved handle and a separate curved component, no text or symbols present.

Figure 6. Attach Caddy Handle

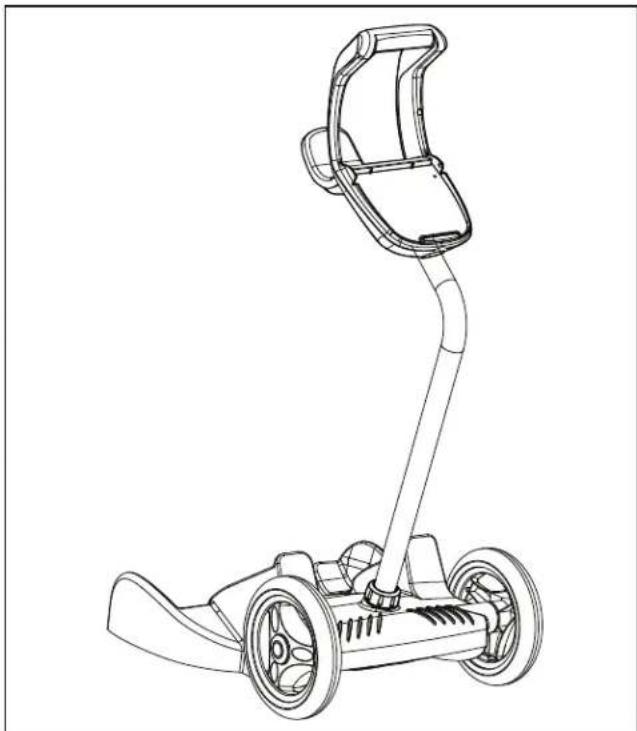

Line drawing of a mobility scooter with extended arm and wheels (no text or symbols)

Figure 7. Fully Assembled Transport Caddy

3.3 Connecting the Control Unit to the Caddy

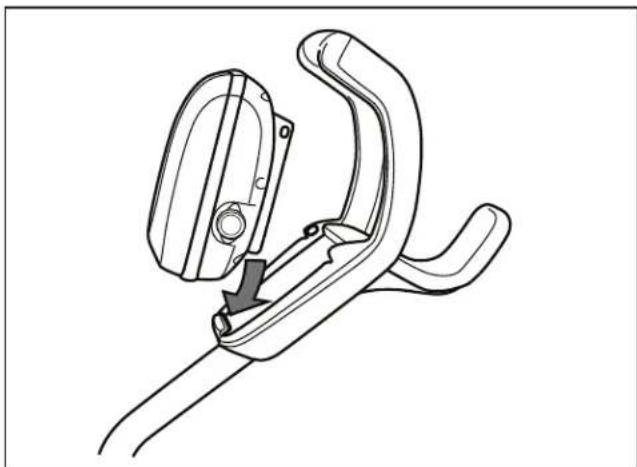

1. Align the bottom of the control unit with the notch at bottom of the control unit hook on the caddy (Figure 8).

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Figure 8. Align Control Unit on Caddy Hook

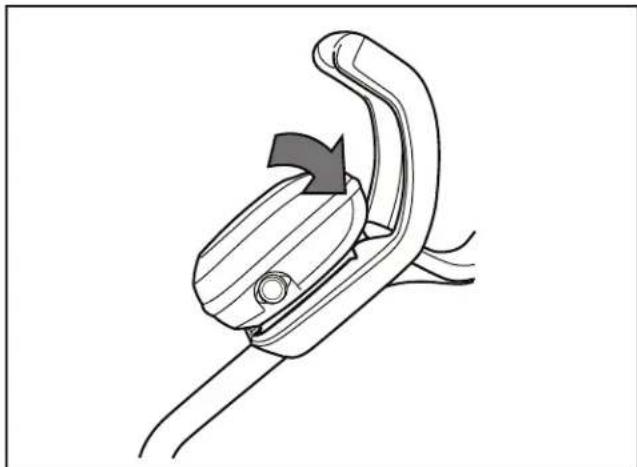

1. Press control unit onto the caddy hook until it snaps and locks into position (Figure 9).

Line drawing of a mechanical clamp or clip mechanism (no text or symbols)

Figure 9. Attach the Control Unit onto Caddy

3.4 Connecting to a Power Source

WARNING

Failure to comply with the following warnings can result in permanent injury, electrocution or drowning.

PREVENT ELECTRICAL SHOCK

• U.S.: Per NEC® requirements, keep the control unit at least five (5) ft. (1.5 m) from the edge of the pool. CANADA: Per CEC requirements, keep the control unit at least three (3) m (10 ft.) from the edge of the pool.
• Only connect the control unit to a receptacle protected by a ground fault circuit interrupter (GFCI). Contact a certified electrician if you cannot verify that the receptacle is protected by a GFCI.
• Do not use an extension cord to connect the control unit.
• Do not allow anyone to swim while the cleaner is in the pool.
• The control unit is water-resistant, not waterproof. In order to prevent electrocution, never submerge the control unit or leave exposed to inclement weather.

To Connect:

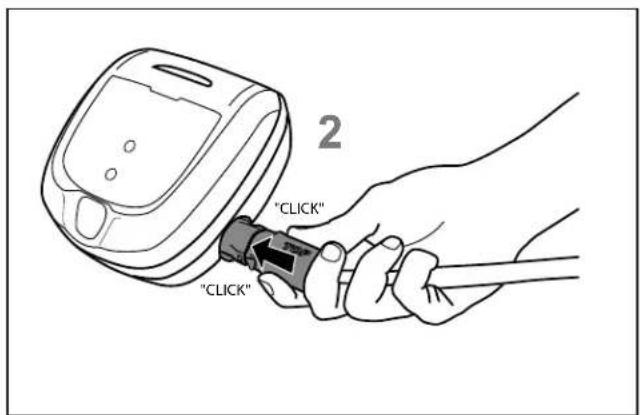

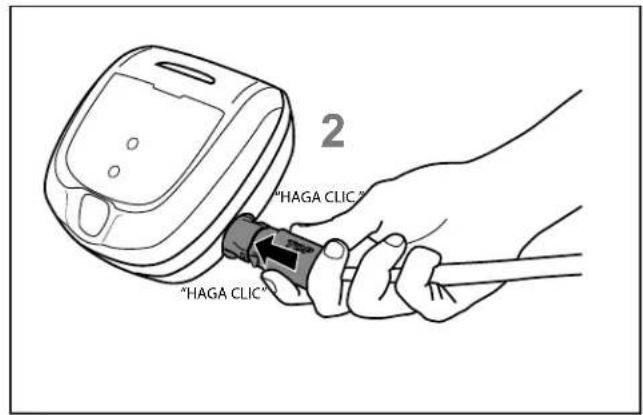

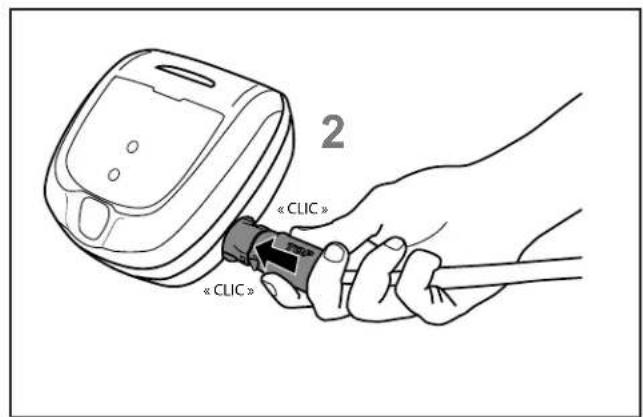

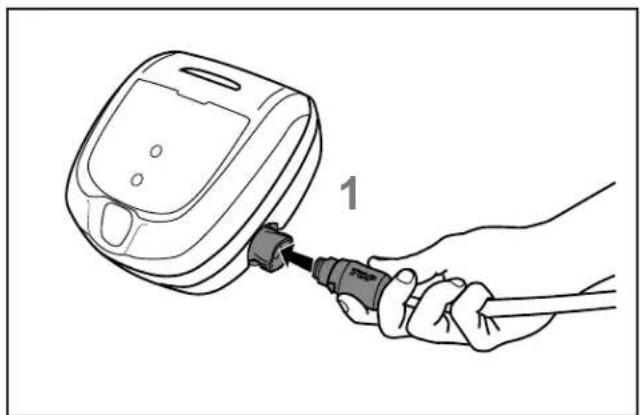

- Rotate the power cord so that TOP is shown on the top side. Press the power cord firmly into the control unit until you hear a "click" (see Figure 10). The clicking indicates the power cord is connected correctly creating a watertight seal.

Line drawing of a hand holding a small device connected to a plug, with no visible text or symbols

"CLICK" "CLICK" 2

Figure 10. Connect the Power Cord

To Disconnect:

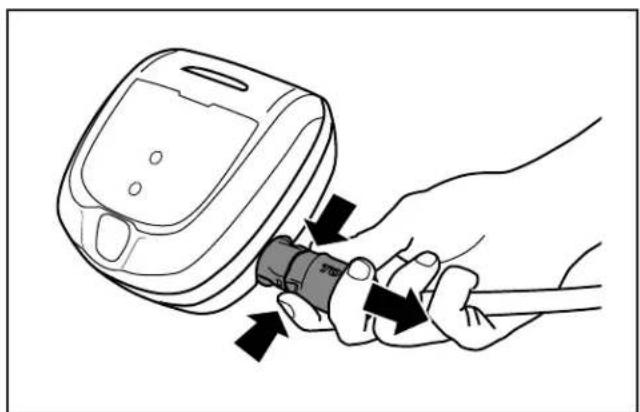

- Grip the power cord firmly on each side and press two tabs to release (see Figure 11.)

Illustration of a hand inserting a plug into a device (no text or symbols present)

Figure 11. Disconnect the Power Cord

Section 4. Operation

CAUTION

To prevent damage to the cleaner, be sure to adhere to the following guidelines:

• Remove the cleaner from the pool after the cleaning cycle is completed and store on the caddy out of direct sunlight or inclement weather.
• Never lift the cleaner out of the pool by the floating cable. Always use the handle to remove cleaner from the pool.
  • Take additional care when lifting the cleaner out of the pool. It becomes heavier when filled with water.
  • Always remove the cleaner from pool when super chlorinating or adding acid.
• Do not handle cleaner while it is in operation.

IMPORTANT

• Always make sure the cleaner head is fully submerged before you begin operation.
- Clean the filter canister after each cleaning cycle.
- Do not leave your cleaner in the pool on a permanent basis.
- At the end of each cycle, remove the cleaner from the pool. Start at the cleaner head and untangle any coils in the cable before storing the cleaner.

The Polaris robotic cleaner includes a safety feature that automatically stops the cleaner if it is powered on but not submerged in water. For pools equipped with a beach area, this safety feature is programmed to drive the cleaner in reverse and back into the pool when the impeller is out of the water.

4.1 Cleaner Control Unit

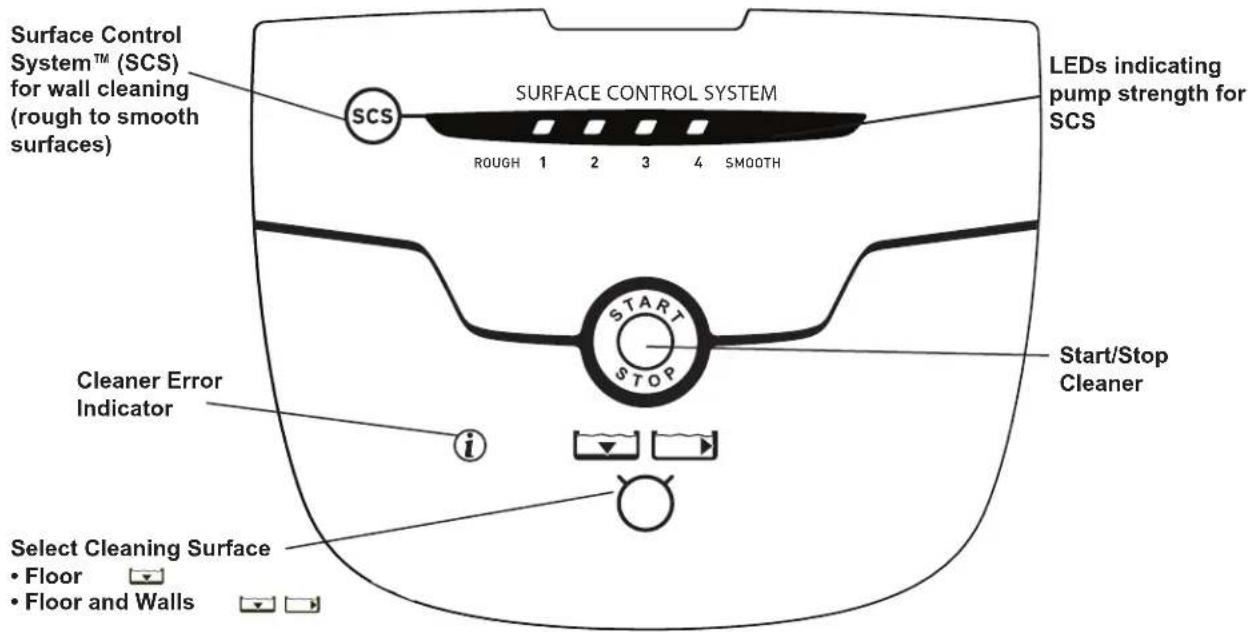

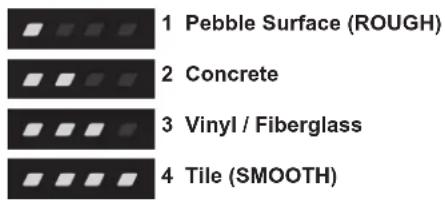

Surface Control System™ (SCS) for wall cleaning (rough to smooth surfaces) SCS SURFACE CONTROL SYSTEM ROUGH 1 2 3 4 SMOOTH LEDs indicating pump strength for SCS START STOP Cleaner Error Indicator Start/Stop Cleaner Select Cleaning Surface • Floor • Floor and Walls

4.2 Submerging the Cleaner

1. Submerge the cleaner vertically (1) and hold it under the surface, moving gently from side to side (2) until the bubbles stop to remove any air trapped inside (see Figure 12).
2. When the bubbles stop, allow the cleaner to sink to the bottom of the pool.
3. Verify the cleaner is sitting on the bottom of the pool. Remove additional air if the cleaner is still floating.

NOTE: The handle of the cleaner remains up whether the cleaner is OFF or ON.

1

Illustration of a tracked robotic vehicle with bubbles and water flow, no text or symbols present

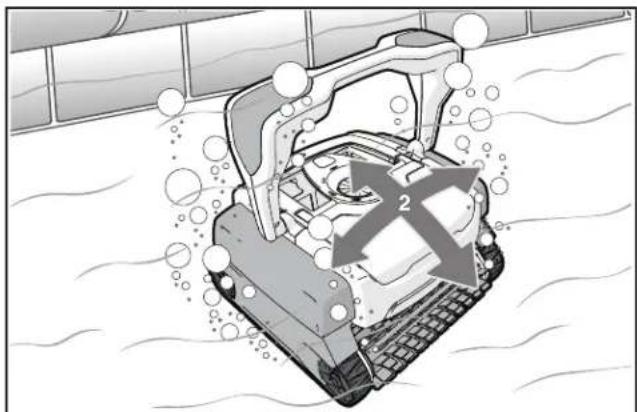

Figure 12. Submerge and Remove Trapped Air

1. Spread the floating cable over the pool, making sure there are no kinks or coils in the cable.

NOTE: For optimal patterning and reduced tangling, the floating cable should enter the water near the middle of the pool length. Only place enough cable in the water to reach the farthest point in the pool (see Figure 13).

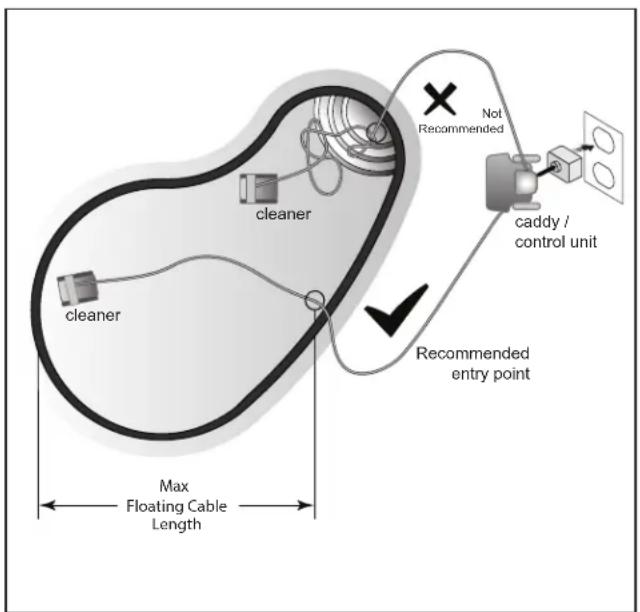

cleaner cleaner Max Floating Cable Length Recommended entry point Not Recommended caddy / control unit

Figure 13. Set Up for Optimal Patterning

4.3 Starting the Cleaner

The first time you use the cleaner, the cleaning surface setting is Floor and Walls

After the first time, the default is the last setting used.

Select Cleaning Surface:

- Use to change cleaning surface setting.

Begin Cleaning:

• After selecting the cleaning surface, press to begin operation.
- At the beginning of the cycle, the cleaner remains in place for a few seconds to initialize the microcontroller after the pump starts.

NOTE: Periodically the cleaner will pause for up to 20 seconds throughout the cleaning cycle. The cleaner is calibrating its position in the pool during this process. This is normal operation and the cleaner will resume movement immediately after calibration with no user action required. The pause does not affect the overall cleaning cycle.

4.4 Wall Climbing (Surface Control System™)

The cleaner has the ability to clean the pool walls up to the waterline. How much the cleaner needs to grip to the wall depends upon the pool surface.

Grip Intensity Indicator:

Surface Control System (SCS) settings are as follows for different pool surface types:

1 Pebble Surface (ROUGH) 2 Concrete 3 Vinyl / Fiberglass 4 Tile (SMOOTH)

Check Wall Climbing Setting:

- Start the cleaner and watch as the cleaner climbs each wall. If grip setting is correct, the cleaner will easily climb the wall and clean up to the waterline. The default setting is

NOTE: Wall climbing is programmed in a randomized pattern. Cleaner may climb wall and not reach waterline until third or fourth attempt in order to thoroughly clean wall surface below the waterline first.

- Adjust the wall climbing setting as necessary using the following guidelines: Increase: if cleaner is climbing the wall slowly and stays below the waterline. Decrease: if cleaner is climbing the wall too quickly and sucking air at the waterline.

Adjust SCS Wall Climbing Setting:

You can change the wall climbing setting at any time during cleaner operation with the SCS button. The new setting will be active when the cleaner climbs the next wall.

- Press to adjust the wall climbing setting one level higher.

• One additional LED lights each time you press the button to indicate stronger grip on the wall.

• To decrease setting, press button to cycle through back to one LED (lowest setting).

1 2 3 4

4.5 Stopping the Cleaner and Removing from the Pool

1. If the cleaner is still in operation, press to interrupt operation. If cleaning cycle is complete, begin at Step 2.

1. When the cleaner is within arm's reach, pull gently on the floating cable to bring the cleaner handle within arm's reach.

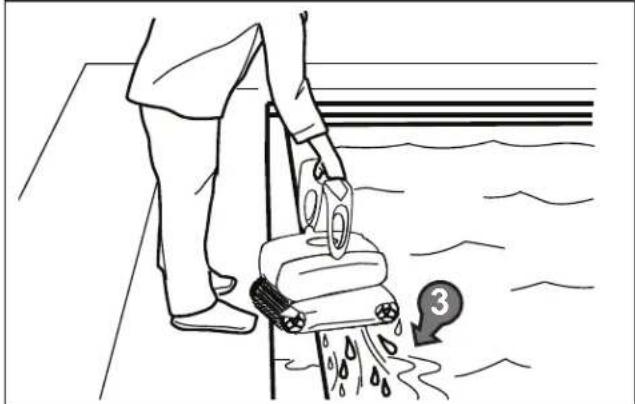

2. Use the handle to lift the cleaner from the water and hold the cleaner vertically over the pool surface to drain (see Figure 14).

Never lift the cleaner out of the pool by the floating cable.

Diagram showing a robotic arm operating a robotic device with two directional arrows labeled 1 and 2 indicating movement or force.

Diagram showing a person using a cleaning tool to clean water, with a numbered callout indicating step 3.

Figure 14. Lift Cleaner From Pool with Handle, then drain Out the Water

4.6 Cleaning the Filter Canister

Always empty and clean the filter canister at the end of each cleaning cycle.

WARNING

To avoid electric shock and other hazards which could result in serious injury or death, disconnect (unplug) the cleaner from the power source before performing any cleaning and maintenance.

1. Unplug power to the cleaner at the control unit. Unplug the control unit from the power source.

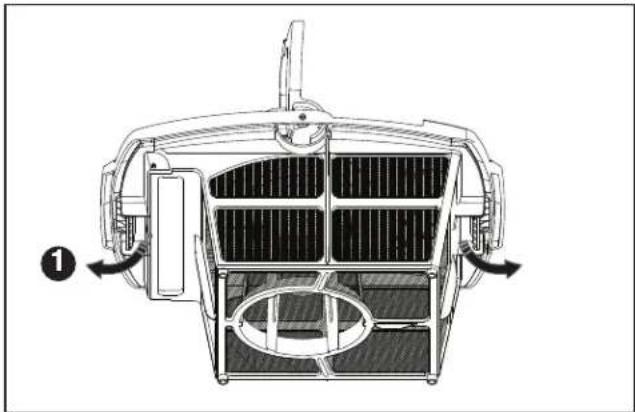

2. Press the PUSH 'N' GO ^ button (1) to release the filter canister handle (see Figure 15).

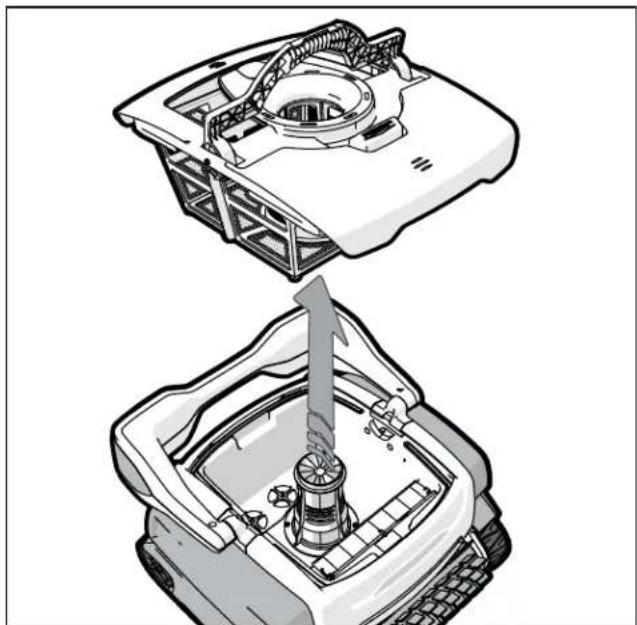

3. Grasp the filter canister handle and lift up to remove the filter canister (see Figure 16).

Technical diagram of a tracked robot with labeled parts, showing engine and wheel assembly

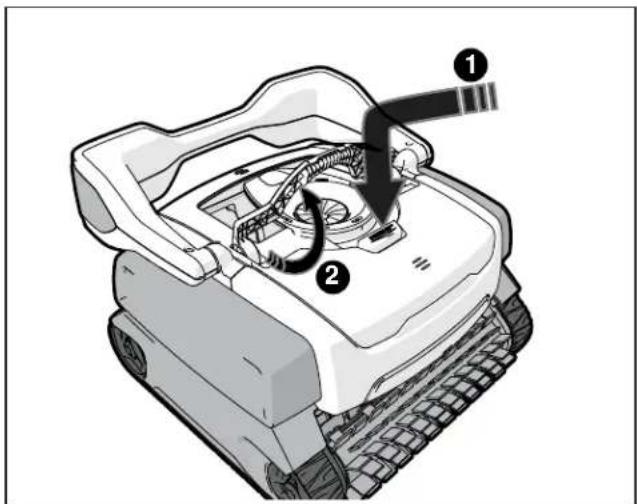

Figure 15. Release Filter Canister Handle

Two views of a mechanical device showing internal components and a directional arrow (no text or symbols)

Figure 16. Remove the Filter Canister

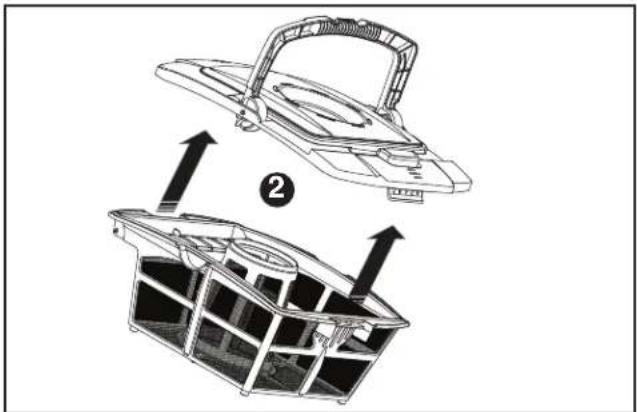

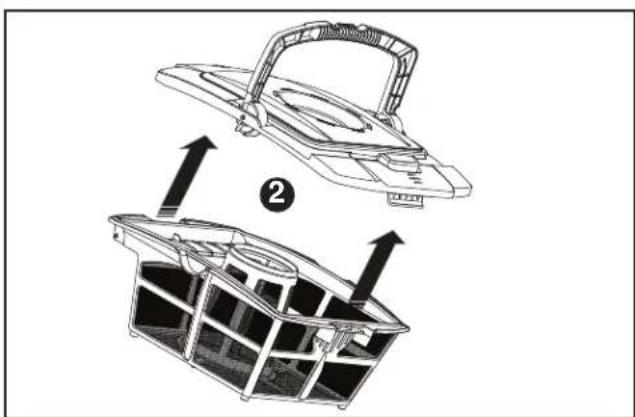

1. Press two latches (1) and remove the filter canister lid (2) (See Figure 17).

Technical line drawing of a vehicle front panel with internal fan structure and directional arrows (no text or symbols)

Technical illustration of a mechanical device with two views: top shows a handle, bottom shows a tray with internal compartments (no text or symbols)

Figure 17. Remove Filter Canister Lid

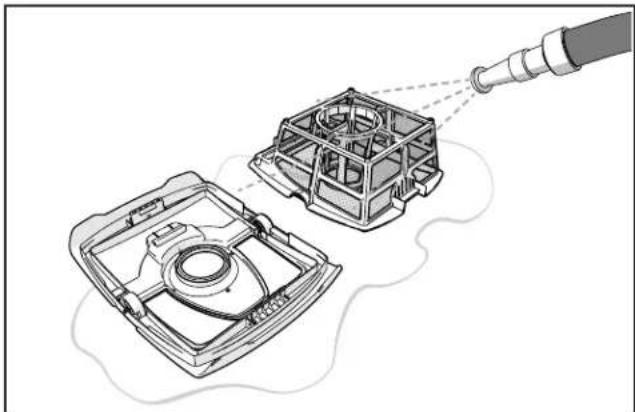

1. Using a hose with clean water, rinse the filter canister and lid to remove all debris (see Figure 18). Periodically, use mild soap to wash the canister mesh and remove fine debris that can clog the flow through the filter canister. Rinse thoroughly with clean water.

Technical illustration of a mechanical assembly with a tool spraying into a housing component (no text or symbols present)

Figure 18. Rinse the Filter Canister

1. Replace lid on the canister and then replace canister back into the cleaner body.

4.7 Storing the Cleaner

The cleaner must be cleaned regularly using slightly soapy clean water. Do not use solvents such as acetone or its equivalent. Rinse the cleaner generously using clean water. Do not let your cleaner dry in direct sunlight near the pool. The cleaner must be stored on its caddy so that it dries quickly.

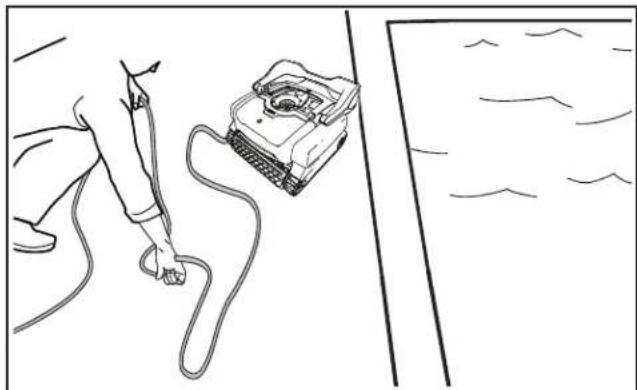

1. Starting at the cleaner head. Remove all coils and tangles from the cable (see Figure 19).

Line drawing of a person using a vintage telephone on a surface, with no visible text or symbols

Figure 19. Untangle the Floating cable

1. Place the cleaner in vertical position on the caddy base with the rear tracks on the caddy side wedges (see Figure 20).

2. Loosely coil the power cable starting at the cleaner and moving toward the connection point at control unit. Store the cable by wrapping it around the hook located on the front of the caddy (see Figure 20).

3. Disconnect the cable from the control unit and coil loosely around the caddy hook.

4. If you removed the control unit from the caddy, replace it by aligning the bottom of the control unit with the caddy notch, hook it onto the caddy, then press firmly in place until you hear a "click".

Illustration of a small electric scooter with wheels and attached sensor components (no text or symbols)

Figure 20. Cleaner Stored Correctly on Caddy

Section 5. Maintenance

WARNING

To avoid electric shock and other hazards which could result in serious injury or death, disconnect (unplug) the cleaner from the power source before performing any cleaning and maintenance.

5.1 Avoid Cord Tangling

During cleaning, always allow enough floating cable to reach across the farthest length of the pool but do not let excessive cable in the pool. Excessive cable length may cause tangling or affect the cleaning pattern (see Figure 21).

cleaner cleaner Max Floating Cable Length Recommended entry point Not Recommended

Figure 21. Spread Floating Cable Across Farthest Distance of the Pool

IMPORTANT

The floating cable may become tangled if correct procedure is not followed.

Do not leave the cleaner unattended for prolonged periods, always spread the floating cable over the pool, and follow the procedure below to avoid excessive tangling.

After every cleaning cycle:

1. Unplug power to the cleaner at the control unit.
2. Remove the cleaner from the pool and untangle all kinks and coils in the floating cable starting at the cleaner head (see Figure 22). Lay cable in sunlight to loosen tangling memory in the cable.
3. Plug power cord back into control unit and store cleaner on the caddy out of direct sunlight for next use.

Cleaner Control Unit /Caddy

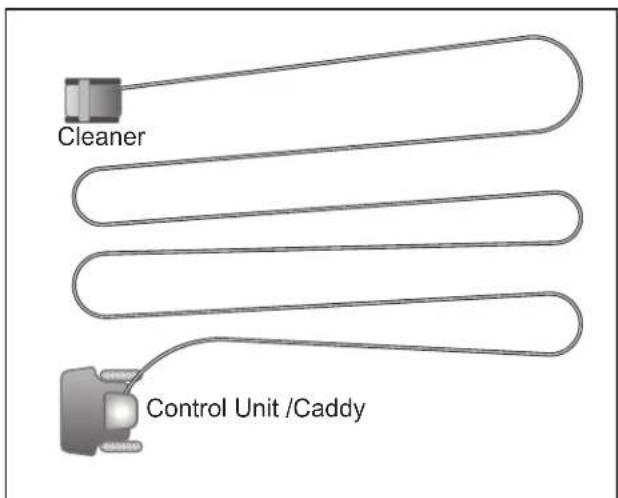

Figure 22. Untangle the Floating cable

5.2 Check for Brush Wear

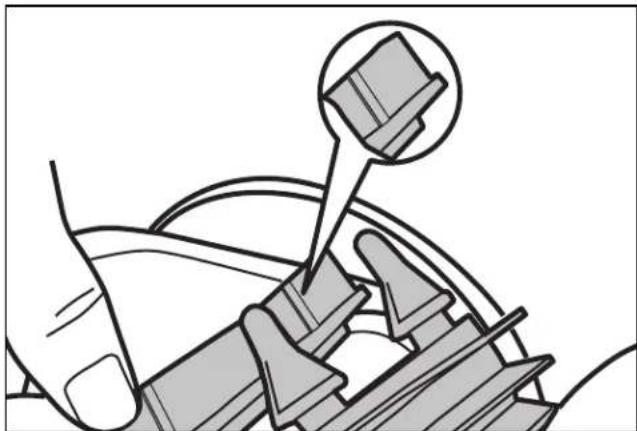

The cleaner is fitted with PVC brushes in front and rear. There are raised grooves that are "wear" indicators on the brushes located next to the tab connectors (see Figure 23). As brushes wear out, the raised groove will flatten and smoothen into the track.

Mechanical assembly diagram showing a hand operating a gear with a gasket inserted (no text or symbols present)

Figure 23. Wear Indicators

To maintain optimal cleaner performance, replace the brushes as soon as one of the wear indicators is smooth or worn down (even if the blade wear is not even). It is recommended that brushes are routinely replaced every two (2) years.

To Replace Brushes:

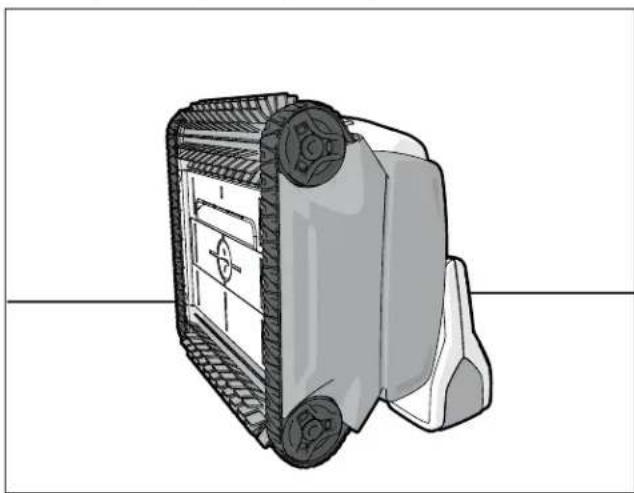

1. Stand the cleaner on its end in a vertical position (see Figure 24).

3D rendering of a mechanical vehicle with visible wheels and mounting brackets (no text or symbols)

Figure 24. Stand Cleaner Upright

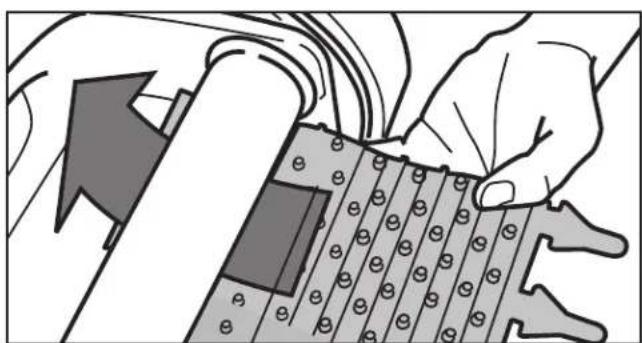

1. Separate the edges of the brush, undo the tabs, and remove the worn brush.

2. Position the new brush underneath the roller with spikes facing downward (see Figure 25).

Illustration of hands assembling a mechanical component with a grid pattern (no text or symbols)

Figure 25. Position the New Brush on Roller

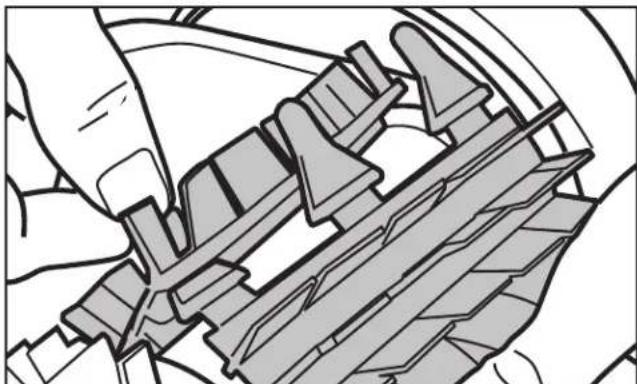

1. Thread each tab into the slot provided and gently feed it through until the heel comes out at the other side of the slot (see Figure 26).

Technical illustration of a mechanical assembly with no visible text or symbols

Figure 26. Pull Tabs Through Each Slot

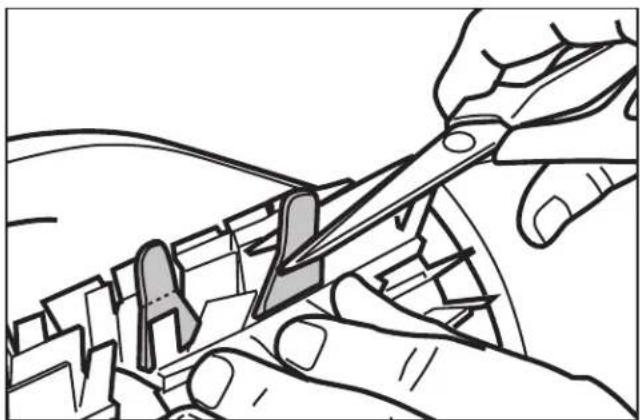

1. Use scissors to cut the tabs so they are no higher than the spikes (see Figure 27).

Line drawing of hands using scissors to cut or adjust a mechanical component (no text or symbols)

Figure 27. Cut Tabs

1. Repeat this procedure to replace the second brush.

5.3 Replacing the Tracks

If the treads on the interior side of the tracks appear completely worn or if pool coverage is not normal, contact your local Polaris dealer for diagnostic and track replacement.

Section 6. Replacement Parts

The complete spare parts list and exploded view is available on the Polaris website at www.polarispool.com. In Canada, parts list and exploded view is available at www.polarispool.ca

Section 7. Troubleshooting

7.1 Using the Cleaner Error Indicator

The Cleaner Error Indicator i on the control unit flashes in a specific sequence to indicate one of three possible cleaner malfunctions.

Information LED Flashing Solution
LED flashes once with one second interval.	Unplug the floating cable from the control unit and reconnect.If the problem is not resolved through troubleshooting, first contact your local retailer to request a diagnostic review, or contact Polaris Technical Support at (USA) 1-800-822-7933; 1-888-647-4004 (Canada).
LED flashes twice with one second interval.	Turn cleaner wheels to ensure they are not jammed.Check brushes for debris.Start a new cleaning cycle.If the problem is not resolved through troubleshooting, first contact your local retailer to request a diagnostic review, or contact Polaris Technical Support at (USA)1-800-822-7933; 1-888-647-4004 (Canada).
LED flashes three times with one second interval.	Check the pump cover for debris.Check propellor for debris.Clean the filter.Start a new cleaning cycle.If the problem is not resolved through troubleshooting, first contact your local retailer to request a diagnostic review, or contact Polaris Technical Support at (USA)1-800-822-7933; 1-888-647-4004 (Canada).

7.2 General Troubleshooting

The following table lists some of the common symptoms, causes, and solutions for correcting cleaner operation problems.

Problem Cause Solution
The Cleaner Error Indicator flashes just after start (either pressing Power or Floor/ Wall setting button for less than 20 seconds).	Floating cable may not be plugged into the control unit correctly.	Unplug floating cable from the control unit and reconnect.
	Cleaner may not be fully submerged.	Remove cleaner from the pool and re-submerge, see Submerging the Cleaner.
	Cleaner may need to be reset and begin a new cycle.	Press power button OFF, then Floor/Wall setting button to begin a new cycle.
	Propeller may be jammed and not turning correctly.	First contact your local retailer to request a diagnostic review, and if the problem is not resolved contact Polaris Technical Support at (USA) 1-800-822-7933; 1-888-647-4004 (Canada).
	Tracks may be jammed and not turning correctly.	First contact your local retailer to request a diagnostic review, and if the problem is not resolved contact Polaris Technical Support at (USA) 1-800-822-7933.; 1-888-647-4004 (Canada).
The Cleaner Error Indicator flashes during the cleaning cycle.	Cleaner may be sucking air (lights will appear after 60 seconds air intake).	Remove cleaner from the pool and re-submerge, see Submerging the Cleaner. Reduce the SCS setting.
The cleaner does not stay firmly on the pool bottom.	There is air in the cleaner body panels.	Remove cleaner from the pool and re-submerge, see Submerging the Cleaner. Reduce the SCS setting.
	The filter canister is full or dirty. Clean	the filter canister, see Cleaning the Filter Canister.
	The impeller is damaged. Contact Polaris Technical Support at 1-800-822-7933 (USA); 1-888-647-4004 (Canada).
The cleaner does not climb the pool walls or clean up to the waterline.	The filter canister is full or dirty. Clean	the filter canister, see Cleaning the Filter Canister.
	Walls of pool are slippery or slimy. Although the water seems clear, microscopic algae, invisible to the human eye, are present in the pool. As a result the pool walls become slippery and prevent the cleaner from climbing. Check tracks and brushes for wear and replace as necessary.	Adjust Surface Control SystemTM setting, see Wall Cleaning.Do a shock chlorination treatment to reduce the pH levels in the pool. DO NOT leave the cleaner in the pool during this treatment.
On startup the cleaner does not move.	No power supply to the cleaner. Check	that the outlet to which the control unit is connected is receiving electricity.
	Cleaner has shut down with error code or flashing lights.	Disconnect the control unit and wait at least 20 seconds before reconnecting.If the problem is not resolved through troubleshooting, first contact your local retailer to request a diagnostic review, or contact Polaris Technical Support at 1-800-822-7933 (USA); 1-888-647-4004 (Canada).

Problem Cause Solution

Cleaner stops up to 20 seconds during cleaning cycle.	Cleaner is performing normal calibration operation.	No user action required. The pause does not affect the overall cleaning cycle.
Cable is tangling in the pool	Too much cable length in the water. Do not unravel the entire cable. Use only the amount needed for the cleaner to cover the pool area.Place the remaining unused cable on the side of the pool. Follow the procedure in Cord Tangling to avoid and correct tangled cord.
The cleaner is not cleaning effectively.	The brushes have become smooth or the "wear" indicator shows.	Replace the brushes following the procedure in Replacing the Brushes.
	Filter canister is full or dirty. Clean the filter canister following the procedure in Cleaning the Filter Canister.
	Floating cable is excessively coiled or kinked.	Make sure the floating cable is spread out over the pool. Ensure the cable is not too tightly wrapped or coiled when storing. If the problem persists, lay the cable straight in the sun to relax it and remove kinks. Follow the procedure in Cord Tangling to avoid and correct tangled cord.

NOTES

NOTES

Zodiac Pool Systems, Inc.

2620 Commerce Way, Vista, CA 92081

1.800.822.7933 | www.ZodiacPoolSystems.com

Zodiac Pool Systems Canada, Inc.

2115 South Service Road West, Unit 3

Oakville, Ontario • Canada L6L 5W2

1.888.647.4004 | www.ZodiacPoolSystems.ca

POLARIS® and the Polaris 3-wheeled cleaner design are registered trademarks of Zodiac Pool Systems, Inc.

ZODIAC ^® is a registered trademark of Zodiac International, S.A.S.U., used under license. All other trademarks referenced herein are the property of their respective owners.

©2016 Zodiac Pool Systems, Inc. H0576900_REVB

Line drawing of a tracked robotic vehicle with visible wheels and central hub (no text or symbols)

Technical diagram of a mechanical device with labeled parts A through G, including components like brackets, wheels, and a handle.

Technical line drawing of a mechanical component with a hook and circular head (no text or symbols)

Mechanical diagram showing a lever mechanism with rotating shaft and guide rod (no text or symbols)

Mechanical diagram showing a lever mechanism with a rotating shaft and curved motion arrow (no text or symbols)

Technical line drawing of a vehicle chassis with labeled components and assembly lines (no text or symbols)

Line drawing of a car interior component with a hand pointing to a curved pipe or pipe fitting (no text or symbols)

Line drawing of a mobility scooter with extended arm and wheels (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical clamp or clip mechanism (no text or symbols)

Line drawing of a hand holding a medical device with a plug inserted, labeled '1' (no text or symbols on the device itself)

Illustration of a hand inserting a plug into a device (no text or symbols present)

Illustration of a tracked robotic vehicle with bubbles and motion arrows, partially submerged in water (no text or symbols)

Technical diagram of a tracked robot with labeled parts, showing engine and gear assembly

Two views of a mechanical device showing internal components and a directional arrow (no text or symbols)

Figure 16. Retirer la cartouche filtrante

Technical line drawing of a vehicle front panel with internal fan structure and directional arrows (no text or symbols)

Technical illustration of a mechanical device with two views: top shows top view, bottom shows side view (no text or symbols)

Technical illustration of a mechanical assembly with a tool spraying through a housing component (no text or symbols present)

Figure 18. Rincer la cartouche filtrante

Line drawing of a person using a handheld device to connect wires, with no visible text or symbols

Illustration of a cleaning or cleaning device with attached pipes and wheels (no text or symbols)

Mechanical assembly diagram showing a hand operating a gear with a gasket inserted (no text or symbols)

Illustration of a mechanical device with wheels and a central display (no text or symbols)

Illustration of hands holding a mechanical component with bolt holes and a grid pattern (no text or symbols)

Technical illustration of a mechanical assembly with hands operating a component (no text or symbols visible)

Line drawing of hands using scissors to cut a mechanical component (no text or symbols)

Illustration 27. Couper les onglets

Zodiac Pool Systems, Inc.

2620, Commerce Way, Vista, CA 92081

1-800-822-7933 | www.ZodiacPoolSystems.com

Line drawing of a tracked robotic vehicle with open lid and wheels (no text or symbols)

Technical line drawing of a mechanical device with a dial indicator (no text or symbols)

Diagram of a mechanical device with a lever and curved arm, showing motion arrows (no text or symbols)

Mechanical diagram showing a lever mechanism with a rotating shaft and guide mechanism (no text or symbols)

Technical line drawing of a vehicle chassis with labeled components and assembly lines (no text or symbols)

Line drawing of a mechanical device with a curved handle and arrow indicating motion (no text or symbols)

Figura 6. Instale la manija del carrito

Line drawing of a mobility scooter with extended arm and wheels (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical clamp or clip mechanism (no text or symbols)

Line drawing of a hand holding a medical device with a plug inserted, labeled '1' (no text or symbols on the device itself)

"HAGA CLIC" "HAGA CLIC" 2

Illustration of a hand inserting a plug into a device with arrows indicating insertion (no text or symbols present)

Illustration of a robotic vehicle with bubbles and motion arrows, partially submerged in water (no text or symbols)

Figure 12. Sumerja y retire el aire atrapado

Diagram showing a robotic device with two labeled arrows indicating positions or actions, possibly illustrating a procedure or operation.

Diagram showing a person using a cleaning tool to clean water, with a numbered callout indicating step 3.

Technical diagram of a tracked robot with labeled parts, showing engine and wheel assembly

Figure 15. Libere la manija del cartucho del filtro

Two views of a mechanical device showing internal components and a directional arrow (no text or symbols)

Technical line drawing of a vehicle front panel with internal compartments and directional arrows indicating motion (no text or symbols)

Technical illustration of a mechanical device with two views: top shows a handle, bottom shows a grid-like structure (no text or symbols)

Figure 17. Retire la tapa del cartucho del filtro

Technical illustration of a mechanical assembly with a tool spraying into a housing component (no text or symbols present)

Line drawing of a person using a handheld device to connect cables, with no visible text or symbols

Figura 19. Desenrede el cable flotante

Line drawing of a scooter with wheels and seat, no text or symbols present

Mechanical assembly diagram showing a hand operating a tool with a gasket inserted (no text or symbols present)

Illustration of a robotic vehicle with visible wheels and a targeting pad (no text or symbols)

Figure 24. Stand Cleaner Upright

Illustration of hands assembling a mechanical component with bolts and a tool (no text or symbols visible)

Technical line drawing of a mechanical assembly or component (no visible text or symbols)

Line drawing of hands using scissors to cut a mechanical component (no text or symbols)

Zodiac Pool Systems, Inc.

2620 Commerce Way, Vista, CA 92081

1.800.822.7933 | www.ZodiacPoolSystems.com

Zodiac Pool Systems Canada, Inc.

2115 South Service Road West, Unit 3

Oakville, Ontario • Canada L6L 5W2

1.888.647.4004 | www.ZodiacPoolSystems.ca

POLARIS® and the Polaris 3-wheeled cleaner design are registered trademarks of Zodiac Pool Systems, Inc.

ZODIAC ^® is a registered trademark of Zodiac International, S.A.S.U., used under license.

All other trademarks referenced herein are the property of their respective owners.
