Distante 120 W SM - Basket EICO - Free user manual and instructions

Product type	Decorative hood with remote motor
Brand	Eico
Model	Distante 120 W SM
Width	120 cm (estimated)
Minimum distance to cooking surface	65 cm
Electrical supply	220-240 V, 50/60 Hz
Maximum power of remote motor	690 W
Power cable section	H05W-F 3 x 0,75 mm²
Operating modes	Extracting or filtering (recirculation)
Number of motor speeds	4 (including intensive speed)
Lighting	LED spotlight (replacement by technician)
Control types	Push buttons, Soft Touch, Digital, Remote control depending on version
Special functions	Motor shutdown timer 10 min, filter cleaning alert after 100h
Cleaning metal filters	Every 2-3 months, hot water and non-aggressive detergent
Charcoal filters	Polyester (replacement 4 months) or Long Life (washable every 2 months)
Surface cleaning	Soft cloth, warm water, neutral detergent (no abrasives)
Safety	Installation by qualified personnel, grounding mandatory
Spare parts	Filters, LED lamps, remote control (available from the manufacturer)
Repairability	Replace filters by user; motor and lighting by technician
Use with induction hob	Possible (risk of condensation, turn on hood 10 min before)

Frequently Asked Questions - Distante 120 W SM EICO

What is the minimum installation distance between the hood and the cooking surface?

The minimum distance is 65 cm. Any lower distance must be authorized by the manufacturer.

How to use the automatic shut-off function (timer)?

With the Soft Touch control, press and hold the 2nd speed button for more than 3 seconds to activate the shut-off after 10 minutes. With the digital control, press the TIMER button. The remote control also has a TIMER button.

What to do if the filter indicator flashes?

This indicates that it is time to clean the metal filters (after 100 hours of use). After washing them, reset the counter: on the digital control, hold down the TIMER button for more than 3 seconds with the hood off. For the remote control, press and hold the On/Off button with the hood off.

How to clean the metal filters?

Remove them by pulling downwards (fig. 5). Wash them every 2-3 months with hot water and a non-aggressive liquid detergent. You can also put them in the dishwasher.

What types of charcoal filters exist and when to replace them?

There are two types: polyester (replace every 4 months) and Long Life (dishwasher safe every 2 months). To reactivate the Long Life charcoal, put it in the oven at 100°C for 10 minutes. Replace it when odors persist.

Can I use the hood in recirculation mode?

Yes, for this you need to install charcoal filters (not supplied). The hood then operates in a closed circuit, returning purified air to the kitchen.

How to pair a new remote control?

With the hood off, press the On/Off button (or + depending on model) on the hood for 5 seconds. The red LED blinks. Send a signal by pressing a button on the remote control within one minute. The LED stays on for 3 seconds to confirm pairing.

Why is there condensation inside the hood?

Condensation occurs mainly with induction or ceramic hobs. To avoid it, turn on the hood 10 minutes before cooking and leave it running after cooking. Also check that the exhaust duct has the correct diameter (greater than or equal to the connector).

What to do if the hood no longer turns on?

First check the power supply (main switch, fuse). If the cable is damaged, it must be replaced by a technician with a cable H05W-F 3x0,75 mm². For more complex faults, contact after-sales service.

Can I install the hood myself?

Installation must be carried out by qualified personnel to ensure safety and compliance with standards. Improper installation may void the warranty and pose fire or electrocution risks.

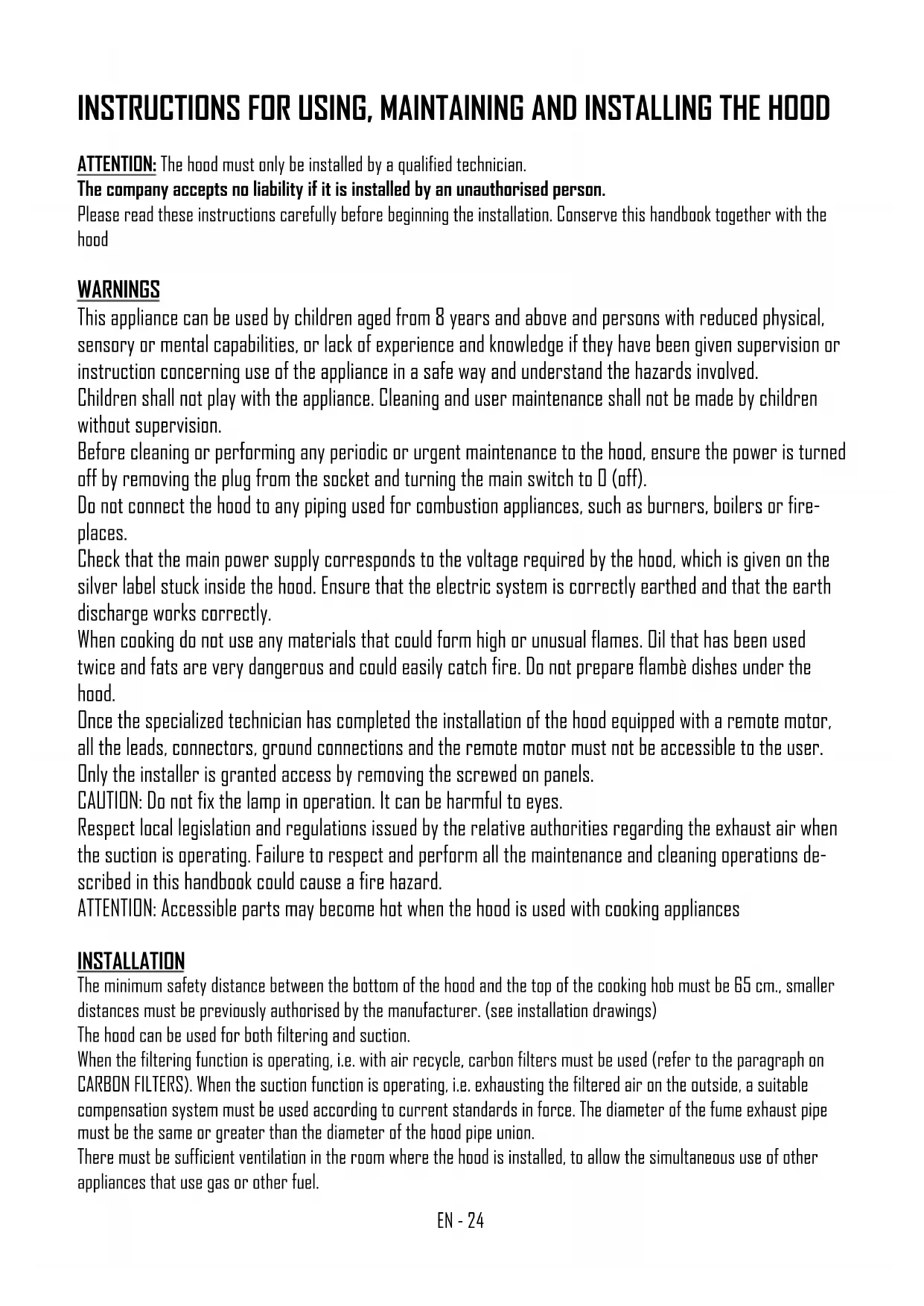

USER MANUAL Distante 120 W SM EICO

INSTRUCTIONS FOR USING, MAINTAINING AND INSTALLING THE HOOD

ATTENTION: The hood must only be installed by a qualified technician.

The company accepts no liability if it is installed by an unauthorised person.

Please read these instructions carefully before beginning the installation. Conserve this handbook together with the hood

WARNINGS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Before cleaning or performing any periodic or urgent maintenance to the hood, ensure the power is turned off by removing the plug from the socket and turning the main switch to 0 (off).

Do not connect the hood to any piping used for combustion appliances, such as burners, boilers or fireplaces.

Check that the main power supply corresponds to the voltage required by the hood, which is given on the silver label stuck inside the hood. Ensure that the electric system is correctly earthed and that the earth discharge works correctly.

When cooking do not use any materials that could form high or unusual flames. Oil that has been used twice and fats are very dangerous and could easily catch fire. Do not prepare flambè dishes under the hood.

Once the specialized technician has completed the installation of the hood equipped with a remote motor, all the leads, connectors, ground connections and the remote motor must not be accessible to the user.

Only the installer is granted access by removing the screwed on panels.

CAUTION: Do not fix the lamp in operation. It can be harmful to eyes.

Respect local legislation and regulations issued by the relative authorities regarding the exhaust air when the suction is operating. Failure to respect and perform all the maintenance and cleaning operations described in this handbook could cause a fire hazard.

ATTENTION: Accessible parts may become hot when the hood is used with cooking appliances

INSTALLATION

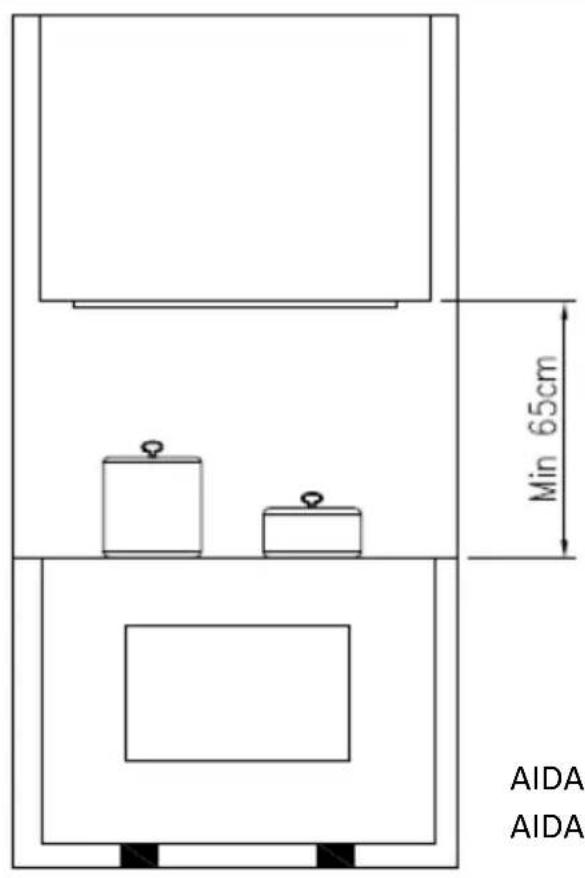

The minimum safety distance between the bottom of the hood and the top of the cooking hob must be 65 cm., smaller distances must be previously authorised by the manufacturer. (see installation drawings)

The hood can be used for both filtering and suction.

When the filtering function is operating, i.e. with air recycle, carbon filters must be used (refer to the paragraph on CARBON FILTERS). When the suction function is operating, i.e. exhausting the filtered air on the outside, a suitable compensation system must be used according to current standards in force. The diameter of the fume exhaust pipe must be the same or greater than the diameter of the hood pipe union.

There must be sufficient ventilation in the room where the hood is installed, to allow the simultaneous use of other appliances that use gas or other fuel.

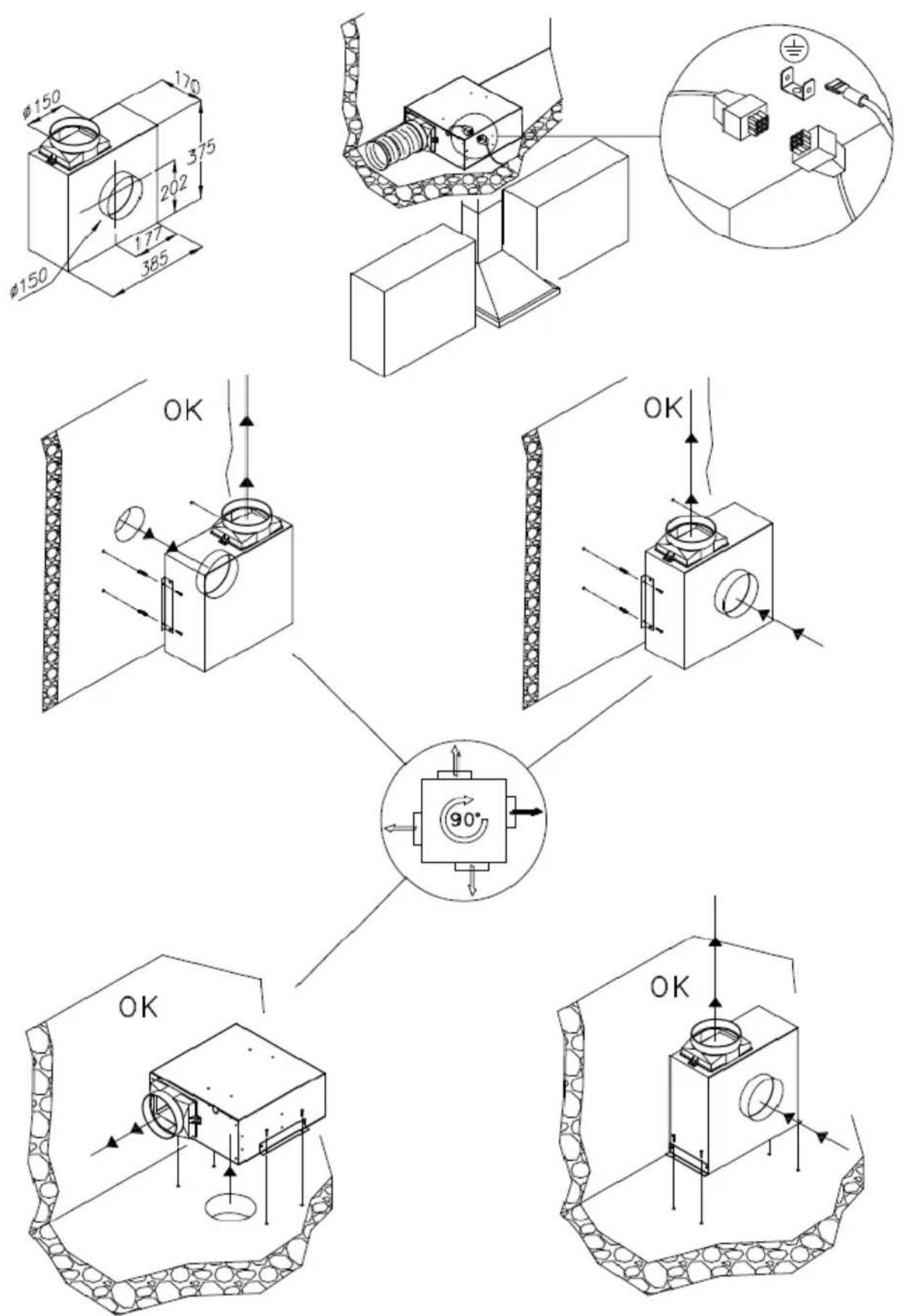

Hoods equipped for remote motors

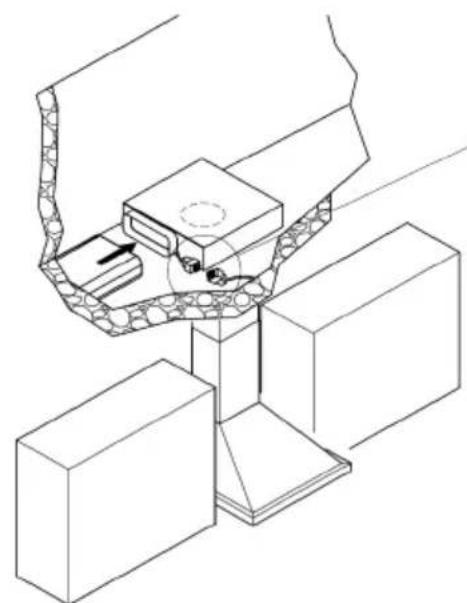

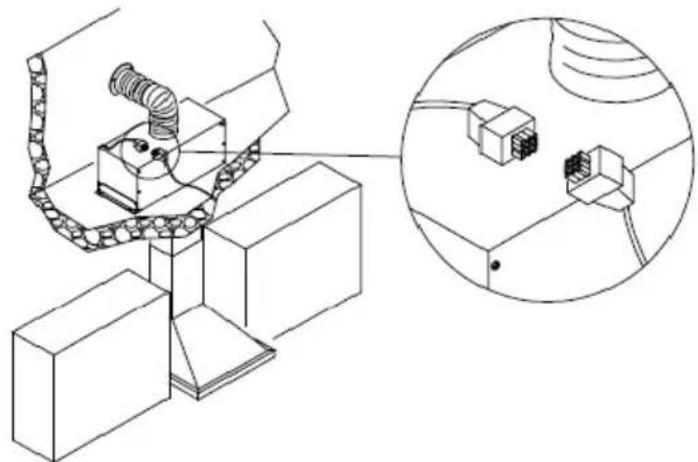

The hoods equipped for remote motors have a specific connector for the remote motor lead connection. The connector is situated inside the hood. Pass the remote motor lead into the hood through the aperture in the hood itself (usually near the fume exit hole) and join the two connectors. Refer to the figures in the remote motor instruction book when performing this operation.

Hoods without motor (Art.*0***) must only be installed and connected with extraction units with a max. output of 690W, as supplied and indicated by the manufacturer.

Once the specialized technician has completed the installation of the hood equipped with a remote motor, all the leads, connectors, ground connections and the remote motor must not be accessible to the user. Only the installer is granted access by removing the screwed on panels.

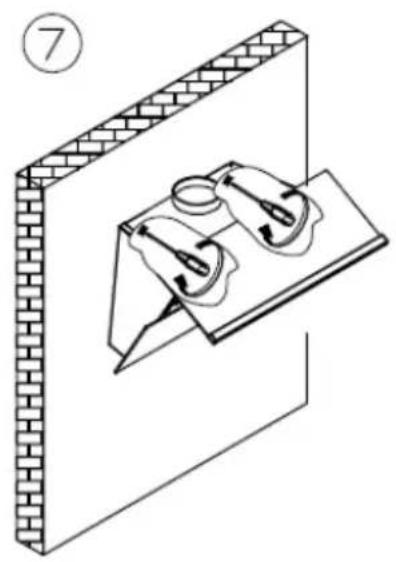

ASSEMBLY INSTRUCTIONS

Attention: Before proceeding with the installation, make sure that the screws and the anchors already supplied, are suitable for the type of wall the hood must be fixed to.

To assemble the hood use the accessories that are supplied and follow the instructions given in the enclosed handbook.

ELECTRIC WIRING

The electric wiring must be performed by a specialised electrician fully respecting current standards and legislation in force. Check that the power supply corresponds to the voltage requested by the hood, which is given on the silver label stuck inside the hood. Ensure that the wiring system conforms to current standards and the earth discharge works efficiently. Pay special attention to the hood power cable, ensure that it does not pass through any holes without a cable clamp. For direct connection to the electrical mains is necessary to provide a device that ensures disconnection from the electrical mains, with an opening distance of the contacts that allows the complete disconnection under the conditions of overvoltage category III, in accordance with the rules of installation.

The plug or omnipolar switch must be accessible when the unit is installed

If the power cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. The cable used must be of type H05VV-F 3 x 0.75 mm2 minimum cross-section.

The manufacturer declines all responsibility if the current accident prevention standards in force are not respected, which are needed for the wiring system to operate correctly

CONTROLS

KEYBOARD CONTROLS (Fig. 1)

There are four buttons on the keyboard control version:

One for turning the lights on and off.
One for turning the motor on at 1st speed and for turning it off.
One for turning it on at 2nd speed.
One for turning it on at 3rd speed.

SOFT TOUCH CONTROL (Fig. 2)

There are four soft touch buttons on this version and a variable colour led (green min. speed, red max. speed).

One button for turning the lights on and off.
One button for turning on at 2nd speed and for turning the motor off.

N.B. If this button is kept depressed for more than three seconds, the automatic function is activated to turn the hood

off function after 10 minutes, the led flashes slowly.

Two buttons + and - for increasing and reducing the motor speed. At the 4th motor speed (intense) the led flashes quickly and after 5 minutes the 2nd speed is automatically set.

DIGITAL CONTROLS \ TOUCH CONTROLS (Fig. 3)

In this version there are five soft touch buttons and a display

One button for turning the lights on and off.
One button for turning on at 2nd speed and for turning the motor off.
Two buttons + and - for increasing and decreasing the motor speed. At the 4th motor speed (intense) the number on the display flashes and after 5 minutes the 2nd speed is automatically set.
A TIMER button for turning the motor off after 10 minutes. When the timer is activated, the number on the display flashes.

Special functions:

After 100 hours use, a D or a letter A will start flashing on the DISPLAY to remind the user to clean the metal filters. After washing the metal filters, reset the hour meter by pressing the TIMER button for more than three seconds with the hood turned off. When the hour meter has been reset a dash appears on the display, with the hood turned off.

RADIO- CONTROL (Fig. 4)

The button ON/OFF on the hood turn on simultaneously lights and the motor at the second speed or it turns off everything. After 100 working hours of the suction motor the red led will start to flash indicating the need to wash metals filters. To cancel the filters alarm, when the suction motor is switched off, you must press button ON/OFF long enough.

Radio control

ATTENTION:

The hoods with the standard remote control are already configured.

For optional and/or replacement remote controls it is necessary to start the learning process:

With the hood turned off, keep button "ON/OFF" (DISTANTE - CEILING - SKYFRAME) or button "+" (AIDA - HAMLET - ROMEO) for 5 sec. The remote control learning is indicated with the flashing alarm filters led. If within one minute arrive a valid remote control code (sent by pressing any button of the remote control) the led will be on continuously for 3 seconds and then it will turn off, indicating the proper learning.

Control buttons:

One button for turning the lights on and off. CEILING PANEL: hold the button to dim the light.
One button for turning on at 2nd speed and for turning the motor off.
Two buttons + and - for increasing and decreasing the motor speed. At the 4th motor speed (intense) the led flashes and after 5 minutes the 2nd speed is automatically set.
A TIMER button for turning the motor off after 10 minutes.

USE AND MAINTENANCE

Before beginning any sort of cleaning or maintenance work, turn power off to the hood by turning the main switch to 0 (OFF).

Changing the light bulbs

LED spotlight replacement should only be carried out by qualified technicians using only original spare parts.

Cleaning the metal filters:

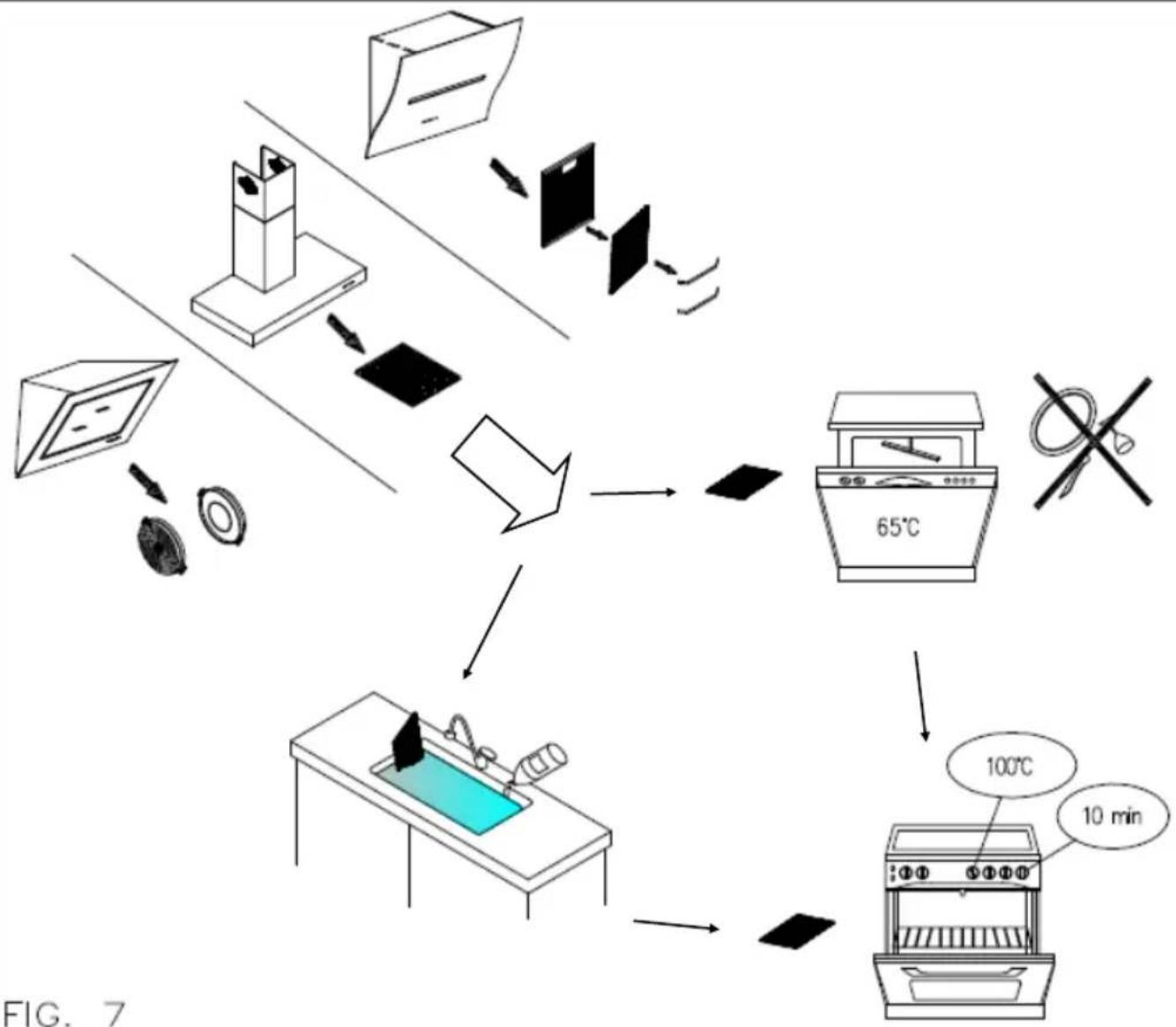

The metal filters fitted in the hood should be washed every 2-3 months, depending on how much the hood is used, using hot water and a liquid detergent that is not too aggressive. The metal filters can be removed by the special handle, unhooking the front part of the filter and pulling it downwards (Fig. 5)

Carbon filters

If the hood is used with an internal recycle filtering system, then active carbon filters must be used. The active carbon in the filters traps the cooking smells. To remove and change the filters, refer to fig. 6

POLYESTER carbon filters cannot be reused or washed and must be periodically changed (every 4 months if the hood is used for 2 hours every day). Saturate filters could be a fire hazard.

Depending on the hood model, the carbon filters are round or rectangular.

LONG LIFE carbon filter can be cleaned and reactivated. The filter should be cleaned every other month if used normally. The filter is best cleaned in a dishwasher at the highest temperature using normal washer detergent. The filter should be washed on its own to prevent particles of food from fastening in it and then causing an unpleasant smell later on. To reactivate the carbon the filter should be dried in the oven. Chose upper/ lower heat and maximum 100°C and try the filter for 10 minutes. The filter must be changed when it no longer absorbs the cooking smells sufficiently. (fig.7)

Condensation in the hood

Induction or glass ceramic hobs heat food up very quickly, creating cooking steam before the glass or steel surface of the hood has heated up, which causes condensation on the hood that then drips. Another cause for condensation could be that the fume pipe is not the size we recommend (see INSTALLATION). The steam that remains inside the hood while it is cooling down condensates and drips. Therefore it is advisable to turn the hood on ten minutes before starting to cook and when you have finished, leave it on so that all the fumes in the pipe are expelled.

Furthermore, it is important to clean the filters frequently and if they are worn they should be replaced (see CLEANING THE METAL FILTERS).

Cleaning the hood

The surfaces of the hood should be cleaned frequently, to avoid the risk of having to remove built up and encrusted deposits and stains.

For the painted or copper plated hoods just use a soft cloth with warm water and a neutral detergent. Do not pour the detergent directly onto the hood or use powdery or abrasive products

For the stainless steel hood, use special products and cloths for satin finish stainless steel (not abrasive, corrosive detergents or detergents containing chloride), ensuring to clean in the same direction as the satin finish.

Do not use aggressive products, chemical solvents or derivatives of oil distillates that could leave oily traces which could cause oxidation and polymerisation.

Hamlet - Romeo: when you use oil to cook the oil will run to the lowest part of the hood, and this edge should be cleaned more often than normally.

The manufacturer accepts no responsibility for damage to the surface of the hood due to failure to respect these instructions.

BEDIENUNGS-, WARTUNGS- UND INSTALLATIONSHANDBUCH ABZUGSHAUBE

Isometric view of a rectangular metal tray filled with granular material (no text or symbols)

MOD. DISTANTE R

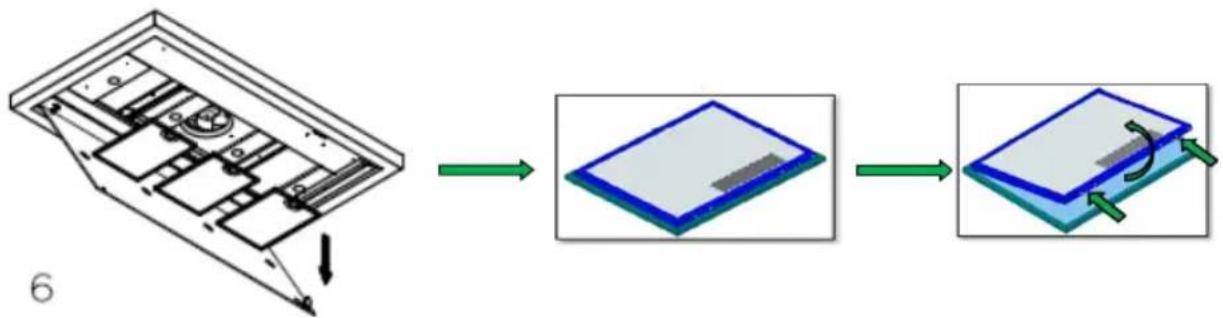

FIG. 6


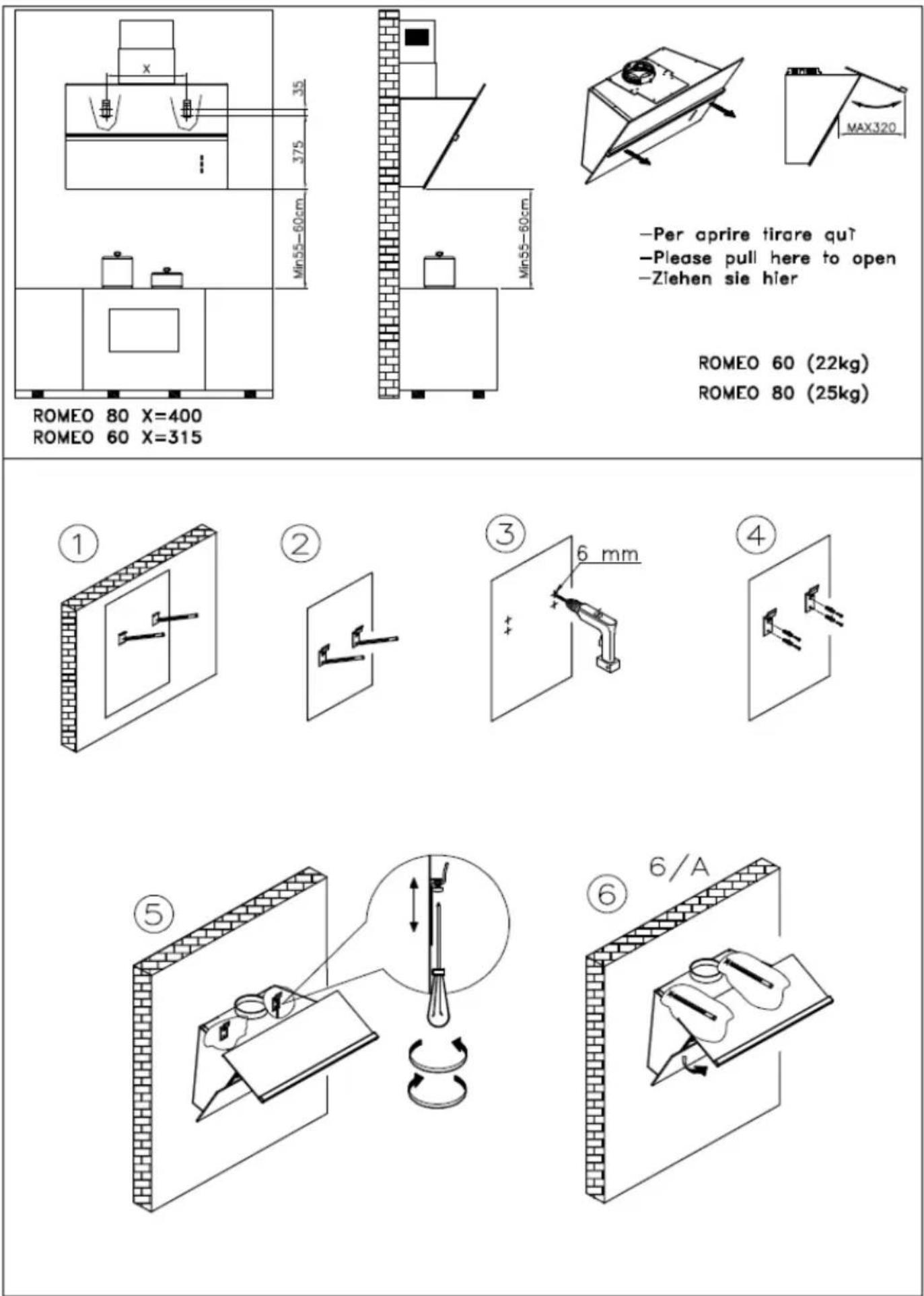

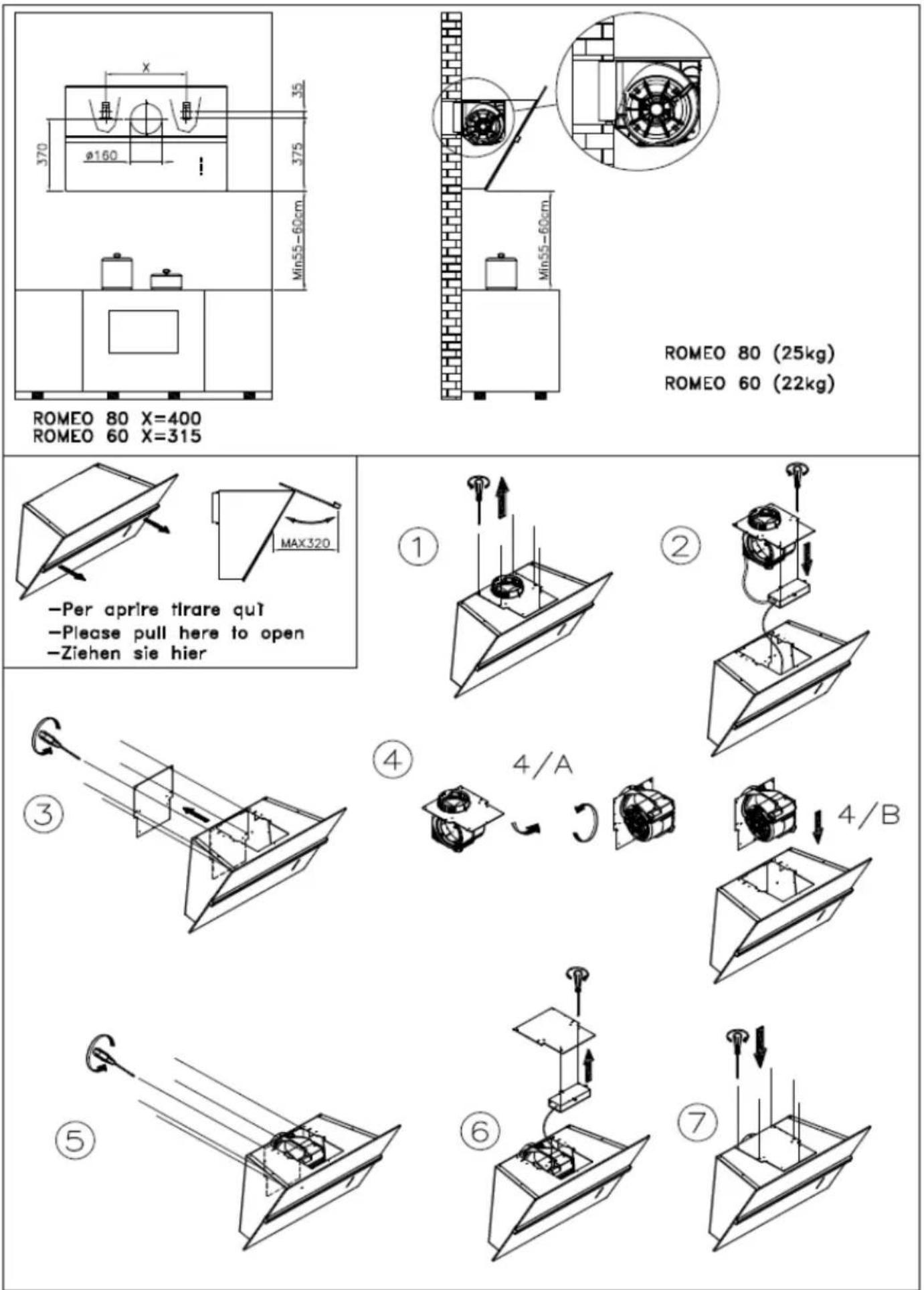

ROMEO

ROMEO 80 X=400
ROMEO 60 X=315
-Per aprire tirare qu?
-Please pull here to open
-Ziehen sie hier
ROMEO 60 (22kg)
ROMEO 80 (25kg)

6/B 6mm

6/C

Isometric line drawing of a mechanical assembly with two gears and a base plate, no text or symbols present

⑧

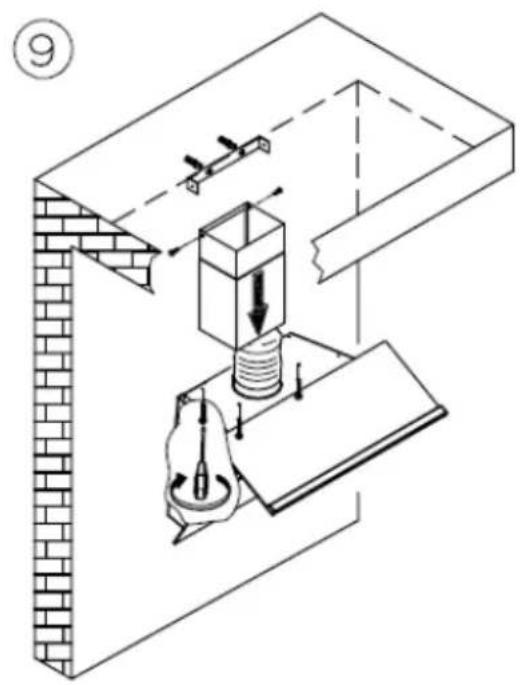

⑨

ROMEO

ROMEO 80 X=400
ROMEO 60 X=315
ROMEO 80 (25kg)
ROMEO 60 (22kg)
-Per aprire tirare qu'
-Please pull here to open
-Ziehen sie hier

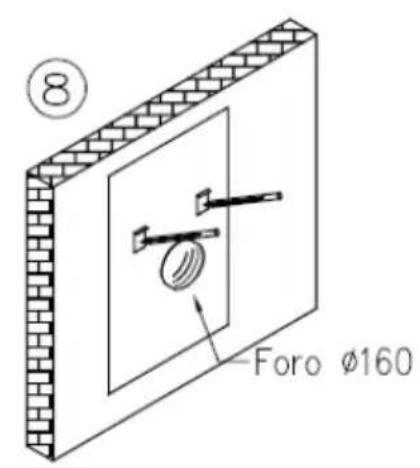

⑧ Foro Ø160

Simple line drawing of a mechanical lever system with a circular component, no text or symbols present

⑩ 6 mm

Simple line drawing of two wall-mounted fixtures mounted on a panel, with no text or symbols present.

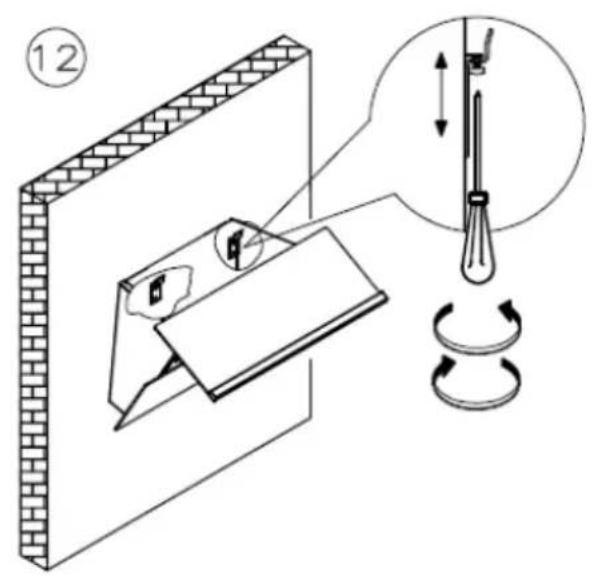

Diagram illustrating a mechanical assembly with labeled components and motion indicators, including a magnified view of the tool.

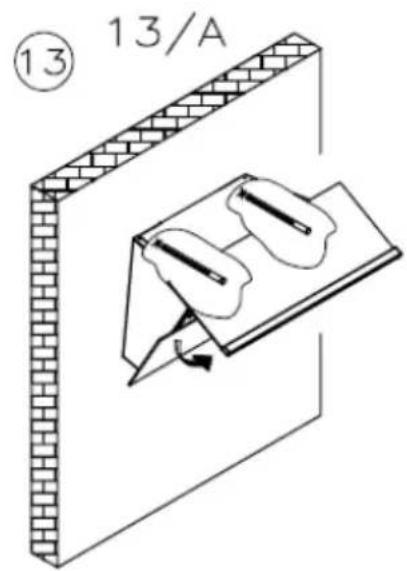

⑬ 13/A

13/B 6mm

Isometric diagram of a brick wall with two mechanical components mounted on a base plate (no text or symbols)

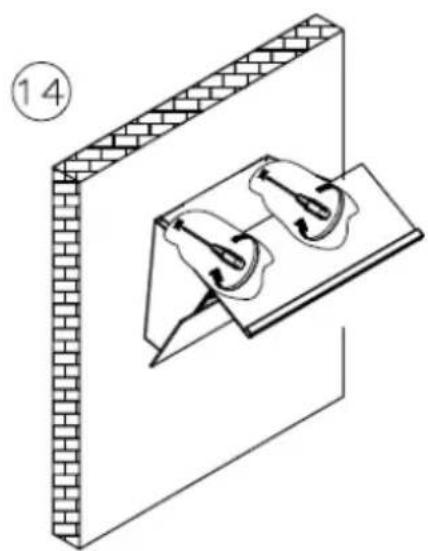

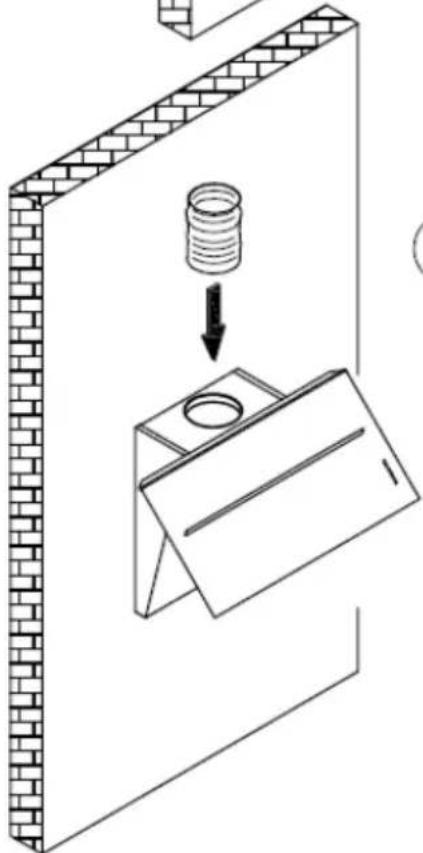

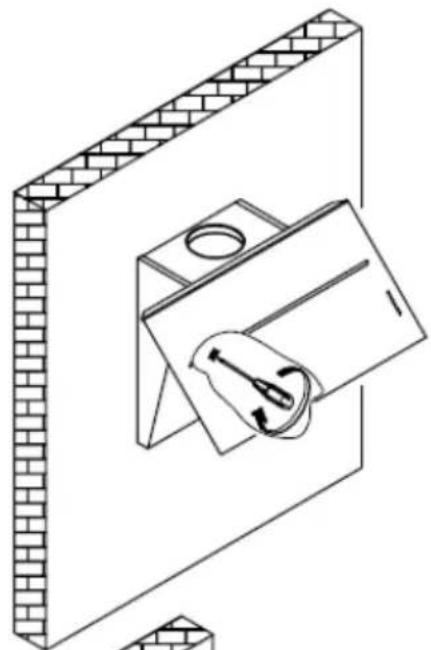

HAMLET

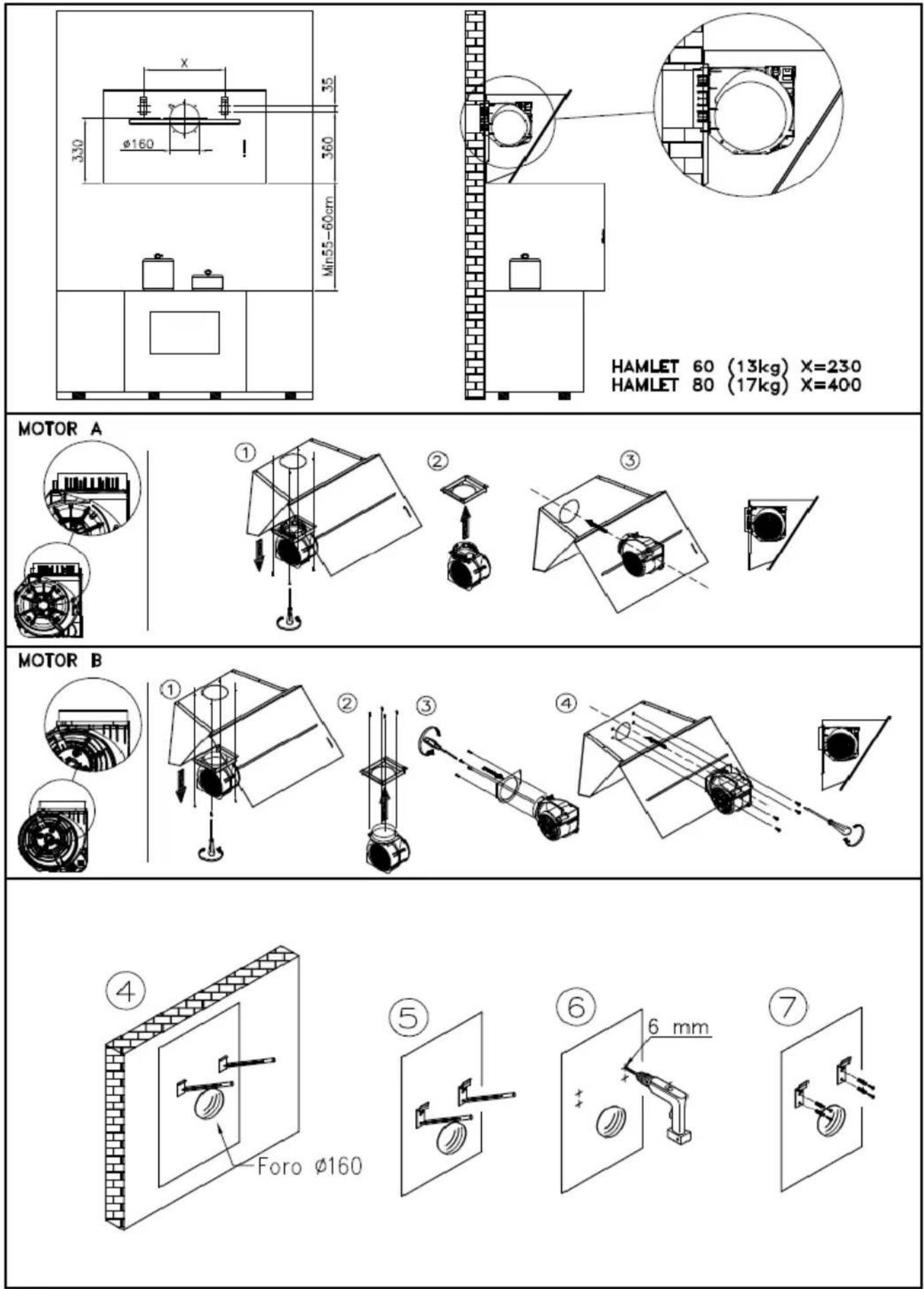

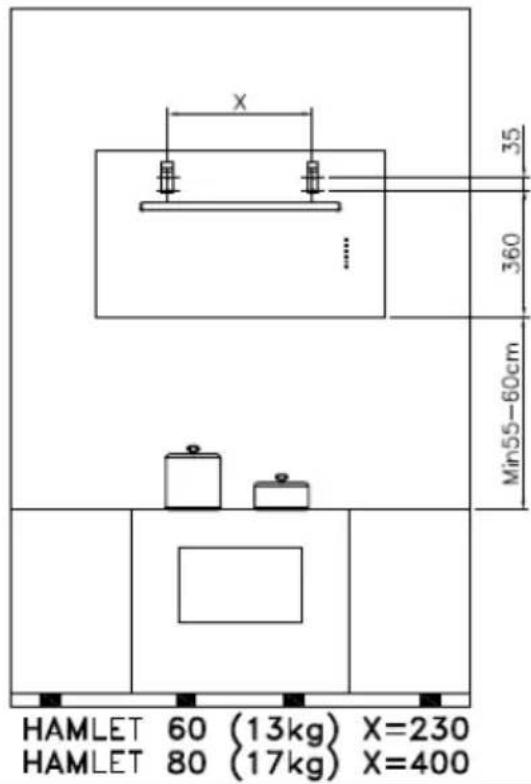

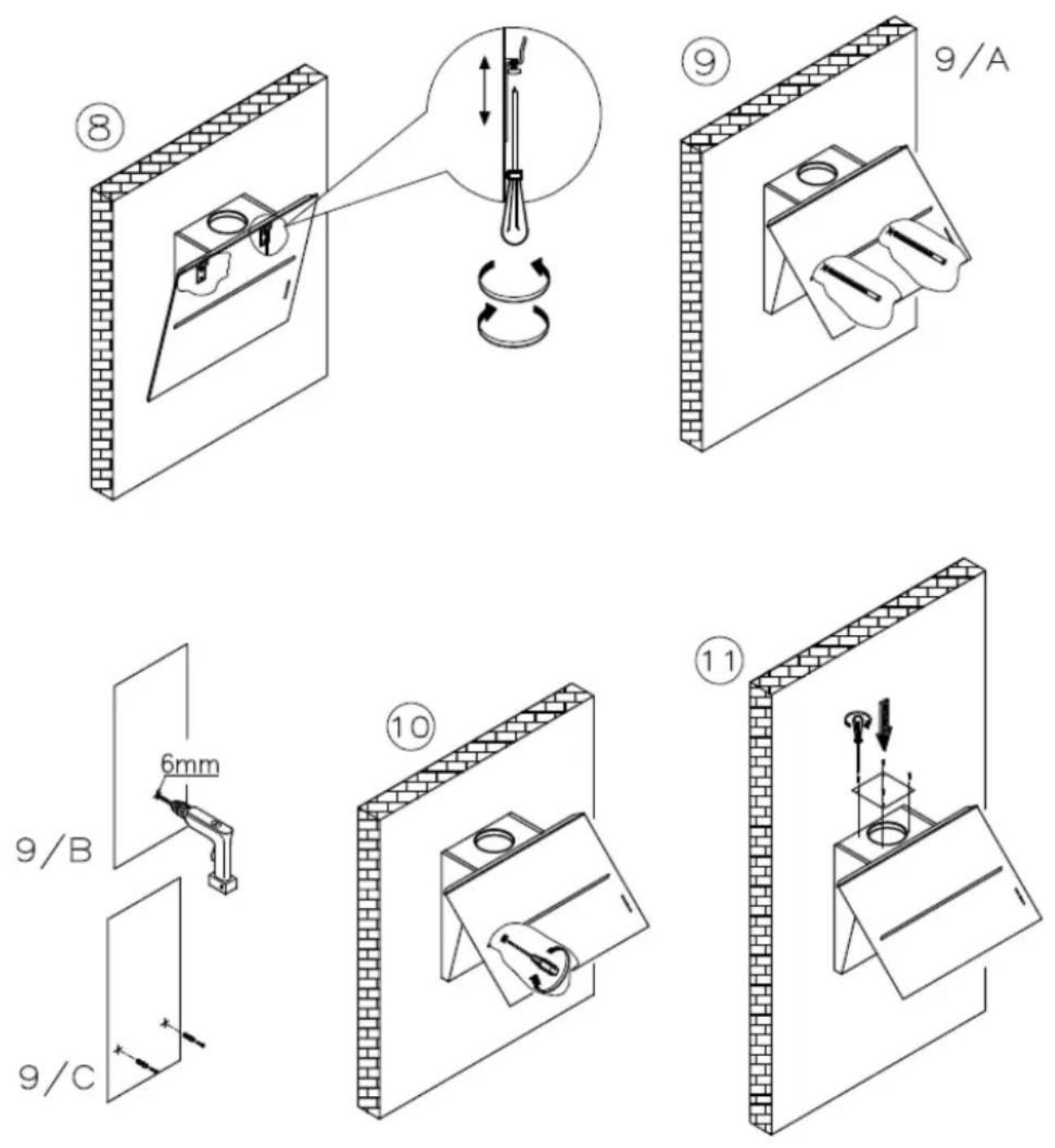

X 35 360 Min55-60cm HAMLET 60 (13kg) X=230 HAMLET 80 (17kg) X=400

Pure 3D diagram of a mechanical component with arrows indicating direction (no text or symbols)

Per aprire tirare quit simultaneamente Please pull here in the same time to open Ziehen sie hier

MAX 620

Isometric diagram of a brick wall with a window and two horizontal bars, no text or symbols present

Simple line drawing of a mechanical lever or bracket mounted on a flat plate, labeled with circled number 2 (no text or symbols on the diagram itself)

③ 6 mm

Simple line drawing of two wall-mounted sensors mounted on a panel, with no text or symbols present.

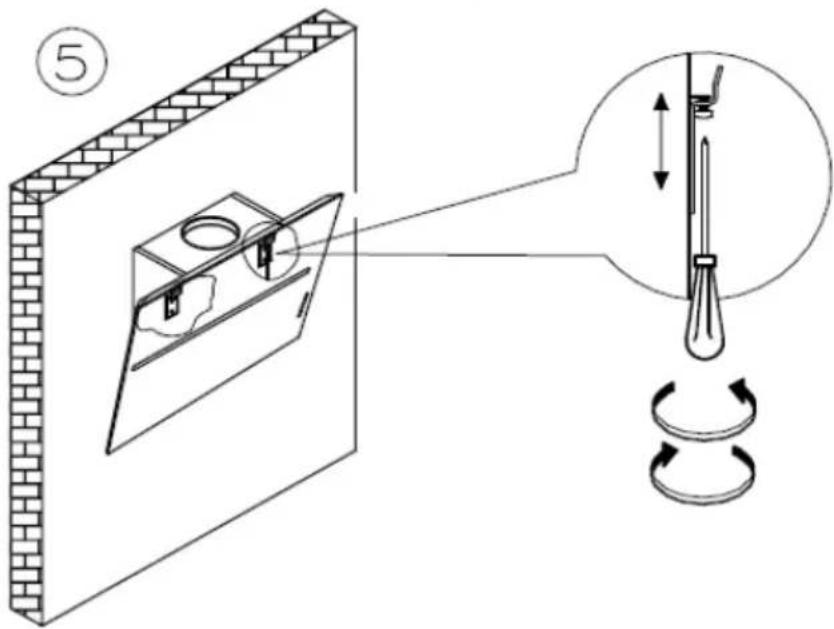

Technical diagram showing a brick wall installation with a magnified view of a mechanical component and rotational motion indicated by arrows.

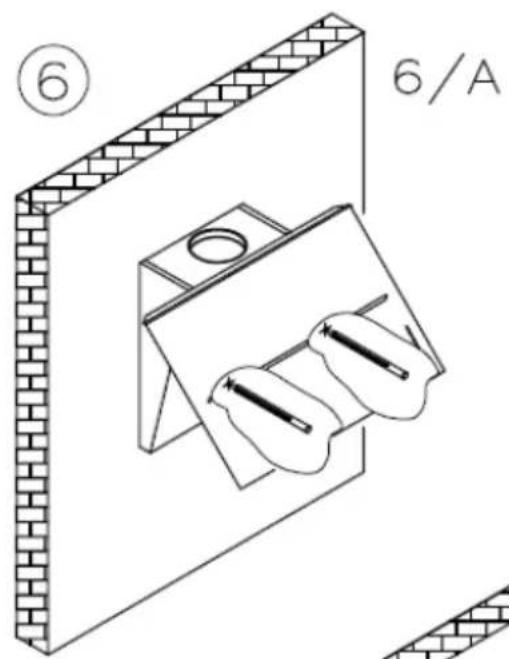

⑥ 6/A

6/B 6mm

6/C

⑦

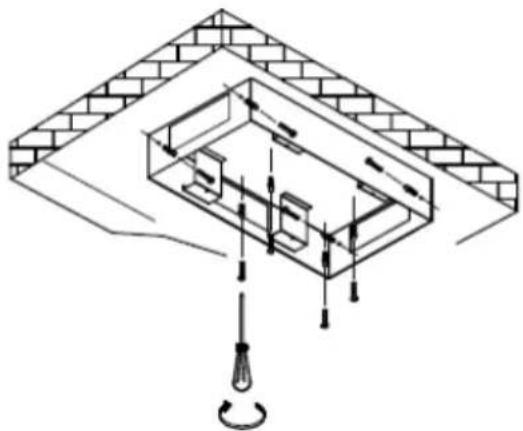

Isometric line drawing of a mechanical assembly with a bracket and housing (no text or symbols)

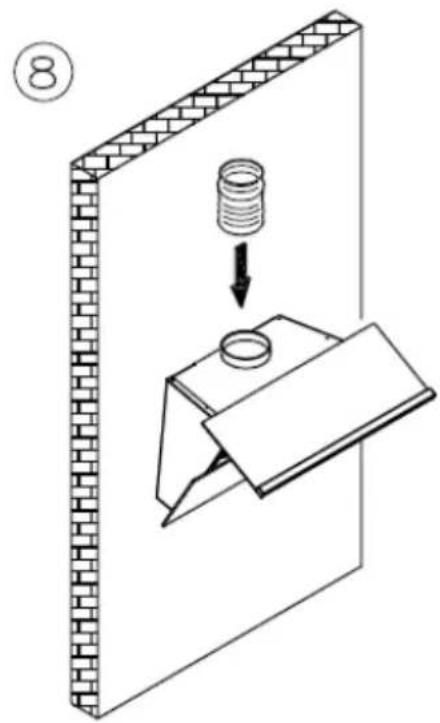

8

Diagram showing a mechanical assembly with a spring-loaded component and a base plate, no text or symbols present.

⑨

Technical diagram of a mechanical assembly with a spring-loaded component and supporting beams (no text or labels)

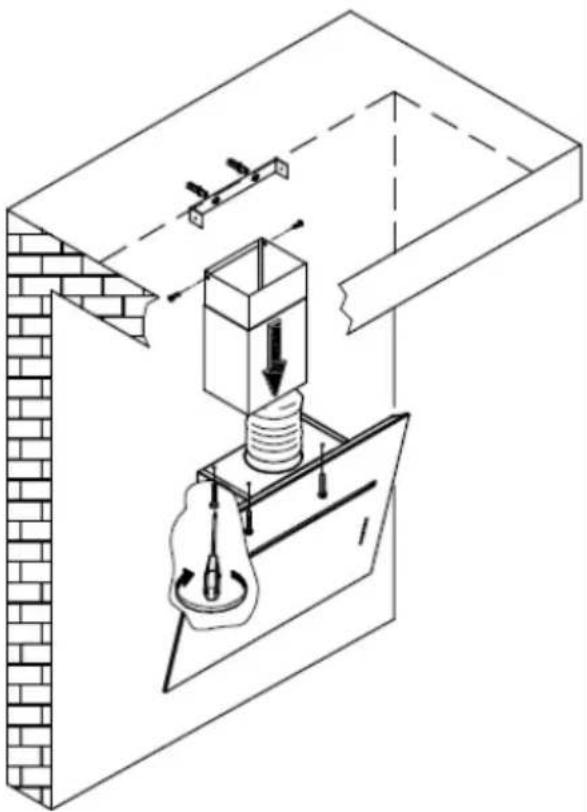

HAMLET

35 360 Min55-60cm HAMLET 60 (13kg) X=230 HAMLET 80 (17kg) X=400 MOTOR A ① ② ③ MOTOR B ① ② ③ ④ ⑤ ⑥ 6 mm ⑦ ④ Foro φ160

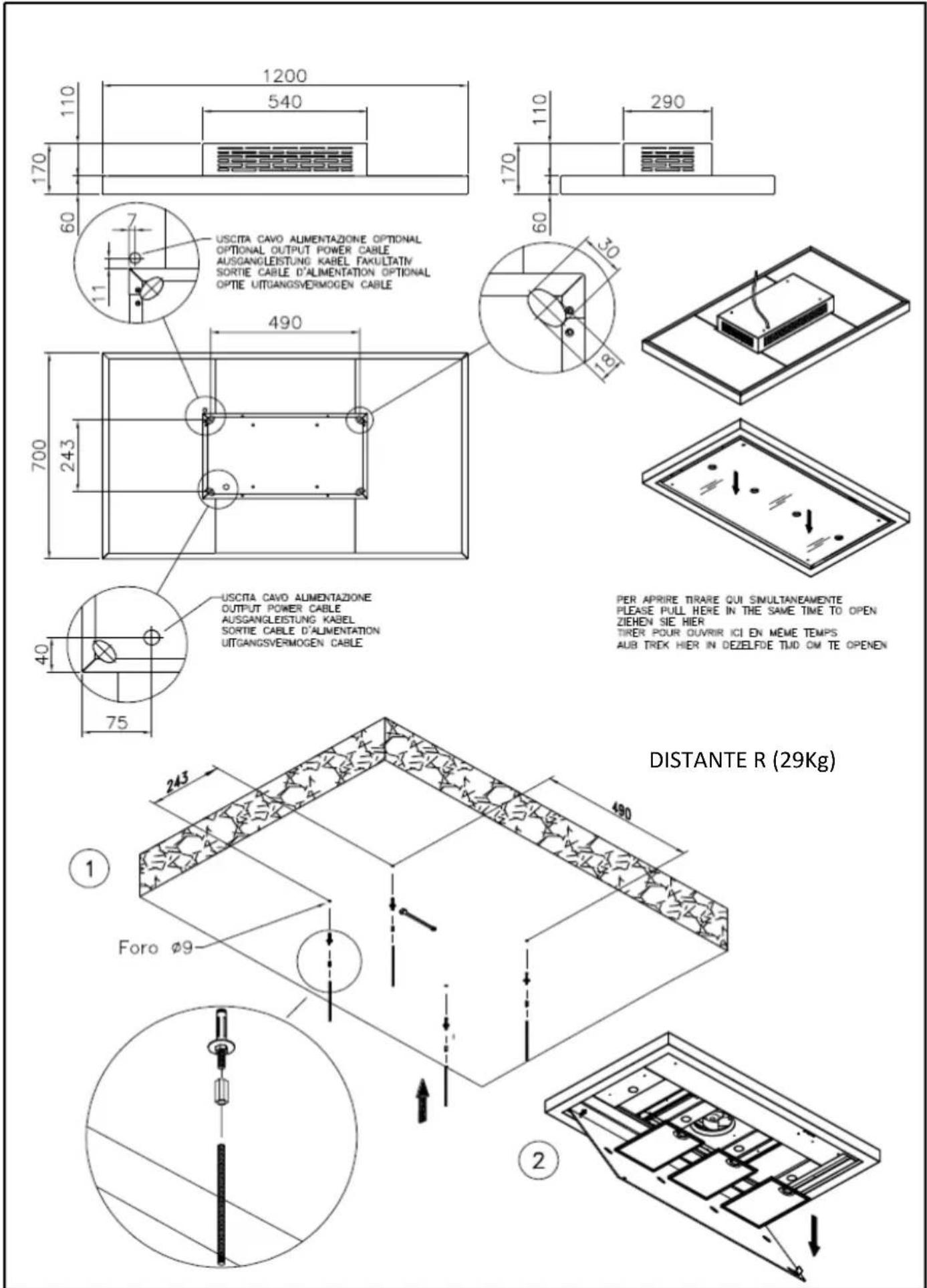

DISTANTE R

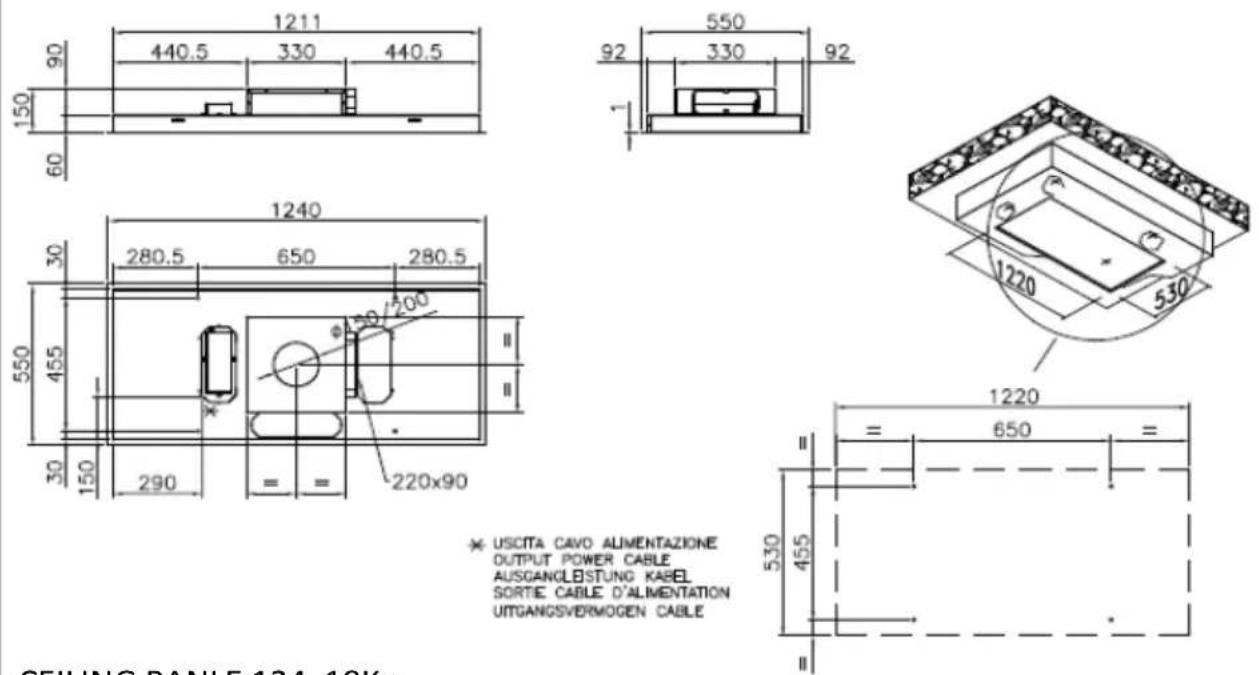

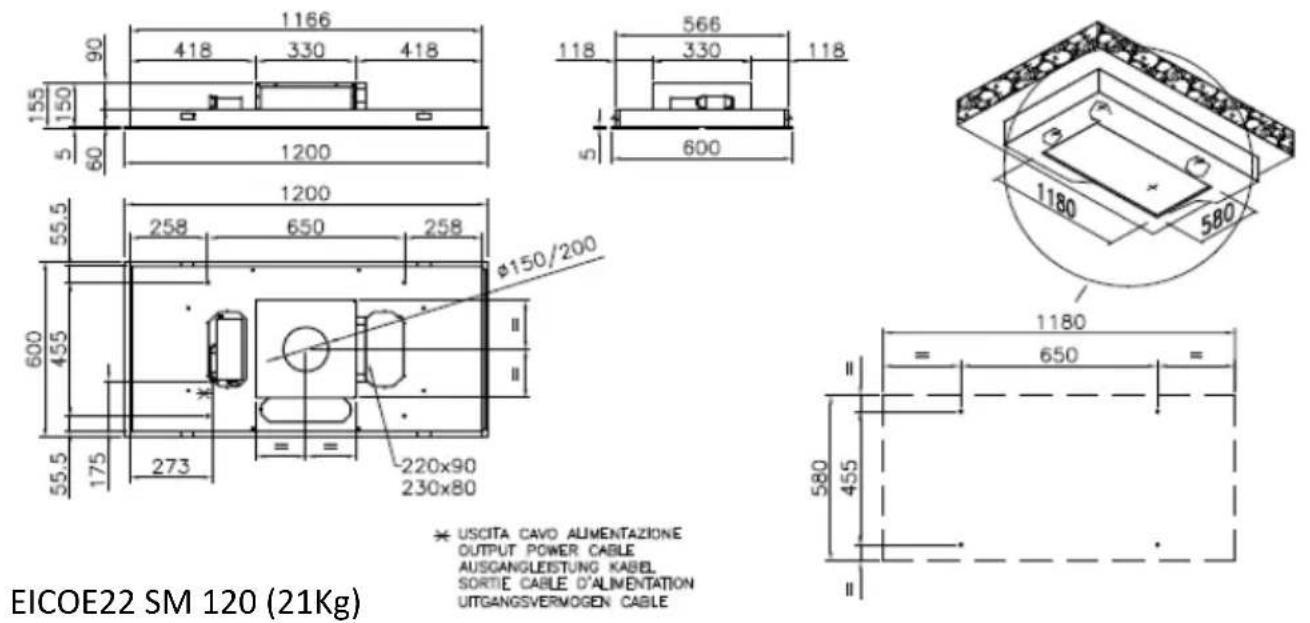

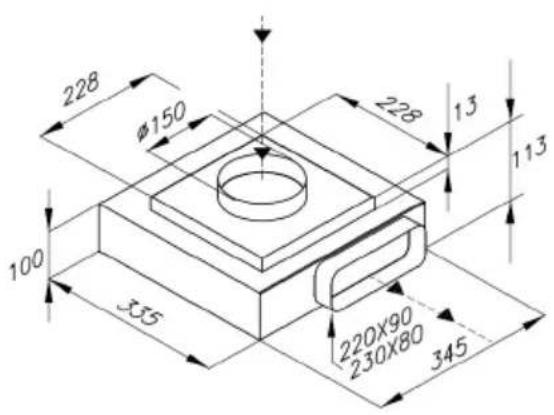

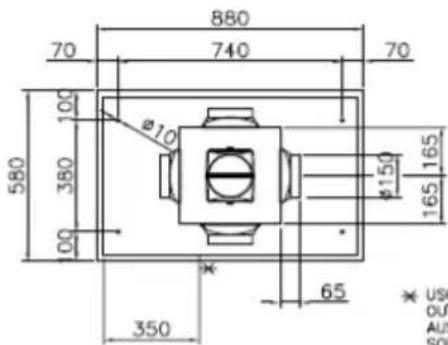

1200 540 110 170 60 11 USCITA CAVO ALIMENTAZIONE OPTIONAL OPTIONAL OUTPUT POWER CABLE AUSGANGLEISTUNG KABEL FAKULTATIV SORTIE CABLE D'ALIMENTATION OPTIONAL OPTIE UTTGANGSVERMÖGEN CABLE 490 700 243 40 75 USCITA CAVO ALIMENTAZIONE OUTPUT POWER CABLE AUSGANGLEISTUNG KABEL SORTIE CABLE D'ALIMENTATION UITGANGSVERMÖGEN CABLE PER APRIRE TIRARE QUI SIMULTANEMENTE PLEASE PULL HERE IN THE SAME TIME TO OPEN ZIEHEN SIE HIER TIRER POUR OLIVIR ICI EN MÈME TEMPS AUB TIXH HIER IN DEZELFDE TUD OM TE OPENEN DISTANTE R (29Kg) Foro φ9 ① 243 490 ②

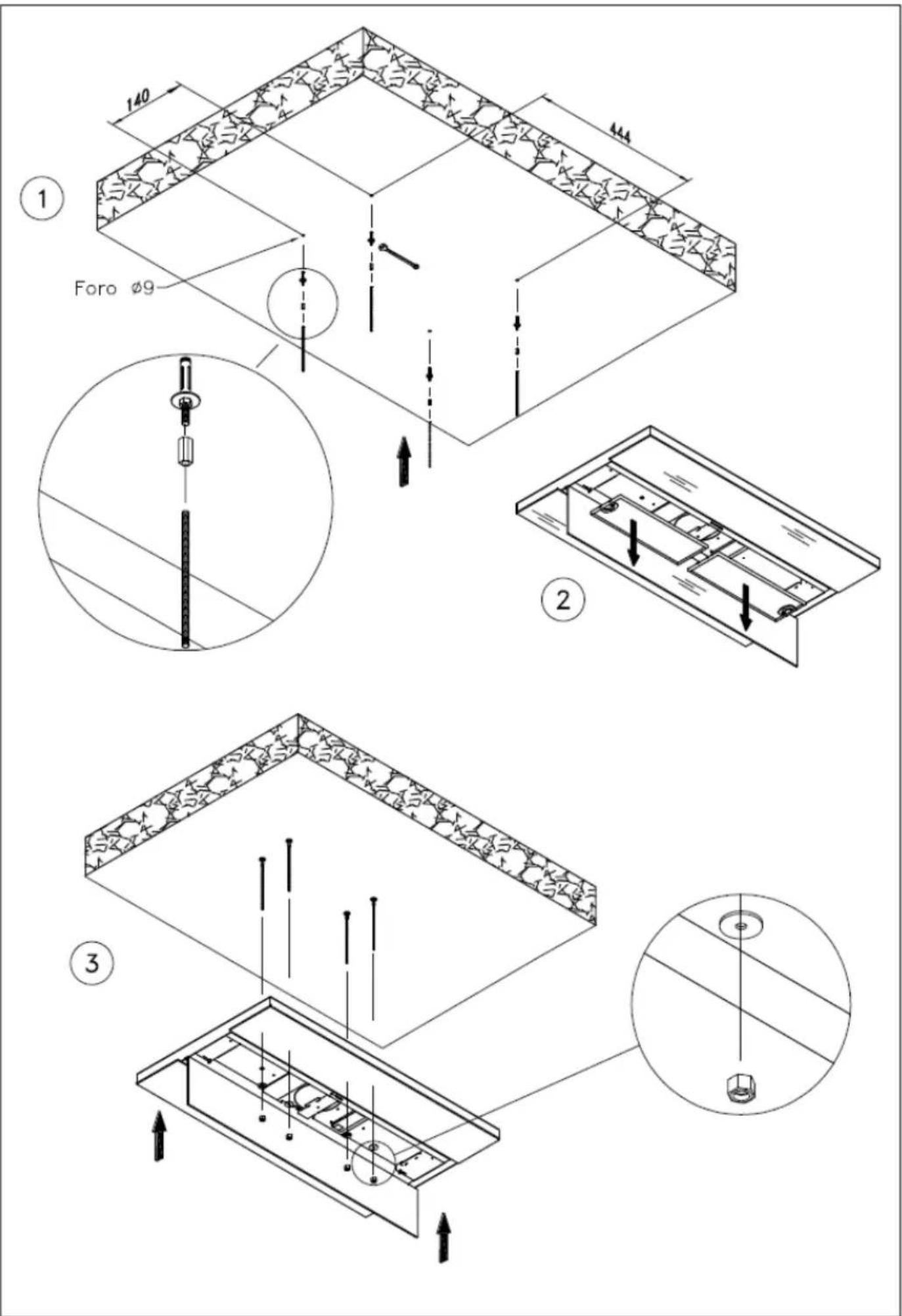

Technical diagram illustrating five-step installation of a mechanical component with labeled parts and directional arrows indicating assembly or assembly.

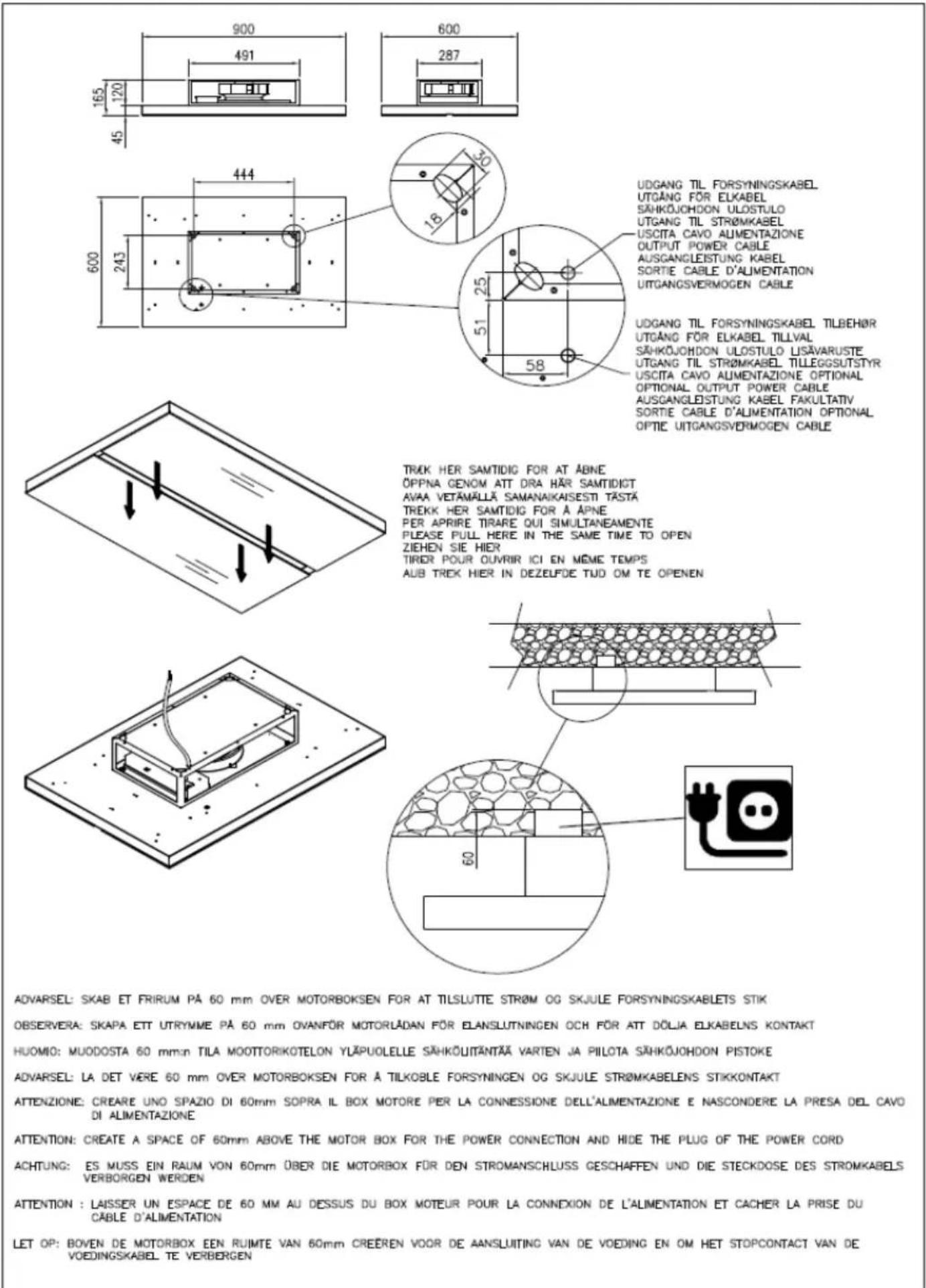

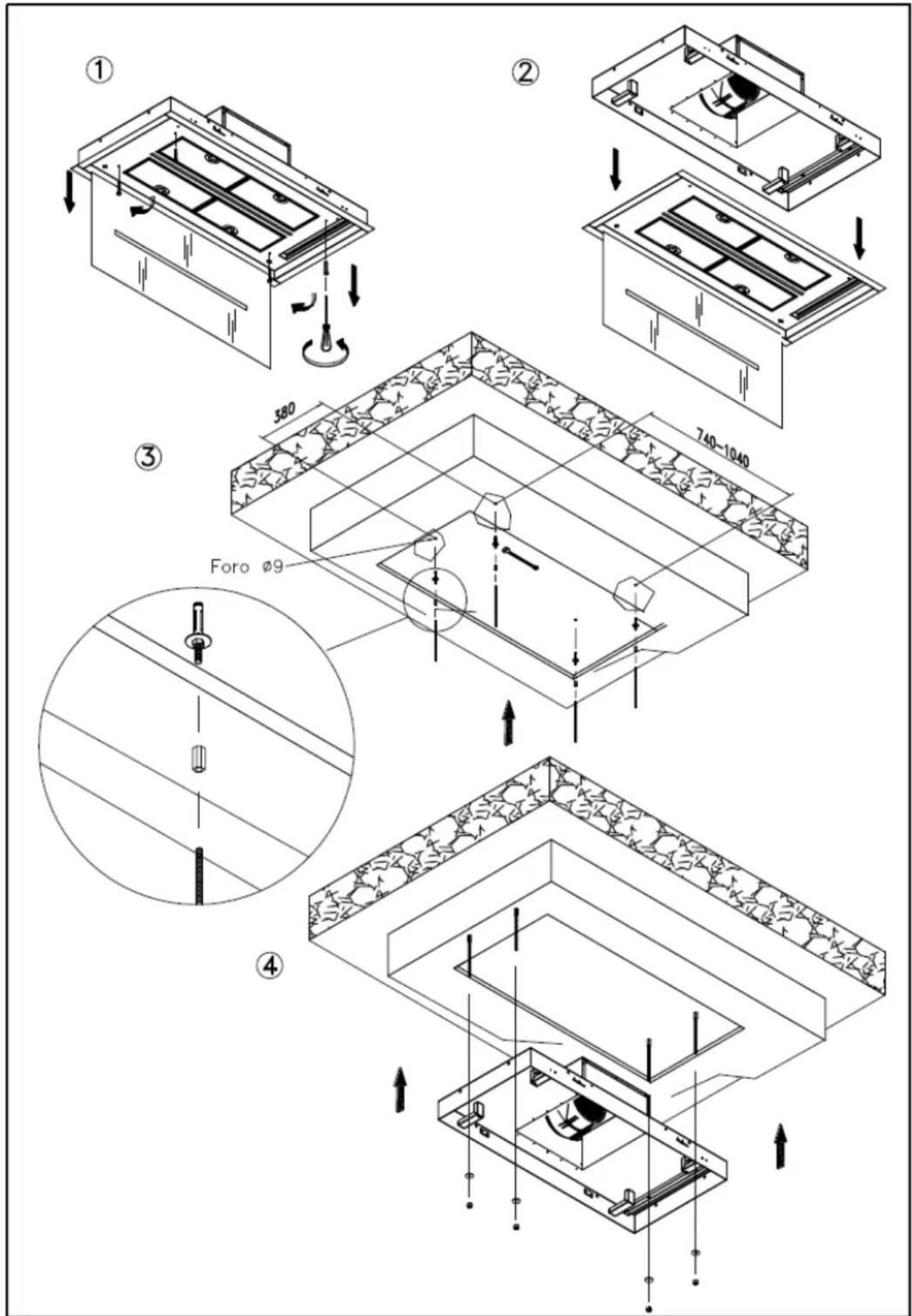

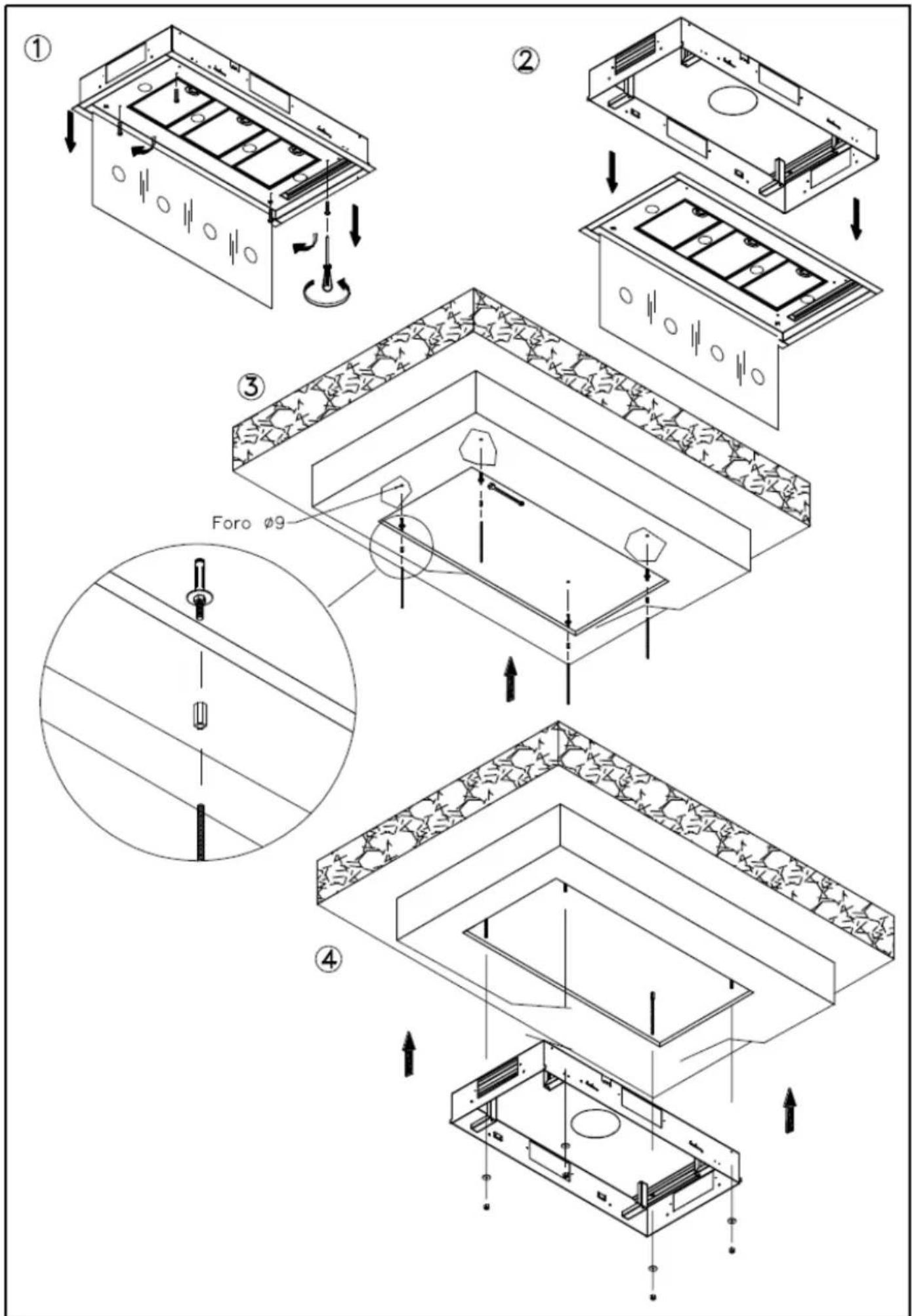

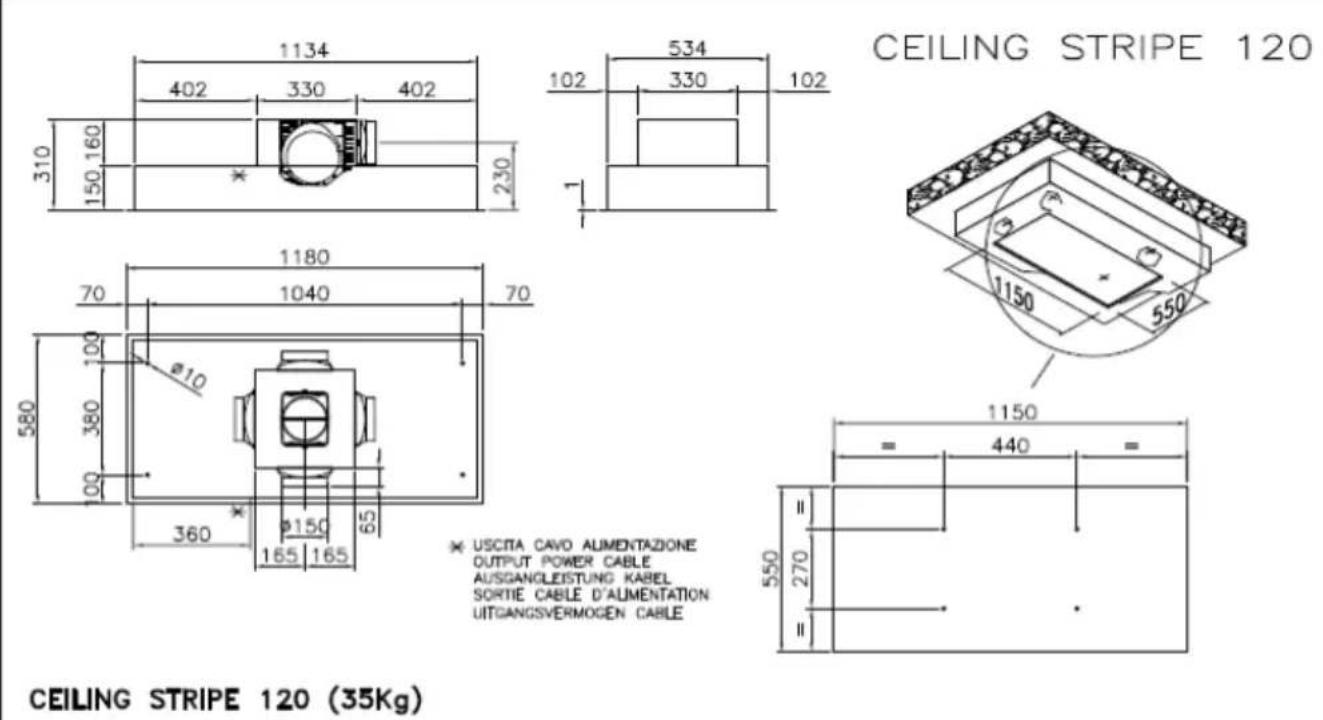

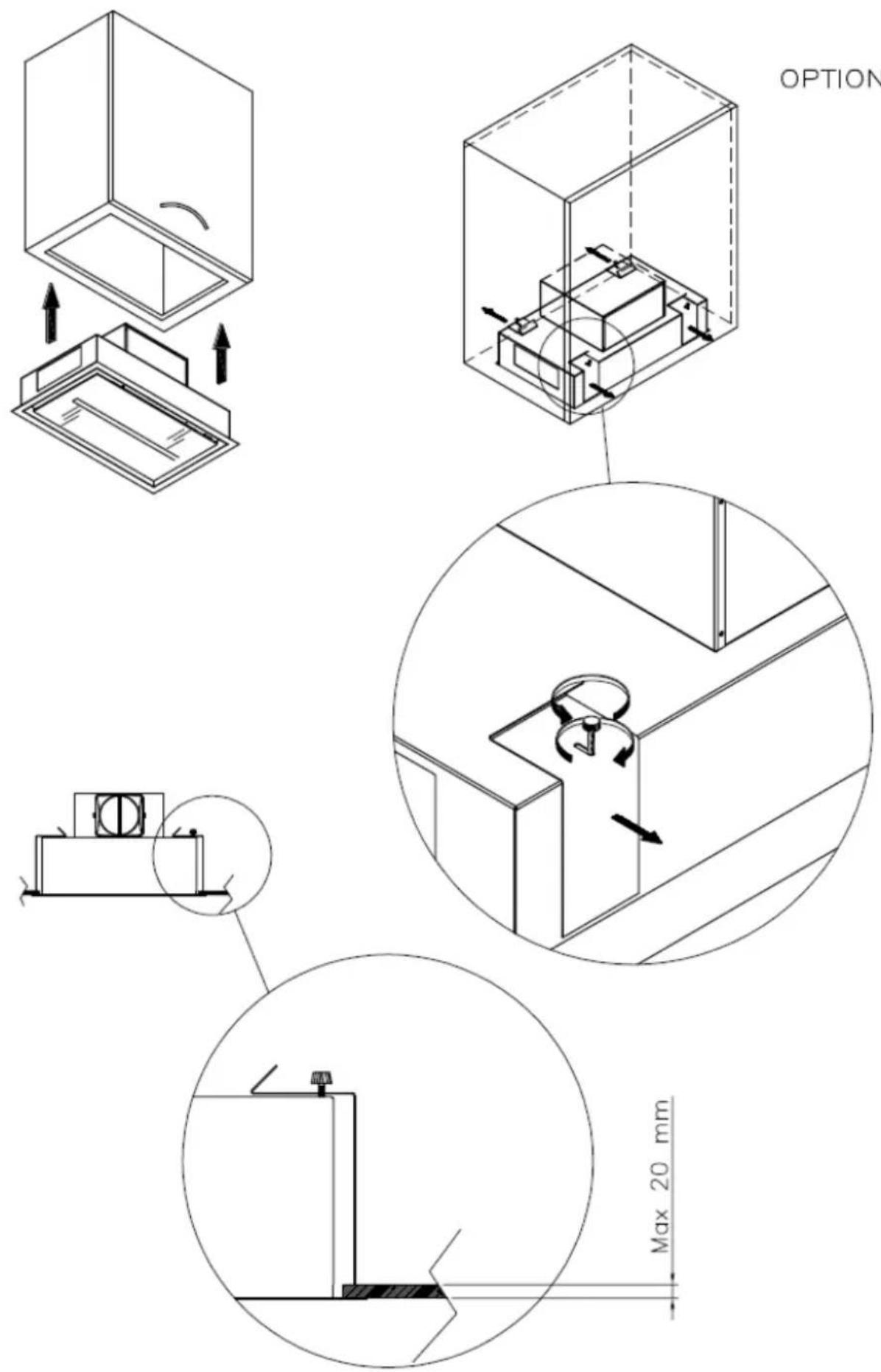

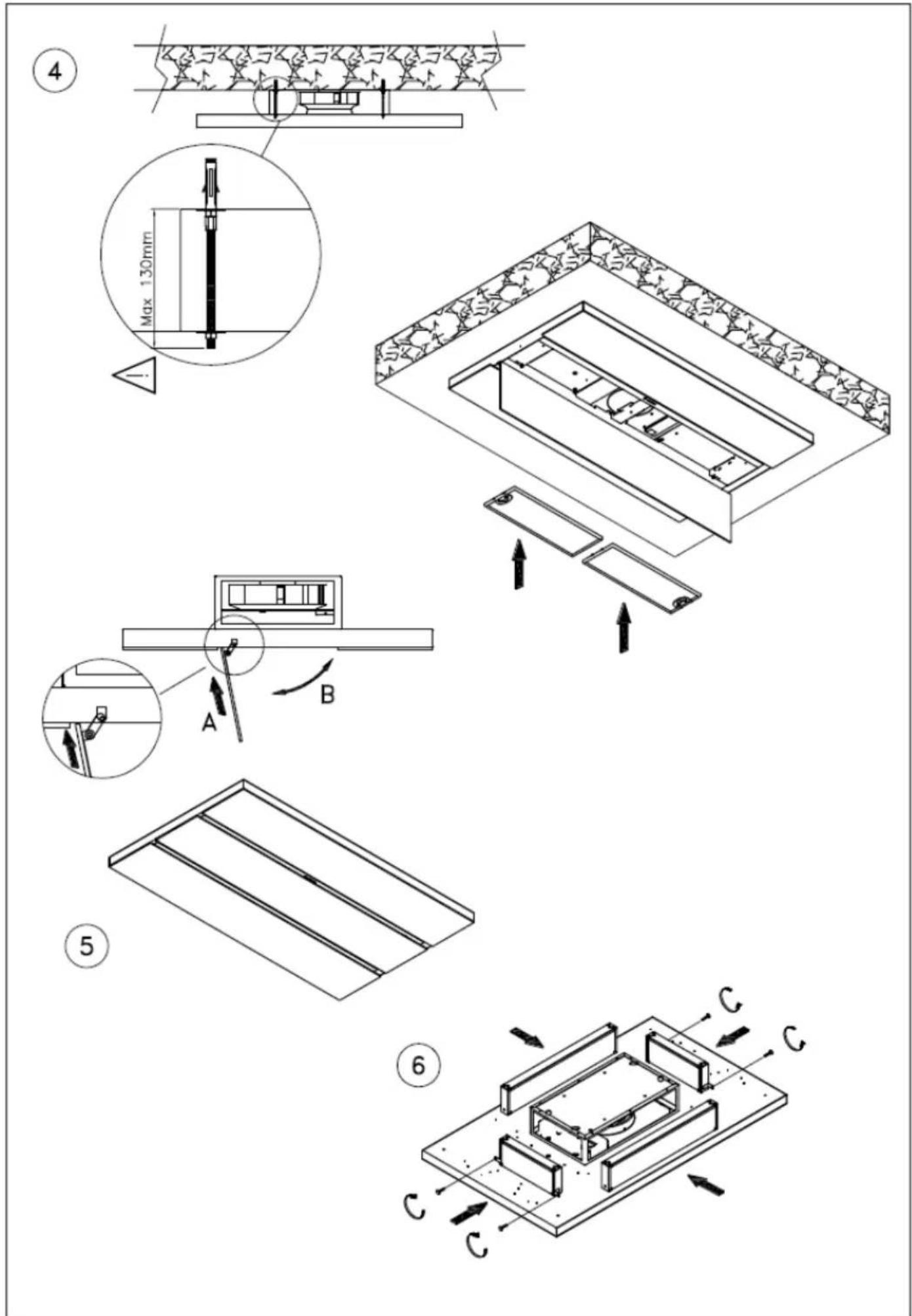

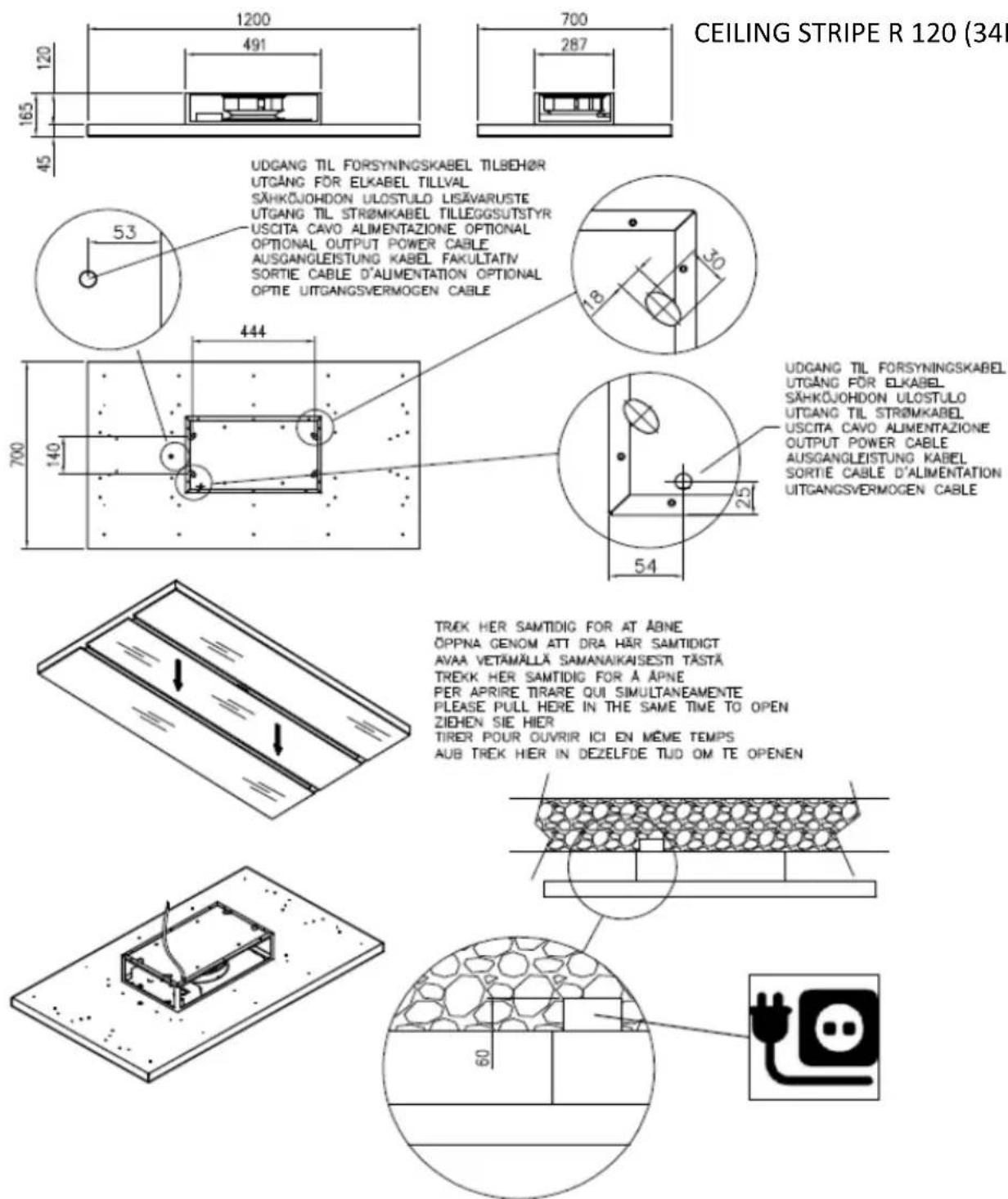

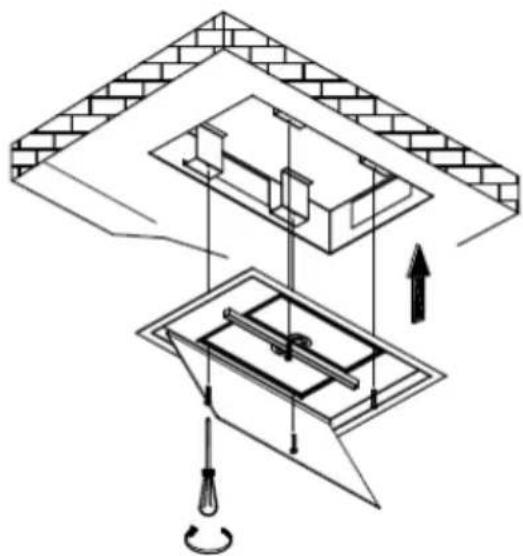

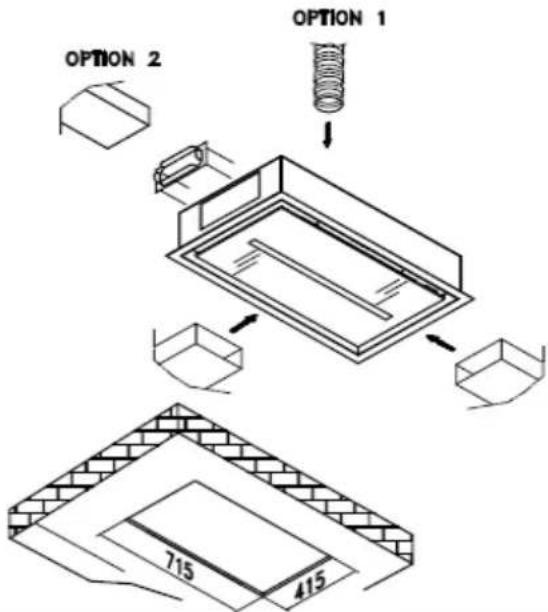

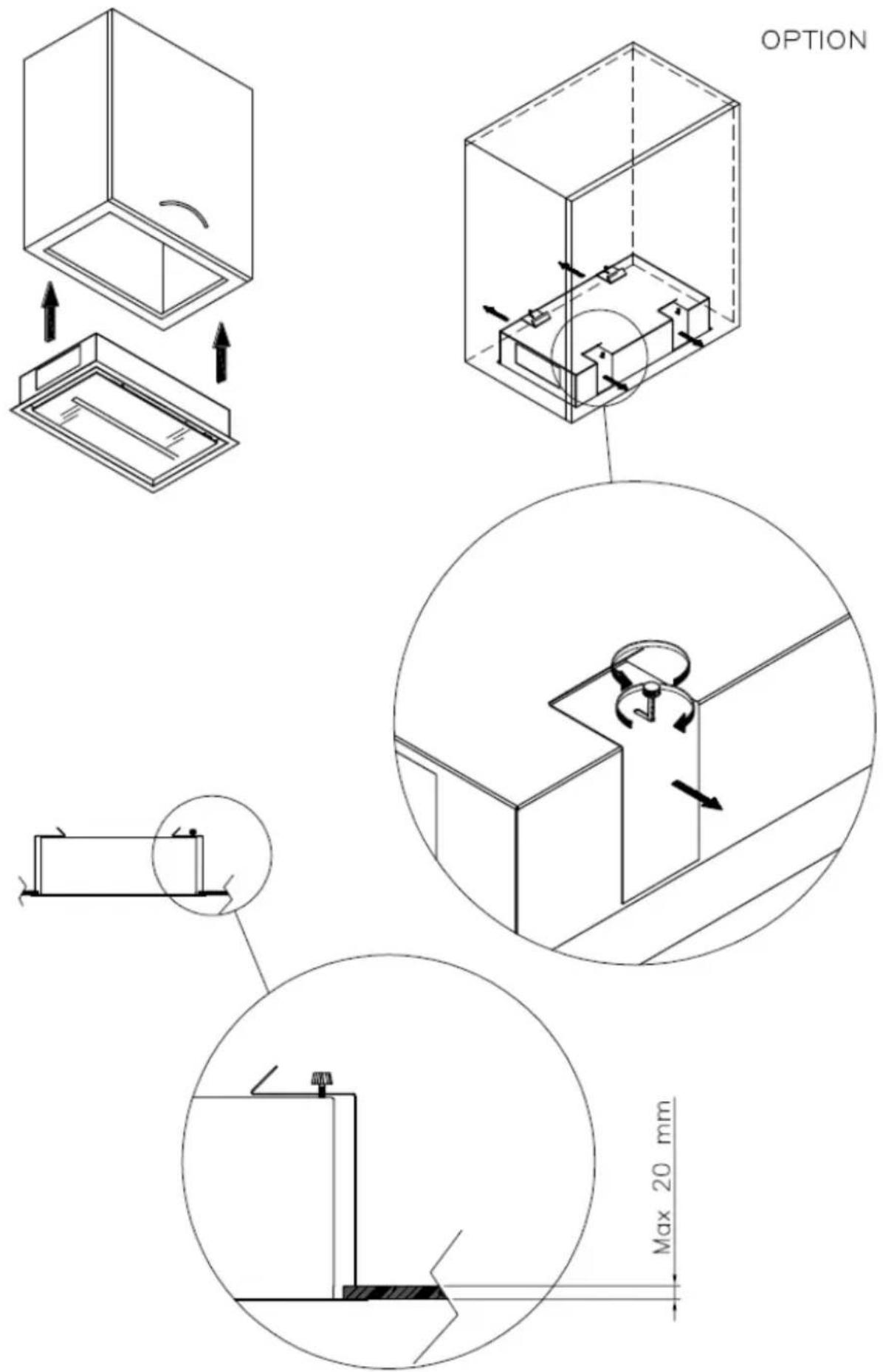

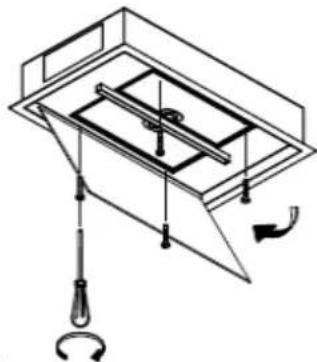

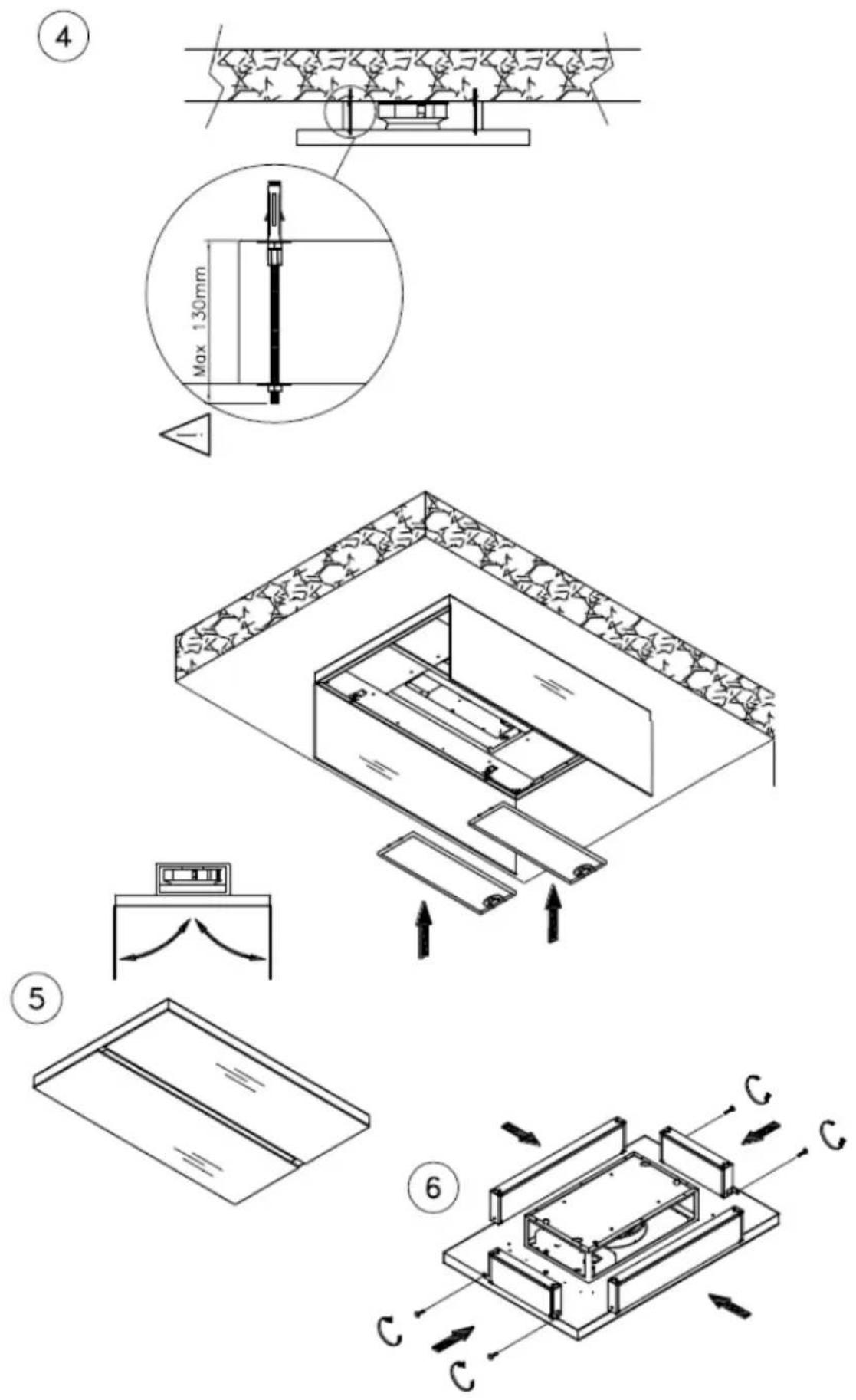

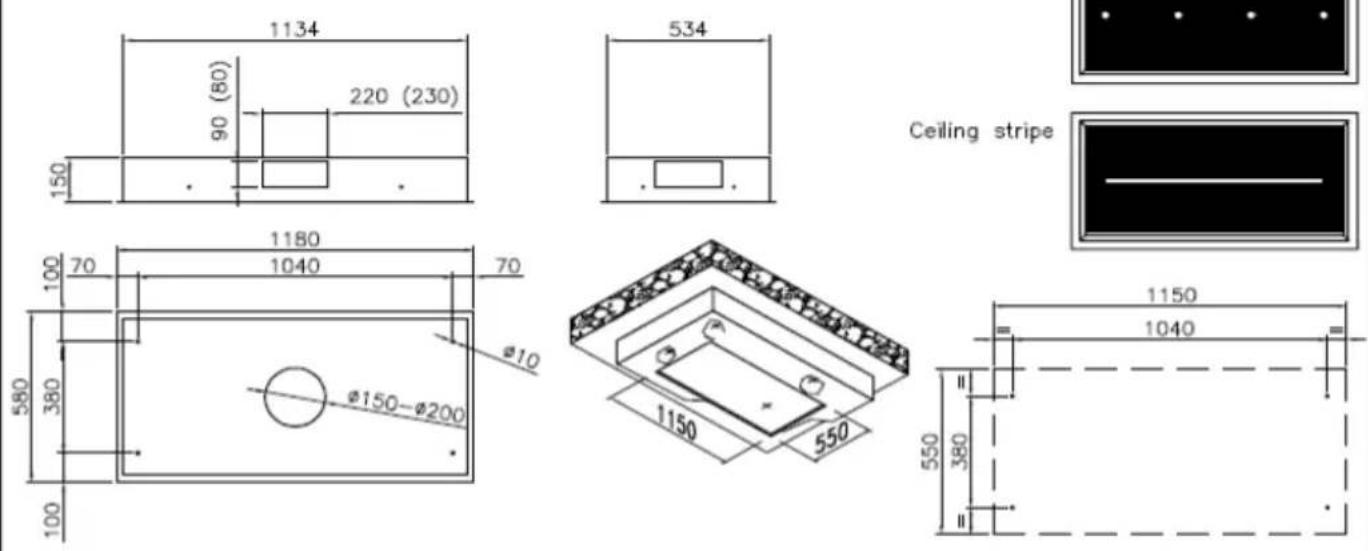

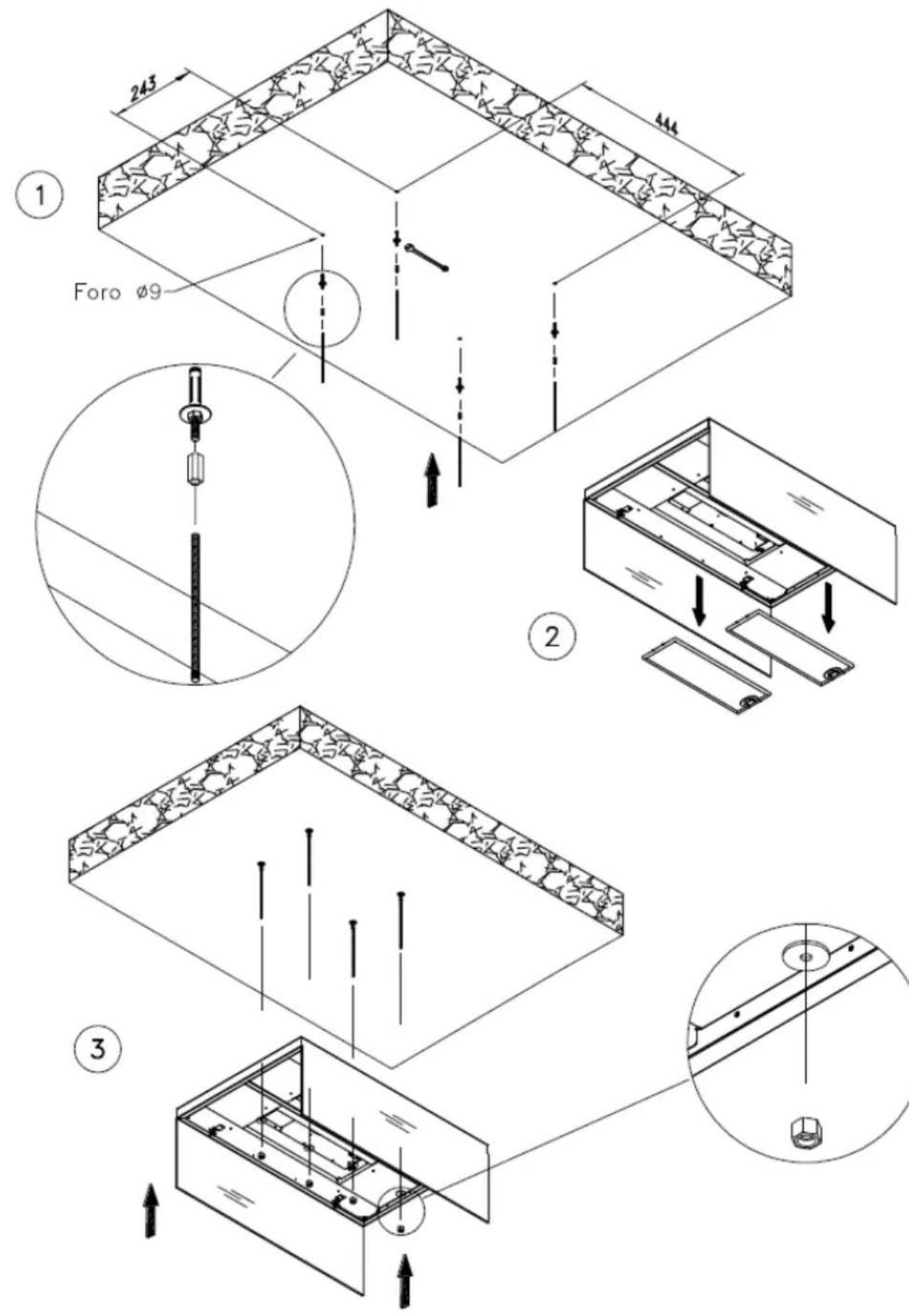

CEILING STRIPE 75/45 SM

CEILING STRIPE 75/45 SM (17Kg)

Isometric line drawing of a rectangular frame with internal parallel lines and two vertical arrows indicating direction (no text or symbols)

Per aprire tirare qui simultaneamente Please pull here in the same time to open Zlehen sie hier Pull ici pour ouvrir

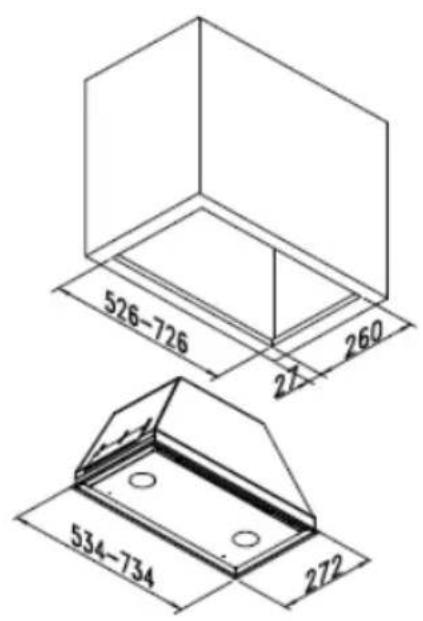

700 90 (80) 220 (230) 10 150

400 50 300 50 220 (230) 10 Ø7 90 (80)

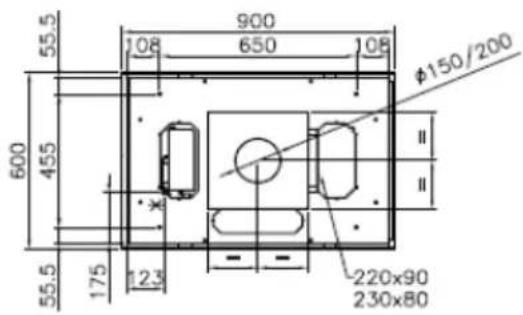

750 110 530 110 450 90 270 90 Ø10 Ø150

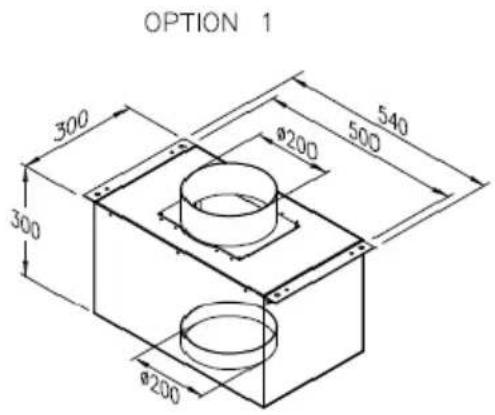

OPTION 2 OPTION 1 715 415

OPTION 1

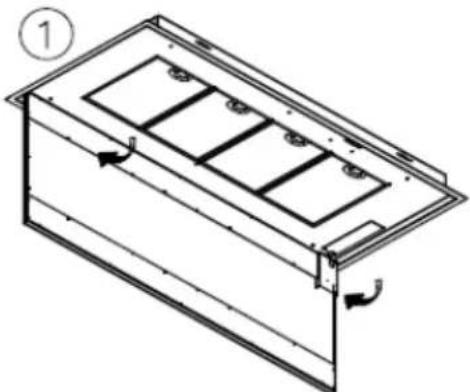

①

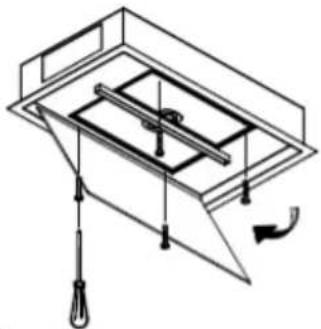

Technical line drawing of a mechanical assembly with no visible text or symbols

②

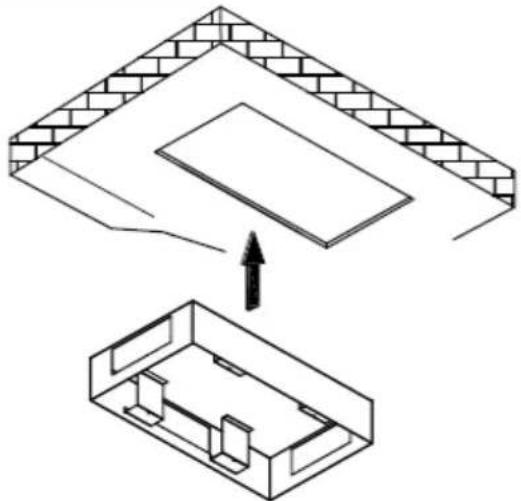

Isometric diagram showing a brick wall section being lifted by an arrow into a smaller rectangular housing (no text or symbols)

Isometric line drawing of a rectangular electronic or mechanical housing with internal compartments and a curved arrow indicating rotation (no text or symbols)

③

Technical line drawing of a structural assembly with brick walls and internal components, no text or symbols present

④

Technical diagram of a mechanical assembly with no visible text or symbols

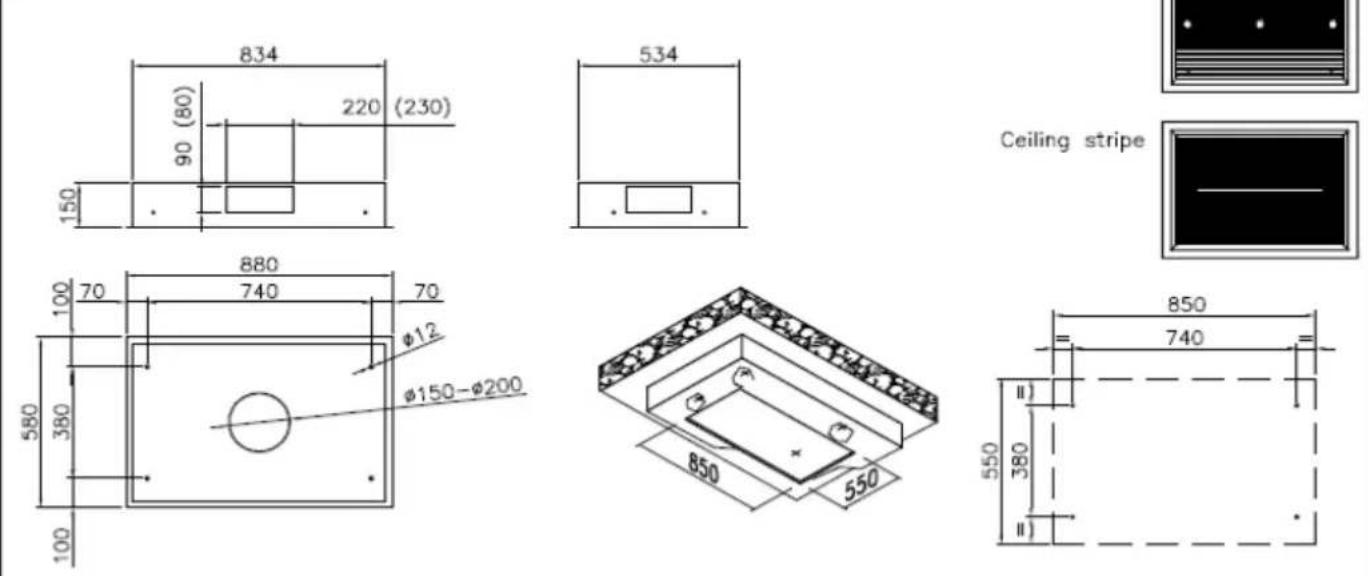

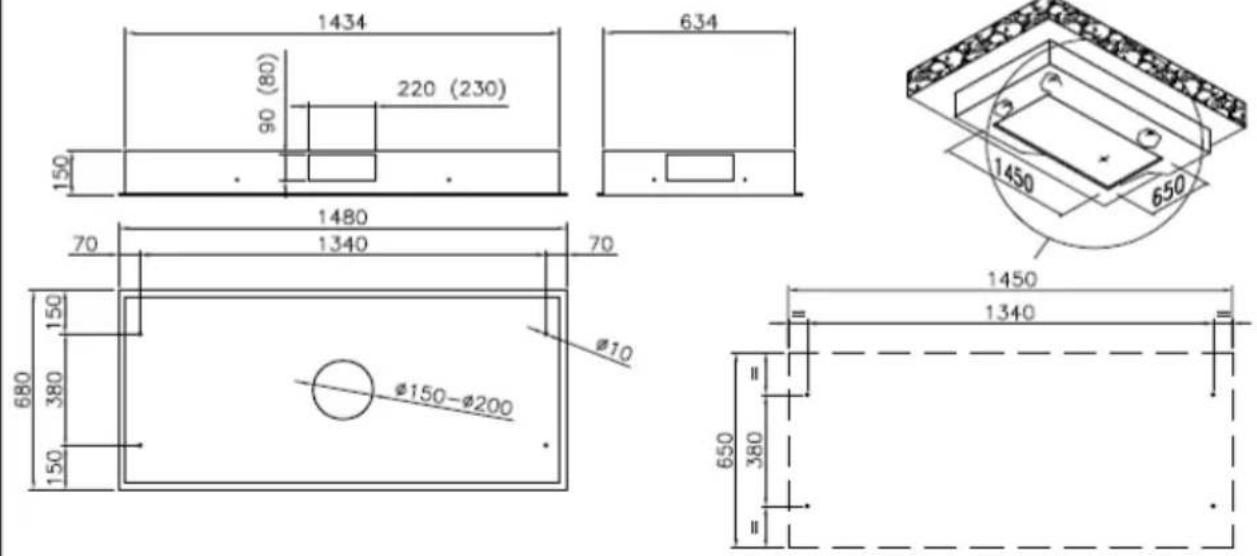

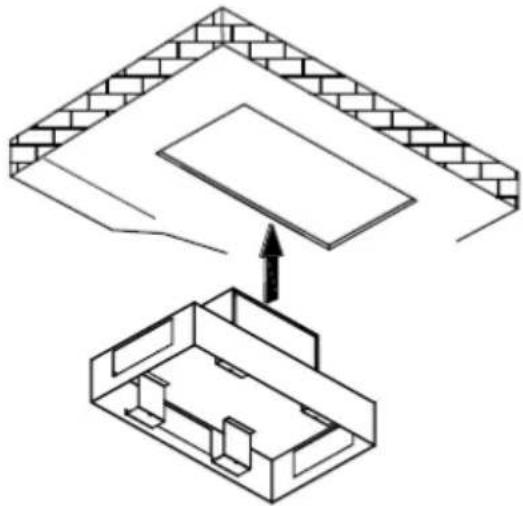

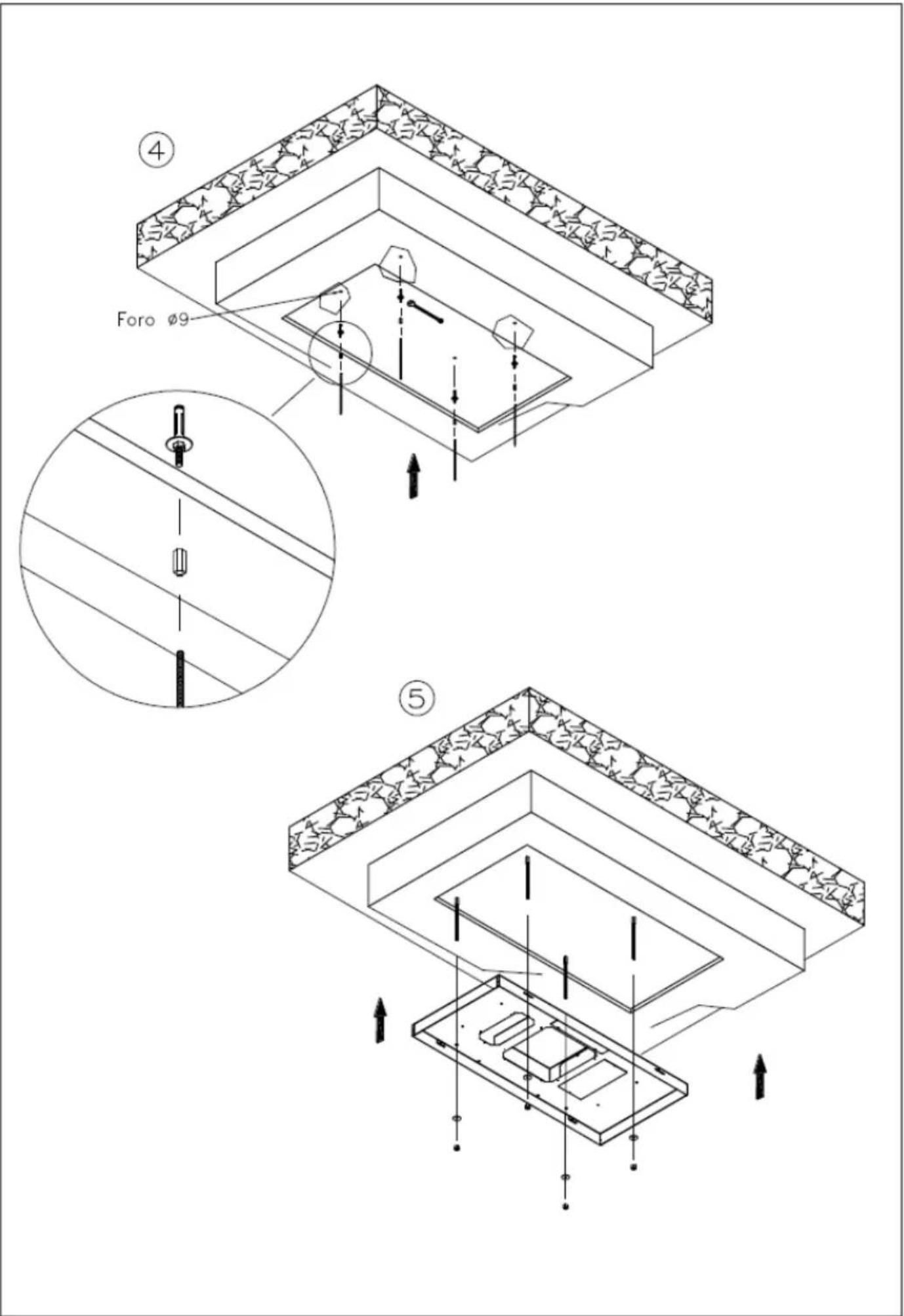

CEILING STRIPE 75/45

CEILING STRIPE 75/45 (21Kg)

Isometric line drawing of a rectangular frame with internal horizontal lines and two vertical arrows indicating direction (no text or symbols)

Please pull here in the same time to open

Zlehen sie hier

OPTION 1 OPTION 2

715 415

OPTION 1

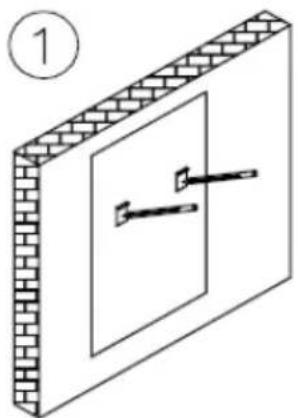

①

Technical line drawing of a mechanical assembly with no visible text or symbols

Isometric line drawing of a mechanical housing or enclosure with internal components and a curved arrow indicating rotation (no text or symbols)

②

Isometric diagram showing a structural assembly with two components, one above and one below, with no visible text or symbols.

④

Architectural diagram showing structural components with arrows indicating movement or force (no text or labels)

③

Isometric line drawing of a structural assembly with brick walls and a bulb, no text or symbols present

OPTION 2

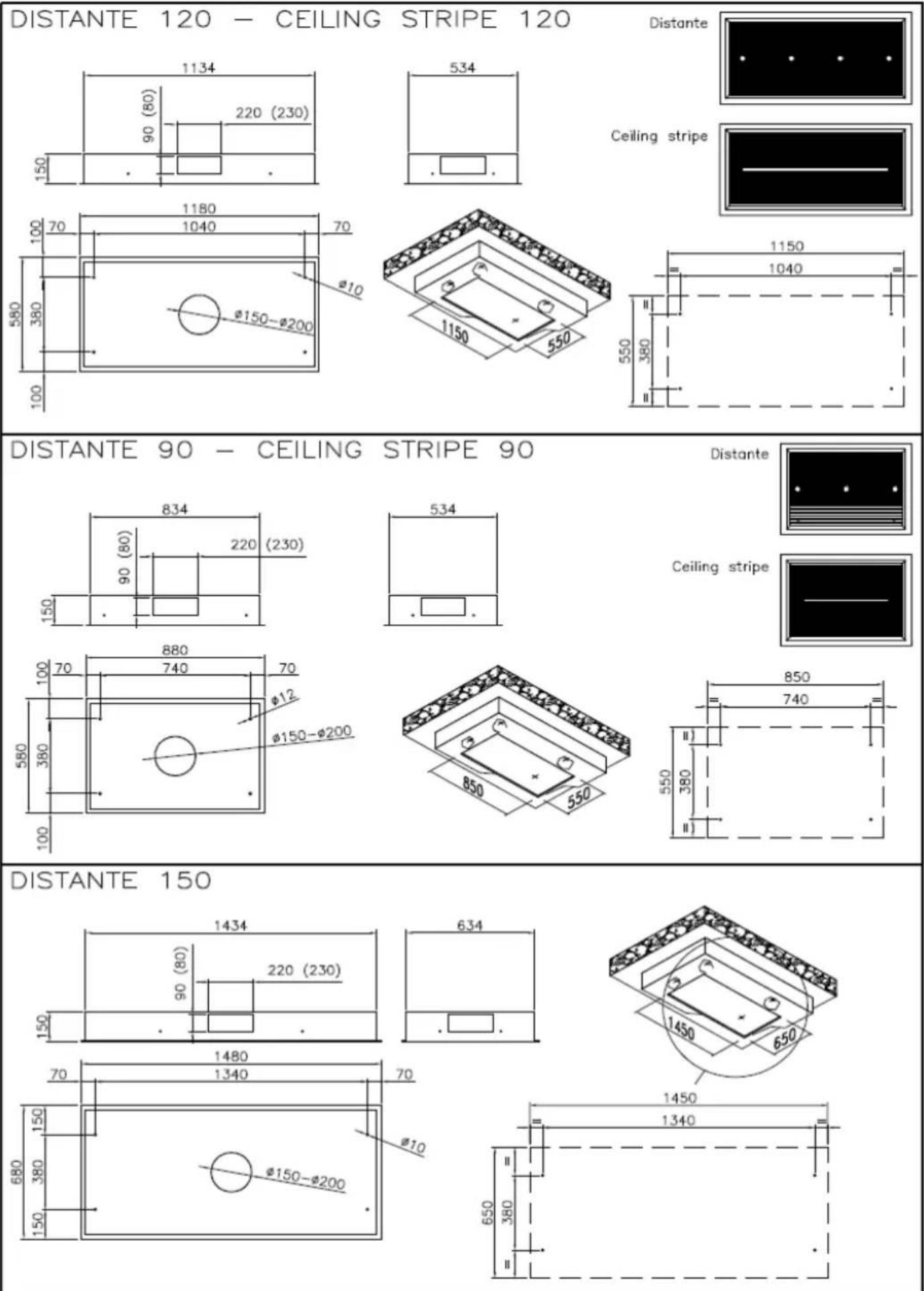

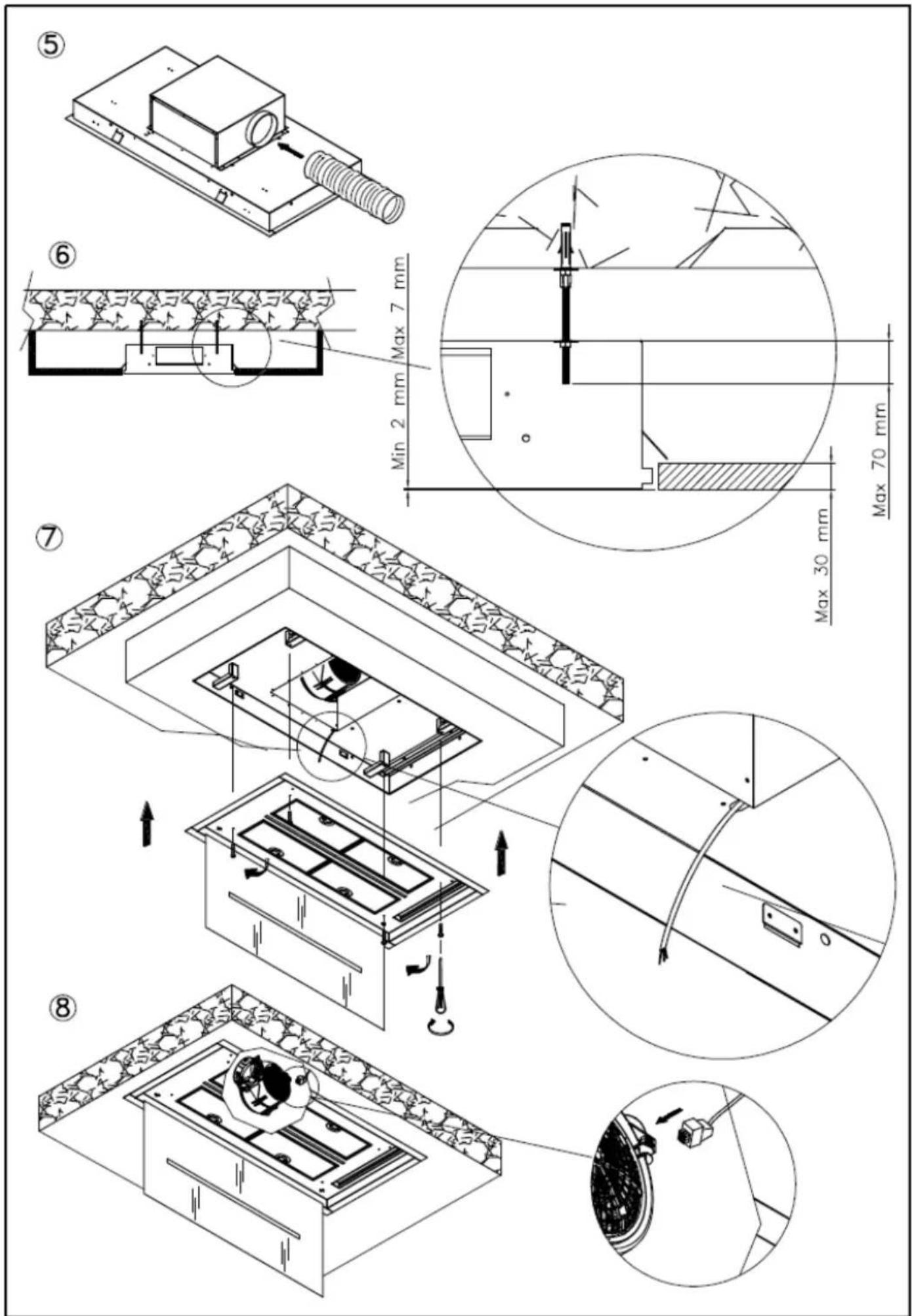

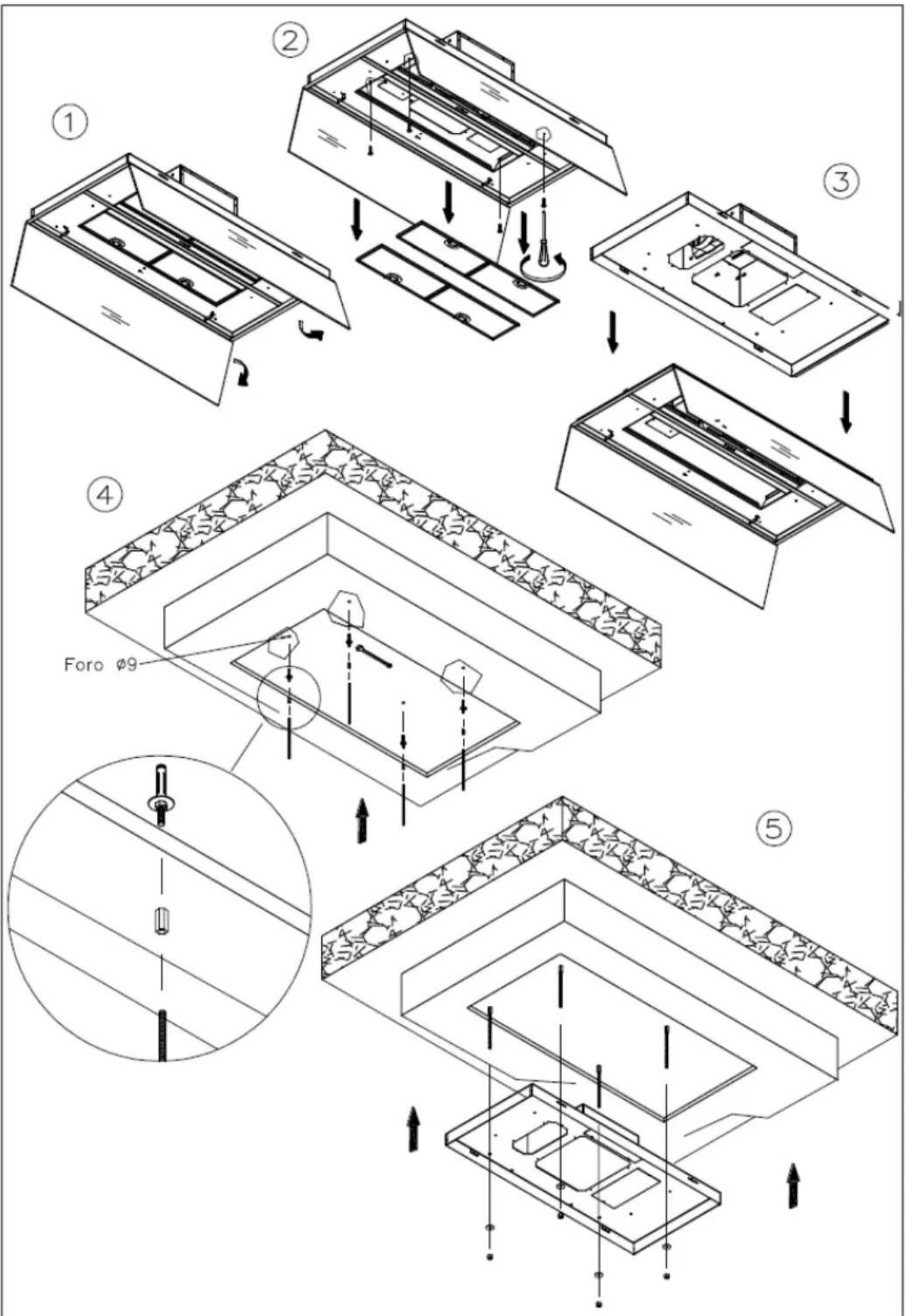

DISTANTE 90 - DISTANTE 120 - CEILING STRIPE 90 - CEILING STRIPE 120

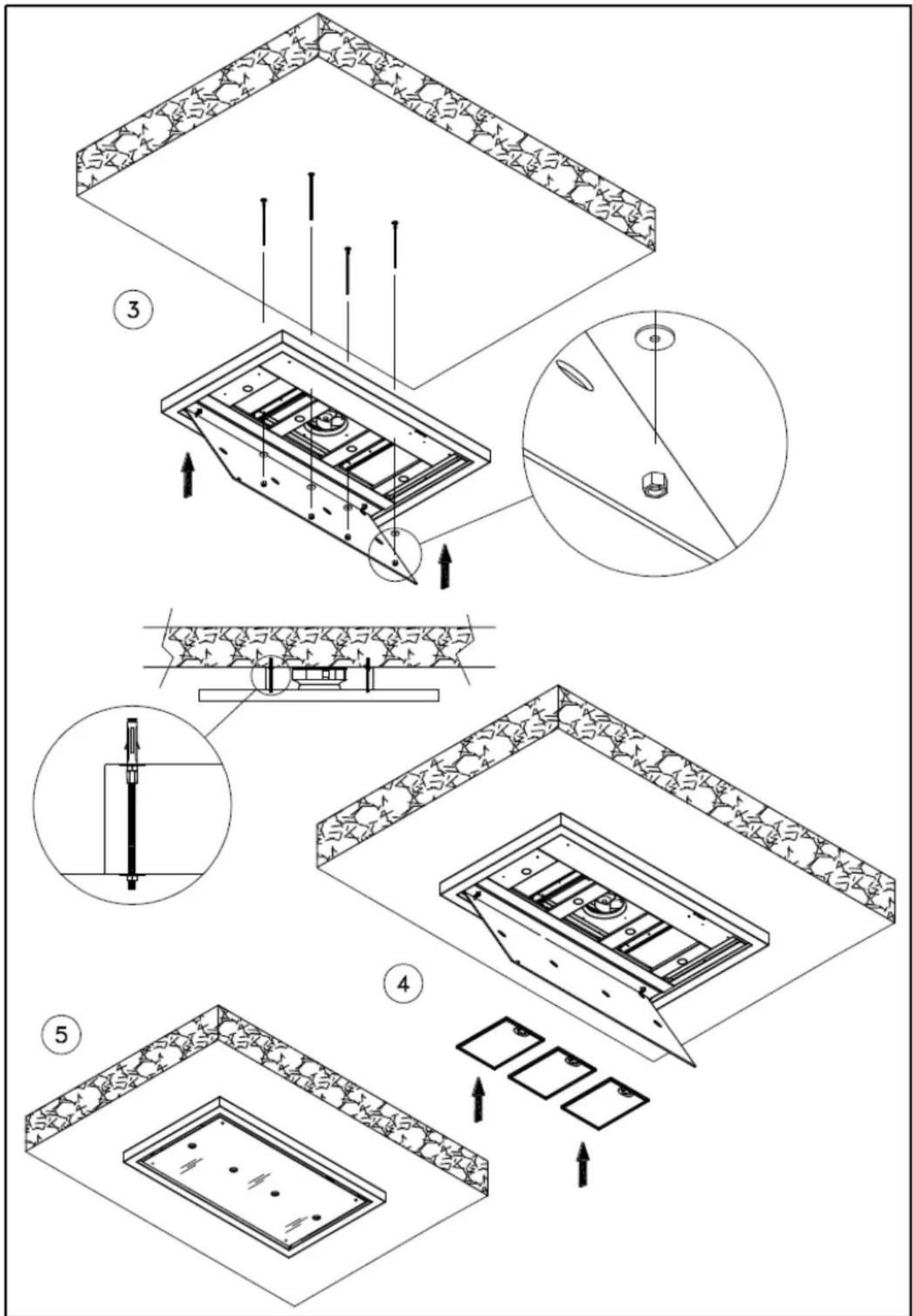

Technical diagram illustrating four sequential installation steps of a multi-chamber electrical enclosure, labeled with components and directional arrows.

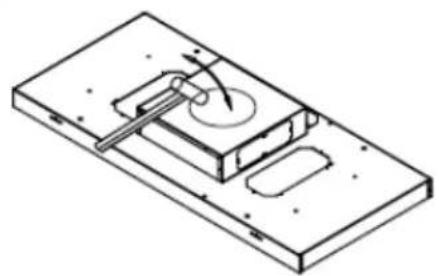

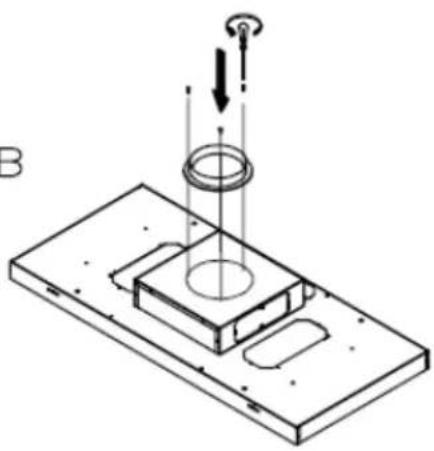

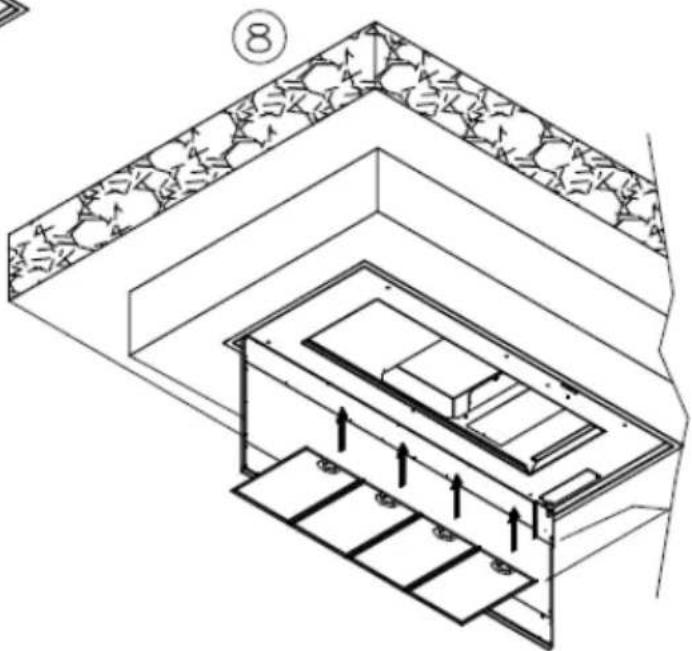

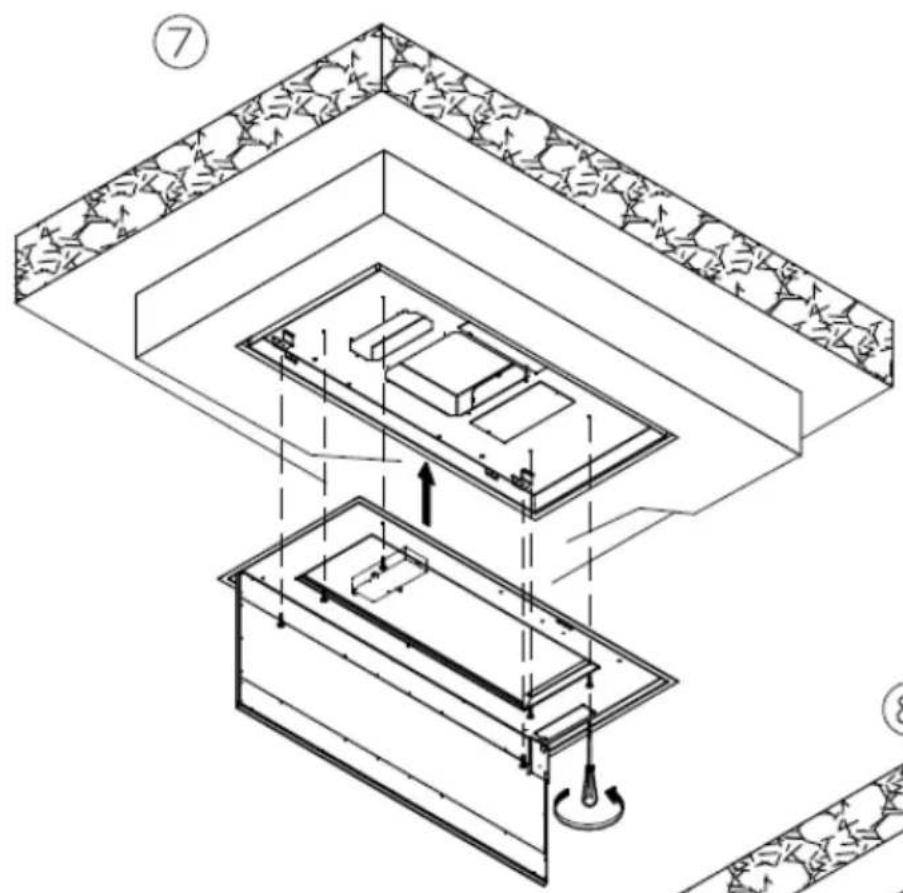

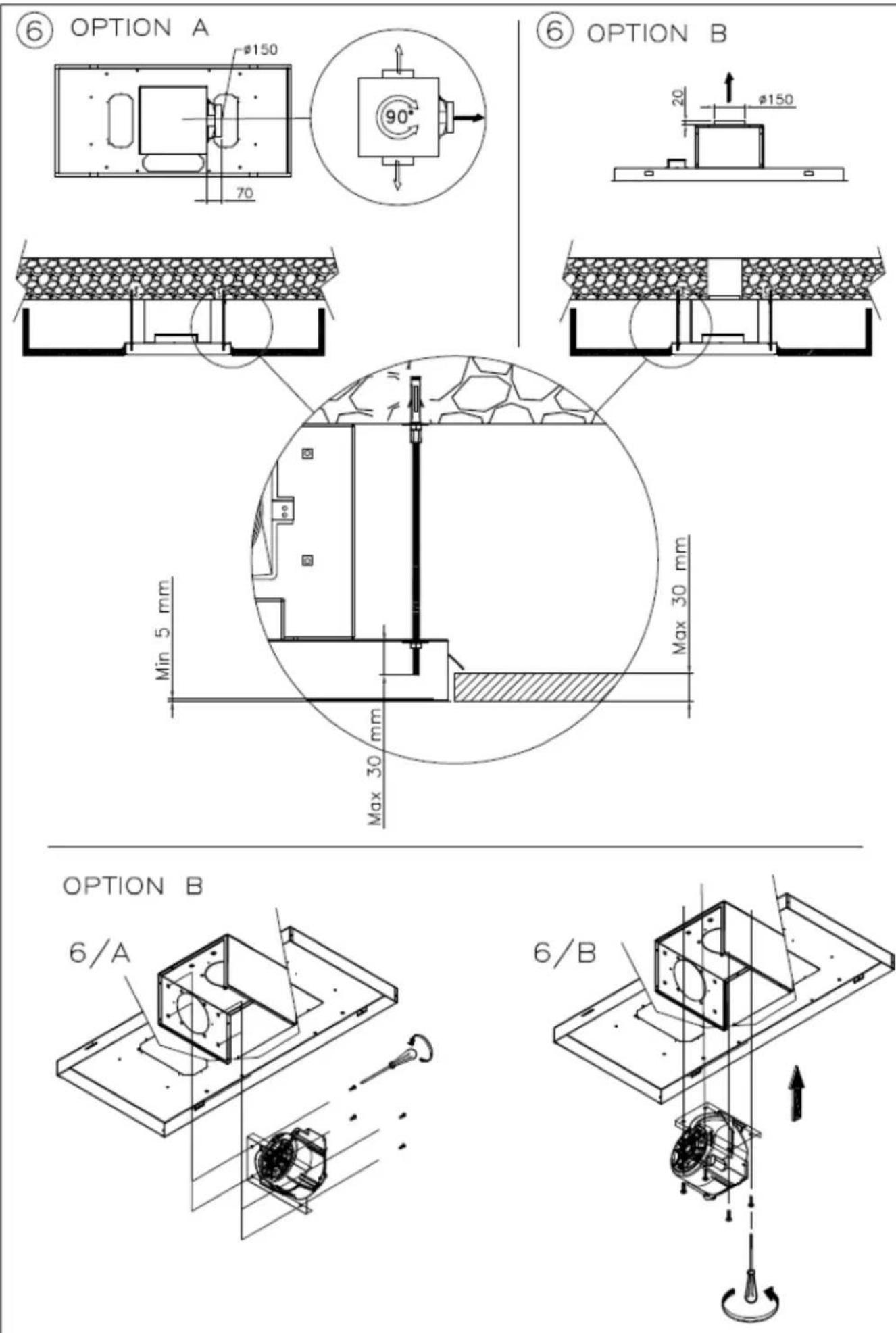

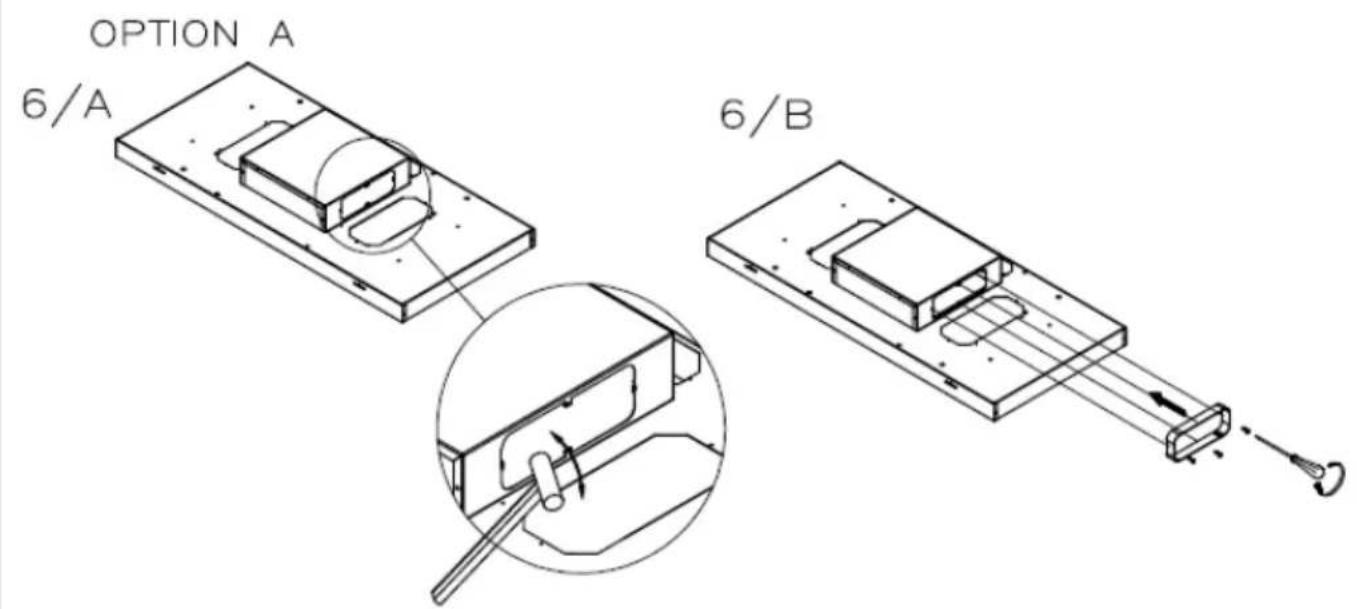

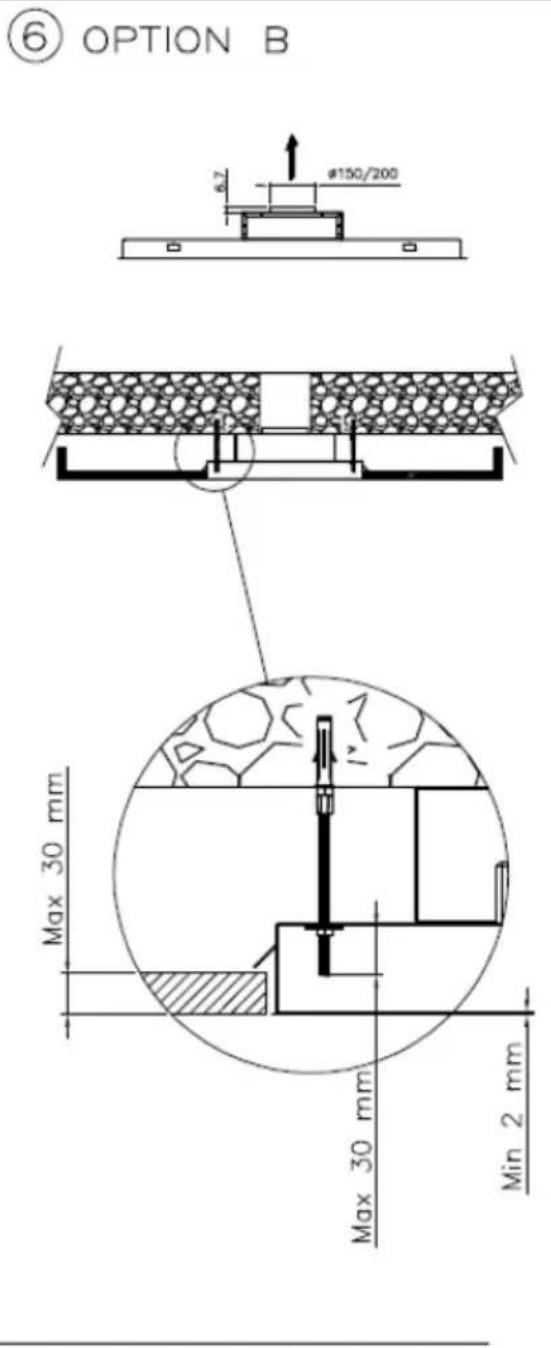

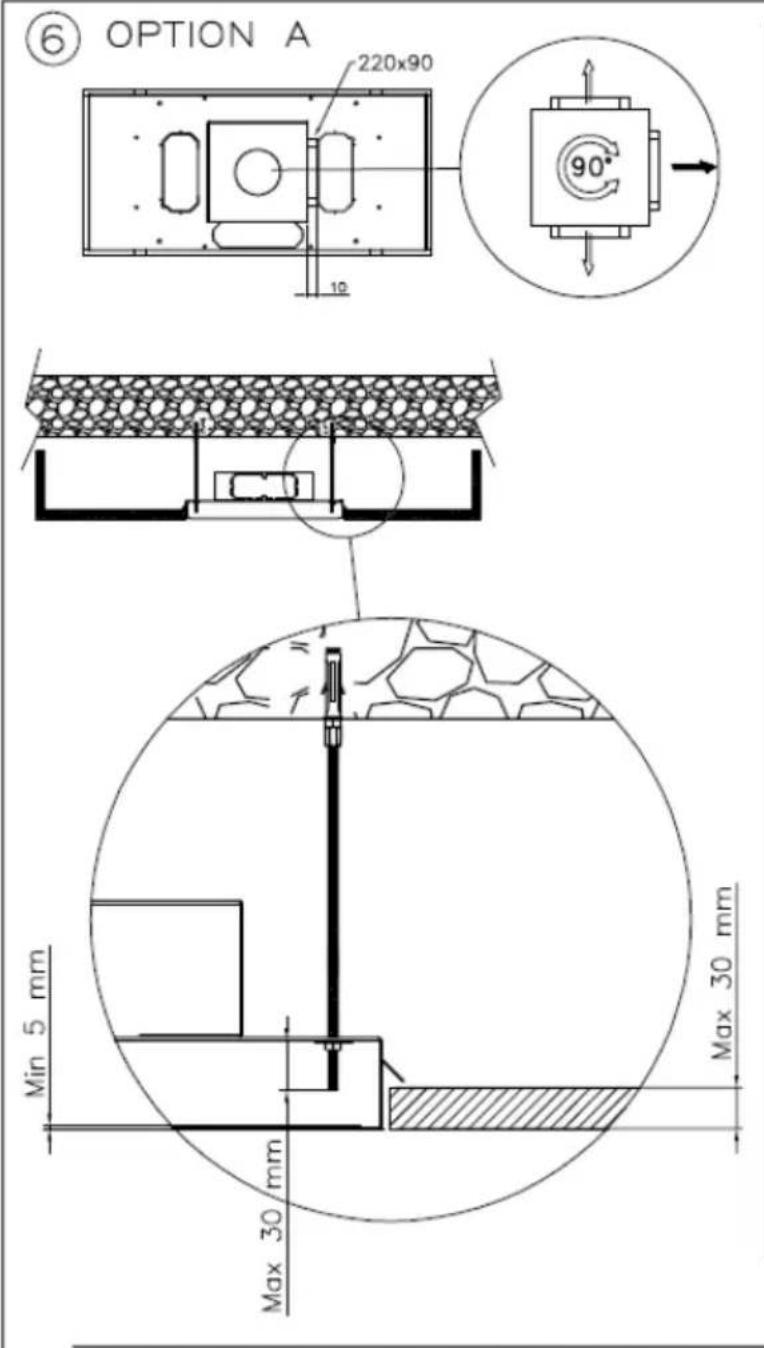

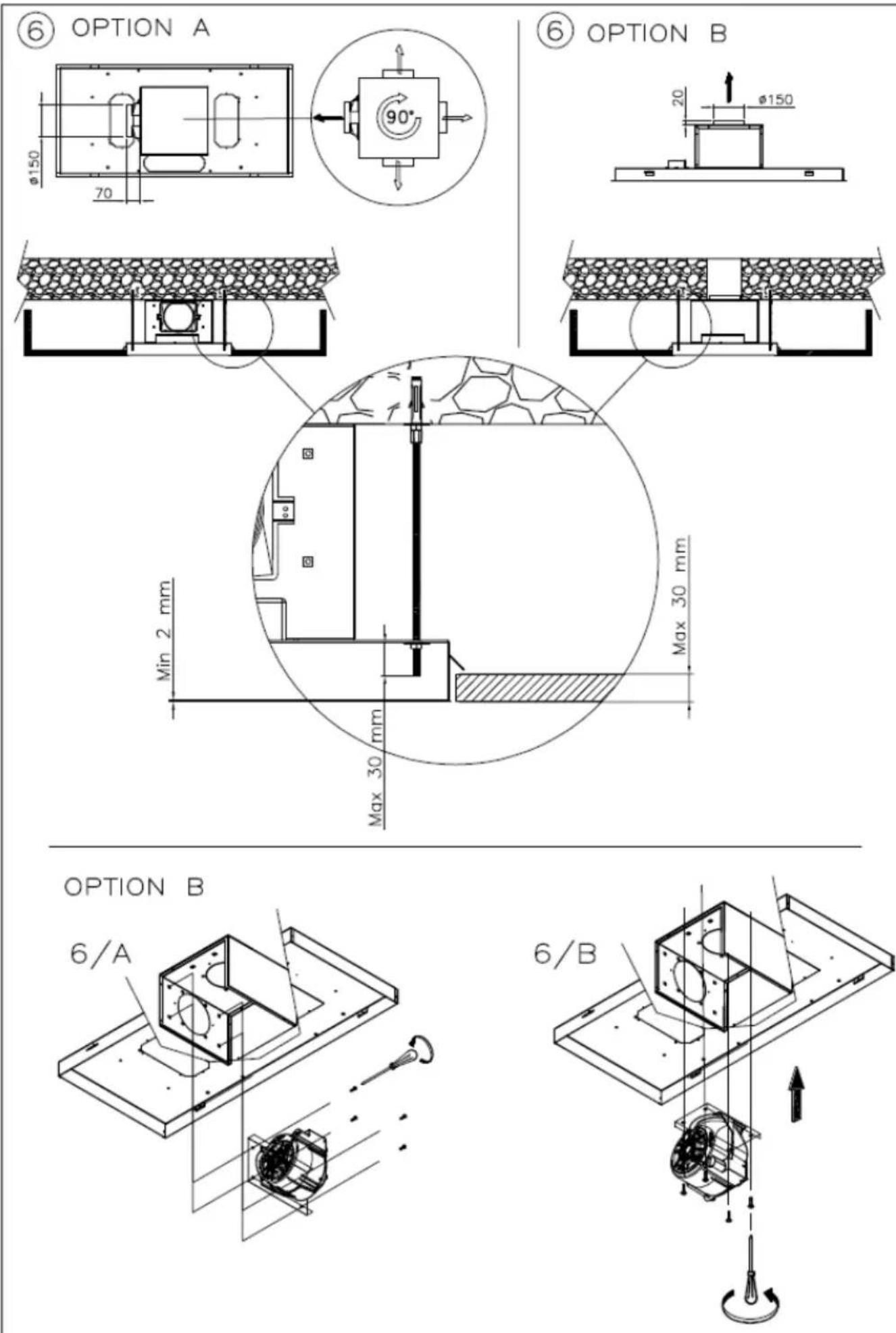

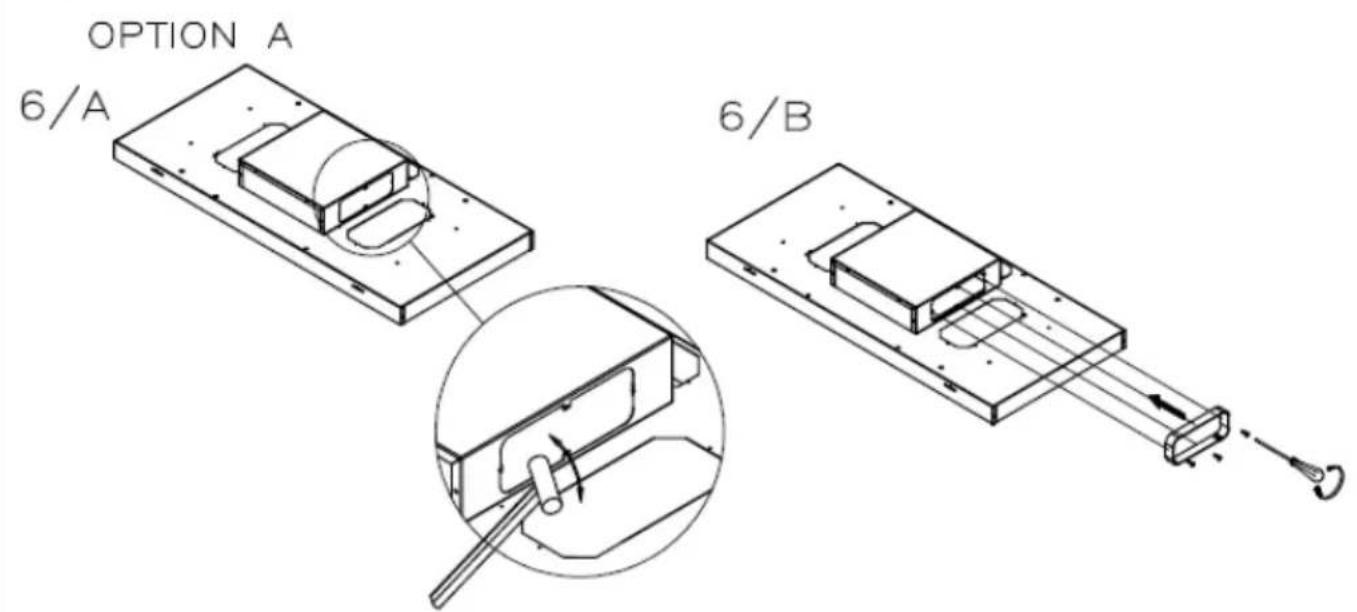

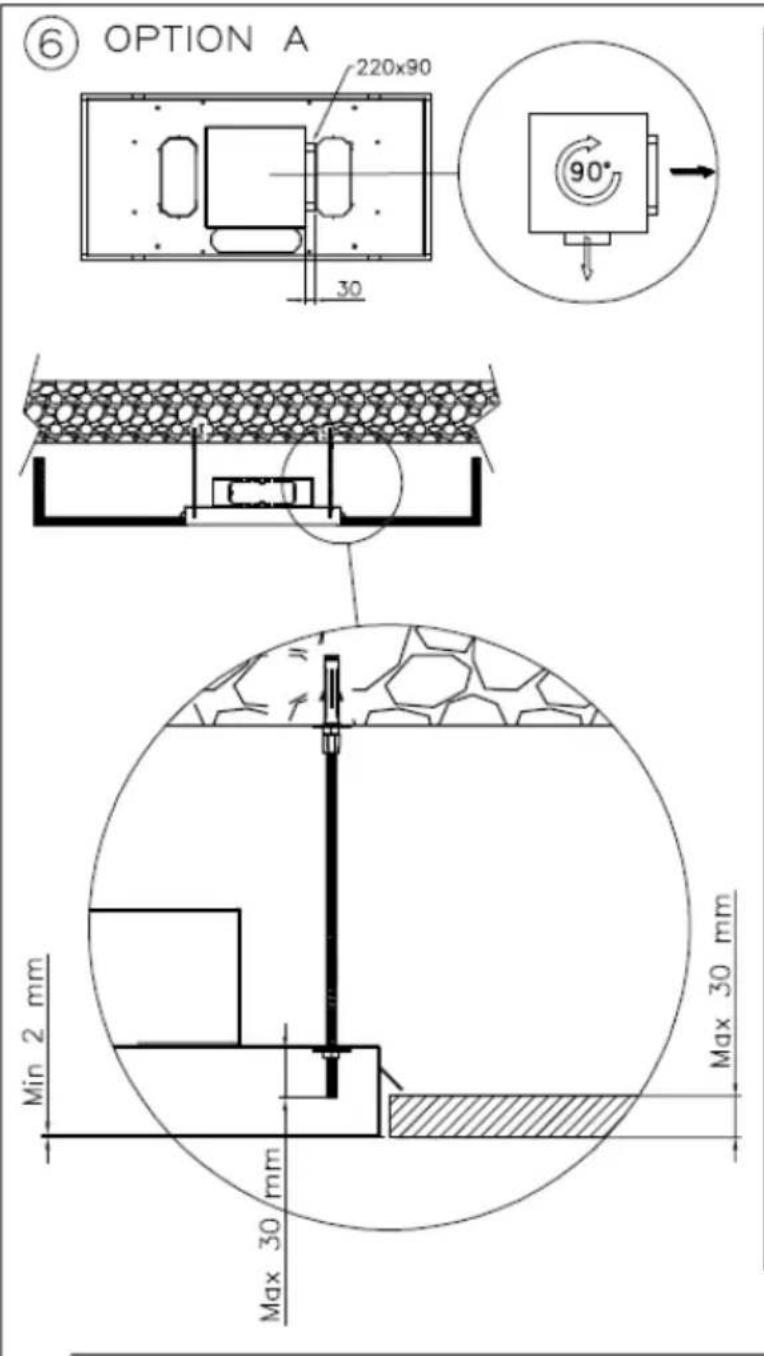

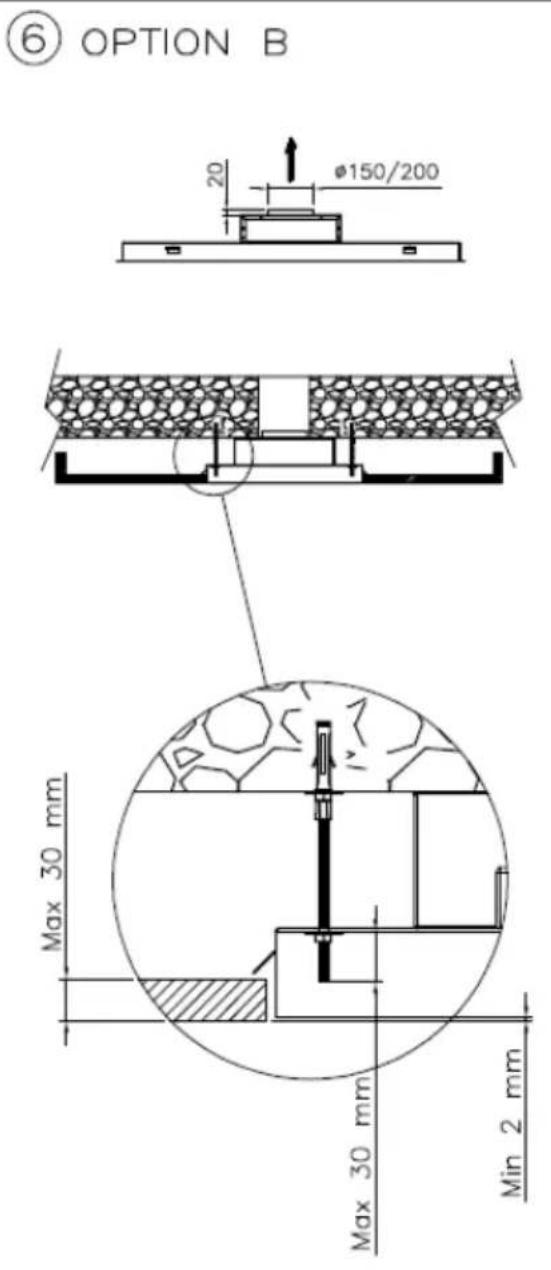

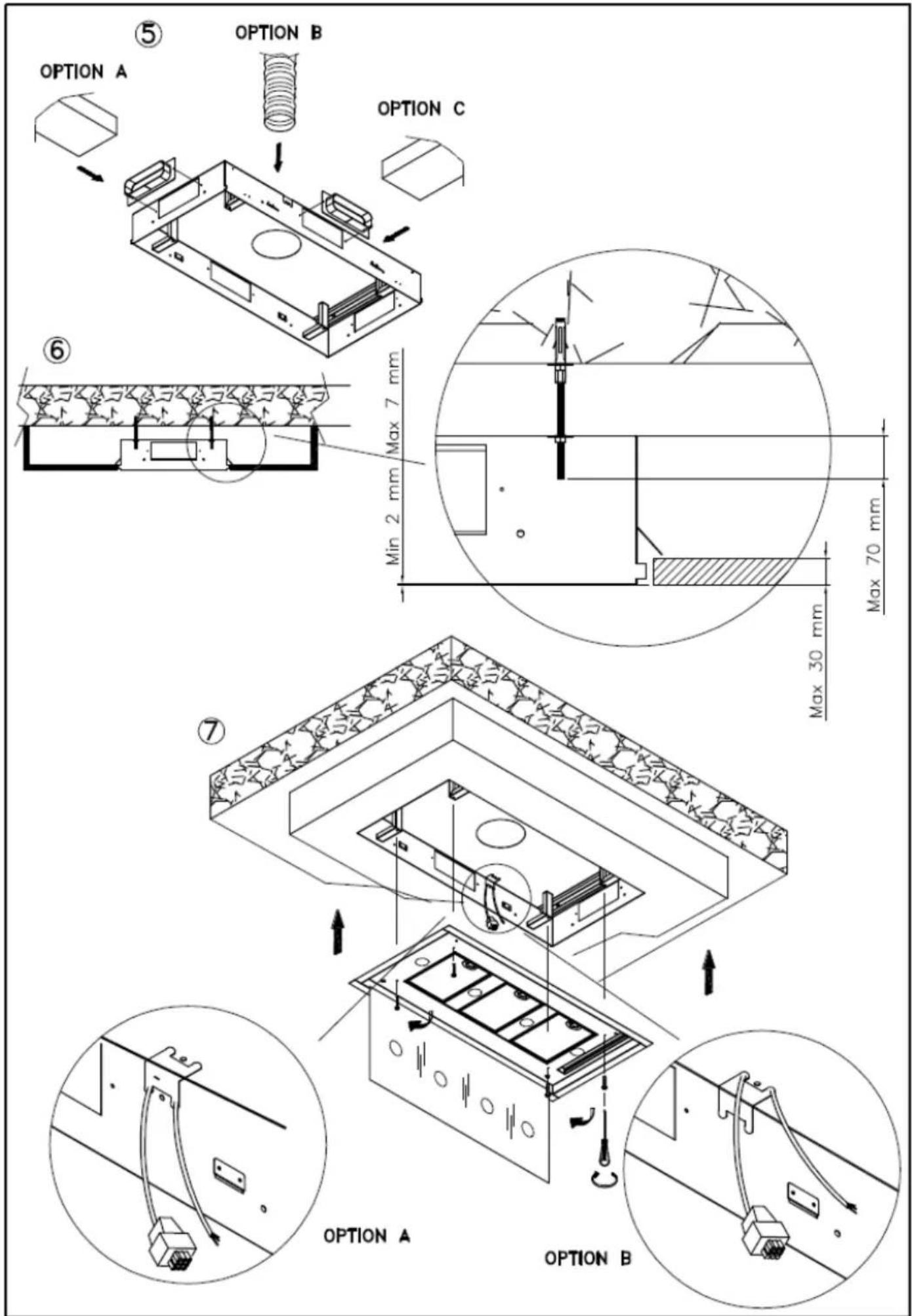

OPTION A OPTION B OPTION C Min 2 mm Max 7 mm Max 30 mm Max 70 mm OPTION A OPTION B

CEILING STRIPE 90 - 120

* USCITA CAVO ALIMENTAZIONE OUTPUT POWER CABLE AUSGANGLEISTUNG KABEL SORTIE CABLE D'ALIMENTATION UITGANGSVERMOGEN CABLE

834 252 330 252 310 150 160 * 230

534 102 330 102 7 1

CEILING STRIPE 90

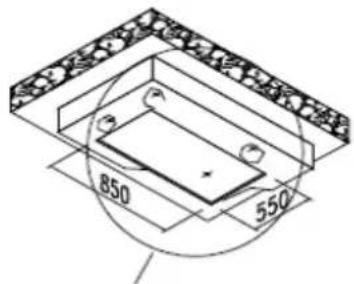

850 550

880 70 740 70 100 580 380 Ø10 Ø150 165 165 165 350 65 USO OUT AUS SOS

* USCITA CAVO ALIMENTAZIONE OUTPUT POWER CABLE AUSGANGLEISTUNG KABEL SORTIE CABLE D'ALIMENTATION UITGANGSVERMOGEN CABLE

850 = 440 = 550 = 270 . = .

CEILING STRIPE 90 (24kg)

Isometric diagram of a rectangular frame with two downward-pointing arrows indicating force or pressure (no text or symbols)

Per aprire tirare qui simultaneamente Please pull here in the same time to open Ziehen sle hier

Technical diagram illustrating four sequential installation steps of a building facade with labeled components and dimensions.

Technical diagram showing eight stages of a mechanical assembly with labeled components and dimensional annotations in millimeters.

CEILING STRIPE R 90

900 491 600 287 165 120 45 444 600 243 51 25 58 UDGANG TIL FORSYNINGSKABEL UTGANG FOR ELKABEL SÄHKÖJOHDON ULOSTULO UTGANG TIL STRÖMKABEL USCITA CAVO AUMENTAZIONE OUTPUT POWER CABLE AUSGANGLESTUNG KABEL SORTIE CABLE D'ALIMENTATION UITGANGSVERMOGEN CABLE UDGANG TIL FORSYNINGSKABEL TILBEH∅R UTGANG FOR ELKABEL TILLVAL SÄHKÖJOHDON ULOSTULO LISÄVARUSTE UTGANG TIL STRÖMKABEL TILLEGSUTSTYR USCITA CAVO AUMENTAZIONE OPTIONAL OPTIONAL OUTPUT POWER CABLE AUSGANGLESTUNG KABEL FAKULTATIV SORTIE CABLE D'ALIMENTATION OPTIONAL OPTIE UITGANGSVERMOGEN CABLE TRÜK HER SAMTIDIG FOR AT ABNE ÖPPNA GENOM ATT DRA HÄR SAMTIDICT AVAA VETÄMÄLLÄ SAMANAİKASESTI TÄSTÄ TREKK HER SAMTIDIG FOR A APNE PER APRIRE TIRARE QUI SIMULTANEAMENTE PLEASE PULL HERE IN THE SAME TIME TO OPEN ZIEHEN SIE HIER TIRER POUR OUVRIR ICI EN MÈME TEMPS ALB TREK HIER IN DEZELFDE TUD OM TE OPENEN ADVARSEL: SKAB ET FRIRUM PÅ 60 mm OVER MOTORBOKSEN FOR AT TILSLUTTE STRÖM OG SKJULE FORSYNINGSKABLETS STIK OBSERVERA: SKAPA ETT UTRYMME PÅ 60 mm OVANFÜR MOTORLÄDAN FÜR ELANSLUTNINGEN OCH FÜR ATT DÖLJA ELKABELNS KONTAKT HUOMIO: MUODOSTA 60 mm TA TILA MOOTTORIKOTELON YLÄPUOLELLE SÄHKÖJITÄNTÄÄ VARTEN JA PILOTA SÄHKÖJOHDON PISTOKE ADVARSEL: LA DET VÈRE 60 mm OVER MOTORBOKSEN FOR Å TILKOBLE FORSYNINGEN OG SKJULE STRÖMKABELENS STIKKONTAKT ATTENZIONE: CREARE UNO SPAZIO DI 60mm SOPRA IL BOX MOTORE PER LA CONNESSIONE DELL'ALIMENTAZIONE E NASCONDERE LA PRESA DEL CAVO DI ALIMENTAZIONE ATTENTION: CREATE A SPACE OF 60mm ABOVE THE MOTOR BOX FOR THE POWER CONNECTION AND HIDE THE PLUG OF THE POWER CORD ACHTUNG: ES MUSS EIN RAUM VON 60mm ÖBER DIE MOTORBOX FÜR DEN STROMANSCHLUSS GESCHAFFEN UND DIE STECKDOSE DES STROMKABELS VERBORGEN WERDEN ATTENTION : LAISSER UN ESPACE DE 60 MM AU DESSUS DU BOX MOTEUR POUR LA CONNEXION DE L'ALIMENTATION ET CACHER LA PRISE DU CÂBLE D'ALIMENTATION LET OP: BOVEN DE MOTORBOX EEN RUIMTE VAN 60mm CREËREN VOOR DE AANSLUITING VAN DE VOEDING EN OM HET STOPCONTACT VAN DE VOEDINGSKABEL TE VERBERGEN

CEILING STRIPE R 120

TREK HER SAMTIDIG FOR AT ABNE ÖPPNA GENOM ATT DRA HÄR SAMTIDIGT AVAA VETAMÄLLÄ SAMANA/KAISESTI TÄSTÄ TREKK HER SAMTIDIG FOR A ÄPNE PER APRIRE TIRARE QUI SIMULTANEMENTE PLEASE PULL HERE IN THE SAME TIME TO OPEN ZIEHEN SIE HIER TIRER POUR OUVRIR ICI EN MÈME TEMPS AUB TREK HIER IN DEZELFDE TÜD OM TE OPENEN
ADVARSEL: SKAB ET FRIRUM PÅ 60 mm OVER MOTORBOKSEN FOR AT TILSLUTTE STR∅M OG SKJULE FORSYNINGSKABLETS STIK
OBSERVERA: SKAPA ETT UTRYMME PÅ 60 mm OVANFÖR MOTORLÅDAN FÖR ELANSLUTNINGEN OCH FÖR ATT DÖLJA ELKABELNS KONTAKT
HUOMIO: MUODOSTA 60 mmn TILA MOOTTORIKOTELON YLÄPUOLELLE SÄHKÖLIITÄNTÄÄ VARTEN JA PILOTA SÄHKÖJOHDON PISTOKE
ADVARSEL: LA DET VERE 60 mm OVER MOTORBOKSEN FOR A TILKOBLE FORSYNINGEN OG SKJULE STRÖMKABELENS STIKKONTAKT
ATTENZIONE: CREARE UNO SPAZIO DI 60mm SOPRA IL BOX MOTORE PER LA CONNESSIONE DELL'ALIMENTAZIONE E NASCONDERE LA PRESA DEL CAVO DI ALIMENTAZIONE
ATTENTION: CREATE A SPACE OF 60mm ABOVE THE MOTOR BOX FOR THE POWER CONNECTION AND HIDE THE PLUG OF THE POWER CORD
ACHTUNG: ES MUSS EIN RAUM VON 60mm ÜBER DIE MOTORBOX FÜR DEN STROMANSCHLUSS GESCHAFFEN UND DIE STECKDOSE DES STROMKABELS VERBORGEN WERDEN
ATTENTION : LAISSER UN ESPACE DE 60 MM AU DESSUS DU BOX MOTEUR POUR LA CONNEXION DE L'ALIMENTATION ET CACHER LA PRISE DU CÂBLE D'ALIMENTATION
LET OP: BOVEN DE MOTORBOX EEN RUIMTE VAN 60mm CREEREN VOOR DE AANSLUITING VAN DE VOEDING EN OM HET STOPCONTACT VAN DE VOEDINGSKABEL TE VERBERGEN

140 Foro φ9 M4 ① ② ③

Technical diagram illustrating six different mechanical assembly or installation steps with labeled components and directional arrows.

CEILING PANEL 124

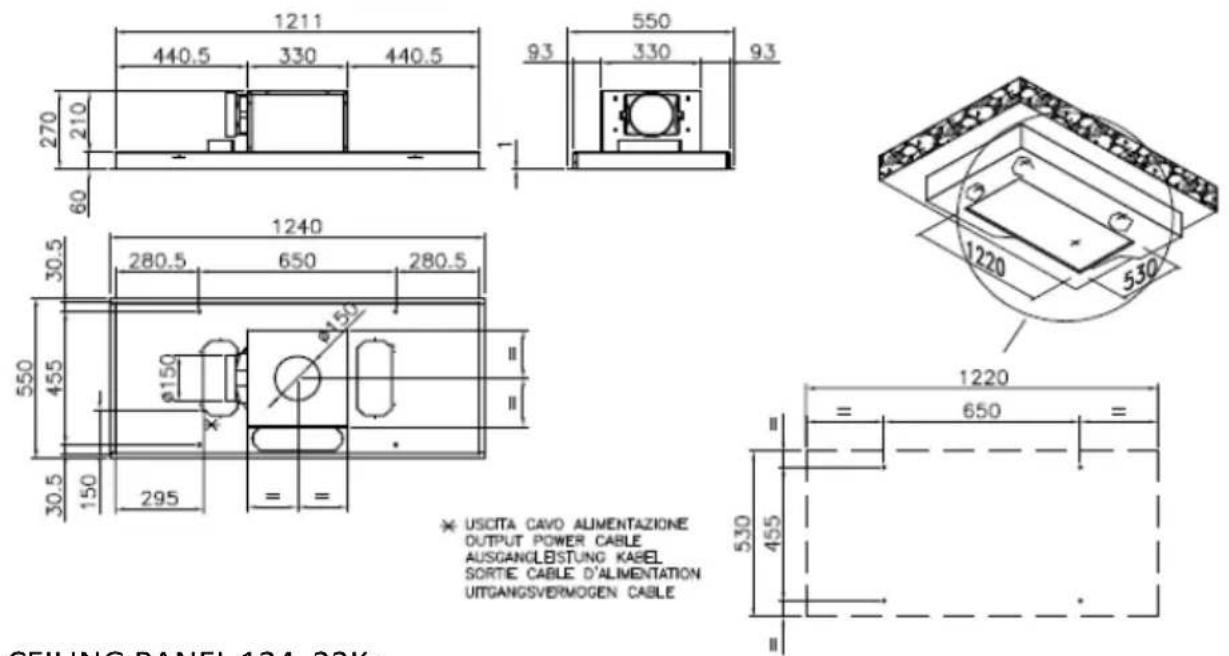

* USCITA CAVO ALIMENTAZIONE OUTPUT POWER CABLE AUSGANGLESTUNG KABEL SORTIE CABLE D'ALIMENTATION UITGANGSVERMOGEN CABLE

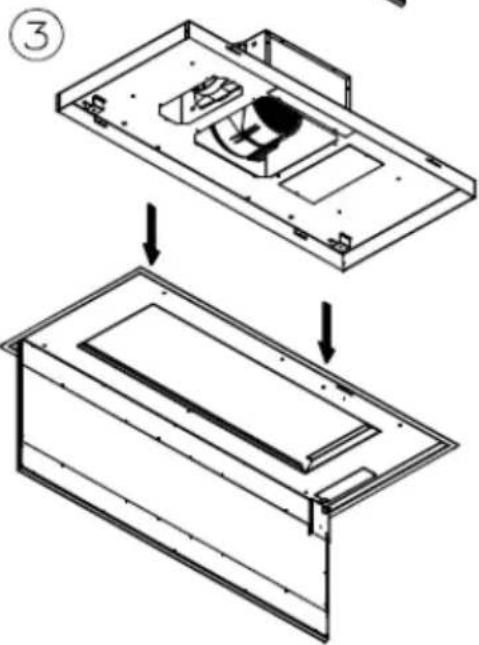

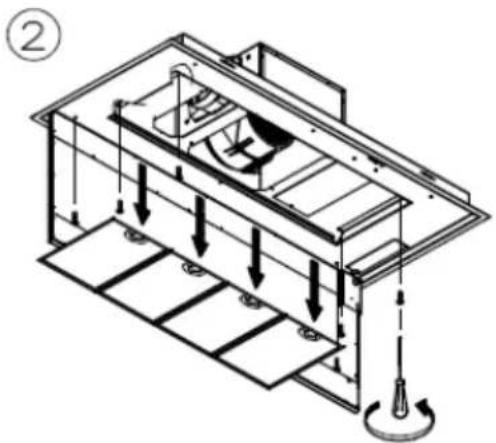

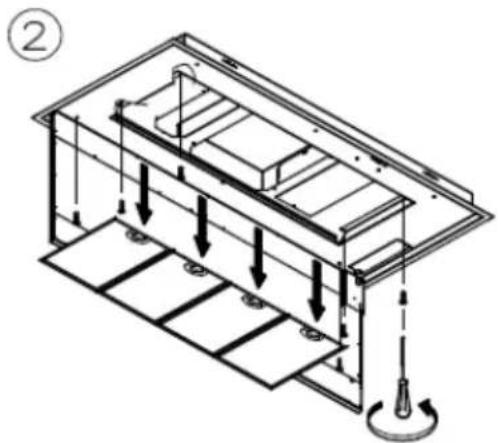

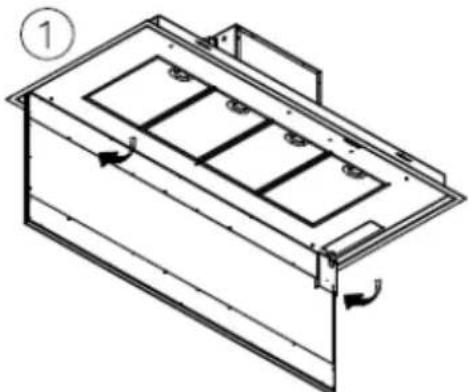

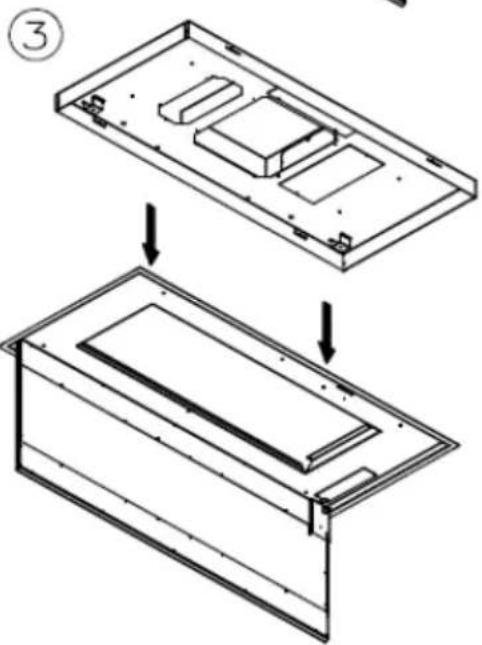

CEILING PANEL 124 22Kg

Isometric diagram of a rectangular frame with two downward arrows indicating internal flow or movement (no text or symbols)

Per aprire tirare qu' simultaneamente Please pull here in the same time to open Ziehen sie hier

Technical line drawing of a mechanical housing or enclosure with internal compartments and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Technical diagram showing two views of a device casing with internal compartments and mounting points (no text or symbols)

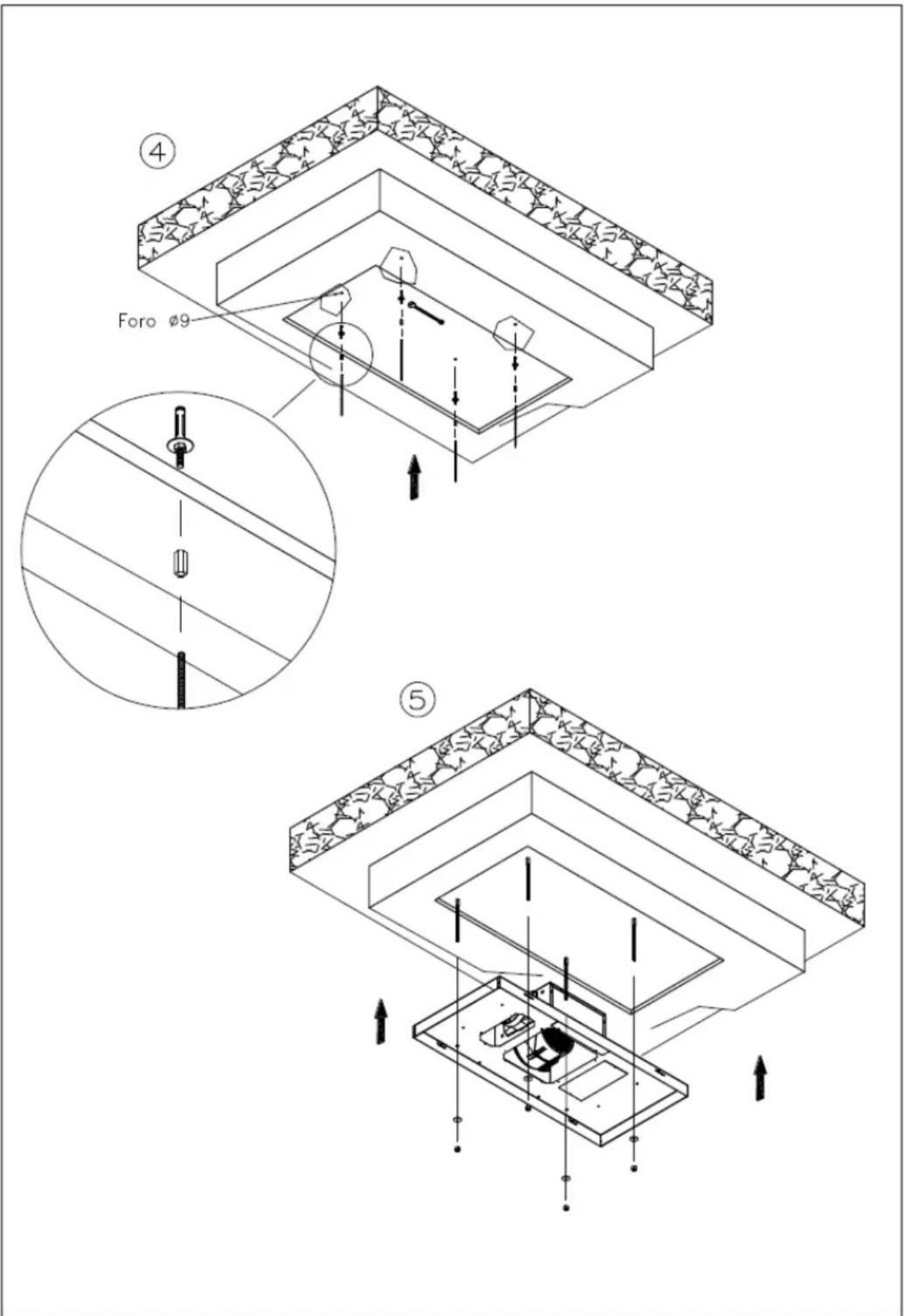

④ Foro φ9 ⑤

CEILING PANEL 124 SM

※ USCITA CAVO ALIMENTAZIONE OUTPUT POWER CABLE AUSGANGLESTUNG KABEL SORTIE CABLE D'ALIMENTATION UITGANGSVERMOGEN CABLE

CEILING PANLE 124 18Kg

Isometric diagram of a rectangular frame with two downward arrows indicating internal flow or force (no text or symbols)

Per aprire tirare qu' simultaneamente Please pull here in the same time to open Ziehen sie hier

Technical line drawing of a rectangular enclosure with internal compartments and ventilation ducts (no text or symbols)

Technical diagram of a mechanical assembly with downward force arrows and a rotating knob (no text or symbols)

Technical line drawing of a device casing with internal compartments and mounting holes, showing two steps (no text or symbols)

④ Foro φ9 ⑤

⑥ OPTION A 220x90 30 90° Min 2 mm Max 30 mm Max 30 mm

⑥ OPTION B 20 Ø150/200 Max 30 mm Max 30 mm Min 2 mm

OPTION A 6/A 6/B

OPTION B

6/A

Isometric technical drawing of a mechanical assembly with no visible text or symbols

6/B

Isometric technical diagram showing a mechanical assembly with a central circular component and two vertical rods, no text or symbols present.

Technical diagram showing a cross-sectional view of a building or storage unit with labeled components and directional arrows indicating movement.

Architectural cross-section diagram of a building showing roof, windows, and structural elements (no text or labels)

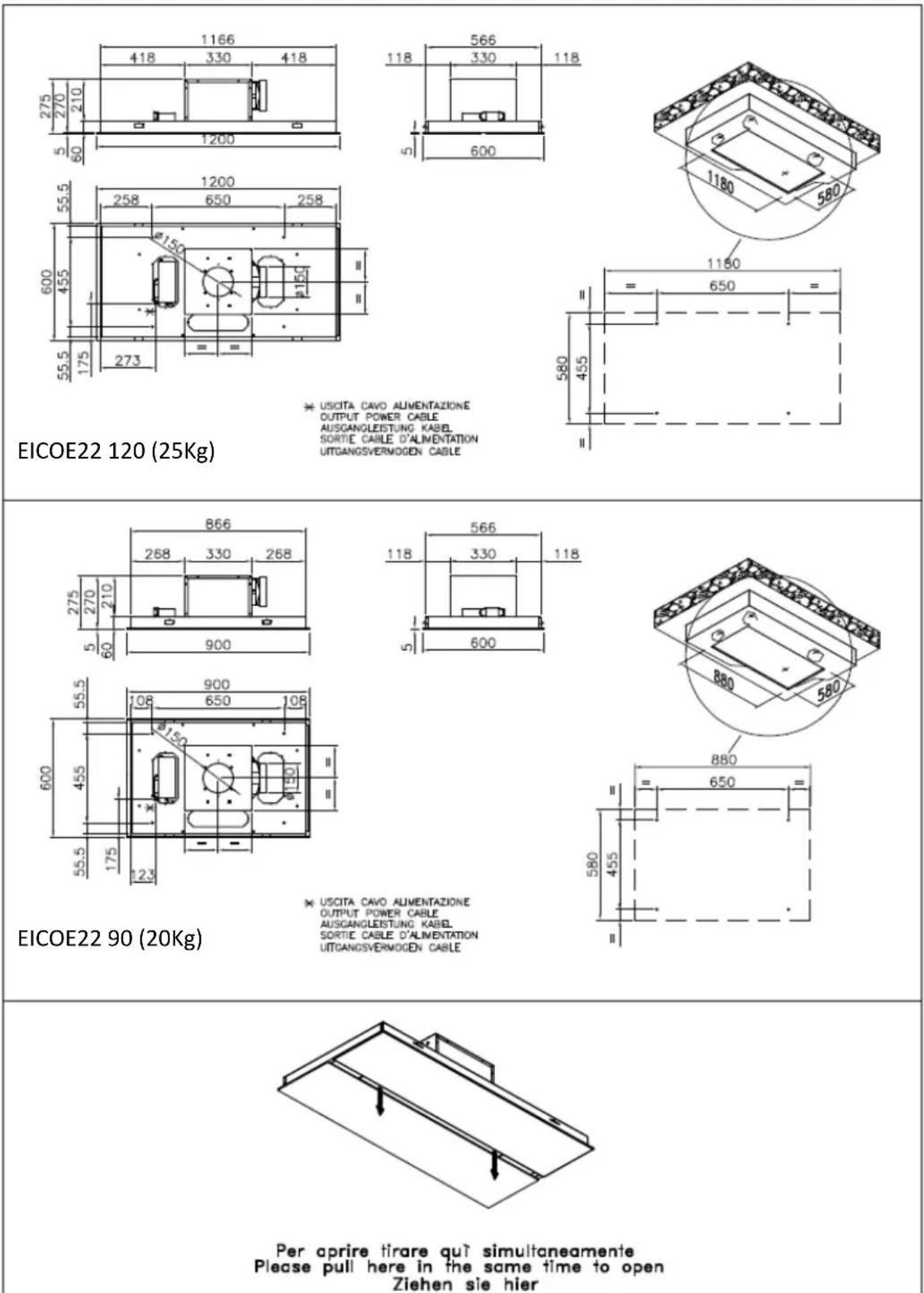

EICOE22

* USCITA CAVO ALIMENTAZIONE OUTPUT POWER CABLE AUSGANGLEISTUNG KABEL SORTIE CABLE D'ALIMENTATION UITGANGSVERMOGEN CABLE
× USCITA CAVO ALIMENTAZIONE OUTPUT POWER CABLE AUSGANGLEISTUNG KABEL SORTIE CABLE D'ALIMENTATION UITGANGSVERMOGEN CABLE

Technical diagram illustrating five sequential assembly steps of a mechanical or electrical component, labeled ① to ⑤.

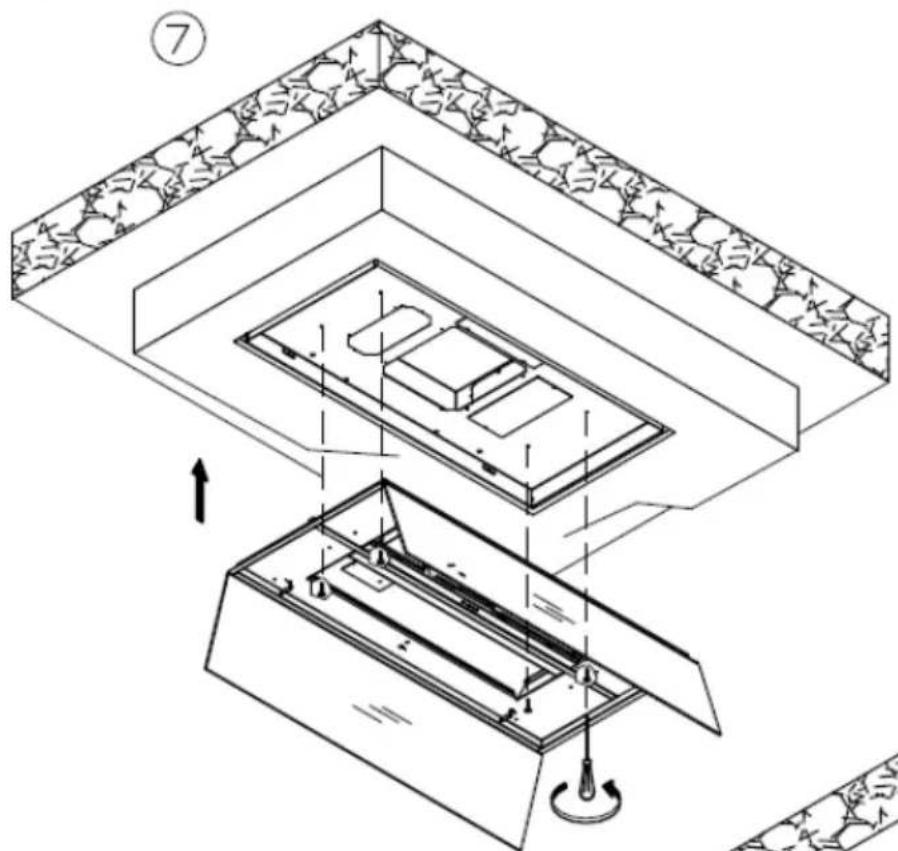

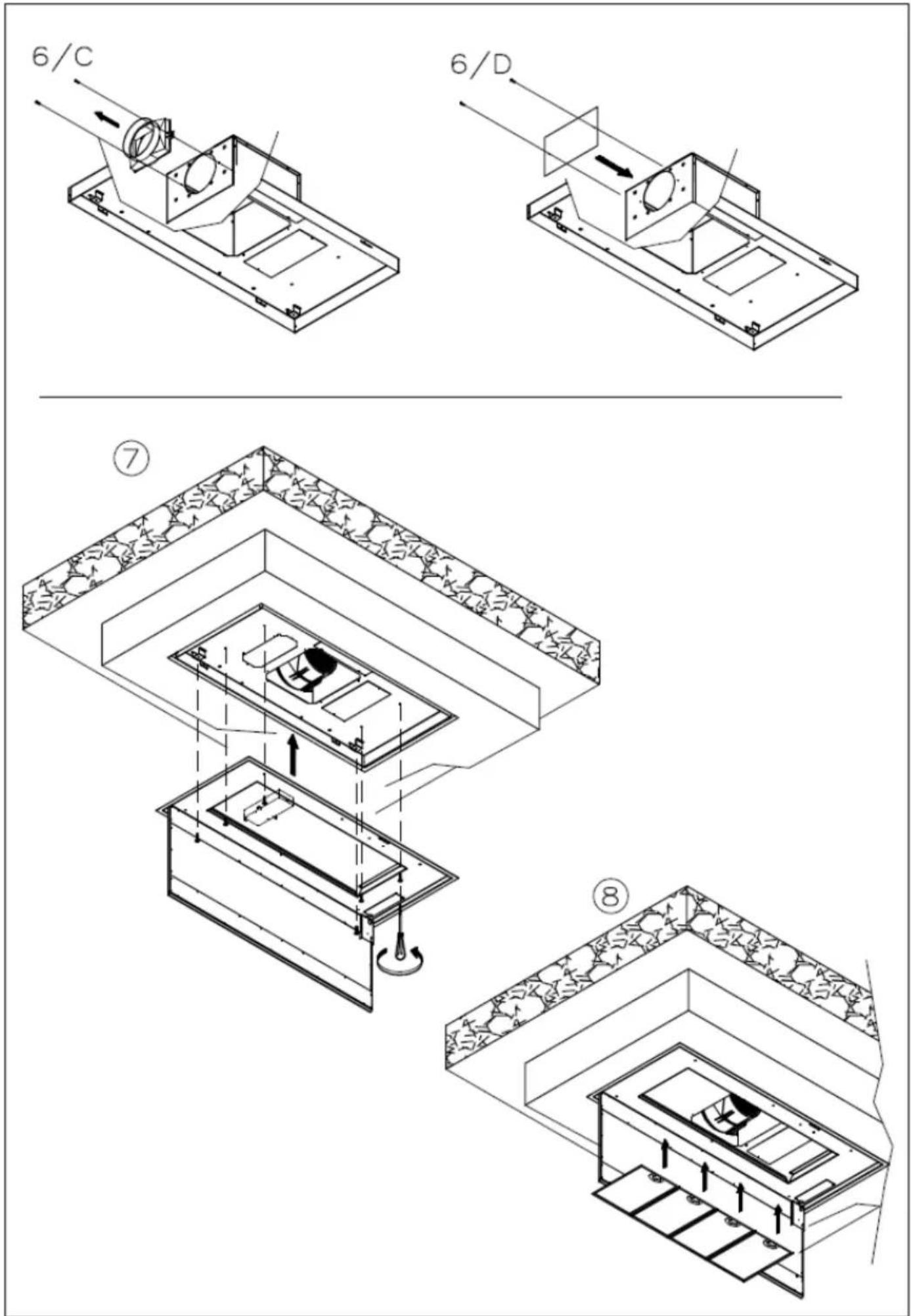

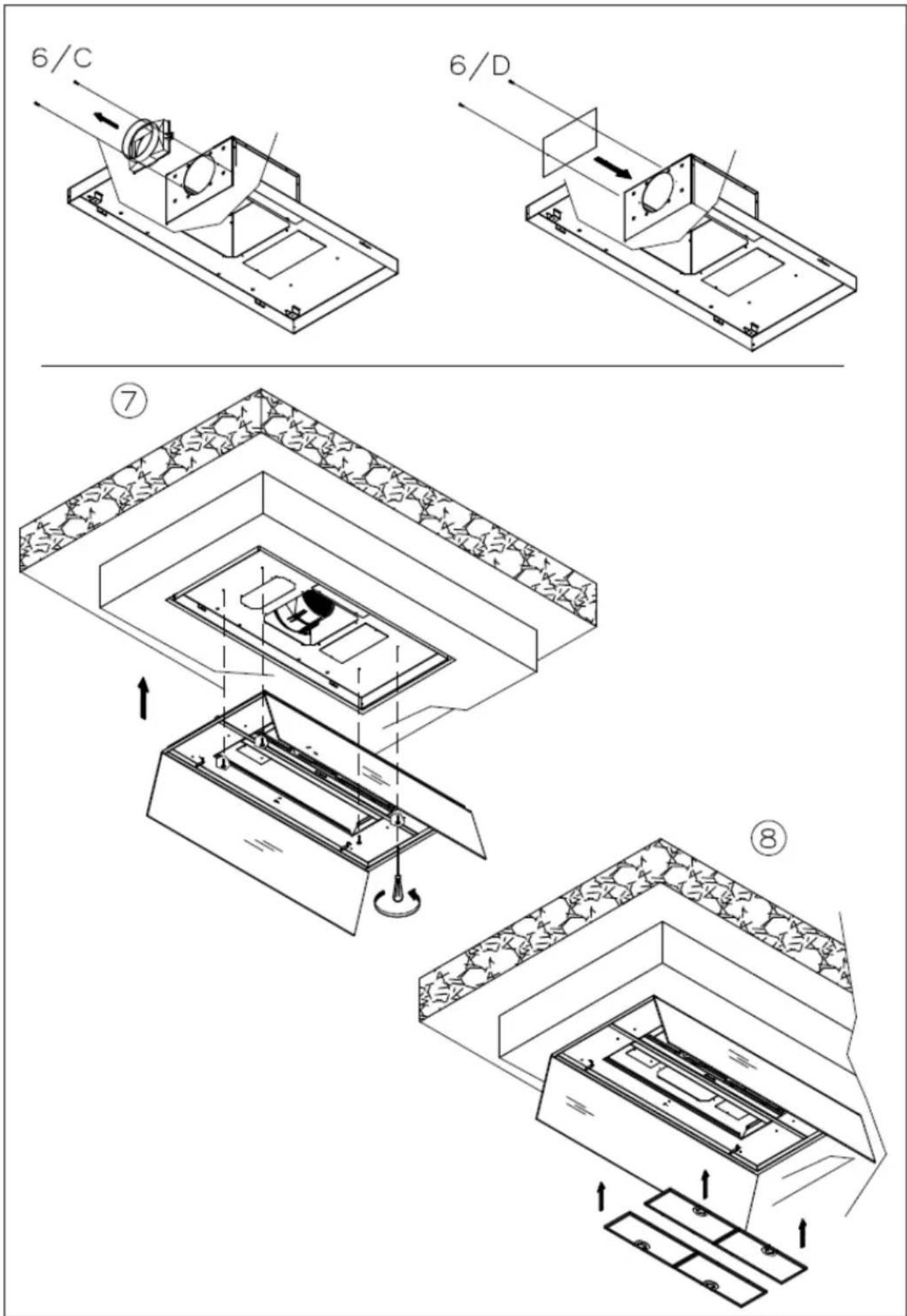

6/C 6/D ⑦ ⑧

EICOE22 SM

* USCITA CAVO ALIMENTAZIONE OUTPUT POWER CABLE AUSGANGLEISTUNG KABEL SORTIE CABLE D'ALIMENTATION UITGANGSVERMOGEN CABLE

866 268 330 268 90 155 150 D D 5/60 900

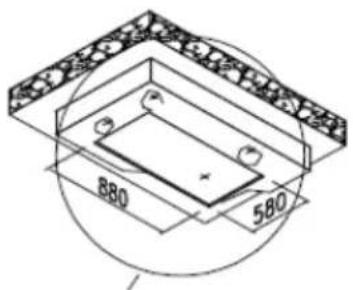

880 580

55.5 900 108 650 108 φ150/200 600 455 II II 55.5 175 123 220x90 230x80

880 650 580 455

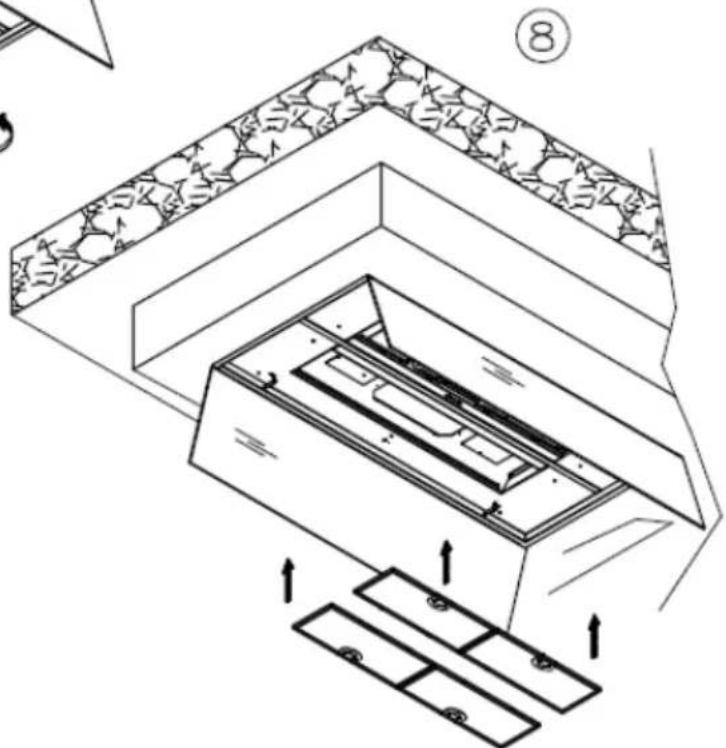

EICOE22 SM 90 (16Kg)
× USCITA CAVO ALIMENTAZIONE OUTPUT POWER CABLE AUSGANGLEISTUNG KABEL SORTIE CABLE D'ALIMENTATION UITGANGSVERMOGEN CABLE

Isometric line drawing of a structural beam with load arrows (no text or symbols)

Per aprire tirare quì simultaneamente Please pull here in the same time to open Ziehen sie hier

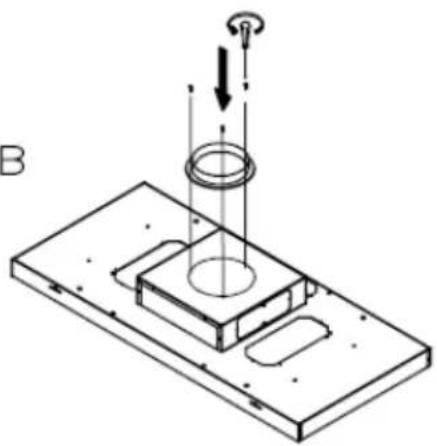

Technical diagram illustrating five sequential assembly steps of a mechanical or electrical component, labeled ① to ⑤.

⑥ OPTION A 220x90 90° 10 Min 5 mm Max 30 mm Max 30 mm

⑥ OPTION B 6.2 #150/200 Max 30 mm Max 30 mm Min 2 mm

OPTION A 6/A 6/B

OPTION B
6/A

Isometric line drawing of a mechanical assembly with no visible text or symbols

6/B

Isometric technical diagram showing a mechanical assembly with a central component and a suspended ring (no text or symbols)

Technical diagram of a mechanical assembly with layered components and directional arrows (no text or symbols)

Technical diagram showing a multi-level assembly or installation with labeled components and directional arrows indicating flow or movement.

AIDA SM

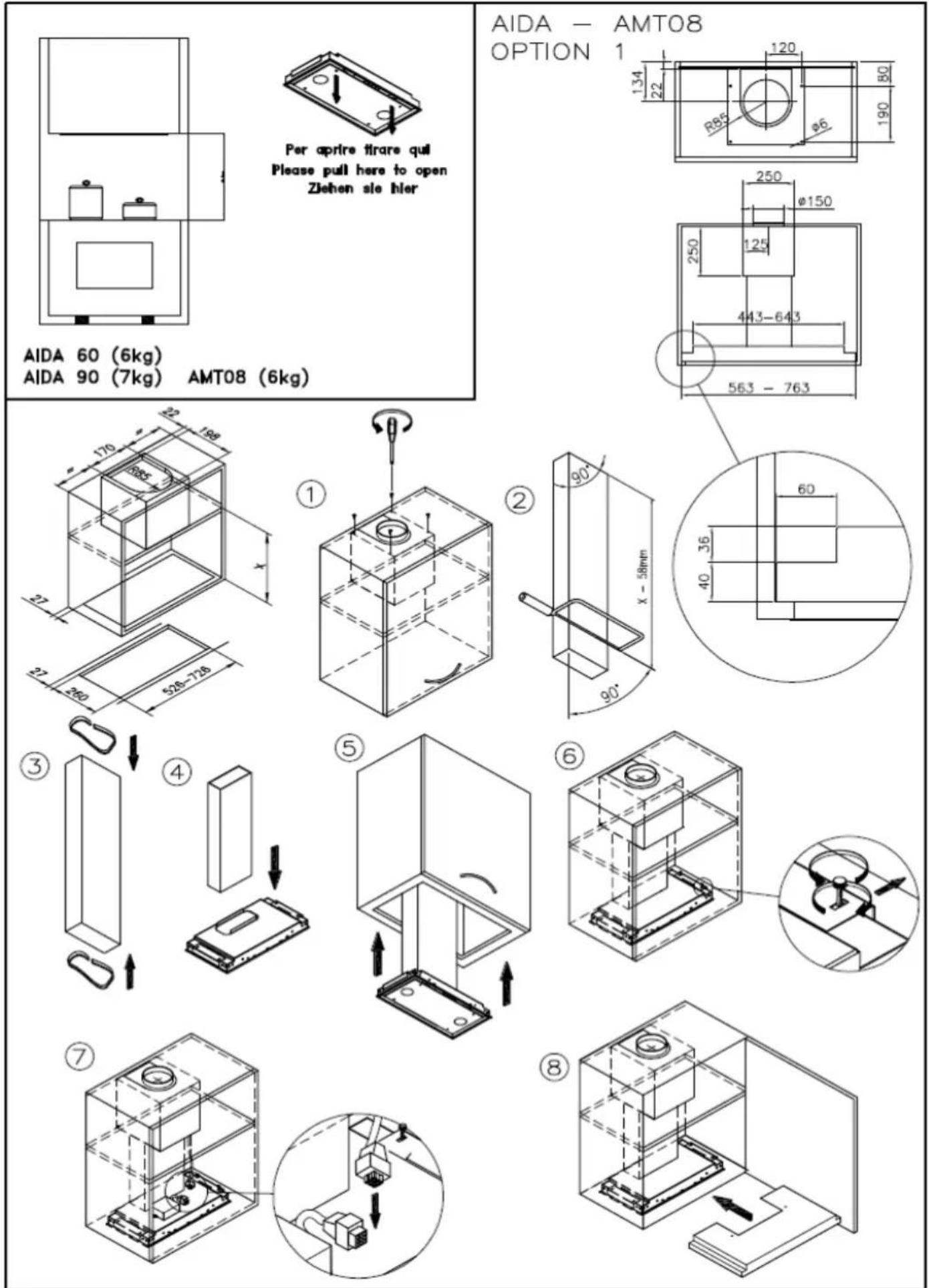

AIDA - AMT08 OPTION 1 Per aprire tirare quil Please pull here to open Ziehen sie hier AIDA 60 (6kg) AIDA 90 (7kg) AMT08 (6kg) ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

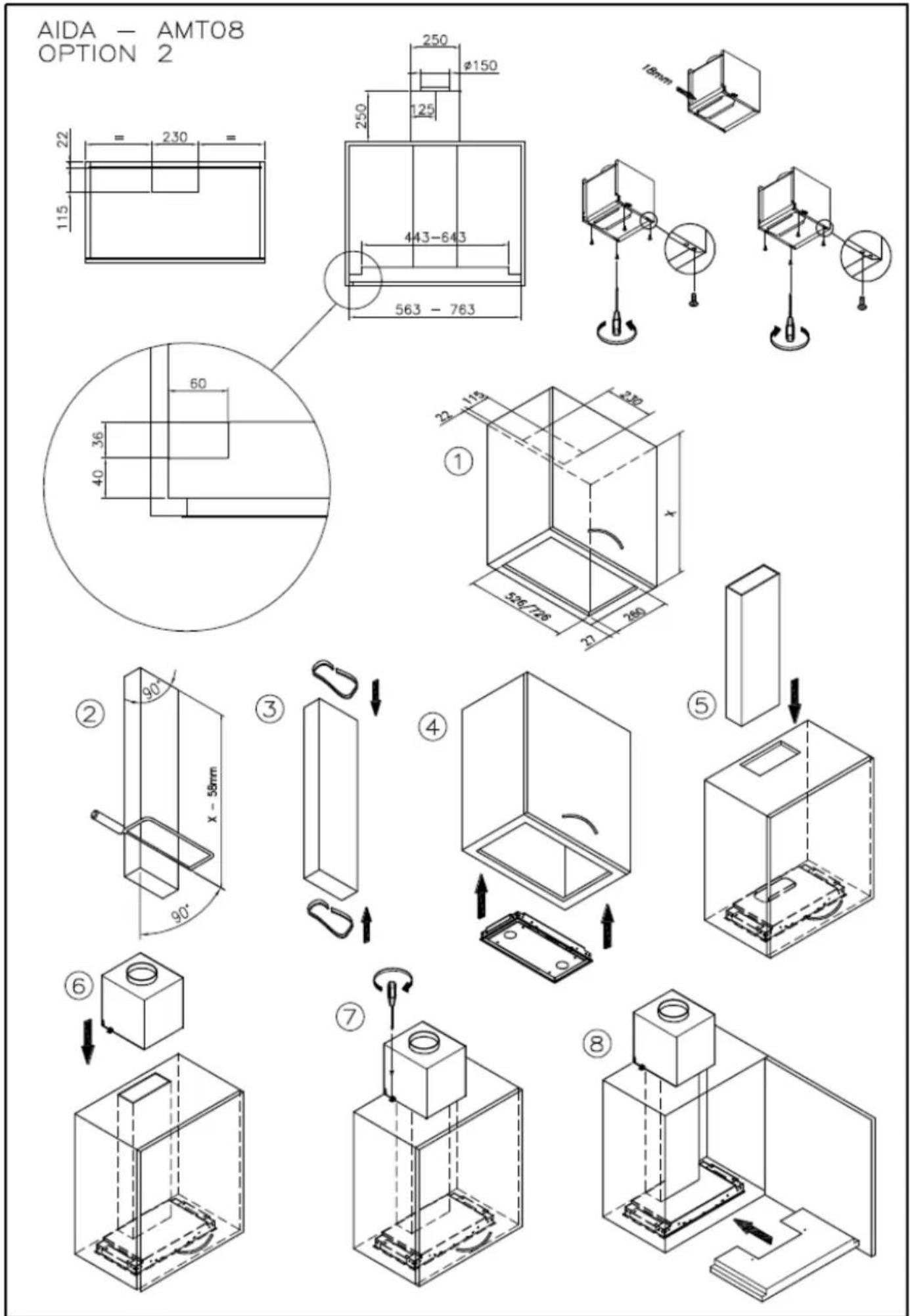

AIDA - AMT08 OPTION 2 250 Ø150 250 125 115 230 443-643 563 - 763 19mm 60 36 40 ① 22 115 280 526/726 280 ② 90° X - 58mm 90° ③ ④ ⑤ ⑥ ⑦ ⑧

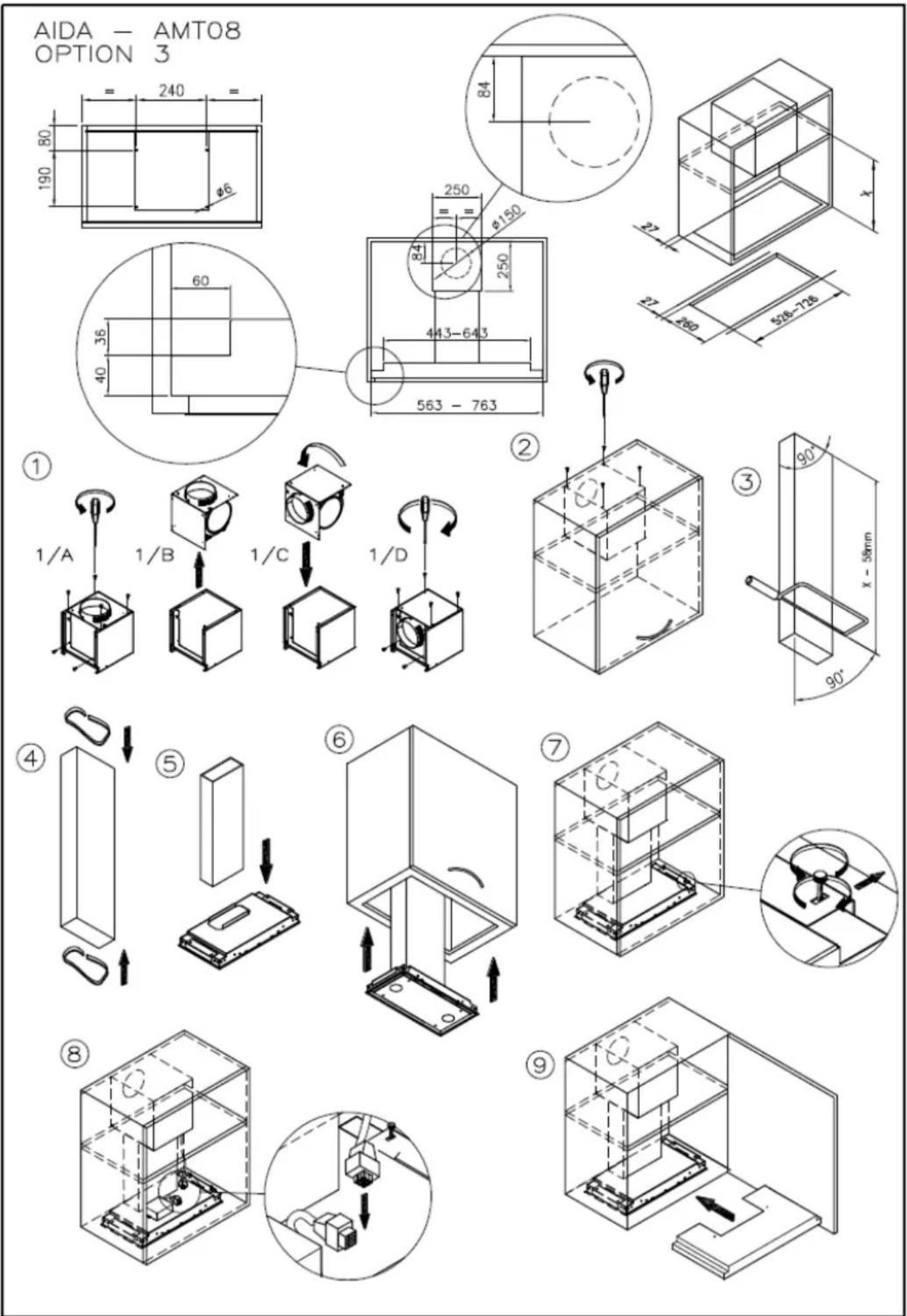

AIDA - AMT08 OPTION 3 ① 1/A 1/B 1/C 1/D ② 250 250 243-643 563-763 ③ 90° x - 58mm 90° ④ ⑤ ⑥ ⑦ ⑧ ⑨

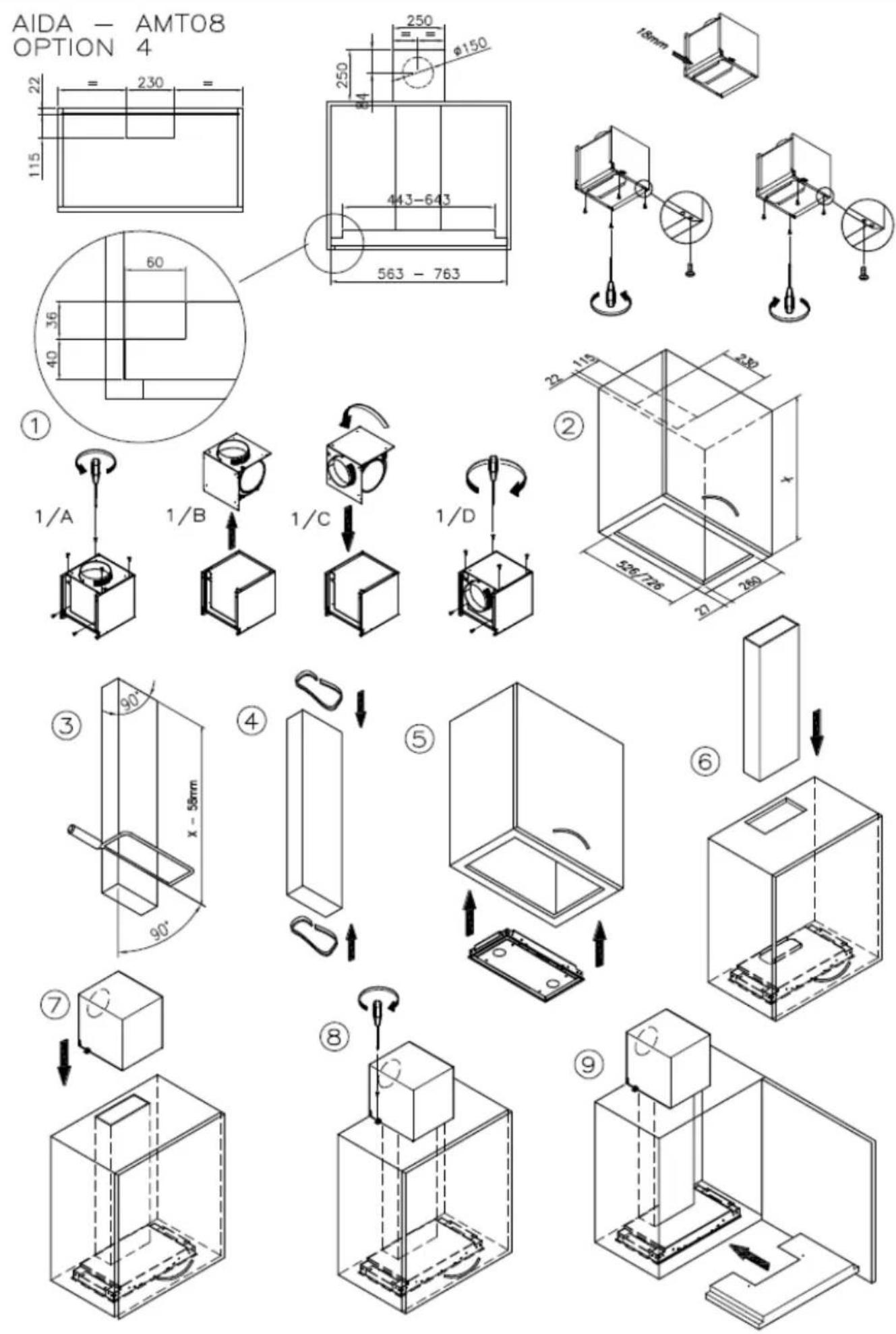

AIDA

Min 65cm AIDA AIDA

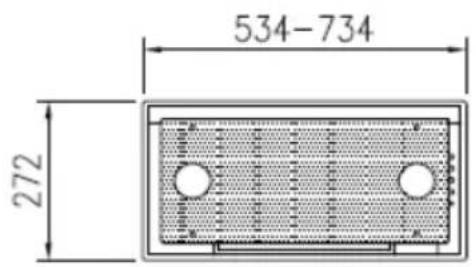

526-726 260 27 534-734 272

AIDA 60 (10Kg)
AIDA 90 (11Kg)

534-734 272

526-726 260

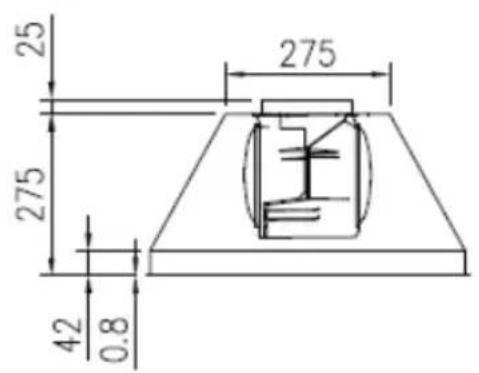

25 275 42 0.8 275

7 83 300

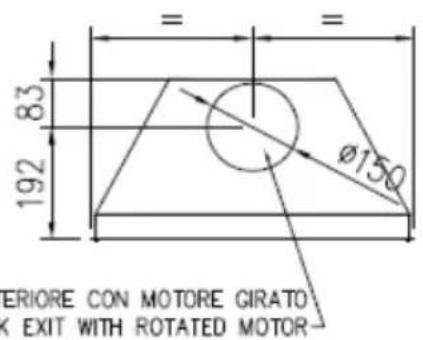

83 192 Ø150 ERIORE CON MOTORE GIRATO X EXIT WITH ROTATED MOTOR

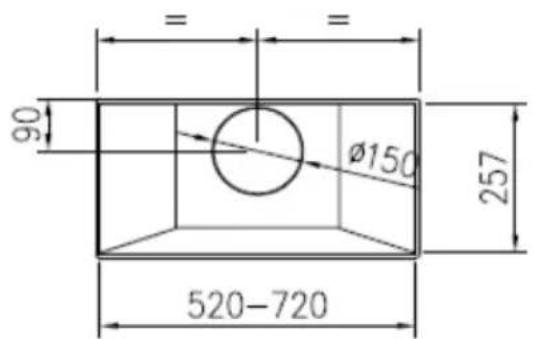

= = 90 Ø150 257 520-720

Technical line drawing of a mechanical component with arrows indicating force or movement (no text or symbols)

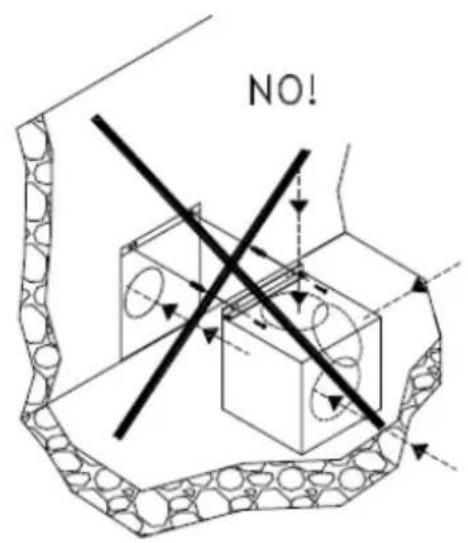

NO!

AMT10

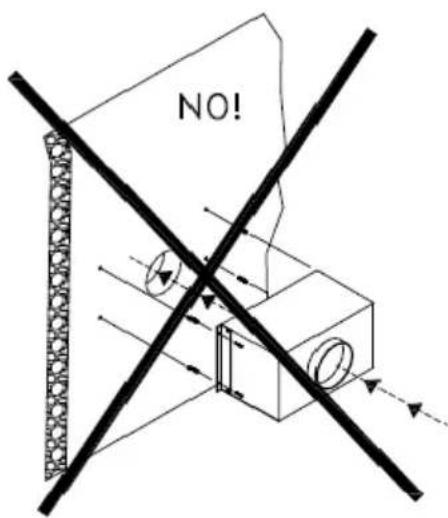

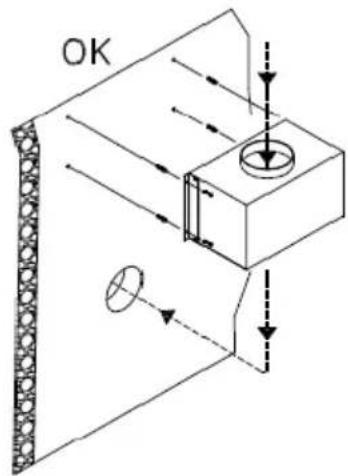

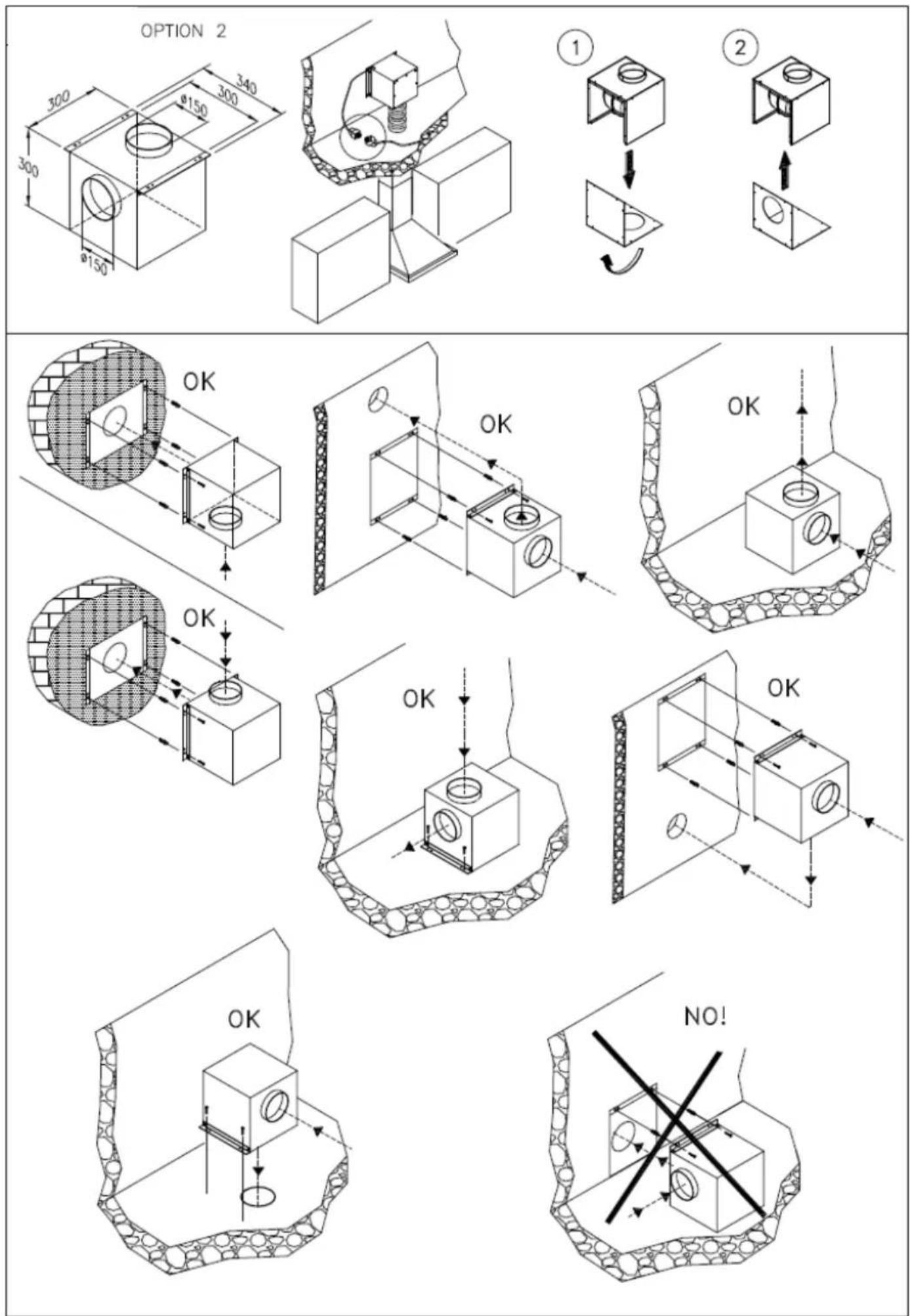

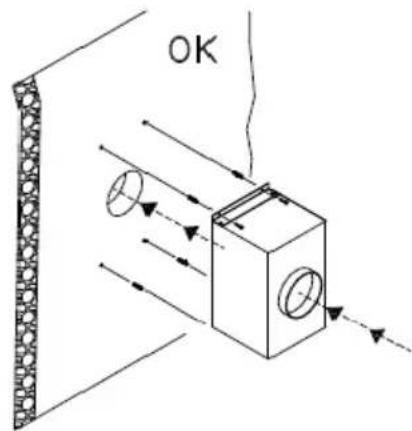

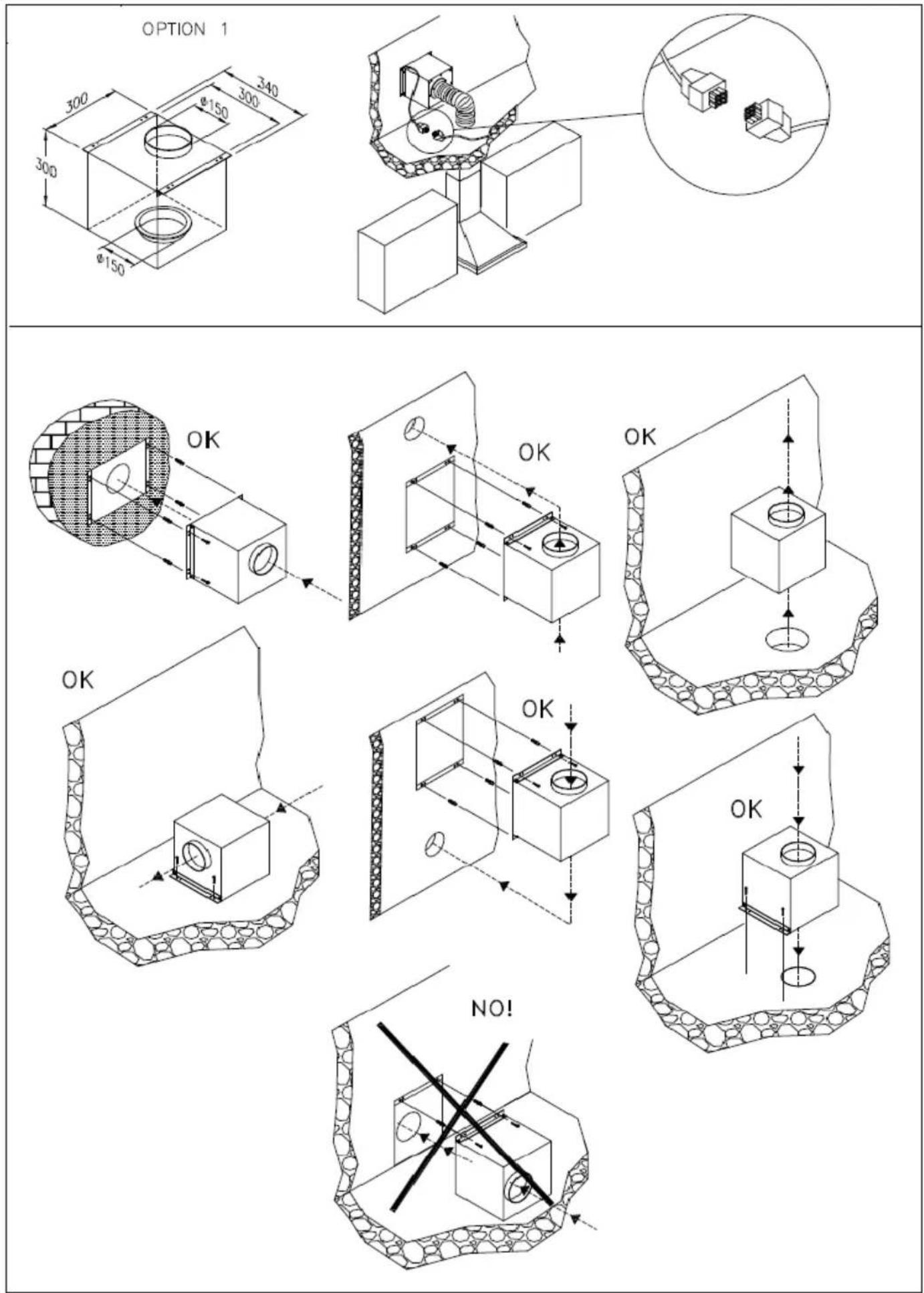

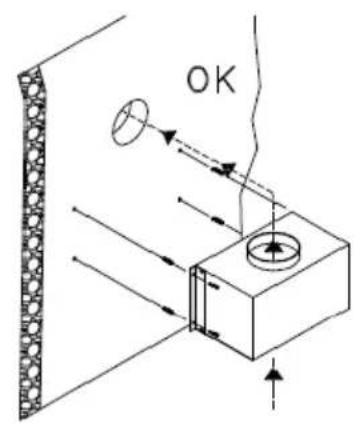

OPTION 1 300 340 300 300 Ø150 Ø150 OK OK OK OK OK NO!

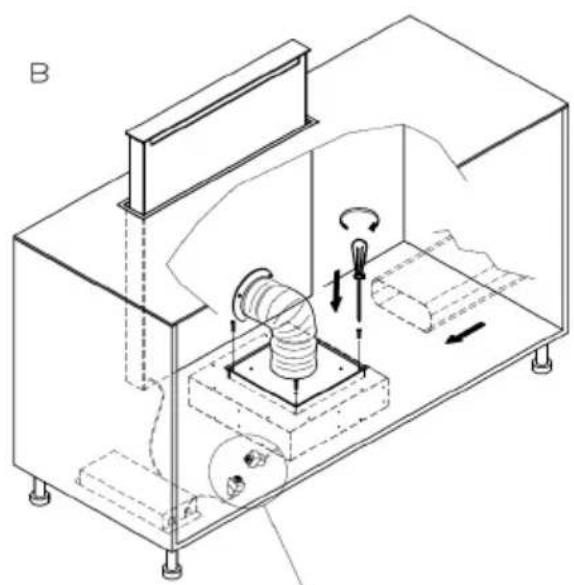

AMT20

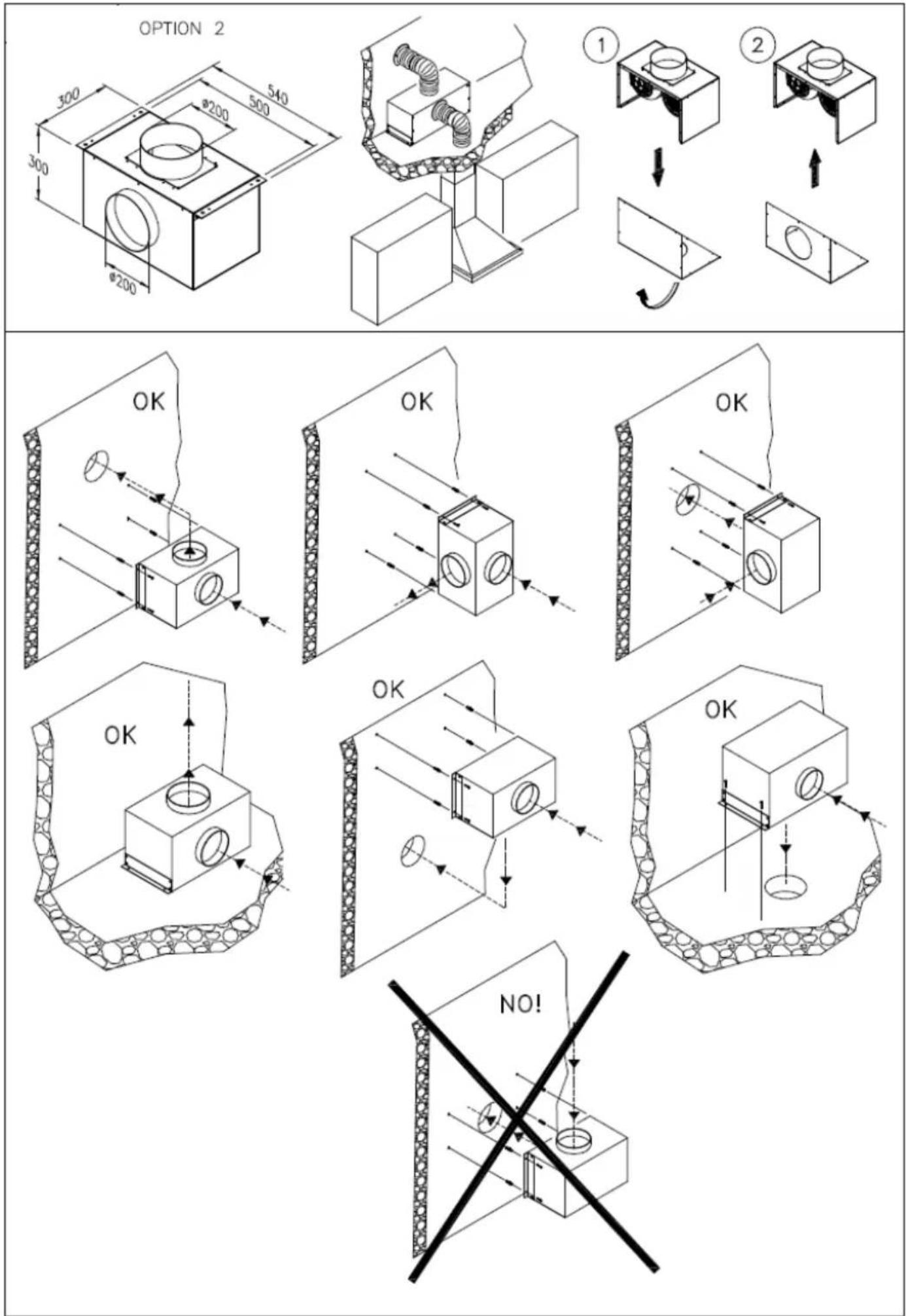

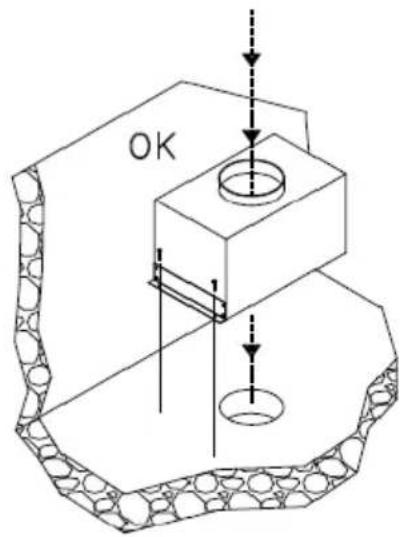

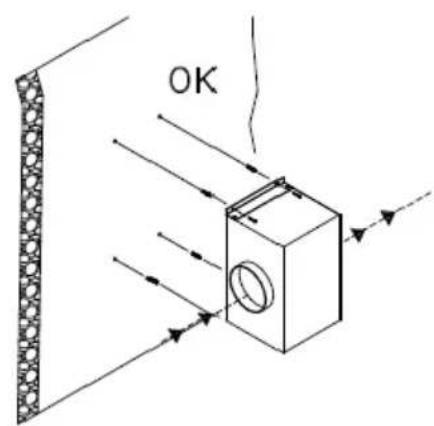

OPTION 1 300 300 Ø200 540 500 Ø200

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

OK

OK

OK

OK

OK

NO!

AMT13

PLINTH EXSTERN MOTOR 1000

228 Ø150 228 13 113 100 355 220x90 230x80 345

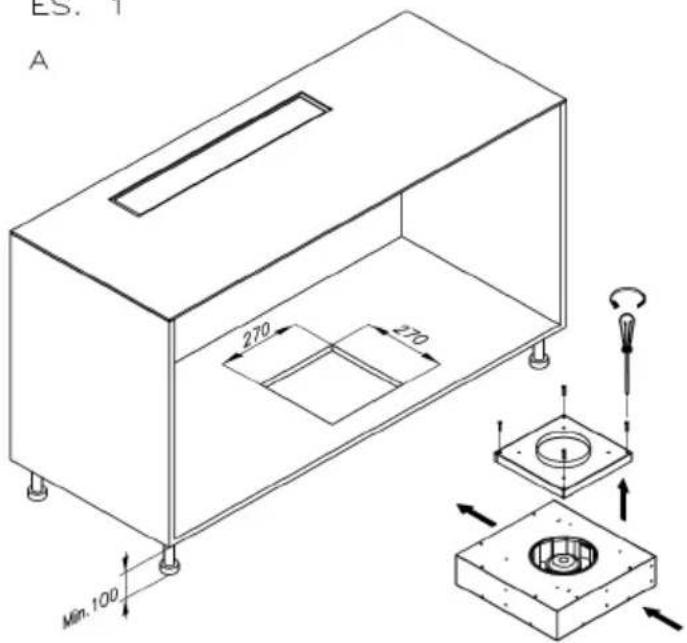

ES. 1

ES. 1 A 270 270 Min. 100

Isometric technical diagram of a mechanical device with internal components and directional arrows (no text or labels)

ES. 2

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of two connected 3D electrical connectors with pins, enclosed in a circle (no text or symbols)

INDICE - INDEX:

ROMEO.... pg.39

HAMLET.... pg.43

DISTANTE R.... pg.47

CEILING STRIPE 75/45....pg.49

DISTANTE 90, DISTANTE 120, CEILING STRIPE 90 SM, CEILING STRIPE 120 SM....pg.53

CEILING STRIPE 90 - 120.... pg.56

CEILING STRIPE R 90.... pg.59

CEILING STRIPE R 120.... pg.62

CEILING PANLE 124.... pg.65

CEILING PANLE 124 SM.... pg.69

EICOE22....pg.73

EICOE22 SM....pg.77

AIDA SM.... pg.81

AIDA ...... pg.85

AMT09.... pg.87

AMT10.... pg.89

AMT20....pg.91

AMT13.... pg.93

PLINTH EXSTERN MOTOR 1000.... pg.94

eico

EICO AS

Östergade 118

9700 Brønderslev
