USER MANUAL GP3300i Generac

SAVE THIS MANUAL FOR FUTURE REFERENCE

(000209b) WARNING Loss of life. This product is not intended to be used in a critical life support application. Failure to adhere to this warning could result in death or serious injury. Register your Generac product at: www.generac.com 1-888-GENERAC (1-888-436-3722) MODEL:________________________ SERIAL:________________________ DATE PURCHASED:______________Table of Contents

Section 1 Introduction and Safety 1

• Introduction p. 1
• Safety Rules p. 1
• Safety Symbols and Meanings p. 1
• Exhaust and Location Hazards p. 2
• Electrical Hazards p. 3
• Fire Hazards p. 3
• Standards Index p. 3

Section 2 General Information and

Section 4 Maintenance and

• Troubleshooting p. 14
• Maintenance p. 14
• Maintenance Schedule p. 14
• Preventive Maintenance p. 14
• Engine Maintenance p. 14
• Storage p. 17
• Troubleshooting p. 18
• Wiring Diagram p. 19
• Notes (W000808) CALIFORNIA WARNING This product can expose you to chemicals including benzene, a carcinogen and reproductive toxicant, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov/Owner’s Manual for Portable Generator 1 p. 20

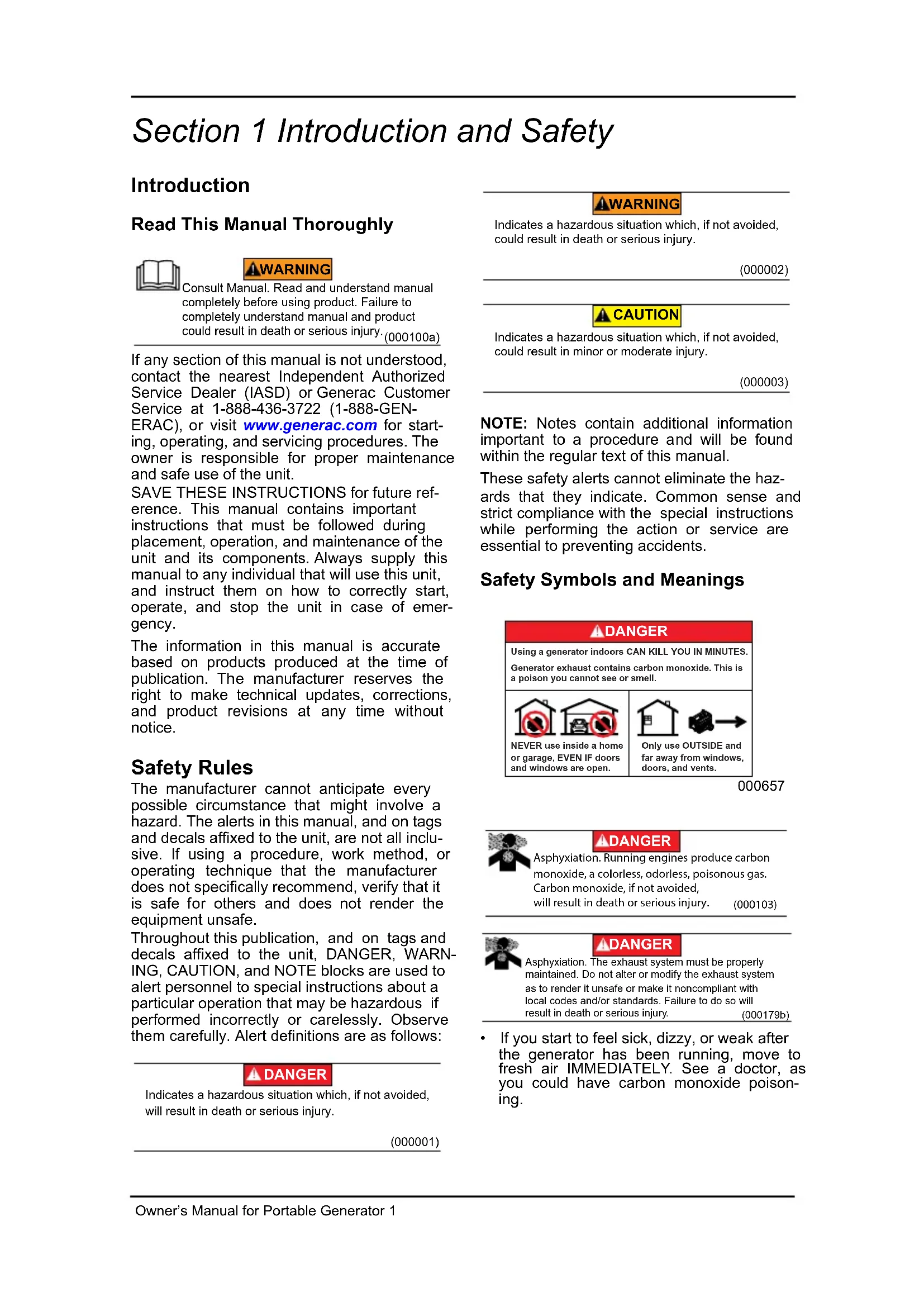

Section 1 Introduction and Safety

Introduction Read This Manual Thoroughly If any section of this manual is not understood, contact the nearest Independent Authorized Service Dealer (IASD) or Generac Customer Service at 1-888-436-3722 (1-888-GEN- ERAC), or visit www.generac.com for start- ing, operating, and servicing procedures. The owner is responsible for proper maintenance and safe use of the unit. SAVE THESE INSTRUCTIONS for future ref- erence. This manual contains important instructions that must be followed during placement, operation, and maintenance of the unit and its components. Always supply this manual to any individual that will use this unit, and instruct them on how to correctly start, operate, and stop the unit in case of emer- gency. The information in this manual is accurate based on products produced at the time of publication. The manufacturer reserves the right to make technical updates, corrections, and product revisions at any time without notice. Safety Rules The manufacturer cannot anticipate every possible circumstance that might involve a hazard. The alerts in this manual, and on tags and decals affixed to the unit, are not all inclu- sive. If using a procedure, work method, or operating technique that the manufacturer does not specifically recommend, verify that it is safe for others and does not render the equipment unsafe. Throughout this publication, and on tags and decals affixed to the unit, DANGER, WARN- ING, CAUTION, and NOTE blocks are used to alert personnel to special instructions about a particular operation that may be hazardous if performed incorrectly or carelessly. Observe them carefully. Alert definitions are as follows: NOTE: Notes contain additional information important to a procedure and will be found within the regular text of this manual. These safety alerts cannot eliminate the haz- ards that they indicate. Common sense and strict compliance with the special instructions while performing the action or service are essential to preventing accidents. Safety Symbols and Meanings

• If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air IMMEDIATELY. See a doctor, as you could have carbon monoxide poison- ing. (000100a)Consult Manual. Read and understand manualcompletely before using product. Failure to completely understand manual and product could result in death or serious injury. WARNING (000001) DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. (000002) WARNING Indicates a hazardous situation which, if not avoided,could result in death or serious injury. (000003) CAUTION Indicates a hazardous situation which, if not avoided,could result in minor or moderate injury. DANGERUsing a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.NEVER use inside a home or garage, EVEN IF doors and windows are open.Only use OUTSIDE and far away from windows, doors, and vents.

(000103) DANGER Asphyxiation. Running engines produce carbon monoxide, a colorless, odorless, poisonous gas. Carbon monoxide, if not avoided, will result in death or serious injury. Asphyxiation. The exhaust system must be properly maintained. Do not alter or modify the exhaust system as to render it unsafe or make it noncompliant with local codes and/or standards. Failure to do so will result in death or serious injury. (000179b) DANGER2 Owner’s Manual for Portable Generator

• For safety reasons, it is recommended that the maintenance of this equipment be per- formed by an IASD. Inspect the generator regularly, and contact the nearest IASD for parts needing repair or replacement. Exhaust and Location Hazards

• If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air IMMEDIATELY. See a doctor, as you could have carbon monoxide poison- ing.

• NEVER run a generator indoors or in a partly enclosed area such as garages.

• ONLY use outdoors and far away from win- dows, doors, vents, crawl spaces and in an area where adequate ventilation is avail- able and will not accumulate deadly exhaust gas.

• Point muffler exhaust away from people and occupied buildings.

• Using a fan or opening a door will not pro- vide sufficient ventilation. (000104)DANGERElectrocution. Water contact with a power source, if not avoided, will result in death or serious injury. (000116)DANGERElectrocution. Turn utility and emergencypower supplies to OFF before connecting power source and load lines. Failure to do so will result in death or serious injury. (000146)WARNINGEquipment and property damage. Do not alter construction of, installation, or block ventilation for generator. Failure to do so could result in unsafe operation or damage to the generator. (000178a) WARNING Asphyxiation. Always use a battery operated carbon monoxide alarm indoors and installed according to the manufacturer’s instructions. Failure to do so could result in death or serious injury. WARNING Equipment and property damage. Do not operate unit on uneven surfaces, or areas of excessive moisture, dirt, dust or corrosive vapors. Doing so could result in death, serious injury, property and equipment damage. (000250) (000111)WARNINGMoving Parts. Keep clothing, hair, and appendagesaway from moving parts. Failure to do so could result in death or serious injury. (000108) WARNING Hot Surfaces. When operting machine, do not touch hot surfaces. Keep machine away from combustables during use. Hot surfaces could result in severe burns or fire. (000142a) WARNING Personal injury. Do not insert any object through the air cooling slots. Generator can start at any time and could result in death, serious injury, and unit damage. Risk of injury. Do not operate or service this machine if not fully alert. Fatigue can impair the ability to operate or service this equipment and could result in death or serious injury. (000215a) WARNING (000216) WARNING Injury and equipment damage. Do not use generator as a step. Doing so could result in falling, damaged parts, unsafe equipment operation, and could result in death or serious injury. WARNING Equipment damage. Do not attempt to start or operate a unit in need of repair or scheduled maintenance. Doing so could result in serious injury, death, or equipment failure or damage. (000291) (000103) DANGER Asphyxiation. Running engines produce carbon monoxide, a colorless, odorless, poisonous gas. Carbon monoxide, if not avoided, will result in death or serious injury. Asphyxiation. The exhaust system must be properly maintained. Do not alter or modify the exhaust system as to render it unsafe or make it noncompliant with local codes and/or standards. Failure to do so will result in death or serious injury. (000179b) DANGER (000146) WARNING Equipment and property damage. Do not alter construction of, installation, or block ventilation for generator. Failure to do so could result in unsafe operation or damage to the generator. (000178a) WARNING Asphyxiation. Always use a battery operated carbon monoxide alarm indoors and installed according to the manufacturer’s instructions. Failure to do so could result in death or serious injury.Owner’s Manual for Portable Generator 3 Electrical Hazards

• The National Electric Code (NEC) requires the frame and external electrically conduc- tive parts of the generator be properly con- nected to an approved earth ground. Local electrical codes may also require proper grounding of the generator. Consult with a local electrician for grounding requirements in the area.

• Use a ground fault circuit interrupter in any damp or highly conductive area (such as metal decking or steel work).

• Once generator has been started outside, connect electrical loads to extension cord(s) inside. Fire Hazards

• Wipe up any fuel or oil spills immediately. Verify that no combustible materials are left on or near the generator. Keep the area surrounding the generator clean and free from debris and keep a clearance of five (5) feet on all sides to allow for proper ventila- tion of the generator and to prevent fire.

• Do not operate the generator if connected electrical devices overheat, if electrical out- put is lost, if engine or generator sparks or if flames or smoke are observed while unit is running.

• Keep a fire extinguisher near the generator at all times.

• Keep a minimum clearance of five feet all around generator. Standards Index

TION AND SAFETY CODE available from www.nfpa.org

3. International Building Code available from

nance of Farm Standby Electric Power available from www.asabe.org, American Society of Agricultural & Biological Engi- neers 2950 Niles Road, St. Joseph, MI

generators for installation and use, in accordance with the Rules of the Cana- dian Electrical Code

7. ANSI/PGMA G300 Safety and Perfor-

mance of Portable Generators. Portable Generator Manufacturer’s Association, www.pgmaonline.com This list is not all inclusive. Check with the Authority Having Jurisdiction (AHJ) for any local codes or standards which may be appli- cable to your jurisdiction. (000144)DANGERElectrocution. Contact with bare wires, terminals, and connections while generator is running will result in death or serious injury. (000104)DANGERElectrocution. Water contact with a power source, if not avoided, will result in death or serious injury. (000145) DANGER Electrocution. In the event of electrical accident, immediately shut power OFF. Use non-conductive implements to free victim from live conductor. Apply first aid and get medical help. Failure to do so will result in death or serious injury. (000105) DANGER Explosion and Fire. Fuel and vapors are extremely flammable and explosive. Add fuel in a well ventilated area. Keep fire and spark away. Failure todo so will result in death or serious injury. (000214) DANGER Explosion and Fire. Do not fill fuel tank past full line. Allow for fuel expansion. Overfilling may cause fuel to spill onto engine causing fire or explosion, which will result in death or serious injury. (000142a) WARNING Personal injury. Do not insert any object through the air cooling slots. Generator can start at any time and could result in death, serious injury, and unit damage. WARNING (000281) Fire risk. Fuel and vapors are extremely flammable. Do not operate indoors. Doing so could result in death, serious injury, or property or equipment damage. (000282) WARNING Explosion and fire risk. Do not smoke near unit. Keep fire and spark away. Failure to do so could result in death, serious injury, or property or equipment damage. WARNING Explosion and Fire. Do not smoke while refueling unit. Failure to do so could result in death, serious injury, or property or equipment damage. (000284a)4 Owner’s Manual for Portable Generator

Section 2 General Information and Setup

8Owner’s Manual for Portable Generator 5 Know Your Generator Replacement owner’s manuals are available at www.generac.com. Emissions The United States Environmental Protection Agency (US EPA) (and California Air Resources Board (CARB), for engines/equip- ment certified to California standards) requires this engine/equipment to comply with exhaust and evaporative emissions standards. Locate the emissions compliance decal on the engine to determine applicable standards. See the included emissions warranty for emissions warranty information. Follow the maintenance specifications in this manual to ensure the engine complies with applicable emissions standards for the duration of the product’s life. (000100a)Consult Manual. Read and understand manualcompletely before using product. Failure to completely understand manual and product could result in death or serious injury. WARNING TABLE 2. Product Specifications Generator Specifications GP3300i Rated Power 2500 W**Surge Power 3300 VARated AC Voltage 120VRated AC Load at 120V 20.83 Amps**Rated Frequency 60 HzDimensions L x W x H (in/mm) 22.25 x 13.35 x 18.4 (565 x 339 x 467)Weight (dry) 59.5 lb. (27 kg)** Operating Temperature Range: -9 °C (15 °F) to 40 °C (104 °F). When operated above 25 °C (77°F) there may be a decrease in power.** Maximum wattage and current are subject to, and limited by, such factors as fuel Btu content, ambient temperature, altitude, engine condition, etc.. Maximum power decreases about 3.5% for each 1,000 feet above sea level; and will also decrease about 1% for each 6 °C (10 °F) above 16 °C (60 °F) ambient temperature. Engine Specifications GP3300i Engine Type Single Cylinder, 4-strokeDisplacement 149 ccSpark Plug Part Number 0K20670117Spark Plug Type F7RTC or equivalentSpark Plug Gap (in/mm) 0.024-0.031 (0.6-0.8)Fuel Capacity / Type 4.0 L (1.06 U.S. US gal) / UnleadedOil Type See Add Engine Oil section Oil Capacity 0.6 L (0.6 qt.)Run Time at 25% Load 7 HoursRun Time at 50% Load 4.5 Hours

• Go to www.generac.com or contact an Independent Authorized Service Dealer (IASD) for replace- ment parts.6 Owner’s Manual for Portable Generator Connection Plugs 120 VAC, Duplex Receptacle See Figure 2-4. The NEMA 5-20R 120 Volt outlet is overload protected by the 20 Amp push button circuit protector. Figure 2-4. 120 VAC, Duplex Receptacle NEMA 5-20R 120 VAC, 30 Amp Receptacle See Figure 2-5. Use a NEMA L5-30 plug with this receptacle. Connect a suitable 3-wire cord set to the plug and to desired load. The cord set should be rated for 125 Volts AC at 30 Amps (or greater). Use this receptacle to operate 120 Volt AC, 60Hz, single phase loads requiring up to 2500 watts of continuous power at 20.83 Amps. The outlet is protected by a 22 Amp push-to-reset circuit breaker. Figure 2-5. 120 VAC, 30 Amp Receptacle NEMA L5-30R PowerDial™ See Figure 2-6. This controls the ON/OFF functions, choke and fuel valve operation.

• The OFF position (1) stops the engine and shuts off fuel flow.

• The RUN position (2) is for normal opera- tion and to gradually reduce the use of the choke.

• The CHOKE position (3) switches the fuel valve on to start the engine. NOTE: The CHOKE is not required to start a warm engine. Figure 2-6. Switch (example) USB Outlets The 5 VDC, 1 Amp and 2.1 Amp USB outlet allows charging of compatible electronic devices. Generator Status Lights See Figure 2-7.

• Low Oil Level LED (red): Illuminates when oil level is below safe operating level. Engine shuts down (1).

• Overload LED ( red): Indicates system overload (2). During motor starting it is nor- mal for the overload LED to illuminate for a few seconds. If LED stays illuminated and the ready LED turns off, the engine will con- tinue to run without output power. Remove all applied loads and determine if attached devices exceed recommended output power. Check for faulty or shorted connec- tions. To restore electrical output, turn dial OFF to reset. Start engine. If condition was corrected, the red LED will not illuminate and electrical output will be restored. Loads can be applied once the green LED illumi- nates. If the red LED returns, contact an IASD.

• Power LED (green): Indicates output from generator (3) (unless there is a low oil or overload condition). Figure 2-7. Status Indicators

Carbon Monoxide (CO) Detection and Shut-off System (if equipped) The COsense module monitors for the accu-mulation of poisonous CO gas found in engineexhaust when the generator is running. IfCOsense detects increasing levels of CO gas,it automatically shuts off the engine. COsenseonly monitors when the engine is running.Generators are intended to be used outdoors,far from occupied buildings and the exhaustpointed away from personnel and buildings.However, if mis-used and operated in a loca-tion that results in the accumulation of CO, likeindoors or in a partially enclosed area,COsense shuts off the engine, notifies theuser of what has happened and directs the user to read the instruction action label for steps to take. See Figure 2-9. COsense is nota substitute for an indoor carbon monoxidealarm. See Figure 2-8. After a shut-off, a blinking RED light in the COsense badge on the sideof the generator provides notification that thegenerator was shut off due to an accumulatingCO hazard. The RED light will blink for at least five minutes after a CO shut-off. Move the generator to an open, outdoor area and pointthe exhaust away from people and occupiedbuildings. Once relocated to a safe area, the generator can be restarted and the proper electrical connections made to supply electri- cal power. The RED light will stop blinking automatically upon engine re-start. Introducefresh air and ventilate the location where thegenerator had shut down.See Figure 2-8. If a COsense system fault hasoccurred and no longer provides protection,the portable generator is shut off automaticallyand the YELLOW light will blink for at leastfive minutes in the COsense badge to notifythe user of the fault. The COsense modulecan only be diagnosed and repaired by atrained technician at the dealer. The generatorcan be re-started, but may continue to shut- off. COsense will detect the accumulation of Car-bon Monoxide from other fuel burning sourcessuch as engine powered tools or propane heaters used in the area of operation. For example, if another generator is used and the exhaust is pointed at a COsense equipped generator, COsense may initiate a shut-offdue to rising CO levels. This is not an error.Hazardous Carbon Monoxide has beendetected. The user must take action to moveand re-direct these devices to better dissipateCarbon Monoxide far away from personneland occupied buildings.Figure 2-8. Instruction DecalFigure 2-9. Instruction Action Label

!8 Owner’s Manual for Portable Generator Circuit Protectors The AC receptacles are protected by an AC circuit protector. If the generator is overloaded or an external short circuit occurs, the circuit protector will trip. If this occurs, disconnect all electrical loads to determine the cause of the problem before using the generator again. Reduce the load if the circuit protector is tripped. NOTE: Continuous tripping of the circuit pro- tector may cause damage to generator or equipment. Push the button of the protector to reset the circuit protector. Remove Contents from Carton

1. Open carton completely by cutting each

corner from top to bottom.

2. Remove and verify carton contents prior to

assembly. Carton contents should contain the following: TABLE 3. Accessories

3. Call Generac Customer Service at 1-888-

GENERAC (1-888-436-3722) with the unit model and serial number for any missing carton contents.

4. Record model, serial number, and date of

purchase on front cover of this manual. Add Engine Oil NOTE: The generator is shipped without oil in the engine. Add oil slowly and verify oil level often during filling process to ensure overfilling does not occur.

1. Place generator on a level surface.

2. Remove screws and side cover.

3. Verify oil fill area is clean.

4. See Figure 2-10. Remove oil fill cap/dip-

stick and wipe dipstick clean. Figure 2-10. Remove Dipstick

5. Insert funnel into oil fill opening. Add rec-

ommended engine oil as necessary. Cli- mate determines proper engine oil viscosity. See chart below to select correct viscosity. NOTE: Use petroleum based oil (supplied) for engine break-in before using synthetic oil.

6. See Figure 2-11. Remove funnel and

thread dipstick into oil filler neck. Oil level is checked with dipstick fully installed. Figure 2-11. Safe Operating Range

7. Remove dipstick and verify oil level is

within safe operating range. NOTE: Verify oil level often during filling pro- cess to ensure overfilling does not occur.

8. Install oil fill cap/dipstick and hand-tighten.

9. Install side panel and screws.

Item Qty. Main Unit 1 Owner’s Manual 1 Engine Oil 1 Oil Funnel 1 Tool Kit 1 Service Warranty 1 Emissions Warranty 1 (000135)Engine damage. Verify proper type and quantity of engine oil prior to starting engine. Failure to do so could result in engine damage. CAUTION

SAE 3010W-30Synthetic 5W-30000399 019144Owner’s Manual for Portable Generator 9 Fuel Fuel requirements are as follows:

• Clean, fresh, unleaded gasoline.

• Minimum rating of 87 octane/87 AKI (91 RON).

• Up to 10% ethanol (gasohol) is acceptable (where available, non-ethanol fuel is rec- ommended).

• DO NOT use a gas oil mix.

• DO NOT modify engine to run on alternate fuels. Stabilize fuel prior to storage.

1. Verify unit is OFF and cooled entirely prior

2. Place unit on level ground in a well venti-

3. Clean area around fuel cap.

4. Turn cap slowly to remove.

5. Slowly add recommended fuel. Do not

NOTE: Allow spilled fuel to evaporate before starting unit. IMPORTANT NOTE: It is important to pre- vent gum deposits from forming in fuel system parts such as the carburetor, fuel hose or tank during storage. Alcohol- blended fuels (called gasohol, ethanol or methanol) can attract moisture, which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer. See the Storage section. Never use engine or carburetor cleaner products in the fuel tank as permanent damage may occur. (000105) Explosion and Fire. Fuel and vapors are extremely flammable and explosive. Add fuel in a well ventilated area. Keep fire and spark away. Failure to do so will result in death or serious injury. DANGER (000214) DANGER Explosion and Fire. Do not fill fuel tank past full line. Allow for fuel expansion. Overfilling may cause fuel to spill onto engine causing fire or explosion, which will result in death or serious injury.10 Owner’s Manual for Portable Generator

Operation and Use Questions Call Generac Customer Service at 1-888- GENERAC (1-888-436-3722) with questions or concerns about equipment operation and maintenance. Before Starting Engine

1. Verify engine oil level is correct.

2. Verify fuel level is correct.

3. Verify unit is secure on level ground, with

proper clearance and is in a well ventilated area. Prepare Generator for Use Grounding the Generator When In Use See Figure 3-1. The generator is equipped with an equipment ground connecting the gen- erator frame and the ground terminals on the AC output receptacles (see NEC 250.34 (A). This allows the generator to be used as a por- table without grounding the frame of the gen- erator as specified in NEC 250.34.

• Neutral Floating Figure 3-1.Grounding the Generator The generator (stator winding) is isolated from the frame and from the AC receptacle ground pin. Electrical devices that require a grounded receptacle pin connection will not function if the receptacle ground pin is not functional. Connecting the Generator to a Building Electrical System IMPORTANT NOTE: Always operate the porta-ble generator with the Idle Control Switch inthe OFF position. Failure to do so could resultin property damage to sensitive electronicsthat cannot handle the transition from low idleto normal operating speed modes. Transitionfrom Idle Control speed to Normal Operatingspeed at light loads (if equipped). It is recommended to use a manual transfer switch when connecting directly to a building electrical system. Connecting a portable gen- erator to a building electrical system must be made in strict compliance with all national and local electrical codes and laws, and be com- pleted by a qualified electrician. Special Requirements Review all Federal or State Occupational Safety and Health Administration (OSHA) reg- ulations, local codes, or ordinances that apply to the intended use of the generator. Consult a qualified electrician, electrical inspector, or the local agency having jurisdic- tion: (000103)Asphyxiation. Running engines produce carbon monoxide, a colorless, odorless, poisonous gas. Carbon monoxide, if not avoided, will result in death or serious injury. DANGER Asphyxiation. The exhaust system must be properly maintained. Do not alter or modify the exhaust system as to render it unsafe or make it noncompliant with local codes and/or standards. Failure to do so will result in death or serious injury. (000179b)DANGER WARNING (000118a) Risk of fire. Do not use generator without spark arrestor installed. Failure to do so could result in death or serious injury. (000178a) Asphyxiation. Always use a battery operated carbon monoxide alarm indoors and installed according to the manufacturer’s instructions. Failure to do so could result in death or serious injury. WARNING (000110) WARNING Risk of Fire. Hot surfaces could ignite combustibles, resulting in fire. Fire could result in death or serious injury. (000108) WARNING Hot Surfaces. When operating machine, do not touch hot surfaces. Keep machine away from combustibles during use. Hot surfaces could result in severe burns or fire. (000136) CAUTION Equipment and property damage. Disconnect electrical loads prior to starting or stopping unit. Failure to do so could result in equipment and property damage. 013911Owner’s Manual for Portable Generator 11

• In some areas, generators are required to be registered with local utility companies.

• If the generator is used at a construction site, there may be additional regulations which must be observed. Know Generator Limits Overloading a generator can result in damage to the generator and connected electrical devices. Observe the following to prevent overload:

• Add the total wattage of all electrical devices to be connected at one time. This total should NOT be greater than the gener- ator's wattage capacity.

• The rated wattage of lights can be taken from light bulbs. The rated wattage of tools, appliances, and motors can be found on a data label or decal affixed to the device.

• If the appliance, tool, or motor does not give wattage, multiply volts times ampere rating to determine watts (volts x amps = watts).

• Some electric motors, such as induction types, require approximately three times more watts of power for starting than for running. This surge of power lasts only a few seconds when starting such motors. Make sure to allow for high starting wattage when selecting electrical devices to con- nect to the generator:

1. Calculate the watts needed to start the

2. Add to that figure the running watts of all

• Allow 3 times the listed watts for starting these devices.12 Owner’s Manual for Portable Generator Transporting/Tipping of the Unit

• DO NOT store or transport the unit at an angle greater than 15 degrees.

• Two (2) people are needed to lift the unit.

• Allow the unit to cool before transporting or storing in an enclosed area.

• DO NOT move unit during operation. Starting Pull Start Engines

2. Switch Economy switch to OFF (if

3. Firmly grasp recoil handle and pull slowly

until increased resistance is felt. Pull rap- idly up and away. Figure 3-2.PowerDial Positions

4. See Figure 3-2. When engine starts, rotate

Off/Run/Choke dial to RUN (2). Choke operation is reduced as Off/Run/Choke dial is rotated towards RUN. NOTE: If engine fires, but does not continue to run, rotate the Off/Run/Choke dial to OFF and repeat starting instructions. IMPORTANT NOTE: See Figure 3-3. Do not overload generator or individual panel receptacles. If an overload occurs, the overload LED (A) will illuminate and AC output ceases. To correct, see Generator Status Lights. Read Know Generator Limits carefully.

Figure 3-3.Shutdown Fault Generator Shut Down

1. Shut off all loads and unplug electrical

loads from generator panel receptacles.

2. Let engine run at no-load for several min-

utes to stabilize internal temperatures of engine and generator.

to RUN. This will open the fuel valve and permit starting.

2. Firmly grasp recoil handle and pull slowly

until increased resistance is felt. Pull rap- idly up and away. Low Oil Level Shutdown System The engine is equipped with a low oil level sensor to shut down the engine automatically when the oil level drops below a specified level. The engine will not run until the oil has been filled to the proper level. IMPORTANT NOTE: Verify proper engine oil and fuel levels before use. (000183)WARNINGRecoil Hazard. Recoil could retract unexpectedly. Kickback could result in death or serious injury. (000136)CAUTIONEquipment and property damage. Disconnect electrical loads prior to starting or stopping unit. Failure to do so could result in equipment and property damage.

(000136) CAUTION Equipment and property damage. Disconnect electrical loads prior to starting or stopping unit. Failure to do so could result in equipment and property damage. (000136)CAUTIONEquipment and property damage. Disconnect electrical loads prior to starting or stopping unit. Failure to do so could result in equipment and property damage.Owner’s Manual for Portable Generator 13 Parallel Operation See the Parallel Kit Operator’s Manual or con- tact an IASD. NOTE: All connections to the parallel kit should be made while both inverters are turned off and all loads disconnected.

1. Make sure the Engine Economy Switch is

in the same position on both generators.

2. Make appropriate parallel connections to

the outlets on each Generac inverter as outlined in the owner’s manual supplied with the kit. NOTE: Do not disconnect any parallel kit con- nections once the units are running.

3. Start both units per starting instructions.

Once the green output indicator illumi- nates, devices can be connected and turned on using the parallel kit outlet.

4. Follow Generator Shut Down instructions.

NOTE: Only use Generac approved parallel kit.14 Owner’s Manual for Portable Generator

Section 4 Maintenance and Troubleshooting

Maintenance Regular maintenance will improve perfor- mance and extend engine/equipment life. Generac Power Systems, Inc. recommends that all maintenance work be performed by an Independent Authorized Service Dealer (IASD). Regular maintenance, replacement, or repair of the emissions control devices and systems may be performed by any repair shop or person of the owner’s choosing. To obtain emissions control warranty service free of charge, the work must be performed by an IASD. See the emissions warranty. NOTE: Call 1-888-GENERAC (1-888-436- 3722) with questions about component replacement. Maintenance Schedule Follow maintenance schedule intervals, whichever occurs first according to use. NOTE: Adverse conditions will require more frequent service. NOTE: All required service and adjustments should be completed as detailed in the follow- ing chart. Preventive Maintenance Dirt or debris can cause improper operation and equipment damage. Clean generator daily or before each use. Keep area around and behind muffler free from combustible debris. Inspect all cooling air openings on generator.

• Use a damp cloth to wipe exterior surfaces clean.

• Use a soft bristle brush to loosen caked on dirt, oil, etc.

• Use a vacuum to pick up loose dirt and debris.

• Low pressure air (not to exceed 25 psi) may be used to blow away dirt. Inspect cooling air slots and openings on generator. These openings must be kept clean and unobstructed. NOTE: DO NOT use a garden hose to clean generator. Water can enter engine fuel system and cause problems. If water enters generator through cooling air slots, some water will be retained in voids and crevices of rotor and sta- tor winding insulation. Water and dirt buildup on generator internal windings will decrease insulation resistance of windings. Engine Maintenance Engine Oil Recommendations To maintain the product warranty, the engine oil should be serviced in accordance with the recommendations of this manual. For your convenience, maintenance kits designed and intended for use on this product are available from the manufacturer that include engine oil, oil filter, air filter, spark plug(s), a shop towel and funnel. These kits can be obtained from an Independent Authorized Service Dealer (IASD). At Each UseCheck Engine Oil LevelEvery 100 Hours or Every 6 MonthsClean/Replace Air Filter**Change Oil ǂ*Clean Enclosure VentsClean/Replace Spark ArrestorEvery 300 Hours or Every Year*Replace Spark PlugReplace Fuel Filter +Valve Clearance Adjustment***Check/Replace Crankcase Breather HoseCheck Fittings/Fasteners +ǂ Change oil after first month or 20 hours of operation.+ To be performed by an IASD.* Change oil every month when operating under heavy load or in high temperatures.** Clean more often under dirty or dusty oper-ating conditions. Replace air filter parts if they cannot be adequately cleaned.*** Check valve clearance and adjust if neces-sary after first 50 hours of operation. (000142a)WARNING Personal injury. Do not insert any object through the air cooling slots. Generator can start at any time and could result in death, serious injury, and unit damage. (000141) WARNING Accidental start-up. Disconnect spark plug wires when working on unit. Failure to do so could result in death or serious injury.Owner’s Manual for Portable Generator 15 Inspect Engine Oil Level Inspect engine oil level prior to each use, or every 8 hours of operation.

1. Place generator on a level surface.

2. Remove screws and side cover.

3. Clean area around oil fill.

4. See Figure 4-1. Remove oil fill cap/dipstick

and wipe dipstick clean. Figure 4-1. Engine Oil Fill

5. See Figure 4-2. Thread dipstick into oil

filler neck. Oil level is checked with dip- stick fully installed.. Figure 4-2. Safe Operating Range

6. Remove dipstick and verify oil level is

within safe operating range.

7. Add recommended engine oil as neces-

sary. NOTE: Verify oil level often during filling pro- cess to ensure overfilling does not occur.

8. Install oil fill cap/dipstick and hand-tighten.

NOTE: Some units have more than one oil fill location. It is only necessary to use one oil fill point.

9. Install side panel and screws.

Change Engine Oil When using generator under extreme, dirty, dusty conditions, or in extremely hot weather, change oil more frequently. NOTE: Don’t pollute. Conserve resources. Return used oil to collection centers. Change oil while engine is still warm from run- ning, as follows:

1. Place generator on a level surface.

2. Remove screws, side cover and spark

3. Disconnect the spark plug wire from the

spark plug and place the wire where it cannot contact spark plug.

4. Clean area around oil fill and oil drain plug.

5. Remove oil fill cap/dipstick and wipe dip-

6. Tip unit and drain oil completely into a suit-

7. Once oil is sufficiently drained from unit,

install oil drain plug and tighten securely.

8. See Figure 4-3. Insert funnel into oil fill

opening. Add recommended engine oil as necessary. Figure 4-3. Oil Fill Opening With Funnel

9. See Figure 4-2. To check oil level, remove

funnel and insert dipstick into oil filler neck without screwing it in.

10. Remove dipstick and verify oil level is

within safe operating range. NOTE: Verify oil level often during filling pro- cess to ensure overfilling does not occur.

11. Install oil fill cap/dipstick and hand-tighten.

12. Wipe up any spilled oil.

13. Install side panel, screws, and spark plug

14. Properly dispose of oil in accordance with

all applicable regulations. SAE 3010W-30Synthetic 5W-30000399 (000139) WARNING Risk of burns. Allow engine to cool before draining oil or coolant. Failure to do so could result in death or serious injury.

(000141) WARNING Accidental start-up. Disconnect spark plug wires when working on unit. Failure to do so could result in death or serious injury. 00240416 Owner’s Manual for Portable Generator Air Filter Engine will not run properly and may be dam- aged if run with a dirty air filter. Service air fil- ter more frequently in dirty or dusty conditions. To service air filter:

1. See Figure 4-4. Unscrew bolt (A) and

remove air filter cover.

2. Wash filter (B) in soapy water. Squeeze

dry in clean cloth (DO NOT TWIST).

3. Clean air filter cover before installation.

4. Replace side cover and screws.

NOTE: To order a new air filter, contact the nearest authorized service center at 1-888- 436-3722. Figure 4-4. Air Filter Assembly Service Spark Plug To service spark plug:

1. Remove spark plug cover and disconnect

2. Clean area around spark plug.

3. Remove and inspect spark plug.

4. See Figure 4-5. Inspect electrode gap with

feeler gauge and reset spark plug gap to

0.6 - 0.8mm (0.024 - 0.031 in).

Figure 4-5. Spark Plug NOTE: Replace spark plug if electrodes are pitted, burned or porcelain is cracked. Use ONLY recommended replacement plug. See Product Specifications.

5. Install spark plug finger tight, and tighten

an additional 3/8 to 1/2 turn using spark plug wrench. Inspect Muffler and Spark Arrestor NOTE: It is a violation of California Public Resource Code, Section 4442, to use or oper- ate the engine on any forest-covered, brush- covered, or grass-covered land unless the exhaust system is equipped with a spark arrestor, as defined in Section 4442, main- tained in effective working order. Other states or federal jurisdictions may have similar laws. Contact original equipment manufacturer, retailer, or dealer to obtain a spark arrestor designed for exhaust system installed on this engine. NOTE: Use ONLY original equipment replace- ment parts. Inspect muffler for cracks, corrosion, or other damage. Remove spark arrestor, if equipped, inspect for damage or carbon blockage. Replace parts as required. Inspect Spark Arrestor Screen Clean Spark Arrestor Screen The engine exhaust muffler has a spark arres- tor screen. Inspect and clean the screen every 100 hours of operation or every six months, whichever comes first. To service spark arrestor:

2. Slide spark arrestor screens out from the

rated or otherwise damaged. Do NOT use a defective screen. If screen is not dam- aged, clean with a commercial solvent.

4. Replace the screens, and retainer, and

secure with bolts. Figure 4-6. Spark Arrestor Screen

(000108) WARNING Hot Surfaces. When operating machine, do not touch hot surfaces. Keep machine away from combustibles during use. Hot surfaces could result in severe burns or fire. 015391Owner’s Manual for Portable Generator 17 Valve Clearance Important: Please contact an Independent Authorized Service Dealer for service assis- tance. Proper valve clearance is essential for prolonging the life of the engine. Check valve clearance after the first fifty-hours of operation. Adjust as necessary.

• Intake — 0.125 ± 0.025mm (cold), (0.005" ± 0.001" inches)

• Exhaust — 0.150 ± 0.050 mm (cold), (0.006 ± 0.002 inches) Storage General It is recommended to start and run the genera- tor for 30 minutes, every 30 days. If this is not possible, refer to the following list to prepare unit for storage.

• DO NOT place a storage cover on a hot generator. Allow unit to cool to room tem- perature before storage.

• DO NOT store fuel from one season to another unless properly treated.

• Replace fuel container if rust is present. Rust in fuel will cause fuel system prob- lems.

• Cover unit with a suitable protective, mois- ture resistant cover.

• Store unit in a clean, dry area.

• Always store generator and fuel away from heat and ignition sources. Prepare Fuel System/Engine for Storage Fuel stored over 30 days can go bad and damage fuel system components. Keep fuel fresh, use fuel stabilizer. If fuel stabilizer is added to fuel system, pre- pare and run engine for long term storage. Run engine for 10-15 minutes to circulate sta- bilizer throughout fuel system. Adequately prepared fuel can be stored up to 24 months. NOTE: If fuel has not been treated with fuel stabilizer, it must be drained into an approved container. Run engine until it stops from lack of fuel. Use of fuel stabilizer in fuel storage container is recommended to keep fuel fresh.

1. See Figure 4-7. Loosen screw (A) and

drain fuel from carburetor. Figure 4-7. Drain Fuel from Carburetor

2. Change engine oil.

3. Remove spark plug.

4. Pour tablespoon (5-10cc) of clean engine

oil or spray a suitable fogging agent into cylinder.

5. Pull starter recoil several times to distrib-

ute oil in cylinder.

6. Install spark plug.

7. Pull recoil slowly until resistance is felt.

This will close valves so moisture cannot enter engine cylinder. Gently release recoil. Change Oil Change engine oil before storage. See, Change Engine Oil. (000143)Explosion and Fire. Fuel and vapors are extremely flammable and explosive. Store fuel in a well ventilated area. Keep fire and spark away. Failure to do so will result in death or serious injury.DANGER (000109) WARNING Risk of Fire. Verify machine has properly cooled before installing cover and storing machine. Hot surfaces could result in fire. (000181) WARNING Vision Loss. Eye protection is required to avoid spray from spark plug hole when cranking engine. Failure to do so could result in vision loss. A18 Owner’s Manual for Portable Generator Troubleshooting

PROBLEM CAUSE CORRECTION

Engine won't start. 1. Dial turned off.

4. Plugged fuel filter.

5. Defective or stuck Dial assem-

6. Incorrect engine oil level.

7. Defective ignition coil.

9. Throttle plate closed.

4. Replace fuel and fuel filter.

6. Check/fill engine oil.

9. Open throttle plate (push

toward back of unit). Engine starts, then shuts down.

2. Incorrect engine oil level.

3. Contaminated fuel.

4. Defective low oil level switch.

2. Check engine oil level.

Engine will not start; or starts and runs rough.*

1. Choke is stuck or left on.

2. Dirty or clogged air filter.

3. Defective or dirty spark plug.

4. Dirty fuel filter.

6. Unit not warmed up.

7. Spark arrestor clogged.

4. Replace fuel and fuel filter.

5. Clean carburetor.

6. Gradually adjust Dial and

reduce choke until engine runs smoothly in RUN position.

7. Clean spark arrestor.

No AC output. 1. Generator is overloaded.

2. Inverter module is overheated.

3. Short circuit in electrical

4. Defective inverter assembly.

5. Circuit breaker tripped.

1. Disconnect all loads. Shut

down generator to reset mod- ule. Reduce loads, restart generator.

2. Verify service door is ON. Let

cool 15 minutes by running engine without AC output. Press and hold Reset button on control panel, restart gener- ator.

3. Verify condition of extension

cords and items being pow- ered. Press and hold Reset button on control panel.

to reset. Fuel leaks from drain hoses.

1. Carburetor drain in bowl is not

1. Turn valve clockwise to close.

Engine starts and shuts off right away.

1. COsense shut-off due to accu-

mulating carbon monoxide if a red light blinks on the side panel badge.

2. COsense shut-off due to a

system fault if a yellow light blinks on the side panel badge.

1. Follow all safety instructions

and relocate generator to an open area outside, far away from windows, doors and vents.

2. Start to confirm yellow light

blinks when/if generator shuts- off. If COsense continues to fault and shut-off, contact IASD.

• Engine speed increases and decreases — This is normal as generator starts up and loads vary.Owner’s Manual for Portable Generator 19 Wiring Diagram WD/SD GP3300i with CO20 Owner’s Manual for Portable Generator NotesPart No. A0001141434 Rev. J 07/25/2024 ©2024 Generac Power Systems, Inc. All rights reserved Specifications are subject to change without notice. No reproduction allowed in any form without prior written consent from Generac Power Systems, Inc. Generac Power Systems, Inc. S45 W29290 Hwy. 59 Waukesha, WI 53189 1-888-GENERAC (1-888-436-3722) www.generac.comGenerador portátil GP3300i Manual del propietario

5. ASAE EP-364.2 Installation and

5. ASAE EP-364.2 Installation and
