Product Type	Thermoelectric Wine Cooler
Brand	Sogo
Model	NEVSS21905
Capacity	33 liters
Dimensions (W x D x H)	25.2 x 50.7 x 61.5 cm
Net Weight	12.3 kg
Power Supply	220-240 V ~ 50-60 Hz
Power	50 W
Temperature Range	12 °C to 18 °C
Energy Consumption	0.36 kWh / 24 h
Refrigerant	R600A
Climate Class	SN, N
Cooling Type	Thermoelectric
Interior Lighting	Yes, automatic when door opens
Temperature Setting	Control panel with digital display
Door	Solid (not specified, estimate: solid door)
Grounding	Required (grounded plug)
Cleaning	Interior: soapy water or baking soda; exterior: soft dry cloth; do not use abrasive cleaners
Warranty and After-Sales Service	www.sogosat.com - 0034 902 222 161

Frequently Asked Questions - NEVSS21905 Sogo

What is the capacity of the Sogo NEVSS21905 wine cooler?

The wine cooler has a capacity of 33 liters, allowing storage of several bottles.

What is the adjustable temperature range?

The temperature can be set between 12 °C and 18 °C for optimal wine preservation.

How to set the temperature?

Use the control panel with the Increase and Decrease buttons to adjust the temperature. The digital display shows the selected value.

What to do if the cooler is not cooling?

Check that the plug is properly inserted, that the voltage matches (220-240 V), and that the door is not open for too long. Wait 3 to 5 minutes after a restart.

How to clean the interior of the cooler?

Wash the removable shelves with warm soapy water. Clean the interior with a solution of baking soda (3 tablespoons per 1 liter of water) or soapy water, then rinse and dry.

Can I place the cooler in a kitchen or garage?

Yes, but avoid heat sources and humidity. Install it in a dry and well-ventilated place, away from direct sunlight.

What type of refrigerant does this appliance use?

The refrigerant is R600A, an environmentally friendly gas. It is flammable, so never puncture the cooling circuit.

The appliance makes an unusual noise, what to do?

Check that it is level, that no object has fallen behind, and that bottles are not touching. If the noise persists, contact after-sales service.

How to save energy with this wine cooler?

Open the door as little as possible, leave at least 10 cm of space around the appliance for good air circulation, and set the temperature to a higher value if possible.

Where to find the serial number or after-sales service?

The serial number is on the rating plate. For after-sales service, contact www.sogosat.com or call 0034 902 222 161.

USER MANUAL NEVSS21905 Sogo

Exterior view of a modern black and white refrigerator with water bottles on the front panel (no visible text or symbols)

VINOTECA PARA 12 BOTELLAS WINE COOLER FOR 12 BOTTLES CAVE À VIN POUR 12 BOUTEILLES GELADEIRA DE 12 GARRAFAS DE VINHO WEINKÜHLER FÜR 12 FLASCHEN RAFFREDDATORE DI VINO PER 12 BOTTIGLIE

Caution: please read and preserve these important instructions This manual can be downloaded from our website, www.sogo.es in the following languages. SPANISH, CATALAN, ENGLISH, FRENCH, PORTUGUESE, GERMAN, ITALIAN AND MORE

ref. SS-21905

IMPORTANTE:

Technical diagram of a refrigerator internal structure with numbered components for identification

1. PANTALLA DE TEMPERATURA
2. PANEL DE CONTROL DE TEMPERATURA
3. INTERRUPTOR DE LUZ
4. LUZ INTERIOR

5. CUBIERTA DEL VENTILADOR FRÍO

6. ESTANTE

7. PIE
8. CAJA DE AGUA
9. SELLO MAGNÉTICO
10. MARCO DE LA PUERTA

CONTROL DE TEMPERATURA

4 inches 2 inches 2 inches

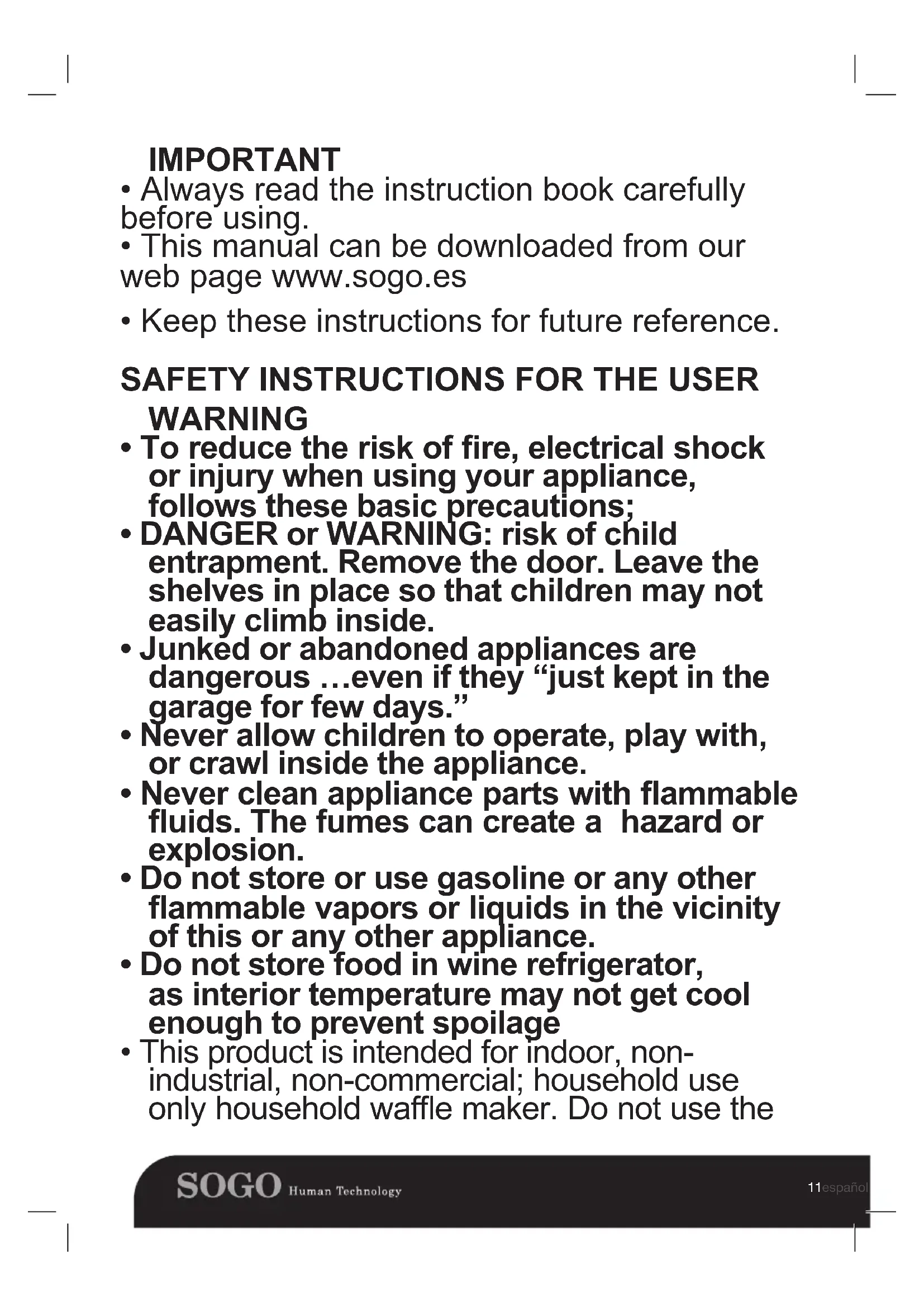

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

SAFETY INSTRUCTIONS FOR THE USER WARNING

• To reduce the risk of fire, electrical shock or injury when using your appliance, follows these basic precautions;
- DANGER or WARNING: risk of child entrapment. Remove the door. Leave the shelves in place so that children may not easily climb inside.
- Junked or abandoned appliances are dangerous ...even if they “just kept in the garage for few days.”
- Never allow children to operate, play with, or crawl inside the appliance.
- Never clean appliance parts with flammable fluids. The fumes can create a hazard or explosion.
- Do not store or use gasoline or any other flammable vapors or liquids in the vicinity of this or any other appliance.
- Do not store food in wine refrigerator, as interior temperature may not get cool enough to prevent spoilage
- This product is intended for indoor, non-industrial, non-commercial; household use only household waffle maker. Do not use the

item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.

• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Do not use or store the appliance outdoors.
  • Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• Do not place or operate this appliance near water sources.
• Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.
• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in

order to avoid Hazard.

- In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.

- In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

- Never use accessories that are not recommended by the manufacturer.

- The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.

- Always place the appliance on to the flat and even surface.

- Do not use the appliance for any other purpose than described in this manual.

- Do not let the appliance operate unattended.

- When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.

- Make sure your hands are dry before plug or unplugging.

- the appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

- Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- Keep the appliance and its cord out of the reach of the children.

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards.

- Children shall not play with the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

• Children aged from 3 to 8 years allowed to load and unload refrigerating appliances.

• This appliance is intended to be used in

household and similar applications such as

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.

WARNING

• Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Products service center
• This unit should be properly grounded for your safety. The power cord of this unit is equipped with a 2-pin plug which mates with 2-pin wall outlets to minimize the possibility of electrical shock. Do not under any circumstances cut or remove the ground wire from the power cord supplied.

- Use of extension cords is not recommended.

- This unit requires a standard 220V-240V\~50-60Hz electrical outlet with 2-pin plug.

- The cord should be secured behind the wine refrigerator and not let exposed or dangling to prevent accidental injury.

- When positioning the appliance, ensure the supply cord does not get trap or damage.

- Do not locate multiple portable socket outlets or portable power supplies at the rear of appliance.

TECHNICAL ESPECIFICATIONS

Model No. SS-21905
Capacity 33L
Voltage	220-240V~ 50-60Hz
Class I
Climate Class SN, N
Power 50W
Temperature range 12-18°C
Energy consumption 0.36kWh / 24h
Net Weight 12.3kg
Gross Weight 14.5kg
Unit measurement 25.2 x 50.7 x 61.5 cm
Box measurement	30 x 55.5 x 67 cm
Cooling System R600A refrigerant

BEFORE PUTTING INTO USE

Clean the appliance, and be thorough, especially in the interior (See "HOW TO CLEAN"). In case the interior accessories are not correctly placed, rearrange them as described in chapter "NAME OF THE PARTS".

INSTRUCTIONS FOR USE

These instructions for use are intended for the user. They describe the appliance and its correct and safe use. They were prepared for various types/models of therefore you may find in it description of some functions and accessories that your appliance does not have.

ENERGY SAVINGS TIPS

• Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, close it as soon as possible.
• Every now and then check if the appliance is sufficiently ventilated (adequate air circulation around the appliance) (leave at least 10cm of the space from the all sides of the wine cooler).
• Set thermostat from higher to lower settings as soon as possible (depends on how loaded the appliance is ambient temperature etc.).
• Set it on higher temperature can minimize the energy consumption of the household thermoelectric cooler appliance at ordinary temperature.

- Zone illustration:

tion:

• Please respect the following instructions:
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance and that can cause the electricity bills increments as well.

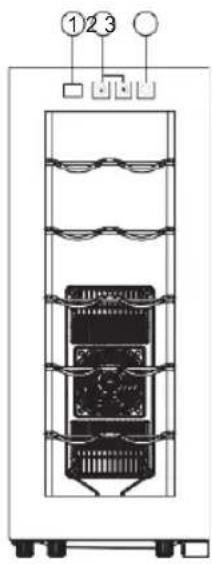

①23

1. TEMPERATURE DISPLAY
2. TEMPERATURE CONTROL PANEL
3. LIGHT SWITCH
4. INTERIOR LIGHT
5. COOL FAN COVER

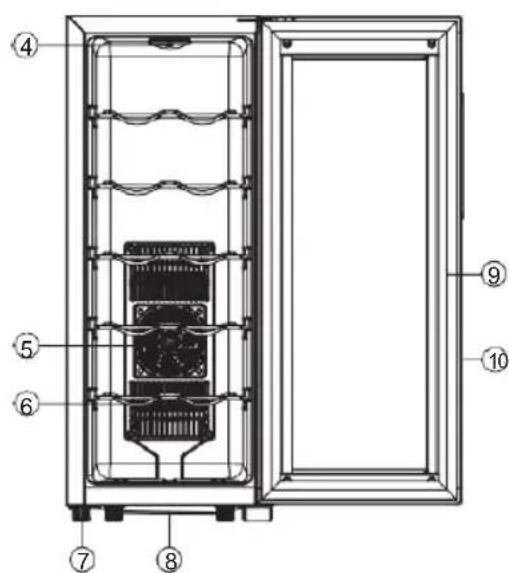

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

1. SHELF
2. FOOT
3. WATER BOX
4. MAGNETIC SEAL
5. DOOR FRAME

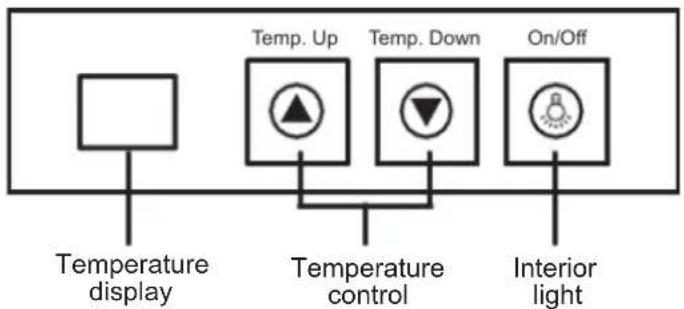

TEMPERATURE CONTROL

To control the internal temperature, adjust the temperature control panel and light switch.

The temperature range for thermoelectric cooler is 12^ C- 18^ C. When the temperature is set on one certain point and the temperature inside reaches at that point and automatic temperature control system begins to work and the cooling system goes into linear temperature keeping status

Starting your new thermoelectric cooler

1. Clean the cooler thoroughly. Wipe the outside with a soft dry cloth, clean the interior with a clean moist cloth.
2. Insert the power supply cord into the wall socket. Make sure the power socket voltage same as wine cooler voltage.

How to opérate?

1. Clean the cooler thoroughly. Wipe the outside with a soft dry cloth, the interior with a clean moist cloth.
2. Insert the power supply cord into the socket. Make sure the power socket is 220-240V AC / 50-60Hz.

When the cooler works with full power, the two LEDs on the circuit board will flash. The red one shows the power input status. The green one shows the output status of the cooling system.

As soon as switch on the unit the fan inside the cooler begins to work. When the cooler door being open, the light under the temperature adjustor will turn on automatically. Temperature range of cellar appliance: Within 12-18°C (target temperature is 12°C)

Note: Always wait 3-5 minutes before restarting if you unplug the cooler. The unit may fail to operate properly if restarted too quickly.

CLEANING

Cleaners: Never use harsh, abrasive cleaners, heavy-duty cleaners, or solvents on any surface. Exterior: Wipe with damp, sudsy cloth, rinse and dry. For stubborn stains and for periodic waxing, use silicon wax.

Cooler Section: Wash shelves and other removable parts in warm sudsy water, rinse and dry. Wash interior with baking soda solution (3 tablespoons to 1 liter of water) or warm sudsy water, rinse and dry. Magnetic Door Seals: Wash with warm sudsy water.

The Finishing Touch: Replace all parts and return thermostat dial to desired settin

Install cooler in a convenient location away from extreme heat and cold. Allow enough distance between the cooler and side wall so the door will open without obstruction.

Cooler is not designed for recessed installation. Select a space with strong level floor.

Never place the appliance with the front edge along the edge on table top or in any shelf, because there is a risk of the appliance tipping forwards and falling if the door compartments is overloaded. Take care to ensure that there is sufficient space in front of the appliance so that when opening the door, the door lies on the storage storage surface when the appliance is tipped.

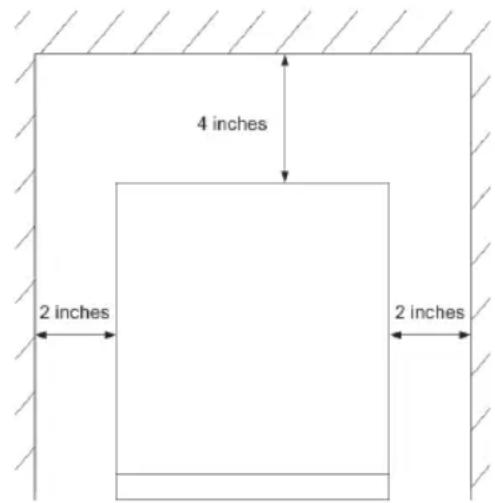

Allow 2 inches (5cm) of space between the cooler's side & wall and 4 inches (10cm) between back & top the wall.

4 inches 2 inches 2 inches

TROUBLE SHOOTING

Problems Solutions
When the wine cooler does not works.	The wine cooler is not plugged in properly, remove the plug and plug-in again
	The wall outlet voltage is not same as cooler voltage
When the cooler is not used for the long period of time.	Remove the power plug from the power supply.
	Remove all contents from the cooler.
	Dry the interior and leave the door open for a few days.
When to move the cooler from one place to other.	Secure all movable parts and contents. (Package them separately if necessary.)
	Transport the cooler only in an upright position.
If the cooler seem to warm from inside.	Check that the door has not been opened too frequently or for a long period.
	Check that the interior circulation is not obstructed by having too many goods stored. (make sure that cooler is not overloaded)
	Check whether you have stored any food, without bringing to the room temperature, remove and place it again when come down to the room temp.
	Is there sufficient clearance around all sides and above the cooler?
If the cooler makes any unusual noises.	If it is because of wobbling? Re-level it and check if it now operates normally.
	Compruebe si ha caído algún objeto detrás del enfriador. Si es así, retirelo y compruebe si el enfriador ha dejado de hacer ruido.
	Check if any object has fallen behind the cooler? If so, remove and check if the cooler has stopped making noise.
If inside light flashes Set temperature is higher than inner temperature.

IMPORTANT:

Technical diagram of an electrical enclosure with numbered components for identification

1. AFFICHAGE DE LA TEMPÉRATURE
2. PANNEAU DE CONTROLE DE LA TEMPÉRATURE
3. INTERRUPTEUR DE LUMIÈRE
4. LUMIERE INTERIEURE

5. COUVERCLE DE VENTILATEUR DE REFROIDISSEMENT

6. ÉTAGÈRE

7. PIED
8. BOITE A EAU
9. SCELLE MAGNÉTIQUE
10. CADRE DE PORTE

CONTRÔLE DE LA TEMPÉRATURE

4 inches 2 inches 2 inches

DÉPANNAGE:

Technical diagram of a refrigerator internal structure with numbered components for identification

1. VISOR DE TEMPERATURA
2. PAINEL DE CONTROLE DE TEMPERATURA
3. INTERRUPTOR DE LUZ
4. LUZ INTERIOR

5. TAMPA DO VENTILADOR FRESCO

6. PRATELEIRA

7. PÉ
8. CAIXA DE ÁGUA
9. SELO MAGNÉTICO
10. ESTRUTURA DA PORTA

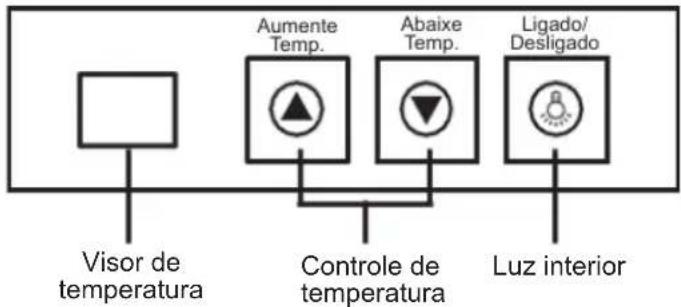

CONTROLE DE TEMPERATURA

Para controlar a temperatura interna, ajuste o painel de controle de temperatura e o interruptor de luz.

Visor de temperatura Aumente Temp. Controle de temperatura Abaixe Temp. Ligado/ Desligado Luz interior

4 inches 2 inches 2 inches

4 inches 2 inches 2 inches

FEHLERBEHEBUNG:

Technical diagram of a refrigerator internal structure with numbered components for identification

4 inches 2 inches 2 inches

RISOLUZIONE DEI PROBLEMI:

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
