Product Type	Coffee grinder with integrated scale
Brand	KitchenAid
Model	KCG0799
Power	2 AAA 1.5V batteries (included)
Main Function	Grinding coffee beans and precise weighing
Scale Capacity	Up to 888 g (display)
Display	LCD screen
Canister Material	Not specified (plastic or glass, hand wash recommended)
Care	Hand clean with a damp cloth; do not wash in dishwasher
Safety	Do not immerse in water; for household use only
Battery Replacement	Yes, compartment with Phillips screw at bottom of canister
Warranty United States and Canada	1 year full warranty (replacement or repair)
Warranty Europe, Middle East and Africa	2 years full warranty (parts and labor)
Customer Service France	Toll-free: 0800 600120
Customer Service Belgium	Toll-free: 0800 93285
Customer Service Switzerland	Tel: [phone]
Compatibility	Designed for use with KitchenAid coffee grinder (not included)
Use	Household only

Frequently Asked Questions - KCG0799 KITCHENAID

How do I turn on the scale canister for the coffee grinder?

Press the ON button. The LCD screen displays 888g then goes to 0g when ready.

How do I replace the batteries in the scale canister?

Turn the canister over, use a Phillips screwdriver to remove the screw from the battery compartment cover, replace the 2 AAA batteries (1.5V), and re-screw the cover.

Can I wash the scale canister in the dishwasher?

No, do not wash the canister in the dishwasher and do not immerse it in water. Clean it by hand with a damp cloth and dry it thoroughly.

How do I use the built-in scale?

Turn on the scale, place the coffee beans in the canister, wait a few seconds for the measurement to stabilize, then read the weight on the LCD screen.

Is the scale canister compatible with all KitchenAid grinders?

It is designed for use with KitchenAid coffee grinders, but check compatibility with your specific model.

What should I do if the screen displays nothing?

Check that the batteries are correctly inserted and not depleted. Replace them if necessary.

What is the maximum capacity of the scale?

The scale can measure up to 888 grams.

How do I clean the scale canister after use?

Wash the inside of the canister by hand with a damp cloth, dry it thoroughly. Do not use abrasive cleaners.

Is the product guaranteed?

Yes, the warranty is 1 year in the United States and Canada, and 2 years in Europe, Middle East and Africa (from date of purchase).

Where can I find after-sales service in France?

Call 0800 600120 (toll-free) or visit www.KitchenAid.fr.

USER MANUAL KCG0799 KITCHENAID

Close-up of a kitchen aid digital scale with coffee beans inside, placed on a black surface (no text or symbols on the main subject)

English 3

Français.... 12

Español 21

Deutsch.... 30

Italiano 37

Русский 44

TABLE OF CONTENTS

PARTS AND FEATURES....4

Parts and accessories....4

BURR GRINDER SCALE JAR SAFETY....5

Important safeguards .... 5

Electrical requirements....6

USING THE BURR GRINDER SCALE JAR....7

Operating the Burr Grinder Scale Jar 7

CARE AND CLEANING 8

Replacing the batteries 8

Cleaning the Burr Grinder Scale Jar....8

WARRANTY AND SERVICE 9

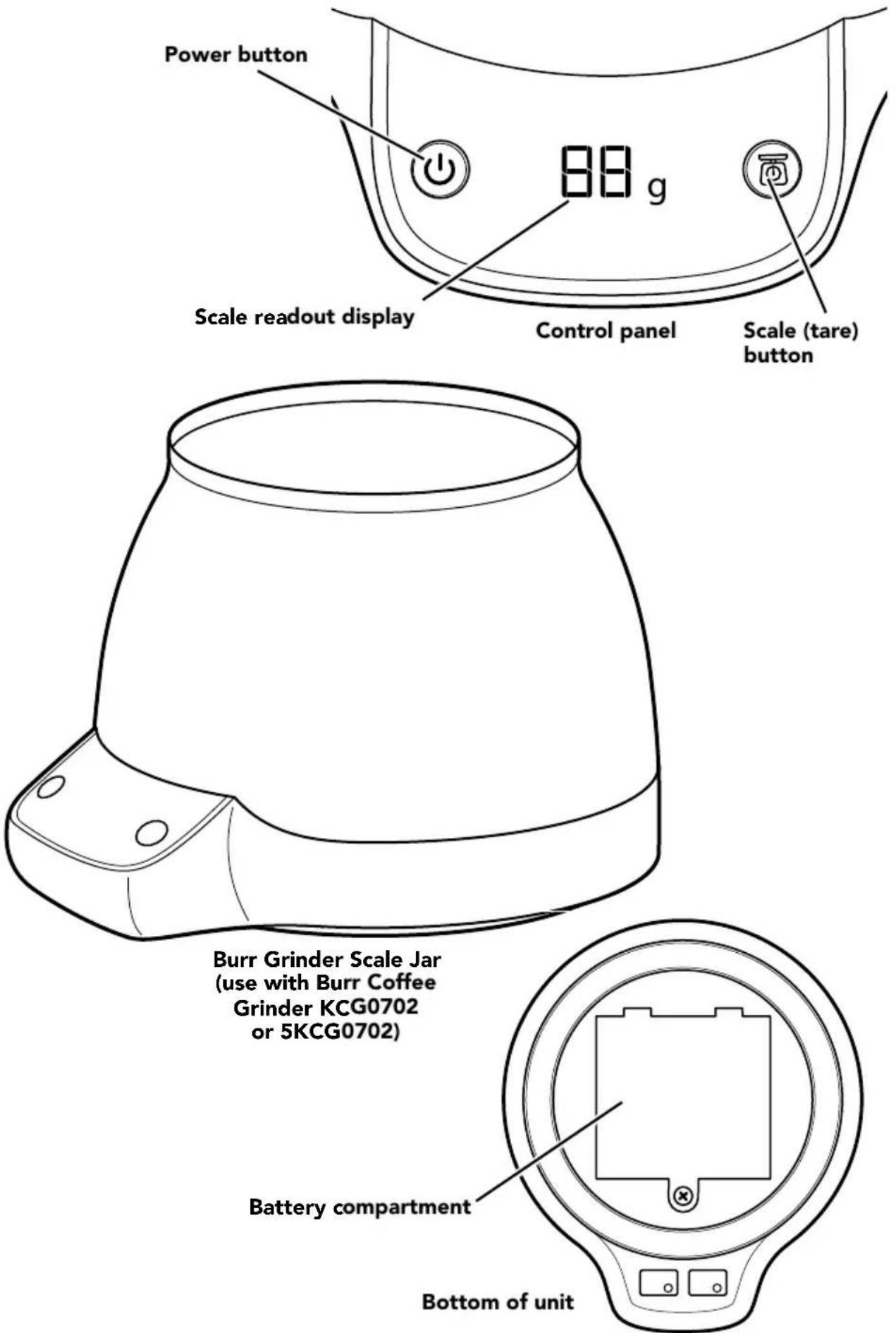

PARTS AND FEATURES

PARTS AND ACCESSORIES

Power button 88 g Scale readout display Control panel Scale (tare) button Burr Grinder Scale Jar (use with Burr Coffee Grinder KCG0702 or 5KCG0702) Battery compartment Bottom of unit

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

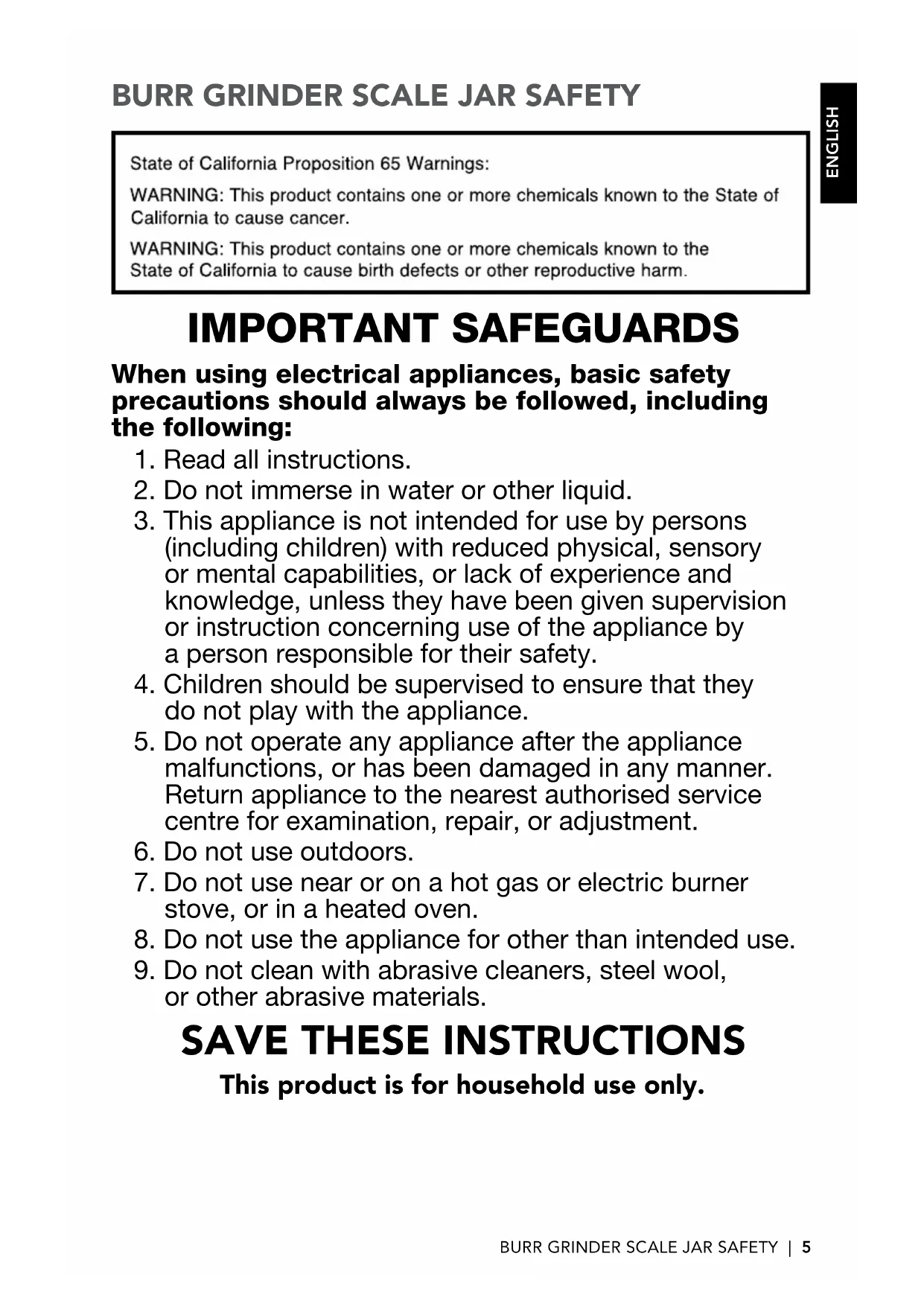

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Do not immerse in water or other liquid.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
4. Children should be supervised to ensure that they do not play with the appliance.
5. Do not operate any appliance after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorised service centre for examination, repair, or adjustment.
6. Do not use outdoors.
7. Do not use near or on a hot gas or electric burner stove, or in a heated oven.
8. Do not use the appliance for other than intended use.
9. Do not clean with abrasive cleaners, steel wool, or other abrasive materials.

SAVE THESE INSTRUCTIONS

This product is for household use only.

2 x 1.5V AAA Batteries

• Non-rechargeable batteries are not to be recharged.
- Rechargeable batteries are to be removed from the appliance before being charged.
- Different types of batteries or new and used batteries are not to be mixed.
- Batteries are to be inserted with the correct polarity.
- Exhausted batteries are to be removed from the appliance and safely disposed of.
- If the appliance is to be stored unused for a long period, the batteries should be removed.
- The supply terminals are not to be short-circuited.

USING THE BURR GRINDER SCALE JAR

IMPORTANT: Before using the Burr Grinder Scale Jar, wash the inside of the jar by hand with a damp cloth. Dry thoroughly. To avoid damage, do not wash in the dishwasher and do not immerse in water.

888 g

1 Press the POWER button to turn on the Burr Grinder Scale Jar. The LCD display will read 888g, and then will update to 0g when ready to use.

46 g

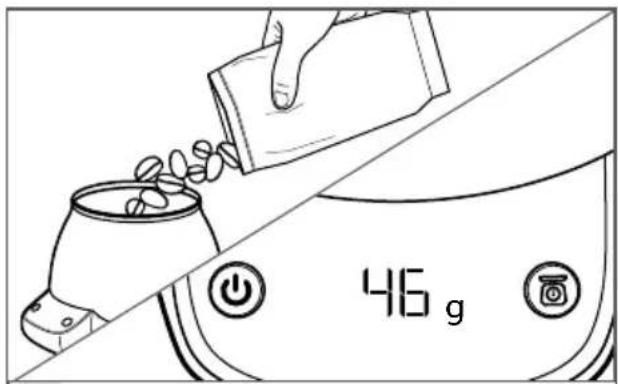

Pour the desired amount of whole coffee beans to grind into the Burr Grinder Scale Jar. Allow a few seconds for the scale to stabilize before reading the final measured value.

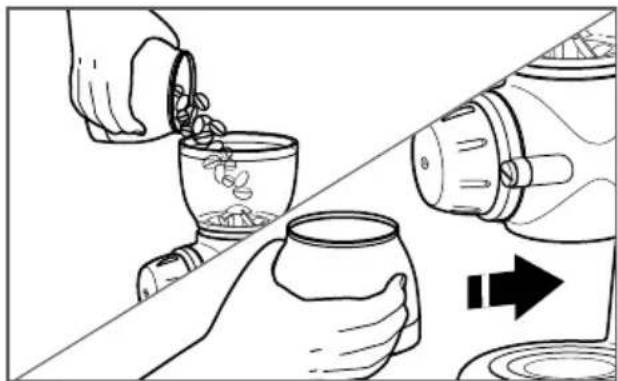

Illustration showing hands pouring seeds into a cup and a machine, with arrows indicating direction (no text or symbols)

Pour coffee beans into the Burr Grinder hopper and place the Burr Grinder Scale Jar under the Burr Grinder. Turn on the Burr Grinder and grind coffee through.

Line drawing of a hand operating a kitchen mixer (no text or symbols)

4 When done grinding, press the POWER button to verify that the desired amount of coffee has been ground through.

CARE AND CLEANING

REPLACING THE BATTERIES

The Burr Grinder Scale Jar is powered by 2 AAA batteries (included). To replace the batteries, use a Phillips-head screwdriver to access the battery compartment on the bottom of your Burr Grinder Scale Jar.

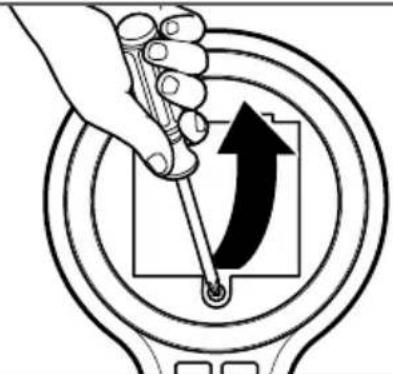

Hand holding a tool inside a circular device with an upward arrow symbol (no text or labels)

1 Flip the Burr Grinder Scale Jar over, and use a Phillips-head screwdriver to remove the screw on the compartment cover. Lift the compartment cover as shown.

Diagram showing two circular components with downward arrows, one partially enclosed and the other with a hand holding a tool (no text or symbols)

2 Replace the 2 AAA batteries in the battery compartment. Make sure to use the screw when reattaching the battery compartment cover.

CLEANING THE BURR GRINDER SCALE JAR

IMPORTANT: It is important to clean the Burr Grinder Scale Jar after each use. The taste of your coffee can be impacted if it is not thoroughly cleaned of all grounds and coffee oil residue after each use.

Line drawing of a hand holding a small container with a handle, no text or symbols present

1 Wash the inside of the jar by hand with a damp cloth. Dry thoroughly.

IMPORTANT: To avoid damage, do not wash the Burr Grinder Scale Jar in the dishwasher and do not immerse in water.

WARRANTY AND SERVICE

KITCHENAID BURR GRINDER SCALE JAR WARRANTY FOR THE 50 UNITED STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND CANADA

This warranty extends to the purchaser and any succeeding owner for Burr Grinder Scale Jars operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Full Warranty from date of purchase.
KitchenAid Will Pay for Your Choice of:	Hassle-Free Replacement of your Burr Grinder Scale Jar.See the next page for details on how to arrange for service, or call the Customer eXperience Centre toll-free at 1-800-541-6390.ORThe replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorised KitchenAid Service Centre.
KitchenAid Will Not Pay for:	A. Repairs when your Burr Grinder Scale Jar is used in other than normal single family home use.B. Damage resulting from accident, alteration, misuse or abuse.C. Any shipping or handling costs to deliver your Burr Grinder Scale Jar to an Authorised Service Centre.D. Replacement parts or repair labor costs for Burr Grinder Scale Jars operated outside the 50 United States, District of Columbia, Puerto Rico, and Canada.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIESIMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

WARRANTY AND SERVICE

HASSLE-FREE REPLACEMENT WARRANTY – 50 UNITED STATES, DISTRICT OF COLUMBIA, AND PUERTO RICO

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Burr Grinder Scale Jar should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Burr Grinder Scale Jar returned to us. Your replacement unit will also be covered by our one year limited warranty.

If your Burr Grinder Scale Jar should fail within the first year of ownership, simply call our toll-free Customer eXperience Centre at 1-800-541-6390 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address. (No P.O. Box numbers, please.)

When you receive your replacement Burr Grinder Scale Jar, use the carton, packing materials, and prepaid shipping label to pack up your original Burr Grinder Scale Jar and send it back to KitchenAid.

HASSLE-FREE REPLACEMENT WARRANTY – CANADA

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Burr Grinder Scale Jar should fail within the first year of ownership, we will replace your Burr Grinder Scale Jar with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty.

If your Burr Grinder Scale Jar should fail within the first year of ownership, simply call our toll-free Customer eXperience

Centre at 1-800-807-6777 Monday through Friday. Please have your original sales receipt available when you call. Proof of purchase will be required to initiate the claim. Give the consultant your complete shipping address.

When you receive your replacement Burr Grinder Scale Jar, use the carton, packing materials, and prepaid shipping label to pack up your original Burr Grinder Scale Jar and send it back to KitchenAid.

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR ORDERING ACCESSORIES AND REPLACEMENT PARTS

In the United States and Puerto Rico:

For service information, or to order accessories or replacement parts, call toll-free at 1-800-541-6390 or write to: Customer eXperience Centre, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Burr Grinder Scale Jar for information on how to obtain service.

For service information in Canada:

Call toll-free 1-800-807-6777.

For service information in Mexico:

Call toll-free 01-800-0022-767.

WARRANTY AND SERVICE

KITCHENAID BURR GRINDER SCALE JAR WARRANTY FOR EUROPE, MIDDLE EAST, AND AFRICA

Length of Warranty:	KitchenAid Will Pay For: KitchenAid Will Not Pay For:
Europe, Middle East and Africa:KCG0799SXTwo years full warranty from date of purchase.	The replacement parts and repair labour costs to correct defects in materials or workmanship. Service must be provided by an Authorised KitchenAid Service Centre.	A. Repairs when Burr Grinder Scale Jar is used for operations other than normal household food preparation.B. Damage resulting from accident, alterations, misuse, abuse, or installation/operation not in accordance with local electrical codes.

KITCHENAID DOES NOT ASSUME ANY RESPONSIBILITY FOR INDIRECT DAMAGES.

CUSTOMER SERVICE

In U.K. and Ireland:

For any questions, or to find the nearest KitchenAid Authorised Service Centre, please find our contact details below.

NOTE: All service should be handled locally by an Authorised KitchenAid Service Centre.

Contact number for U.K. and Northern Ireland:

Tollfree number 0800 988 1266 (calls from mobile phones are charged standard network rate) or call 0194 260 5504

Contact number for Ireland:

Tollfree number [phone]

E-mail contact for U.K. and Ireland:

Go to www.kitchenaid.co.uk, and click on the link "Contact Us" at the bottom of the page.

Address for U.K. and Ireland:

KitchenAid Europa, Inc.

PO BOX 19

B-2018 ANTWERP 11

BELGIUM

General hotline number:

00800 3810 4026

In other countries:

For all product related questions and after sales matters, please contact your dealer to obtain the name of the nearest Authorised KitchenAid Service/Customer Centre.

For more information, visit our website at:

www.KitchenAid.co.uk

www.KitchenAid.eu

TABLE DES MATIÈRES

PIÈCES ET CARACTÉRISTIQUES....13

Illustration showing hands pouring seeds into a cup and pouring another to a jar, with no visible text or symbols.

Line drawing of a hand operating a kitchen mixer with a cup (no text or symbols)

Customer eXperience Centre, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

PRECAUCIONES IMPORTANTES

Illustration showing hands pouring seeds into a cup and a machine, with arrows indicating direction (no text or symbols)

Line drawing of a hand operating a kitchen mixer (no text or symbols)

Hand holding a tool inside a circular device with an upward arrow symbol (no text or labels)

1

Line drawing of a hand holding a small object over a cylindrical container (no text or symbols)

1

Customer eXperience Centre, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

[e-mail]

KITCHENAID EUROPA, INC.

PO BOX 19

B-2018 ANTWERP 11

BELGIUM

Illustration showing hands pouring seeds into a cup and pouring another to a machine, with arrows indicating direction (no text or symbols)

Line drawing of a hand operating a kitchen mixer (no text or symbols)

Hand holding a tool inside a circular device with an upward arrow symbol (no text or labels)

1

Line drawing of a hand holding a small object, possibly a container or tool, with no visible text or symbols.

1

Illustration showing hands pouring seeds into a cup and a hand using a blender to cut a container (no text or symbols)

Line drawing of a hand operating a kitchen mixer (no text or symbols present)

Illustration of hands pouring seeds into a cup and pouring liquid from a device, with no visible text or symbols.

3

Line drawing of a hand operating a kitchen mixer with a cup (no text or symbols)

4

Hand holding a tool inside a circular device with an upward arrow symbol (no text or labels)

1

Line drawing of a hand holding a small container with a handle (no text or symbols)

1

www.KitchenAid.co.uk

www.KitchenAid.eu

© 2016 KitchenAid. All rights reserved. Specifications subject to change without notice.
