Product Type	Wireless Bluetooth Headset
Brand	Zebra (Motorola)
Model	S11Flex HD
Dimensions	Approximately 5 x 3 x 2 cm (estimated)
Weight	Approximately 20 g (estimated)
Power Supply	Built-in rechargeable lithium-ion battery
Talk Time	Up to 10 hours (estimated)
Standby Time	Up to 200 hours (estimated)
Bluetooth Range	Approximately 10 meters
Bluetooth Version	Bluetooth 3.0+HS (period estimate)
Supported Bluetooth Profiles	HFP, HSP, A2DP, AVRCP
Main Functions	Music listening, hands-free calling, volume control, bass/treble adjustment, Multipoint
Care and Cleaning	Wipe with a soft, dry cloth. Do not use alcohol or cleaning products.
Safety	Avoid contact with liquids, excessive heat, shocks. Do not expose to temperatures below -10°C or above 60°C.
Protection Rating	Not specified, but sweat-resistant thanks to the closed USB cover
Charging Connector	USB (likely micro-USB)
Package Contents	Headset, USB cable, quick start guide (estimated)
General Information	Product designed by Motorola (Zebra brand). 1-year limited warranty. Made in China.

Frequently Asked Questions - S11Flex HD ZEBRA

How to pair the S11Flex HD headset with my phone?

Put the headset into pairing mode by holding down the multifunction button until the indicator flashes blue and red. Turn on Bluetooth on your phone and select "S11-FLEX HD" from the list of devices. Confirm if necessary.

What is the battery life?

Talk time is approximately 10 hours and standby time up to 200 hours (estimates). The battery charges via the USB port.

How to adjust volume and bass/treble?

Use the volume buttons to increase/decrease the sound. To adjust bass/treble, hold down the multifunction button until you hear a voice prompt, then follow the instructions.

Can I connect two devices at the same time?

Yes, the headset supports Multipoint technology. Pair the second device as you did the first. Calls are managed on both, but music can only be played from one at a time.

How to reset the headset?

Simultaneously hold down the power and multifunction buttons until you hear the reset message. This erases all paired devices.

Is the headset water or sweat resistant?

The headset is not designed for immersion, but it is sweat resistant provided the USB charger cover is tightly closed. Avoid any contact with liquids.

How to answer or reject a call?

To answer, press the multifunction button. To reject, hold down a volume button until you hear a tone. To end a call, press the multifunction button.

What to do if the headset does not turn on?

Check that the battery is charged. Plug in the USB cable and wait a few minutes. If the indicator does not light up, try another USB source or contact support.

Can I use the headset for streaming music?

Yes, the headset supports A2DP profile for wireless stereo music. You can control playback (pause, next/previous track) from the headset.

How to check the remaining battery level?

In standby mode, press a volume button to hear the remaining listening time announced by the voice guide. A flashing red indicator indicates low battery.

USER MANUAL S11Flex HD ZEBRA

here's what you can do

Your MOTOROLA S11-FLEX HD wireless Bluetooth® headset. Move freely around the house listening to rich premium sound wirelessly from your smartphone. Set your preferred bass and treble level settings on the headset to hear the music the way you like it. Enjoy crystal clear conversations on your phone in high definition.

Go ahead, check it out:

ATAGLANCE 2
CONNECT & GO. 3
BASICS. 4
ADVANCED 6
CONNECT WITH MOTOROLA 8
SAFETY, REGULATORY & LEGAL 9

Caution: Before using your device, please read the safety, regulatory and legal information at the back of this guide.

Note: Your battery is designed to last the life of the product. It should only be removed by a recycling facility. Any attempt to remove or replace your battery may damage the product and void your warranty.

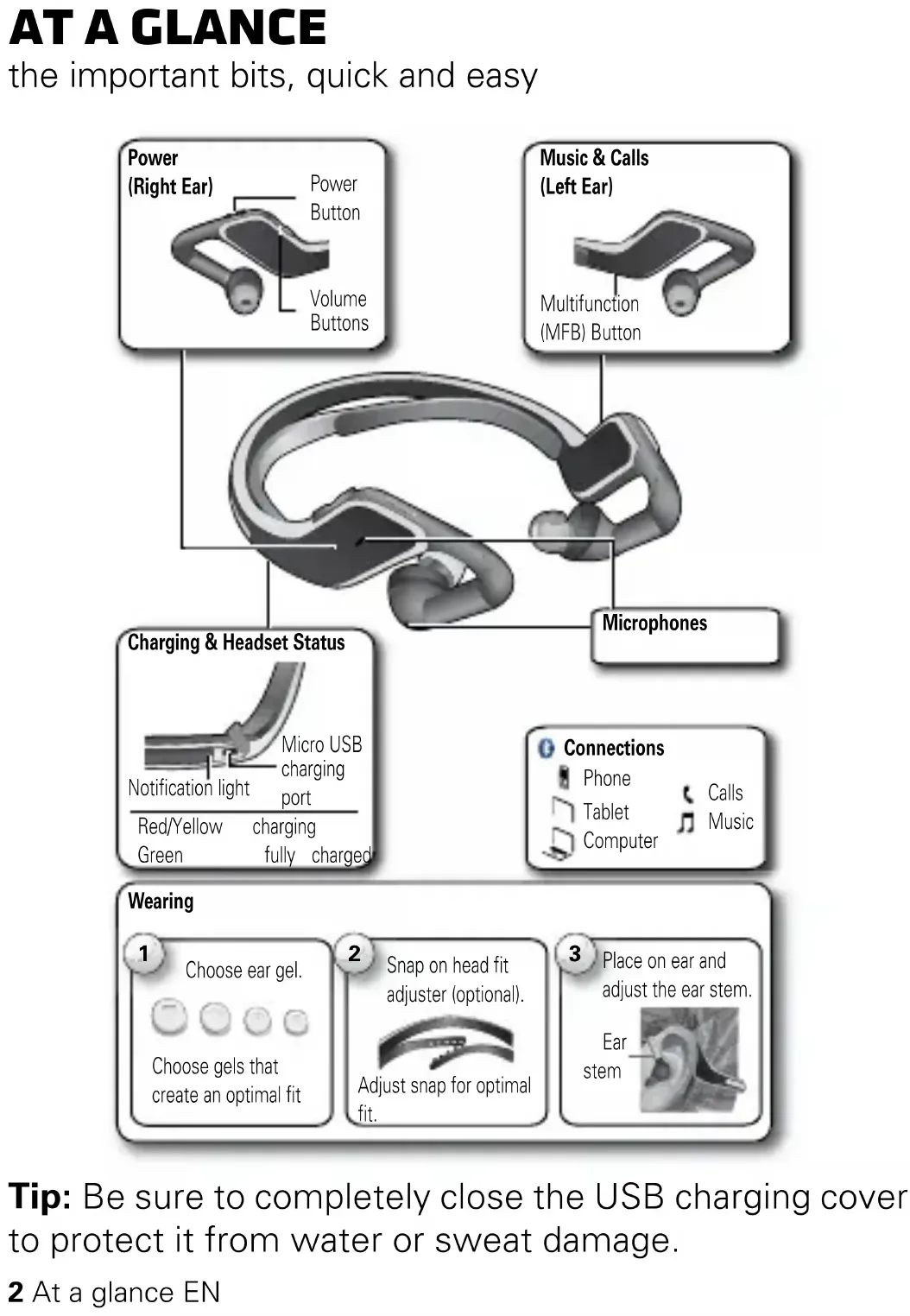

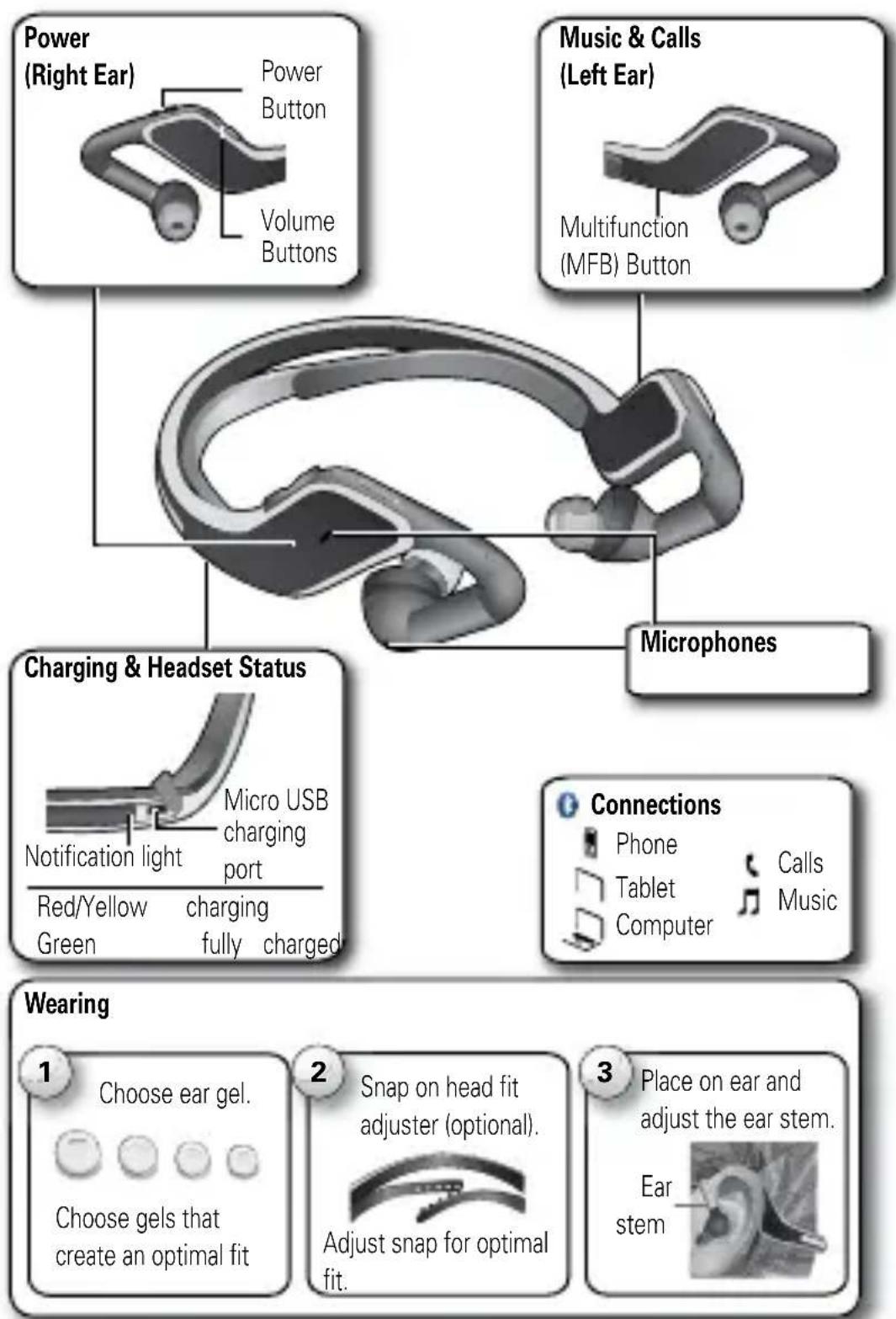

AT A GLANCE

the important bits, quick and easy

Tip: Be sure to completely close the USB charging cover to protect it from water or sweat damage.

2 At a glance EN

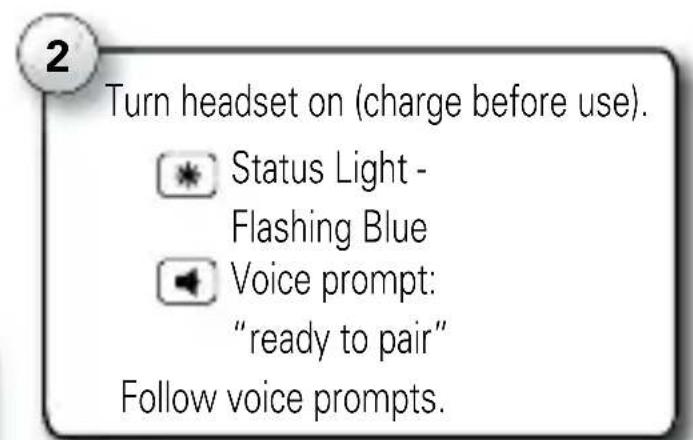

CONNECT & GO

let's get you connected

BASICS

standard features, advanced quality

MUSIC

To...
play/pause music	Press the MFB button once.
skip to next track	Press the MFB button two times.
skip to previous track	Press the MFB button three times.
change music bass/treble setting	Press and hold MFB button until you hear a voice prompt.

CALLS

To...
answer a call Press the MFB button.
reject a call Press and hold a Volume button until you hear a tone.
To...
make a voice dial call	Press and hold the MFB button until you hear a tone.
mute or unmute a call	Press and hold both Volume buttons at the same time until you hear “mute on” or “mute off”.
end a call Press the MFB button.
answer second incoming call	Press the MFB button.
reject second incoming call	Use the phone keypad to reject a second incoming call.
hear remaining music play time	Press Volume buttons while in standby.

Note: Some features are phone/network dependent.

Note: Using a mobile device or accessory while driving may cause distraction and may be illegal. Always obey the laws and drive safely.

ADVANCED

more clever stuff

SECOND DEVICE?

Do you use two phones? Or maybe a tablet and a phone? Pair with two devices using integrated multipoint technology.

• See "CONNECT & GO" on page 3 to pair second device. Headset remains in pairing mode for five minutes after turning on.
• Once paired, to connect to both devices simply turn them on.

CALLS

Follow the voice prompts for features such as voice dial, answer call, and end call.

MUSIC

Select a music source to listen to by streaming music from that phone. To switch to the other phone for music, just start streaming music from that phone.

Note: While multipoint connections work for calls, only one music streaming connection can be maintained at a time.

NOTIFICATION LIGHT

An easy way to check your headset.

If light shows... your headset is...

blue flash turning on and in pairing mode

steady blue connected to your device(s)

red flash in a low battery state

fading blue turning off

SETTINGS

Press and hold the Power and MFB buttons together to hear settings. Follow the voice prompts to change them:

• Reset headset

• Caution: Reset erases all paired devices stored in your headset.

Voice prompts on/off
- Caller ID on/off

CONNECT WITH MOTOROLA

• A n s w e r s : Guides, online help, and more at www.motorola.com/support
• Support: Visit www.motorola.com/support or contact the Motorola Customer Support Center at: 1-800-331-6456 (United States), 1-888-390-6456 (TTY/TDD United States for hearing impaired), or 1-800-461-4575 (Canada).
• Bluetooth: If you have questions or need assistance, contact us at 1-877-MOTOBLU, or visit www.motorola.com/bluetoothsupport or www.motorola.com/bluetoothconnect

Battery Use & Safety

DON'Ts

• Don't let the product come in contact with liquids. Liquids can get into the product's circuits, leading to corrosion.
• Don't place your product near a heat source.* High temperatures can cause the battery to swell, leak, or malfunction.
• Don't dry a wet or damp product with an appliance or heat source , such as a hair dryer or microwave oven.

DOs

• Do avoid leaving your product in your car in high temperatures.*
• Do avoid dropping the product. Dropping your product, especially on a hard surface, can potentially cause damage.
• Do contact your retailer or Motorola if your product has been damaged by dropping, liquids or high temperatures.

Warning: Never dispose of battery powered products in a fire because they may explode.

Battery Charging

Notes for charging your product's battery:

• During charging, keep your battery and charger near room temperature for efficient battery charging.
• New batteries are not fully charged.
• New batteries or batteries stored for a long time may take more time to charge.
• Motorola batteries and charging systems have circuitry that protects the battery from damage from overcharging.

Third Party Accessories

Use of third party accessories, including but not limited to batteries, chargers, headsets, covers, cases, screen protectors and memory cards, may impact your product's performance. In some circumstances, third party accessories can be dangerous and may void your product warranty. For a list of Motorola accessories, visit www.motorola.com/products

Driving Precautions

Responsible and safe driving is your primary responsibility when behind the wheel of a vehicle. Using a mobile device or accessory for a call or other application while driving may cause distraction, and may be prohibited or restricted in certain areas—always obey the laws and regulations on the use of these products.

While driving, NEVER:

• Type, read, enter or review texts, emails, or any other written data.
• Surf the web.
• Input navigation information.
• Perform any other functions that divert your attention from driving.

While driving, ALWAYS:

• Keep your eyes on the road.
• Use a handsfree device if available or required by law in your area.
• Enter destination information into a navigation device before driving.
• Use voice activated features (such as voice dial) and speaking features (such as audible directions), if available.
• Obey all local laws and regulations for the use of mobile devices and accessories in the vehicle.
• End your call or other task if you cannot concentrate on driving.

Remember to follow the "Smart Practices While Driving" at www.motorola.com/callsmart (in English only).

Caution About High Volume Usage

Warning: Exposure to loud noise from any source for extended periods of time may affect your hearing. The louder the volume sound level, the less time is required before your hearing could be affected. To protect your hearing:

• Limit the amount of time you use headsets or headphones at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can't hear people speaking near you.

If you experience hearing discomfort, including the sensation of pressure or fullness in your ears, ringing in your ears, or muffled speech, you should stop listening to the device through your headset or headphones and have your hearing checked.

For more information about hearing, see our website at http://direct.motorola.com/hellomoto/nss/AcousticSafety.asp (in English only).

Children

Keep your product and its accessories away from small children. These products are not toys and may be hazardous to small children. For example:

• A choking hazard may exist for small, detachable parts.
• Improper use could result in loud sounds, possibly causing hearing injury.
• Improperly handled batteries could overheat and cause a burn.

Symbol Key

Your battery, charger, or accessory product may contain symbols, defined as follows:

Symbol Definition
	Important safety information follows.
	Do not dispose of your product or battery in a fire.
	Your product or battery may require recycling in accordance with local laws. Contact your local regulatory authorities for more information.
	Do not dispose of your product or battery with your household waste. See “Recycling” for more information.
	Do not use tools.
	For indoor use only.

FCC Declaration of Conformity

Per FCC CFR 47 Part 2 Section 2.1077(a)

Responsible Party Name: Motorola Mobility LLC

Address: 8000 West Sunrise Boulevard, Suite A,

Plantation, FL 33322 USA

Phone Number: 1 [phone]

Hereby declares that the product:

Product Name: S11-FLEX HD

Model Number: S11-FLEX HD

FCC ID: IHDT6ND2

Conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a)

FCC Notice to Users

The following statement applies to all products that bear the FCC logo and/or FCC ID on the product label.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. See 47 CFR Sec. 15.105(b). These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(a)(3).

Motorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user's authority to operate the equipment. See 47 CFR Sec. 15.21.

For products that support Wi-Fi 802.11a (as defined in product information): In the United States, do not use your device outdoors while connected to an 802.11a Wi-Fi network. The FCC prohibits such outdoor use since frequencies 5.15-5.25 GHz can cause interference with Mobile Satellite Services (MSS). Public Wi-Fi access points in this range are optimized for indoor use.

Industry Canada Notice to Users

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device. See RSS-GEN 7.1.3. This Class B digital apparatus complies with Canadian ICES-003.

Use & Care

To care for your Motorola product, please keep it away from:

liquids

Don't expose your product to water, rain, extreme humidity, or other liquids.

drying

Don't try to dry your product using a microwave oven, conventional oven, or dryer, as this may damage the product.

extreme heat or cold

Avoid temperatures below -10^ (14°F) or above 60^ (140°F). For battery powered accessories, do not recharge your accessory in temperatures below 0^ (32°F) or above 45^ (113°F).

dust and dirt

Don't expose your product to dust, dirt, sand, food, or other inappropriate materials.

cleaning

To clean your product, use only a dry soft cloth. Don't use alcohol or other cleaning solutions.

shock and vibration

Don't drop your product.

protection

To help protect your product, always make sure that any battery, connector and compartment covers are closed and secure.

Recycling

Products & Accessories

Please do not dispose of products or electrical accessories (such as chargers, headsets, or batteries) with your household waste, or in a fire. These items should be disposed of in accordance with the national collection and recycling schemes operated by your local or regional authority. Alternatively, you may return unwanted products and electrical accessories to any Motorola Approved Service Center in your region. Details of Motorola approved national recycling schemes, and further information on Motorola recycling activities can be found at: www.motorola.com/recycling

Packaging & Product Guides

Product packaging and product guides should only be disposed of in accordance with national collection and recycling requirements. Please contact your regional authorities for more details.

Software Copyright

Motorola products may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed

by law. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.

Export Law Assurances

This product is controlled under the export regulations of the United States of America and Canada. The Governments of the United States of America and Canada may restrict the exportation or re-exportation of this product to certain destinations. For further information contact the U.S. Department of Commerce or the Canadian Department of Foreign Affairs and International Trade.

Product Registration

Online Product Registration: www.motorola.com/us/productregistration (in English only)

Product registration is an important step toward enjoying your new Motorola product.

Registering permits us to contact you for product or software updates and allows you to subscribe to updates on new products or special promotions. Registration is not required for warranty coverage.

Please retain your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status.

Thank you for choosing a Motorola product.

Motorola Limited Warranty for the United States and Canada

What Does this Warranty Cover?

Subject to the exclusions contained below, Motorola Mobility LLC warrants its mobile telephones ("Products"), Motorola-branded or certified accessories sold for use with these Products ("Accessories"), and Motorola software contained on CD-ROMs or other tangible media and sold for use with these Products ("Software") to be free from defects in materials and workmanship under normal consumer usage for the period(s) outlined below. This limited warranty is a consumer's exclusive remedy, and applies as follows to new Motorola

Products, Accessories, and Software purchased by consumers in the United States or Canada, which are accompanied by this written warranty:

Products and Accessories

Products Covered Length of Coverage
Products and Accessories as defined above, unless otherwise provided for below.	One (1) year from the date of purchase by the first consumer purchaser of the product unless otherwise provided for below.
Decorative Accessories and Cases. Decorative covers, bezels, PhoneWrap™ covers and cases.	Limited lifetime warranty for the lifetime of ownership by the first consumer purchaser of the product.
Monaural Headsets. Ear buds and boom headsets that transmit mono sound through a wired connection.	Limited lifetime warranty for the lifetime of ownership by the first consumer purchaser of the product.
Products and Accessories that are Repaired or Replaced.	The balance of the original warranty or for ninety (90) days from the date returned to the consumer, whichever is longer.

Exclusions (Products and Accessories)

Normal Wear and Tear. Periodic maintenance, repair and replacement of parts due to normal wear and tear are excluded from coverage.

Batteries. Only batteries whose fully charged capacity falls below 80% of their rated capacity and batteries that leak are covered by this limited warranty.

Abuse & Misuse. Defects or damage that result from: (a) improper operation, storage, misuse or abuse, accident or neglect, such as physical damage (cracks, scratches, etc.) to the surface of the product resulting from misuse; (b) contact with liquid, water, rain, extreme humidity, sand, dirt or the like, extreme heat, or food; (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of Motorola, are excluded from coverage.

Use of Non-Motorola Products and Accessories. Defects or damage that result from the use of non-Motorola branded or certified Products, Accessories, Software or other peripheral equipment are excluded from coverage.

Unauthorized Service or Modification. Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than Motorola, or its authorized service centers, are excluded from coverage. Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated; (b) broken seals or that show evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming or non-Motorola housings, or parts, are excluded from coverage.

Communication Services. Defects, damages, or the failure of Products, Accessories or Software due to any communication service or signal you may subscribe to or use with the Products Accessories or Software is excluded from coverage.

Software

Products Covered Length of Coverage
Software. Applies only to physical defects in the media that embodies the copy of the software (e.g. CD-ROM, or floppy disk).	Ninety (90) days from the date of purchase.

Exclusions (Software)

Software Embodied in Physical Media. No warranty is made that the software will meet your requirements or will work in combination with any hardware or software applications provided by third parties, that the operation of the software products will be uninterrupted or error free, or that all defects in the software products will be corrected.

Software NOT Embodied in Physical Media. Software that is not embodied in physical media (e.g. software that is downloaded from the Internet), is provided "as is" and without warranty.

Who is Covered?

This warranty extends only to the first consumer purchaser, and is not transferable.

What Will Motorola Do?

Motorola, at its option, will at no charge repair, replace or refund the purchase price of any Products, Accessories or Software that does not conform to this warranty. We may use functionally equivalent reconditioned/refurbished/pre-owned or new Products, Accessories or parts. No data, software or applications added to your Product, Accessories or Software, including but not limited to personal contacts, games and ringer tones, will be reinstalled. To

avoid losing such data, software, and applications, please create a back up prior to requesting service.

How to Obtain Warranty Service or Other Information

USA	1-800-331-6456
Canada	1-800-461-4575
TTY	1-888-390-6456

You will receive instructions on how to ship the Products, Accessories or Software, at your expense, to a Motorola Authorized Repair Center. To obtain service, you must include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase; (b) a written description of the problem; (c) the name of your service provider, if applicable; (d) the name and location of the installation facility (if applicable) and, most importantly; (e) your address and telephone number.

What Other Limitations are There?

ANY IMPLIED WARRANTY, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTYES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITIES OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.

Some states and jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, or limitation on the length of an implied warranty, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or from one jurisdiction to another.

Copyright & Trademarks

Motorola Mobility LLC

Consumer Advocacy Office

600 N US Hwy 45

Libertyville, IL 60048

www.motorola.com

Note: Do not ship your product to the above address. If you need to return your product for repairs, replacement, or warranty service, please contact the Motorola Customer Support Center at:

1-800-331-6456 (United States)

1-888-390-6456 (TTY/TDD United States for hearing impaired)

1-800-461-4575 (Canada)

Certain features, services and applications are network dependent and may not be available in all areas; additional terms, conditions and/or charges may apply. Contact your service provider for details.

All features, functionality, and other product specifications, as well as the information contained in this guide, are based upon the latest available information and believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.

Note: The images in this guide are examples only.

MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. All other product or service names are the property of their respective owners.

© 2012 Motorola Mobility LLC. All rights reserved.

Caution: Motorola does not take responsibility for changes/modification to the transceiver.

Product ID: SJYN1082A

Bluetooth QDID: B019579

Manual Number: 68017259001-A

MOTOROLA

S11-FLEX HD

PRUÉBELO

www.motorola.com/us/productregistration (solo en ingles)

Motorola Mobility LLC
Consumer Advocacy Office
600 N US Hwy 45
Libertyville, IL 60048
www.motorola.com

Motorola Mobility LLC
Consumer Advocacy Office
600 N US Hwy 45
Libertyville, IL 60048
www.motorola.com
