OTP 340 TT

Introduction

Thank you that you have opted for a LEWITT product. In this operating manual you will learn more about your LEWITT microphone, its handling and its proper usage.

With its DTP series, LEWITT introduces a complete family of cutting-edge, high-performance wired dynamic microphones designed specifically for drums, percussion and bass instruments. On stage as well as in studio settings, these high quality mics – spear-headed by our masterpiece, the dual-element cardoid DTP 640 REX optimized for kick drum applications – stand out thanks to their sonic accuracy. Minimally affected by varying load impedance and designed to effectively reject off-axis sound, all models of the DTP series deliver unparalleled, memorable sound that will turn heads in any audience.

Uniform cardioids and super-cardioid patterns allow for high gain before feedback and a hardened steel mesh grille effectively resists wear and abuse, making DTP microphones and drum sets the ultimate choice for touring professionals.

From professional drummers to discerning beat aficionados, LEWITT's DTP series lets music lovers and performers alike discover a fine-tuned, punchy sound.

10

LEMITT wishes you a lot of fun and success with this product!

OTP 340 TT

The product

With the DTP 340 TT LEWITT introduces consistently high-performing wired dynamic microphones specifically designed to accurately capture the sound of drums, percussion instruments and woodwinds, providing a maximum of acoustic presence and clarity in live sound applications.

Even in high sound pressure level applications, DTP 340 TT instrumentable sounds with sonic detail and character. The super-cardioid polar pattern ensures that side and rear sounds are effectively rejected and gain-before-feedback is maximized.agged body and a hardened steel-mesh grille make this mic highly durable professional gear for performers and audio engineers.

OTP 340 TT

Features / Top applications

Features

• Uniform super-cardial pickup pattern ensures high gain before feedback
• Frequency response optimized for percussion applications
• Gold-plated 3-pin XLR output connector
• Durable steel-mesh grille
• Solid die-cast body with matte-block finish
- Comes in a cardboard box with foam layers, including DTP 40 Mts shock mount, DTP 40 Mt drum mount and
DTP 40 lb leather bag.

Top applications

• Instrument amps
• Drums and percussions
• Woodwinds
  • Live sound

OTP 340 TT

Techdala

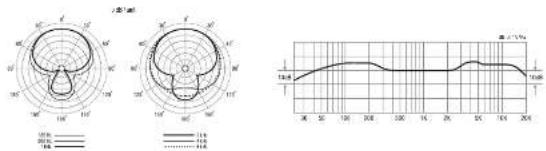

Tech graph

OTP 340 TT

Tech data

Dimension

Tech data

• Acoustical operating principle:

- Directional pattern

• Frequency range:

• Sensitivity

- Rated impedance:

- Connector:

• Dimension:

- Netweight

He, Aought.

dynamic, moving coil

super-cardioid

40...16,000Hz

1.4 mV/Pa(-57 dBV)

<500 ohms

gold plated 3-pin XLR

41 da. x 94 mm

1.0 Dia. X 3.7 inch 165 a

5.02

OTP 340 TT

Accessories

Accessories

DTP 40 Mts DTP 40 MtDTP 40 Lb

OTP 340 TT

Cautions

Cautions

• The capsule is a sensitive, high precision component. Make sure you do not drop it from high heights and avoid strong mechanical stress and force.
• To ensure high sensitivity and best sound reproduction of the microphone, avoid exposing it to moisture, dust or extreme temperatures.
- Keep this product out of the reach of children.
- Do not use force on the switch or cable of the microphone.
- When disconnecting the microphone cable, grasp the connector and do not pull the cable.
- Do not attempt to modify or fix it. Contact qualified service personnel in case any service is needed. Please do not disassemble or modify the microphone for any reasons as this will void users warranty.
- The casing of the microphone can be cleaned easily using a wet cloth, never use alcohol or another solvent for cleaning. If necessary the
- Rain wind stopper can be washed with soap water. Please wait until it is dry before using it again. - Also please refer to the owner's manual of the component to be connected to the microphone.

OTP 340 TT

Warranty

Warranty

All products manufactured by LEVITT GmbH feature a limited two-year warranty. This two-year warranty is specific to the date of purchase as shown on your purchase receipt.

LEWITT GmbH shall satisfy the warranty obligations by remedying any material or manufacturing faults free of charge at LEWITT's discretion either by repair or by exchanging individual parts or the entire appliance. Any defective parts removed from a product during the course of a warranty claim shall become the property of LEWITT GmbH.

While under warranty period, defective products may be returned to the authorized LEWITT dealer together with original proof of purchase. To avoid any damages in transit, please use the original packaging if available. Please do not send your product to LEWITT GmbH directly as it will not be serviced. Freight charges have to be covered by the owner of the product.

Certain products manufactured by LEWITT GmbH feature a limited five-year warranty. For this five-year warranty the same conditions as listed for the two-year warranty are applicable.

For further information please visit www.lewitt-audio.com or check your warranty card.

Regulatory information

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Manufacturer Details

LEWITT GmbH

Burggasse 79

1070 Vienna, Austria

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

Declaration of conformity can be requested at [e-mail].

DI Roman Perschon

CEO LEWITT GmbH

Introduzione

PCC Part 15:2008 Section 15.109

ANSI CB3.42003

Two black mechanical clamp components with no visible text or symbols

DTP 40 Mts DTP 40 MtDTP 40 Lb

DTP 340 TT
