Product Type	Dynamic electrodynamic microphone
Brand and model	Lewitt DTP 340 REX
Polar pattern	Cardioid
Frequency range	20 - 16,000 Hz
Open circuit sensitivity	2.5 mV/Pa (-52 dBV)
Impedance	< 500 Ohms
Connector	Gold-plated 3-pin XLR connector
Dimensions (diameter × length)	∅0.71 × 158 mm (∅2.8 × 6.2 in)
Net weight	740 g (26.1 oz)
Primary applications	Bass instruments, percussion, drums, studio and live recording
Key features	Balanced and powerful sound, robust design, optimal rejection of background noise, excellent feedback rejection
Included accessories	DTP 40 Lb leather bag, foam padding, colored box
Maintenance and cleaning	Clean the housing with a damp cloth (water only). Wash the foam windscreen with soapy water, dry before reuse.
Safety instructions	Protect from drops, shocks, humidity, dust, extreme temperatures. Do not disassemble. Disconnect by pulling the plug, not the cable.
Warranty	2 years for materials and workmanship from the date of purchase. Extension up to 5 years for certain products.
Compliance	EU and FCC directives (standards EN 55013, EN 55020, EN 61000-3-2, EN 61000-3-3, ANSI) - CE marking
Repairability	Do not open or modify. Entrust all maintenance to qualified and authorized personnel.

Frequently Asked Questions - DTP 340 REX Lewitt

What type of microphone is the Lewitt DTP 340 REX?

It is a dynamic electrodynamic microphone with a cardioid polar pattern, designed for recording bass instruments and percussion.

What are the primary applications of the DTP 340 REX?

It is ideal for recording and live sound reinforcement of drums, percussion, bass guitars, and other bass instruments. Thanks to its robustness, it is suitable for both studio and stage.

What is the frequency response of the microphone?

The frequency range is 20 to 16,000 Hz, delivering a balanced and precise sound in the low and mid frequencies.

How to clean the Lewitt DTP 340 REX?

Clean the housing with a damp cloth (water only, no alcohol or solvents). The foam windscreen can be washed with soapy water and dried before reuse.

What accessories are included with the DTP 340 REX?

The microphone comes in a colored box with foam padding and a DTP 40 Lb leather bag.

What is the impedance of the microphone?

The nominal impedance is less than 500 Ohms, making it compatible with most standard microphone inputs.

How to safely connect and disconnect the microphone?

Use the gold-plated 3-pin XLR connector. To disconnect, always hold the plug, not the cable. Avoid pulling the cable.

What is the warranty period of the Lewitt DTP 340 REX?

The standard warranty is 2 years for materials and workmanship from the date of purchase. Some products may qualify for a 5-year extension.

Can I repair the microphone myself?

No, the microphone contains precision components. Do not open or modify it. Entrust any repair to qualified and authorized personnel, otherwise the warranty will be void.

Is the microphone compliant with environmental standards?

Yes, it complies with EU (CE) and FCC directives. It meets standards EN 55013, EN 55020, EN 61000-3-2, EN 61000-3-3, and ANSI standards. At the end of its life, please recycle it according to the WEEE directive.

USER MANUAL DTP 340 REX Lewitt

OTP 340 REX
Drum Microphones

Bodichungsanleitung	01
User Guide	10
Manual Uterite	19
Manuel d'utilisation	28
Manual de instrucciones	37

OTP 340 REX

Enführung

Close-up of a black microphone with mesh head and clasp (no visible text or symbols)

Black leather pouch with embossed logo (no readable text or symbols)

06

OTP 340 RCX

Verschismafnahmen

Vorsichtsmaßnahmen

Datum: 16th November 2010

Off: Wen, Austria

DI Roman Perschon

CEO-Ledict GmbH

Regulatory information

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Manufacturer Details

LEWITT GmbH

Burggasse 79

1070 Vienna, Austria

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

DI Roman Perschon CEO LEWITT GmbH

Declaration of conformity can be requested at [e-mail].

OTP 340 REX

Introduction

Thank you that you have opted for a LEWITT product. In this operating manual you will learn more about your LEWITT microphone, its handling and its proper usage.

With its DTP series, LEWITT introduces a complete family of cutting-edge, high-performance wired dynamic microphones designed specifically for drums, percussion and bass instruments. On stage as well as in studio settings, these high quality mics – spear-headed by our masterpiece, the dual-element cardoid DTP 640 REX optimized for kick drum applications – stand out thanks to their sonic accuracy. Minimally affected by varying load impedance and designed to effectively reject off-axis sound, all models of the DTP series deliver unparalleled, memorable sound that will turn heads in any audience.

Uniform cardioids and super-cardio d patterns allow for high gain before feedback and a hardened steel mesh grille effectively resists wear and abuse, making DTP microphones and drum sets the ultimate choice for touring professionals.

From professional drummers to discerning beat aficionados, LEWITT's DTP series lets music lovers and performers alike discover a fine-tuned, punchy sound.

LEMIT wishes you a lot of fun and success with this product!

OTP 340 REX

The product

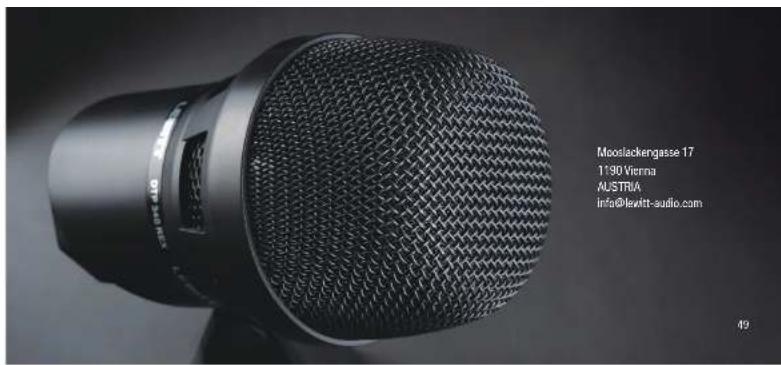

Close-up of a black audio recording device with mesh grille and clapper (no visible text or symbols)

The entry-level DTP 340 REX and its upscale "big brother", the DTP 640 REX, make beat aficionados' hearts beat faster. Designed specifically for miking bass instruments and featuring a powerful dynamic capsule and a cardiod pattern, the DTP 340 REX exhibits superb response, delivering fine-tuned sound onstage and in the studio.

DTP 340 REX

Features / Top applications

Features

• Perfectly suited for bass instrument and percussion applications
• Cardioid pickup pattern ensures high gain before feedback and superior off-axis sound rejection
  • Gold-plated 3-pin XLR output connector
  • Durable hexagonal steel-mesh grille and solid die-cast body
• Integrated microphone stand and compact design for convenient positioning
• Comes in a cardboard box with foam layers; DTP 40 Lb leather bag included

Top applications

• Bass instruments
  • Live applications
• Recording

OTP 340 REX

Techdata

Tech graph

OTP 340 REX

Tech data

Dimension Tech data

• Acoustical operating principle:
• Directional pattern:
• Frequency range:
• Sensitivity:
- Rated impedance
- Connector:
• Dimensions
- Net weight

dynamic, moving coil
cardioid
20 ... 16,000 Hz
2.5 mV/Pa (-52 dBV)
<500 ohms
gold plated 3-pin XLR
71 dia. × 158 mm
2.8 dia. x 6.2 inch
740g
26.1 oz.

OTP 340 REX

Accessories

Accessories

Black leather pouch with embossed logo (no visible text or symbols)

OTP 340 REX

Cautions

Cautions

• The capsule is a sensitive, high precision component. Make sure you do not drop it from high heights and avoid strong mechanical stress
and force. • To ensure high sensitivity and heat sound reproduction of the microphone, void exposing it to moisture, dust or extreme temperatures.
- Keep this product out of the reach of children.
- Do not use force on the switch or cable of the microphone.
- When disconnecting the microphone cable, grasp the connector and do not pull the cable.
- Do not attempt to modify or fix it. Contact qualified service personnel in case any service is needed. Please do not disassemble or modify
the microphone for any reasons as this will void users warranty.
- The casing of the microphone can be cleaned easily using a wet cloth, never use alcohol or another solvent for cleaning. If necessary the
foam wind stopper can be washed with soap water. Please wait till it is dry before using it again.
- Also please refer to the owner's manual of the component to be connected to the microphone.

OTP 340 REX

Warranty

Warranty

All products manufactured by LEVITT GmbH feature a limited two-year warranty. This two-year warranty is specific to the date of purchase as shown on your purchase receipt.

LEWITT GmbH shall satisfy the warranty obligations by remedying any material or manufacturing faults free of charge at LEWITT's discretion either by repair or by exchanging individual parts or the entire appliance. Any defective parts removed from a product during the course of a warranty claim shall become the property of LEWITT GmbH.

While under warranty period, defective products may be returned to the authorized LEWITT dealer together with original proof of purchase. To avoid any damages in transit, please use the original packaging if available. Please do not send your product to LEWITT GmbH directly as it will not be serviced. Freight charges have to be covered by the owner of the product.

Certain products manufactured by LEWITT GmbH feature a limited five-year warranty. For this five-year warranty the same conditions as listed for the two-year warranty are applicable.

For further information please visit www.lewitt-audio.com or check your warranty card.

Regulatory information

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Manufacturer Details

LEWITT GmbH

Burggasse 79

1070 Vienna, Austria

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

Declaration of conformity can be requested at [e-mail].

DI Roman Perschon

CEO LEWITT GmbH

OTP 340 RCX

Introduzione

Close-up of a black microphone with mesh head and clasp (no visible text or symbols)

2U

XLR gold plated (a 3 piedini)

271×158mm

740g

OTP 340 REX

Accession

Accessori

Black leather pouch with embossed logo (no readable text or symbols)

24

OTP 340 RCX

Attenzione

Attenzione

Regulatory information

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Manufacturer Details

LEWITT GmbH

Burggasse 79

1070 Vienna, Austria

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

DI Roman Perschon CEO LEWITT GmbH

Declaration of conformity can be requested at [e-mail].

OTP 340 REX

Introduction

Close-up of a black audio recording device with microphone and clapper (no visible text or symbols)

Black leather pouch with embossed logo (no visible text or symbols)

DTP 340 REX

FCC Part 15:2008 Section 15.109

N431053.4:2003

36

Close-up of a black microphone with mesh head and clasp (no visible text or symbols)

Black leather pouch with embossed logo (no readable text or symbols)

OTP 340 RCX

Regulatory information

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Manufacturer Details

LEWITT GmbH

Burggasse 79 1070)fass

1070 Vienna, Austria

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

DI Roman Perschon

CEO LEWITT GmbH

Declaration of conformity can be requested at [e-mail].
