HG08305A - Wireless Charger TRONIC - Free user manual and instructions
Find the device manual for free HG08305A TRONIC in PDF.
| Product type | Qi wireless charger |
| Brand | Tronic |
| Model | HG08305A |
| Dimensions | Approx. 180 × 85 × 9.8 mm |
| Weight | Approx. 130 g |
| Operating temperature | 5 - 35 °C |
| Storage temperature | 0 - 45 °C |
| Allowable humidity | 10 - 70 % (non-condensing) |
| Input power | USB Type-C: 5 V ⎓ 3 A, 9 V ⎓ 3 A, 12 V ⎓ 2.25 A or 15 V ⎓ 2 A |
| Wireless output power | 2 x 5 W max (with standard adapter) or 2 x 10 W max (with 9 V/3 A adapter) |
| Maximum total power | 20 W |
| Number of simultaneous devices | Up to 2 Qi-compatible devices |
| Frequency band | 111.38 - 128.21 kHz |
| Maximum charging distance | ≤ 5 mm |
| LED indicators | 2 LED indicators (solid blue = charging/standby, flashing blue = obstruction, flashing green = incompatible adapter) |
| Package contents | 1 Qi charger, 1 USB cable (Type A to Type C), 1 instruction manual |
| Cleaning | Slightly damp cloth and mild dish soap; no abrasive products |
| Warranty | 3 years (subject to warranty terms) |
| IAN number | 377486_2101 |
Frequently Asked Questions - HG08305A TRONIC
User questions about HG08305A TRONIC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Wireless Charger in PDF format for free! Find your manual HG08305A - TRONIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HG08305A by TRONIC.
USER MANUAL HG08305A TRONIC
KABELLOSES QI®-LADEGERÄT/ QI® WIRELESS CHARGER/ CHARGEUR QI® SANS FIL TCPQ A1
DE AT CH
KABELLOSES QI®-LADEGERÄT
Operation and Safety Notes
FR BE
CHARGEUR QI® SANS FIL
Operation and Safety Notes Page 27
FR/BE
Technical line drawing of a mechanical component with two pins and a separate plate (no text or symbols)natural_image
Silhouette of a person disposing of trash into a bin (no text or symbols)natural_image
Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)natural_image
Symbolic icon of a person recycling with arrows, enclosed in a circle (no text or numbers)Warnings and symbols used .... Page 28
Introduction...... Page 30
Intended use...... Page 30
Trademark notices...... Page 31
Safety notes...... Page 31
Description of parts ...... Page 34
Technical data ...... Page 35
Scope of delivery ...... Page 36
Before use ...... Page 36
Operation...... Page 37
Troubleshooting...... Page 40
Storage when not in use ...... Page 42
Cleaning Page 42
Disposal Page 43
Simplified EU declaration of conformity...... Page 44
Warranty and service ...... Page 45
Warranty Page 45
Warranty claim procedure...... Page 46
Service Page 46
| Warnings and symbols usedThese instructions for use contain the following symbols and warnings: | |
 | DANGER! This symbol with the signal word “DANGER” indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death. |
 | WARNING! This symbol with the signal word “WARNING” indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury or death. |
 | CAUTION! This symbol with the signal word “CAUTION” indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury. |
 | ATTENTION! This symbol with the signal word“ ATTENTION” indicates a potential property damage, if not avoided, could result in property damage. |
 | NOTE: This symbol with the signal word “NOTE” provides additional useful information. |
 | Direct current / voltage |
 | “Qi” and the Qi logo mark are trademark of the Wireless Power Consortium (WPC). |
 | This symbol means that the operating instructions must be observed before using the product. |
 | CE mark indicates conformity with relevant EU directives applicable for this product. |
QI® WIRELESS CHARGER
●Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intendeduse
The QI® WIRELESS CHARGER (hereinafter referred to as the „Product“) is an information electronics device. This product is only for charging mobile devices that use Qi technology. Other devices cannot be charged with the product. The product is intended for private use only and not for commercial use. The manufacturer accepts no liability for damage resulting from unauthorised modifications or improper use.
●Trademark notices
■ ^® is US Registered trademark of USB Implementers Forum, Inc.
■ "Qi" and the Qi logo mark are trademark of the Wireless Power Consortium (WPC).
The TRONIC trademark and trade name is the property of their respective owners.
■ Any other names and products are trademark or registered trademarks of their respective owners.
Safetynotes
Before using the product, please familiarize yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!
⚠ WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!
⚠️ DANGER! RISK OF SUFFOCATION!
Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. The packaging material is not a toy.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. The product is not a toy.
ATTENTION! Damage to property
- Check the product before every use! Discontinue use if any damage to the product or the connection cable is detected!
This product does not contain any parts which can be serviced by the user.
- Keep the product away from moisture, dripping and splash water!
- Do not place burning candles or other open fire on or next to the product.
If you notice smoke or unusual noise or odour, immediately disconnect the USB connection.
■ Sudden temperature changes may cause condensation inside the product. In this case, allow the product to acclimate for some time before using it again to prevent short circuits!
- Do not operate the product near heat sources e.g. radiators or other devices emitting heat!
- Do not throw the product into fire and do not expose to high temperatures.
- Never open the product. It has no internal part requiring maintenance.
The product must not be covered during operation, no foreign objects may be introduced into the product, no foreign objects may lie on the Qi charging surface during operation.
The product must not be charged at a PC or notebook due to the high power consumption.
ATTENTION! Radio interference
- Do not use the product on aeroplanes, in hospitals, service rooms, or near medical electronic systems. The wireless signals transmitted could impact the functionality of sensitive electronics.
- Keep the product at least 20 cm from pacemakers or implantable cardioverter defibrillators, as the electromagnetic radiation may impair the functionality of pacemakers.
■ The radio waves transmitted could cause interference in hearing aids.
■ Never use the product near flammable gases or potentially explosives areas (e.g. paint shops), as the radio waves emitted can cause explosions and fire.
The OWIM GmbH & Co KG is not responsible for interference with radios or televisions due to unauthorised modification of the product. The OWIM GmbH & Co KG further assumes no liability for using or replacing cables and products not distributed by OWIM.
The user of the product is solely responsible for rectifying malfunctions caused by unauthorized changes to the product and the replacement of such modified products.
●Description of parts
Please refer to the fold out page.
1 Qi Charging area 1
2 LED indicator 1
3 LED indicator 2
4 Qi Charging area 2
5 USB type C input socket
6 USB type A plug
7 USB charging cable
8 USB type C plug
9 Instructions for use
●Technical data
Dimensions: approx.
180 × 85 × 9.8 mm
Weight: approx. 130 g
Operating temperature: 5 - 35 °C
Storage temperature: 0 - 45 °C
Humidity(no condensation): 10 - 70 %
USB charging cable length: approx. 1 m
Input: 5 V
3 A
Output: 2 x 5 W max.
OR
Input: 9 V
3 A /
12 V
2.25 A /
15 V
2A
Output: 2 x 10 W Max.
Total power: 20 W max.*
Frequency band: 111.38 - 128.21kHz
Transmitted maximum radio
frequency power (H-field): -0.66 dBuA/m at 10m distance
Maximum distance between charger and mobile device: ≤ 5 mm
* i NOTE: To achieve the maximum output power of 20 W, you must use a USB adapter with output voltage of 9 V and output current of at least 3 A. Such USB adapter is not included in delivery. (Only USB charging cable type A to type C is included.)
The specification and design may be changed without notification.
- Scope of delivery
1 Qi ^® wireless charger
1 USB charging cable
1 Instructions for use
●Before use
i NOTE:
Before use, verify the package contents are complete and undamaged!
All parts have to be unpacked and the packaging material has to be removed completely.
If you notice any damage or missing parts, contact the dealer who sold this product.
Operation
⚠️ ATTENTION! The product must not be charged at a PC or notebook due to the high power consumption.
i NOTE:
The product only supports devices with Qi wireless technology.
Charge your device

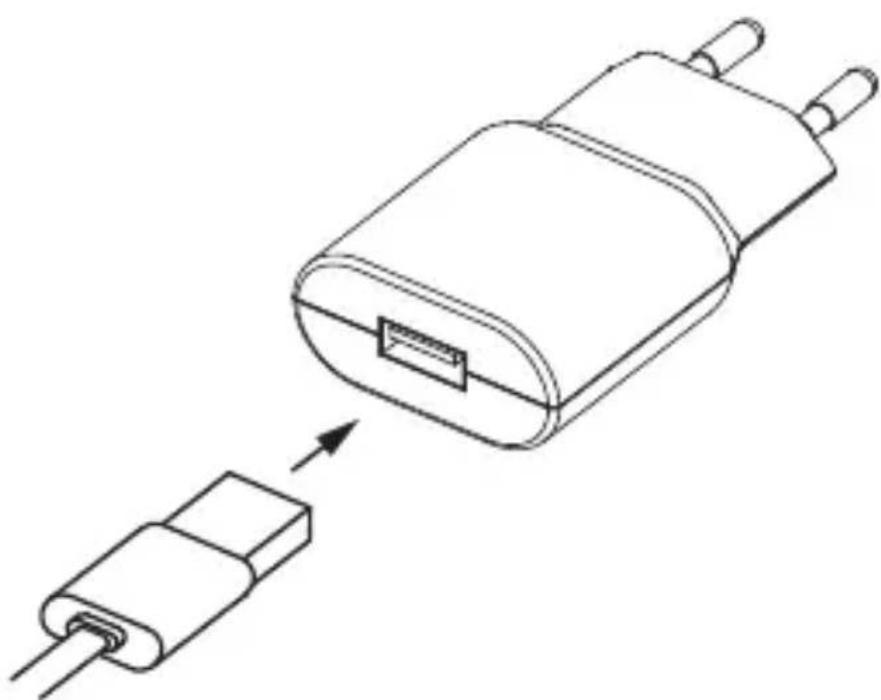

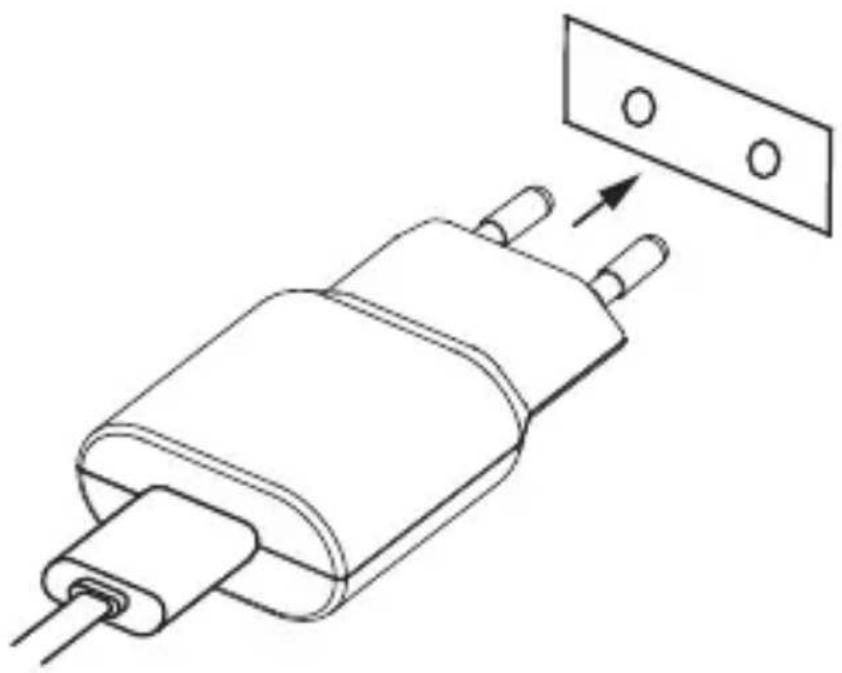

- Plug the USB type A plug 6 of the USB charging cable 7 into the USB port on a suitable USB adapter (not included) and plug the USB type C plug 8 into USB type C input socket 5 of the product.
LED indicator 1 2 and 2 3 will light up blue for approx. two seconds when the product is under standby mode and there no mobile device on the Qi charging surface 1 or 2 4.
-

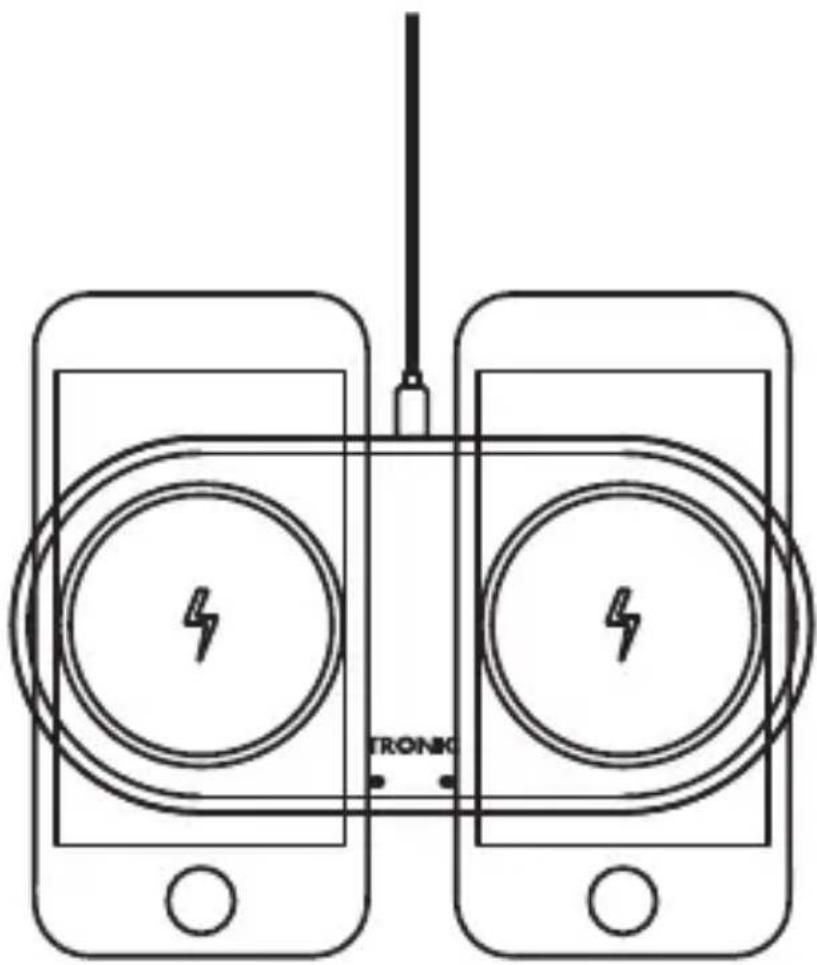

Place the mobile device on the Qi charging surface 1 or 2. Make sure the center of the device is aligned over the center of the Qi charging surface. Charging will begin on contact. The LED indicator 1 lights up blue when charging is active on Qi charging surface 1. The LED indicator 2 lights up blue
when charging is active on Qi charging surface 2 4.
You can charge up to two Qi enabled mobile devices at the same time. Place your mobile devices on the Qi charging surfaces as shown in the sketch, the maximum wireless charging power is 10 W* each.
* NOTE: The charging power is up to 10 W, depending on the power adapter used.
LED indicators 2 / 3 status
The product has two LEDs that indicates its operational status:
LED indicator Status
Blue lights up for two seconds
Starting process (Boot phase) / Standby
Blue lights up Charging / Full Charge
Blue is flashing Metal obstruction
Green is flashing Incompatible adapter or cable connected
●Troubleshooting
What should I do if the LED indicator of the product is not lit during starting process (Boot phase)?
- Check the USB cable connection between USB adapter (not included) and the product. The USB cable must be firmly connected.
- Check the connection between the mains socket and the USB adapter (not included).
■ Alternatively, the user must try another mains socket.
What should I do if the mobile device does not get charging?
- Check that the mobile device have Qi wireless charging technology.
- Check the mobile device is placed horizontally on the center position of the charging pad.
- Check that no foreign object blocking the charging.
- Check whether the mobile device is removed from the protective cover.
What should I do if the LED indicator flashes blue?
This indicates a metal obstruction occurred.
■ Disconnect the USB connection immediately.
- Check that no foreign object blocking the charging.
- Let the product cool down for a while and try use it again.
What should I do if the LED indicator flashes green?
This indicates the incompatible adapter or cab connected.
■ Disconnect the connection immediately.
- Choose the appropriate adapter, cross-check the adapter manual and ensure it can be used for this product probably.
■ Use the provided USB cable to connect with the product.
●Storage when not in use
Store the product in a dry interior, away from direct sunlight, preferably in its original packaging.
●Cleaning
This product has no internal parts requiring maintenance. Moisture entering the product may result in damage.
■ Ensure no moisture enters the product during cleaning to prevent damaging the product beyond repair.
- Do not use abrasive, solvent-based or aggressive cleaners. These can damage the surface of the product.
■ Only clean the product with a slightly damp cloth and mild washing-up liquid.
●Disposal
Packaging:
The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.
Product:
This disposal is free of charge to you.
Protect the environment and dispose of properly.
●Simplified EU declaration of conformity
Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, 74167 Neckarsulm, GERMANY, declares that the product QI® WIRELESS CHARGER HG08305A / HG08305B, is in compliance with Directives 2014/53/EU and 2011/65/EU.
The full text of the EU declaration of conformity is available at the following internet address:
www.owim.com
●Warranty and service
Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product.
Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.
Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
●Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (IAN 377486_2101) available as proof of purchase.
You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
Service
