Warnings and symbols usedThe following symbols and warnings are used in the operating instructions, on the packaging and on the product:
	DANGER! This symbol with the signal word “DANGER” indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.
	WARNING! This symbol with the signal word “WARNING” indicates a hazard with a medium level of risk which, if not avoided, will result in serious injury or death.
	CAUTION! This symbol with the signal word “CAUTION” indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.
	ATTENTION! This symbol with the signal word “ATTENTION” indicates a potential property damage, if not avoided, could result in property damage.
	NOTE: This symbol with the signal word “NOTE” provides additional useful information.
	Direct current / voltage
	"Qi" and the Qi logo mark are trademark of the Wireless Power Consortium (WPC).
	This symbol means that the operating instructions must be observed before using the product.
	CE mark indicates conformity with relevant EU directives applicable for this product.

QI® WIRELESS CHARGING STAND

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

The QI® WIRELESS CHARGING STAND (hereinafter referred to as the „Product“) is an information electronics device. This product is only for charging mobile devices that use Qi technology. Other devices cannot be charged with the product. The product is intended for private use only and not for commercial use. The manufacturer accepts no liability for damage resulting from unauthorised modifications or improper use.

●Trademark notices

■ ® is US Registered trademark of USB Implementers Forum, Inc.
■ “Qi” and the Qi logo mark are trademark of the Wireless Pow Consortium (WPC).
The TRONIC trademark and trade name is the property of the respective owners.
■ Any other names and products are trademarks or registered trademarks of their respective owners.

Safetynotes

Before using the product, please familiarize yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!

⚠ WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

⚠️ DANGER! RISK OF SUFFOCATION! Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. The packaging material is not a toy.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. The product is not a toy.

⚠️ ATTENTION! Damage to property

• Check the product before every use! Discontinue use if any damage to the product or the connection cable is detected!
  This product does not contain any parts which can be serviced by the user.
• Keep the product away from moisture, dripping and splash water!

• Do not place burning candles or other open fire on or next to the product.
  If you notice smoke or unusual noise or odour, immediately disconnect the USB connection.
  ■ Sudden temperature changes may cause condensation inside the product. In this case, allow the product to acclimate for some time before using it again to prevent short circuits!

• Do not operate the product near heat sources, e.g. radiators of other devices emitting heat!

• Do not throw the product into fire and do not expose to high temperatures.
• Never open the product. It has no internal parts requiring maintenance.
  The product must not be covered during operation, no foreign objects may be introduced into the product, no foreign objects may lie on the Qi charging surface during operation.
  The product must not be charged at a PC or notebook due to high power consumption.

⚠ WARNING! Radio interference

- Do not use the product on aeroplanes, in hospitals, service rooms, or near medical electronic systems. The wireless signals transmitted could impact the functionality of sensitive electronics.

- Keep the product at least 20 cm from pacemakers or implantable cardioverter defibrillators, as the electromagnetic radiation may impair the functionality of pacemakers.

The radio waves transmitted could cause interference in hearir aids.

- Never use the product near flammable gases or potentially explosives areas (e.g. paint shops), as the radio waves emitted can cause explosions and fire.

The OWIM GmbH & Co KG is not responsible for interference with radios or televisions due to unauthorised modification of the product. The OWIM GmbH & Co KG further assumes

no liability for using or replacing cables and products not distributed by OWIM.

The user of the product is solely responsible for rectifying malfunctions caused by unauthorized changes to the product and the replacement of such modified products.

●Description of parts

Please refer to the fold out page.

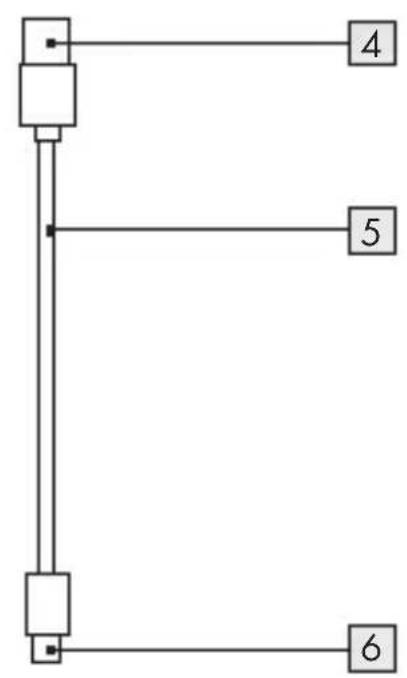

1 Qi Charging surface
2 LED indicator
3 USB type C input socket
4 USB type A plug
5 USB charging cable
6 USB type C plug
7 Instructions for use

●Technical data

Dimensions (W x H x D): approx. 70 x 114 x 78 mm

Weight: Charger: approx. 115 g

USB cable: approx. 26 g

Operating temperature: 5 - 35 °C

Storage temperature: 0 - 45 °C

Humidity(no condensation): 10 - 70 %

USB charging cable length: approx. 1 m

Input: 5 V

---, 2 A

28 GB/IE

Output: 5 W max.

OR

Input: 9 V

= 2A

Output: 10 W max.

Total power: 10 W max.*

Frequency band: 109.8 - 146.8 kHz

Transmitted maximum radio

frequency power (H-field): -12.62 dBuA/m at

10m distance

Maximum distance

between Qi charging area

and mobile device: ≤ 5 mm

* i NOTE: To achieve the maximum output power of 10 W, you must use a USB adapter with output voltage of 9 V and output current of at least 2 A. Such USB adapter is not included in delivery. (Only USB charging cable type A to type C is included.)

The specification and design may be changed without notification.

- Scope of delivery

1 Qi ^® wireless charging stand

1 USB charging cable

1 Instructions for use

●Before use

NOTE:

■ Before use, verify the package contents are complete and undamaged!
All parts have to be unpacked and the packaging material has to be removed completely.
If you notice any damage or missing parts, contact the dealer who sold this product.

Operation

⚠️ ATTENTION! The product must not be charged at a PC or notebook due to the high power consumption.

NOTE:

The product only supports devices with Qi wireless technology.
This product must always be used on a horizontal installation surface.

Charge your mobile device

1. Plug the USB type A plug 4 of the USB charging cable 5 into the USB port on a suitable USB adapter (not included) and plug the USB type C plug 6 into USB type C input socket 3 of the product.

2. Plug the USB adapter (not included) into an easily accessible mains socket.

3. LED indicator 2 will light up blue for approx. two seconds when the product is under standby mode and there is no mobile device on the Qi charging surface 1.

4. Place the mobile device on the Qi charging surface 1. Make sure the center of the device is aligned over the center of the Qi charging surface. Charging will begin on contact. The LED indicator 2 lights up blue when charging is active on Qi charging surface 1.

Protective covers that protect the mobile device may interfere with the charging process. In this case, the mobile device must be removed from the protective cover.

* i NOTE: The charging power is up to 10 W, depending on the power adapter used.

LED indicator 2 status

The product uses an LED indicator to show the operating status:

LED indicator Status

Blue lights up two seconds Starting process (Boot phase) / Standby

Blue lights up Charging / Full Charge

Red is flashing Metal obstruction

Red lights up Incompatible adapter or cable connected

●Troubleshooting

What should I do if the LED indicator of the product is not lit during starting process (Boot phase)?

• Check the USB cable connection between USB adapter (not included) and the product. The USB cable must be firmly connected.
• Check the connection between the mains socket and the USB adapter (not included).
  ■ Alternatively, the user must try another mains socket.

What should I do if the mobile device does not get charging?

• Check that the mobile device have Qi wireless charging technology.
• Place the mobile device vertically on the support surface of the charging surface or horizontally in the center support surface of the charging area.
• Check that no foreign object blocking the charging.
• Check whether the mobile device is removed from a thick protective cover.

What should I do if the LED indicator flashes red?

This indicates that there is a metal object on the Qi charging surface.
■ Disconnect the USB connection immediately.
- Check that no foreign object blocking the charging.
- Let the product cool down for a while and try to use it again.

What should I do if the LED indicator lights up red?

This indicates the incompatible adapter or cable connected.
■ Disconnect the connection immediately.
- Choose the appropriate adapter, cross-check the adapter manual and ensure it can be used for this product probably.
■ Use the provided USB cable to connect with the product.

●Storage when not in use

Store the product in a dry interior, away from direct sunlight, preferably in its original packaging.

●Cleaning

This product has no internal parts requiring maintenance. Moisture entering the product may result in damage.
■ Ensure no moisture enters the product during cleaning to prev damaging the product beyond repair.
- Do not use abrasive, solvent-based or aggressive cleaners. The can damage the surface of the product.
■ Only clean the product with a slightly damp cloth and mild washing-up liquid.

●Disposal

Packaging:

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

Product:

Contact your municipality for information on how to dispose of your worn-out product.

The adjacent symbol of a crossed out dustbin on wheels indicates this product is subject to Directive 2012/19/EU. This directive states at the end of the life this product must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

This disposal is free of charge to you.

Protect the environment and dispose of properly.

The product is recyclable, subject to extended manufacturer responsibility, and collected separately. an be obtained from your local authority.

●Simplified EU declaration of conformity

Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, 74167 Neckarsulm, GERMANY, declares that the product QI® WIRELESS CHARGING STAND HG08307C / HG08307D, is in compliance with Directives 2014/53/EU and 2011/65/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.owim.com

CE

●Warranty and service

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

●Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 405425_2110) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]
