USER MANUAL ALED 1218 V Fein
| ALED (**) ALED (**) ALED (**) | ||||
| 9 260 ... 9 260 ... 9 260 ... | ||||
| U | V--- | 12-18 | 12-18 | 12-18 |
| P | W 2,1 2,1 2,1 | |||
| V-12 14,4 18 | ||||
| 100% | h/Ah 5 6,5 8,3 | |||
| 60% | h/Ah 8,5 11 13,8 | |||
| 100%/60% | lm 190/160 190/160 190/160 | |||
| kg 0,13 0,13 0,13 | ||||
| B12A | B14A | B14A | B18A | B18A | ||
| Lithium lon | Lithium lon | Lithium lon | Lithium lon | Lithium lon | ||
| U | V--- | 12 | 14,4 | 14,4 | 18 | 18 |
| kg | 0,25 | 0,40 | 0,60 | 0,45 | 0,70 | |


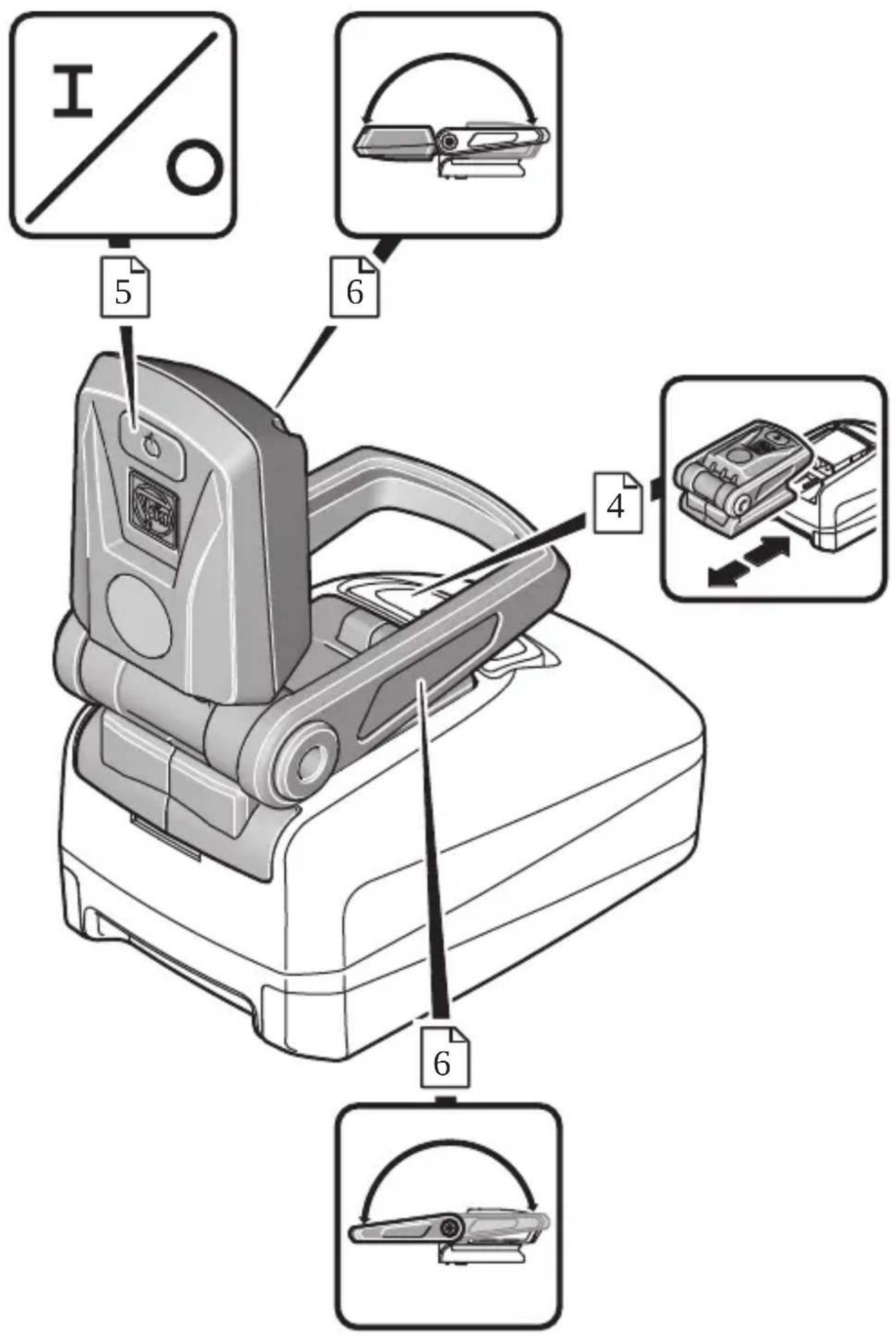

I 5 6 4 61.
2.
Original Instructions.

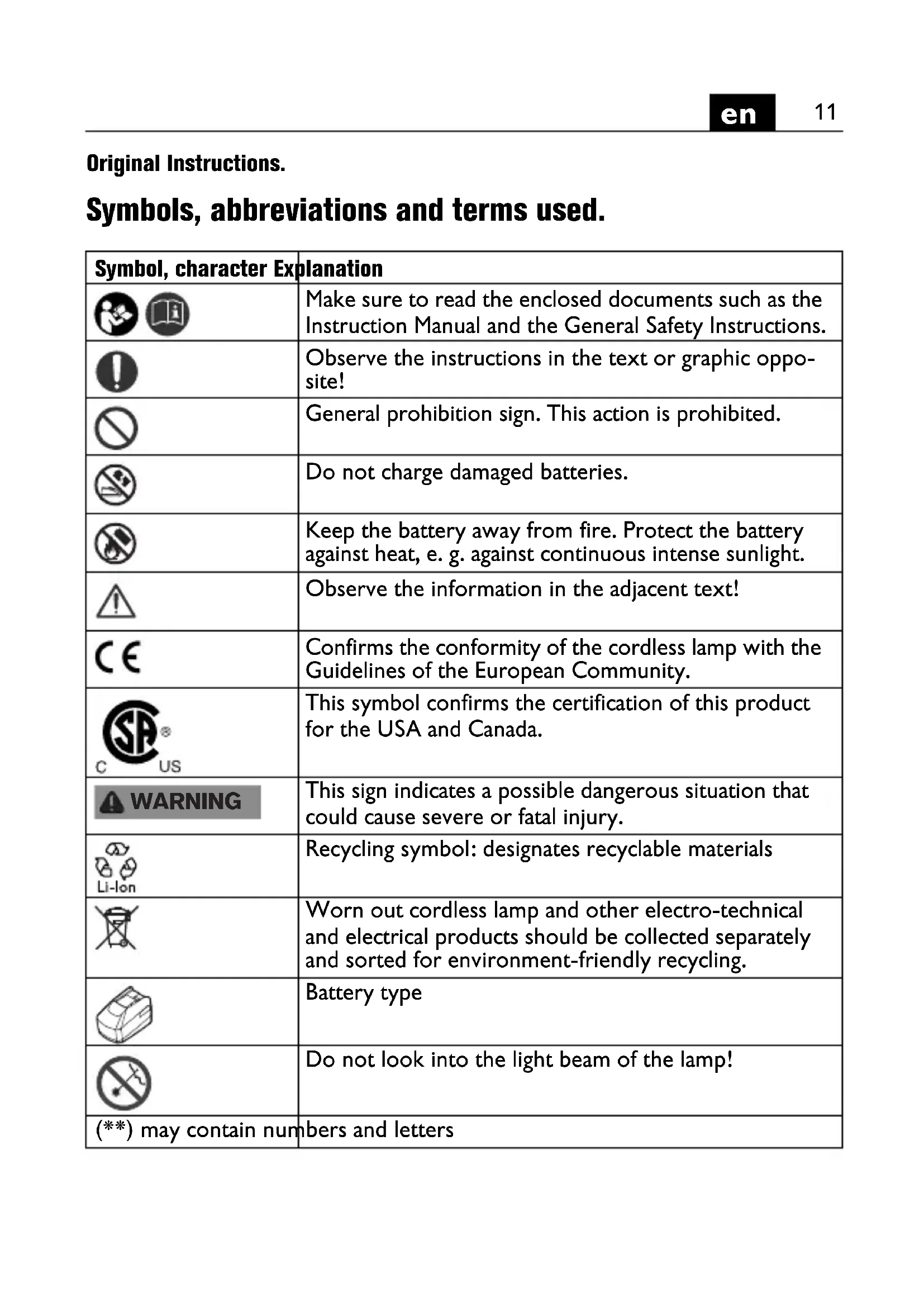

Symbols, abbreviations and terms used.
| Symbol, character Explanation | |
  | Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions. |
 | Observe the instructions in the text or graphic opposite! |
 | General prohibition sign. This action is prohibited. |
 | Do not charge damaged batteries. |
 | Keep the battery away from fire. Protect the battery against heat, e. g. against continuous intense sunlight. |
 | Observe the information in the adjacent text! |
 | Confirms the conformity of the cordless lamp with the Guidelines of the European Community. |
 | This symbol confirms the certification of this product for the USA and Canada. |
 WARNING | This sign indicates a possible dangerous situation that could cause severe or fatal injury. |
 | Recycling symbol: designates recyclable materials |
 | Worn out cordless lamp and other electro-technical and electrical products should be collected separately and sorted for environment-friendly recycling. |
 | Battery type |
 | Do not look into the light beam of the lamp! |
| (**) may contain numbers and letters | |
| Char-acter | Unit of measure-ment, interna-tional | Unit of measure-ment, national | Explanation |
| UV | V | R | a t |
| P | W | W | L a |
 | h/Ah h/Ah Lighting duration per Ah | ||
 | lm lm Luminous flux | ||
| [zDCD] | kg kg Weight | ||
| m, s, kg, A, mm,V, W, Hz, N, °C,dB, min, m/s2 | m, s, kg, A, mm,V, W, Hz, N, °C,dB, min, m/s2 | Basic and derived units of measurement from the inter-national system of units SI. | |
For your safety.
WARNING
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
Do not use this cordless lamp before you have thoroughly read and completely understood this Instruction Manual. The documents mentioned should be kept for later use and enclosed with the cordless lamp, should it be passed on or sold.
Please also observe the relevant national industrial safety regulations.
Intended use of the cordless lamp:
Cordless lamp for portable, temporary and spatial-limited lighting out of areas in weather-protected environments.
Safety warnings for cordless lamps.
Do not work in hazardous environments with the cordless lamp.
Do not direct the light beam of the cordless lamp against other persons or animals. Do not stare into the light beam. Danger of injuring the eyes.
Do not cover off the lamp head while operating the cordless lamp. The lamp head heats up during operation and could cause burns.
Do not rivet or screw any name-plates or signs to the cordless lamp. If the insulation is damaged, protection against an electric shock will be ineffective. Adhesive labels are recommended.
Do not allow children to play with the cordless lamp. Supervise children when they use the cordless lamp. Children could blind other persons, animals or themselves.
The light source in this lamp may only be replaced by the manufacturer, its after-sales service agent or an appropriately qualified person.
Use and handling of the battery (battery pack).
To avoid hazardous situations such as burns, fire, explosion, skin injuries, and other injuries when handling the battery, observe the following instructions:
Batteries must not be disassembled, opened or reduced in size. Do not subject batteries to mechanical impact or shock. Hazardous vapours and fluid can escape in case of damage and improper use of the battery. The vapours can irritate the respiratory system. Liquid ejected from the battery may cause skin irritations or burns.
When battery fluid from a damaged battery has come into contact with objects close by, check the respective components, clean them or replace them as required.
Keep the battery away from heat and fire. Do not store the battery in direct sunlight.
Do not remove the battery from its original packaging until it is going to be used.
Before any work on the cordless lamp itself, remove the battery from the cordless lamp.
Remove the battery only when the cordless lamp is switched off.
Keep the battery away from children.
Keep the battery clean and protect it against moisture and water.
Use only intact original FEIN batteries that are intended for your cordless lamp.
Follow the safety warnings in the operating instructions of the battery charger.
Do not direct the light beam into the eyes of people or animals.
Operating Instructions.
Do not use accessories not specifically intended and recommended for this cordless lamp by FEIN.
The cordless lamp switches off when the charge condition of the battery is low.
Handling the battery.
Operate and charge the battery only within the battery operating-temperature range of 0^ C – 45^ C ( 32^ F – 113^ F). At the beginning of the charging procedure, the battery temperature must be within the battery operating-temperature range.
| LED indicator Meaning Activity | ||
| 1 – 4 green LED P | percentage of charge condition | Operation |
| Continuous red light | Battery is almost empty | Charge battery |
| Red flashing light B | Battery is not ready for operation | Bring the battery into the battery operating-temperature range, then charge |
Warranty and liability.
The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.
Declaration of conformity.
FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual.
Technical documents at: C. & E. Fein GmbH, C-DB_IA, D-73529 Schwäbisch Gmünd
Environmental protection, disposal.
Packaging, worn out cordless lamp and accessories should be sorted for environment-friendly recycling.
Dispose of batteries only when discharged.
For batteries that are not completely discharged, insulate the terminals with tape as a protective measure against short-circuiting.
