| Product Type | Circular Saw |
| Brand | Worx |
| Model | WX427L |
| Voltage | 120 V ~ 60 Hz |
| Rated Current | 6 A |
| Rated Speed | 4000 min-1 |
| No-Load Speed | 3500 min-1 |
| Blade Diameter | 115 mm (4-1/2 in) |
| Blade Arbor | 9.5 mm (3/8 in) |
| Max Cutting Depth at 90° | 43 mm (1-11/16 in) |
| Max Cutting Depth at 45° | 29 mm (1-1/8 in) |
| Bevel Angle | 0° – 45° |
| Weight | 2.3 kg (5 lb) |
| Double Insulation | Yes (Class II) |
| Blades Supplied | TCT blade 24 teeth (wood), HCS blade 60T (metal), abrasive disc |
| Included Accessories | Parallel guide, dust extraction adapter, hex key |
| Guide Laser | Class II, LR44 batteries (1.5 V) included |
| Safety | Retractable blade guard, safety switch, spindle lock |
| Maintenance | Regularly clean ventilation openings, replace carbon brushes if necessary |
| Repairability | Spare parts available via authorized service; replaceable carbon brushes |
Frequently Asked Questions - WX427L WORX
User questions about WX427L WORX
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Saw in PDF format for free! Find your manual WX427L - WORX and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WX427L by WORX.
USER MANUAL WX427L WORX
| Compact Circular Saw | EN | P03 | |
| Scie Circulaire Compacte | F | P17 | |
| Sierra Circular Compacta | ES | P29 | |
WARNING: Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
- Lead from lead-based paints;
- Crystalline silica from bricks and cement and other masonry products;
- Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
WARNING: This product can expose you to chemicals including lead and Di(2-ethylhexyl)phthalate (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
The term power tool in the warnings refers to your electric (corded) power tool or battery-operated (cordless) power tool.
1. WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with grounded power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with grounded surfaces such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe
injury within a fraction of a second.
4. POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. SERVICE
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
SAFETY INSTRUCTIONS FOR ALL SAWS
Cutting procedures
a) DANGER: Keep hands away from cutting area and the blade. If both hands
are holding the saw, they cannot be cut by the blade.
b) Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece.
c) Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.
d) Never hold workpiece in your hands or across your leg while cutting. Secure the workpiece to a stable platform. It is important to support the work properly to minimise body exposure, blade binding, or loss of control.
e) Hold power tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and shock the operator.
f) When ripping always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding.
g) Always use blades with correct size and shape (diamond versus round) of arbor holes. Blades that do not match the mounting hardware of the saw will run off-centre, causing loss of control.
h) Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.
FURTHER SAFETY INSTRUCTIONS FOR ALL SAWS
Kickback causes and related warnings
— kickback is a sudden reaction to a pinched, jammed or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator;
— when the blade is pinched or jammed tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;
— if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.
Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.
a) Maintain a firm grip on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.
b) When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until
the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding.
c) When restarting a saw in the workpiece, centre the saw blade in the kerf so that the saw teeth are not engaged into the material. If a saw blade binds, it may walk up or kickback from the workpiece as the saw is restarted.
d) Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.
e) Do not use dull or damaged blades.
Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback.
f) Blade depth and bevel adjusting locking levers must be tight and secure before making the cut. If blade adjustment shifts while cutting, it may cause binding and kickback.
g) Use extra caution when sawing into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback.
SAFETY INSTRUCTIONS FOR SAWS (CIRCULAR SAW WITH INNER PENDULUM GUARD)
Lower Guard Function
a) Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut.
b) Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
c) Lower guard may be retracted manually only for special cuts such as "plunge cuts" and "compound cuts." Raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released. For all other sawing, the lower guard should operate automatically.
d) Always observe that the lower guard is covering the blade before placing saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop
after switch is released.
ADDITIONAL SAFETY RULES FOR YOUR CIRCULAR SAW
- Only use saw blades recommended in the specification.
- Do not use any abrasive wheels.
- Use only blade diameter(s) in accordance with the markings.
- Identify the correct saw blade to be used for the material to be cut.
- Use only saw blades that are marked with a speed equal or higher than the speed marked on the tool.
CUT-OFF MACHINE SAFETY WARNINGS
a) The guard provided with the tool must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. Position yourself and bystanders away from the plane of the rotating wheel. The guard helps to protect operator from broken wheel fragments and accidental contact with wheel.
b) Use only bonded reinforced or diamond cut-off wheels for your power tool. Just because an accessory can be attached to your power tool, it does not assure safe operation.
c) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
d) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
e) Always use undamaged wheel flanges that are of correct diameter for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage.
f) Do not use worn down reinforced wheels from larger power tools. Wheels intended for a larger power tool are not suitable for the higher speed of a smaller tool and may burst.
g) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
h) The arbour size of wheels and flanges must properly fit the spindle of the power tool. Wheels and flanges with arbour holes that do not match the mounting hardware of the power tool
will run out of balance, vibrate excessively and may cause loss of control.
i) Do not use damaged wheels. Before each use, inspect the wheels for chips and cracks. If power tool or wheel is dropped, inspect for damage or install an undamaged wheel. After inspecting and installing the wheel, position yourself and bystanders away from the plane of the rotating wheel and run the power tool at maximum no load speed for one minute. Damaged wheels will normally break apart during this test time.
j) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and shop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
k) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken wheel may fly away and cause injury beyond immediate area of operation.
I) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
m) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning wheel.
n) Never lay the power tool down until the accessory has come to a complete stop. The spinning wheel may grab the surface and pull the power tool out of your control.
o) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
p) Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
q) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
r) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.
FURTHER SAFETY INSTRUCTIONS FOR ABRASIVE CUTTING-OFF OPERATIONS
Kickback and related warnings
Kickback is a sudden reaction to a pinched or snagged rotating wheel. Pinching or snagging causes rapid stalling of the rotating wheel which in turn causes the uncontrolled power tool to be forced in the direction opposite of the wheel's rotation at the point of the binding.
For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.
Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.
a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque
reactions or kickback forces, if proper precautions are taken.
b) Never place your hand near the rotating accessory. Accessory may kickback over your hand.
c) Do not position your body in line with the rotating wheel. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
e) Do not attach a saw chain, woodcarving blade, segmented diamond wheel with a peripheral gap greater than 10 mm or toothed saw blade. Such blades create frequent kickback and loss of control.
f) Do not "jam" the wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
g) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove
the wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
h) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
i) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
j) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.
ADDITIONAL SAFETY RULES:
- Always wear a dust mask.
SAFETY WARNING FOR YOUR LASER
Warning for class II laser
CAUTION--Laser radiation when open. DO NOT STARE INTO BEAM
CAUTION--Laser radiation when open and interlock defeated. DO NOT STARE INTO BEAM
LASER RADIATION--DO NOT STARE INTO BEAM
ADDITIONAL SAFETY WARNING
Do not stare directly at the laser beam. A hazard may exist if you deliberately stare into the beam, please observe all safety rules as follows:
- The laser shall be used and maintained in accordance with the manufacturer's instructions.
- Never aim the beam at any person or an object other than the work piece.
- Always ensure the laser beam is aimed at a sturdy work piece without reflective surfaces, e.g. wood or rough-coated surfaces are acceptable. Bright shiny reflective sheet steel or similar is not suitable for laser applications as the reflective surface may direct the laser beam back at the operator.
- Do not change the laser device with a different type. The manufacturer or an authorized agent must carry out repairs.
- CAUTION: Use of controls or adjustments other than those specified herein may result in
hazardous radiation exposure.
- CAUTION--The use of optical instruments with this product will increase eye hazard.
SAVE THESE INSTRUCTIONS
SYMBOLS
| To reduce the risk of injury, user must read instruction manual | |
| Double insulation | |
| Warning | |
| Wear ear protection | |
| Wear eye protection | |
| Wear dust mask | |
| Do not stare into beam | |
| Laser radiation | |
| Incorrect |
COMPONENT LIST
- LOCK OFF BUTTON
- SOFT GRIP HANDLE
- HEX KEY
- ON/OFF SWITCH
- SPINDLE LOCK BUTTON
- LOWER BLADE GUARD
- LOWER GUARD LEVER
- FIXED UPPER GUARD
- DUST EXTRACTION OUTLET
- VACUUM ADAPTER
- DEPTH ADJUSTMENT LEVER
- BASE PLATE

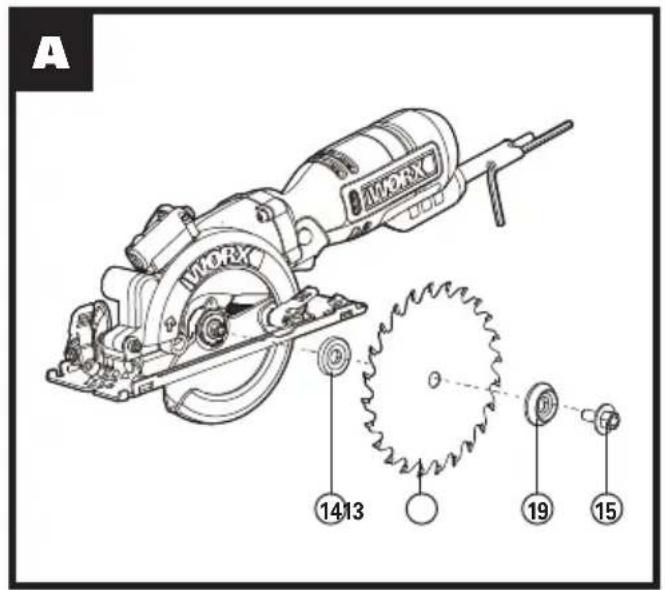

- SAW BLADE (SEE FIG. A)
- INNER FLANGE (SEE FIG. A)
- BLADE BOLT (SEE FIG. A)
- PARALLEL GUIDE
- PARALLEL GUIDE CLAMPING FIXTURE
- BEVEL ADJUSTMENT LEVER
- OUTER FLANGE (SEE FIG. A)

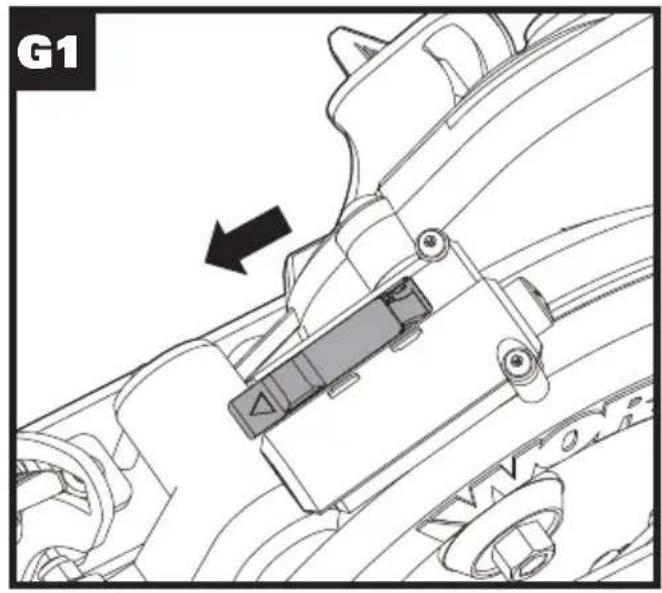

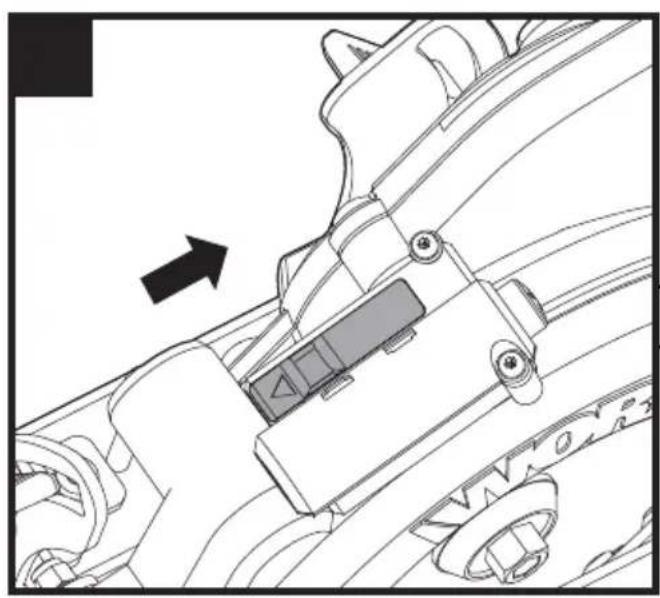

- LASER GUIDE
- LASER ON-OFF SWITCH

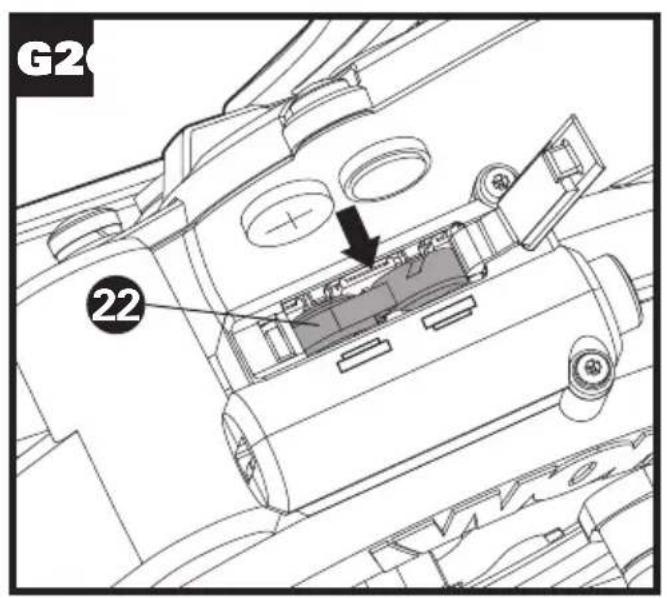

- LASER BATTERIES (TWO) (SEE FIG. G2)
- BLADE ALIGNMENT INDICATOR
Not all the accessories illustrated or described are included in standard delivery.
TECHNICAL DATA
Type Designation WX427L (4-designation of machinery, representative of Saw)
| Voltage 120 V ~ 60 Hz | ||
| Rated current 6A | ||
| Rated speed 4000/min | ||
| No load speed 3500/min | ||
| Blade size | TCT blade 24T 4-1/2" (115 mm) X 3/8" (9.5 mm) X 24T | |
| 4-1/2" 60T HCS Blade 4-1/2"(115mm) X 3/8"(9.5mm) X 60T | ||
| 4-1/2" Abrasive cutting blade | 4-1/2" (115mm) X 3/8"(9.5mm) | |
| Cutting capacity | Cutting Depth at 90° 1-11/16" (43 mm) | |
| Cutting Depth at 45° 1-1/8" (29 mm) | ||
| Bevel capacity 0-45° | ||
| Arbor Size 3/8" (9.5 mm) | ||
| Recommended maximum material thickness | Wood 1-11/16" (43 mm) | |
| Protection class | ☐/II | |
| Bare tool weight | 5 lbs | |
| Laser battery model no. | LR44 1.5V | |
ACCESSORIES
| 24TTCT blade WA5043 | 2PC |
| 60T HCS blade WA8302 | 2PC |
| 60G abrasive blade WA5048 | 2PC |
| Parallel Guide | 1 PC |
| Vacuum Adaptor | 1 PC |
| Hex Key | 1 PC |
We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.
NOTE: Before using the tool, read the instruction book carefully.
INTENDED USE:
The tool is intended for ripping and cross-cutting wood and other materials in straight cutting lines, while resting firmly on the work piece.
1. SAFETY ON/OFF
Your switch is locked off to prevent accidental starting. Depress lock off button (1) then on/off switch (4) and release lock off button (1). Your switch is now on. To switch off just release the on/off switch.
Note: Keep the dust adapter connected to dust collecting device when using the tool.
2. CHANGING THE SAW BLADE (See Fig. A)
- Before any changes are made to the tool itself, unplug the saw.
- Wear protective gloves when mounting the saw blade. Danger of injury exists when touching the saw blade.
- Only use saw blades that correspond with the characteristic data given in the operating instructions.
- Do not under any circumstances use grinding discs as the cutting tool.
REMOVING THE BLADE
Press the spindle lock button (5) and keep it depressed.
Manually rotate the blade until the spindle lock "clicks" into place and keeps the blade from spinning freely.
Loosen the blade bolt (15) with the Hex Key (3) by turning it clockwise. Remove the outer flange (19). Manually retract back the lower blade guard (6) and hold it firmly with the lower guard lever (7). Remove the saw blade (13).
MOUNTING THE BLADE
Check to make sure the blade surface and flanges are clean before reinstalling.
Place the blade onto the inner flange and spindle making sure the arrow on the blade matches the arrow direction on the fixed upper guard (8). Depress the spindle lock button (5). Insert the outer flange (19) over the spindle and tighten the bolt (turning counter-clockwise) with 1/4 turn more than finger tight using the hex key (3). Check that the blade is securely fastened by continuing to hold down the spindle lock button (5) and attempting to manually rotate the blade. If installed correctly, the blade should not spin. For best cutting results, use a saw blade suited to the material and cut quality desired.
3. ADJUSTING THE CUTTING DEPTH
- Release the Depth Adjustment Lever (11) by lifting it up.
- Manually push the base plate (12) up or down to
the desired depth on the scale.
- Push the Depth Adjustment Lever (11) back down to lock the base plate at the desired depth.
- Always add 1/8" (3 mm) to the depth of cut to ensure the blade has enough clearance to cut completely through the material.

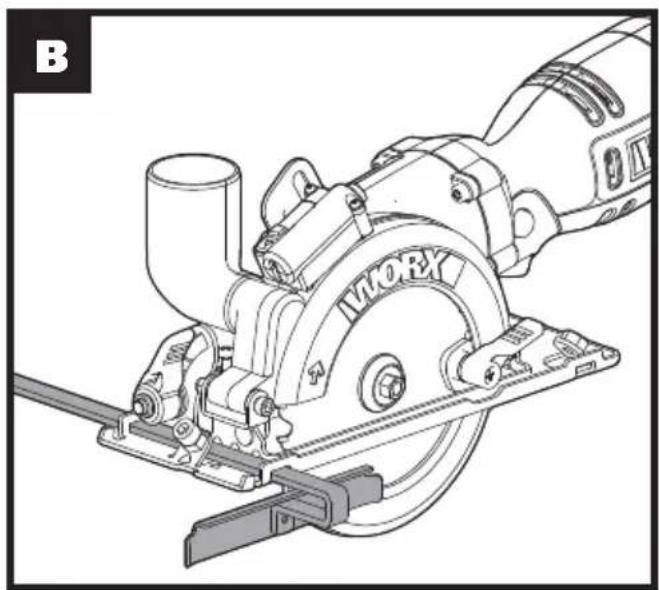

4. PARALLEL GUIDE (See Fig. B)
The parallel guide is used for making long, straight rip cuts.
Slide the parallel guide (16) through the parallel guide clamping fixture (17) to the desired cutting distance and tighten the clamping screw to lock into position. Do not over tighten. It can be used from either side of the base plate (12).

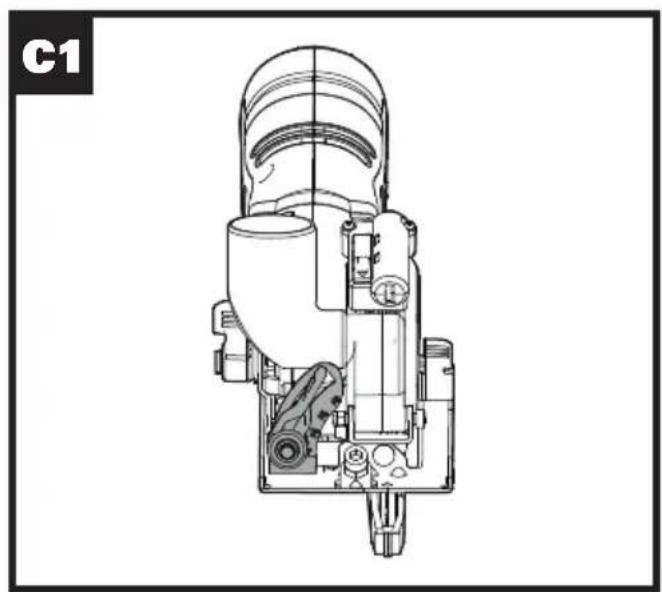

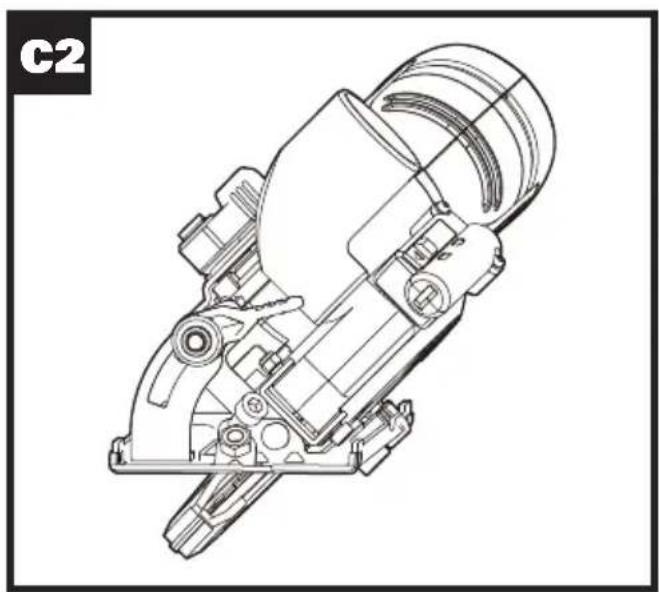

5. ADJUSTING THE CUTTING ANGLE (See Fig. C1, C2)
Release the Bevel Adjustment Lever (18) by pushing it in the counter-clockwise direction.
-Manually tilt the base plate (12) up or down to the desired depth on the scale.
-Secure the Bevel Adjustment Lever (18) by pushing it back down (clockwise) to lock the base plate at the desired depth.
NOTE: The location of the blade cut-line will change depending on the bevel angle that is being used. The blade cut-line location when cutting at 90 degrees or 45 degrees is marked with a notch on the front of the base plate (12).
The base plate (12) must always be held firmly against the material being cut to reduce saw vibration, blade jumping, or blade breakage.

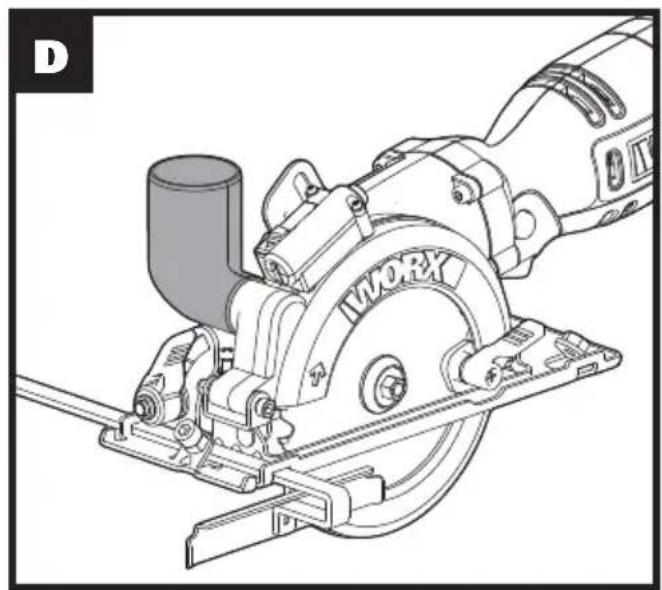

6. SAWDUST REMOVAL (See Fig. D)
Your saw includes a vacuum adapter (10) that attaches to the dust extraction outlet (9) on the saw. This adapter port can be attached to a vacuum cleaner (sold separately). The use of the vacuum is strongly recommended as it keeps the work area clean, dramatically increases cut visibility and reduces airborne dust. It also keeps dust out of the working elements of the guard.
If your power tool becomes too hot, please run your circular saw no load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds. Protect saw blades against impact and shock. Cutting with extreme force can significantly reduce the performance capability of the tool and reduces the service life of the saw blade. Sawing performance and cutting quality depend essentially on the condition and the tooth count of the saw blade. Therefore, use only sharp saw blades that are suited for the material being cut.
Choice of blades: 24 teeth for general work, approx. 40 teeth for finer cuts, more than 40 teeth for very fine cuts into delicate surfaces, diamond for tile, cement board, etc.
1. MAKING CROSS CUTS AND RIP CUTS
WARNING: To avoid sudden kick-back, never start with the stationary blade in contact with the work.
Always start the saw and allow it to reach full speed before plunging into work material.
a) ALWAYS use your saw with your hands positioned correctly.
WARNING: Always maintain proper control of the saw to make sawing safer and easier.
Loss of control of the saw could cause an accident resulting in possible serious injury.
b) When making cross or rip cuts, align your line of cut with the center of the "V" notch located on the front of the saw's base.
c) Since the thickness of blades varies, make a trial cut in scrap material along the guideline to determine how much, if any, you should offset the blade from the guideline to allow for the blade thickness to get an accurate cut.
MAKING RIP CUTS
Always use a guide when making long rip cuts with your saw. You can use any suitable straight edge clamped to the work or the parallel guide that is included with your saw.

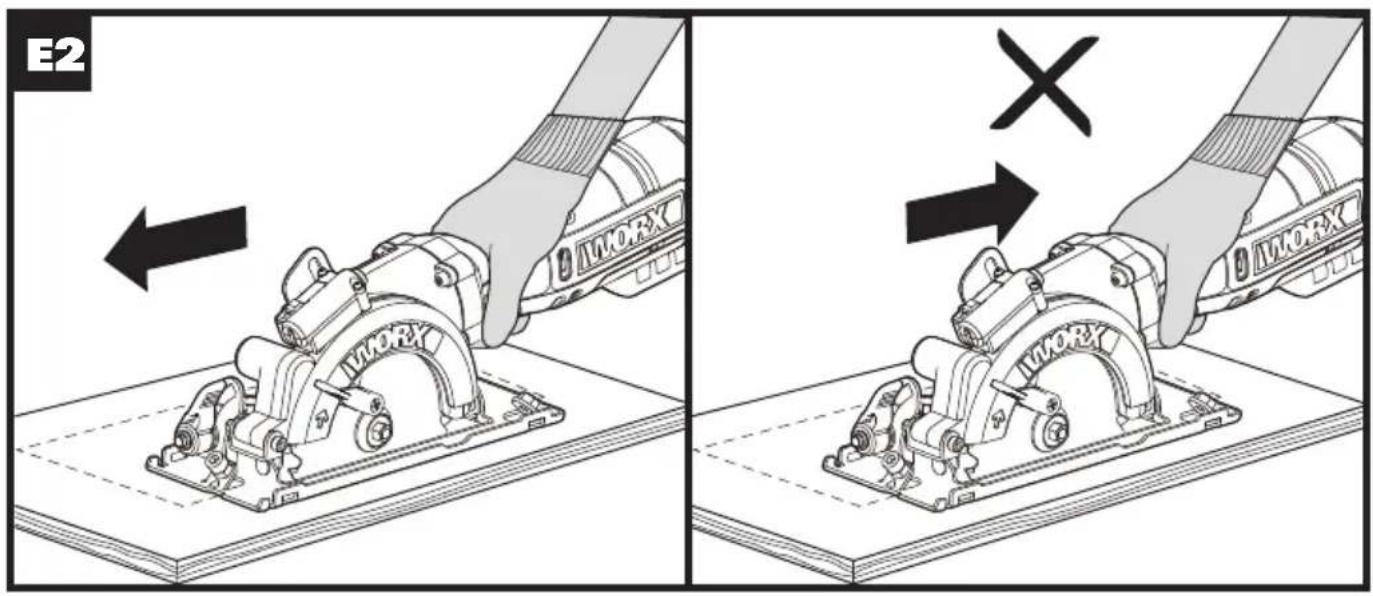

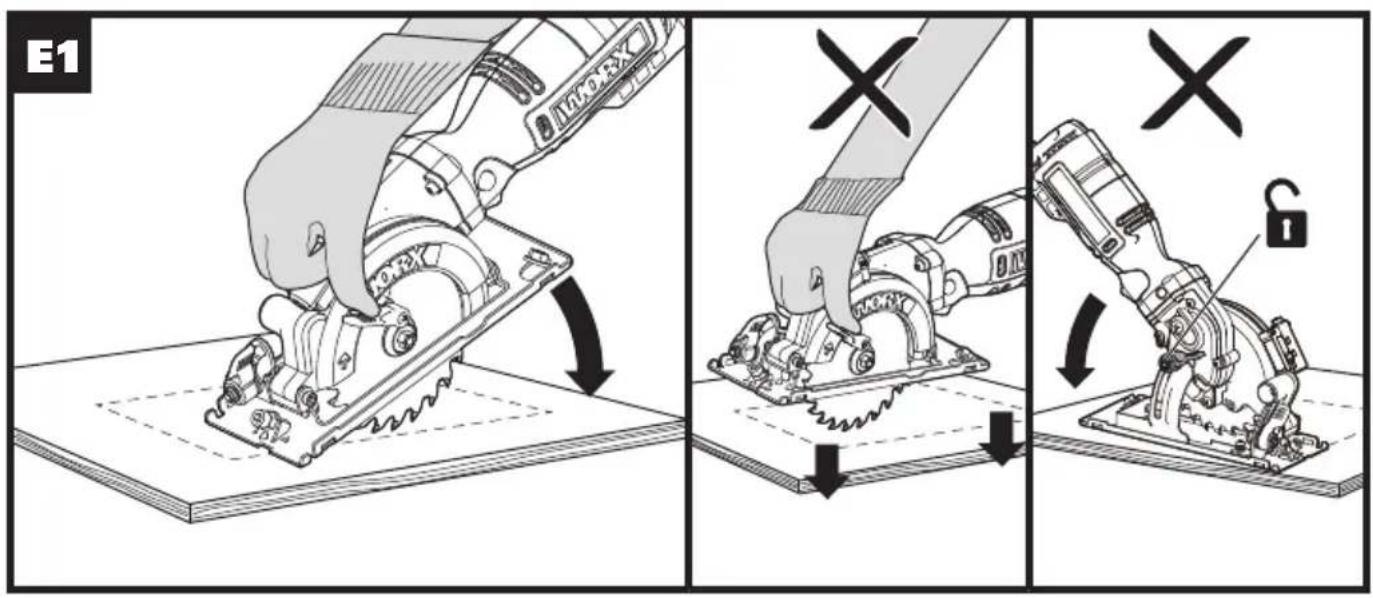

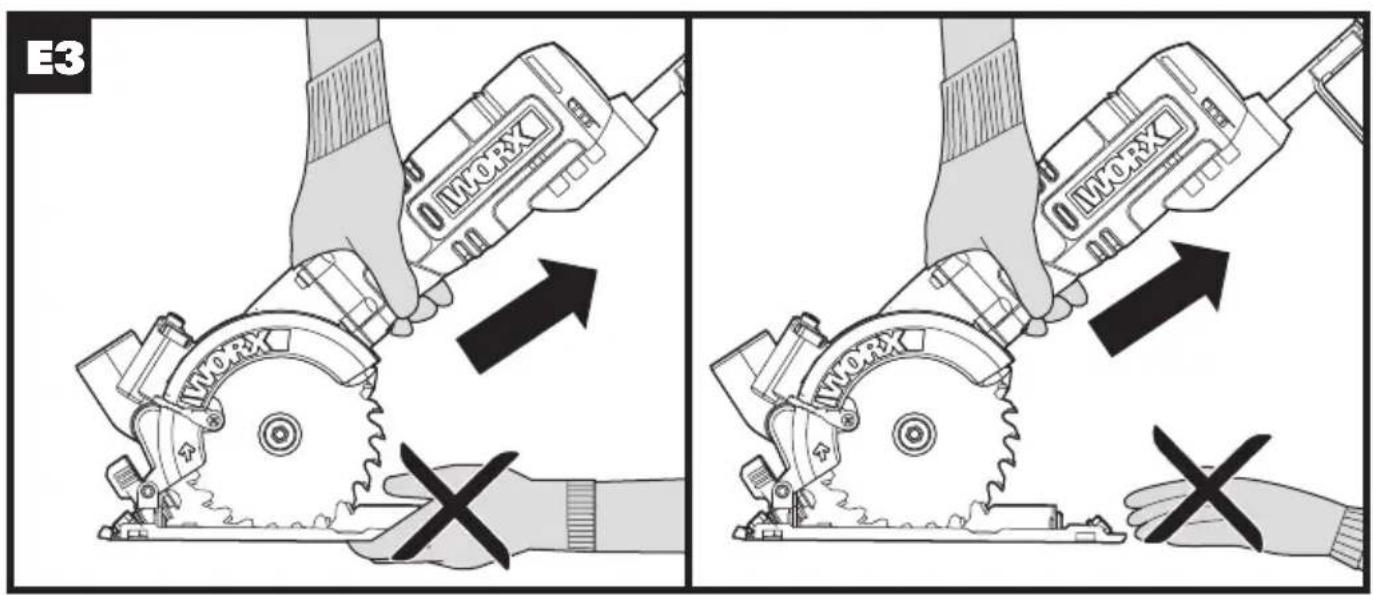

2. POCKET CUTTING (SOFT MATERIALS ONLY) (See Fig. E1, E2, E3)
This operation requires much skill with a saw and must only be carried out by a qualified person.
WARNING: The blade teeth are exposed during this operation so proceed with extreme caution.
Clearly mark the area to be cut. Set the depth of cut on the saw. Position the saw over the marked area with the front edge of the base plate resting on the work surface and cutting guide aligned with marked line on workpiece.
Ensure the blade is not touching but is close to the work surface. The moving lower guard must be rotated open by using lever. Switch the saw on and gently swing the blade down into the material but maintain a pivoting force on the front edge of the base. The moving lower guard can now be released for normal action of the guard.
DO NOT bind the blade in the cut; push the saw blade forward at a rate where the blade is not laboring.
When the cut is complete, release the trigger safety release and switch and let the blade come to a complete stop. DO NOT REMOVE the saw and blade from the workpiece while the blade is moving. This could damage your cut (kerf), cause kickback and loss of control, resulting in injury.
WARNING: To avoid cutting injury from the sharp blade, please don't put your hands around the base plate.

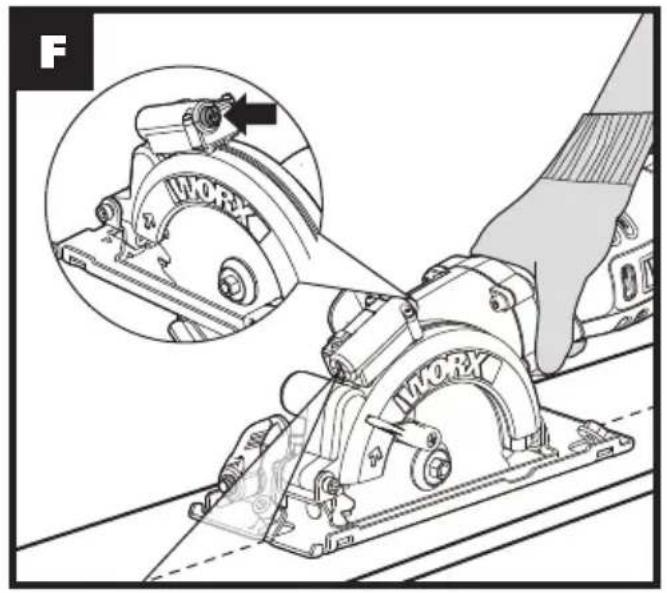

Using the laser light feature (See Fig. F)
NOTE: Clean the laser generator periodically.
WARNING: Never stare directly into the laser beam and never point the beam at anybody. The laser beam energy is extremely harmful to human eyes.
WARNING: When not in use, always turn the laser off to save the battery capacity.
Replacing laser batteries (See Fig. G1-G3)
To fit new batteries, adjust the position of the cord and insert two batteries in place. Make sure two batteries are pressed on the cord. To remove the batteries, just slowly pull the end of the cord.
NOTE: Pay attention that “+/-” of the batteries are the same as the illustration on the machine.
MAINTAIN TOOLS WITH CARE
Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.
Keep tools sharp and clean for better and safer performance. Follow instructions for lubricating and changing accessories. Inspect tool cords periodically and if damaged, have repaired by authorized service facility. Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean.
Keep all working controls free of dust.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Periodically clear dust and chips from guard and base to ensure proper performance.
TROUBLESHOOTING
| Symptom Possible Causes Possible Solution | ||
| Tool will not start when operating the on/off switch. | Power cord not plugged in.Power cord is broken.Carbon brush has worn down. | Check to make sure power cord is connected well into a working outlet.Unplug the power cord. Replace it using a qualified maintenance person.Replace the carbon brush using a qualified maintenance person. |
| Cutting depth is less than that is set. | Sawdust accumulated at the rear of the base. | Shake out sawdust. Consider connecting a vacuum for dust collection. |
| Blade spins or slips | Blade is not tightly engaged with the spindle. | Remove the blade, and reassemble it as described inINSTALL/CHANGE THE BLADEsection. |
| Blade will not cut a straight line. | Blade is dull.Blade is not mounted properly.Saw is not being guided properly. | Mount a new, sharp blade on the saw.Check that blade is properly mounted.Use a parallel guide. |
| Blade kicks back when beginning a cut. | Blade is not spinning fast enough. | Allow the saw blade to reach full speed prior to beginning a cut in the material. |
SÉCURITÉ DU PRODUIT
you've got the power
www.worx.com
Copyright © 2019, Positec. All Rights Reserved.
