| Brand | Thermador |
| Model | EXTNCB25W |
| Product Type | Electrical Extension Cable for Hood and Fan |
| Length | 25 feet (7.62 m) |
| Compatibility | Wall hoods, island, built-in and remote/duct fans (listed models) |
| Connectors Supplied | Adapter cable #1 and #2 |
| Intended Use | Extension wiring for hood fan, indoor use only |
| Grounding Required | Yes, mandatory to avoid electric shocks |
| Conductor Gauge | Not specified, suitable for compatible fans |
| Rated Voltage | Not specified, standard residential use |
| Cable Material | Copper, insulating sheath |
| Operating Temperature | Not specified, normal indoor use |
| Color | Not specified |
| Approximate Weight | ~1.5 kg |
| Included Accessories | Adapter cable #1, adapter cable #2, 3/4 in. cable clamp |
| Certifications | Compliant with local electrical codes |
| Safety | Do not use multiple extensions, do not cut the connector (voids warranty) |
| Maintenance | Clean with a dry cloth; disconnect before cleaning |
| Warranty | Void if connector is cut |
| Manufacturer | BSH Home Appliances Ltd |
| Customer Service (U.S./Canada) | 1-800-735-4328 |
| Website | thermador.com |
Frequently Asked Questions - EXTNCB25W THERMADOR
User questions about EXTNCB25W THERMADOR
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Extension cord in PDF format for free! Find your manual EXTNCB25W - THERMADOR and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EXTNCB25W by THERMADOR.
USER MANUAL EXTNCB25W THERMADOR
For 25 ft. Remote & In-line Blower Extension Cable
Installation
INSTRUCTIONS
For 25 ft. Remote & In-line Blower Extension Cable
Table of Contents (English) 2
Table de Matieres (Francais). 7
Indice de Materiais (Espanol). 12
Models
Modèles
Modelos:
EXTNCB25W
Table of CONTENTS
Safety 3
Important Safety Instructions 3
Installation Instructions 5
Before You Begin 5
25 ft Extension Cable Connection. 5
Support, Accessories & Parts. back page
Safety DEFINITIONS
WARNING
This indicates that death or serious injuries may occur as a result of non-observance of this warning.
CAUTION
This indicates that minor or moderate injuries may occur as a result of non-observation of this warning.
NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.
Note: This alerts you to important information and/or tips.
This THERMADOR appliance is made by
BSH Home Appliances Corporation
1901 Main Street, Suite 600
Irvine, CA 92614
Questions?
1-800-735-4328
www.thermador.com
We look forward to hearing from you!
IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS
INSTALLER: Please leave these Instructions with this unit for the owner. Show the owner the location of the circuit breaker. Mark it for easy reference.
OWNER: Please retain these instructions for future reference.
WARNING
If the information in this manual is not followed exactly, fire or shock may result causing property damage or personal injury.
WARNING
Turn off power circuit at service panel and lock out panel before wiring this appliance. Allow the appliance to cool after the power has been turned off before servicing the appliance.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- Use this unit only in the manner intended by the manufacturer.
- Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
WARNING
ELECTRICAL SHOCK HAZARD
- DO NOT remove connections.
DO NOT use an extension cord. - Improper grounding can result in a risk of electric shock.
- Failure to follow these instructions can result in death, fire, or electrical shock.
State of California Proposition 65 Warning:
WARNING
This product can expose you to chemicals including vinyl chloride, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.
Be sure your appliance is properly installed and grounded by a qualified technician.
If required by the National Electrical Code (or Canadian Electrical Code), this appliance must be installed on a separate branch circuit.
To reduce the risk of fire or electric shock, do not use this appliance with any solid-state speed control devices.
Installation, wire harness routing, electrical connections and grounding must comply with all applicable codes. It is the responsibility of the owner and the installer to determine if additional requirements and/or local or other codes apply to specific installations.
The use of multiple blower connection cables is NOT supported.
Never modify or alter the construction of the appliance, harness or connectors. Ensure all panels and other components removed during installation are replaced. See blower and hood installation manuals for complete instructions.
CAUTION
For general ventilating use only. DO NOT use to exhaust hazardous or explosive materials and vapors. To reduce the risk of fire, use only metal ductwork.
IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
- Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
- USE ONLY METAL DUCTWORK.
- Ducted fans must always be vented to the outdoors. Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages.
- When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
Installation Instructions
Before You Begin
Parts Included
25ft Extension Cable
- Adapter Cable No. 1
- Adapter Cable No. 2
IMPORTANT: Cutting off a connector to the appliance or to the extension cable kit will void the warranty.
Compatible Blowers
The blower extension cable is compatible with the following In-line & Remote blowers:
| Blower Model | |
| Remote Blower 1000 CFM VTR1030W | |
| Remote Blower 1000 CFM VTN1090W | |
| Remote Blower 1300 CFM VTR1330W | |
| Remote Blower 600 CFM DHG6023UC | |
| In-line Blower 600 CFM DHG6015DUC | |
| In-line Blower 600 CFM VTI610W | |
| In-line Blower 1000 CFM VTI1010W |
25 ft Extension Cable Connection
25 ft Extension Cable
IMPORTANT: Cutting off a connector to the appliance or to the extension cable kit will void the warranty.
The 25 ft extension cable can be used on the following ventilation models ONLY:
| Description Model | |
| Thermador Pro Chimney Wall Hood HPCNxxWS | |
| Thermador Pro Harmony Wall Hood PHxxHWS | |
| Thermador Pro Grand Wall Hood PHxxGWS | |
| Thermador Pro Custom Insert VCINxxGWS | |
| Thermador Pro Island Hood HPINxxWS |
- The Hood's internal blower harness should be routed through the knockout and secured with a 3/4'' (19 mm) strain relief. The 25 ft Extension Cable can then be connected to the blower harness outside the unit.

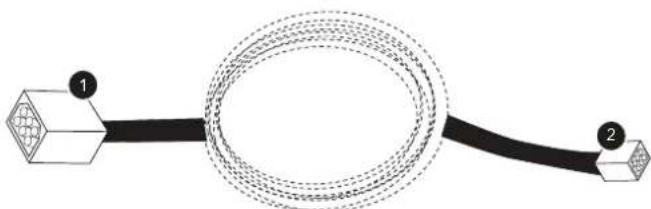

(1) Connects to Hood
(2) Connects to Remote or In-line Blower
25ft Extension Cable with Adapter Cable No. 1
IMPORTANT: Cutting off a connector to the appliance or to the extension cable kit will void the warranty.
The 25 ft extension cable can be used on the following ventilation models with kit Adapter Cable No. 1:
- The Hood's internal blower harness should be routed through the knockout and secured with a 3/4'' (19 mm) strain relief. The 25ft Extension Cable can then be connected to the Adapter Cable No. 1 and then to the hood outside the unit.
| Description Model | |
| Thermador Pro Low Profile Island Hood HPI | NxxHS |
| Masterpiece Series Custom Insert VCI2xxDS |

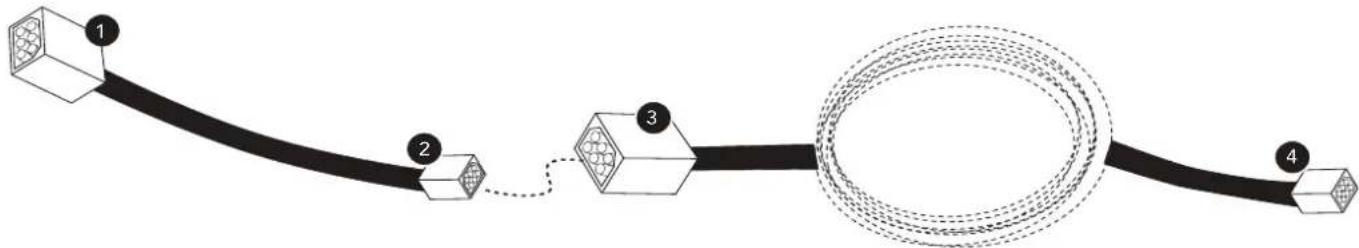

(1) Connects to Hood (2) Connects to 25 ft cable
(3) Connects to Adapter Cable No. 2 (4) Connects to Remote or In-line Blower
25ft Extension Cable with Adapter Cable No. 2
IMPORTANT: Cutting of the connector will void the warranty of the appliance.
The 25 ft extension cable can be used on the following ventilation models with kit Adapter Cable No. 2:
- The Hood's internal blower harness should be routed through the knockout and secured with a 3/4'' (19 mm) strain relief. The 25 ft Extension Cable can then be connected to the Adapter Cable No. 2 and then to the hood outside the unit.
| Description Model | |
| Masterpiece Series Downdraft UCVMxxFS | |
| Bosch Downdraft Ventilation DHDxx14UC |

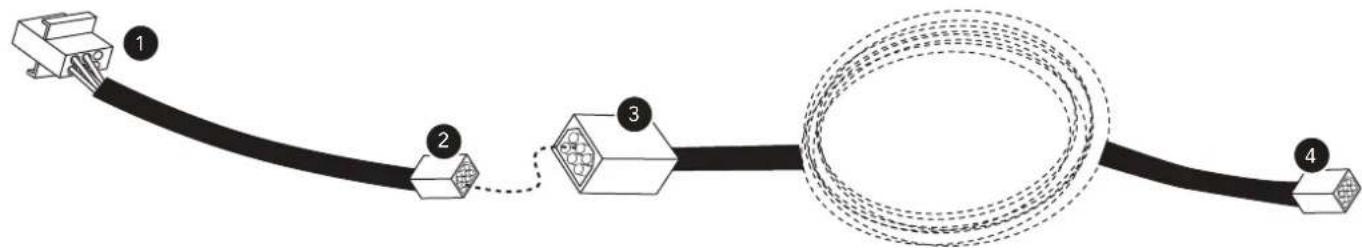

(1) Connects to Hood (2) Connects to 25 ft cable
(3) Connects to Adapter Cable No. 2 (4) Connects to Remote or In-line Blower
