USER MANUAL RECHMDW30 THERMADOR
Under Cabinet Drawer Hood Recirculating Kit
Models RECHMDW30 & RECHMDW36
FOR USE WITH THESE UNDER WALL HOOD MODELS
Models HMDW30WS & HMDW36WS
ABOUT THIS MANUAL
Signal Words for Safety and Best Use
WARNING
This indicates that death or serious injuries may occur as a result of non-observance of this warning.
CAUTION
This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.
NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.
Note: This alerts you to important information and/or tips.
Pay special attention to the important safety instructions in the "Safety" section.
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
General Notes
WARNING
Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
WARNING
Do not use this recirculation kit with Gas Cooktops.
WARNING
- When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
- Ducted fans must always be vented to the outdoors.
INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE APPLICANCE AFTER INSTALLATION IS COMPLETE. IMPORTANT: SAVE FOR THE LOCAL INSPECTOR'S USE.
WARNING
When properly cared for, your new appliance has been designed to be safe and reliable. Read all instructions carefully before use. These precautions will reduce the risk of burns, electric shock, fire, and injury to persons. When using kitchen appliances, basic safety precautions must be followed, including those in the following pages.
Proper Installation and Maintenance
WARNING
Remove all tape and packaging before using the appliance. Destroy the packaging after unpacking the appliance. Never allow children to play with packaging material.
This appliance is intended for normal family household use only. It is not approved for outdoor use. Refer to the Statement of Limited Warranty in the Use and Care Manual. If you have any questions, contact the manufacturer. Do not store or use corrosive chemicals, vapors, flammables or nonfood products in or near this appliance. It is specifically designed for use when heating or cooking food. The use of corrosive chemicals in heating or cleaning will damage the appliance and could result in injury. Do not operate this appliance if it is not working properly, or if it has been damaged. Contact an authorized servicer. Do not repair or replace any part of the appliance unless specifically recommended in this manual. Refer all servicing to a factory authorized service center.
CAUTION
Grease left on filters can melt and move into the vent.
WARNING
Hidden surfaces may have sharp edges. Use caution when reaching behind or under appliance.
Fire Safety
WARNING
Use this appliance only for its intended use as described in this manual.
Always have a working smoke detector near the kitchen. In the event that personal clothing or hair catches fire, drop and roll immediately to extinguish flames. Have an appropriate fire extinguisher available, nearby, highly visible and easily accessible near the appliance. Smother flames from food fires other than grease fires with baking soda. Never use water on cooking fires.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: ^a
- SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
- NEVER PICK UP A FLAMING PAN - you may get burned.
- DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
- Use an extinguisher ONLY if:
a) You know you have a class ABC extinguisher, and you already know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department is being called.
d) You can fight the fire with your back to an exit.
^a Based on "Kitchen Fire Safety Tips" published by NFPA.
Whenever possible, do not operate the ventilation system during a cooktop fire. However, do not reach through fire to turn it off.
WARNING
RISK OF FIRE
Hot oil and fat catch fire fast. Never leave hot oil and fat unsupervised.
Never extinguish a fire with water. Switch off the cooking position.
Suffocate flames carefully with a lid, a fire blanket or similar.
WARNING
RISK OF FIRE
Grease deposits in the grease filter can ignite.
Clean the grease filter at least every two months or as frequently as necessary.
Never operate the appliance without the grease filter.
WARNING
RISK OF FIRE
Grease deposits in the grease filter can catch fire. Never work with a naked flame near the appliance (e.g. flam-béing). Install the unit near a heat-producing appliance for solid fuels (e.g. wood or coal) only if there is a closed, non-detachable cover. There must be no flying sparks.
WARNING
RISK OF FIRE
Use only metal ductwork.
WARNING
RISK OF BURNS
The accessible parts get hot during operation.
Never touch hot parts.
Keep children away.
CAUTION
It is recommended to wear gloves and long sleeves to protect hands and forearms from abrasion and potential scratches during the installation process.
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Child Safety
When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons.
Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance. This can damage the appliance or cause injury.
WARNING
Be sure the entire appliance (including the grease filters and light bulbs, if applicable) has cooled and grease has solidified before attempting to clean any part of the appliance.
Do not use steam cleaners to clean the appliance.
State of California Proposition 65 Warnings
WARNING
This product can expose you to chemicals including vinyl chloride, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Protecting The Environment
Unpack the appliance and dispose of the packaging in line with environmental requirements.
NOTICE
Risk of damage due to corrosion. Always turn appliance on when cooking to avoid condensation buildup. Condensation can lead to corrosion damage.
Risk of damage due to moisture entering into the electronic circuitry.
Never clean operator controls with a wet cloth.
Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the grind direction only. Do not use any stainless steel cleaners for operator controls. Never use strong or abrasive cleaning agents, since they can cause surface damage.
Risk of damage from condensation back flow. Install exhaust vent at a slight downward slope away from the appliance (1° slope).
Parts Supplied
1 - Hardware bag
• 2 - 4.5x13 mm installation screws
• 8 - Charcoal filter clips
4 - Charcoal Filters
1 - Plastic grid
Installation Instructions
| Range Hood Model Recirculating Kit | |
| HMDW30WS RECHMDW30 | |
| HMDW36WS RECHMDW36 |
If it is not possible to vent cooking fumes and vapors to the outside, the hood can be used in the non-vented (recirculating) version, using the recirculating kit. Fumes and vapors are recycled through the round grid.
Installation through the soffit / cabinet

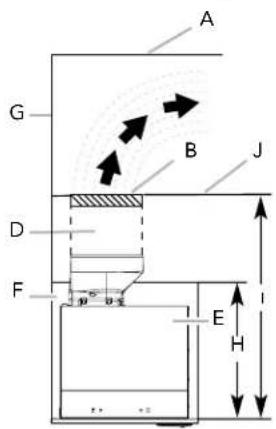

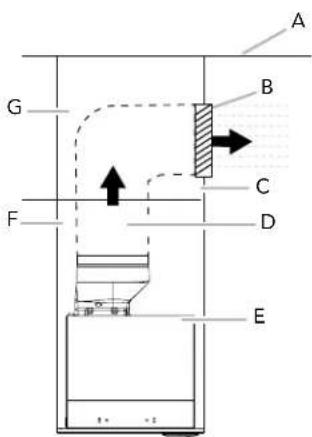

Depending on your recirculating installation, take into consideration the next diagram:
B. Recirculating grid
C. Soffit
D. 6" (15.2 cm) vent
E. Range hood
F. Cabinet
H. 12" (30.5 cm) min. cabinet height
I. 17" (43.2 cm) min. vent cover height
J. Top of the cabinetry
- Measure and mark the centerline of the cabinet to the soffit above.
-
Measure from the bottom of the cabinet to the centerline of where the vent will come through the soffit. Mark the location and use a saber saw or keyhole saw to cut a 5 ^3/4 " (14.6 cm) hole for the recirculating grid.
-
Install the recirculating grid with the 2 provided screws.


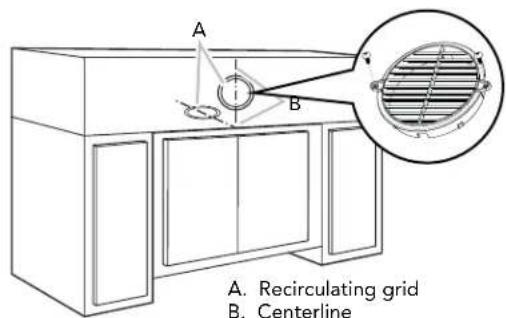

A. Recirculating grid B. CenterlineCharcoal Filter Replacement

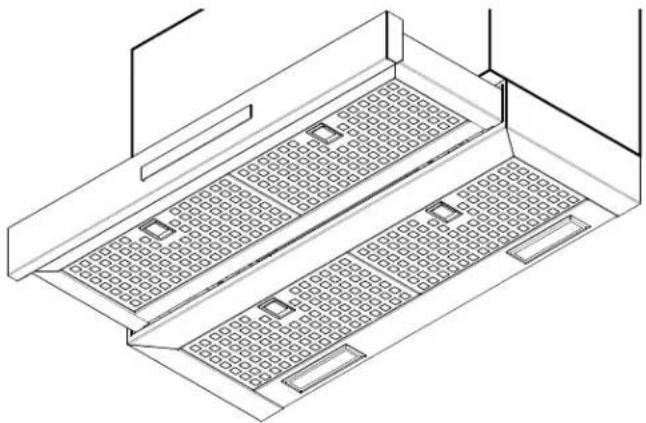

- Remove the grease filters of the hood.


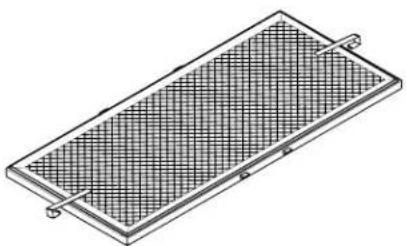

Isometric line drawing of a dual-panel storage unit with grid patterns (no text or symbols)- Evenly position the charcoal filter to the backside of the grease filter.


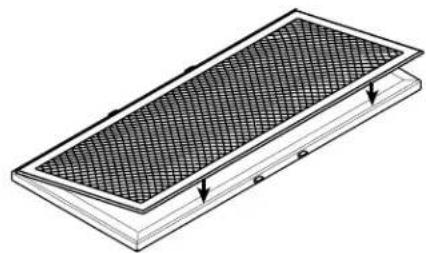

Isometric diagram of a rectangular panel with a mesh pattern and directional arrows indicating movement or force (no text or symbols)- Place 2 spring clips into the place (see image) to secure the charcoal filter to the metal filter.
Manuel
d'Installation
Ensemble de Recirculation
