USER MANUAL DC30MTW THERMADOR

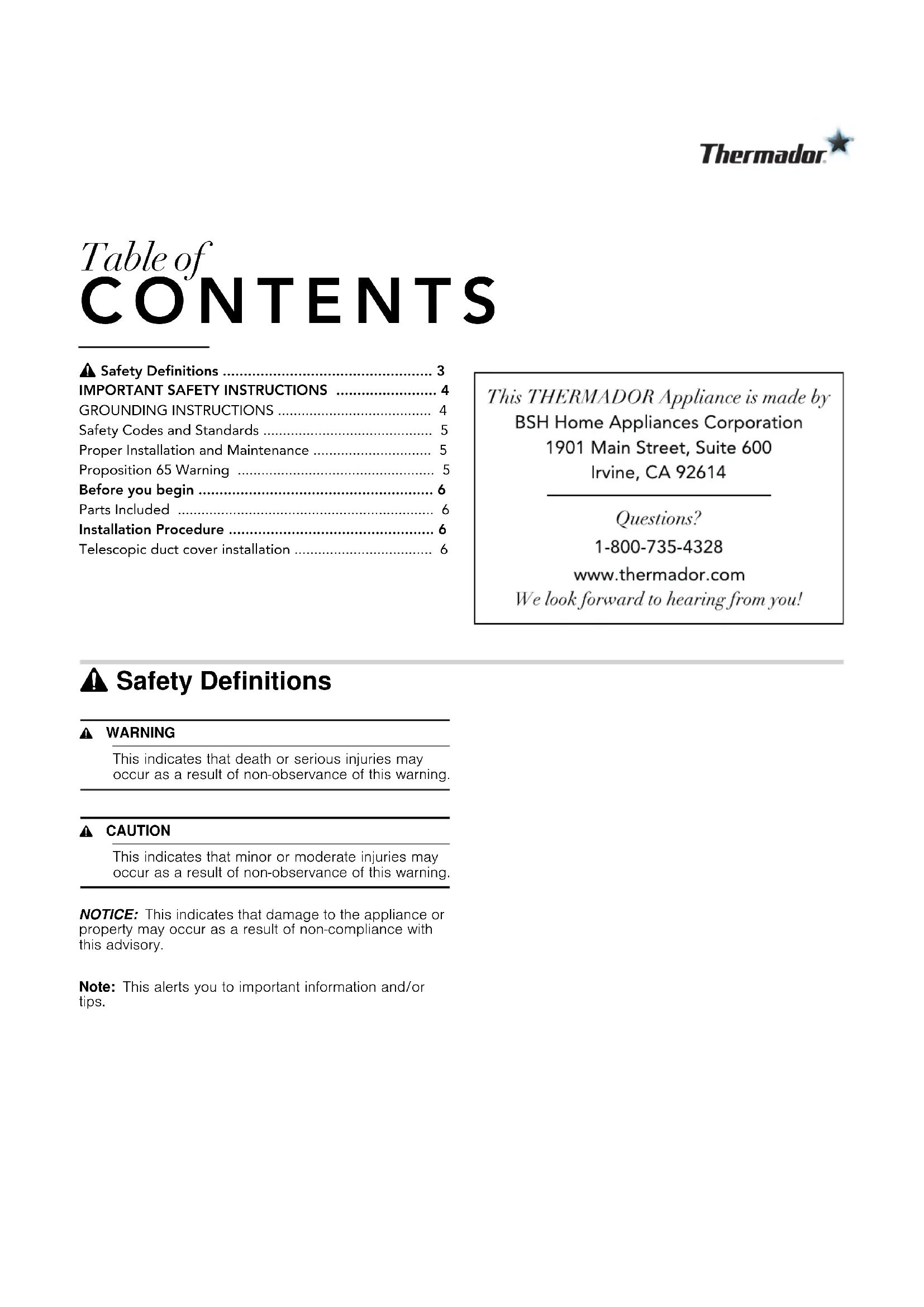

9 Safety Definitions Safety Defi nitions 9 WARNINGThis indicates that death or serious injuries may occur as a result of non-observance of this warning.9 CAUTIONThis indicates that minor or moderate injuries may occur as a result of non-observance of this warning.NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.Note: This alerts you to important information and/or tips.9 IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFET Y I NS T RUCT I ONS READ AND SAVE THESE INSTRUCTIONS INSTALLER: Save these instructions for the local electrical inspector’s use. Please leave these instructions with this unit for the owner. Show the owner the location of the circuit breaker or fuse. Mark it for easy reference. OWNER: Please retain these instructions for future reference. WARNING If the information in this manual is not followed exactly, fire or shock may result causing property damage or personal injury. WARNING WARNING Turn off power circuit at service panel and lock out panel before wiring this appliance. Requirement: 120 VAC, 60 Hz 15 A. Allow the appliance to cool after the power has been turned off before servicing the appliance. WARNING

AUTOMATICALLY OPERATED DEVICE

To reduce the risk of injury disconnect from power supply before servicing. WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: ▯ Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer. ▯ Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. WARNING Do not repair, replace or remove any part of the appliance unless specifically recommended in the manuals. Improper installation, service or maintenance can cause injury or property damage. Refer to this manual for guidance. All other servicing should be done by an authorized service provider. WARNING

ELECTRICAL SHOCK HAZARD

GROUNDING INSTRUCTIONS WARNING Improper grounding can result in a risk of electric shock. This appliance must be grounded. Grounding reduces the risk of electric shock by providing a safe pathway for electric current in the event of a short circuit. Be sure your appliance is properly installed and grounded by a qualified technician. Installation, electrical connections and grounding must comply with all applicable codes. If required by the National Electrical Code (or Canadian Electrical Code), this appliance must be installed on a separate branch circuit. WARNING

WARNING: To reduce the risk of fire or electric shock, do

not use this fan with any solid-state speed control device. If the information in this manual is not followed exactly, fire or shock may result causing property damage, personal injury or death. - DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. - WHAT TO DO IF YOU SMELL GAS DO NOT try to light any appliance. DO NOT touch any electrical switch. DO NOT use any phone in your building. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions. If you cannot reach your gas supplier, call the fire department. - Installation and service must be performed by an authorized service provider, service agency or the gas supplier. DO NOT remove connections. DO NOT use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock.5

9 IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Safety Codes and Standards This appliance complies with the latest version of one or more of the following standards:▯ UL 507 - Electric Fans▯ CAN/CSA C22.2 No. 113 - Fans and VentilatorsIt is the responsibility of the owner and the installer to determine if additional requirements and/or standards apply to specific installations. Proper Installation and Maintenance CAUTIONNever modify or alter the construction of the appliance. For example, do not remove leveling legs, panels, wire covers or anti-tip brackets/screws. CAUTIONFor general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.WARNINGTo reduce the risk of fire, use only metal ductwork.Use a qualified installer.Remove all tape and packaging before using the appliance. Destroy the packaging after unpacking the appliance. Never allow children to play with packaging material. WARNINGWARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:▯ Installation work and electrical wiring must be done byqualified person(s) in accordance with all applicablecodes and standards, including fire-rated construction.▯ Sufficient air is needed for proper combustion andexhausting of gases through the flue (chimney) of fuelburning equipment to prevent back drafting. Follow theheating equipment manufacturer’s guideline and safetystandards such as those published by the National FireProtection Association (NFPA), and the AmericanSociety for Heating, Refrigeration and Air ConditioningEngineers (ASHRAE), and the local code authorities.▯ When cutting or drilling into wall or ceiling, do notdamage electrical wiring and other hidden utilities.▯ Ducted fans must always be vented to the outdoors.WARNINGTO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: Never leave surface units unattended at high settings.Boilovers cause smoking and greasy spillovers thatmay ignite. Heat oils slowly on low or medium settings. Always turn hood ON when cooking at high heat. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter. Use proper pan size. Always use cookware appropriate for the size of the surface element.Do not flambé under the extractor hood or work with a naked flame. When switched on, the extractor hood draws flames into the filter. There is a risk of fire due to deposits on the grease filter!WARNINGTO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:▯ SMOTHER FLAMES with a close-fitting lid, cookiesheet, or metal tray, then turn off the burner. BECAREFUL TO PREVENT BURNS. If the flames do notgo out immediately, EVACUATE AND CALL THE FIREDEPARTMENT.▯ NEVER PICK UP A FLAMING PAN – You may beburned.▯ DO NOT USE WATER, including wet dishcloths ortowels – a violent steam explosion will result.▯ Use an extinguisher ONLY if:- You know you have a Class ABC extinguisher, andyou already know how to operate it.- The fire is small and contained in the area where itstarted.- The fire department is being called.- You can fight the fire with your back to an exit. Proposition 65 Warning: This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:▯ Unit is heavy and requires at least two people or proper equipment to move and install. ▯ Hidden surfaces may have sharp edges. Use caution when handling the appliance. Failure to do so may result in property damage or personal injury.

&DQFHUDQG5HSURGXFWLYH+DUPZZZ3:DUQLQJVFDJRY67$7(2)&$/,)251,$352326,7,21:$51,1*

:$51,1*6 Before you begin Before you begin On some models, optional duct covers and telescoping extensions may be used to fill the space between the hood and ceiling in wall mount installations. Parts Included ▯ Harware bag (1):▯ 5 x 45 mm installation screws (4)▯ 5.4 x 75 mm installation screws (4)▯ 4.2 x 8 mm installation screws (11)▯ 10 x 60 mm drywall anchors (4)▯ 8 x 40 mm anchors (4)▯ Torx adapter 20▯ Upper duct cover brackets (2)▯ Mounting template (1) Installation Procedure Installati on Procedure Telescopic duct cover installation IMPORTANT: Secure the hood to the wall after installing the duct cover mounting bracket, but before installing the telescoping duct cover extension. Securing the telescoping chimney extension bracket

Carefully remove the protective film from the duct cover and hood assembly prior to the start of the installa-tion. Use one hand to maintain the duct cover steady while the other hand removes the protective film.

Ensure that the minimum height of 30" (762 mm) from the bottom of the hood to the cooking surface will be maintained.

Locate two studs at the mounting brackets location.

Mark the range hood vertical centerline. Make sure the line run through the very top of the ceiling.

Locate the mounting template in an 90° angle against the recently made centerline. Model Duct Cover

Make the pilot holes depending on your duct cover width.

Gently dettach the mounting template and turn it 180°. Locate the template against the centerline to make the other pilot holes. Install the wall anchors depending on the wall material (wood or plywood).

Mount the duct cover bracket on the top of the ceiling using four 5 x 45 mm screws (wood) or four 5.4 x 75 mm (plywood). Ensure that the bracket is leveled.

Insert the complete duct cover at an angle and swivel toward the wall.

Carefully pull the top part of the extension upwards. Screw the left and right sides of the extension to the mounting bracket with the supplied installation screws.

From inside of hood, screw the supplied 4.2 x 8 mm sheet metal screws through the holes on each side and along the front into bottom of the extension.
