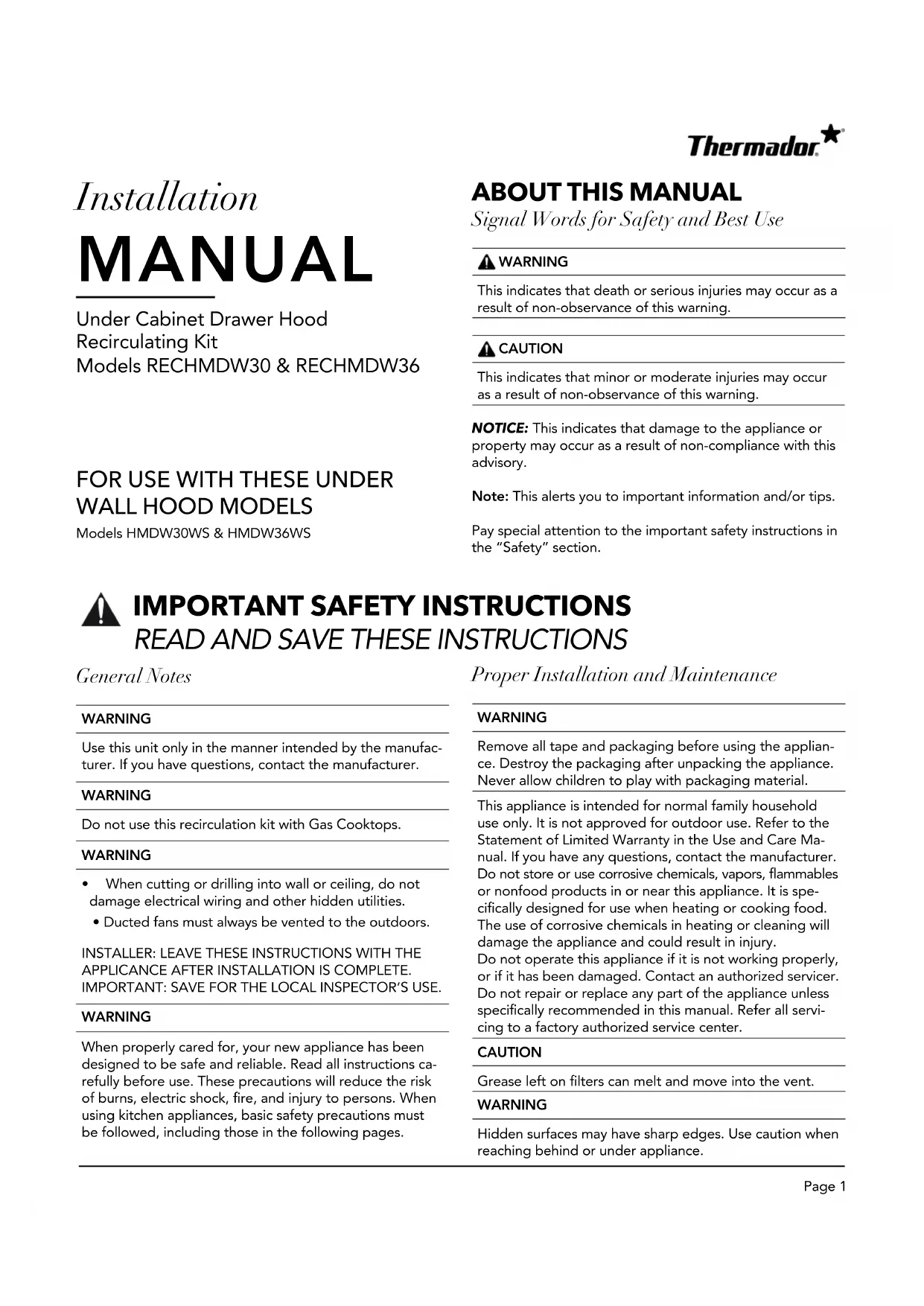

USER MANUAL RECHMDW36 THERMADOR

Signal Words for Safety and Best Use

WARNINGThis indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTIONThis indicates that minor or moderate injuries may occur as a result of non-observance of this warning. NOTICE: This indicates that damage to the appliance orproperty may occur as a result of non-compliance with thisadvisory. Note: This alerts you to important information and/or tips.Pay special attention to the important safety instructions in the “Safety” section.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

General NotesWARNINGUse this unit only in the manner intended by the manufac-turer. If you have questions, contact the manufacturer.WARNINGDo not use this recirculation kit with Gas Cooktops.WARNING

• When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities. • Ducted fans must always be vented to the outdoors.INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE APPLICANCE AFTER INSTALLATION IS COMPLETE.IMPORTANT: SAVE FOR THE LOCAL INSPECTOR’S USE.WARNINGWhen properly cared for, your new appliance has been designed to be safe and reliable. Read all instructions ca-refully before use. These precautions will reduce the risk of burns, electric shock, re, and injury to persons. When using kitchen appliances, basic safety precautions must be followed, including those in the following pages.Proper Installation and MaintenanceWARNINGRemove all tape and packaging before using the applian-ce. Destroy the packaging after unpacking the appliance. Never allow children to play with packaging material.This appliance is intended for normal family household use only. It is not approved for outdoor use. Refer to the Statement of Limited Warranty in the Use and Care Ma-nual. If you have any questions, contact the manufacturer.Do not store or use corrosive chemicals, vapors, ammables or nonfood products in or near this appliance. It is spe-cically designed for use when heating or cooking food. The use of corrosive chemicals in heating or cleaning will damage the appliance and could result in injury.Do not operate this appliance if it is not working properly, or if it has been damaged. Contact an authorized servicer.Do not repair or replace any part of the appliance unless specically recommended in this manual. Refer all servi-cing to a factory authorized service center.CAUTIONGrease left on lters can melt and move into the vent.WARNINGHidden surfaces may have sharp edges. Use caution when reaching behind or under appliance.Page 2

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Fire Safety WARNING Use this appliance only for its intended use as described in this manual. Always have a working smoke detector near the kitchen. In the event that personal clothing or hair catches re, drop and roll immediately to extinguish ames. Have an appropriate re extinguisher available, nearby, highly visible and easily accessible near the appliance. Smother ames from food res other than grease res with baking soda. Never use water on cooking res. WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:

• SMOTHER FLAMES with a close tting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the ames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

• NEVER PICK UP A FLAMING PAN - you may get burned.

• DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.

• Use an extinguisher ONLY if: a) You know you have a class ABC extinguisher, and you already know how to operate it. b) The re is small and contained in the area where it started. c) The re department is being called. d) You can ght the re with your back to an exit.

Based on “Kitchen Fire Safety Tips” published by NFPA. Whenever possible, do not operate the ventilation system during a cooktop re. However, do not reach through re to turn it off. WARNING

Hot oil and fat catch re fast. Never leave hot oil and fat unsupervised. Never extinguish a re with water. Switch off the cooking position. Suffocate ames carefully with a lid, a re blanket or similar. WARNING

Grease deposits in the grease lter can ignite. Clean the grease lter at least every two months or as frequently as necessary. Never operate the appliance without the grease lter. WARNING

Grease deposits in the grease lter can catch re. Never work with a naked ame near the appliance (e.g. am- béing). Install the unit near a heat-producing appliance for solid fuels (e.g. wood or coal) only if there is a closed, non-detachable cover. There must be no ying sparks. WARNING

The accessible parts get hot during operation. Never touch hot parts. Keep children away. CAUTION It is recommended to wear gloves and long sleeves to protect hands and forearms from abrasion and potential scratches during the installation process.Page 3

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Child Safety When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualied persons. Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance. This can damage the appliance or cause injury. WARNING Be sure the entire appliance (including the grease lters and light bulbs, if applicable) has cooled and grease has solidied before attempting to clean any part of the appliance. Do not use steam cleaners to clean the appliance. State of California Proposition 65 Warnings WARNING This product can expose you to chemicals including vinyl chloride, which is known to the State of California to cau- se cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Protecting The Environment Unpack the appliance and dispose of the packaging in line with environmental requirements. NOTICE Risk of damage due to corrosion. Always turn appliance on when cooking to avoid condensation buildup. Con- densation can lead to corrosion damage. Risk of damage due to moisture entering into the electronic circuitry. Never clean operator controls with a wet cloth. Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the grind direction only. Do not use any stainless steel cleaners for operator controls. Never use strong or abrasive cleaning agents, since they can cause surface damage. Risk of damage from condensation back ow. Install exhaust vent at a slight downward slope away from the appliance (1° slope).Page 4 Parts Supplied

• 2 - 4.5x13 mm installation screws

If it is not possible to vent cooking fumes and vapors to the outside, the hood can be used in the non-vented (recirculating) version, using the recirculating kit . Fumes and vapors are recycled through the round grid. Installation through the soft / cabinet Depending on your recirculating installation, take into con- sideration the next diagram:

height J. Top of the cabinetry

1. Measure and mark the centerline of the cabinet to the

2. Measure from the bottom of the cabinet to the

centerline of where the vent will come through the soft. Mark the location and use a saber saw or keyhole saw to cut a 5¾” (14.6 cm) hole for the recirculating grid.

3. Install the recirculating grid with the 2 provided screws.

1. Remove the grease lters of the hood.

2. Evenly position the charcoal lter to the backside of the

3. Place 2 spring clips into the place (see image) to secure

the charcoal lter to the metal lter. NOTE: The charcoal lters cannot be cleaned. Filters should be replaced every 4-6 months (depending on hood usage).Page 5 Manuel d’Installation Ensemble de Recirculation Modèles RECHMWB30 et RECHMWB36
