Product Type	17-inch LCD monitor (43.2 cm)
Optimal Resolution	1280 x 1024
Connectivity	DVI-D input, D-Sub 15-pin input, USB port (1 upstream)
Power Supply	100-240 V AC, 50/60 Hz (power adapter included)
Power Consumption	Approximately 34 W (typical), standby < 2 W
Weight (with stand)	4.3 kg maximum
Dimensions (with stand)	Approximately 367 x 370 x 230 mm (W x H x D)
Stand Adjustments	Height, tilt, swivel, rotation
Tilt Angle	From -5° to +30°
Rotation	+/- 35° (pivot)
Height Range	Up to 100 mm
Safety Standards	CE, TÜV GS, Energy Star, ISO 13406-2
OSM Functions	Brightness, contrast, DV Mode, auto adjust, position, size, color (presets), clock tool
OSM Languages	8 languages (including French)
Supplied Accessories	Power cord, D-Sub cable, USB cable, CD-ROM, cable covers
VESA Compatible Wall Mount	Yes, 100 x 100 mm (M4 screws, max depth 8.5 mm)
Maintenance and Cleaning	Soft cloth for LCD screen, mild soapy water for the casing
Operating Temperature	5°C to 35°C
Operating Humidity	10% to 80% (non-condensing)
Manufacturer's Warranty	2 years (parts and labor)

Frequently Asked Questions - MultiSync LCD1770GX NEC

How to clean the MultiSync LCD1770GX LCD screen?

Use a soft, dry cloth to remove dust. For stains, lightly dampen the cloth with water. Do not rub with rough materials and do not press on the screen. Avoid chemicals such as alcohol or benzene.

What is the optimal resolution for this monitor?

The optimal native resolution is 1280 x 1024. It is recommended to use it for a sharp image and to avoid artifacts.

How to adjust the screen height?

Place your hands on each side of the monitor and gently lift or lower the screen to the desired height. The stand allows a travel of about 100 mm.

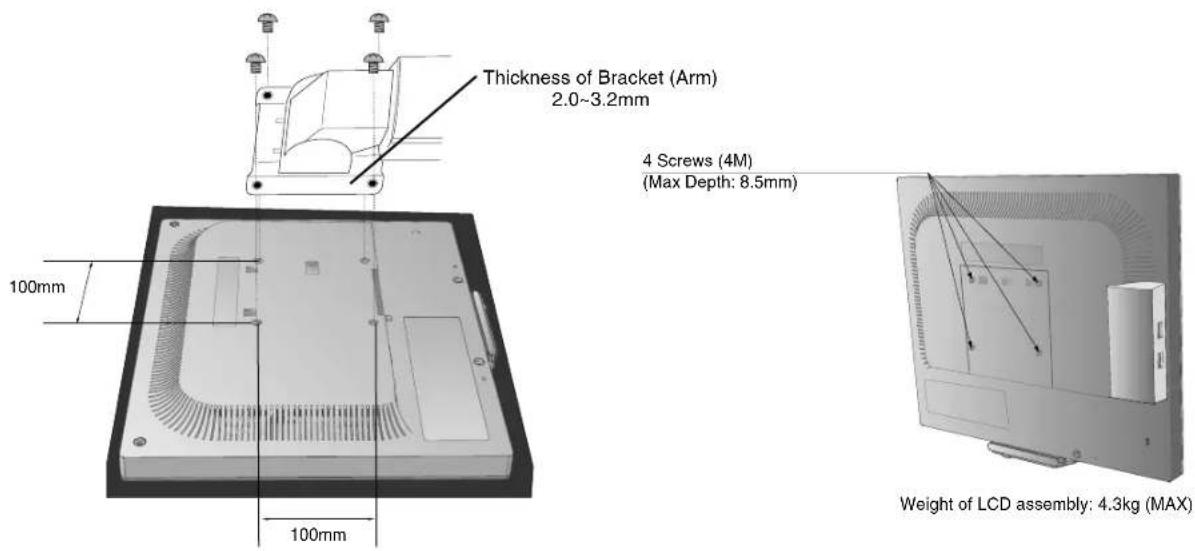

Can I mount this monitor on an articulated arm?

Yes, the monitor is VESA 100 x 100 mm compatible. Remove the original stand following the instructions in the manual, then attach the arm with 4 M4 screws (max depth 8.5 mm). Maximum screen weight: 4.3 kg.

How to activate power saving mode?

The monitor is Energy Star certified. In standby, it consumes less than 2 W. You can also use the 'Timer Off' function in the OSM menu to automatically turn off the screen after a delay.

What to do if the screen displays 'No Signal'?

Check that the video cable is properly connected to the computer and the monitor. Make sure the computer is on and the input source (DVI or D-Sub) is selected using the SELECT button. You can also try restarting the computer.

How to lock the OSM settings?

To lock the OSM menu, press and hold the SELECT button and the > (right) key simultaneously for a few seconds. To unlock, repeat the same operation with SELECT and the < (left) key in the OSM menu.

The monitor makes a buzzing sound, is this normal?

A slight buzzing may come from the backlight. This is normal. If the noise is loud or irregular, unplug the monitor and contact customer service. Do not attempt to open the casing.

How to reset the monitor to factory settings?

In the OSM menu, go to 'Tools' then select 'Factory Preset'. Hold the RESET button for several seconds until confirmation. You can also reset an individual function by selecting it and pressing RESET.

Is this monitor suitable for video games?

Yes, thanks to the DV Mode (Dynamic Visual) which optimizes the display for movies and games. The response time is typical for an LCD screen of that era (about 8 ms). Native resolution 1280x1024 suitable for games.

USER MANUAL MultiSync LCD1770GX NEC

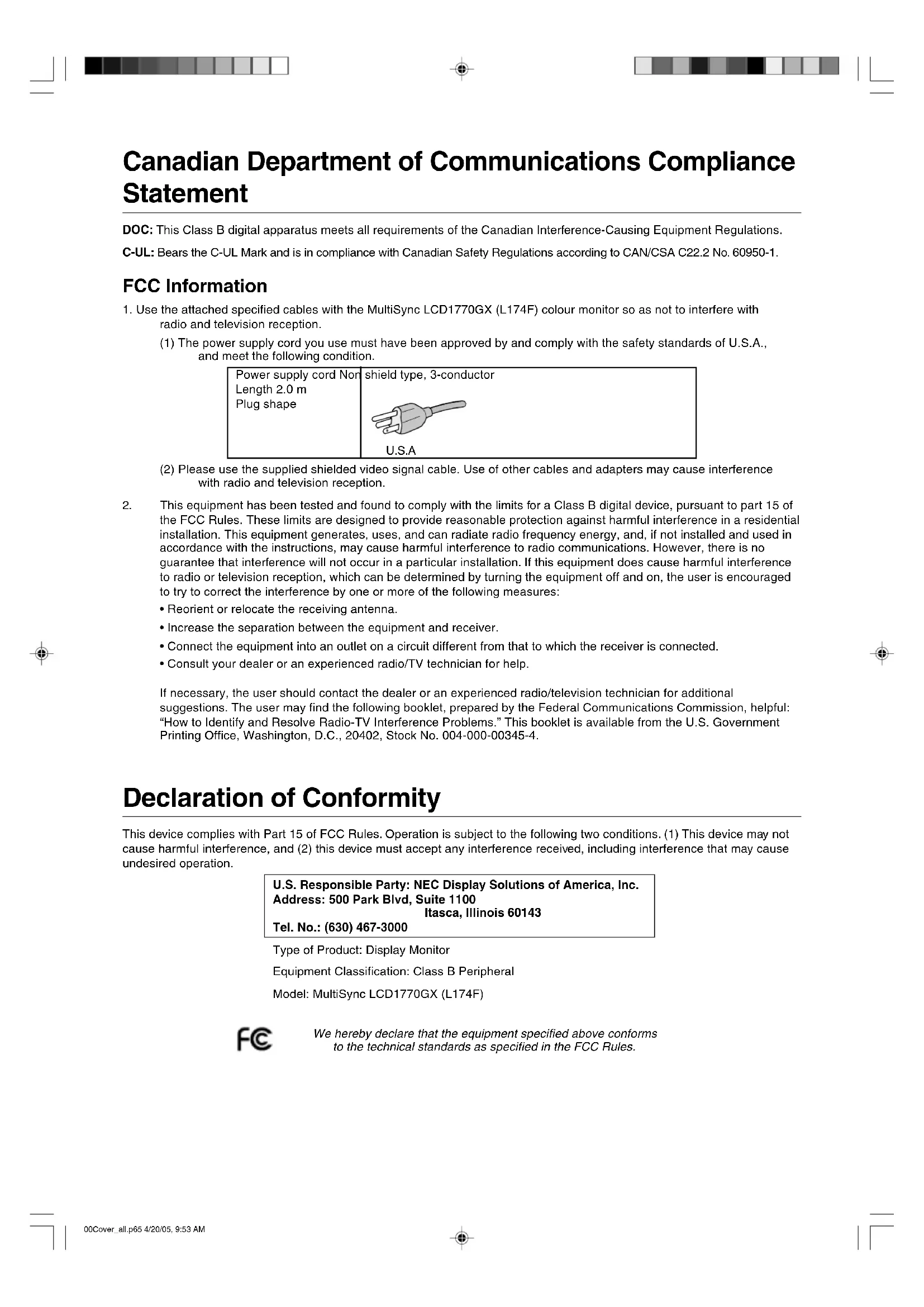

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1.

FCC Information

1. Use the attached specified cables with the MultiSync LCD1770GX (L174F) colour monitor so as not to interfere with radio and television reception.

(1) The power supply cord you use must have been approved by and comply with the safety standards of U.S.A., and meet the following condition.

Power supply cord Non Length 2.0 m Plug shape

shield type, 3-conductor U.S.A

(2) Please use the supplied shielded video signal cable. Use of other cables and adapters may cause interference with radio and television reception.

1. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

2. Reorient or relocate the receiving antenna.

3. Increase the separation between the equipment and receiver.
4. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
5. Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: "How to Identify and Resolve Radio-TV Interference Problems." This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

Declaration of Conformity

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party: NEC Display Solutions of America, Inc.

Address: 500 Park Blvd, Suite 1100 Itasca, Illinois 60143

Tel. No.: [phone]

Type of Product: Display Monitor

Equipment Classification: Class B Peripheral

Model: MultiSync LCD1770GX (L174F)

We hereby declare that the equipment specified above conforms to the technical standards as specified in the FCC Rules.

TCO Development

TCO Development Tc0'03 DISPLAYS www.tcodevelopment.com

Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Some of the features of the TCO'03 Display requirements:

Ergonomics

- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

- The product must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14 001.

- Restrictions on: - chlorinated and brominated flame retardants and polymers - heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Manufacturer's Recycling and Energy Information

NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company's top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally-friendly products, and always strive to help define and comply with the latest independent standards from agencies such as ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).

For more information, and for help in recycling your old NEC monitors, please visit our website at

http://www.nec-display-solutions.com (in Europe) or

http://www.nec-display.com (in Japan) or

http://www.necdisplay.com (in USA).

Country-specific recycling programmes can also be found at:

Sweden - http://www.el-retur.se

Germany - http://www.recyclingpartner.de/

This monitor features an advanced energy saving capability. When a VESA Display Power Management Signaling (DPMS) Standard signal is sent to the monitor, the Energy Saving mode is activated. The monitor enters a single Energy Saving mode.

Mode Power consumption LED colour
Normal Operation Approx. 47W Green
Energy Saving Mode Less than 2W Amber
Off Mode Less than 1W Unlit

Disposing of your old NEC product

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Within the European Union

EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes monitors and electrical accessories, such as signal cables or power cords. When you need to dispose of your NEC display products, please follow the guidance of your local authority, or ask the shop where you purchased the product, or if applicable, follow any agreements made between yourself and NEC.

The mark on electrical and electronic products only applies to the current European Union Member States.

Outside the European Union

If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

Index

Warning, Caution ...... English-1

Declaration ...... English-1

Contents ...... English-2

Quick Start ...... English-3

Controls ...... English-7

Recommended use ...... English-9

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET.DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Caution:

When operating the MultiSync LCD1770GX with a 220-240V AC power source in Europe, use the power cord provided with the monitor.

In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cord is not supplied with this equipment please contact your supplier.

When operating the MultiSync LCD1770GX with a 220-240V AC power source in Australia, use the power cord provided with the monitor. If a power cord is not supplied with this equipment please contact your supplier.

For all other cases, use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.

Declaration

Declaration of the Manufacturer

We hereby certify that the colour monitor

MultiSync LCD1770GX (L174F) is in

compliance with

Council Directive 73/23/EEC:

EN 60950-1

Council Directive 89/336/EEC:

- EN 55022

- EN 61000-3-2

- EN 61000-3-3

- EN 55024

and marked with

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

ISO 13406-2

Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. ENERGY STAR is a U.S. registered trademark.

OmniColor is a registered trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland.

ErgoDesign is a registered trademark of NEC Display Solutions, Ltd. in Austria, Benelux, Denmark, France, Germany, Italy, Norway, Spain, Sweden, U.K.

NaViSet is a trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland.

MultiSync is a registered trademark of NEC Display Solutions, Ltd. in the countries of U.K., Italy, Austria, Netherlands, Switzerland, Sweden, Spain, Denmark, Germany, Norway and Finland.

All other brands and product names are trademarks or registered trademarks of their respective owners.

As an ENERGY STAR® Partner, NEC Display Solutions of America, Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency. The ENERGY STAR emblem does not represent EPA endorsement of any product or service.

Contents

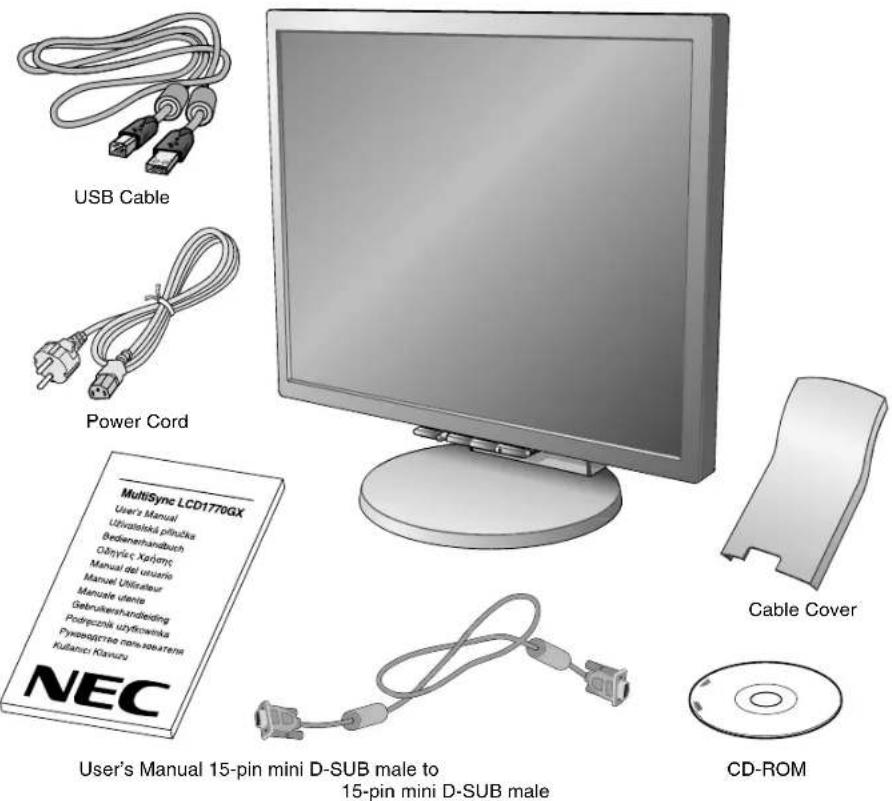

Your new NEC MultiSync LCD monitor box* should contain the following:

• MultiSync LCD1770GX monitor with tilt/swivel/pivot/height adjust stand
• Power Cord
  • Video Signal Cable
• USB Cable
• User's Manual
• Cable Cover
• CD ROM (includes complete User's Manual in PDF format). To see the User's Manual, Acrobat Reader 4.0 must be installed on your PC.

USB Cable Power Cord MultiSync LCD1770GX User's Manual Utilizatelnika pitudka Bedenerhandbuch Oblayuc Xpajmyc Manual del usuario Manual Utiliselaur Manuale utente Gebruikershandeling Podprzuk uzytkowska Pywadprzta neu-sowarene Kulatoc Kanuz NEC User's Manual 15-pin mini D-SUB male to 15-pin mini D-SUB male Cable Cover CD-ROM

NOTE: This monitor can be equipped with optional loudspeakers: "MultiSync Sound bar". Please ask your dealer or check our website http://www.nec-display-solutions.com

Front view of a silver computer monitor with a blank screen (no visible text or symbols)

* Remember to save your original box and packing material to transport or ship the monitor.

English-2

Quick Start

To attach the MultiSync LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

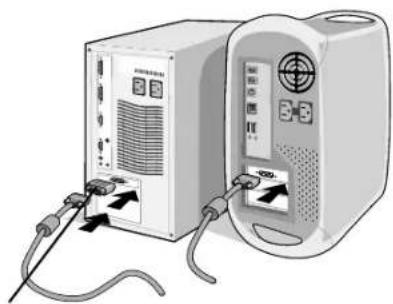

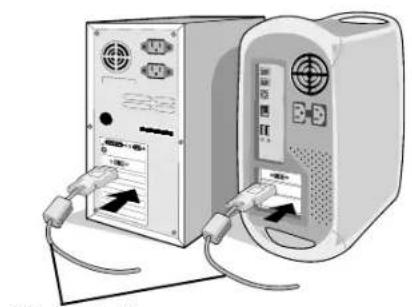

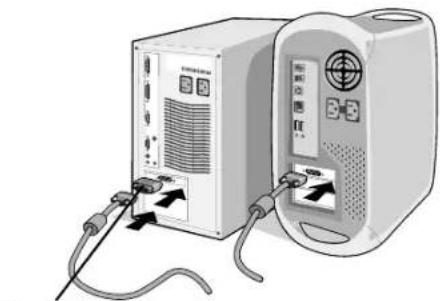

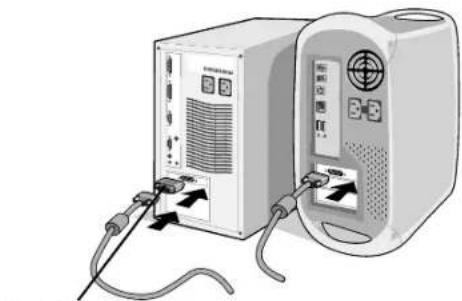

2. For the PC or MAC with DVI digital output: Connect the DVI signal cable (not included) to the connector of the display card in your system (Figure A.1). Tighten all screws.

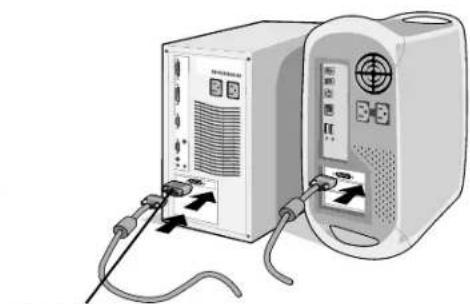

For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the connector of the display card in your system (Figure A.2). Tighten all screws.

For the MAC: Connect the Macintosh cable adapter to the computer, then attach the 15-pin mini D-SUB signal cable to the Macintosh cable adapter (Figure B.1). Tighten all screws.

Illustration of two computer units connected by cables, one with ports labeled 'V', showing internal wiring and ports (no text or symbols present)

DVI signal cable (not included)
Figure A.1 Figure B.1

Front view of a computer tower with attached cable and drive port (no visible text or labels)

Figure A.2

Illustration of two connected computer units with cables and connectors (no visible text or symbols)

Macintosh Cable Adapter (not included)

NOTE: Some Macintosh systems do not require a Macintosh cable adapter.

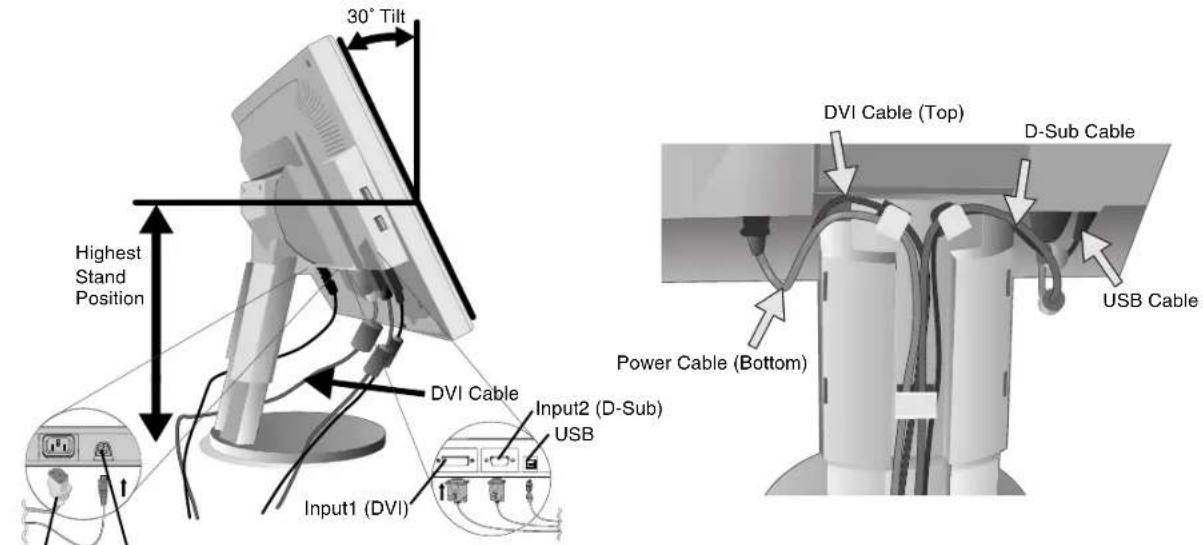

1. Place hands on each side of the monitor to tilt the LCD panel 30-degree angle and lift up to the highest position (Figure C.1).
2. Connect all cables to the appropriate connectors (Figure C.1).

NOTE: If connecting both DVI and D-sub cable, the DVI cable must be connected along side the rib on the power cord side (Figure C.1).

1. For successful cable management, place the cables in this order into the cable management: Power cable, DVI cable, D-Sub cable and USB cable (Figure C.2).

30° Tilt Highest Stand Position DVI Cable Input1 (DVI) Input2 (D-Sub) USB Power Cable (Bottom) DVI Cable (Top) D-Sub Cable USB Cable

Figure C.1 Figure C.2
DC-OUT
NEC optional product attachment.
Do not use this connector unless specified.

English-3

1. Place DVI cable and power cable into the specific hooks indicated in Figure C.3.
2. Place the D-Sub and USB cables into the specific hooks indicated in Figure C.4.
3. Make sure all cables are resting flat against the stand (Figure C.4).

DVI Cable Ridge

Power Cable

Close-up of a mechanical component with wires and a labeled arrow (no readable text or symbols)

D-Sub and USB cables

Figure C.3 Figure C.4

1. Hold the all cables firmly and place the cable cover onto the stand (Figure D.1). To remove the cable cover, lift the cover off as shown in Figure D.2.

Insert Top First Then Bottom

Illustration of a hand using a computer to measure a measurement tool, with an arrow indicating the motion (no text or symbols present)

Figure D.1 Figure D.2

1. Connect the power cord to the power outlet (Figure E.1).

NOTE: Please refer to Caution section of this manual for proper selection of AC power cord.

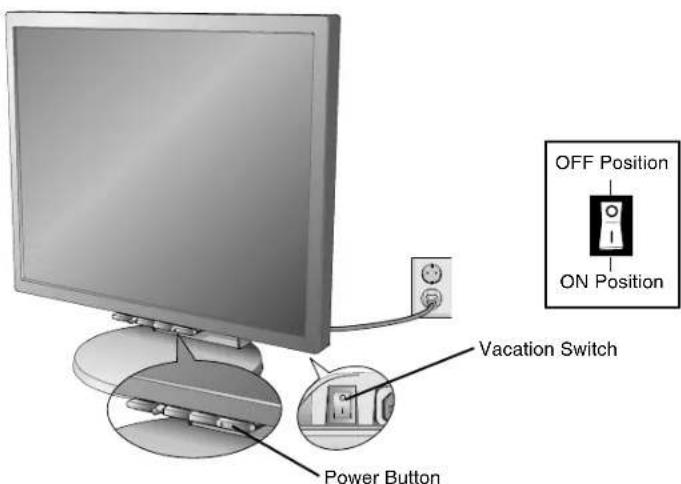

11. The vacation switch on the back side of the monitor must be turned on (Figure E.1). Turn on the monitor with the front power button and the computer.
NOTE: The vacation switch is a true on/off switch. If this switch is on the OFF position, the monitor cannot be turned on using the front button. DO NOT switch on/off repeatedly.
12. No-Touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup for most timings. For further adjustments, use the following OSM controls:

• Auto Adjust Contrast (Analog input only)
• Auto Adjust (Analog input only)

Refer to the Controls section of this User's Manual for a full description of these OSM controls.

NOTE: If you have any problems, please refer to the Troubleshooting section of this User's Manual.

OFF Position ON Position Vacation Switch Power Button

Figure E.1
English-4

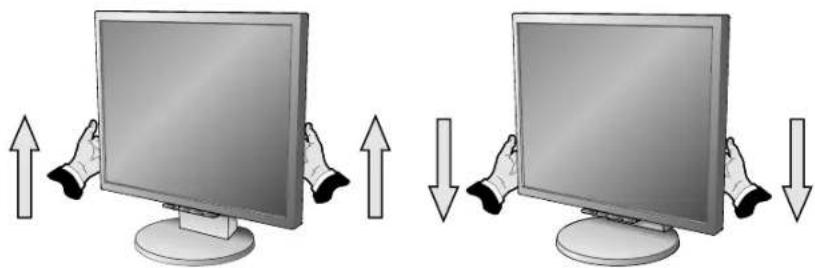

Raise and Lower Monitor Screen

The monitor may be raised or lowered. To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).

NOTE: Handle with care when raising or lowering the monitor screen.

Illustration of two computer monitors with hand gestures and directional arrows indicating movement (no text or symbols)

Figure RL.1

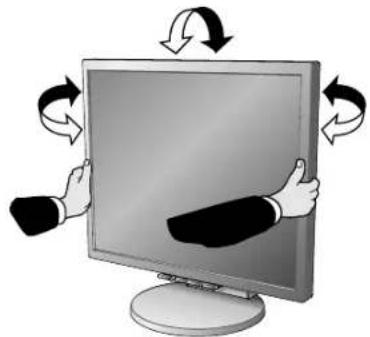

Tilt and Swivel

Grasp both sides of the monitor screen with your hands and adjust the tilt and swivel as desired (Figure TS.1).

NOTE: Handle with care when tilting and swivelling the monitor screen.

Illustration of hands interacting with a computer monitor, showing curved arrows indicating rotation (no text or symbols)

Figure TS.1

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

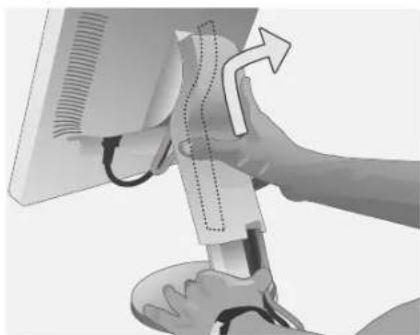

1. Place hands on each side of the monitor and lift up to the highest position. Remove the cable cover (Figure S.1).
2. Disconnect all cables.

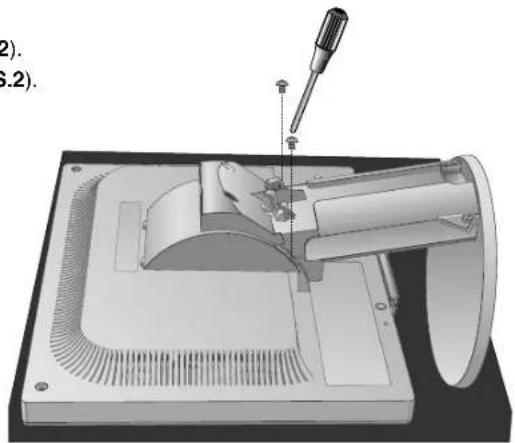

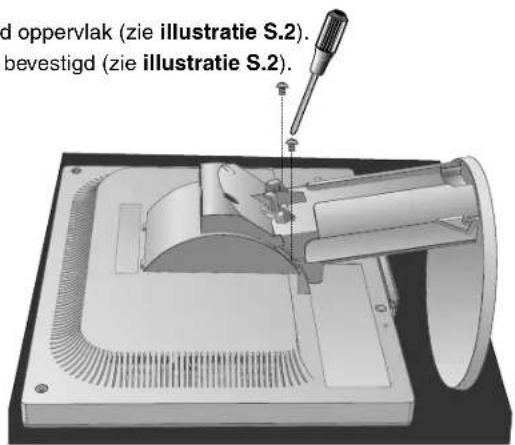

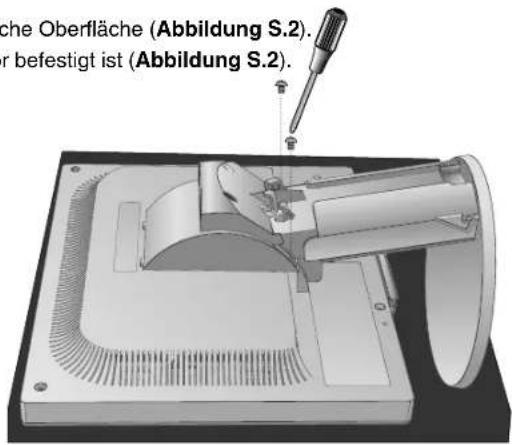

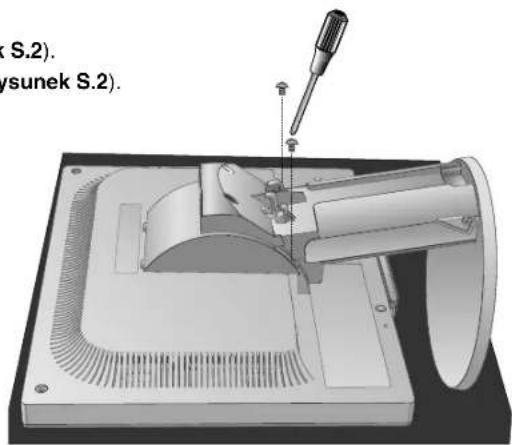

3. Place monitor face down on a non-abrasive surface (Figure S.2).

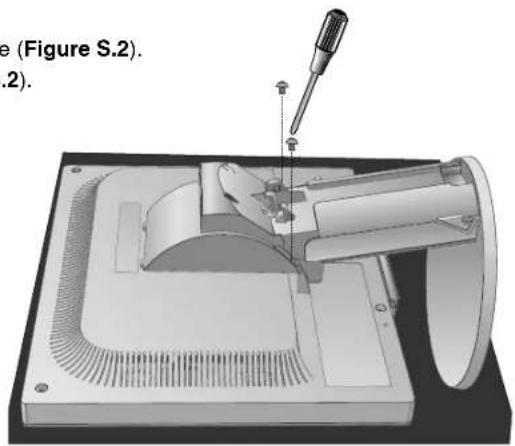

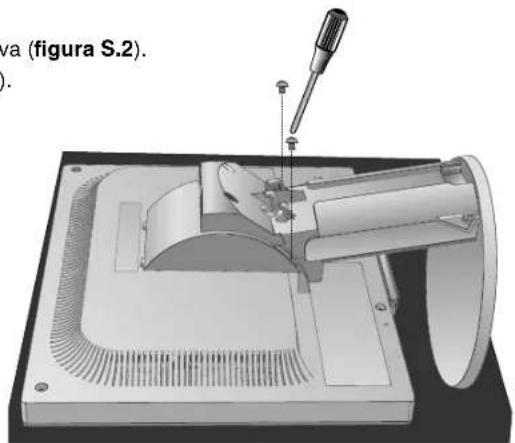

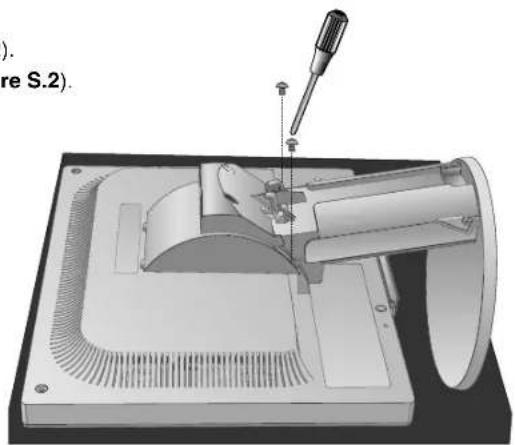

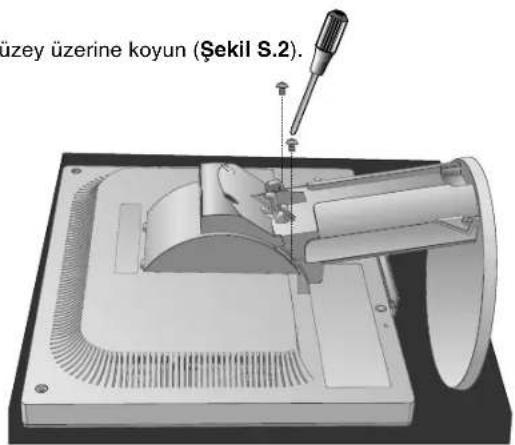

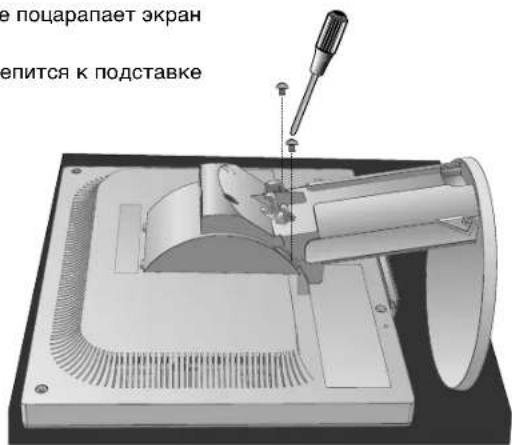

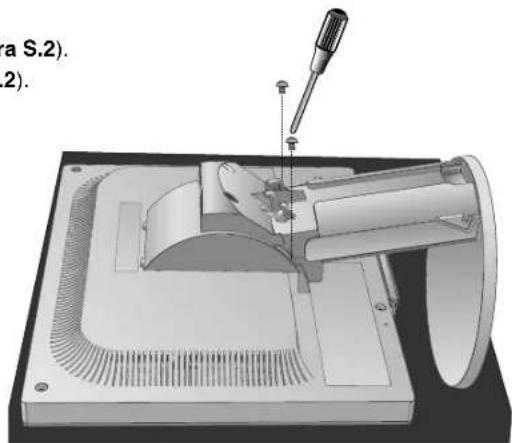

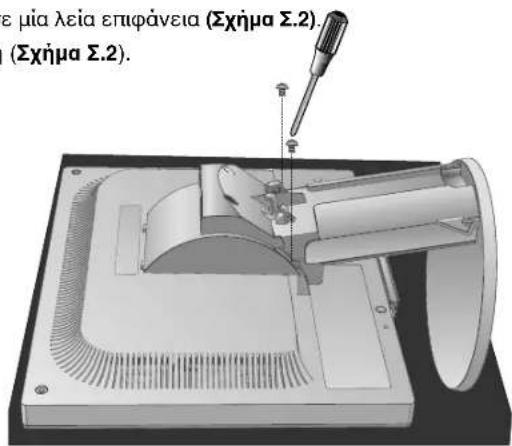

4. Remove the 2 screws connecting the stand to the monitor (Figure S.2).

Illustration of a hand using a computer monitor to press a cable or cable, with an arrow indicating the cable direction (no text or symbols present)

Figure S.1

3D mechanical assembly diagram showing a tool inserted into a housing component (no text or symbols visible)

Figure S.2
English-5

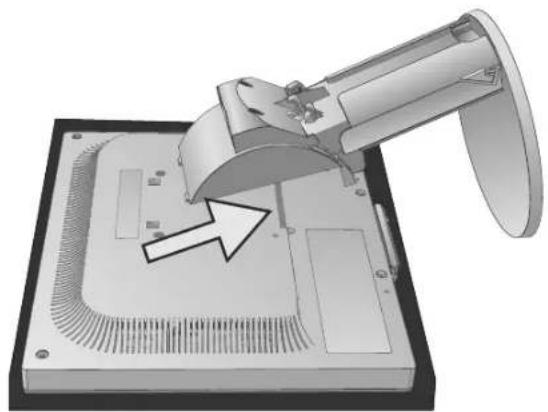

1. Lift up the stand to unlatch the upper hooks and remove the stand (Figure S.3).

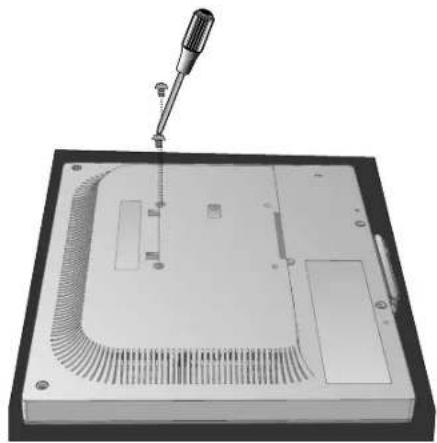

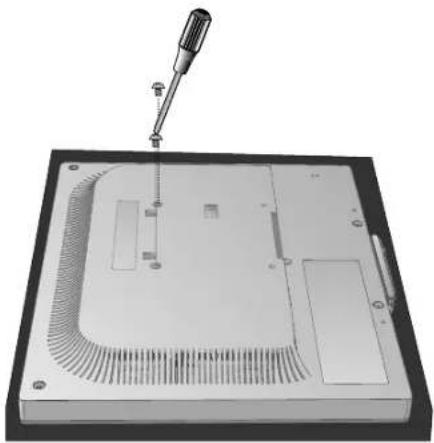

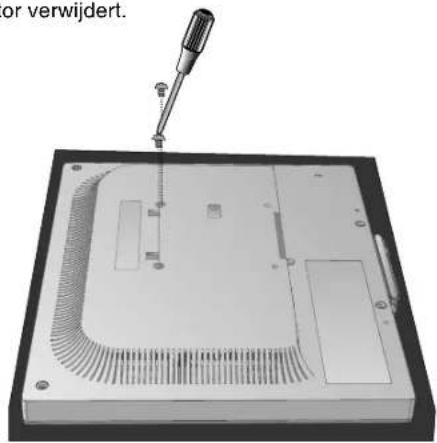

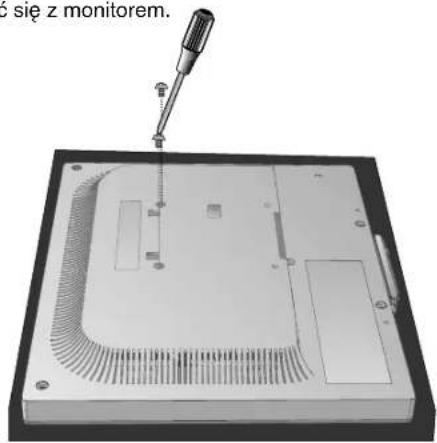

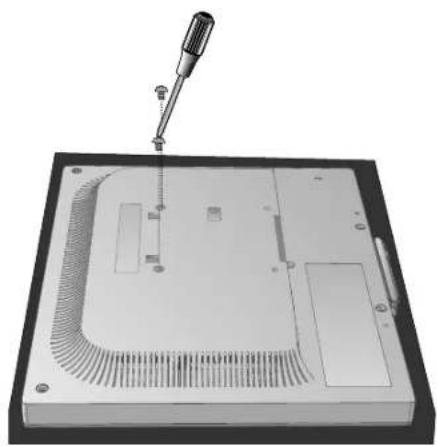

2. Remove the 2 screws on the top of the monitor (Figure S.4). The monitor is now ready for mounting in an alternate manner.
3. Connect the cables to the back of the monitor.
4. Reverse this process to re-attach stand.

NOTE: Use only VESA-compatible alternative mounting method. Handle with care when removing stand.

3D rendering of a mechanical device with a curved blade and arrow indicating a process (no text or symbols)

Figure S.3

3D rendering of a mechanical device with a screwdriver inserted, showing internal components and mounting holes (no text or symbols visible)

Figure S.4

Flexible Arm Installation

This LCD monitor is designed for use with a flexible arm. To mount the monitor to a flexible arm:

1. Follow the instructions on how Remove Monitor Stand for Mounting to remove the stand.
2. Using the 4 screws from the stand removal and attach the arm to the monitor (Figure F.1).

NOTE: The LCD monitor should only be used with an approved arm (e.g. GS mark). To meet the safety requirements, the monitor must be mounted to an arm, which guarantees the necessary stability under consideration of the weight of the monitor.

Thickness of Bracket (Arm) 2.0~3.2mm 4 Screws (4M) (Max Depth: 8.5mm) 100mm 100mm Weight of LCD assembly: 4.3kg (MAX)

Figure F.1

English-6

Controls

OSM (On-Screen Manager) control buttons on the front of the monitor function as follows:

To access OSM menu, press any of the control buttons (MENU/EXIT, Left, Right, Down, Up).

To change signal input, press the SELECT button.

To change DV MODE, press the RESET/DV MODE button.

NOTE: OSM must be closed in order to change signal input.

Button

Menu

MENU/EXIT

Open OSM main menu.

Exits the OSM controls.

Exits to the OSM main menu.

4-Direction-Key

RightLeft

Down

Left/Right

Moves the highlighted area left/right to select control menus.

Moves the bar left/right to increase or decrease the adjustment.

Direct adjust of brightness if HOT KEY is set to ON.

Enters the OSM menu if HOT KEY is set to OFF.

Down/Up

Moves the highlighted area down/up to select one of the controls.

Direct adjust of contrast if HOT KEY is set to ON.

Enters the OSM menu if HOT KEY is set to OFF.

SELECT

Active Auto Adjust function. Enter the OSM sub menu.

RESET/DV MODE Resets the highlighted control menu to the factory setting. Enters the DV Mode.

NOTE: When RESET is pressed in the main and sub-menu, a warning window will appear allowing you to cancel the RESET function by pressing the MENU/EXIT button.

Brightness/Contrast Controls

BRIGHTNESS

Adjusts the overall image and background screen brightness.

CONTRAST

Adjusts the image brightness in relation to the background.

DV MODE

Dynamic Visual Mode allows you to select setting for Movie, Picture and etc.

AUTO CONTRAST (Analog input only)

Adjusts the image displayed to optimal settings.

Auto Adjust (Analog input only)

Automatically adjusts the Image Position, H. Size and Fine settings.

Image Controls (Analog input only)

LEFT / RIGHT

Controls Horizontal Image Position within the display area of the LCD.

DOWN / UP

Controls Vertical Image Position within the display area of the LCD.

H.SIZE

Adjusts the horizontal size by increasing or decreasing this setting.

FINE

Improves focus, clarity and image stability by increasing or decreasing this setting.

Colour Control System

Colour Control System: Six colour presets select the desired colour setting (sRGB and NATIVE colour presets are standard and cannot be changed).

R,G,B: Increases or decreases Red, Green or Blue colour depending upon which is selected. The change in colour will appear on screen and the direction (increase or decrease) will be shown by the bars.

NATIVE: Original colour presented by the LCD panel that is unadjustable.

sRGB: sRGB mode dramatically improves the colour fidelity in the desktop environment by a single standard RGB colour space. With this colour supported environment, the operator could easily and confidently communicate colour without further colour management overhead in the most common situations.

Tools

OFF TIMER: Monitor will automatically power-down when the end user has selected a predetermined amount of time.

HOT KEY: You can adjust the brightness and contrast directly. When this function is set to ON, you can adjust the brightness with left or right control and contrast with up or down control while the OSM menu is off.

FACTORY PRESET: Selecting Factory Preset allows you to reset all OSM control settings back to the factory settings. The RESET button will need to be held down for several seconds to take effect. Individual settings can be reset by highlighting the control to be reset and pressing the RESET button.

Menu Tools

LANGUAGE: OSM control menus are available in eight languages.

OSM LEFT/RIGHT: You can choose where you would like the OSM control image to appear horizontally on your screen.

OSM DOWN/UP: You can choose where you would like the OSM control image to appear vertically on your screen.

OSM Turn Off: The OSM control menu will stay on as long as it is in use. In the OSM Turn Off submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSM control menu.

OSM Lock Out: This control completely locks out access to all OSM control functions without Brightness and Contrast. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM controls are locked out. To activate the OSM Lock Out function, press SELECT, then right control button and hold down simultaneously. To deactivate the OSM Lock Out, press SELECT, then left control button and hold down simultaneously while in the OSM menu.

RESOLUTION NOTIFIER: This optimal resolution is 1280 x 1024. If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not at 1280 x 1024.

Information

The Information menu indicates the current input, display resolution, horizontal and vertical frequency, and polarity settings of the monitor. The model and serial numbers of your monitor are also indicated.

OSM Warning

OSM Warning menus disappear with Exit button.

NO SIGNAL: This function gives a warning when there is no Horizontal or Vertical Sync. After power is turned on or when there is a change of input signal, the No Signal window will appear.

RESOLUTION NOTIFIER: This function gives a warning of use with optimized resolution. After power is turned on or when there is a change of input signal or the video signal doesn't have proper resolution, the Resolution Notifier window will open. This function can be disabled in the Menu Tools.

OUT OF RANGE: When input signal is non-supported timing or the video signal doesn't have proper timing, the Out of Range menu will appear.

Recommended use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE MULTISYNC LCD COLOUR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.
• Do not spill any liquids into the cabinet or use your monitor near water.
• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.
• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.
• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.
• Do not place any objects onto the monitor and do not use the monitor outdoors.
• The inside of the fluorescent tube located within the LCD monitor contains mercury. Please follow the bylaws or rules of your municipality to dispose of the tube properly.
• Do not bend power cord.
• Do not use monitor in high temperatured, humid, dusty, or oily areas.
• Do not cover vent on monitor.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
• If the monitor does not operate normally by following operating instructions.
• If glass is broken, handle with care.
• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.

CAUTION

• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.
• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.
• Handle with care when transporting. Save packaging for transporting.

- Image Persistence: Image persistence is when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided.

To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

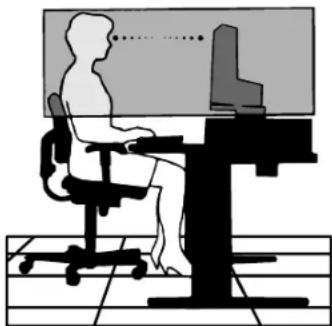

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for warm-up.
• Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.
• Position your monitor no closer than 40 cm and no further away than 70 cm from your eyes. The optimal distance is 50 cm.
• Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.
• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.
• If reflected light makes it hard for you to see your screen, use an anti-glare filter.
• Adjust the monitor's brightness and contrast controls to enhance readability.
• Use a document holder placed close to the screen.
• Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.
• Avoid displaying fixed patterns on the monitor for long periods of time to avoid image persistence (after-image effects).
• Get regular eye checkups.

Silhouette of a person sitting at a desk with a computer, no text or symbols visible

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

• Adjust the Brightness until the background raster disappears.
• Do not position the Contrast control to its maximum setting.
• Use the preset Size and Position controls with standard signals.
• Use the preset Colour Setting.
• Use non-interlaced signals with a vertical refresh rate between 60-75 Hz.
• Do not use primary colour blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast.

Cleaning the LCD Panel

Recommended cleaning of the LCD:

• To remove dust and dirt from the surface of the LCD panel, wipe gently with a soft cloth.
- Do not rub the LCD panel with rough material.
- Do not press on the surface of the LCD panel.

To avoid scratches

• Do not touch LCD panel with hard objects.
• Use only a soft cloth for cleaning the surface of the LCD panel.

To avoid stains

• Clean fingerprints, water drips, chemical spills and etc. from the LCD panel immediately or discoloration and spot will occur.
• If the LCD panel is rubbed with too much force, cracking may occur, which will lead to abnormalities in the display.

To avoid breakage or screen trouble

• Do not push hard on the LCD panel surface.
• Do not set heavy objects on the LCD panel surface.
• Do not leave the LCD panel under constant pressure.

Cleaning the Cabinet

• Unplug the power supply.
• Use a soft cloth.
• Dampen the cloth with a mild detergent mixed with water, wipe the cabinet and dry with a soft cloth.

NOTE: Many plastics are used on the cabinet surface. DO NOT clean with benzene, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder or insecticide. Do not touch the cabinet with rubber or vinyl for a prolonged period. These types of fluids and fabrics can cause the paint to deteriorate, crack or peel.

VAROVÁNÍ

CHRAŃTE ZAŘÍZENÍ PŘED DEŠTĚM A VLHKEM. ZABRÁNÍTE TAK NEBEZPEČÍ POŽÁRU NEBO ÚRAZU ELEKTRICKÝM PROUDEM. POLARIZOVANOU ZÁSTRČKU JEDNOTKY NEPOUŽÍVEJTE VE SPOJENÍ SE ZÁSUVKOU PRODLUŽOVACÍ ŠNŮRY NEBO JINÝMI ZÁSUVKAMI, POKUD KOLÍKY NELZE ZCELA ZASUNOUT.

UVNITŘ ZAŘÍZENÍ SE NACHÁZÍ VYSOKONAPĚTOVÉ KOMPONENTY, PROTO SKŘÍŇ NEOTEVÍREJTE. SERVIS SVĚRTE KVALIFIKOVANÉ OSOBĚ.

UPOZORNĚNÍ

UPOZORNĚNÍ: PRO SNÍŽENÍ RIZIKA ÚRAZU ELEKTRICKÝM PROUDEM ZKONTROLUJTE, ZDA JE NAPÁJECÍ ŠNŮRA ODPOJENA ZE ZÁSUVKY. PRO ÚPLNÉ ODPOJENÍ ZDROJE NAPÁJENÍ OD JEDNOTKY ODPOJTE NAPÁJECÍ ŠNŮRU Z ELEKTRICKÉ ZÁSUVKY (NEOSTRAŇUJTE KRYT). UVNITŘ SE NENACHÁZEJÍ DÍLY, DO KTERÝCH UŽIVATEL MŮŽE ZASAHOVAT. SERVIS SVĚRTE KVALIFIKOVANÉ OSOBĚ.

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

TÜV Rheinland Product Safety

ISO 13406-2

Front view of a modern computer monitor with a blank screen (no visible text or symbols)

Illustration of a hand using a computer to press a document with an arrow indicating motion (no text or symbols present)

Two identical computer monitors with hand gestures, showing left and right directional arrows (no text or symbols)

Obrázek RL.1

Naklánění a otáčení

Illustration of a computer monitor with hands holding a screen and arrows indicating rotation (no text or symbols)

Obrázek TS.1

Illustration of a hand using a computer mouse to adjust a scroll or grip (no text or symbols visible)

Obrázek S.1

3D mechanical assembly diagram showing a tool inserted into a housing with a screwdriver inserted (no text or symbols visible)

Obrázek S.2

Česky-5

3D illustration of a robotic arm cutting a computer monitor into a rack (no text or symbols visible)

Obrázek S.3

3D rendering of a mechanical device with a screwdriver inserted into a housing (no text or symbols visible)

Obrázek S.4

Silhouette of a person sitting at a desk with a computer, no text or symbols present

Ergonomika

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

TÜV Rheinland Product Safety

ISO 13406-2

Front view of a silver computer monitor with a blank screen (no visible text or symbols)

Kurzanleitung

Close-up of a mechanical component with wires and a labeled arrow (no readable text or symbols)

Illustration of a hand using a computer to measure a measurement tool with an arrow indicating motion (no text or symbols present)

Two identical computer monitors with hand gestures, showing upward and downward movement (no text or symbols)

Abbildung RL.1

Illustration of a computer monitor with hands holding a screen and arrows indicating rotation (no text or symbols)

Abbildung TS.1

Illustration of a hand using a computer mouse to press a cable, with an arrow indicating the motion (no text or symbols present)

Abbildung S.1

3D rendering of a robotic arm cutting through a computer motherboard with a directional arrow indicating motion (no text or symbols)

Abbildung S.3

3D rendering of a computer monitor with a screwdriver inserted, showing internal components and ventilation slots (no text or symbols)

Abbildung S.4

3D rendering of a computer monitor with a wall-mounted screen and a vertical panel, showing no visible text or symbols.

Deutsch-6

Bedienelemente

Silhouette of a person sitting at a desk using a computer, viewed from behind (no text or symbols present)

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Front view of a silver computer monitor with control buttons and a stand (no visible text or symbols)

Illustration of a hand using a computer to press a device, showing motion arrows (no text or symbols)

Σχήμα Δ.1 Σχήμα Δ.2

Illustration of two computer monitors with hand gestures and directional arrows indicating movement (no text or symbols)

Σχήμα ΡΛ.1

Illustration of a computer monitor with hands holding a screen and arrows indicating rotation (no text or symbols)

Σχήμα ΤΣ.1

Illustration of a hand using a computer mouse to press a cable, with an arrow indicating the cable's direction (no text or symbols present)

Σχήμα Σ.1

3D rendering of a mechanical device with a curved blade and arrow indicating a process (no text or symbols)

Σχήμα Σ.3

3D rendering of a mechanical device with a screwdriver inserted, showing internal components and mounting holes (no text or symbols visible)

Σχήμα Σ.4

3D rendering of a computer monitor with a wall-mounted screen and a cylindrical base (no visible text or symbols)

Πλήκτρα Ελέγχου

H. SIZE (OPIZONTIO MEΓΕΘΟΣ)

Silhouette of a person sitting at a desk with a computer, no text or symbols present

Front view of a silver CRT computer monitor with a blank screen (no visible text or symbols)

Illustration of a computer tower with ports and cables (no text or symbols visible)

Figura A.2

Illustration of two connected devices with cables and ports, no visible text or symbols

Two identical computer monitors with hand gestures showing left and right movement (no text or symbols)

Figura RL.1

Base inclinable y giratoria

Illustration of a computer monitor with hands holding a screen and arrows indicating rotation (no text or symbols)

Figura TS.1

Illustration of a hand inserting a cable into a computer monitor, with an arrow indicating the cable's direction (no text or symbols present)

Figura S.1

3D mechanical assembly diagram showing a tool inserted into a housing with a screwdriver inserted (no text or symbols visible)

Figura S.2

Español-5

3D illustration of a computer monitor with an open lid and ventilation slots, showing a mechanical component (no text or symbols)

Figura S.3

3D rendering of a mechanical device with a screwdriver inserted into a housing (no text or symbols visible)

Figura S.4

Silhouette of a person sitting at a desk with a computer, no text or symbols visible

Ergonomía

Front view of a silver computer monitor with a blank screen (no visible text or symbols)

Illustration of two connected computer units with cables and ports, no visible text or symbols

Front view of a computer tower with attached cable and ports (no visible text or labels)

Figure A.2

Illustration of a computer setup with two connected devices and cables (no visible text or symbols)

Illustration of a hand using a computer to press a document with an arrow indicating motion (no text or symbols present)

Figure D.1 Figure D.2

Illustration of two computer monitors with hand gestures and directional arrows indicating movement (no text or symbols)

Figure RL.1

Illustration of a computer monitor with hands holding a blank screen and arrows indicating rotation (no text or symbols)

Figure TS.1

Illustration of a hand using a computer to press a scroll or cable, with an arrow indicating the motion (no text or symbols present)

Figure S.1

3D mechanical assembly diagram showing a tool inserted into a housing with a screwdriver inserted (no text or symbols visible)

3D rendering of a robotic arm cutting through a computer motherboard with a white arrow indicating the cutting edge (no text or symbols present)

Figure S.3

3D rendering of a computer monitor with a screwdriver inserted, showing internal components and ventilation slots (no text or symbols)

Figure S.4

Installation du bras flexible

Silhouette of a person sitting at a desk with a computer, no text or symbols visible

Ergonomie

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Front view of a modern computer monitor with a blank screen (no visible text or symbols)

Two electronic devices with connected cables, one showing a display and the other a control panel (no visible text or symbols)

Front view of a computer tower with attached cable and drive port (no visible text or labels)

Figura A.2

Illustration of two connected computer units with cables and connectors (no visible text or symbols)

Illustration of a hand using a computer to measure a measurement tool, with an arrow indicating the motion (no text or symbols present)

Figura D.1 Figura D.2

Illustration of two computer monitors with hand gestures and directional arrows indicating movement (no text or symbols)

Figura RL.1

Inclinabile e Girevole

Illustration of a computer monitor with hands holding a blank screen, surrounded by curved arrows indicating rotation or refresh (no text or symbols)

Figura TS.1

Illustration of a hand inserting a cable into a computer monitor, with an arrow indicating the cable's direction (no text or symbols present)

Figura S.1

3D mechanical assembly diagram showing a tool inserted into a housing with a screwdriver inserted (no text or symbols visible)

Figura S.2

Italiano-5

3D illustration of a robotic arm cutting a mechanical component on a base (no text or symbols visible)

Figura S.3

3D rendering of a computer monitor with a screwdriver inserted, showing internal components and ventilation slots (no text or symbols)

Figura S.4

Silhouette of a person sitting at a desk with a computer, no text or symbols visible

Ergonomia

MultiSync LCD1770GX (L174F) in

overeenstemming is met

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

ISO 13406-2

Front view of a modern computer monitor with a stand (no visible text or symbols)

Close-up of a mechanical or electrical component with wires and a labeled arrow (no readable text or symbols)

Illustration of a hand using a computer to measure a measurement tool with an arrow indicating motion (no text or symbols present)

Illustration of two computer monitors with hand gestures and directional arrows indicating movement (no text or symbols)

Illustratie RL.1

Kijkhoek instellen

Illustration of a computer monitor with hands holding a screen, surrounded by curved arrows indicating rotation or refresh (no text or symbols)

Illustratie TS.1

Illustration of a hand using a computer monitor to press a cable or cable component, with an arrow indicating rotation (no text or symbols present)

Illustratie S.1

3D illustration of a computer monitor with an open lid and a curved blade, showing internal components (no text or symbols)

Illustratie S.3

3D rendering of a computer monitor with a screwdriver inserted, showing internal components and ventilation slots (no text or symbols)

Illustratie S.4

Zwenkarm monteren

3D rendering of a computer monitor with a wall-mounted screen and a cylindrical display (no visible text or symbols)

Nederlands-6

Besturingselementen

Brightness/Contrast Controls (Helderheid/contrast)

BRIGHTNESS (Helderheid)

Silhouette of a person sitting at a desk using a computer, no text or symbols visible

Ergonomie

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japonia

TÜV Rheinland Product Safety

ISO 13406-2

Front view of a modern computer monitor with a blank screen (no visible text or symbols)

Two electronic devices connected by cable, one with ports and cables, the other with a speaker (no visible text or symbols)

Illustration of a computer tower with attached cable and ports (no text or symbols visible)

Rysunek A.2

Illustration of a computer setup with two connected devices, one showing ports and cables (no text or symbols visible)

Close-up of a hand using a computer to interact with a scroll, showing motion arrows (no text or symbols)

Illustration of two computer monitors with hand gestures and directional arrows indicating movement (no text or symbols)

Rysunek RL.1

Illustration of a computer monitor with hands holding a screen and arrows indicating rotation (no text or symbols)

Rysunek TS.1

Close-up of a hand using a computer mouse to adjust a cable or cable component (no text or symbols visible)

Rysunek S.1

3D rendering of a mechanical device with a curved arm and internal components, showing a downward arrow indicating motion (no text or symbols present)

Rysunek S.3

Mechanical device with screwdriver inserted into a rectangular housing, showing internal components and ventilation slots (no text or symbols visible)

Rysunek S.4

3D rendering of a computer monitor with a small screen and control panel (no visible text or symbols)

Menu regulacyjne

DOWN/UP (POZYCJA PIONOWA)

Silhouette of a person sitting at a desk with a computer, no text or symbols present

Ergonomia

Two horizontal grayscale color swatches with a central crosshair and alignment lines (no text or symbols)

Two isolated geometric symbols: a crosshair and a square with a dot, on a plain background (no text or labels)

Polski-12

ПРЕДУПРЕЖДЕНИЕ

NEC Display Solutions, Ltd. 4-13-23, Shibaura, Minato-Ku Tokyo 108-0023, Japan

BZ 02

Front view of a silver computer monitor with a blank screen (no visible text or symbols)

Two electronic devices with connected cables, one showing ports and arrows indicating signal or data flow (no visible text or symbols)

Illustration of a computer tower with power cord and cable (no text or symbols visible)

Рисунок А.2

Illustration of a computer setup with two connected devices, one front-mounted and one back-mounted, showing ports and cables (no text or symbols visible)

Illustration of a hand using a computer to interact with a ruler, showing motion direction (no text or symbols)

Illustration of two computer monitors with hand gestures and directional arrows indicating movement (no text or symbols)

Рисунок RL.1

Наклон и вращение

Illustration of a computer monitor with hands holding a blank screen, surrounded by curved arrows indicating rotation or refresh (no text or symbols)

Рисунок TS.1

Illustration of a hand using a computer mouse to press a cable or cable, with an arrow indicating the cable direction (no text or symbols present)

Рисунок S.1

3D rendering of a mechanical device with a curved arm and arrow indicating a process or operation (no text or symbols visible)

Рисунок S.3

3D rendering of a mechanical device with a screwdriver inserted into a housing (no text or symbols visible)

Рисунок S.4

3D rendering of a computer monitor with a wall-mounted screen and a vertical panel, showing no visible text or symbols.

Русский-6

Органы управления

Silhouette of a person sitting at a desk with a computer, no text or symbols visible

Эргономика

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japonya

ISO 13406-2

Front view of a silver CRT computer monitor with a blank screen (no visible text or symbols)

Illustration of two connected computer units with cables and ports, no visible text or symbols

Front view of a computer tower with attached cable and drive port (no visible text or labels)

Şekil A.2

Illustration of two electronic devices connected by cables, one with a labeled power supply unit and cable connectors (no text or symbols visible)

Close-up of a mechanical or electrical component with wires and a labeled arrow pointing to a feature (no readable text or symbols)

Illustration of a person using a computer to measure a ruler or scale, with an arrow indicating the motion (no text or symbols present)

Illustration of two computer monitors with hand gestures and directional arrows indicating movement (no text or symbols)

Şekil RL.1

Ayak

Illustration of a computer monitor with hands holding a blank screen, surrounded by curved arrows indicating rotation or refresh (no text or symbols)

Şekil TS.1

Illustration of a hand using a computer monitor to adjust a cable or cable component, with an arrow indicating the motion (no text or symbols present)

Şekil S.1

3D rendering of a mechanical device with a curved blade and internal components, showing a directional arrow (no text or symbols)

Şekil S.3

3D rendering of a mechanical device with a screwdriver inserted into a housing (no text or symbols visible)

Şekil S.4

Silhouette of a person sitting at a desk with a computer, no text or symbols visible

Ergonomi

Three horizontal grayscale color swatches with a central crosshair target (no text or symbols)

Two isolated geometric symbols: a crosshair and a circle with crosshairs, both without any text or labels.

xx_Back 4/20/05, 9:55 AM1

NEC

Printed on recycled paper

Printed in China

Part No. ____
