USER MANUAL RKSB560AC KITCHENAID

White kitchen aid blender with red liquid, no visible text or symbols on the device itself.

KitchenAid®

KitchenAid.com

KitchenAid.ca

Proof of Purchase & Product Registration

Always keep a copy of the sales receipt showing the date of purchase of your Blender. Proof of purchase will assure you of in-warranty service.

Before you use your Blender, please fill out and mail your product registration card packed with the unit. This card will enable

us to contact you in the unlikely event of a product safety notification and assist us in complying with the provisions of the Consumer Product Safety Act. This card does not verify your warranty.

Please complete the following for your personal records:

Model Number

Serial Number

Date Purchased

Store Name and Location

Pure horizontal and vertical lines without any text, numbers, or symbols

Pure geometric lines forming a symmetrical shape with no text, numbers, or symbols

Table of Contents

INTRODUCTION

Proof of Purchase & Product Registration Card ....... Inside Front Cover

Blender Safety 3

Important Safeguards 4

Electrical Requirements 5

FEATURES AND OPERATION

Blender Features 6

Preparing the Blender for Use 8

Before First Use 8

Blender Assembly 8

Using the Blender 9

Before Use 9

Operating the Blender 9

Crush Ice Feature 9

Pulse Mode Feature 10

Ingredient Cap 10

Soft Start™ Blending Feature 10

Speed Control Guide 11

CARE AND CLEANING

Cleaning the Blender 12

Troubleshooting 13

BLENDER TIPS

Quick Tips 14

How To 14

Continued on next page

Table of Contents

RECIPES

Margarita 16

Sparkling Cran-Pineapple Drink 16

Strawberry-Banana Smoothie 16

Rum Mocha 17

Italian Tortellini Tomato Soup 17

Blueberry Pancakes and Sauce 18

Raspberry Vinaigrette Dressing 18

Chocolate Pot De Crème 19

Fresh Fruit Milk Shake 19

WARRANTY AND SERVICE INFORMATION

KitchenAid® Blender Warranty 20

Hassle-Free Replacement Warranty – 50 United States and District of Columbia ......21

Hassle-Free Replacement Warranty – Canada 21

How to Arrange for Warranty Service in Puerto Rico 21

How to Arrange for Service after the Warranty Expires – All Locations ......22

How to Arrange for Service Outside these Locations ....22

How to Order Accessories and Replacement Parts 22

NOTE: DUE TO THE UNIQUE CONTAINER AND BLADE DESIGN, READ THESE INSTRUCTIONS AND RECIPES BEFORE USING YOUR NEW KITCHENAID® BLENDER TO ACHIEVE MAXIMUM PERFORMANCE RESULTS.

Blender safety

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMpoRtaNt safEGuaRDs

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:

1. Read all instructions.
2. To protect against risk of electrical shock, do not put Blender in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
5. Avoid contact with moving parts.
6. Do not operate the Blender with a damaged cord or plug or after appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest Authorized Service Center for examination, repair or electrical or mechanical adjustment.
7. Do not use outdoors.
8. Do not let cord hang over edge of table or counter.
9. Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the Blender. A scraper may be used but must be used only when the Blender is not running.
10. Blades are sharp. Handle carefully.
11. Always operate Blender with cover in place.
12. The use of attachments, including canning jars, not recommended by KitchenAid may cause a risk of injury to persons.
13. When blending hot liquids, remove center piece of two-piece cover.
14. This product is designed for household use only.

save tHEsE INstRuctIoNs

Electrical Requirements

Volts: 120 Volts A.C. only.

Hertz: 60 Hz

NOTE: Your Blender has a 3-prong grounded plug. To reduce the risk of electrical shock, this plug will fit in an outlet only one way. If the plug does not fit in the outlet, contact a qualified electrician. Do not modify the plug in any way.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

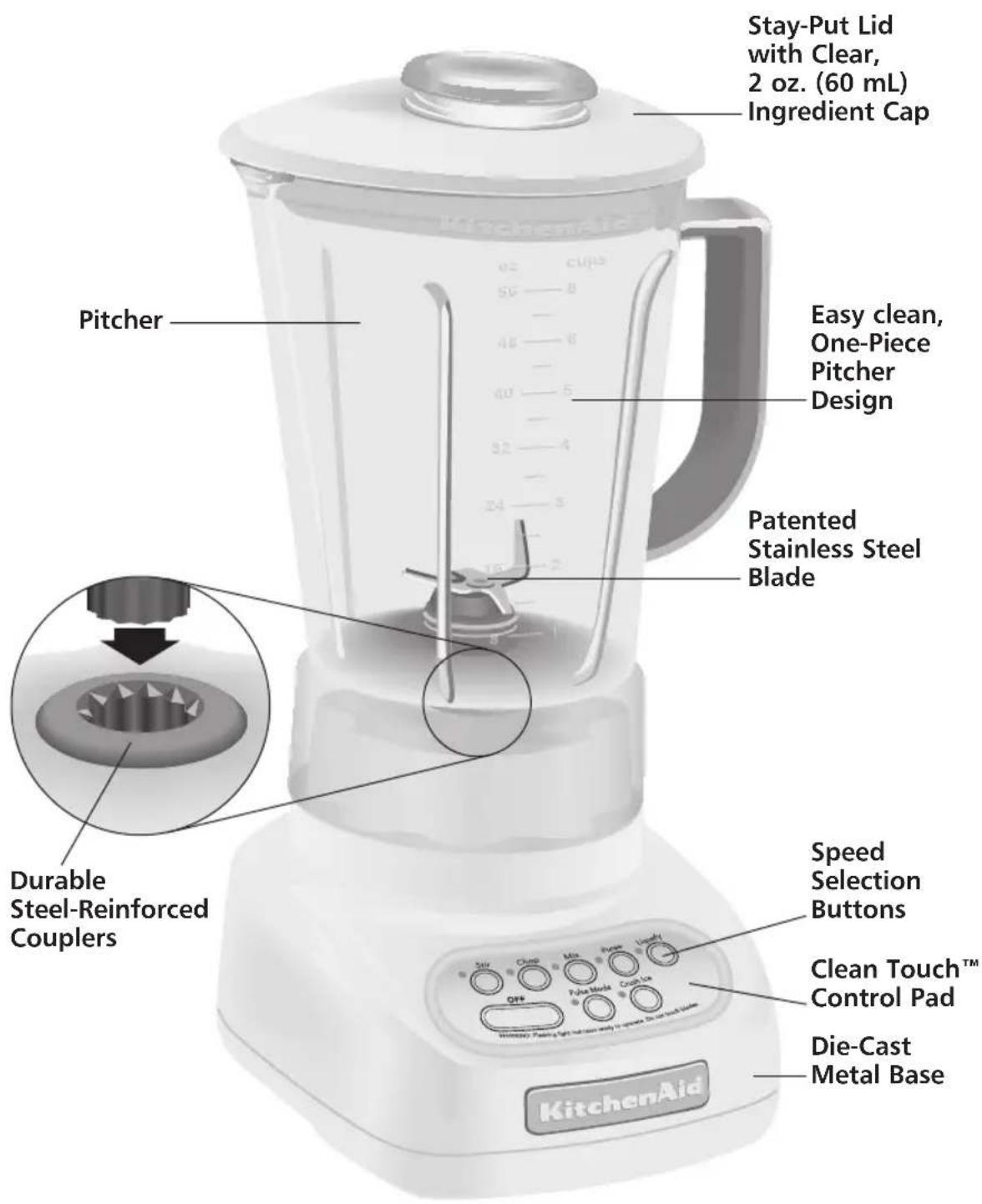

Blender Features

Stay-Put Lid with Clear, 2 oz. (60 mL) Ingredient Cap Pitcher Easy clean, One-Piece Pitcher Design Patented Stainless Steel Blade Durable Steel-Reinforced Couplers Speed Selection Buttons Clean Touch™ Control Pad Die-Cast Metal Base KitchenAid

Models KSB560 and KSB580 56 oz. (1.75 L) Pitcher

Blender Features

This Blender was built and tested to KitchenAid quality standards for optimum performance and long, trouble-free life.

Robust Motor

Rugged 0.9-horsepower motor supplies the power for superb performance with all blending tasks – from pureeing sauces to making chunky salsas, or uniformly crushing a pitcher of ice or frozen fruit within seconds for silky smoothies.

Easy clean,

One-Piece Pitcher Design

One-piece design integrates a functional pitcher with dynamic interior contours that continually directs food into the blade for fast, thorough blending. The one-piece design also means cleaning is achieved without removing the blade and other parts. Pitcher stands up to extreme temperatures – from boiling soups to frozen margaritas and has a wide pour spout to ensure smooth pouring. Pitcher is dishwasher safe.

Pitcher

[Models KSB560 and KSB580] One-piece 56 oz. (1.75 L) capacity clear, pitcher is shatter resistant, scratch resistant, and stain resistant. Pitcher

handle features soft inner-grip for firm, comfortable, no-slip control.

Patented Stainless Steel Blade

Sharp oversized blade tines are positioned on four different planes for fast, thorough, and consistent blending. Our durable blade design is built into the pitcher for easy handling and cleaning.

Intelli-Speed™ Motor Control

Exclusive Intelli-Speed™ control automatically works to keep speed constant – even through density changes when ingredients are added. This advanced KitchenAid design maintains an optimal blending speed for each culinary task and control-pad setting.

Speed Selection Buttons

Create frozen drinks and puree sauces or soups in seconds. Blend with confidence, control, and consistency at all speed settings: STIR, CHOP, MIX, PUREE, and LIQUEFY. The PULSE MODE works with all five speeds. The CRUSH ICE mode is designed specifically for crushing ice and will automatically pulse at staggered intervals for optimal results.

Soft Start™ Feature

The Blender motor starts at a slower speed to pull food into the blade then quickly increases to selected speed setting. This design feature reduces start-up kick and allows hands-free operation.

Clean Touch™ Control Pad

Wipes clean in an instant. Smooth control pad has no crevices or cracks to trap ingredients.

Durable Steel-Reinforced Couplers

Commercial-quality couplers with 12 interlocking teeth provide direct transfer of motor power to the blade. Pitcher coupler is coated for quiet operation.

Stay-Put Lid with Clear, 2 oz. (60 mL) Ingredient Cap

Provides a strong seal. The flexible lid will maintain its tight seal throughout the life of the Blender. The lid includes a removable 2 oz. (60 mL) cap for convenience in measuring and adding ingredients.

Die-Cast Metal Base

Heavy, die-cast metal base ensures stable, quiet operation when blending a full pitcher of ingredients. Four rubber feet on wide, solid base provide a no-slip, non-marring grip. Smooth and rounded, the base is easy to clean and features tidy cord storage underneath.

Preparing the Blender for Use

Before First Use

Before using your Blender for the first time, wipe Blender base with a warm sudsy cloth, then wipe clean with a damp cloth. Dry with a soft cloth. Wash one-piece pitcher, lid, and ingredient cap in warm, sudsy water or just add soap and warm water to the pitcher, place it on the Blender base, and blend to clean (see Care and Cleaning section). Rinse parts and wipe dry.

Blender Assembly

1. Adjust the length of the power cord to suit your needs.

Top-down view of a white electronic device with ventilation grilles and a central circular component (no text or symbols visible)

Top-down view of a vintage-style electronic device with ventilation grilles and a central circular component (no visible text or symbols)

Top-down view of a white electronic device with ventilation grilles and a central circular component (no visible text or symbols)

1. Place the one-piece pitcher on the Blender base.

White blender with a black downward arrow indicating compression (no text or symbols visible)

WARNING

Electrical Shock Hazard Plug into a grounded 3 prong outlet.

Do not remove ground prong. Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug into a grounded 3-prong outlet. Blender is now ready for operation.
2. Before removing the pitcher from the base after use, always press OFF and unplug the power cord. If using the Pulse Mode, make sure the blinking red light is off (by pressing OFF) then unplug. Lift the pitcher in a straight, upward motion off of the Blender base.

Using the Blender

Before Use

NOTE: While the Blender is on or the Pulse Mode indicator light is blinking:

• Do not interfere with blade movement
• Do not remove pitcher lid

Operating the Blender

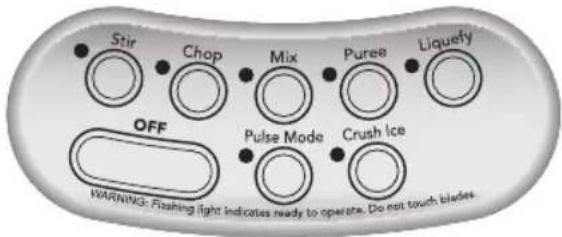

The KitchenAid® Blender has five speeds: STIR, CHOP, Mlx, PUREE, and LIQUEFY. In addition, it also features CRUSH ICE and PULSE MODE.

Stir Chop Mix Puree Liquefy OFF Pulse Mode Crush Ice WARNING: Rashing light indicates ready to operate. Do not touch blades.

1. With convenient one-step operation, this unit will operate only when a speed selection button is pressed.
2. Before operating the Blender, make sure the pitcher is properly placed on the Blender base.
3. Put ingredients in pitcher and firmly attach lid.

Close-up of a kitchen mixer with lid and handle (no visible text or symbols)

1. Press the desired speed button for continuous operation at that speed. The red indicator light by the selected speed will stay lit. You may change settings without stopping the unit by pressing a new speed button.

IMPORTANT: If blending hot foods or liquids, remove the center ingredient cap. Operate only on STIR speed.

1. To turn off the Blender, press OFF. The Off button will stop any speed and deactivate the Blender at the same time. Before removing the pitcher, press OFF to deactivate the Blender, and unplug the power cord.

Crush Ice Feature

Your KitchenAid® Blender offers a Crush Ice feature. When selected, the Blender will automatically pulse at staggered intervals at the optimal speed for crushing ice or other ingredients.

1. Before operating the Blender, make sure the pitcher is properly in place on the Blender base.
2. Put ingredients into the pitcher and firmly attach lid.

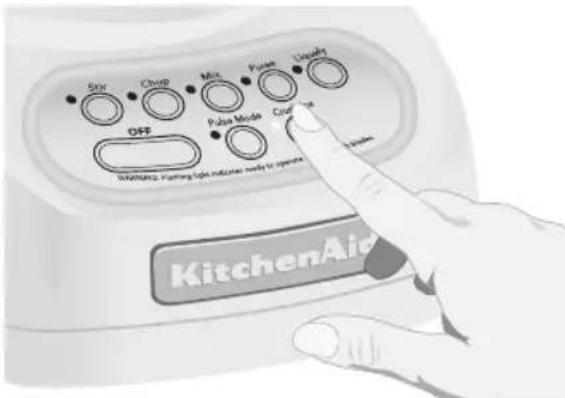

3. Press CRUSH ICE. The indicator light will stay lit. The Blender will automatically pulse at staggered intervals.

Siri Chorp Mix Pulse Lock OFF Pulse Mode Control KitchenAid

1. To turn off the Crush Ice feature, press OFF. The Blender is now ready for continuous operation.
2. Before removing the pitcher, press OFF to deactivate the Blender, and unplug the power cord.

Using the Blender

Pulse Mode Feature

Your KitchenAid® Blender offers Pulse Mode, which allows a "Pulse-at-any-Speed" feature.

NOTE: Pulse Mode will not work with the Crush Ice feature.

1. Before operating the Blender, make sure the pitcher is properly in place on the Blender base.
2. Put ingredients into pitcher, and firmly attach lid.

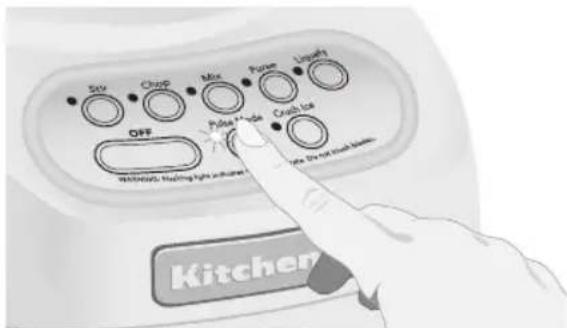

3. Press PULSE MODE. The indicator light above the button will blink to indicate that all five speeds are in the Pulse Mode.

Sry Chip Mix Power Upgrade OFF Add A Mode Cash Ice Kitchen

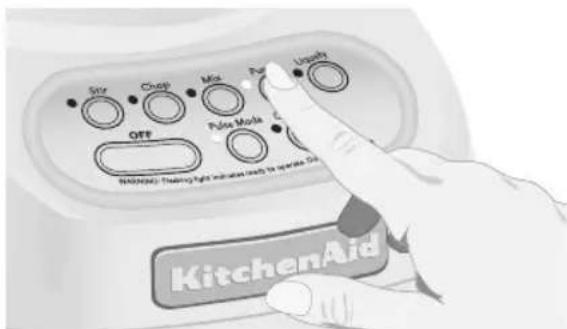

1. Select a speed button. Press and hold for the desired length of time. Both the speed button and Pulse Mode indicators will stay lit when pulsing at the selected speed. When button is released, the blending will stop, but the Blender will remain in Pulse Mode and the Pulse Mode indicator will return to blinking. To pulse again or at another speed, simply press and hold the button of the desired speed.

Snr Chop Mix Power Lights OFF Polar Mode KitchenAid

1. To turn off the Pulse Mode feature, press OFF. The Blender is now ready for continuous operation.
2. Before removing the pitcher, press OFF to deactivate the Blender, and unplug the power cord.

Ingredient Cap

The 2 oz. (60 mL) ingredient cap can be used to measure and add ingredients. Remove cap and add ingredients at STIR, CHOP or Mlx speeds. When operating at higher speeds, with a full pitcher or with hot contents, stop the Blender and then add ingredients.

Soft Start™ Blending Feature

The Soft Start ^™ blending feature automatically starts the Blender at a lower speed to draw ingredients into the blades, then quickly increases to the selected speed for optimal performance.

NOTE: The Soft Start™ blending feature only works when a speed is selected from the "Off" mode. The Soft Start™ feature does not work with Pulse Mode or Crush Ice.

Speed Control Guide

Item	Speed
Blended ice drink	Liquefy
Cheesecake	Liquefy
Chopped fruits	Pulse on Stir
Chopped vegetables	Pulse on Stir
Cream cheese-based spread	Stir
Cream soup	Stir
Crushed/chopped Ice	Crush Ice
Dip	Stir
Finely chopped fresh fruits	Crush Ice
Finely choppedfresh vegetables	Crush Ice
Fluffy gelatin for pie/desserts	Liquefy
Frozen chopped fruit(defrost slightly until itcan be probed with aknife tip)	Crush Ice
Frozen yogurt-based drink	Liquefy
Fruit juice fromfrozen concentrate	Mix
Fruit-based drink	Liquefy
Fruit-based sauce	Stir
Grated hard cheese	Liquefy
Gravy	Mix

Item	Speed
Ice milk-based drink	Liquefy
Meat salad for sandwich filling	Pulse on Chop
Mousse	Liquefy
Oatmeal	Puree
Pancake batter	Mix
Pesto	Chop
Pureed fruit/Baby food	Puree
Pureed meat/Baby food meat	Puree
Pureed vegetables/Baby food vegetables	Puree
Salad dressing	Mix
Savory crumb topping	Pulse on Chop
Sherbet-based drink	Liquefy
Smooth ricotta or cottage cheese	Mix
Streusel topping	Chop
Sweet crumb topping	Pulse on Chop
Sweet crunch topping	Pulse on Chop
Vegetable-based main dish sauce	Stir
Waffle batter	Mix
White sauce	Stir

Tip - Process up to one standard ice cube tray or 12 to 14 standard ice cubes at a time. Occasional stirring with a spatula when Blender is off will be helpful. The Crush Ice feature has been optimized to crush and chop ice without adding any liquid ingredients.

care and cleaning

The Blender pitcher and blade can be easily cleaned without disassembly.

• Clean the Blender thoroughly after every use.
• Do not immerse the Blender base or cord in water.

• Do not use abrasive cleansers or scouring pads.

• To clean the blade, place the pitcher on the Blender base, fill one-half full with warm (not hot) water, and add 1 or 2 drops of dishwashing liquid. Place the lid on the pitcher, press the STIR speed setting, and run the Blender for 5 to 10 seconds. Remove the pitcher and empty contents. Rinse the pitcher with

warm water until clean. The pitcher can also be washed in the bottom rack of an automatic dishwasher.

1. To clean the lid and ingredient cap, wash in warm soapy water, then rinse and dry thoroughly. These parts can also be washed in the top rack of an automatic dishwasher. For best results, hand washing is recommended.
2. Wipe the Blender base and cord with a warm, sudsy cloth; wipe clean with a damp cloth, and dry with a soft cloth. For storage, the cord can be coiled into the cord-wrap on the bottom of the base.

Troubleshooting

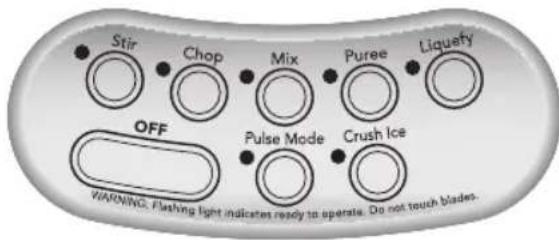

The Blender does not operate when a setting is selected:

Stir Chop Mix Puree Liquety OFF Pulse Mode Crush Ice WARNING. Flashing light indicates ready to operate. Do not touch blades.

No indicator lights are lit.

Check to see if the Blender is plugged into a grounded 3-prong outlet. If it is, press OFF, then unplug the Blender. Plug it back in to the same outlet. If the Blender still does not work, check the fuse or circuit breaker on the electrical circuit the Blender is connected to and make sure the circuit is closed.

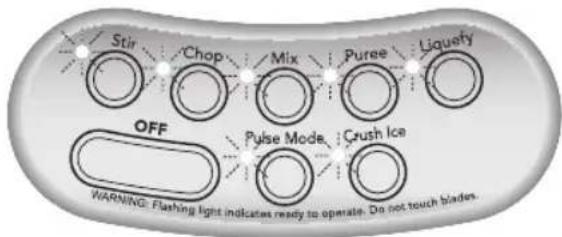

The Blender stops while blending:

Stir Chop Mix Puree Liquefy OFF Pulse Mode Crush Ice WARNING: Flashing light indicates ready to operate. Do not touch blades.

All indicator lights are flashing at the same time.

The Blender may be overloaded. If the Blender becomes overloaded when blending heavy ingredients, it will automatically shut off to avoid damage to the motor. Press OFF to reset the Blender. Remove the jar from the base and divide the jar contents into smaller batches. Adding liquid to the jar may also reduce the load on the Blender.

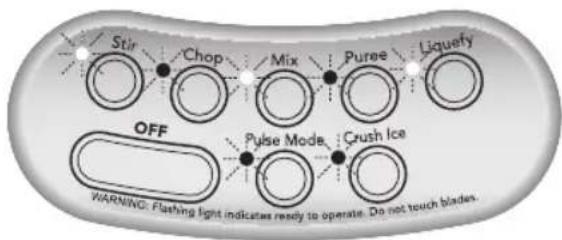

Stir Chop Mix Puree Liquefy OFF Pulse Mode Crush Ice WARNING: Flashing light indicates ready to operate. Do not touch blades.

Indicator lights are flashing alternately.

The Blender may be jammed. If it's jammed, the Blender will stop running to avoid damage to the motor. Press OFF to reset the Blender. Remove the pitcher from the base and free the blades by breaking-up or removing the contents at the bottom of the jar.

If the problem cannot be fixed with the steps provided in this section, then contact KitchenAid or an authorized service center.

USA/Puerto Rico:

1-800-541-6390

Canada:

1-800-807-6777

Mexico:

See the KitchenAid Warranty and Service section on page 22 for additional details.

Do not return the Blender to the retailer – they do not provide service.

Blender Tips

Quick Tips

• In order to produce a smoother texture, blend with CRUSH ICE if you're making beverages using ice.
• Smaller ice cubes can be chopped or crushed faster than large ones.
• Add food to this Blender pitcher in larger quantities than you would with other blenders – you can add 2 to 3 cups (475 to 710 mL) at a time versus 1 cup (235 mL) portions.
• For many ingredient mixtures, start the blending process at STIR to thoroughly combine the ingredients. Then increase to a higher speed, if necessary.
• Be sure to keep lid on pitcher while blending.
• If desired, remove center cap of pitcher lid to add liquids or ice cubes while the Blender is operating at STIR, CHOP or MIX speeds.
• When operating at higher speeds with a full pitcher or with hot contents, stop the Blender and then add ingredients.
• Stop the Blender before using utensils in the pitcher. Use a rubber spatula to mix ingredients only when the Blender is OFF. Never use any utensil, including spatulas, in the pitcher while the motor is running.
• Cool hot foods, if possible, before blending. Begin blending warm foods at STIR. Increase to higher speed, if necessary.
• Remove center ingredient cap when blending hot liquids and operate only on STIR. Do not place bare hand on pitcher lid when processing hot liquids.
• Stop and check the consistency of foods after a few seconds to avoid over-processing.

How To ...

Reconstitute frozen juice: For a 6 oz. (175 mL) can of orange juice concentrate, combine the juice and correct amount of water in the pitcher. Cover and blend at MIX until thoroughly combined, about 10 to 15 seconds.

For a 12 oz. (355 mL) can, combine the juice and 1 can of water in the pitcher. Cover and blend at MIX until thoroughly combined, about 20 to 30 seconds. Stir in remaining 2 cans of water.

Dissolve flavored gelatin: Pour boiling water into the pitcher; add gelatin. Remove center ingredient cap and blend at STIR until gelatin is dissolved, about 10 to 30 seconds. Add other ingredients.

Make cookie and graham cracker crumbs: Break larger cookies into pieces about 1½ inches (3.75 cm) in diameter. Use smaller cookies as-is. Place in pitcher. In PULSE MODE, cover and blend at CHOP, pulsing a few times, about 3 seconds each time, until desired consistency is reached. Use the crumbs to make a quick topping for frozen yogurt, pudding, or a fruit compote.

To make a finer crumb for pie and dessert crusts, break graham crackers or cookies into pieces about 1^1/2 inches (3.75 cm) in diameter and place in the pitcher. In PULSE MODE, cover and blend at LIQUEFY, pulsing a few times until desired consistency is reached, about 20 to 30 seconds.

Make cracker crumbs: Follow procedure for cookies. Use as a topping or as an ingredient in main dish casseroles and vegetable dishes.

Make bread crumbs: Tear bread into pieces about 1 ^1/2 inches (3.75 cm) in diameter. Follow procedure for cookies. Use as a topping or as an ingredient in main dish casseroles and vegetable dishes.

Blender Tips

Chop fruits and vegetables: Put 2 cups (475 mL) of fruit or vegetable chunks in pitcher. In PULSE MODE, cover and blend at STIR, pulsing a few times, about 2 to 3 seconds each time, until desired consistency is reached.

Puree fruits: Place 2 cups (475 mL) canned or cooked fruit in pitcher. Add 2 to 4 tablespoons (30 to 60 mL) fruit juice or water per cup (235 mL) of fruit. Cover and blend at PUREE about 5 to 10 seconds.

Puree vegetables: Place 2 cups (475 mL) canned or cooked vegetables in pitcher. Add 2 to 4 tablespoons (30 to 60 mL) broth, water, or milk per cup (235 mL) of vegetables. Cover and blend at PUREE about 10 to 20 seconds.

Puree meats: Place cooked, cubed, tender meat in pitcher. Add 3 to 4 tablespoons (45 to 60 mL) broth, water, or milk per cup (235 mL) of meat. Cover and blend on STIR 10 seconds. Stop the Blender and scrape sides of pitcher. Cover and blend on PUREE 10 to 20 seconds longer.

Puree cottage cheese or ricotta

cheese: Place cottage cheese or ricotta cheese in pitcher. Cover and blend at MIX until smooth, about 25 to 35 seconds. Stop the Blender and scrape sides as needed. If necessary, add 1 tablespoon (15 mL) of skim milk per cup (235 mL) of cottage cheese. Use as a base for low-fat dips and spreads.

Combine liquid ingredients for baked goods: Pour liquid ingredients in pitcher. Cover and blend at LIQUEFY until well-mixed, about 10 to 15 seconds. Pour liquid mixture over dry ingredients and stir well.

Take lumps out of gravy: If sauce or gravy becomes lumpy, place in the pitcher. Cover and blend at MIX until smooth, about 5 to 10 seconds.

Combine flour and liquid for thickening: Place flour and liquid in pitcher. Cover and blend at STIR until smooth, about 5 to 10 seconds.

Prepare white sauce: Place milk, flour, and salt, if desired, in pitcher. Cover, and blend at STIR until well-mixed, about 5 to 10 seconds. Pour into saucepan and cook as usual.

Prepare pancake or waffle batter from mix: Place mix and other ingredients in pitcher. Cover and blend at MIX until well-mixed, 10 to 20 seconds. Stop the Blender and scrape sides of the pitcher as needed.

Grate cheese: Cut very cold cheese into 12 to 1 inch (1.25 to 1.5 cm) cubes. Place up to 12 cup (120 mL) cheese in the pitcher. Cover, and blend at LIQUEFY about 5 to 10 seconds. For hard cheeses, such as Parmesan, bring to room temperature, then blend at LIQUEFY for 10 to 15 seconds.

Make oatmeal for a baby: Place uncooked rolled oats in pitcher. In PULSE MODE, blend at MIX until desired consistency, about 5 pulses, 2 to 3 seconds each pulse. Cook as usual.

Make baby food from adult food:

Place prepared adult food in pitcher. Cover and blend at STIR about 10 seconds. Then blend at PUREE about 10 to 30 seconds.

Rinse your Blender jar: Fill pitcher one-half full with warm water. Add a few drops of dishwashing liquid. Cover and blend at STIR until sides are clean, about 5 to 10 seconds. Rinse and dry. For complete cleaning, pitcher and lid can also be cleaned in an automatic dishwasher.

Margarita

1^1/4 cups (295 mL) tequila

Place ingredients in pitcher. Cover and blend at CRUSH ICE, about 20 pulses, or until slushy.

Per Serving: About 118 calories, 0 g protein, 16 g carbohydrates, 0 g total fat, 0 g saturated fat, 0 mg cholesterol, 6 mg sodium.

Yield: 9 servings ( ^3/_4 cup [175 mL] per serving).

Simple Syrup

In small saucepan, combine sugar and water. Boil until sugar dissolves, 2 to 4 minutes. Cool; cover and refrigerate.

Yield: About 1 ^1/4 cups (295 mL).

Simple Syrup

1 cup (235 mL) sugar

1 cup (235 mL) water

Sparkling Cran-Pineapple Drink

1^1/2 cans (12 oz. [355 mL] each) frozen cranberry juice cocktail concentrate

1^1/2 cans (8 oz. [235 mL] each) crushed pineapple, packed in juice and undrained

3 cups (710 mL) lemon-lime flavored carbonated beverage, chilled

Place cranberry concentrate and pineapple in pitcher. Cover and blend at LIQUEFY 10 to 15 seconds, or until smooth. Add carbonated beverage, chilled. Cover and blend at STIR just until mixed, 2 to 4 seconds.

Yield: 7 servings (1 cup [235 mL] per serving).

Per Serving: About 171 calories, 0 g protein, 44 g carbohydrates, 0 g total fat, 0 g saturated fat, 0 mg cholesterol, 10 mg sodium.

Strawberry-Banana Smoothie

2^1/4 cups (535 mL) buttermilk

1 14 cups (295 mL) frozen unsweetened strawberries

1 1/4 cups (295 mL) milk

4 medium bananas, broken into quarters

^1/3 cup (80 mL) orange marmalade

Place ingredients in pitcher. Cover and blend at LIQUEFY, 15 to 20 seconds, or until smooth.

Yield: 7 servings (1 cup [235 mL] per serving).

Per Serving: About 170 calories, 6 g protein, 34 g carbohydrates, 2.5 g total fat, 1.5 g saturated fat, 10 mg cholesterol, 90 mg sodium.

Rum Mocha

4 cups (945 mL) chocolate ice cream
1 cup (235 mL) double-strength coffee, cold
1 cup (235 mL) dark rum

8 ice cubes

Place ingredients in pitcher. Cover and blend at CRUSH ICE, about 20 pulses, or until smooth.

Yield: 8 servings ( ^3/_4 cup [175 mL] per serving).

Per Serving: About 210 calories, 3 g protein, 19 g carbohydrates, 7 g total fat, 4.5 g saturated fat, 20 mg cholesterol, 50 mg sodium.

Italian Tortellini Tomato Soup

3 tablespoons (45 mL) olive oil

^3/_4 cup (175 mL) chopped onion

^3/_4 cup (175 mL) chopped green pepper

3 cans (14.5 oz. [429 mL] each) Italian-seasoned diced tomatoes, undrained

1^1/2 tablespoons (20 mL) sugar

^3/_4 teaspoon (4 mL) salt

^1/_4 teaspoon (1 mL) fennel seed

^1/_4 teaspoon (1 mL) cayenne pepper

1^1/2 cans (14 oz. [415 mL] each) beef broth

1^1/2 package (9 oz. [265 mL] each) refrigerated cheese- filled tortellini

Shredded mozzarella cheese, if desired

Chopped fresh parsley, if desired

Heat olive oil in large Dutch oven over medium-high heat. Add onion and green pepper; cook 3 to 5 minutes, or until limp. Add tomatoes, sugar, salt, fennel seed, and cayenne pepper. Reduce heat to low; simmer, uncovered, 20 to 25 minutes, or until thickened, stirring occasionally. Cool 5 minutes.

Pour half of cooled tomato mixture into pitcher. Cover and blend at STIR about 15 seconds. Add remaining tomato mixture. Cover and blend at STIR about 15 seconds. Blend at LIQUEFY 10 to 15 seconds, or until smooth.

Return mixture to Dutch oven. Add beef broth. Bring to a boil. Add tortellini.

Yield: 9 (1 cup [235 mL]) servings.

Per Serving: About 250 calories, 8 g protein, 35 g carbohydrates, 8 g total fat, 2.5 g saturated fat, 20 mg cholesterol, 1,100 mg sodium.

Blueberry Pancakes and Sauce

Sauce

^1/_3 cup (80 mL) sugar

1 tablespoon (15 mL) cornstarch

1 cup (235 mL) water

^3/_4 teaspoon (4 mL) grated lemon peel

3 cups (710 mL) fresh or frozen blueberries (do not thaw)

Pancakes

3 eggs

3 cups (710 mL) buttermilk

3 tablespoons (45 mL) vegetable oil

^3/_4 teaspoon (4 mL) grated lemon peel

3^1/3 cups (790 mL) all-purpose flour

3 tablespoons (45 mL) sugar

1 12 teaspoons (7 mL) baking powder

1^1/2 teaspoons (7 mL) baking soda

3/4 teaspoon (4 mL) salt

^1/_4 teaspoon (1 mL) nutmeg

1 12 cups (355 mL) fresh or frozen blueberries (do not thaw)

Place sauce ingredients in saucepan. Cook over medium heat until mixture thickens, stirring constantly. Cool 5 minutes. Pour mixture into pitcher. Cover and blend at STIR about 5 seconds; scrape sides of pitcher if necessary. Blend at MIX about 10 seconds, or until smooth. Pour into serving container. Rinse pitcher.

Place eggs in pitcher. Cover and blend at STIR about 5 seconds. Add buttermilk, oil, and lemon peel. Blend at MIX about 5 seconds. Add flour, sugar, baking powder, baking soda, salt, and nutmeg. Using PULSE feature, blend at MIX, pulsing 6 times, 2 to 3 seconds each time, or just until dry ingredients are moistened. By hand, gently stir in blueberries.

Heat nonstick griddle to medium-high, greasing griddle if it is not nonstick. Pour scant 14 cup (60 mL) batter for each pancake onto griddle, stirring batter occasionally to distribute blueberries. Cook until bubbles form on surface and edges become dry, 1 to 2 minutes. Turn; cook until golden brown on underside, 1 to 2 minutes. Serve with warm blueberry sauce.

Yield: About 12 servings (2, 4" [10 cm] pancakes and 14 cup [60 mL] sauce per serving).

Per Serving: About 280 calories, 8 g protein, 48 g carbohydrates, 6 g total fat, 1 g saturated fat, 55 mg cholesterol, 280 mg sodium.

Raspberry Vinaigrette Dressing

2 cup (475 mL) fresh or frozen raspberries, thawed

1/4 cup (60 mL) sugar

^1/3 cup (80 mL) raspberry vinegar

^1/_4 cup (60 mL) vegetable oil

Place ingredients in pitcher. Cover and blend at STIR about 15 seconds; scrape sides of pitcher if necessary. Blend at LIQUEFY 10 to 15 seconds, or until smooth. Serve over tossed green salads or fruit salads. Store in refrigerator.

Yield: 12 servings (2 tablespoons [30 mL] per serving).

Per Serving: About 70 calories, 0 g protein, 7 g carbohydrates, 4.5 g total fat, 0 g saturated fat, 0 mg cholesterol, 0 mg sodium.

Chocolate Pot De Crème

1 package (12 oz. [340 mL]) semisweet chocolate chips

^1/2 cup (120 mL) egg substitute or 2 pasteurized eggs, beaten

1 teaspoon (5 mL) vanilla

1^1/_2 cups (355 mL) half-and-half

Sweetened whipped cream or whipped topping, if desired

Place chocolate chips, egg substitute, and vanilla in pitcher. Heat half-and-half until bubbles form around edge. Pour over chocolate chips. Cover and blend at LIQUEFY 20 to 25 seconds, or until chocolate chips are melted and mixture is smooth; scrape sides of pitcher if necessary.

Pour into small cups. Refrigerate until set, 4 to 6 hours. Serve with whipped cream, if desired.

Yield: 8 servings ( 12 cup [120 mL] per serving).

Per Serving: About 350 calories, 7 g protein, 38 g carbohydrates, 22 g total fat, 13 g saturated fat, 15 mg cholesterol, 45 mg sodium.

Fresh Fruit Milk Shake

2^1/2 cups (590 mL) milk

2 cups (475 mL) vanilla ice cream

4 cups (945 mL) fresh sliced peaches, strawberries or other favorite fruit

3 tablespoons (45 mL) powdered sugar, if desired

Place ingredients in pitcher. Cover and blend at LIQUEFY 10 to 15 seconds, or until smooth.

Yield: 7 servings (about 1 cup [235 mL] per serving).

Per Serving: About 170 calories, 6 g protein, 24 g carbohydrates, 7 g total fat, 4 g saturated fat, 25 mg cholesterol, 70 mg sodium.

KitchenAid® Blender Warranty

Length of Warranty:	KitchenAidWill Pay For:	KitchenAidWill Not Pay For:
50 United States, the District of Columbia, Canada, and Puerto Rico:One-year limited warranty from date of purchase.	50 United States, the District of Columbia and Canada:Hassle-free replacement of your Blender. See the following page for details on how to arrange for replacement.ORIn Puerto Rico:The replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center. To arrange for service, follow the instructions on page 23.	A. Repairs when Blender is used in other than normal single family home use.B. Damage resulting from accident, alteration, misuse or abuse or use with products not approved by KitchenAid.C. Replacement parts or repair labor costs for Blender when operated outside the country of purchase.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES IMPLIED

WARRANTIES, INCLUDING TO THE ExTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE ExTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

Hassle-Free Replacement Warranty – 50 United States and District of Columbia

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Blender should fail within the first year of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Blender returned to us. Your replacement unit will also be covered by our one year limited warranty. Please follow these instructions to receive this quality service.

If your KitchenAid® Blender should fail within the first year of ownership, simply call our toll-free Customer Satisfaction Center at 1-800-541-6390 Monday through Friday, 8 a.m. to 8 p.m. (Eastern Time), or Saturday, 10 a.m. to 5 p.m. Give the consultant your complete shipping address. (No P.O. Box numbers, please.)

When you receive your replacement Blender, use the carton and packing materials to pack up your original Blender. In the carton, include your name and address on a sheet of paper along with a copy of the proof of purchase (register receipt, credit card slip, etc.).

Hassle-Free Replacement Warranty – Canada

We're so confident the quality of our products meets the exacting standards of the KitchenAid® brand that, if your Blender should fail within the first year of ownership, KitchenAid Canada will replace your Blender with an identical or comparable replacement. Your replacement unit will also be covered by our one year limited warranty. Please follow these instructions to receive this quality service.

If your KitchenAid® Blender should fail within the first year of ownership, take the Blender or ship collect to an Authorized KitchenAid Service Centre. In the carton include your name and complete shipping address along with a copy of the proof of purchase (register receipt, credit card slip, etc.). Your replacement Blender will be returned prepaid and insured. If you are unable to obtain satisfactory service in this manner call our toll-free Customer Interaction Centre at 1-800-807-6777. Or write to us at:

Customer Interaction Centre KitchenAid Canada 1901 Minnesota Court Mississauga, ON L5N 3A7

How to Arrange for Warranty Service in Puerto Rico

Your KitchenAid ^® Blender is covered by a one-year limited warranty from the date of purchase. KitchenAid will pay for replacement parts and labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center.

Take the Blender or ship prepaid and insured to an Authorized KitchenAid Service Center. Your repaired Blender will be returned prepaid and insured. If you are unable to obtain satisfactory service in this manner, call toll-free 1-800-541-6390 to learn the location of a Service Center near you.

How to Arrange for Service after the Warranty Expires – All Locations

Before calling for service, please review the Troubleshooting section on page 13.

For service information in the 50 United States, District of Columbia, and Puerto Rico,

call toll-free 1-800-541-6390.

Or write to:

Customer Satisfaction Center

KitchenAid Portable Appliances

P.O. Box 218

St. Joseph, MI 49085-0218

Or contact an Authorized Service Center near you.

For service information in Canada, call toll-free 1-800-807-6777.

Or write to:

Customer Interaction Centre

KitchenAid Canada

1901 Minnesota Court

Mississauga, ON L5N 3A7

How to Arrange for Service Outside these Locations

Consult your local KitchenAid dealer or the store where you purchased the Blender for information on how to obtain service.

For service information in Mexico, call toll-free

01-800-024-17-17

(JV Distribuciones)

Or

01-800-902-31-00

(Industrias Birtman)

How to Order Accessories and Replacement Parts

To order accessories or replacement parts for your Blender in the 50 United States, District of Columbia, and Puerto Rico,

call toll-free 1-800-541-6390 Monday through Friday, 8 a.m. to 8 p.m. (Eastern Time), or Saturday, 10 a.m. to 5 p.m.

Or write to:

Customer Satisfaction Center, KitchenAid Portable Appliances, P.O. Box 218,

St. Joseph, MI 49085-0218

To order accessories or replacement parts for your Blender in Canada, call toll-free 1-800-807-6777.

Or write to:

Customer Interaction Centre

KitchenAid Canada

1901 Minnesota Court

Mississauga, ON L5N 3A7

To order accessories or replacement parts for your Blender in Mexico,

call toll-free

01-800-024-17-17

(JV Distribuciones)

Or

01-800-902-31-00

(Industrias Birtman)

Table des matières

INTRODUCTION

Top-down view of a white industrial fan or motor with visible blades and central hub (no text or symbols)

Top-down view of a white electronic device with ventilation grilles and a central circular component (no visible text or symbols)

Top-down view of a white electronic device with ventilation slots and a central hub (no visible text or symbols)

White blender with a black downward arrow indicating compression (no text or symbols visible)

Stir Chop Mix Puree Liquefy OFF Pulse Mode Crush Ice WARNING: Flashing light indicates ready to operate. Do not touch blades.

Close-up of a kitchen blender with lid and side handle (no visible text or symbols)

Snr Chop Mix Pune Lindy OFF Polar Mode Cranial Mode KitchenAid

Snr Chopp Mix Fume Urody Off Paste Ice Crush Ice Hotpot/Hot Potting Light Indicate Kitchen

Stir Chop Mix Puree Liquely OFF Pulse Mode Crush Ice WARNING: Flashing light indicates ready to operate. Do not touch blades.

Stir Chop Mix Puree Liquafy OFF Pulse Mode Crush Ice WARNING: Flashing light indicates ready to operate. Do not touch blades.

Stir Chop Mix Purse Liquefy OFF Pulse Mode Crush Ice WARNING: Flashing light indicates ready to operate. Do not touch blades.

1901 Minnesota Court

Mississauga, ON L5N 3A7

KitchenAid Portable Appliances

P.O. Box 218

St. Joseph, MI 49085-0218

1901 Minnesota Court

Mississauga, ON L5N 3A7

Top-down view of a white electronic device with ventilation slots and a central hub (no text or symbols visible)

Top-down view of a portable electronic device with ventilation grilles and a central circular button (no text or symbols visible)

Top-down view of a white electronic device with ventilation slots and a central hub (no visible text or symbols)

White blender with a downward arrow indicating compression (no text or symbols visible)

Stir Chop Mix Puree Liquefy OFF Pulse Mode Crush Ice WARNING: Flashing light indicates ready to operate. Do not touch blades.

Close-up of a white kitchen blender with lid and handle (no visible text or symbols)

Size Chop Mix Pulse Liquity OFF Pulse Mode Creativity Warranty: Pacing light refraction mainly to operate KitchenAid

Siri Chop Mix Puree UmpH OFF Polar Ice Crash Ice Applicating: Floating light Indicate Kitchen

Siri Chap Mix Pull Limby OFF Pulse Mode Airflowing: Packing light inflection ready to operate (I) KitchenAid

Como utilizar la licuadora

Stir Chop Mix Puree Liquely OFF Pulse Mode Crush Ice WARNING: Flashing light indicates ready to operate. Do not touch modes.

Stir Chop Mix Puree Liquefy OFF Pulse Mode Crush Ice WARNING: Neshing light indicates ready to operate. Do not touch blades.

Stir Chop Mix Puree Liquely OFF Pulse Mode Crush Ice WARNING: Flashing light indicates ready to operate. Do not touch blades.

Customer Interaction Centre KitchenAid Canada 1901 Minnesota Court Mississauga, ON L5N 3A7

Customer Satisfaction Center KitchenAid Portable Appliances

P.O. Box 218

St. Joseph, MI 49085-0218

Customer Interaction Centre

KitchenAid Canada

1901 Minnesota Court

Mississauga, ON L5N 3A7

Customer Satisfaction Center,

KitchenAid Portable Appliances,

P.O. Box 218,

St. Joseph, MI 49085-0218

Customer Interaction Centre

KitchenAid Canada

1901 Minnesota Court

Mississauga, ON L5N 3A7

KitchenAid®

2/11
