USER MANUAL KHBC310OB KITCHENAID

Black kitchen aid brush with a white handle and metallic base (no visible text or symbols)

PARTS AND FEATURES

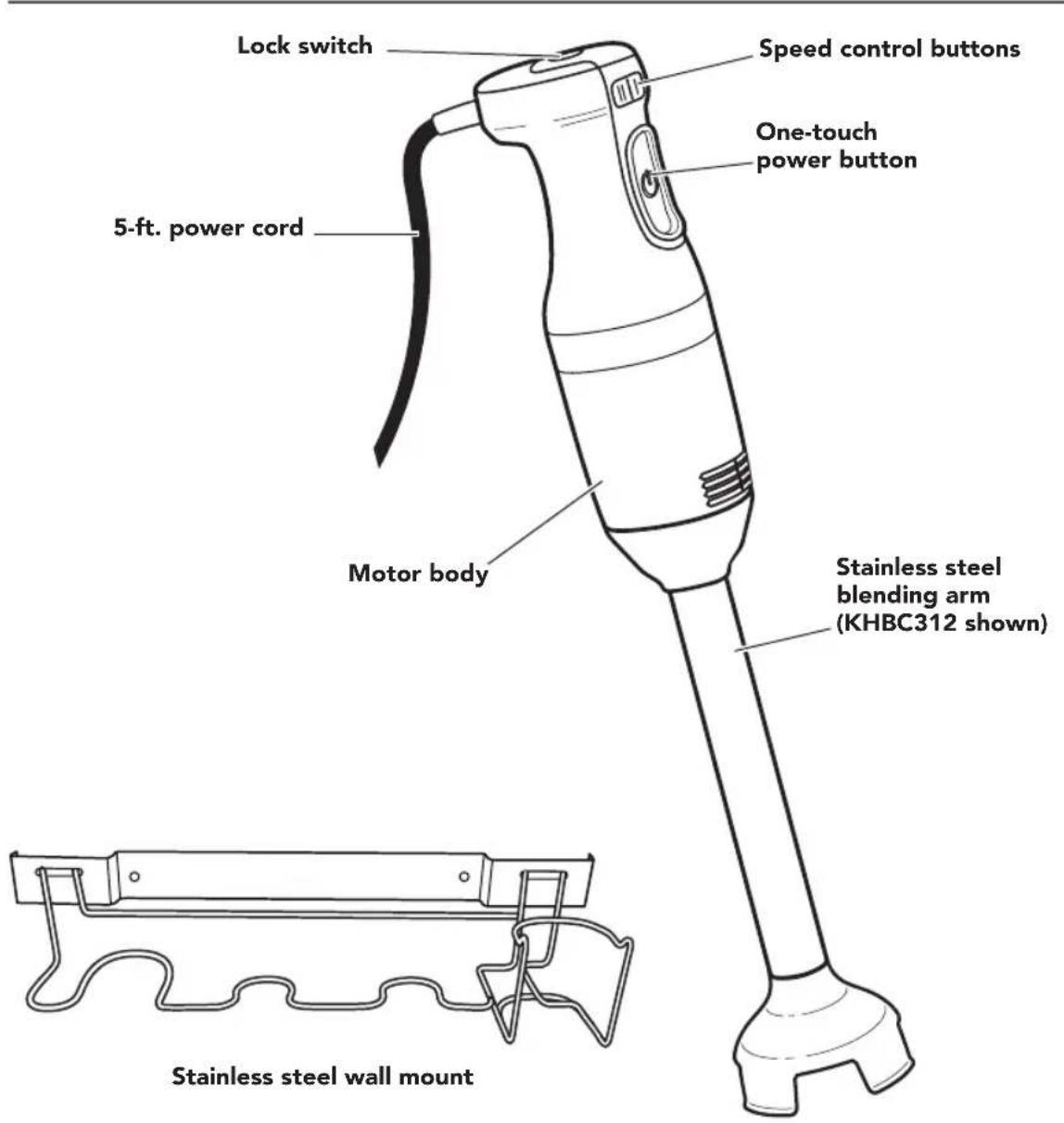

COMMERCIAL IMMERSION BLENDER PARTS

Lock switch Speed control buttons One-touch power button 5-ft. power cord Motor body Stainless steel blending arm (KHBC312 shown) Stainless steel wall mount

MODEL COMPARISON

KHBC312 (12" [305 mm])

KHBC310 (10" [254 mm])

KHBC308 (8" [203 mm])

PARTS AND FEATURES

OPTIONAL ACCESSORIES

Accessory Model # Style Length/ Max			Blend Volume
Whisk attachment	KHBC10WSS 10"
Multipurpose S-blade	KHBC08MSS		8" (203 mm)3 gal (11.4 L)
	KHBC10MSS		10" (254 mm)6 gal (22.7 L)
	KHBC12MSS		12" (305 mm)9 gal (38.0 L)

COMMERCIAL IMMERSION BLENDER FEATURES

Speed control

Provides easy adjustment of speed.

One-touch power button

Located on the front of the motor body and activated by pressing and holding during blending. To stop blending, simply release the power button.

Lock switch

Press to unlock in order for power button to function; press to lock when Commercial Immersion Blender is not in use.

Motor body

Designed for a comfortable, nonslip grip.

Powerful DC motor (not shown)

Provides powerful blending action and is designed for quiet, long-life operation.

Twist lock stainless steel blending arm

Simply seats onto the motor body and is rotated to lock together. The sharp stainless steel blade is covered to help prevent splashing while blending.

5-ft. power cord

Long enough to take the Commercial Immersion Blender to the cooktop or work area and rounded with no grooves for easy cleanup.

Ordering replacement parts

To order replacement parts for your Commercial Immersion Blender, call toll-free 1-855-845-9684, 8 a.m. to 8 p.m., Monday through Friday, Eastern Time.

COMMERCIAL IMMERSION BLENDER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. To protect against risk of electrical shock do not put motor body, cord, or electrical plug of this Commercial Immersion Blender in water or other liquid.
3. This appliance should not be used by children and care should be taken when used near children.
4. Avoid contact with moving parts.
5. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest Authorized Service Facility for examination, repair or electrical or mechanical adjustment.
6. Never leave the appliance unattended while it is in operation.
7. Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning.
8. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
9. Turn the appliance OFF, then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
10. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with appliance.

COMMERCIAL IMMERSION BLENDER SAFETY

1. Do not use outdoors.
2. Do not let cord hang over edge of table or counter.
3. Do not let cord contact hot surfaces, including the stove.
4. When mixing liquids, especially hot liquids, use a tall container or make small quantities at a time to reduce spillage and possibility of injury.
5. Keep hands and utensils out of the container while blending to prevent the possibility of severe injury to persons or damage to the unit. A scraper may be used, but must be used only when the unit is not running.
6. Blades are sharp. Handle carefully.
7. Do not use appliance for other than intended use.
8. Refer to the "Care and Cleaning" section for instructions on cleaning the surfaces in contact with food.

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

ELECTRICAL REQUIREMENTS

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Volts: 120 V.A.C.

Hertz: 60 Hz

Intensity (Amp.): 3A Max.

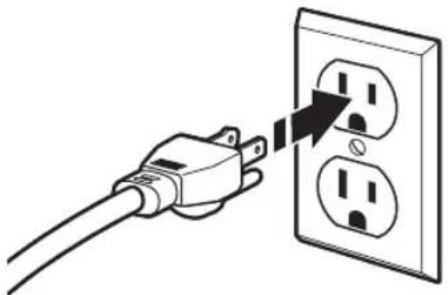

Line drawing of a plug inserted into an electrical outlet (no text or symbols)

To reduce the risk of electrical shock, this plug will fit in an outlet only one way. If it does not fit, contact a qualified electrician. Do not modify the plug in any way.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the appliance.

A short power supply cord (or detachable power supply cord) should be used to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

Before using the KitchenAid® Commercial Immersion Blender for the first time, wipe the motor body with a clean, damp cloth to remove any dirt or dust.

IMPORTANT: Do not immerse the motor body in water.

Wash all the attachments and accessories by hand or in the dishwasher. See Care and Cleaning section of this manual for instructions. Mild dish soap may be used, but do not use abrasive cleansers. Dry thoroughly with a soft cloth.

IMPORTANT: Always be sure to unplug the power cord from the wall socket before attaching or removing attachments.

INTENDED USE

This KitchenAid ^® Commercial Immersion Blender is intended for use in restaurants, professional kitchens, and other foodservice locations. The Commercial Immersion Blender can be used directly in a pot or bowl to mix a variety of ingredients.

Multipurpose S-blade uses

• Soups
• Vegetable purées
• Mousses
• Compotes
• Sauces
• Bisques
• Cooked meats
• Beef gravy
• Liquify fruits
• Minces

Whisk uses

• Pancake batter
• Mayonnaise
• Egg whites
• Pudding
• Whipped cream

1. Insert blending arm attachment into motor body with the alignment mark facing the back of the unit, and twist to lock. The alignment mark on the attachment should line up with the mark on the body.

Line drawing of a handheld electric shaver with a base and handle (no text or symbols)

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

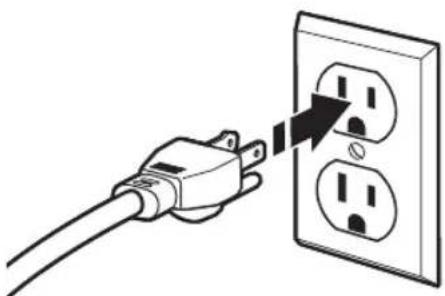

Illustration of a hand inserting a plug into an electrical outlet (no text or symbols)

1. Plug into a grounded 3 prong outlet.

2. Set Commercial Immersion Blender to Low for High speed.

3. Insert the Commercial Immersion Blender into the mixture.

NOTE: The Commercial Immersion Blender should only be immersed in liquids the length of the attachment. Do not submerge beyond the seam of the blending attachment. Do not immerse the motor body into liquids or other mixtures. To avoid damaging blades or mixing container, do not touch the blade to the bottom of the mixing container or use in a mixing container that has protruding parts that can go under the metal guard.

1. Press the Lock switch to unlock Commercial Immersion Blender.

2. Press the Power button to activate the Commercial Immersion Blender.

3. When blending is complete, release the power button before removing Commercial Immersion Blender from the mixture.

4. Unplug immediately after use, before removing or changing attachments.

For best results, insert Commercial Immersion Blender with blending arm attached into the pot or bowl containing ingredients at an angle. Use your free hand to hold the pot or bowl or hold the Commercial Immersion Blender near the base of the motor unit for better stability. Remember to stop the Commercial Immersion Blender before removing it from the pot or bowl to avoid splashing.

Blending

Simple line drawing of a bowl with a spoon inside, containing a container with a handle (no text or symbols)

Rest the Commercial Immersion Blender on the bottom of the pot or bowl momentarily then hold at an angle and slowly draw it upwards against the side of the pot or bowl. As the Commercial Immersion Blender is drawn up you will notice the ingredients from the bottom of the pot or bowl being drawn up. When the ingredients are no longer being drawn up from the bottom, return the Commercial Immersion Blender to the bottom of the pot or bowl and repeat the process until the ingredients are at the desired consistency.

Drawing up

Simple line drawing of a bowl with a spoon and arrow indicating motion (no text or symbols)

Using a light circular motion from your wrist, draw the Commercial Immersion Blender up slightly and let it fall again into the ingredients. Allow your wrist motion and the weight of the Commercial Immersion Blender to do the work.

Wrist movement

Simple line drawing of a laboratory bowl with a test tube inside, no text or symbols present

NOTE: If a piece of food becomes lodged in the guard surrounding the blade, follow the instructions noted below:

1. Release the power button and unplug the Commercial Immersion Blender from the electrical outlet.
2. Once power has been disconnected, use a spatula to remove the food lodged in the plastic guard. Do not use your fingers to remove lodged food.
3. After lodged food has been removed, plug the Commercial Immersion Blender back into the electrical outlet and resume operation.

TIPS FOR GREAT RESULTS

• Cut solid foods into small pieces for easier blending or chopping.
• The Commercial Immersion Blender is equipped with thermal protection from high operating temperatures. Should the Commercial Immersion Blender suddenly stop during use, unplug it and allow 10 minutes to automatically reset.
• To avoid splashing, insert the Commercial Immersion Blender into the mixture before pressing the power button, and release the power button before pulling the Commercial Immersion Blender out of the mixture.
• When blending in a saucepan on a cooktop, remove the pan from the heating element to protect the Commercial Immersion Blender from overheating.

• For best blending, hold the Commercial Immersion Blender at an angle and gently move up and down within the container. Do not pound down on the mixture with the Commercial Immersion Blender.

• To prevent overflow, allow room in the container for the mixture to rise when using the Commercial Immersion Blender.

• Be sure the extra-long cord of the Commercial Immersion Blender is not extending over a hot heating element.
• Do not let the Commercial Immersion Blender sit in a hot pan on the cooktop while not in use.
• Remove hard items, such as fruit pits or bones, from the mixture before blending or chopping to help prevent damage to the blades.

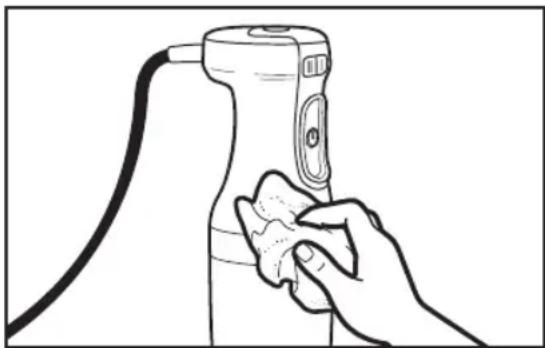

Line drawing of a hand cleaning a cylindrical device with a curved cable (no text or symbols)

NOTE: To avoid damage to the blender, do not immerse the motor body in washing solution, rinse water, or sanitizing solution.

Always clean the Commercial Immersion Blender prior to initial use, after each use, and before storing.

1. Unplug Commercial Immersion Blender before cleaning.
2. Remove the attachments by twisting (see "Operating the Commercial Immersion Blender" section).
3. Wipe the motor body and power cord with a warm sudsy cloth; wipe clean with a damp cloth. Dry with a soft cloth. Mild dish soap may be used, but do not use abrasive cleansers.

WASHING THE ATTACHMENTS

For food service applications: wash, rinse, and sanitize the stainless steel attachments for the Commercial Immersion Blender prior to initial use, after each use, or whenever they will not be used again within a period of 1 hour.

The following washing, rinsing, and sanitizing solutions (or their equivalents) may be used.

Solution Product Dilution in Water Temperature
Washing Noble Pan Pro 1 1 oz. / 3 gallons(30 milliliters / 11.4 liters)			Hot 46°C (115°F)
Rinsing Plain Water Warm 35°C (95°F)
Sanitizing Clorox® Institutional Bleach		1 Tbsp / gallon(14.8 cc / 3.8 liters)	Cold 10-21°C(50-70°F)
In applications requiring repetitive use, frequent cleaning will prolong life.

1. Remove attachment from motor body. Rinse any food residue under running water.
2. Scrub the attachment using a soft sponge. Rinse both interior and exterior sections of the attachment, removing as much stuck-on soil as possible.

3. Using a soft sponge dampened in wash solution, wipe down attachments, getting into all areas of the attachment. Assemble attachment to motor body; place in a container with wash solution, immersing 34 of the attachment. Run unit on high for 2 minutes.

4. Repeat step 3 using clean rinse water in place of wash solution.

5. Repeat step 3 using sanitizing solution in place of wash solution.
6. Do not rinse after sanitizing. Allow to air dry before using.

TROUBLESHOOTING

If the Commercial Immersion Blender has stopped working, check for the following:

Unit has been unplugged

• Release the power button.
• Check the power supply.
• Restart the Commercial Immersion Blender as instructed in "Operating the Commercial Immersion Blender".

Machine has overheated

• Release the power button.
• Unplug the unit.
• Wait a few minutes for the motor to cool down and the thermal safety mechanism to reset.
• Restart the Commercial Immersion Blender as instructed in "Operating the Commercial Immersion Blender".

Unknown cause

• Release the power button.
• Unplug the unit.
• Check the following:
• electrical plug for damage
• blades for freedom of movement (food may be lodged between blades and plastic guard)
• power cord for cuts or other damage
• drive shaft for freedom of rotation (check by removing the attachment arm and rotating the shaft manually).

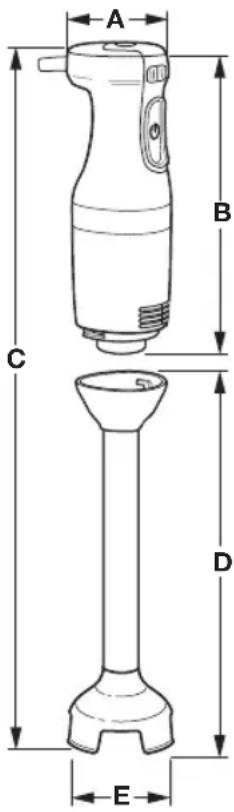

TECHNICAL SPECIFICATIONS

Dimensions

	KHBC312 KHBC310 KHBC308
A	3.5"/87.8 mm	3.5"/87.8 mm	3.2"/87.8 mm
B	10.7"/270.4 mm	10.7"/270.4 mm	10.7"/270.4 mm
C	22.3"/565.2 mm	20.3"/514.4 mm	18.3"/463.6 mm
D	12.0"/305 mm	10.0"/254 mm	8.0"/203 mm
E	3.2"/81.6 mm	3.2"/81.6 mm	3.2"/81.6 mm

Weight

KHBC312 KH	BC310 KHBC308
3.3 lbs/1.5 kg 3	3 lbs/1.5 kg 3.3 lbs/1.45 kg

Electrical Data

KHBC312, KHBC310, KHBC308

Motor Intensity(Amp.)		MixerSpeed I (rpm)	MixerSpeed II (rpm)
120 V/60Hz 3A	Max. 11,000 18,000

A B C D E

WARRANTY AND SERVICE

KITCHENAID COMMERCIAL IMMERSION BLENDER WARRANTY FOR THE 50 UNITED STATES, THE DISTRICT OF COLUMBIA, AND CANADA

This warranty extends to the purchaser and any succeeding owner for Commercial Immersion Blenders operated in the 50 United States, the District of Columbia, and Canada.

Length of Warranty: Two Year Limited Warranty from date of purchase.

KitchenAid Will Pay Hassle-Free Replacement of your Commercial Immersion for Your Choice of: Blender. See the next page for details on how to arrange

KITCHENAIID HASSLE-FREE REPLACEMENT WARRANTY QUALITY

toll-free at 1-855-845-9684. OR

The replacement parts and repair labor costs to correct defects in materials and workmanship. Service must be provided by an Authorized KitchenAid Service Center. See the KitchenAid Commercial Immersion Blender Warranty for Puerto Rico for details on how to arrange for service.

KitchenAid Will A. Damage resulting from accident, alteration, misuse Not Pay for: or abuse.

B. Replacement parts or repair labor costs for Immersion Blender operated outside the 50 United States and District of Columbia.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.

IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.

KITCHENAID COMMERCIAL IMMERSION BLENDER WARRANTY FOR PUERTO RICO

A limited two year warranty extends to the purchaser and any succeeding owner for Commercial Immersion Blenders operated in Puerto Rico. During the warranty period, all service must be handled by an Authorized KitchenAid Service Center.

Please bring the Commercial Immersion Blender, or ship it prepaid and insured, to the nearest Authorized Service Center. Call toll-free at 1-855-845-9684 to learn the location of a Service Center near you. Your repaired Commercial Immersion Blender will be returned to you prepaid and insured.

WARRANTY AND SERVICE

HASSLE-FREE REPLACEMENT WARRANTY – 50 UNITED STATES AND DISTRICT OF COLUMBIA

We're so confident the quality of our products meets the exacting standards of KitchenAid that, if your Commercial Immersion Blender should fail within the first two years of ownership, KitchenAid will arrange to deliver an identical or comparable replacement to your door free of charge and arrange to have your original Commercial Immersion Blender returned to us. Your replacement unit will also be covered by our two year limited warranty. Please follow these instructions to receive this quality service.

If your Commercial Immersion Blender should fail within the first two years of ownership, simply call our Customer eXperience Center toll-free at 1-855-845-9684 Monday through Friday, 8 a.m. to 8 p.m. (Eastern Time). Give the consultant your complete shipping address. (No P.O. Box numbers, please.)

When you receive your replacement Commercial Immersion Blender, use the carton and packing materials to pack up your original Commercial Immersion Blender.

HASSLE-FREE REPLACEMENT WARRANTY - CANADA

We're so confident the quality of our products meets the exacting standards of the KitchenAid brand that, if your Commercial Immersion Blender should fail within the first two years of ownership, KitchenAid Canada will replace your Commercial Immersion Blender with an identical or comparable replacement. Your replacement unit will also be covered by our two year limited warranty. Please follow these instructions to receive this quality service.

If your Commercial Immersion Blender should fail within the first two years of ownership, take the Commercial Immersion Blender or ship collect to an Authorized KitchenAid Service Centre.

In the carton include your name and complete shipping address along with a copy of the proof of purchase (register receipt, credit card slip, etc.). Your replacement Commercial Immersion Blender will be returned prepaid and insured. If you are unable to obtain satisfactory service in this manner call our toll-free Customer eXperience Centre at 1-800-807-6777.

Or write to us at: Customer eXperience Centre KitchenAid Canada 200 - 6750 Century Ave. Mississauga, ON L5N 0B7

ARRANGING FOR SERVICE AFTER THE WARRANTY EXPIRES, OR ORDERING ACCESSORIES AND REPLACEMENT PARTS

In the United States and Puerto Rico:

For service information, or to order accessories or replacement parts, call toll-free at 1-855-845-9684 or write to:

Customer eXperience Center KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Outside the United States and Puerto Rico:

Consult your local KitchenAid dealer or the store where you purchased the Commercial Immersion Blender for information on how to obtain service.

For service information in Canada:

Call toll-free 1-800-807-6777.

Or write to: Customer eXperience Centre KitchenAid Canada 200 - 6750 Century Ave. Mississauga, ON L5N 0B7

PIÈCES ET CARACTÉRISTIQUES

PIÈCES DU MÉLANGEUR À IMMERSION COMMERCIAL

KHBC312 (12" [305 mm])

KHBC310 (10" [254 mm])

KHBC308 (8" [203 mm])

PIÈCES ET CARACTÉRISTIQUES

ACCESSOIRES EN OPTION

Accessoire	N° de modèle	Style Longueur/volume	max du mélangeur
Fouet KHBC1	10WSS 10" (254 n
Lame polyvalente en S	KHBC08MSS		8" (203 mm)11.4 L (3 gal)
	KHBC10MSS		10" (254 mm)22.7 L (6 gal)
	KHBC12MSS		12" (305 mm)38.0 L (9 gal)

CARACTÉRISTIQUES DU MÉLANGEUR À IMMERSION COMMERCIAL

Commande de vitesse

Illustration of a plug inserted into an electrical outlet with two outlets, showing power connection (no text or symbols)

Line drawing of a handheld device with a base and handle, no text or symbols present

AVERTISSEMENT

Illustration of a plug inserted into an electrical outlet with two socket outlets (no text or symbols)

Simple line drawing of a bowl with a spoon inside, containing a container (no text or symbols)

Simple line drawing of a bowl with a spoon and arrow indicating direction (no text or symbols)

Simple line drawing of a laboratory beaker with a test tube and stopper (no text or labels)

Line drawing of a hand cleaning a cylindrical device with a curved cable (no text or symbols)

La machine a surchauffé

Customer eXperience Center KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Illustration of a hand inserting a plug into an electrical outlet (no text or symbols)

Line drawing of a manual electric shaver with a base and handle (no text or symbols)

ADVERTENCIA

Illustration of a hand inserting into an electrical outlet with two socket plugs (no text or symbols)

Simple line drawing of a bowl with a spoon and a stirring rod, no text or symbols present

Simple line drawing of a laboratory glassware setup with a beaker and test tube (no text or labels)

Line drawing of a hand cleaning a cylindrical device with a curved cable (no text or symbols)

KITCHENOID HASSLE-FREE REPLACEMENT WARRANTY QUALITY

Customer eXperience Center, KitchenAid Small Appliances, P.O. Box 218, St. Joseph, MI 49085-0218

Customer eXperience Centre

KitchenAid Canada

200 - 6750 Century Ave.

Mississauga, ON L5N 0B7

Simple white telephone handset icon on gray background (no text or symbols)

PRODUCT QUESTIONS OR RETURNS QUESTIONS SUR LE PRODUIT OU LES RETOURS PREGUNTAS SOBRE EL PRODUCTO O DEVOLUCIONES

USA: 1-855-845-9684 | KitchenAid.com CANADA: 1.800.807.6777 | KitchenAid.ca

KitchenAid®

COMMERCIAL

®/™ ©2018 KitchenAid. All rights reserved. Used under license in Canada. ®/™ ©2018 KitchenAid. Todos los derechos reservados. Usado en Canadá bajo licencia. ®/™ ©2018 KitchenAid. Tous droits réservés. Utilisé sous licence au Canada.
