Product type	Dehumidifier
Brand	Orbegozo
Model	DH 1625
Dehumidification capacity (27°C, 60% RH)	10 L/day
Dehumidification capacity (30°C, 80% RH)	20 L/day
Power supply	230 V ~ 50 Hz
Power consumption	350 W
Dimensions (W × H × D)	340 × 580 × 245 mm
Net weight	15.5 kg
Operating temperature range	5 °C to 35 °C
Water tank	With full tank indicator
Continuous drainage	Yes, via PVC hose (diameter ≤ 13 mm)
Humidity control	Rotary knob, continuous mode possible
Air filter	Washable, clean every 2 weeks
Noise level	Not specified (standard household use)
Maintenance	Clean the casing with a soft cloth, mild detergent if necessary
Safety	Automatic shut-off if tank full, child protection (supervision), do not cover air outlets
Warranty	Legal warranty in accordance with applicable legislation
Intended use	Domestic

Frequently Asked Questions - DH 1625 Orbegozo

How to start the Orbegozo DH 1625 dehumidifier?

Make sure the plug is connected and the humidity control is set to OFF. Place the water tank correctly. Turn the knob clockwise to select the desired humidity level (usually 50-70% RH). The unit operates if the ambient humidity is higher than the set value.

What to do when the full tank indicator is on?

Turn off and unplug the unit. Remove the tank, empty the water and replace it correctly. The unit will restart automatically. Use both hands to empty the tank.

How to use continuous drainage?

Prepare a PVC hose with diameter ≤ 13 mm. Remove the cap and cover of the drainage outlet at the back of the unit. Connect the hose and place the end in a drain. Make sure the hose is below the outlet and not kinked. Put the tank back in place.

How to clean the air filter?

Unplug the unit. Gently remove the filter. Clean it with a vacuum cleaner or with clean water, then dry it thoroughly with a cloth. Replace the filter in its housing. Clean it every two weeks for optimal efficiency.

What is the dehumidification capacity of the DH 1625?

At 27°C and 60% relative humidity, the unit extracts 10 liters per day. At 30°C and 80% RH, it extracts 20 liters per day. Performance varies with ambient conditions.

Can I use the dehumidifier in a bathroom?

Yes, but ensure the unit is not exposed to water or excessive moisture. Never place it in water. Make sure the power outlet is away from water. Follow the safety instructions.

Why does the unit not stop even though the humidity seems low?

The set humidity level may be too low. Check that the knob is set to a realistic humidity percentage (50-70%). If continuous mode is enabled, the unit will run non-stop.

How to clean the exterior of the dehumidifier?

Unplug the unit. Use a soft, clean cloth. If necessary, add a mild detergent, then wipe with a damp cloth. Do not spray water directly and do not use a garden hose to avoid short circuits.

What are the risks of not following the safety instructions?

Covering the air outlets can cause overheating and fire. Pulling the cable can damage it. Using insecticides or paints near the unit can damage the plastics. Never allow children to climb on the unit.

Where can I find Orbegozo technical service?

Check the official Orbegozo website at https://orbegozo.com/asistencia-technica/ to locate the nearest service center. You can also contact them via the email indicated in the manual. Keep the purchase receipt for warranty.

USER MANUAL DH 1625 Orbegozo

Web: www.orbegozo.com

E-mail: [e-mail]

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

GENERAL SAFETY INSTRUCTIONS:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

WARNING: In case of misuse, there is a risk of possible injury.

WARNING

Do not fold the power cord as shown below!

Make sure the plug is firmly plugged in properly!

Do not use multiple socket as shown below!

Make sure the plug is clean!

After turning off the power, please take off the plug.

Do not plug in the power plug with wet hands!

CAUTION

Do not place anything on top of the control panel!

• Do not cover all the air outlets of the machine!

• Stop children from playing or climbing the machine!

Do not wet the machine or the control panel!

• Keep the flammable gas/oil away from the machine!

• Ask professionals to do the servicing!

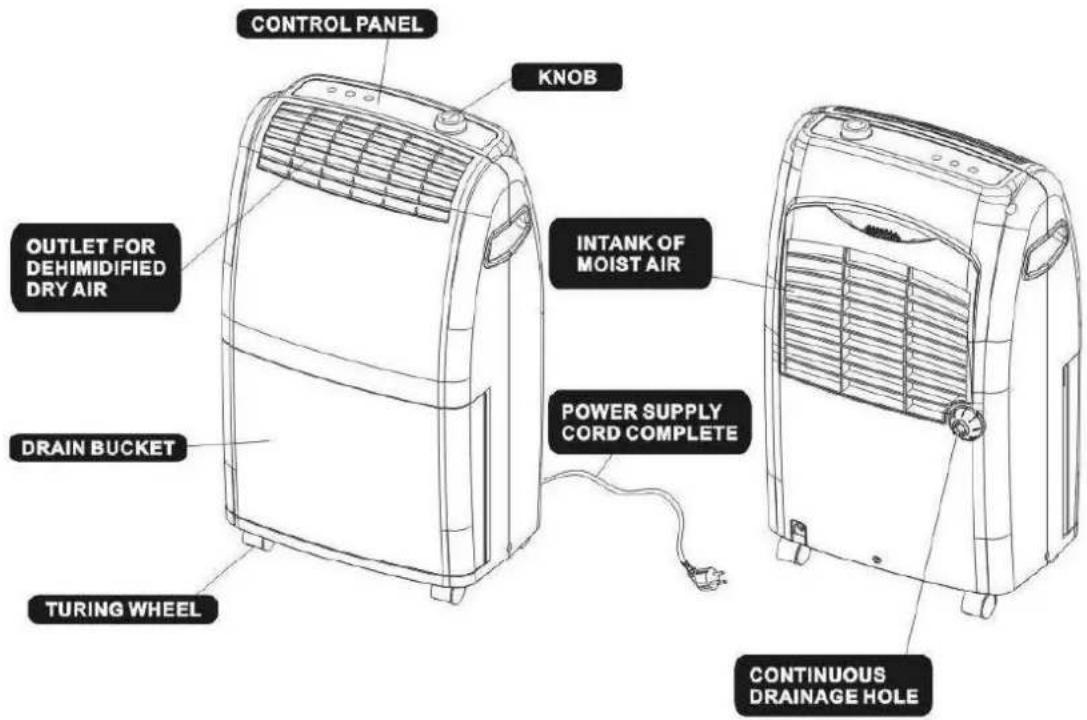

DESCRIPTION OF COMPONENTS

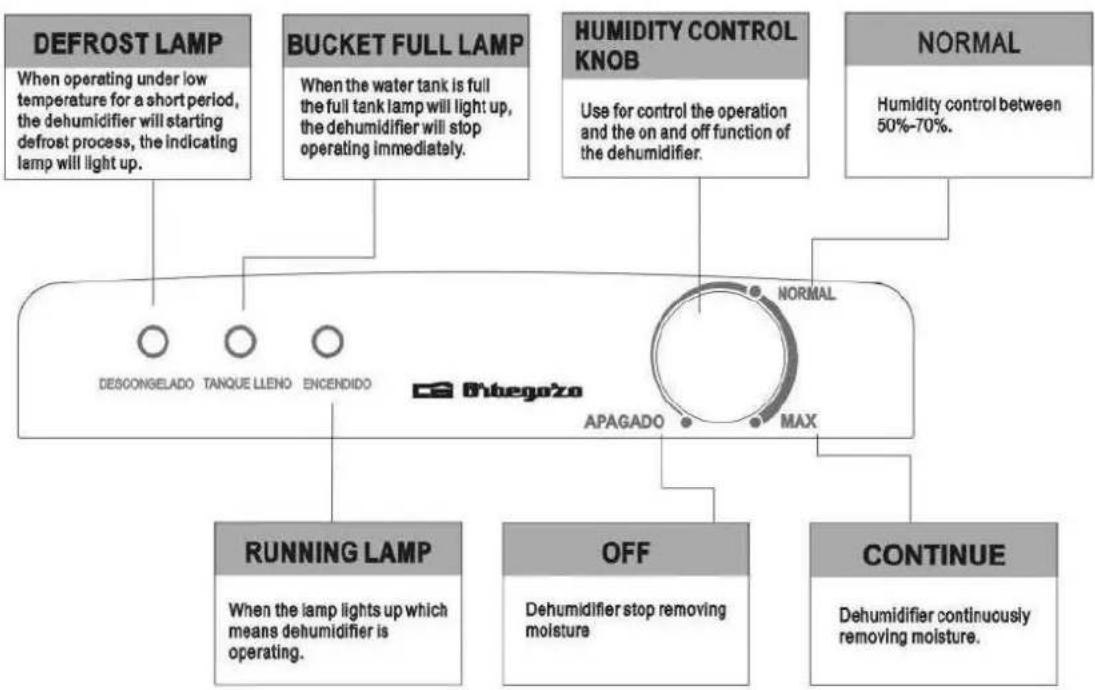

FUNCTION EXPLANATION

FUNCTION EXPLANATION

Start Operation

1) Make sure the plug is firmly plugged on in the socket.
2) Make sure the water tank is placed in proper position. (After plug on the machine for the first time, if the full tank lamp light up, just pull out the water tank then push it back to the proper position.)

3) Turn clockwise the humidity control knob to the suitable humidity(usually at normal position). If the humidity indoor is over the set humidity, then the machine will start removing moisture.
- Please turn the humidity control knob to the position of "continue" to make the machine works continuously when exploded to a high humidity environment.
4) When the humidity in the room reached the set humidity then the machine will stop operating.
5) When the humidity in the room is over the set humidity then the machine will start removing moisture again.
6) The circulation between point 3). 4). 5) is controlled by the set humidity.

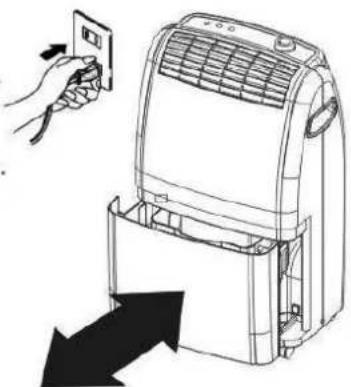

- When Full Tank Lamp Is On

When the water tank is full, the indication lamp will light up, the dehumidifier will stop operating. Remove the water in the tank, then place the water tank back to it's proper position the machine will start operating again.

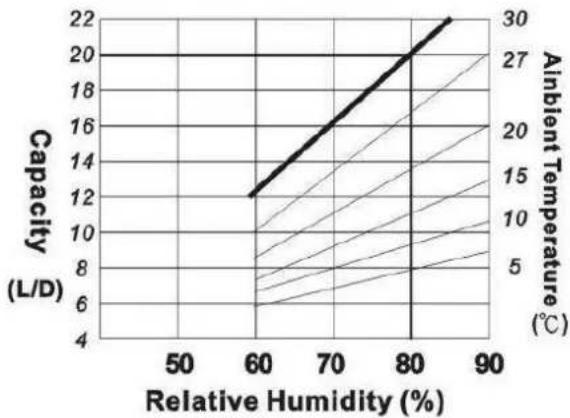

Illustration capacity

Pic 1

Remove the water in the water tank with two hands

*Capacities based on different temperature/humidity conditions.

*Bold lines show the capacity under condition of 27°C 60% RH and 30°C 80% RH.

*When the room temperature is low, the water extraction will be also low. It is normal phenomenon.

CONTINUOUS DRAINAGE

The function of continuous drainage can be started in following steps when there is a good condition of drainage near by the unit.

1. Prepare PVC hose to drain out water (The hose sold in market with inner dia. 13mm) 2. Take out the stopple of the drainage outlet.	Back of the unit For drainage Tube stopple
3. Take out the soft cover, put it and tube stopple into the bucket for storage.	Soft cover Tube stopple
4. Connect the PVC hose with the drainage outlet.	Drainage PVC hose
5. Place the bucket on its original location.	Push bucket back into the unit toward the direction as the arrow points to Bucket

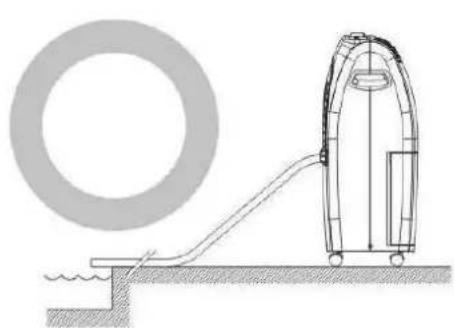

INSTALLING DRAINAGE PVC HOSE

When using the function of continuous drainage, the PVC hose must be placed horizontally below the drainage hole. Must avoid uneven ground and folding the hose.

CAUTIONS

• Do not pull the power cord to avoid broken cord, which lead to danger.

• Do not use insect, oil or paint spray around the machine, it might cause damage to the plastic parts or start a fire.

• Do not place the machine on an uneven ground, to avoid shaking, noise and leakage of water.

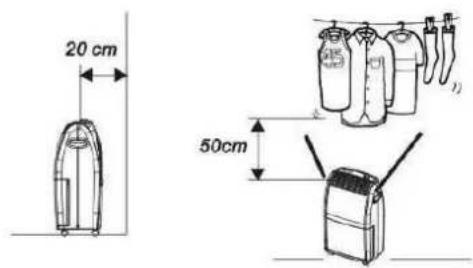

• Please always keep the unit 20cm away from the wall to dissipate the heat properly. You may hang the clothing at least 50cm above the machine.

It is dangerous to put anything into the machine.

• Close all the open windows to reach the maximum possible efficiency of removing moisture.

• Keep the machine away from any type of heat sources.

• When moving or put in storage, do not place the dehumidifier on side way or upside down and avoid violent shaking.

MANINTENANCE

Please make sure the dehumidifier is unplugged before servicing or cleaning the machine, for safety reasons!

1) Clean the Shell :

A. Wipe the shell using soft and clean cloth.
B. If the dehumidifier is very dirty, please use mild detergent then wipe off the detergent with half dried cloth.
C. Do not wash the machine with a hose, it will cause leakage of electricity.

2) Clean the Air Filter :

The purpose of the air filter is to filter the dust or unclean material in the air. If the filter is blocked by the dust the usage of the electricity will be greater than normal, For the best more efficient of removing moisture, please clean the filter once in two weeks.

Cleaning Steps:

A. Pull out the filter gently.

B. Clean the filter by vacuum cleaner or washing with clean water then dry the filter using dry cloth.

C. Place the filter back to it's position.

EMERGENCY

Please unplugged the machine when there is sometime wrong. Contact the service agent immediately. Do not disassemble the dehumidifier yourself!

SPECIFICATION

MODEL	DH-2050
POWER	230V ~ 50Hz
MOISTURE REMOVAL	10 L/D (27°C 60%RH) 20 L/D (30°C 80%RH)
POWER INPUT	350W
SIZE OF SHELL (W×H×D)	340×580×245mm
WEIGHT	15.5 kg
OPERATING TEMPERATURE	5°C ~ 35°C

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation,

that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-technica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
