XPLODE BBLSP1800T - Blender WILFA - Free user manual and instructions

Brand	Wilfa
Model	XPLODE BBLSP1800T
Product type	Blender
Power	1800 W (estimated from model)
Container material	Heat-resistant glass (up to 90 °C)
Container capacity	Not specified, but with level markings
Pre-programmed functions	Ice Crush, Smoothie, Auto Clean
Speed control	Variable from MIN to MAX
Safety	Integrated safety lock, overheat protection
Warranty	5 years
Cleaning	Removable parts washable with warm water and dish soap, Auto Clean function
Maintenance	Unplug before cleaning, do not immerse the motor
Usage	For household use only
Included accessories	Measuring cup, lid, glass container, blade set

Frequently Asked Questions - XPLODE BBLSP1800T WILFA

How to use the Ice Crush function?

Place ice cubes (maximum 8, smaller than 20x20x20 mm) in the container, close the lid, then press the Ice Crush button. The appliance crushes the ice for 30 seconds and then stops automatically.

Can I blend hot liquids?

Yes, with caution. The glass container withstands up to 90 °C. However, pour the hot liquid slowly as it may be ejected by vaporization. Do not exceed the maximum capacity.

How to clean the blender?

Unplug the appliance, disassemble all removable parts, wash them with warm water and dish soap. Use the Auto Clean function by filling the container with water and pressing the corresponding button. Wipe the motor base with a dry cloth.

What to do if the motor stops during use?

This is probably due to overheating. The appliance is equipped with a protection thermostat. Unplug it and let it cool down for at least 30 minutes before plugging it back in and using it again.

Can I blend hard foods like bones or nuts?

Avoid too hard foods. Cut ingredients into small pieces before putting them in the container. Do not overload the motor. The blades are sharp, handle with care.

How does the safety lock work?

The blender only starts if the container and lid are properly attached to the motor base. This prevents accidental operation. If the appliance does not start, check that the accessories are properly engaged.

What is the warranty period?

Wilfa offers a 5-year warranty from the date of purchase for manufacturing defects. It is valid for household use only. Keep the receipt.

Can I use the blender for frozen smoothies?

Yes, use the Smoothie program. It runs for 1 minute with an adapted speed profile. Add your fruits, ice cubes or yogurt, close the lid and start the program.

What to do if the blades do not turn?

Check that the appliance is plugged in and the button is set to ON. Make sure the container is properly positioned (safety lock). If the problem persists, unplug and let it cool down for 30 minutes.

Can the glass container go in the dishwasher?

The manual does not specifically mention the dishwasher. It is recommended to wash removable parts by hand with warm water and dish soap. Avoid thermal shock.

USER MANUAL XPLODE BBLSP1800T WILFA

Exterior view of a modern kitchen blender with clear glass and black interior (no text or symbols visible)

WILFA XPLODE

BLENDER BL3B-P1800 / BBLSP-1800S

EN · Instruction manual

NO · Bruksanvisning

SE · Bruksanvisning

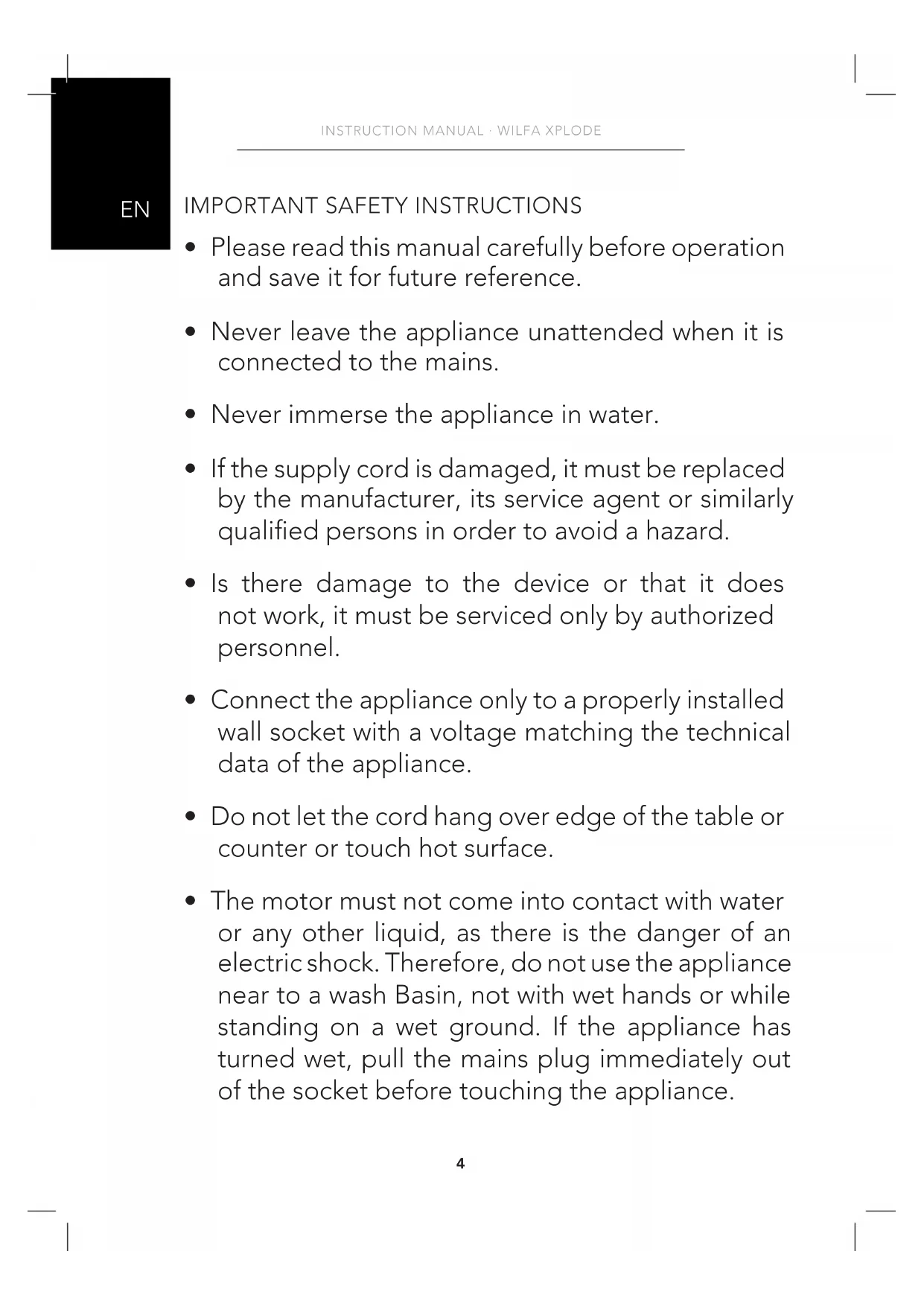

IMPORTANT SAFETY INSTRUCTIONS

• Please read this manual carefully before operation and save it for future reference.
• Never leave the appliance unattended when it is connected to the mains.
• Never immerse the appliance in water.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Is there damage to the device or that it does not work, it must be serviced only by authorized personnel.
• Connect the appliance only to a properly installed wall socket with a voltage matching the technical data of the appliance.
• Do not let the cord hang over edge of the table or counter or touch hot surface.

• The motor must not come into contact with water or any other liquid, as there is the danger of an electric shock. Therefore, do not use the appliance near to a wash Basin, not with wet hands or while standing on a wet ground. If the appliance has turned wet, pull the mains plug immediately out of the socket before touching the appliance.

• Do not use the appliance outdoors.

• This product is intended for household use and not for commercial use.
• Use the appliance only for the purpose it was designed for.
• Do not use appliance, if it or parts of it show visible damage or if the appliance was dropped.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• This appliance shall not be used by children.
• Keep the appliance and its cord out of reach of children.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

EN

CAUTION

We are very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:

• There is a potential injury from misuse. The care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• To reduce the risk of injury, never place cutter-assembly blades on base without jar properly attached.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Be careful is hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

EN

SAFETY PRECAUTIONS FOR YOUR TABLE BLENDER

• Operate the blender with lid closed
• Blades are very sharp. Handle with care.
• Only remove the jar while motor is off.
• Avoid overwork of motor.
• Handle carefully with glass jar.
• Never place your hands into the glass jar while the motor is on.
• Avoid contact with moving parts.

EN

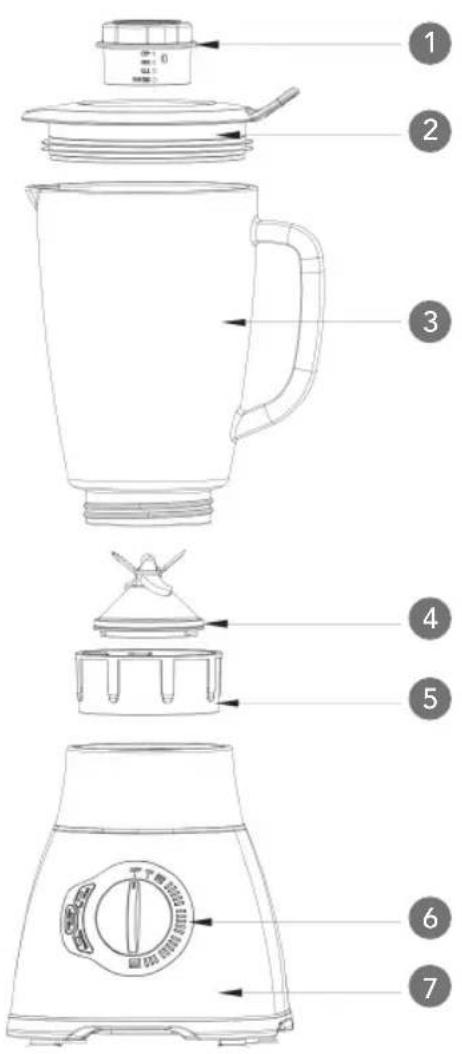

PRODUCT OVERVIEW

1. Measuring cup
2. Lid
3. Glass jar with level indication
4. Blade assembly unit
5. Blade assembly unit interface
6. Control panel
7. Motor unit

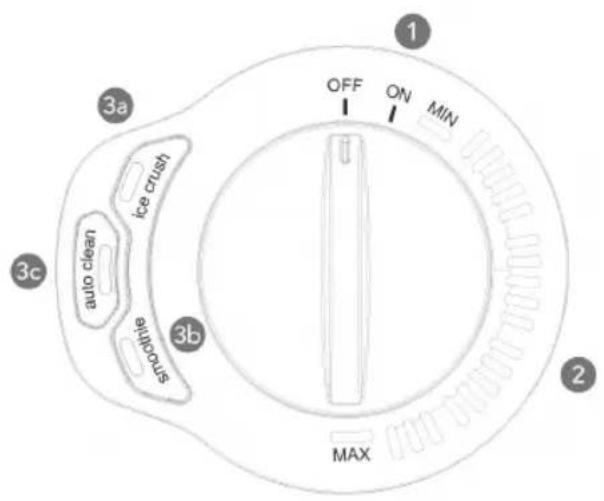

PRODUCT OVERVIEW - CONTROL PANEL

OFF ON MIN 3a 3b AUTOILE AUTO clean ICE CRUSH 3c 2 MAX

1. ON/OFF switch
2. Speed control (MIN -> MAX)
3. Quick-select button
   a. Crush ice button
   b. Smoothie button
   c. Auto clean button

BUILT-IN SAFETY LOCK

This function ensures that user can only switch the appliance on when the accessories have been placed on the unit in correct position. When the accessories have been fixed properly, the unit can only be switched on. (i.e. Built-in safety lock function is disabled at this moment).

Note that the blender has a protection device: The thermostat will be activated when the motor is overheated. The device will be re-set by unplug and re-plug the power plug to the socket around 30 minutes.

BEFORE FIRST USE

Clean the unit and parts thoroughly before you use the appliance for the first time.

EN

USING THE APPLIANCE

• To switch on the appliance, turn the knob to "ON" position. The "ON" light will be illuminated.
• To control the speed, turn the knob at between "MIN" & "MAX" position. The light will be illuminated at the desired position.
• To use the quick function, turn the knob to "ON" position. The light on the three buttons will start to blink.

CRUSH ICE BUTTON

Press this button to crush ice. The appliance starts crushing according to the pre-set speed profile. Press the button again to stop the process or wait for the unit to stop automatically after running for 30 seconds.

Warning: Do not add more than 8pcs ice cubes (less than 20 x 20 x 20mm size of the ice) in glass jar at a time.

SMOOTHIE BUTTON

Press this button to make delicious smoothies. The appliance starts mixing according to the pre-set speed profile. Press the button again to stop the process or wait for the unit to stop automatically after running for one minute.

AUTO CLEAN BUTTON

Press the button to run the Auto mode. The appliance starts operating according to the pre-set speed profile. Press the button again to stop the process or wait for the unit to stop automatically after running for 45 seconds. This function can be used to clean the product; you have to use water in the jar.

HOW TO USE THE GLASS JAR

1. Place the ingredients in the glass jar.
2. Place the lid on the jar and close it tightly.

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

1. Insert the measuring cup into the lid opening.

Simple line drawing showing a container being lowered into a rectangular base (no text or symbols)

1. Select the speed by turning the control knob or press the Quick-select button.

Note: Do not let the appliance to operate more than 3 minutes continuously. Let the appliance to cool down to room temperature before continue operating the appliance. Note that the glas jar can only withstand temperatures up to 90^ C.

AFTER USING THE BLENDER

1. Disconnect the power from main supply.
2. Remove the lid (together with measuring cup) from the jar.
3. Remove the jar (together with blade assembly unit interface) from the motor part.
4. Detach the blade assembly unit interface from the bottom of the jar.

Note: Always clean the removable parts immediately after use.

Note: It is recommended to cut the meat or other food into smaller pieces before putting them in the jar. Do not operate with large quantities of food at one time.

CLEANING

Note: Always clean the removable parts immediately after use.

Note: Be careful when cleaning the parts. Avoid touching the sharp blades!

1. Disconnect the power from main supply.
2. Disassemble all removable parts before cleaning.
3. Clean all removable parts in lukewarm water with dishwashing liquid.
4. Use dry cloth to clean the main body.

EN

BEYOND EXPECTATIONS 5 SINCE 1948 YEAR GUARANTEE

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
- Damage on glass
- Parts which are normally worn down

PRODUCT SPECIFICATIONS

220V\~240V\~50Hz, 1800 W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOLD

16 VIKTIGE SIKKERHETSINSTRUKSJONER

18 FORSIKTIG

19 FORHOLDSREGLER FOR BLENDEREN

20 PRODUKTOVERSIKT

21 PRODUKTOVERSIKT - KONTROLLPANEL

21 INNEBYGD SIKKERHETSLÅS

21 F∅R F∅RSTE GANGS BRUK

22 BRUK

23 ETTER BRUK AV BLENDEREN

23 RENGJ∅RING

24 GARANTI

25 PRODUKTSPESIFIKASJONER

25 SUPPORT OG RESERVEDELER

25 GJENVINNING

VIKTIGE SIKKERHETSINSTRUKSJONER

NO

INNEBYGD SIKKERHETSLÅS

Line drawing of a pitcher with a lid and handle, showing a red downward arrow indicating compression or reduction (no text or symbols)

Simple line drawing showing a container with a downward arrow above a rectangular base (no text or symbols)

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing showing a container being lowered into a roof (no text or symbols)

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing showing a container being lowered into a rectangular base (no text or symbols)

OFF ON MIN 3a 3b 3c auto clean ice crush electric MAX

Line drawing of a pitcher with a lid and handle, showing a red downward arrow indicating compression or reduction (no text or symbols)

Simple line drawing showing a container being lowered into a rectangular base (no text or symbols)

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing showing a container being lowered into a roof (no text or symbols)

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing showing a container being lowered into a roof (no text or symbols)

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing showing a container being lowered into a roof (no text or symbols)

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing showing a container being lowered into a rectangular base (no text or symbols)

CARACTÉRISTIQUES DU PRODUIT

220 V\~ 240 V\~50 Hz, 1800 W

ASSISTANCE ET PIÈCES DÉTACHÉES

Line drawing of a blender with a lid and red arrow indicating compression (no text or symbols)

Simple line drawing of a container being lowered into a base (no text or symbols)

1 OFF ON MIN 3a 3b 3c auto clean ice crush septuous MAX

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

ES

Simple line drawing showing a container being lowered into a rectangular base (no text or symbols)

Line drawing of a pitcher with a lid and arrow indicating downward motion (no text or symbols)

Simple line drawing of a bucket pouring liquid into a container (no text or symbols)

FSC www.fsc.org 100% From well- managed forests FSC® C000000

BL3B-P1800_BBLSP-1800S_20_05
