Product Type Outdoor LED TV
Brand Furrion
Model FDUF43CBR

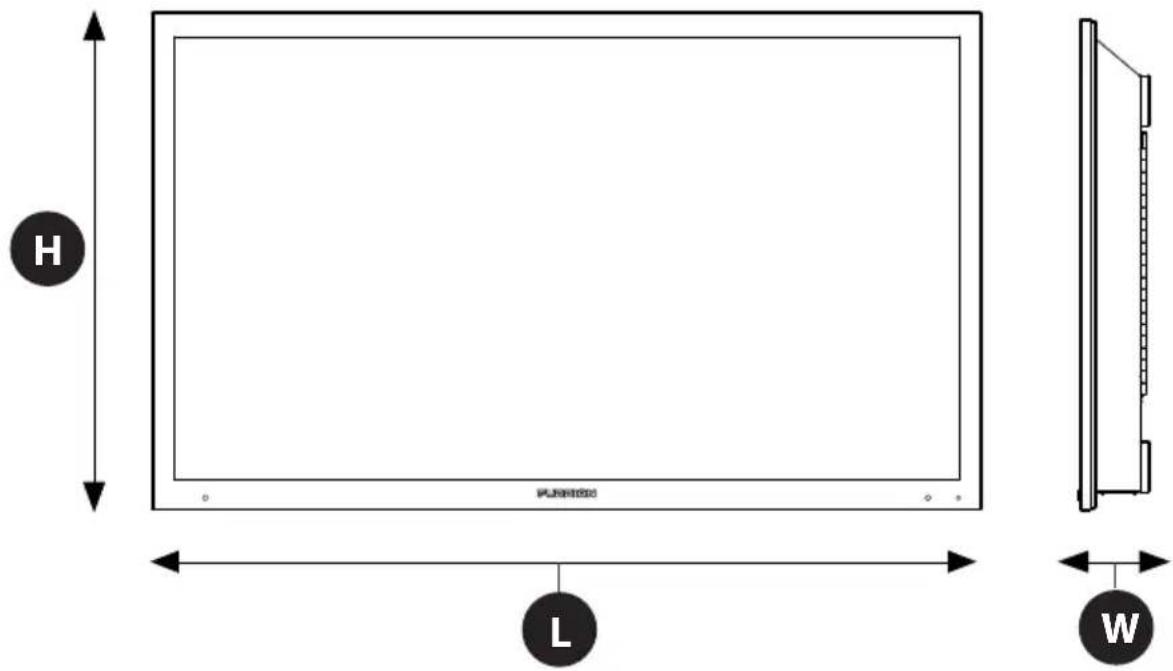

Screen Size 43 inches (109 cm)
Resolution Full HD 1920 x 1080 pixels
Backlight LED
Aspect Ratio 16:9
HDMI Inputs 3 (HDMI 1 with ARC, HDMI 3 with MHL)
VGA Input 1
Component Input (Y/Pb/Pr) 1
Composite Input (VIDEO/AUDIO) 1
USB Port 1 (USB 2.0, 5 V/500 mA)

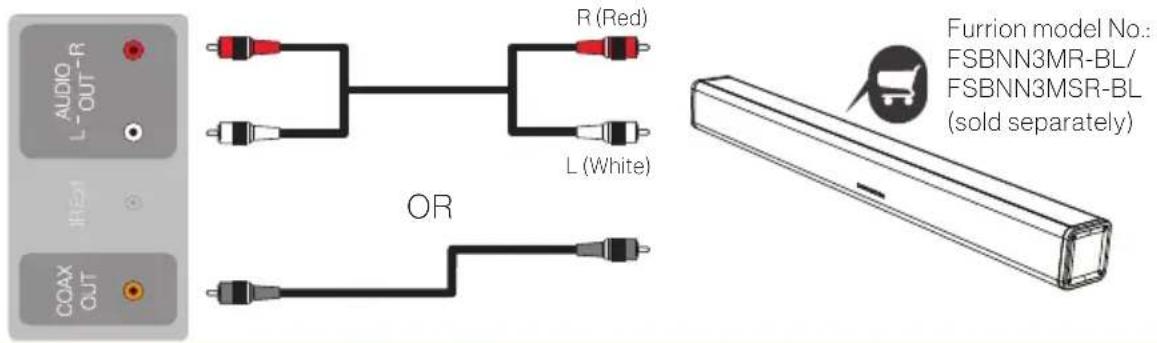

Coaxial Digital Audio Output 1
Analog Audio Output (L/R) 1
Infrared Extender (IR Ext) 1
Tuner ATSC (Digital Terrestrial/Cable)
Remote Control Yes, with CR2025 button cell
VESA Wall Mount 200 x 200 mm
Power Supply 100-240 V ~ 50/60 Hz
Operating Temperature -20 °C to +43 °C
Storage Temperature -33 °C to +58 °C

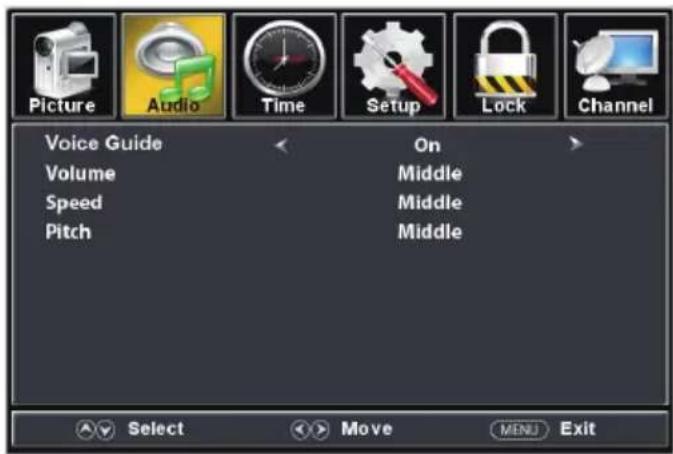

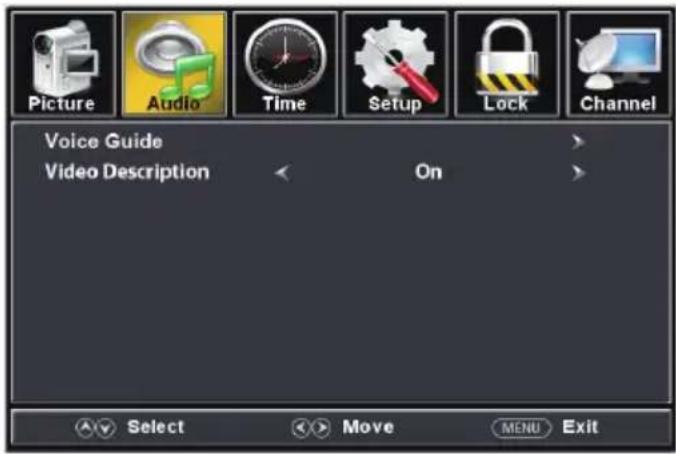

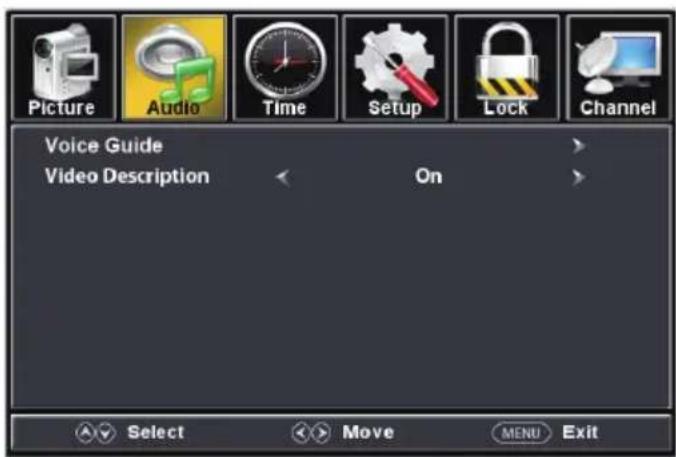

Special Features Voice guide, subtitling, parental control, freeze frame, favorites list, MHL
Screen Care Clean with a slightly damp microfiber cloth

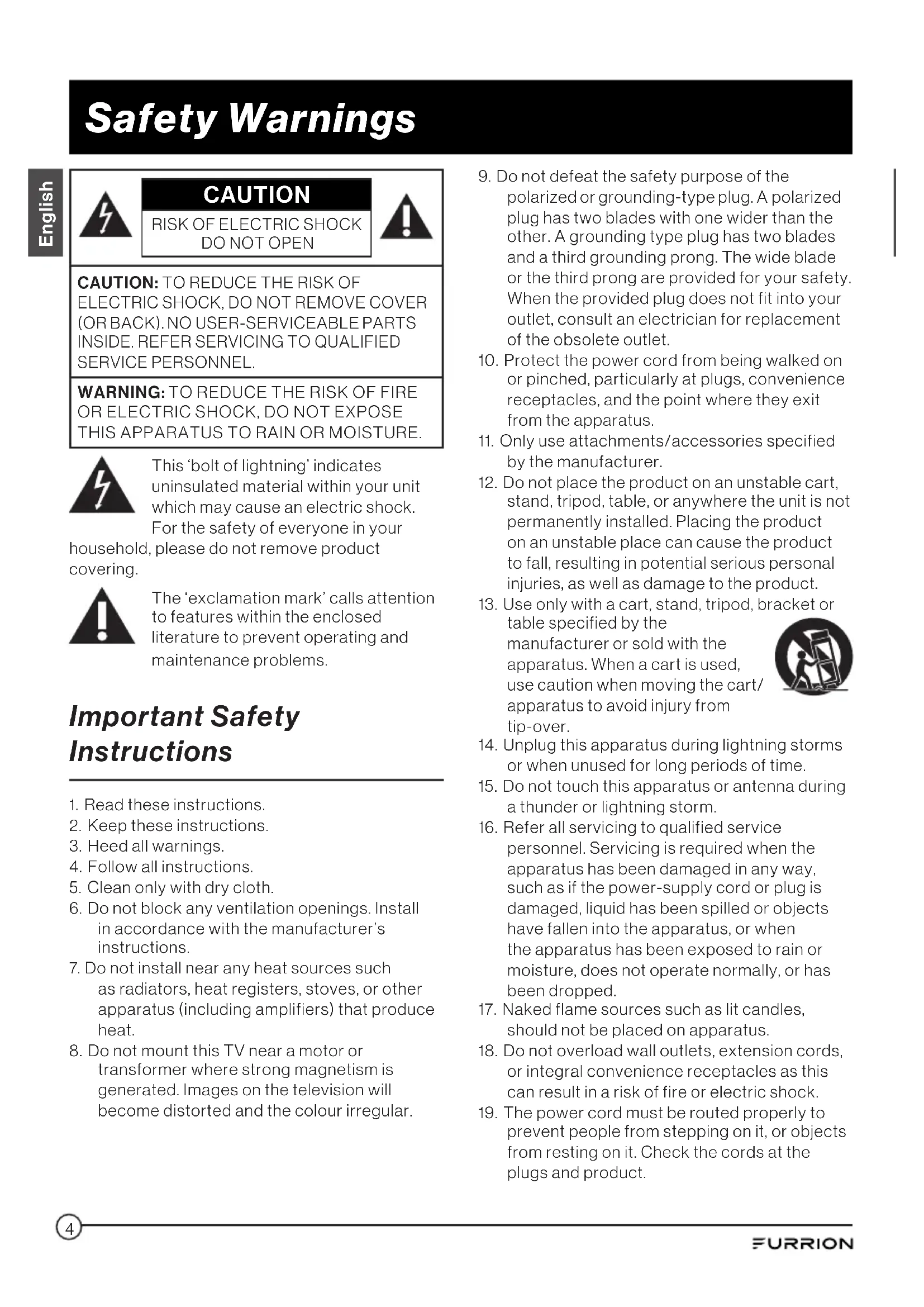

Safety Install away from water, use a GFCI outlet
Repairability No user-serviceable parts

Frequently Asked Questions - FDUF43CBR Furrion

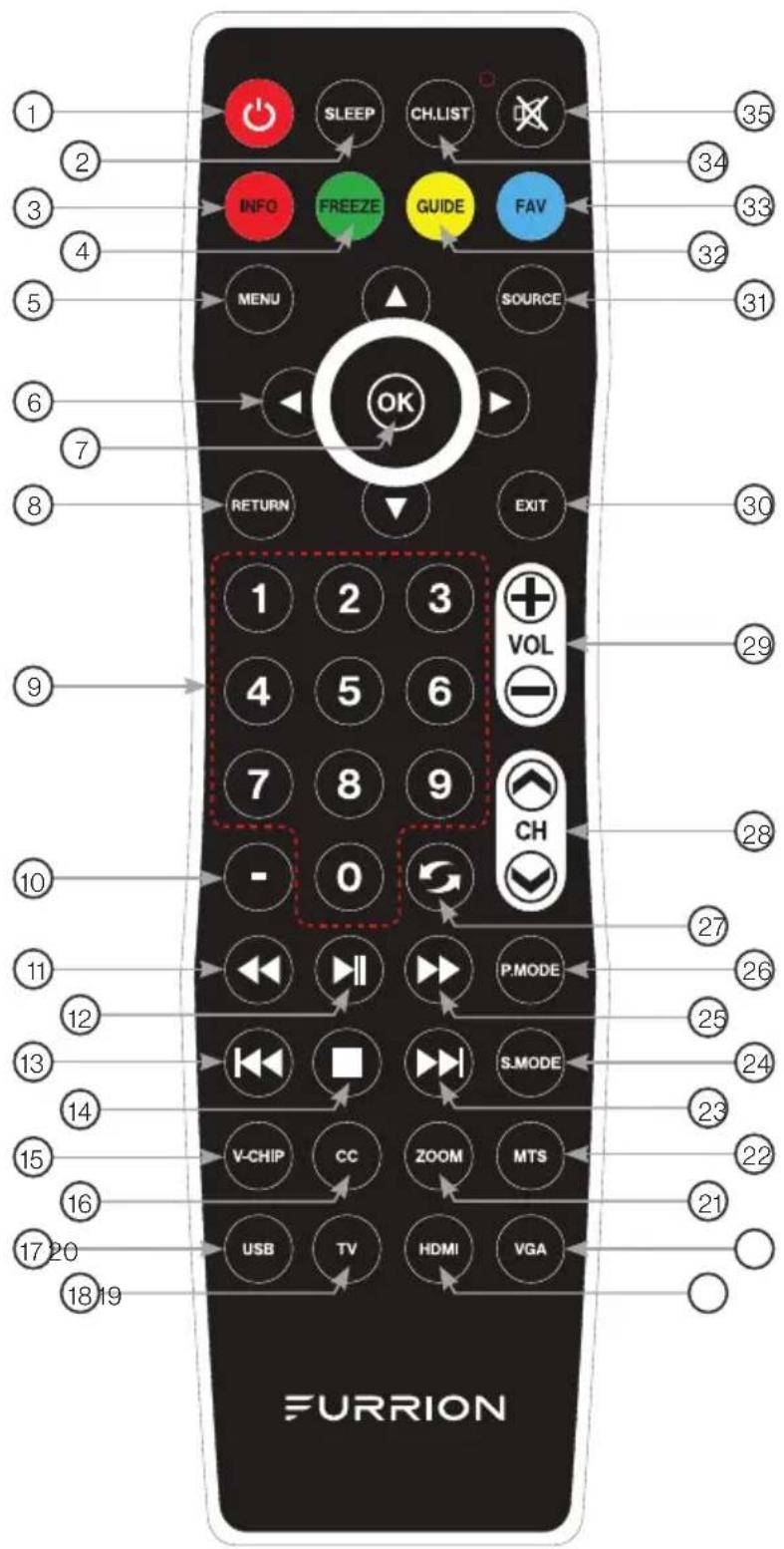

How to install the remote control batteries?
Use the provided tool to open the battery compartment cover, insert a CR2025 button cell respecting polarity, then close the cover.
How to launch automatic channel search?
Turn on the TV, the setup wizard appears. Select your language, signal type (Air/Cable), then start the auto scan. You can also access it via the menu Channel > Auto Scan.

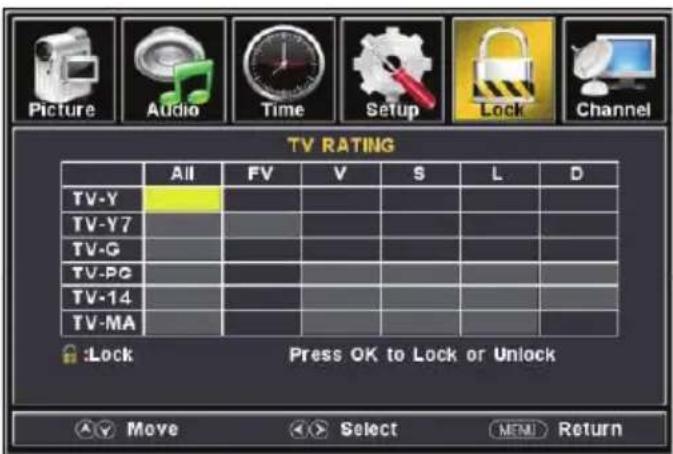

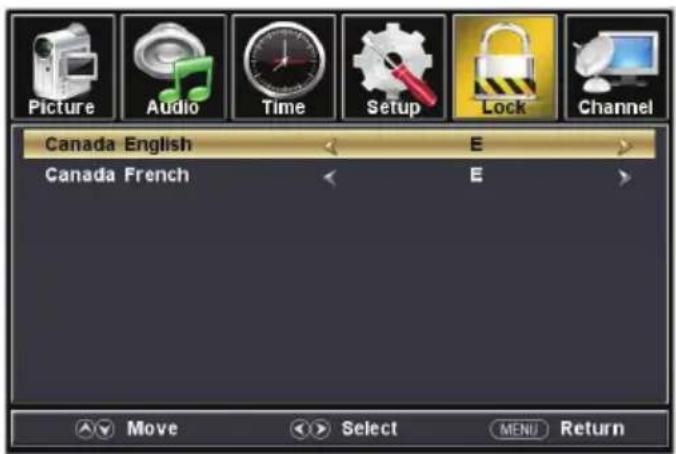

How to activate parental control?

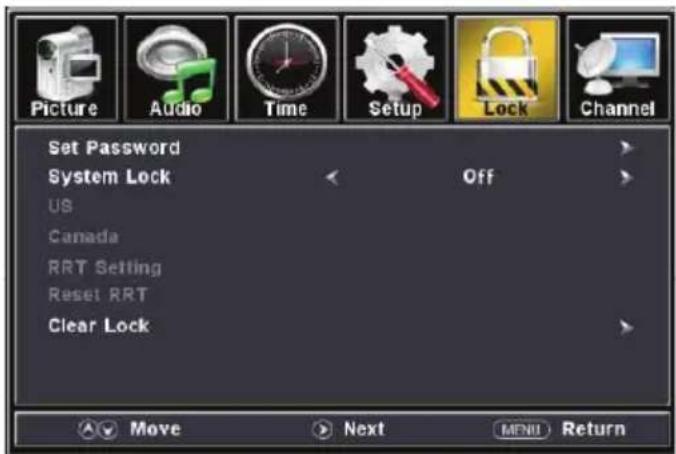

Press MENU, go to Lock, enter the default password 0000, then activate System Lock. You can then set restrictions by age and category (TV, MPAA, Canada).
Why is the remote control not working?
Check that the remote is within range (about 10 m) and no obstacles block the signal. Ensure the battery is correctly installed and not worn. If the problem persists, replace the battery.
How to connect an MHL-compatible device?
Use the HDMI 3 port with a special MHL cable (not included). Connect your compatible smartphone or tablet, the TV will display the device's screen.
How to use the ARC function?
Connect an ARC-compatible audio system to the HDMI 1 port using an HDMI 1.4 or higher cable. Enable HDMI ARC in the menu Setup > HDMI CEC.
The TV turns off by itself, what to do?
Check if the Sleep Timer is enabled in the Time menu. If Auto Standby is enabled, the TV turns off when no signal is present. Disable these options if necessary.
How to clean the LED screen?
Unplug the TV. Use a microfiber cloth slightly dampened with water (or a 50/50 mix of isopropyl alcohol and distilled water). Never use abrasive products or paper.

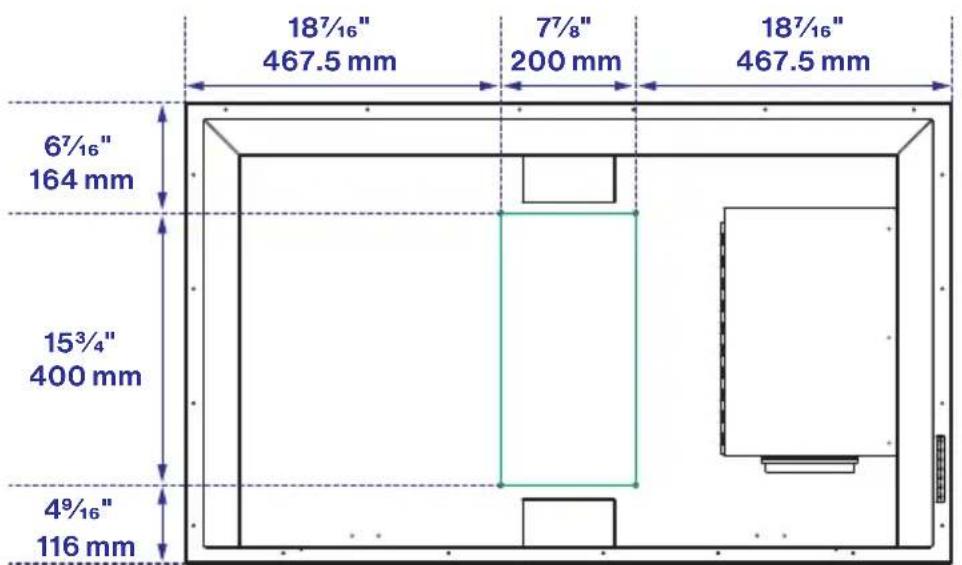

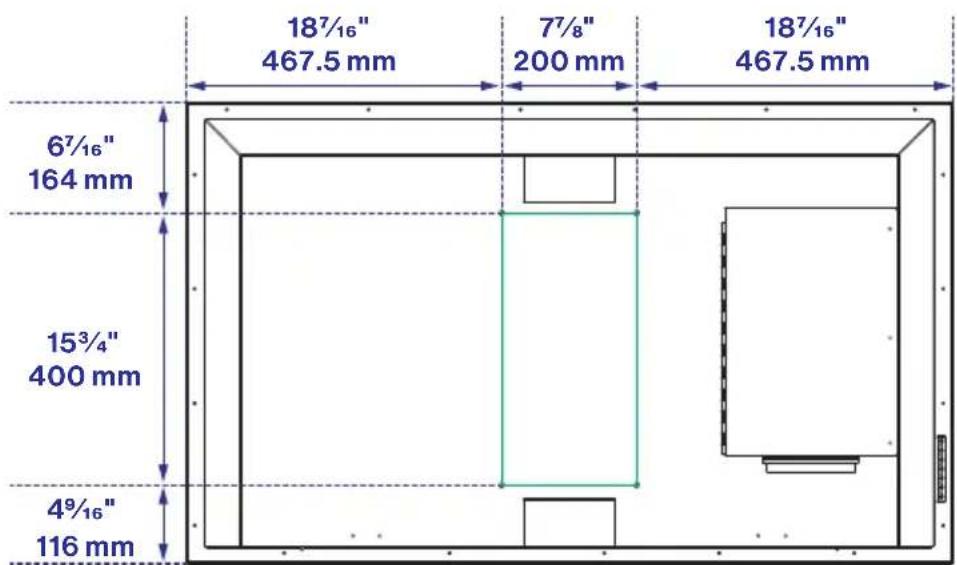

Can I mount the TV on the wall?

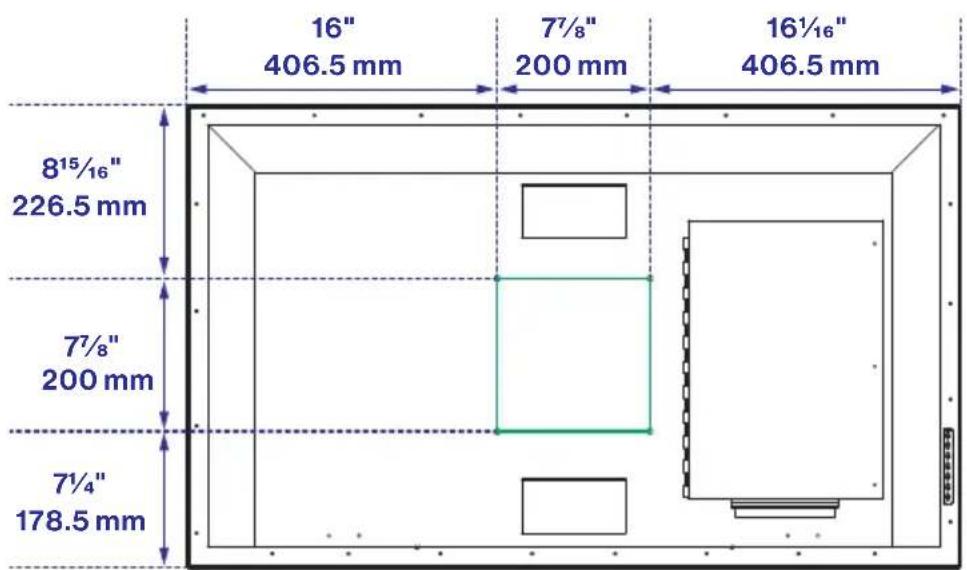

Yes, the TV is compatible with VESA 200 x 200 mm brackets. Use the provided M6 screws. It is recommended to hire a professional and have two people for installation.

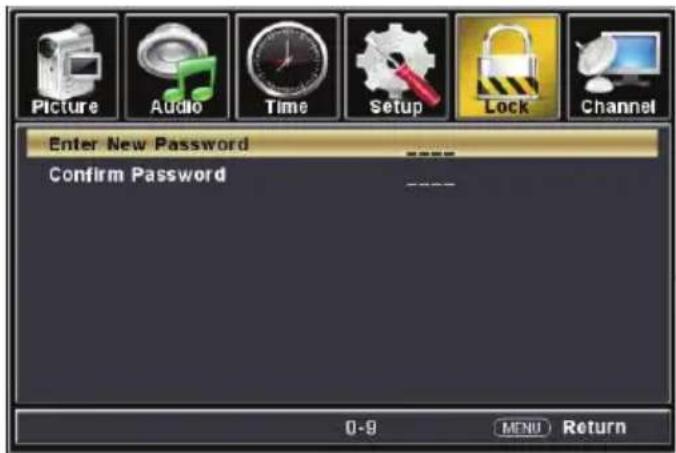

How to reset the password if I forgot it?
To access the locked menu, use the backup code 8888. Then go to Set Password to set a new password.
