USER MANUAL HQ916016 PHILIPS

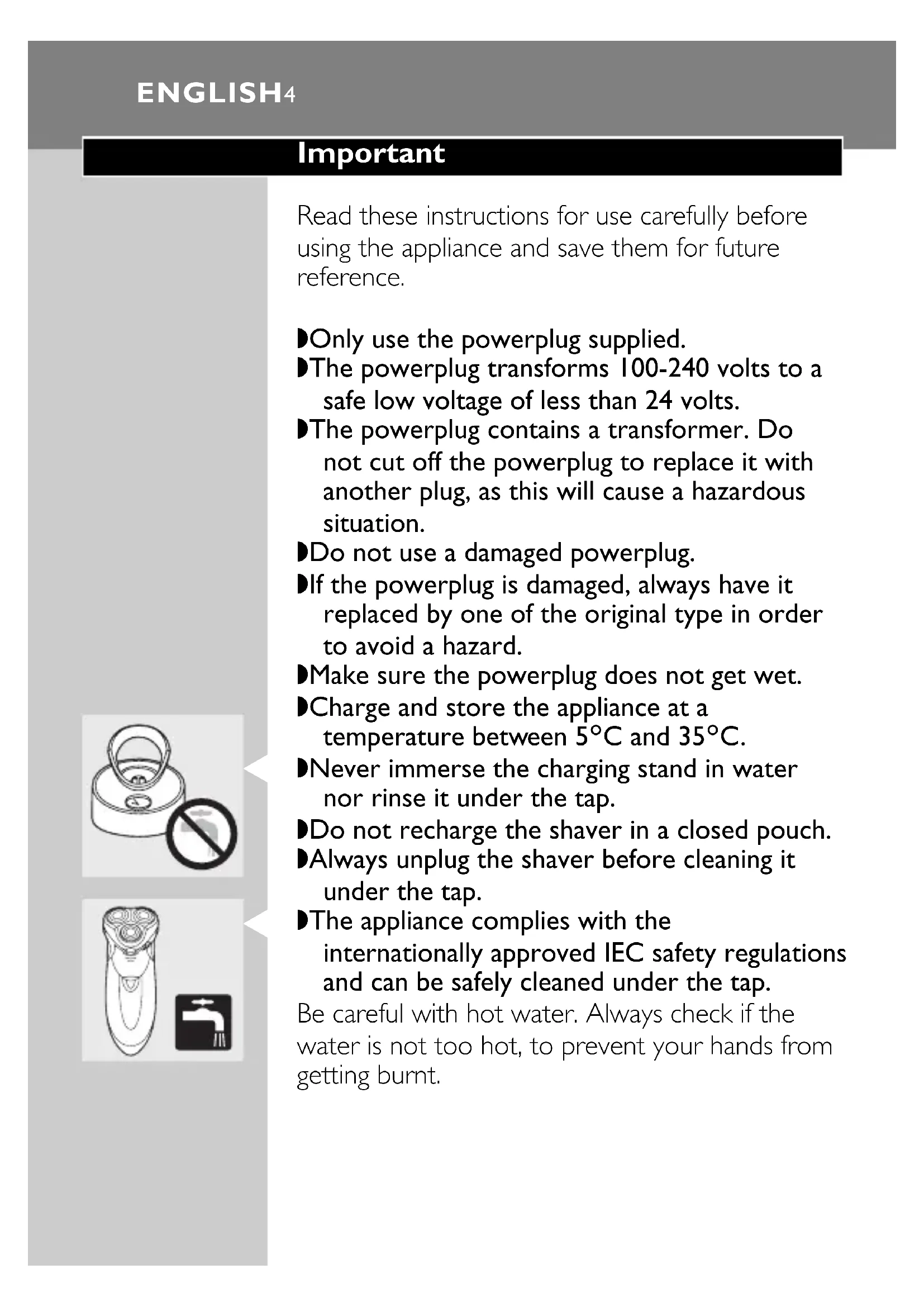

HQ9161, HQ9160Important Read these instructions for use carefully before using the appliance and save them for future reference. ◗ Only use the powerplug supplied. ◗ The powerplug transforms 100-240 volts to a safe low voltage of less than 24 volts. ◗ The powerplug contains a transformer. Do not cut off the powerplug to replace it with another plug, as this will cause a hazardous situation. ◗ Do not use a damaged powerplug. ◗ If the powerplug is damaged, always have it replaced by one of the original type in order to avoid a hazard. ◗ Make sure the powerplug does not get wet. ◗ Charge and store the appliance at a temperature between 5cC and 35cC.

◗ Never immerse the charging stand in water nor rinse it under the tap. ◗ Do not recharge the shaver in a closed pouch. ◗ Always unplug the shaver before cleaning it under the tap.

◗ The appliance complies with the internationally approved IEC safety regulations and can be safely cleaned under the tap. Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt. ENGLISH4Charging Make sure the appliance is switched off before you start charging it. Charging normally takes approx. 1 hour. You can also shave without charging by connecting the shaver to the mains. Charge indications Charging

◗ When you start charging the empty shaver, the bottom light burns red.When the battery contains enough power for one shave, all lights start blinking green sequentially. Battery fully charged

◗ When the battery has been fully charged, all green lights are on. A few hours after charging, all lights go out. Remaining battery capacity

◗ The amount of power left in the battery is indicated by the number of lights that are on. ENGLISH 5The remaining battery capacity is shown when you unplug the shaver or when you switch it on or off: - When all lights burn green, the battery is 100% charged. - When the bottom light burns green, 20% of the battery capacity is left. Battery running low

◗ When the battery is running low, the bottom light starts burning red. When you switch the shaver off, this light blinks a few times. Cordless shaving time A fully charged shaver has a cordless shaving time of up to 80 minutes. Charging the appliance

1 Put the appliance plug in the shaver. 2 Put the powerplug in the wall socket. 3 Remove the powerplug from the wall socket and pull the appliance plug out of the shaver when the battery has been fully charged. ENGLISH6Charging stand You can also charge the appliance by placing it in the charging stand, if provided. Never immerse the charging stand in water nor rinse it under the tap.

◗ Place the shaver properly in the plugged-in charging stand. The bottom light starts burning red.

◗ Lift the shaver from the stand without tilting it. Removing and inserting the clock

1 Turn the clock anticlockwise (1) ('click') and pull it out (2).

◗ Set the time by pressing the small button at the back of the clock. The time can only be set forward. Replacing the battery

1 Remove the cap.Then remove the battery by means of a miniature screwdriver.

2 Insert a new battery and put the cap back into place. Using the appliance Personal Comfort Control

◗ The Personal Comfort Control system allows you to adapt the shaver to your skin type. - You can set the shaver to 'Normal' for a fast and comfortable close shave. - You can set the shaver to 'Sensitive' for a comfortable close shave with optimal skin comfort. ENGLISH8C ◗ The 'S' position is best suited for sensitive skin.

◗ The 'N' position is best suited for normal skin. ◗ The in-between positions are suitable for skin types between normal and sensitive. Shaving 1 Switch the shaver on by pressing the on/off button once. When you switch the shaver on or off, all lights and symbols go on and then the remaining battery capacity is shown for a few seconds.

2 Move the shaving heads quickly over your skin, making both straight and circular movements. - Shaving on a dry face gives the best results. - Your skin may need 2 or 3 weeks to get accustomed to the Philips system. 3 Switch the shaver off by pressing the on/off button once.

4 Put the protection cap on the shaver every time you have used it, to prevent damage. ENGLISH 9Trimming For grooming sideburns and moustache.

1 Open the trimmer by pushing the slide downwards. The trimmer can be activated while the motor is running.

2 Close the trimmer with your index finger. Cleaning and maintenance

◗ The tap symbol starts blinking after every shave to remind you that the shaver needs to be cleaned (except when the bottom light burns red). Regular cleaning guarantees better shaving performance. ◗ If provided, use the washing machine to clean the shaver. See the seperate instruction booklet. The normal way to clean the appliance is to rinse the shaving unit and the hair chamber with hot water every time you have used the shaver. ENGLISH10Be careful with hot water.Always check if the water is not too hot, to prevent your hands from getting burnt. Every day: shaving unit and hair chamber 1 Switch the shaver off, remove the powerplug from the wall socket and pull the appliance plug out of the shaver.

2 Press the release button to open the shaving unit.

3 Clean the shaving unit and the hair chamber by rinsing them under a hot tap for some time. Make sure the inside of the shaving unit and the hair chamber have been cleaned properly.

4 Rinse the outside of the appliance. 5 Close the shaving unit and shake off excess water. Never dry the shaving unit with a towel or tissue as this may damage the shaving heads.

6 Open the shaving unit again and leave it open to let the appliance dry completely. You can also clean the hair chamber without water by using the brush supplied. ENGLISH 11Every six months: shaving heads

1 Open the shaving unit, turn the lock anticlockwise (1) and remove the retaining frame (2). 2 Clean the cutters and guards with the brush supplied. Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally mix up the cutters and guards, it may take several weeks before optimal shaving performance is restored. 3 Put the shaving heads back into the shaving unit. Put the retaining frame back into the shaving unit and turn it clockwise. 4 Close the shaving unit. Trimmer Clean the trimmer every time you have used it. 1 Switch the shaver off, remove the powerplug from the wall socket and pull the appliance plug out of the shaver.

2 Clean the trimmer with the brush supplied. ENGLISH12C 3 Lubricate the trimmer teeth with a drop of sewing machine oil every six months. Charging stand You can clean the charging stand with a moist cloth. Storage

◗ Put the protection cap on the shaver to prevent damage.

◗ Store the appliance in the luxury pouch or place the appliance in the stand to dry. Replacement

◗ Replace the shaving heads as soon as the shaving unit symbol starts blinking. Replace damaged or worn shaving heads with HQ9 Philips shaving heads only. ENGLISH 131 Switch the shaver off, remove the powerplug from the wall socket and pull the appliance plug out of the shaver.

2 Press the release button to open the shaving unit.

4 Remove the shaving heads and place new ones in the shaving unit. Make sure that the projections of the shaving heads fit exactly into the recesses.

5 Put the retaining frame back into the shaving unit (1) and turn the lock clockwise (2). 6 Close the shaving unit. ◗ The shaving unit symbol will go out if you keep the on/off button pressed for 6 seconds. Accessories The following accessories are available: - HQ8500/HQ8000 powerplug. - HQ9 Philips shaving heads. ENGLISH14- HQ110 Philips shaving head cleaner (shaving head cleaning spray). Not available in Canada. - HQ8010 car cord. Environment

◗ Do not throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you will help to preserve the environment. ◗ The built-in rechargeable battery contains substances that may pollute the environment. Always remove the battery before discarding the appliance or handing it in at an official collection point. Dispose of the battery at an official collection point for batteries. If you have trouble removing the battery, you can also take the appliance to a Philips service centre, which will remove the battery for you and will dispose of it in an environmentally safe way. Disposal of the shaver battery Only remove the battery if it is completely empty. 1 Remove the powerplug from the wall socket and pull the appliance plug out of the shaver.

2 Let the shaver run until it stops, undo the screws and open the shaver. ENGLISH 153 Remove the battery. Do not connect the shaver to the mains again after the battery has been removed. Guarantee & service If you need information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Customer Care Centre in your country (you will find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, turn to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV. Troubleshooting 1 Reduced shaving performance

Cause 1: the shaving heads are dirty.

The shaver has not been rinsed long enough or the water used was not hot enough. ◗ Clean the shaver thoroughly before you continue shaving. See chapter 'Cleaning and maintenance'.

Cause 2: long hairs are obstructing the shaving heads. ENGLISH16◗ Clean the cutters and guards with the brush supplied. See chapter 'Cleaning and maintenance', section 'Every six months: shaving heads'.

Cause 3: the shaving heads are damaged or worn. ◗ Replace the shaving heads. See chapter 'Replacement'. 2 The shaver does not work when the on/off button is pressed.

Cause 1: the battery is empty. ◗ Recharge the battery. See chapter 'Charging'.

Cause 2: the appliance is not connected to the mains. ◗ Put the powerplug in the wall socket.

3 The shaving unit has come off the shaver.
