S9000 Prestige SP9871 - Shaver PHILIPS - Free user manual and instructions

USER MANUAL S9000 Prestige SP9871 PHILIPS

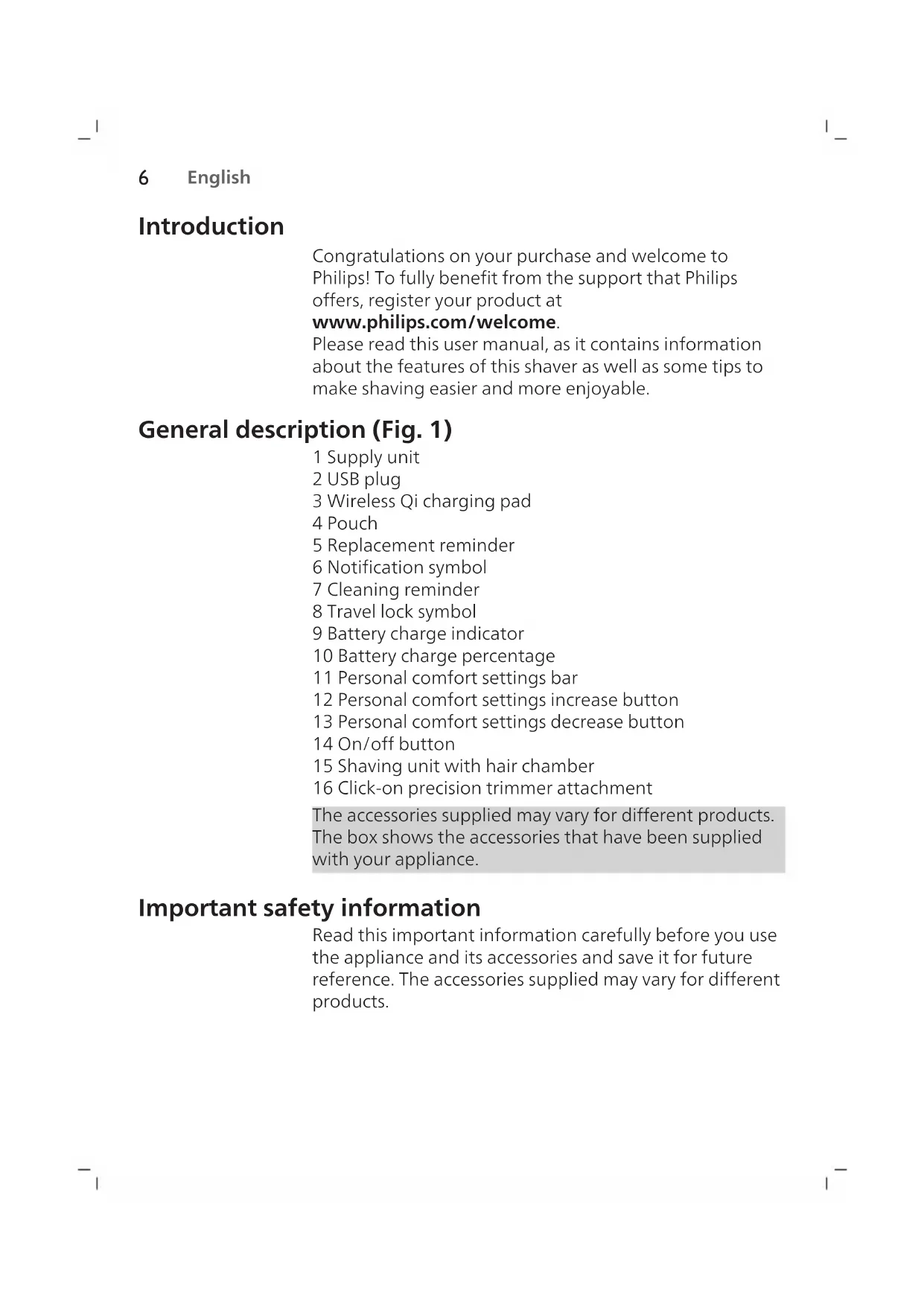

English Introduction Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Please read this user manual, as it contains information about the features of this shaver as well as some tips to make shaving easier and more enjoyable. General description (Fig. 1) 1 Supply unit 2 USB plug 3 Wireless Qi charging pad 4 Pouch 5 Replacement reminder 6 Notification symbol 7 Cleaning reminder 8 Travel lock symbol 9 Battery charge indicator 10 Battery charge percentage 11 Personal comfort settings bar 12 Personal comfort settings increase button 13 Personal comfort settings decrease button 14 On/off button 15 Shaving unit with hair chamber 16 Click-on precision trimmer attachment The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance. Important safety information Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.7 English Danger - Keep the supply unit dry. Warning - The appliance is a Class III construction. - To charge the battery, only use the detachable supply unit and charging pad (supply unit, type HQ87. Charging pad, type HQ8509 or HQ8510) provided with the appliance. - Do not use a USB extension cord.8 English - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. - Always check the appliance and its attachments before you use it. Do not use the appliance or its attachments if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type. - Do not open the appliance to replace the rechargeable battery. - This appliance contains batteries that are non-replaceable.9 English - The charging pad is not intended for use in a car. It may interfere with the automotive electronic systems. Caution - Never immerse the charging pad in water, nor rinse it under the tap. - Always make sure the charging pad is completely dry before you connect it to the wall socket. - Never use water hotter than 60°C to rinse the shaver. - Only use this appliance for its intended purpose as shown in the user manual. - For safety reasons, do not use the shaver while you drive a car. - For hygienic reasons, the appliance should only be used by one person. - Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance. - Do not put the appliance or any part in the dishwasher.10 English - Water may trickle out of the shaver after you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver. - Do not use the supply unit in or near wall sockets that contain an electric air freshener to prevent irreparable damage to the supply unit. Electromagnetic fields (EMF) This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields. General - This shaver is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. - The supply unit is suitable for mains voltages ranging from 100 to 240 volts. - The supply unit transforms 100-240 volts to a safe low voltage of less than 24 volts. The display Note: Remove any sticker or protective foil from the display before using the product. Charging When the shaver is charging, the ring on the pad lights up and the battery charge indicator on the shaver flashes white. The battery charge is indicated by the battery charge percentage flashing on the display, which is shown when the shaver is moved. Quick charge: After approx. 18 minutes charging, the appliance contains enough energy for one shave.11 English Battery fully charged When the battery is fully charged, the battery charge indicator and the ring on the pad light up white continuously. Note: Both lights switch off automatically after 15 minutes. The battery charge percentage lights up white continuously, which is shown when the shaver is moved. Battery low When the battery is almost empty, the battery charge indicator flashes orange and the shaver beeps. At this point there is enough energy left for one shave.. Remaining battery charge The remaining battery charge is indicated by the battery charge percentage shown on the display. Personal comfort settings The shaver has a feature that allows you to personalize your settings. Depending on your personal shaving needs, choose between three settings, from low to high: comfort, dynamic or efficiency. When you press the button on the left or right of the display, the segment of the personal comfort settings bar lights up to indicate the selected setting. To select a lower or higher setting, press the button on the left or right of the display.12 English Cleaning reminder Clean the shaver after every use for optimal performance (see 'Cleaning and maintenance'). When you switch off the shaver, the cleaning reminder flashes to remind you to clean the shaver. Travel lock 3 sec. When you are going to travel, you can lock the shaver to prevent it from accidentally switching on (see 'Activating the travel lock'). Replacement reminder For maximum shaving performance, we advise you to replace the shaving heads once a year. Replace damaged shaving heads immediately. Always replace the shaving heads with original Philips shaving heads. The shaver is equipped with a replacement reminder which reminds you to replace the shaving heads. The shaver beeps, the replacement reminder lights up and the arrows flash to indicate that you have to replace the shaving heads. Note: After replacing the shaving heads, you can reset the replacement reminder by pressing the on/off button for 7 seconds. If you do not reset the replacement reminder, the shaver resets automatically after 9 shaves. Notification symbol Overheating If the shaver overheats during charging, the notification symbol flashes. When this happens, the shaver stops charging automatically. Charging continues once the temperature of the shaver has decreased to the normal level after approx. 10 minutes.13 English Blocked shaving heads If the shaving heads are blocked, the notification symbol continuously lights up red. The replacement reminder and the cleaning reminder alternately flash white and the shaver beeps. In this case, the motor cannot run because the shaving heads are dirty or damaged. If the shaving heads are dirty, you have to clean them. If the shaving heads are damaged, you have to replace them. Foreign object on wireless Qi charging pad If there is a foreign (metal) object on the wireless Qi charging pad during charging, the notification symbol on the wireless Qi charging pad lights up. The wireless Qi charging pad switches off automatically and restarts 5 minutes after the foreign object has been removed. Do not place any foreign (metal) objects on the wireless Qi charging pad. Only use the wireless Qi charging pad to charge the shaver or another device (e.g. smartphone) compliant with Qi charging. Charging Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty. Charging takes approx. 3 hours. A fully charged shaver has a shaving timeof up to 60 minutes. After approx. 18 minutes of charging the shaver contains enough power for one shave. Note: You cannot use the shaver while it is charging. Quick charge After approx. 18 minutes of charging the shaver contains enough power for one shave.14 English Charging with the wireless Qi charging pad Note: The charging pad is Qi compliant. Only charge the Qi compatible shaver or other Qi charging compliant appliances on the wireless Qi charging pad provided. Note: Carefully shake off excess water before placing the shaver on the Qi pad.

Put the USB plug in the supply unit supplied.

Put the supply unit in the wall socket. Place the shaver on the cross mark of the wireless Qi charging pad. Make sure the shaver fits into the cavity of the wireless Qi charging pad. Only charge the shaver on the provided wireless Qi charging pad. - The wireless Qi charging pad beeps and the ring on the pad lights up when the shaver is correctly placed and connected for charging. - When the shaver is charging, the ring on the pad lights up and the battery charge indicator on the shaver flashes white. The battery charge is indicated by the battery charge percentage flashing on the display, which is shown when the shaver is moved.

When the battery is fully charged, the battery charge indicator and the ring on the pad light up white continuously. Both lights switch off automatically after 15 minutes.15 English Using the shaver Always check the shaver and all accessories before use. Do not use the shaver or any accessory if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type. This symbol indicates that the shaver can be used in the bath or shower. - Use this shaver for its intended household use as described in this manual. - For hygienic reasons, the shaver should only be used by one person. - Trimming is easier when the skin and hair are dry. Note: This shaver is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can only be used without cord. Switching the shaver on and off

To switch on the shaver, press the on/off button once. The battery charge percentage lights up for a few seconds.

To switch off the shaver, press the on/off button once. The battery charge percentage lights up for a few seconds and shows the remaining battery charge. Shaving Skin adaptation period Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard need time to adapt to any new shaving system. To allow your skin to adapt to this new appliance, we advise you to shave regularly (at least 3 times a week) and exclusively with this appliance for a period of 3 weeks. Shaving tips - For the best results on skin comfort, pre-trim your beard if you have not shaved for 3 days or longer. - Select your personal comfort setting (see 'Personal comfort settings').16 English Dry shaving

Switch on the shaver.

Move the shaving heads over your skin in circular movements to catch all hairs growing in different directions. Make sure each shaving head is fully in contact with the skin. Exert gentle pressure for a close, comfortable shave. Note: Do not press too hard, as this can cause skin irritation.

Switch off and clean the shaver after each use (see 'Cleaning and maintenance'). The display lights up for a few seconds to show the remaining battery charge. Wet shaving For a more comfortable shave, you can also use this appliance on a wet face with shaving foam or shaving gel.

Apply some water to your skin.

Apply shaving foam or shaving gel to your skin.

Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin.

Switch on the shaver.17 English

Move the shaving heads over your skin in circular movements to catch all hairs growing in different directions. Make sure each shaving head is fully in contact with the skin. Exert gentle pressure for a close, comfortable shave. Note: Do not press too hard, as this can cause skin irritation. Note: Rinse the shaving unit regularly to ensure that it continues to glide smoothly over your skin.

Switch off the shaver and clean it after each use. Note: Make sure that you rinse all foam or shaving gel off the shaver. Using click-on attachments Removing or attaching click-on attachments

Make sure the shaver is switched off.

Pull the attachment straight off the shaver. Note: Do not twist the attachment while you pull it off the shaver.

Insert the lug of the attachment into the slot in the top of the shaver. Then press down the attachment to attach it to the shaver (‘click’). Using the precision trimmer attachment You can use the precision trimmer attachment to touch up your beard, sideburns and moustache.18 English

Attach the attachment to the appliance (‘click’).

Switch on the appliance.

Hold the precision trimmer perpendicular to the skin and move it downwards while exerting gentle pressure.

Switch off the appliance and clean the attachment after use. Travel lock You can lock the shaver when you are going to travel to prevent it from switching on accidentally. Activating the travel lock

Press the on/off button for 3 seconds to use the travel lock mode. 3 sec. While you activate the travel lock, the travel lock symbol lights up briefly and the shaver produces a short sound.When the travel lock is activated, the travel lock symbol flashes. If you try to switch on the shaver while the travel lock is active, the travel lock symbol flashes. Deactivating the travel lock

Press the on/off button for 3 seconds. While you deactivate the travel lock, the travel lock symbol lights up briefly and the shaver produces a short sound.The shaver switches on and is now ready for use again. Note: The shaver unlocks automatically when it is placed on the wireless Qi charging pad.19 English Cleaning and maintenance Regular cleaning guarantees better shaving results. Never clean, remove or replace the shaving unit while the shaver is switched on. Do not apply pressure to shaving head guards. Do not touch shaving heads with hard objects as this may dent or damage the precision-made slotted guards. Do not use compressed air, abrasives, scourers or aggressive liquids such as petrol or acetone to clean the shaver. Cleaning the shaver under the tap Clean the shaver after every shave for optimal performance. Always check if the water is too hot, to prevent burning your hands. Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads. While rinsing the shaving unit, water may drip out of the bottom of the shaver. This is a normal occurrence.

Switch on the shaver.

Rinse the shaving unit under a warm tap.

Switch off the shaver. Pull the shaving head holder off the bottom part of the shaving unit.20 English

Rinse the hair chamber and shaving head holder under the tap. While rinsing the shaving unit, water may drip out of the bottom of the shaver. This is a normal occurrence.

Carefully shake off excess water and let the shaving head holder air-dry completely.

Attach the shaving head holder to the bottom part of the shaving unit (‘click’). Thorough cleaning We advise you to clean the shaving heads thoroughly once a month or when the shaver does not shave as well as it used to.

Switch off the shaver.

Pull the shaving head holder off the bottom part of the shaving unit.21 English

Rinse the hair chamber and shaving head holder under the tap.

Turn the retaining ring anticlockwise and lift it off the shaving head. Repeat this process for the other retaining rings. Place them aside in a safe place.

Remove the shaving heads from the shaving head holder. Each shaving head consists of a cutter and guard. Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.

Clean the cutter and guard under the tap.

Shake off excess water.

Put the cutter back into the guard.

Place the shaving heads in the shaving head holder.

Place the retaining ring on the shaving head.22 English

Align the arrows on the retaining ring with the projections in the shaving head holder. Turn the ring clockwise until it clicks to indicate that the ring is fixed.

Attach the shaving head holder to the bottom part of the shaving unit (‘click’). Cleaning the trimmer attachment Never dry the trimmer with a towel or tissue, as this may damage the trimming teeth. Clean the trimmer attachment after each use.

Switch on the appliance with the precision trimmer attachment attached.

Rinse the attachment under a warm tap.

After cleaning, switch off the appliance.

Carefully shake off excess water and let the attachment air-dry completely. Tip: For optimal performance, lubricate the teeth of the attachment with a drop of sewing machine oil regularly. Replacement Replacing the shaving heads For maximum shaving performance, we advise you to replace the shaving heads every twelve months. Replace damaged shaving heads immediately. Always replace the shaving heads with original Philips shaving heads (see 'Ordering accessories').23 English Replacement reminder The replacement reminder indicates that the shaving heads need to be replaced. The shaving unit symbol lights up continuously, the arrows flash white and you hear a beep when you switch the shaver on or off.

Switch off the shaver.

Press the release button on the shaving unit and pull the shaving head holder off the shaving unit. SH91

Remove the shaving heads from the shaving head holder. Discard the used shaving heads immediately to avoid mixing them with the new shaving heads. 7 sec.

After replacing the shaving heads, you can reset the replacement reminder by pressing the on/off button for 7 seconds. Wait until your hear 3 beeps. If you do not reset the replacement reminder, the shaver resets automatically after 9 shaves. Storage Store the shaver in the pouch. Note: Always let the shaver dry completely before you store it in the pouch. Ordering accessories To buy accessories or spare parts, visit www.philips.com/parts-and-accessories or go to your Philips dealer. You can also contact the Philips Consumer24 English Care Center in your country (see the international warranty leaflet for contact details). Disposal - This product contains a rechargeable lithium-ion battery which must be disposed of properly. - Contact your local town or city officials for battery disposal information. You can also call 888-224-9764 or visit www.call2recycle.ca for battery drop-off locations. - For assistance, visit our website www.philips.com/support or call 1-800-243-3050 toll free. - Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. For recycling information, please contact your local waste management facilities or visit www.recycle.philips.com. Removing the rechargeable shaver battery Only remove the rechargeable battery when you discard the shaver. Before you remove the battery, make sure that the shaver is disconnected from the wall socket and that the battery is completely empty. Take any necessary safety precautions when you handle tools to open the shaver and when you dispose of the rechargeable battery.

Remove the click-on attachment from the appliance.25 English

On top of the appliance insert a screwdriver between the black cylinder and silver ring. Force the silver ring up off the appliance and remove the top panel.

Unscrew the two screws and remove the frame.

Remove the two back black covers and slide the front housing off the appliance.

Unscrew the two screws at the top of the inner panel.

Place a screwdriver between the lips of the inner panel and bend them aside. Then remove the inner panel.

Lift out the printed circuit board with the rechargeable battery.

Bend the battery tags aside with a screwdriver.

Remove the rechargeable battery. Warranty and support If you need information or support, please www.philips.com/support or call toll free: 1-866-800-9311.26 English Warranty restrictions - Philips North America LLC (USA) and/or Philips Electronics Ltd (Canada) warrants its products for a period of two years after the date of purchase. If any defect due to faulty materials and workmanship occurs within this two-year warranty period, Philips North America LLC (USA) and/or Philips Electronics Ltd (Canada) will repair or replace the product at its expense. - Philips North America LLC (USA) and/or Philips Electronics Ltd (Canada) will only pay for repair or replacement if convincing proof is provided, for instance by means of a receipt, that the day on which service is claimed is within the warranty period. Parts that are subject to wear (such as cutting units and shaving heads) are not covered by the terms of the international warranty. - The warranty is not valid if a defect is due to damage caused by incorrect use, poor maintenance (e.g. parts blocked by scale) or if alterations or repairs have been carried out by persons not authorized by Philips North America LLC (USA) and/or Philips Electronics Ltd (Canada). - For the appliance to be used correctly, the user should strictly adhere to all instructions included in the user manual and should abstain from any actions or uses that are described as undesired or which are warned against in the user manual. - These warranty restrictions do not affect your statutory rights.Français (Canada)
