WKHM250BK - Food Processor WESTINGHOUSE - Free user manual and instructions

Product Type	Stand mixer (mixer on stand)
Brand	Westinghouse
Model	WKHM250BK
Power Supply	220-240 V~, 50-60 Hz
Rated Power	350 W
Speeds	6 adjustable speeds (1 to 6)
Turbo Function	Yes, momentary maximum speed
Included Accessories	2 beaters and 2 whisks
Display	Digital screen with timer
Eject Button	Yes, to easily remove accessories
Storage Base	Yes, for the appliance and accessories
Handle	Yes, ergonomic
Ventilation Holes	Yes, to prevent overheating
Usage	Beat, whisk, mix light to heavy preparations
Continuous Operation Time	5 minutes maximum, then 5 minutes rest
Cleaning	Exterior: damp cloth; accessories: soapy water
Safety	Unplug before cleaning; do not immerse; keep out of reach of children
Material	Plastic body, metal accessories
Color	Black (BK)
Dimensions (approx.)	20 x 15 x 25 cm (estimate)
Weight (approx.)	1.5 kg (estimate)
Customer Service	www.westinghousehomeware.com

Frequently Asked Questions - WKHM250BK WESTINGHOUSE

How do I install the beaters or whisks on the mixer?

Make sure the mixer is turned off and unplugged. Insert each beater or whisk into the corresponding drive head by aligning the notches with the slots. Push firmly until it clicks into place. Always use two beaters or two whisks together.

How do I adjust the mixing speed?

Turn on the mixer with the On/Off button, then use the ▲/▼ buttons to select the speed from 1 to 6. The screen displays the operating time. For maximum power, press the Turbo button.

Can I use the mixer to knead heavy dough?

The mixer is designed for mixing, beating, and whisking. For heavy doughs (bread, raisin cake), use the whisks but avoid kneading for long to prevent overloading the motor. If the dough is too dense, add a little liquid.

How do I clean the mixer and its accessories?

Always unplug the appliance. Wipe the exterior with a soft, damp cloth. Wash beaters and whisks in warm soapy water. Never immerse the motor block in water and do not use abrasive products.

What should I do if the mixer stops during use?

The mixer may stop automatically in case of overheating. Let it cool for at least 5 minutes before using again. Also check that the outlet is working and the cord is not damaged.

How do I remove the accessories after use?

Turn off and unplug the mixer. Hold the beaters or whisks with one hand, and press the eject button (EJECT) with the other. The accessories will detach cleanly.

What types of preparations can I make with this mixer?

You can beat egg whites, cream, light cake mixes with the beaters, and mix heavier doughs (bread, raisin cake) with the whisks. It is ideal for common household preparations.

Is the mixer safe for children?

This appliance should not be used by children. Keep it out of their reach, as well as the power cord. Adult supervision is required if used near children.

What should I do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any danger. Contact Westinghouse customer service.

Where can I find the complete manual or spare parts?

The complete manual is available for free on notice-facile.com. For spare parts or after-sales service, visit www.westinghousehomeware.com.

USER MANUAL WKHM250BK WESTINGHOUSE

Black and white kitchen blender with handle and coiled handles (no visible text or symbols)

HAND MIXER WKHM250RD / WKHM250BK / WKHM250WH

EN Instructions P.2

DE Anweisungen P.6

FR Instructions P.11

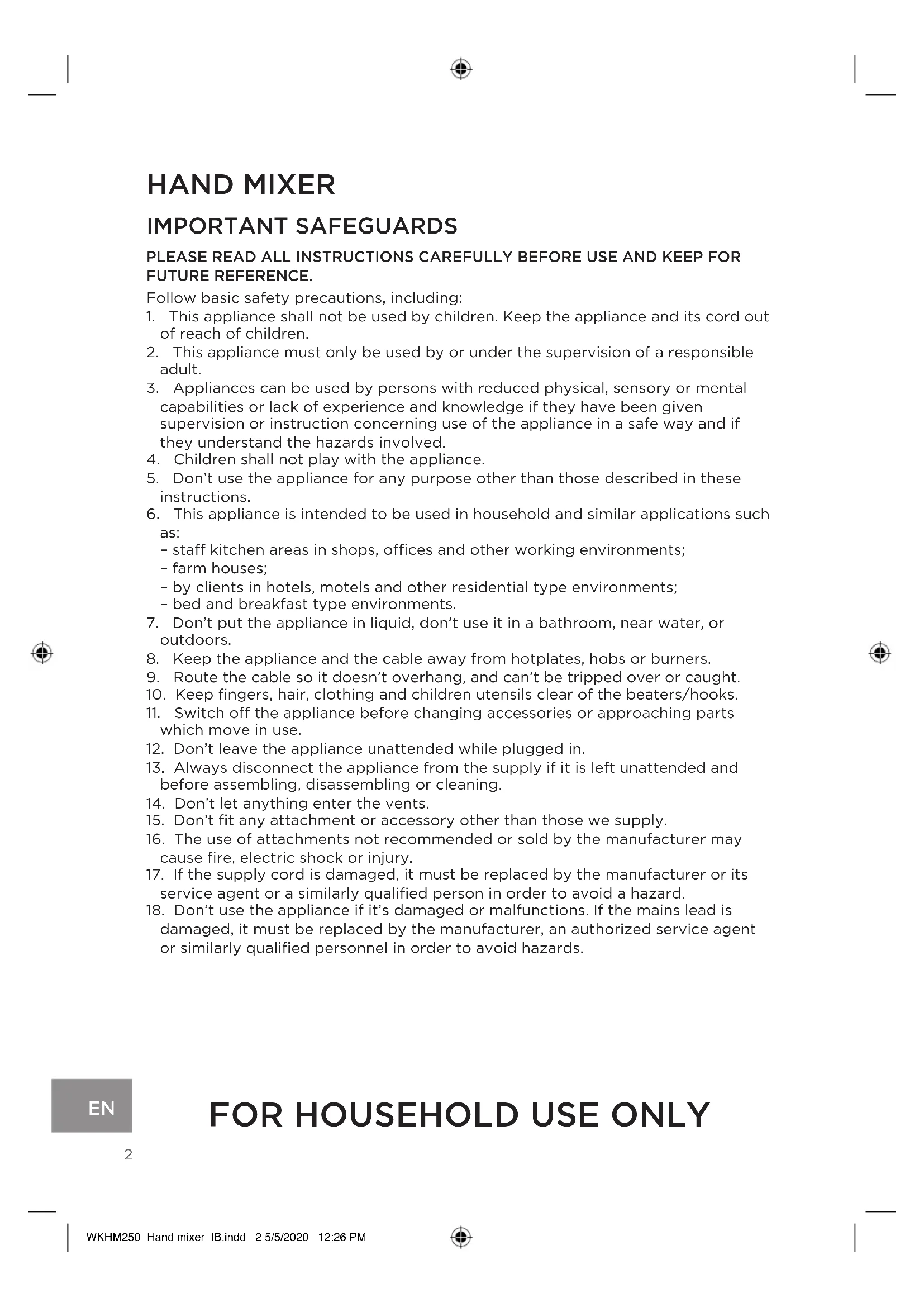

PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.

Follow basic safety precautions, including:

1. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
2. This appliance must only be used by or under the supervision of a responsible adult.
3. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
4. Children shall not play with the appliance.
5. Don't use the appliance for any purpose other than those described in these instructions.

6. This appliance is intended to be used in household and similar applications such as:

7. staff kitchen areas in shops, offices and other working environments;

8. farm houses;
9. by clients in hotels, motels and other residential type environments;

10. bed and breakfast type environments.

11. Don't put the appliance in liquid, don't use it in a bathroom, near water, or outdoors.

12. Keep the appliance and the cable away from hotplates, hobs or burners.
13. Route the cable so it doesn't overhang, and can't be tripped over or caught.
14. Keep fingers, hair, clothing and children utensils clear of the beaters/hooks.
15. Switch off the appliance before changing accessories or approaching parts which move in use.
16. Don't leave the appliance unattended while plugged in.
17. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
18. Don't let anything enter the vents.
19. Don't fit any attachment or accessory other than those we supply.
20. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
21. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
22. Don't use the appliance if it's damaged or malfunctions. If the mains lead is damaged, it must be replaced by the manufacturer, an authorized service agent or similarly qualified personnel in order to avoid hazards.

EN

1. Drive heads
2. Air vents
3. Eject button Press to remove the beaters / dough hooks from the hand mixer.
4. Display
5. ▲/▼ Press to increase or decrease the speed level.

6. Turbo button Press to operate the hand mixer at maximum speed.

7. On/Off button ⏻) Press to turn the hand mixer on or off.

8. Handle
9. Beaters (1 pair)
   10.Dough hooks (1 pair)
10. Notches
11. Storage stand Easy storage for hand mixer and accessories.

NOTE: All images shown are for illustrative purposes only and may not be an exact representation of the product model.

BEFORE FIRST USE

1. Remove all packaging from the appliance.
2. Unpack all parts and check for damage that may have occurred during transport. If any parts are damaged or missing, do not use the appliance and return it to your retail outlet immediately.
3. Clean the appliance before first use (see 'CLEANING AND CARE').

OPERATING INSTRUCTIONS

ASSEMBLING THE BEATERS AND DOUGH HOOKS

1. Make sure the hand mixer is switched off and unplugged from the power supply.
2. Insert each beater (9) or dough hook (10) into the respective drive head (1). One of the drive head holes (1) is larger than the other one. The beaters (9) can fit into either hole (1). The dough hook (10) with four notches (11) fits in the larger

EN

hole (1), while the dough hook with two notches fits in the smaller hole. Align the notches (11) with the slots in the drive head holes (1), and then push the beater (9) or dough hook (10) firmly until it locks into place.

1. Make sure you use either two beaters or two dough hooks at the same time.

1. Connect the hand mixer to the power supply.
2. Hold the handle (8), and then press the On/Off button (7). The display (4) will light up with Speed "O".
3. Press ▲/▼ (5) to start mixing the ingredients at the required speed level. -Use the beaters for beating or aerating light dough, battering egg whites and whipping cream.
   -Use the dough hooks for mixing heavy dough such as bread or fruit cake. -Only use the hand mixer for mixing ingredients. Do not use it for kneading dough, as this may overload and damage the motor.
4. After running the hand mixer continuously for 5 minutes, let it cool down for at least 5 minutes before continuing.
5. If the mixture contains too many ingredients, add some water or milk to make it easier to mix.
6. Press the On/Off button (7) to stop the hand mixer.
7. Shake off the excess mixture into the mixing bowl.

USING THE SPEED CONTROL

When the hand mixer is switched on, press ▲/▼ (5) to increase or decrease the speed level (from level 1 to 6). The display (4) will show how long the hand mixer has been running (in minutes and seconds).

Note: In general, it takes longer and a slower speed to mix food with a bigger volume, density, or higher ratio of solid to liquid.

USING THE TURBO BUTTON

When the hand mixer is switched on, press the Turbo button (6) to make the hand mixer run at maximum speed. To return to the previous speed level, press the Turbo button again, or press the ▼ button to decrease the speed by one level.

REMOVING THE BEATERS AND DOUGH HOOKS

1. Press On/Off (7) to switch off the hand mixer, and then unplug it from the power supply.
2. Shake off any excess mixture into the mixing bowl.
3. Hold the beaters (9) or dough hooks (10) when pressing the Eject button (3). This prevents the accessories from falling out from the drive heads.
4. Clean the appliance and accessories thoroughly and place them back onto the storage stand (12) for easy storage.

CLEANING AND CARE

• CAUTION: Always switch off and unplug the appliance from the wall socket before cleaning.
• Wipe the outside of the appliance with a soft damp cloth.
• Wash the beaters and dough hooks in hot and soapy water.
• Do not allow anything to enter the air vents (2).
• Do not immerse the appliance in water or other liquids.
• Never use solvents, chemical or abrasive cleaning agents, wire brushes, sharp objects or scouring pads to clean the product.

EN

STORAGE

If you do not intend to use the appliance for an extended period, store it carefully.

• Unplug the appliance.
• Store the appliance in a cool and dry place.
• KEEP OUT OF REACH OF CHILDREN.

DISPOSAL

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

SPECIFICATIONS

Model Power Supply Rated Power
WKHM250RDWKHM250BKWKHM250WH	220-240V~, 50-60Hz 35	0W

INFORMATION AND SERVICE

If you have questions or concerns about your product, please visit our website: www.westinghousehomeware.com, or contact our overseas offices/agents.

In line with our policy of continuous product development, we reserve the right to change product, packaging and documentation specifications without prior notice.

EN

HANDMIXER

Pure electrical circuit lines without any symbols

9
10

INFORMACJE DODATKOWE I OBSŁUGA KLIENTA

Honeywell GCS CE

Westinghouse

INNOVATION YOU CAN BE SURE OF

W, WESTINGHOUSE, and INNOVATION YOU CAN BE SURE OF are trademarks of Westinghouse Electric Corporation, a USA company. Used under license by Westinghouse Homeware (HK) Co. All Rights Reserved.

WKHM250RD / WKHM250BK / WKHM250WH • 03 /20
