670FL - Deep fryer Flama - Free user manual and instructions

Product type	Hot air fryer (oil-free)
Brand	Flama
Model	670FL
Basket capacity	Basket with MAX indication (approx. 1.2 L)
Material of the pot and grid	Steel with non-stick coating
Operating temperature	120 °C to 200 °C, adjustable in increments of 5 °C
Timer	1 to 50 minutes, adjustable in increments of 1 min (short press) or 3 min (long press)
Preset cooking functions	MANUAL, ROAST, CHICKEN, PREHEAT, FRIES, VEGETABLE, CAKE
Display	Digital screen with alternating time/temperature
Viewing window	Yes, may fog up (normal)
Automatic shut-off	Yes, at the end of the program and when removing the pot (pause)
Pause function	When the pot is removed, the timer pauses
Cleaning	Pot and grid dishwasher safe; clean the heating element with a brush
Heating element maintenance	Brush after each use to remove residues
Safety precautions	Do not fill with oil; do not immerse; hot surface; keep children away
Warranty	36 months from date of purchase
Repairability	Repairs only by a FLAMA approved service; do not disassemble yourself

Frequently Asked Questions - 670FL Flama

Can I use oil in this fryer?

No, it is a hot air fryer. Never fill the pot with oil or frying fat, this could cause a fire hazard.

How to clean the heating element?

Use a cleaning brush to remove food residues after each use, once the appliance has cooled down and unplugged.

What to do if the appliance does not turn on?

Check that the pot is correctly placed on the body: if it is not inserted properly, the appliance will not work. Also ensure the plug is properly connected.

Can I preheat the fryer before use?

Yes, use the PREHEAT function. The screen displays 'PRE' during preheating, then 'ADD' and 'OFF' when ready.

How to adjust the temperature and cooking time?

Select a preset function, then press the Temperature/Time button to switch between settings. Use the Increase/Decrease buttons to adjust by increments of 5 °C or 1 minute.

The viewing window fogs up, is this normal?

Yes, it is perfectly normal. The steam disappears gradually. You can also pull out the pot to check the cooking.

Can I put the grid in the dishwasher?

Yes, the grid and pot are dishwasher safe. Be careful not to use abrasive utensils to preserve the non-stick coating.

What is the maximum temperature?

The maximum temperature is 200 °C (for most functions). For fresh potatoes, do not exceed 180 °C to limit acrylamide formation.

Should I remove the basket from the container immediately after cooking?

After removing the container with the basket, place it on a suitable surface and let it rest for 30 seconds before removing the basket.

How to store the fryer after use?

Allow to cool completely, clean and dry all parts. Store the appliance in a dry place. Do not place heavy objects on it.

USER MANUAL 670FL Flama

FLAMA 160°C PANAL FREQ CAST VOCAT/BEER CHINESE PHO-BAT LIGHT CARE 670FL

PT FRITADEIRA SEM ÓLEO 1

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

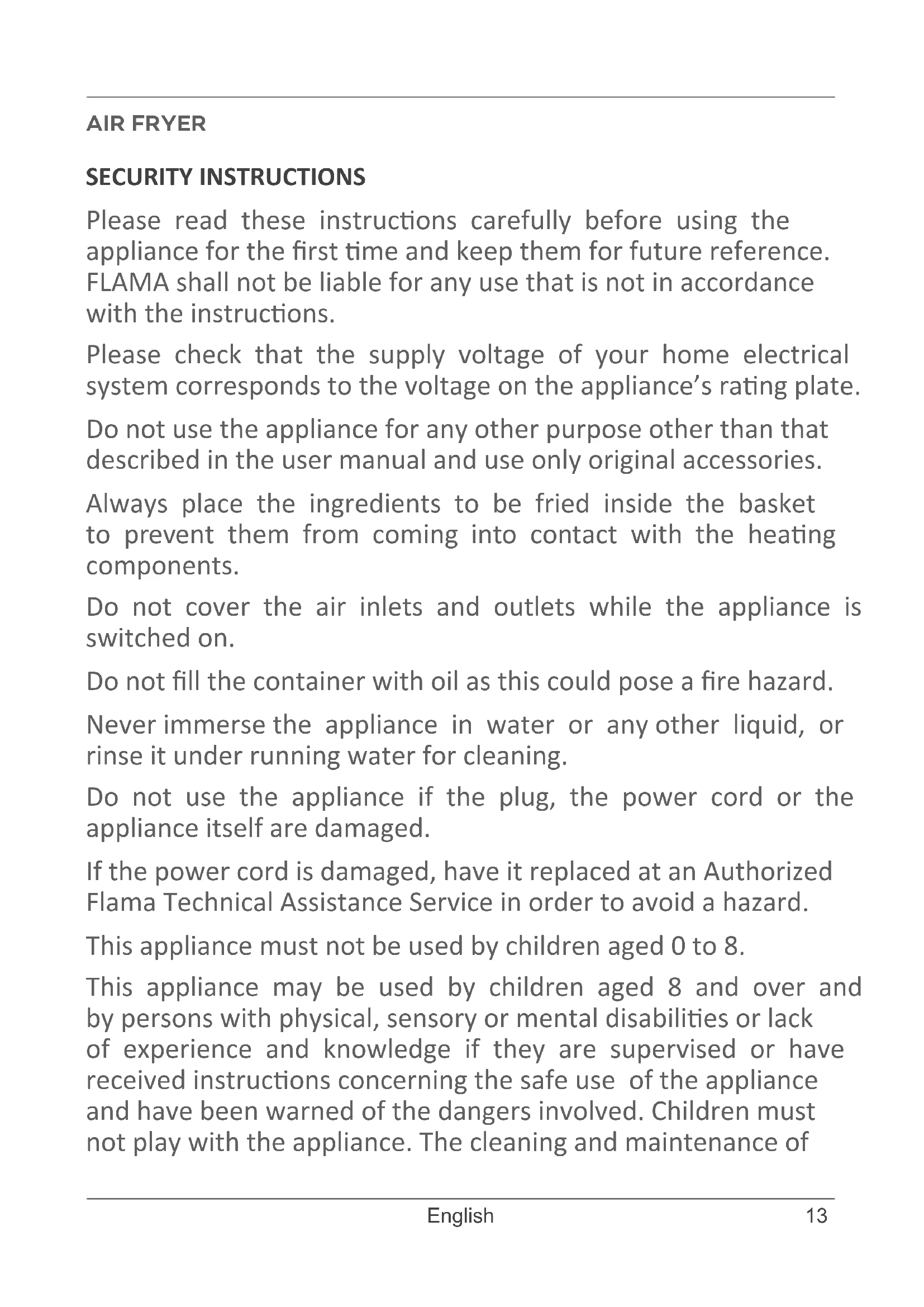

Please read these instructions carefully before using the appliance for the first time and keep them for future reference. FLAMA shall not be liable for any use that is not in accordance with the instructions.

Please check that the supply voltage of your home electrical system corresponds to the voltage on the appliance's rating plate.

Do not use the appliance for any other purpose other than that described in the user manual and use only original accessories.

Always place the ingredients to be fried inside the basket to prevent them from coming into contact with the heating components.

Do not cover the air inlets and outlets while the appliance is switched on.

Do not fill the container with oil as this could pose a fire hazard.

Never immerse the appliance in water or any other liquid, or rinse it under running water for cleaning.

Do not use the appliance if the plug, the power cord or the appliance itself are damaged.

If the power cord is damaged, have it replaced at an Authorized Flama Technical Assistance Service in order to avoid a hazard.

This appliance must not be used by children aged 0 to 8.

This appliance may be used by children aged 8 and over and by persons with physical, sensory or mental disabilities or lack of experience and knowledge if they are supervised or have received instructions concerning the safe use of the appliance and have been warned of the dangers involved. Children must not play with the appliance. The cleaning and maintenance of

the appliance must not be carried out by children.

Keep the appliance and its cord out of the reach of children under the age of 8.

Keep the power cord away from hot surfaces.

This appliance must only be connected to an earthed socket. Always check that the plug is firmly inserted into the socket.

Always place and use the appliance on a dry, stable and horizontal surface, positioning the handles (if any) so as to prevent the spillage of hot liquids.

This appliance is not intended to be operated using an external timer or a separate remote control system.

Do not place the appliance against a wall or other appliances. Leave at least 10 cm of free space at the back and sides and 10 cm of free space above the appliance. Do not place anything on top of the appliance.

During hot air frying, hot steam is released through the air outlets. Keep your hands and face at a safe distance from the steam and air outlets. Also be careful with hot steam and air when removing the container from the appliance.

Accessible surfaces may become hot during use.

The appliance's accessories heat up when you use them. Take care when handling them.

Before using the appliance, always make sure that the heating component and its surroundings are clean and free from food traces to ensure a proper operation.

Do not place the appliance near or on top of a gas stove or any type of electric stove or electric hob, or inside a heated oven.

The appliance is intended for regular household use only. It is not intended for environments such as staff pantries in stores, offices, farms, and other work environments. It is also not

suitable for use by customers in hotels, motels, inns, and other residential environments.

This appliance was designed to be used at ambient temperatures between 5°C and 40°C.

Always switch off the appliance after each use by removing the plug from the power socket.

Allow the appliance to cool down for approximately 30 minutes before handling or cleaning it.

Do not overfill the basket. Fill the basket only up to the MAX indication.

Make sure that the ingredients prepared in this appliance come out golden yellow, rather than dark or brown. Dispose of burnt residues. Do not fry fresh potatoes at a temperature higher than 180°C (to reduce acrylamide production).

After removing the container with the basket from the appliance, place it on a suitable surface and allow it to sit for 30 seconds before removing the basket from the container.

Be careful when cleaning the upper area of the preparation chamber: hot resistance, edges of metal parts.

Do not use the appliance for any other purpose other than that described in the instruction manual and use only original accessories. Any intervention other than cleaning must be carried out only by authorized FLAMA agents.

Any intervention other than cleaning must be carried out only by authorized FLAMA agents.

This product complies with the Low-Voltage and Electromagnetic Compatibility Directives.

This instruction manual is also available in PDF format at www.flama.pt.

DESCRIPTION

1. Body
2. Frying basket drawer
3. Frying basket drawer handle
4. Removable grid
5. Viewing window
6. ON/OFF dial
7. Temperature/Time dial
8. Decrease dial
9. Increase dial
10. Inner light dial
11. Display
12. MANUAL function
13. ROAST function
14. CHICKEN function
15. PREHEAT function
16. FRIES function
17. VEGETABLE function
18. CAKE function

MAINTENANCE AND CLEANING

Note: Remove the frying basket drawer for the fryer to cool down faster.

Clean the appliance after each use.

Disconnect the appliance from the power outlet and always wait for the fryer to cool down before cleaning.

The frying basket drawer and the grid have non-stick coating. Do not use metal cooking utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating.

Wash the frying basket drawer with hot water, some liquid detergent and a non-abrasive sponge. You can use a degreasing liquid to remove any remaining dirtiness.

Tip: If there is food residue stuck to the grid or to the frying basket drawer, soak them in hot water and soap for about 10 minutes.

Clean the inside of the appliance with hot water and a non-abrasive sponge.

Clean the electric resistance with a cleaning brush to remove any food residue.

Clean the outside of the appliance with a damp cloth and then wipe it with a soft dry cloth.

The grid and the frying basket drawer can be washed in the dishwasher.

Never place the grid in the frying basket drawer without the rubber mountings, as it may damage its non-stick coating.

OPERATION

WARNING - Never leave the appliance unattended during use, so that you may intervene immediately in case of danger.

Before first use

Remove all materials from the packaging.

Remove all stickers or labels from the appliance, except its rating plate.

Wash the frying basket drawer with hot water, some liquid detergent and a non-abrasive sponge.

Clean the inside and the outside of the appliance with a damp cloth.

This fryer works with hot air. Do not fill the frying basket drawer with frying oil or fat.

Never place the grid in the frying basket drawer without the rubber mountings, as it may damage its non-stick coating.

Usage

Place the appliance on a stable, horizontal and flat surface.

Do not place the appliance on non-heat-resistant surfaces.

Do not fill the frying basket drawer with oil or any other liquid.

Insert the frying basket drawer in the body correctly. Otherwise, the appliance will not work.

Connect the power cord to a power outlet. All indicators will light up briefly, the appliance will enter standby mode and the display will show the word 'OFF'.

Tip:

If necessary, you can preheat the appliance before inserting the food using the PREHEAT function.

Press the PREHEAT dial. The display will show the word 'PRE'.

When preheating is complete, the display will briefly show the words 'ADD' and 'OFF'.

Select the desired function and the corresponding indicator light will turn on. The display will show the default temperature, which can be adjusted by pressing the increase/decrease dials. Press the temperature/time dial for the default time to appear on the display, and then press the increase or decrease dial to adjust as desired. While the appliance is running, press the temperature/time dial to adjust time and temperature.

FUNCTIONS	STANDARD DISPLAY	TEMPERATURE AND TIME INTERVAL	TEMPERATURE AND TIME INTERVAL WHILE OPERATING
MANUAL	200°C/20 min	150-200°C/5-50 min	150-200°C/1-50 min
ROAST	190°C/30 min	120-190°C/10-50 min	120-190°C/1-50 min
CHICKEN	200°C/40 min	180-200°C/15-40 min	180-200°C/1-40 min
PREHEAT	180°C (the display shows 'PRE' for 3 sec.) /Set time	180-200°C/Not adjustable	180-200°C/Not adjustable
FRIES	200°C/25 min	Not adjustable/5-30 min	Not adjustable/1-30 min
VEGETABLE	200°C/10 min	120-200°C/5-20 min	120-200°C/1-20 min
CAKE	180°C/10 min	120-200°C/10-30 min	120-200°C/1-30 min

NOTE: Temperature can increase or decrease in 5°C increments, and time can increase or decrease in 1 min (short touch) or 3 min (long touch).

Press the ON/OFF dial to start operation. The display will show the set time (for 7 seconds) and temperature (for 3 seconds) alternately.

The viewing window allows you to check the frying/cooking progress. The window may steam up, which is normal, and the steam will disappear. Alternatively, you can check the process by pulling the frying basket drawer by the handle.

Tips - Pull the frying basket drawer to shake foods, if necessary; time countdown will pause. Slide the frying basket drawer by the handle back inside the frier and time countdown will resume.

Pulling the frying basket drawer while frying/cooking will pause the function. Press the ON/OFF button to interrupt operation.

When the program ends, the appliance will beep and go into standby mode.

STORING

Let the appliance cool down completely before storing it. Make sure that all parts are clean and dry. Store the fryer in a dry place.

Do not place heavy items on top of the fryer as this can damage it.

ANOMALIES AND REPAIR

In case of malfunction, please take the appliance to an authorized Technical Assistance Service. Do not attempt to disassemble or repair the appliance, as this may be dangerous.

PROTECTING THE ENVIRONMENT

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

This symbol indicates the separate collection of electrical and electronic equipment.

The main objective of the separate collection of this waste is to reduce the quantity to be disposed of, promote re-

use, recycling and other forms of recovery in order to reduce its negative effects on the environment.

When it is no longer in use, this appliance must not be disposed of together with other unsorted municipal waste.

The user is responsible for delivering it free of charge to the selective collection facilities available for that purpose.

Pieces of equipment that are no longer in use can also be taken back at points of sale, by purchasing new pieces of equipment that are equivalent and have the same functions.

For more detailed information on collection points, please contact your City Council or a point of sale for this equipment.

FRITEUSE SANS HUILE

CONSIGNES DE SÉCURITÉ

DYSFONCTIONNEMENTS ET RÉPARATIONS

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

1. Keep the proof of purchase (receipt) for this product carefully. When a repair is made under these conditions, the technician will require proof of purchase. This assistance can only be provided once you have proven, with the proof of purchase, that your appliance is within the warranty period.
2. The warranty period for this appliance is defined by the respective EU Directive in force on the date of purchase/delivery.
3. Within the guarantee period, we will repair or replace, free of charge, any parts which, during the normal use of the appliance, have deteriorated as a result of a proven material or manufacturing defect.
4. This warranty does not cover consumable items, light bulbs, easily breakable parts made of glass or plastic, or any other defects that do not impair its proper functioning.
5. We accept no liability for damage caused by incorrect or careless use of the appliance, by its connection to an electrical current other than that indicated on the appliance's rating plate, by faulty electrical installation, or by atmospheric, chemical or electrochemical causes. Other claims or demands for compensation relating to objects which are not an integral part of the appliance will be denied.
6. The provision of assistance under warranty does not extend the warranty period. Only within this period will assistance be provided under warranty. The right to assistance is only granted to the first purchaser of the device and cannot be transferred to a third party.
7. The warranty expires when unauthorized persons have attempted to repair, modify or replace parts of the appliance.
8. All expenses and risks of transportation to our factory or vice versa will always be borne by the buyer.

WARRANTY CONDITIONS

To benefit from the Technical Assistance service during the 36-month warranty period after the date of purchase, you will need to:

Present the Invoice/Proof of Purchase, stating the model and the manufacturing number of the product (whenever possible).

Note: Failure to present the aforementioned documents will be grounds for not providing services under warranty.
