USER MANUAL GS 4 DE BRENNENSTUHL
Operating instructions

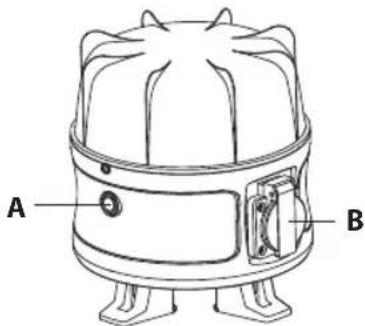

SWITCHING THE FLOODLIGHT ON/OFF

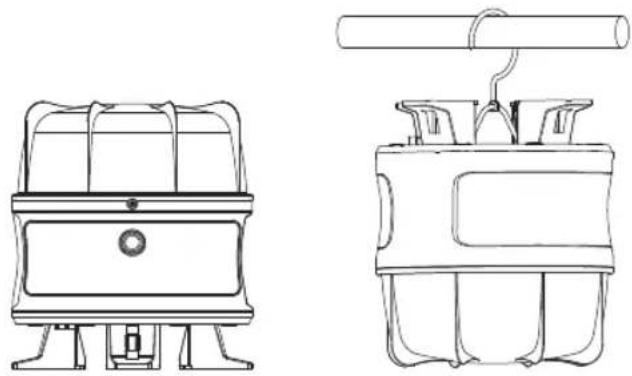

Position the oodlight and switch it on using the switch (A). The oodlight is lit with 100 % light intensity; by pressing again, the light intensity is set to 50 %, pressing once more switches the oodlight o. A: On/O and function switch B: Socket C: Hook OPERATION Upright: Place the light on a dry and level surface. Hanging: Hang the light on a suitable pipe.
Combined: interconnect several BF oodlights A socket (B) is located on the side of the light which can be used to turn it into a power distributor. The socket also functions when the light is switched o.

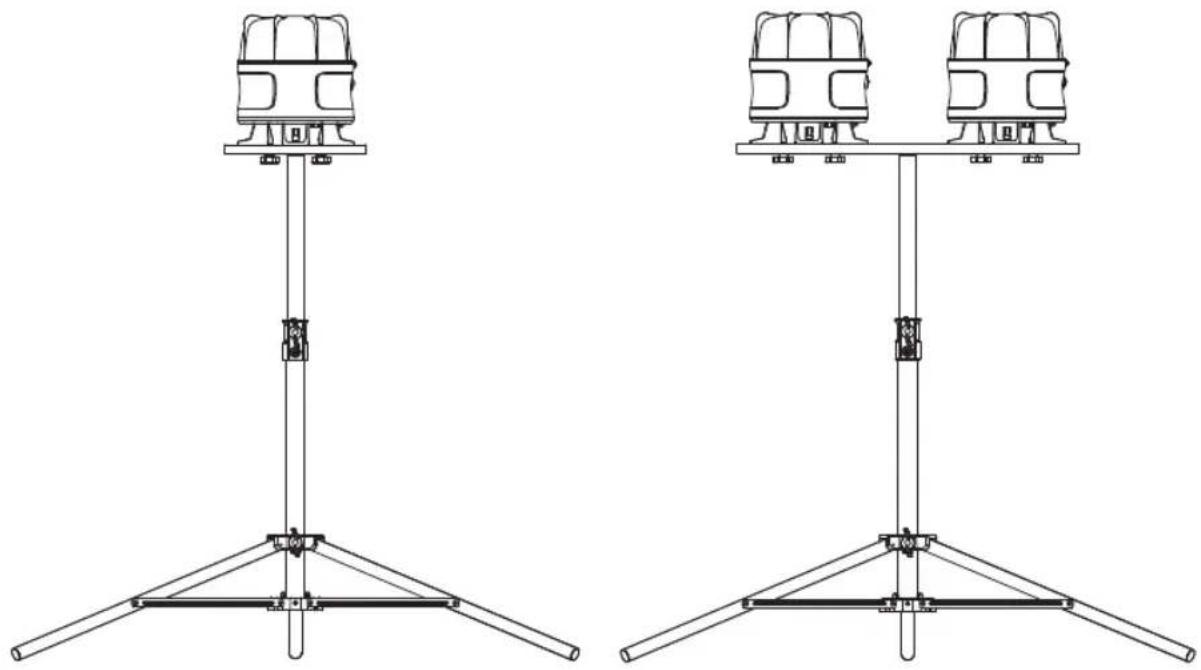

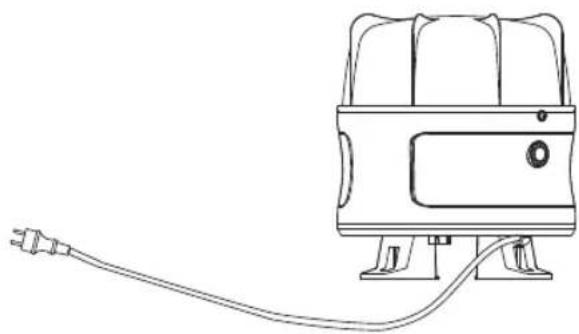

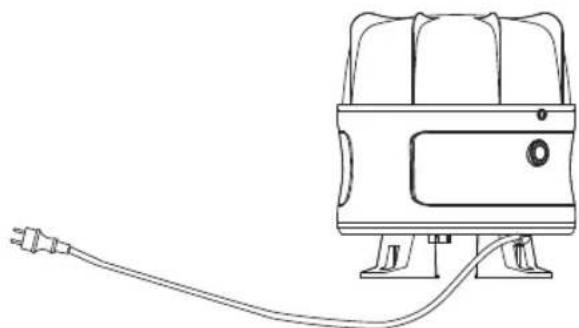

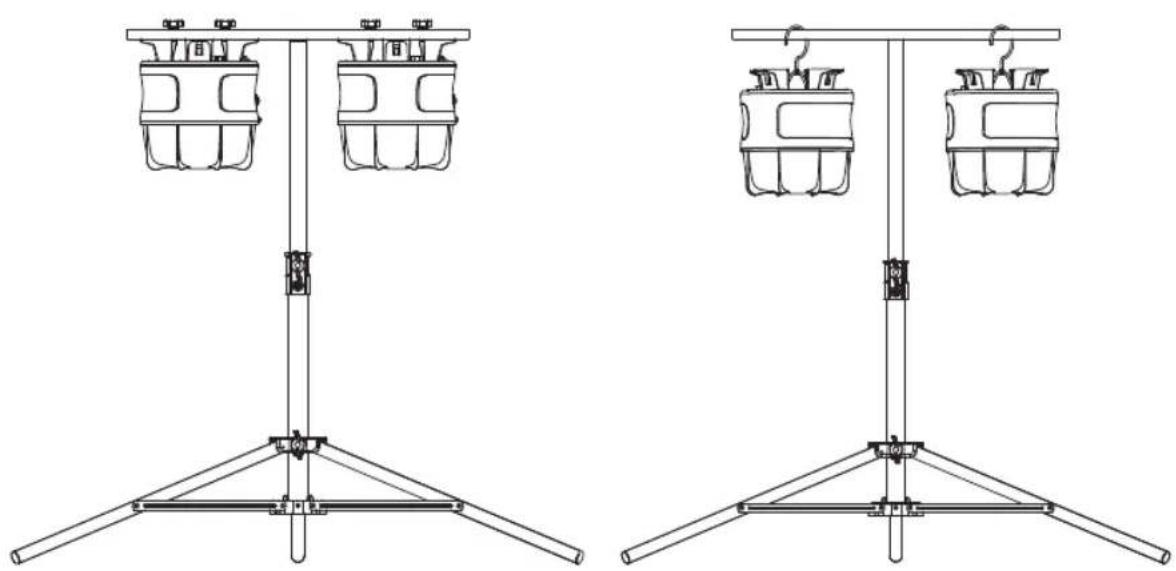

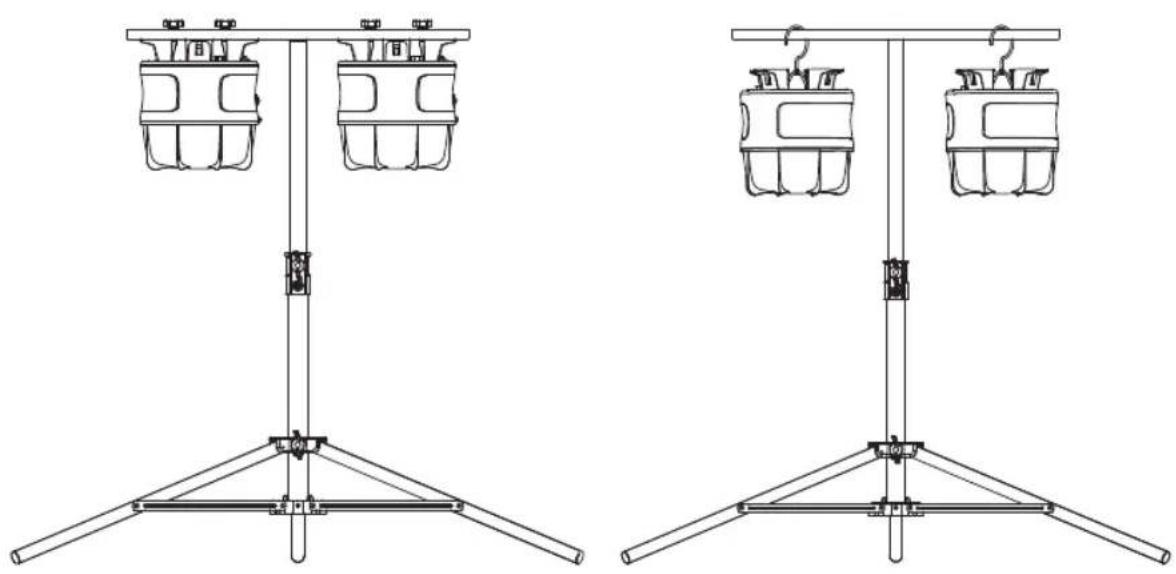

20P130 Mobiler 360° Strahler BF3050M 5050 5051 210908.indd 720P130 Mobiler 360° Strahler BF3050M 5050 5051 210908.indd 7 08.09.2021 17:13:1808.09.2021 17:13:1888 Operating Instructions BF 3050 M / BF 5050 M / BF 5051 M On a stand (not included in the scope of delivery) The light can also be installed on a Brennenstuhl stand, either individually or in pairs. The additional CB 70 1172640059 crossmember is required for installing two lights. Vertically screwed single oodlight Bolted on hanging light (just TS 250 1170610020 and TS 170 1170610010 and TS 300 9171991100) Bolted on hanging light Hanging on a hook 20P130 Mobiler 360° Strahler BF3050M 5050 5051 210908.indd 820P130 Mobiler 360° Strahler BF3050M 5050 5051 210908.indd 8 08.09.2021 17:13:1808.09.2021 17:13:1899 BF 3050 M / BF 5050 M / BF 5051 M Operating Instructions CABLE WRAP The cable can be wrapped around a groove in the light for transport and storage. ACCESSORIES Suitable accessories are available on our homepage www.brennenstuhl.com. MAINTENANCE ATTENTION! The LED lamp does not contain components that require maintenance. The light source in this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced. The lamp may not be opened. CLEANING Before cleaning, disconnect the oodlight from the mains power. Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning. DISPOSAL Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste! The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner. For possibilities of disposal of the used appliance, please contact your local or municipal administration.
