Knapper - Deep fryer Zeegma - Free user manual and instructions

Product type	Hot air fryer (oil-free)
Brand	Zeegma
Model	Knapper
Power supply	220-240 V ~ 50-60 Hz
Power	1400 W
Basket capacity	Approximately 3 L (do not exceed the MAX mark)
Maximum temperature	200 °C
Timer	Yes, adjustable in one-minute increments
Preheat indicator	Yes, turns off when temperature is reached
Basket material	Teflon (non-stick)
Handle	Yes, with thermal insulation
Basket release button	Yes, to remove the basket from the container
Crank	Yes, to stir food
Automatic shut-off	Yes, when the container is removed
Cleaning of basket and container	Dishwasher cleaning recommended
Cleaning of the housing	Damp cloth, no harsh solvents
Safety	Grounding, overheating protection, hot surfaces
Included accessories	Teflon basket, container, crank, user manual
Approximate weight	3.5 kg
Dimensions (L x D x H)	30 x 30 x 35 cm
Intended use	Household only
Compliance	European directives (LVD, EMC), CE marking
After-sales service	[e-mail]

Frequently Asked Questions - Knapper Zeegma

How to use the Zeegma Knapper air fryer for the first time?

Remove all packaging. Heat the empty appliance at 200°C for 10 minutes to eliminate manufacturing odors. A slight emission of smoke is normal. Let it cool, then clean the basket and container with warm soapy water.

How much food can I put in the basket?

Do not exceed the MAX mark inside the basket. Overfilling may cause uneven cooking and a fire hazard.

How to set the temperature and cooking time?

Use the + and - buttons for temperature (max 200°C) and timer (adjustable in one-minute increments). The preheat indicator turns off when the temperature is reached.

Can I open the air fryer during operation?

Yes, you can remove the container. The machine stops automatically. To resume cooking, replace the container and press the ON button.

How to clean the air fryer after use?

Unplug and let cool. Wash the basket and container with hot water and dish soap or in the dishwasher. Wipe the housing with a damp cloth. Do not use abrasive products.

Is the basket removable?

Yes, press the release button (11) to separate the basket from the container. This facilitates cleaning.

What are the important safety instructions?

Never immerse the appliance in water. Use a grounded outlet. Do not leave the appliance unattended. Keep children under 8 years away. Do not touch hot surfaces without gloves.

Can I use my air fryer for other foods besides fries?

Yes, you can cook vegetables, meats, fish, and even pastries. Adjust the temperature and time according to the recipe. Stir the food every 7 to 10 minutes.

What to do if the appliance does not turn on?

Check that the cord is plugged in and the outlet works. Make sure the container is properly inserted. If the problem persists, contact after-sales service at [e-mail].

Where can I find the complete manual?

The manual is available for free download on the website notice-facile.com for the Zeegma Knapper air fryer. You can also request a translation by email.

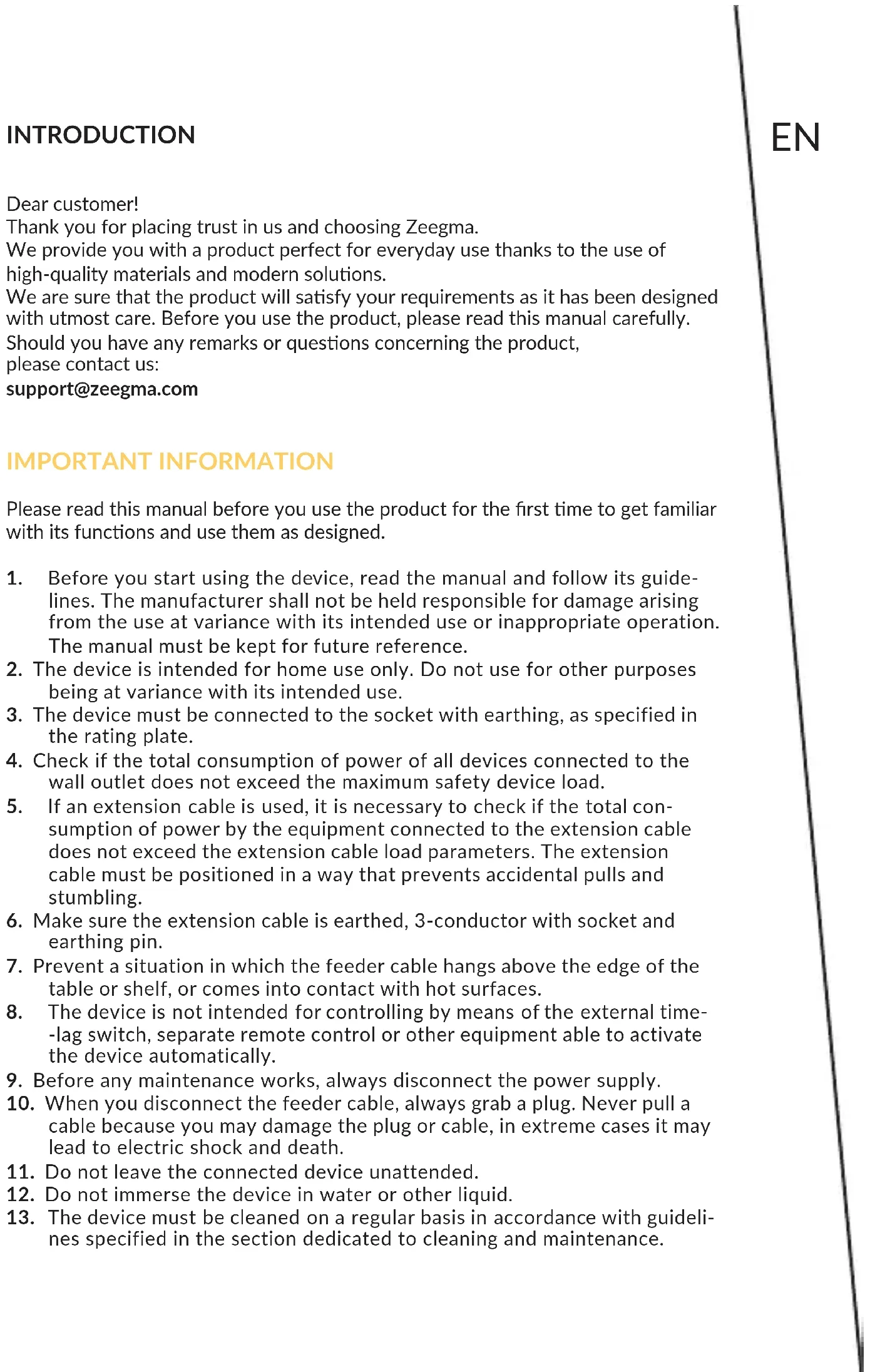

USER MANUAL Knapper Zeegma

Thank you for placing trust in us and choosing Zeegma.

We provide you with a product perfect for everyday use thanks to the use of high-quality materials and modern solutions.

We are sure that the product will satisfy your requirements as it has been designed with utmost care. Before you use the product, please read this manual carefully.

Should you have any remarks or questions concerning the product, please contact us:

[e-mail]

IMPORTANT INFORMATION

Please read this manual before you use the product for the first time to get familiar with its functions and use them as designed.

1. Before you start using the device, read the manual and follow its guidelines. The manufacturer shall not be held responsible for damage arising from the use at variance with its intended use or inappropriate operation. The manual must be kept for future reference.

2. The device is intended for home use only. Do not use for other purposes being at variance with its intended use.

3. The device must be connected to the socket with earthing, as specified in the rating plate.

4. Check if the total consumption of power of all devices connected to the wall outlet does not exceed the maximum safety device load.

5. If an extension cable is used, it is necessary to check if the total consumption of power by the equipment connected to the extension cable does not exceed the extension cable load parameters. The extension cable must be positioned in a way that prevents accidental pulls and stumbling.

6. Make sure the extension cable is earthed, 3-conductor with socket and earthing pin.

7. Prevent a situation in which the feeder cable hangs above the edge of the table or shelf, or comes into contact with hot surfaces.

8. The device is not intended for controlling by means of the external time-lag switch, separate remote control or other equipment able to activate the device automatically.

9. Before any maintenance works, always disconnect the power supply.

10. When you disconnect the feeder cable, always grab a plug. Never pull a cable because you may damage the plug or cable, in extreme cases it may lead to electric shock and death.

11. Do not leave the connected device unattended.

12. Do not immerse the device in water or other liquid.

13. The device must be cleaned on a regular basis in accordance with guidelines specified in the section dedicated to cleaning and maintenance.

14. Do not place the device close to sources of heat, flames, electric heating elements or on hot cooker. Do not place on any other device.

15. This device can be used by children aged at least 8 and by disabled persons (physically or mentally), as well as persons who lack experience in using the device provided that these persons have been supervised or given guidelines on proper and safe use and potential hazards. Children should not play with the equipment. Unattended children should not clean and maintain the equipment.

16. Be careful when using the device if there are children or pets nearby. Make sure children do not play with the device. Keep the appliance and its cord out of reach of children less than 8 years.

17. Do not use the device close to inflammable materials.

18. Do not expose the device to unfavorable weather (rain, sun, etc.), and do not use in humid places (bathrooms, humid summer houses).

19. Check condition of the feeder cable on a periodical basis. If the feeder cable is damaged, it should be replaced by the manufacturer, authorized service technicians or competent person in order to avoid hazards.

20. Do not use the device if its feeder cable is damaged, plug is damaged or if the device has been dropped or otherwise damaged or works improperly. Do not repair the device on your own as you may be electrocuted. Damaged device must be handed to the relevant service point for checkup and repairs. Any repairs must be performed by authorized service points only. Improper repair may lead to serious hazard to the user.

21. Use original accessories or accessories recommended by the manufacturer.

22. Using accessories which have not been recommended by the manufacturer may lead to device damage and affect safety. The device must be positioned on an even surface, resistant to temperature, far away from inflammable materials (drapes, curtains, wallpapers, etc.). In order to assure a suitable airflow, it is necessary to keep at least 10 cm of free space on each side of the device and at least 30 cm above the device. Do not cover ventilating holes of the device because it may lead to overheating and damage.

23. Do not touch hot surfaces of the device. Use protective gloves for the purposes of taking out and touching hot elements.

24. Do not put in any pieces which take too much space in the heating chamber because it may lead to fire and damage to the device.

25. Do not place cardboard or paper goods, plastics and other inflammable or fusible items in the device.

26. Clean the device after every use.

27. To clean the casing, do not use aggressive detergents, such as emulsions, milk, polishes, etc. because they may remove graphic symbols, such as scales, marking, warning signs, etc.

28. Do not use metal wires or other metal cleaning agents. Broken parts of wires may contact electric parts and lead to electric shock risk.

29. Due to high temperature, it is necessary to be careful when removing ready meals, removing hot fat and other hot liquids of accessories and components of the device.

30. Do not use metal cutlery or other sharp kitchen accessories as they may

scratch Teflon layer in the basket and reservoir.

1. Do not fill deep fryer with oil or other fat. Knapper uses hot air for frying.
2. Do not switch the device on when the reservoir is filled with water or other liquid.

Technical data

Power supply: 220-240V\~50-60Hz

Power: 1400W

The product complies with requirements of European Union directives:- Low-voltage electric devices – low voltage directive (LVD)- Electromagnetic compatibility (EMC)The product marked with CE on the rating plate

If there is a crossed-out bin on the device, it means that the product is subject to the European directive 2012/19/EU. It is necessary to read requirements concerning the local electric and electronic waste collection. It is necessary to follow local regulations. Do not dispose this product along with household waste. Thanks to proper disposal of old product, it is possible to prevent negative impact on the natural environment and human health.

EN

1 200° 3 4 6 7 8 10 11 9 12 13

1. Grip
2. Display
3. Temperature indicator
4. Temperature up
5. Temperature down
6. Timer control (+ up)

7. Timer control (- down)

8. On/Off butt on

9. Reservoir
10. Body
11. Bin disconnect butt on
12. Handle
13. Tefl on basket
14. Heating indicator

FIRST USE

Remove all cardboard elements and films from the device.

Activate the device for 10 minutes and set 200 C to remove default preservatives and odor. The device may generate a bit of smoke, it is natural.

HOW TO USE

1. Hold a handle (12) and pull the reservoir (9) with a basket (13) from the body (10) and place on a stable surface. NOTE: when doing so, do NOT press bin disconnect button (11).
2. Place products in the basket (13) and put it in the body (10). When filling the basket, do not exceed MAX level in the scale inside.
3. Place the reservoir with the basket in the device.
4. Provide power supply to the deep fryer. Press "On/Off" to switch the device on.
5. Every time you press (4), you increase temperature. When you press (5), you decrease temperature.
6. Once selected temperature reached, heating indicator (14) stop lighting.
7. To set cooking time, use timer control buttons (+ to extend and - to shorten time). Press the button once to add or reduce 1 minute.
8. When timer counts down to 0, the cooking process will be finished. You can also finish cooking earlier – to do so, click OFF button.
9. When the reservoir with the basket is ejected during operation, it stops working. To resume cooking, insert the reservoir with the basket to the deep fryer and press ON.

WARNING: The reservoir with basket are very hot. Place it on heat-resistant surfaces.

TIP: It is advisable to mix elements in the basket every 7-10 minutes.

CLEANING AND MAINTENANCE

1. Before you start cleaning, make sure the device has been disconnected from the source of power and cooled down.
2. To clean the device, use a wet cloth. Do not use solvents and other sharp materials.
3. The reservoir (9) and basket (13) must be washed in warm water with a dishwashing liquid shortly after the use.
4. The basket (13) can be removed from the reservoir (9) by pressing (11).
5. The basket (13) and reservoir (9) are dishwasher safe.

The pictures are for reference only. The real design of products may differ from pictures presented.

DE

EINLEITUNG

Top-down view of a black air fryer with a perforated interior and labeled component '13' (no text or symbols on the diagram itself)

Top-down view of a black air fryer with a textured interior and labeled component '13' (no text or symbols beyond label)

Close-up of a black air fryer with a perforated interior and labeled component '13' (no text or symbols beyond label)

Top-down view of a black air fryer with a textured interior and labeled component '13' (no text or symbols beyond label)

Close-up of a black air fryer with a perforated interior and labeled component '13' (no text or symbols beyond label)

Top-down view of a black air fryer with a perforated interior and labeled component '13' (no text or symbols beyond label)

1. Ručka
2. Zaslon
3. Pokazivač temperature
4. Gumb povećanje temperature
5. Gumb smanjenja temperature
6. Gumb upravljanja vremenom (+ povećanje)

7. Gumb upravljanja vremenom (-smanjenje)

8. Gumb On/Off (uključi, isključi)

9. Spremnik
10. Kućište
11. Gumb odvajanja košarice
12. Ručka
13. Tefl onska košarica
14. Pokazivač zagrijavanja

PRVO KORIŠTENJE

Uklonite sve kartonske elemente i foliju s uređaja.

Uključite uređaj 10 minuta na 200°C kako biste uklonili tvorničke konzervanse i mirise. Iz uređaja može izlaziti malo dima, a to je normalna pojava.

KORIŠTENJE

BrandLine Group Service - Support

List of Authorized Service Centers: Liste der Autorisierten Herstellerservicezentren: Lista autoryzowanych centrów serwisowych: Elenco dei centri di assistenza autorizzati: Liste des centres de service autorisés: Lista de centros de servicio autorizados: Lijst met erkende servicecentra:

www.zeegma.com/en/service
