USER MANUAL Pro Antimite UV B6 JIMMY

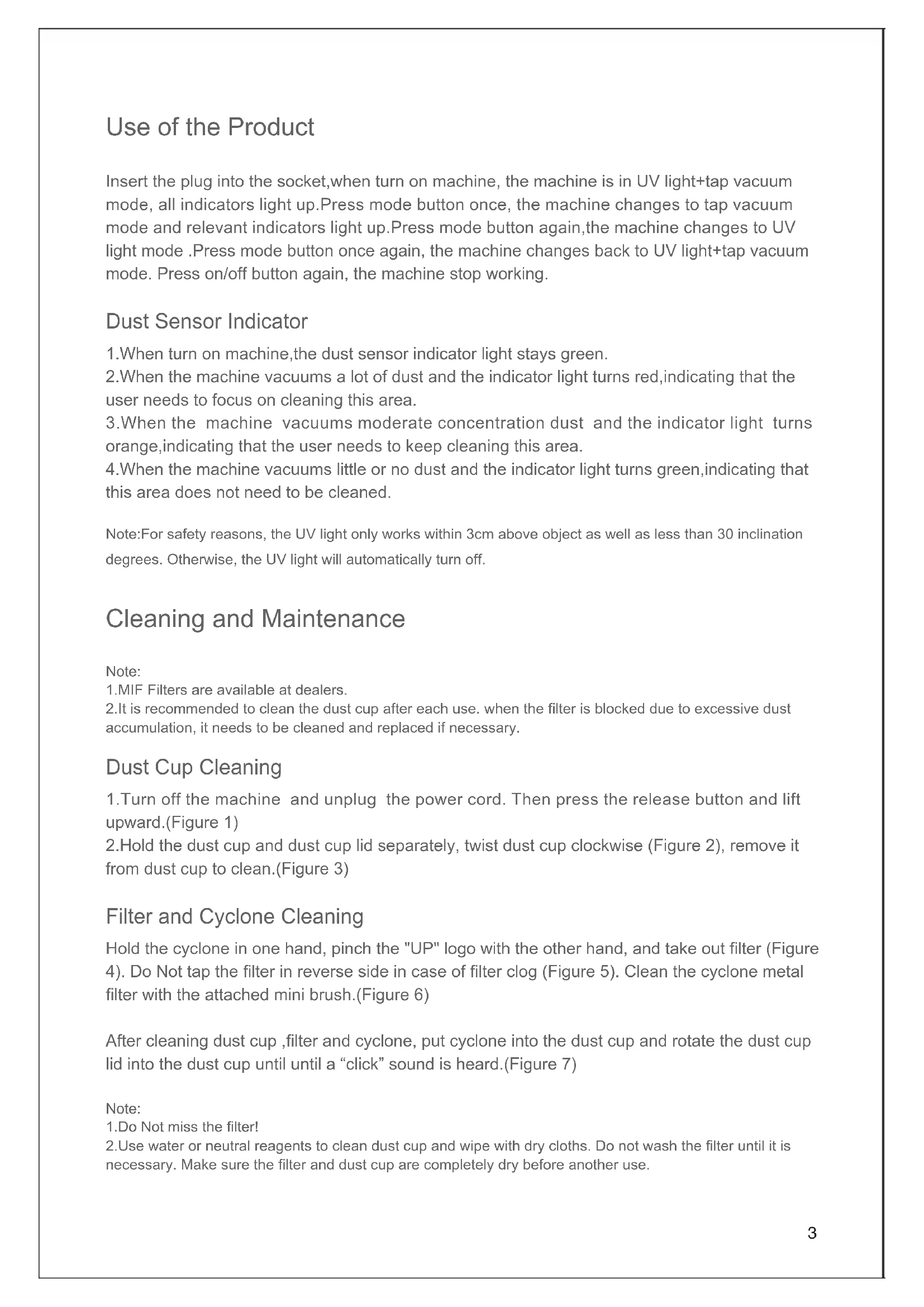

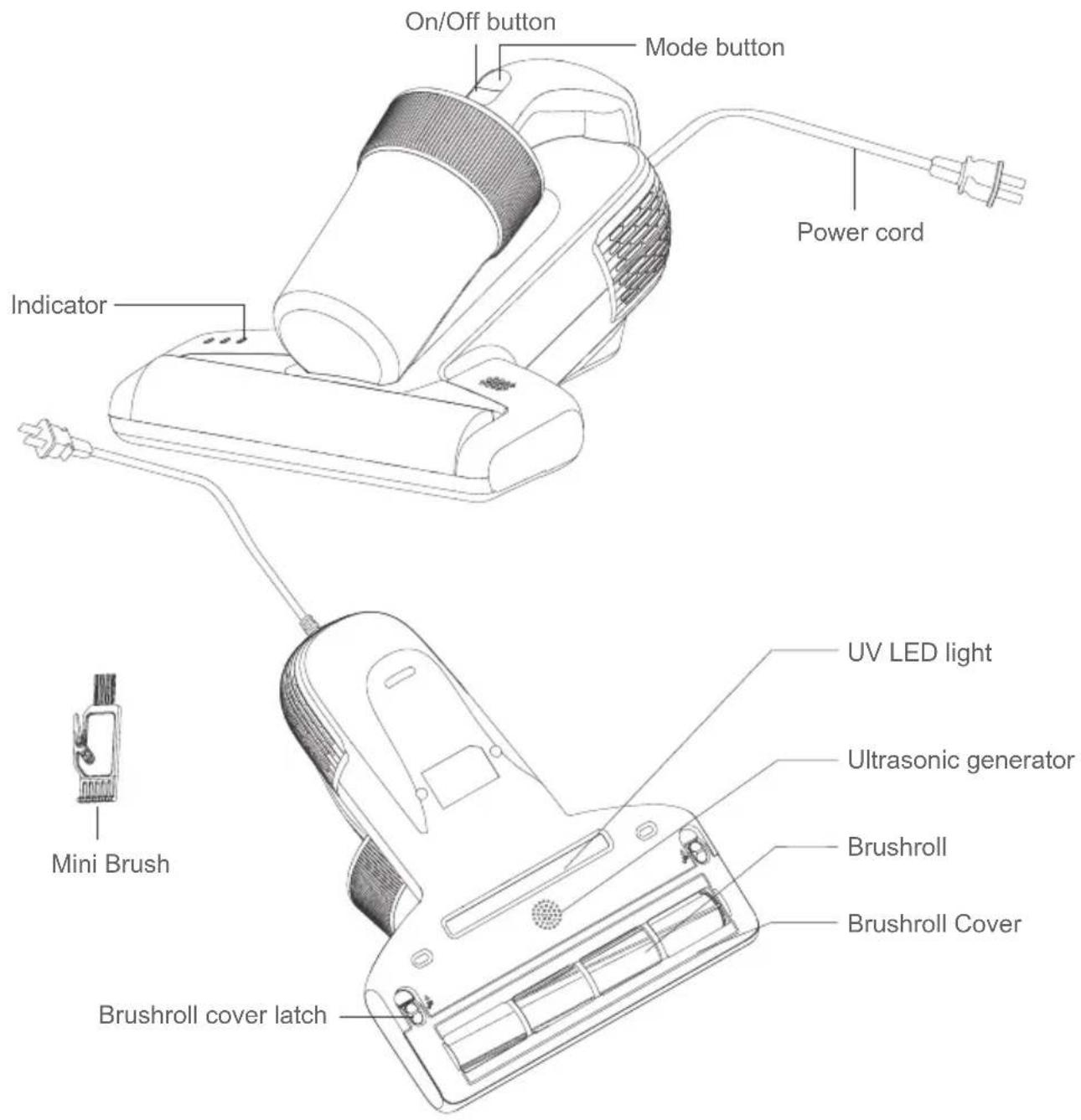

User Guide Anti-mite Vacuum Cleaner Instrukcja obsługi Odkurzacz antyroztoczowy Gebrauchsanweisung Staubsauger zum Entfernen von Milben Mode d'emploi Aspirateur anti-acarien Manuale d'uso Aspirapolvere Anti-acaro Instrucciones de uso Aspirador de eliminación de ácaros Инструкция по эксплуатации Пылесос для удаления клещей B6 Pro1 Contents English 2 Polski 9 Deutsch 16 Français 24 Italiano32 Español39 русскийязык472 Product Installation Parts Name Packing List Name Vacuum Cleaner MIF Filte Mini-brush User Guide Quantity 1 1 1 1 Mode button On/Off button Indicator Power cord UV LED light Ultrasonic generator Brushroll Brushroll Cover Mini Brush Brushroll cover latch3 Use of the Product Insert the plug into the socket,when turn on machine, the machine is in UV light+tap vacuum mode, all indicators light up.Press mode button once, the machine changes to tap vacuum mode and relevant indicators light up.Press mode button again,the machine changes to UV light mode .Press mode button once again, the machine changes back to UV light+tap vacuum mode. Press on/off button again, the machine stop working. Dust Sensor Indicator 1.When turn on machine,the dust sensor indicator light stays green. 2.When the machine vacuums a lot of dust and the indicator light turns red,indicating that the user needs to focus on cleaning this area. 3.When the machine vacuums moderate concentration dust and the indicator light turns orange,indicating that the user needs to keep cleaning this area. 4.When the machine vacuums little or no dust and the indicator light turns green,indicating that this area does not need to be cleaned. Note:For safety reasons, the UV light only works within 3cm above object as well as less than 30 inclination degrees. Otherwise, the UV light will automatically turn off. Cleaning and Maintenance Note: 1.MIF Filters are available at dealers. 2.It is recommended to clean the dust cup after each use. when the lter is blocked due to excessive dust accumulation, it needs to be cleaned and replaced if necessary. Dust Cup Cleaning 1.Turn off the machine and unplug the power cord. Then press the release button and lift upward.(Figure 1) 2.Hold the dust cup and dust cup lid separately, twist dust cup clockwise (Figure 2), remove it from dust cup to clean.(Figure 3) Filter and Cyclone Cleaning Hold the cyclone in one hand, pinch the "UP" logo with the other hand, and take out lter (Figure 4). Do Not tap the lter in reverse side in case of lter clog (Figure 5). Clean the cyclone metal lter with the attached mini brush.(Figure 6) After cleaning dust cup ,lter and cyclone, put cyclone into the dust cup and rotate the dust cup lid into the dust cup until until a “click” sound is heard.(Figure 7) Note: 1.Do Not miss the lter! 2.Use water or neutral reagents to clean dust cup and wipe with dry cloths. Do not wash the lter until it is necessary. Make sure the lter and dust cup are completely dry before another use.4 Brushroll Cleaning Turn off the machine and unplug the power cord, rotate the right lock knob anticlockwise with hand from locked position to unlock position (Figure 8) to remove the brushroll to clean up.(Figure 9) After brushroll cleaning,install the brushroll and the brushroll cover into the machine in turn and lock the latch of the brushroll. Note: For safety reasons, please turn off the machine and unplug power cord before cleaning brushroll. Maintenance and Storage Please clean dust cup and lter after each use for further use. It is recommended to replace a lter after 30-50 hours of working time(depending on specic situation) for better use. Any paper, lead glass, plastic will greatly affect the effect of UV light. Please wipe and clean the UV tube regularly for better use. Do Not touch the UV tube as dirt will affect UV light effect. Put the machine in cool and dry place if the machine is to be idled. Do Not leave it in direct sunlight or humid environment. Lock Unlock

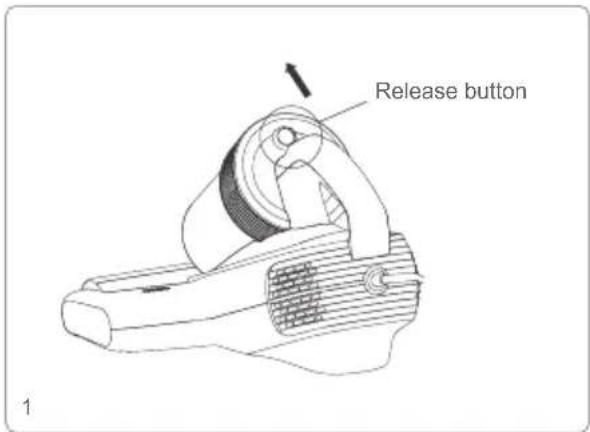

Release button Cyclone

MIF lter Tapping downward Filter

Mini-brush Rotate dust cup lid Dust cup lid Marking ribbon Cyclone metal lter5 Cautions 1.Please read this instruction manual carefully before use and keep it properly for future use. 2.Never leave the machine working without supervision. 3.Keep this product beyond the reach of special individual such as children without adult supervision. 4.Keep the power cord away from sharp objects and do not drag the cord to move the machine in case of cord damage. 5.Do not use this product to clean water or wet dust. Do Not operate it in humid places (such as bathroom, toilet, laundry room, etc.)to avoid malfunction. 6.This product can ONLY use for cleaning of textiles such as mattresses, blankets, pillows, sofas, etc. 7.Do Not place the machine near heating appliances or expose it to direct sunlight in case of re hazard. 8.For safety reasons, please do not use the product to clean hot objects such as carbon, cigarette butts, sharp objects such as broken glass, corrosive liquids, ammable and explosive materials such as gasoline and alcohol. Otherwise it may cause product damage or re. 9.Do Not operate this machine with suction port blocked in case of product damage. 10.Do Not remove the brushroll cover or force the cover outward when the machine is powered on for safety reasons. 11.The product has UV light, for safety reasons, Do Not look at the bottom of the machine when the power is on in case of ultraviolet rays harming. 12.Do Not apply this product to plants. Excessive use of UV may cause object damage. 13.Do NOT sit on this product in case of personal injury and product damage. 14.Cut the power source in maintenance or off-service. 15.If the power cord is damaged, please ask for professional help of the manufacturer and other professionals for safety reasons. 16.Please turn off the power switch and unplug the power cord if the machine is to be idled. Do Not unplug the power cord with humid hand in case of electric shock.6 Trouble shooting Please check the following trouble points before go to the maintenance department. Problems Possible Reasons Solution Power failure Power cord is not rmly inserted Insert the power cord rmly No power on socket Check the socket On/Off button not pressed Press the On/Off button Low suction power Suction port clogged Clean up suction port Dust accumulation on lter Clean up the dust cup and lter Dust accumulation on cyclone Clean up cyclone UV light failure The UV function is automatically off for safety reasons or weak reection of object The UV function operates on the condition of less than 3 cm height from the object The machine operates on the same position for a long time Move the machine forward and backward The machine is placed upright Machine tilted no more than 30 degrees Sensor window is contaminate Clean the sensor window with a half-dry cloth UV light damage Contact after-sale service Automatically turned off Dust cup full The machine will automatically turn off to prevent the motor under long operation. If the machine automatically turned off, please clean up the dust cup and lter, unplug power cord and reuse if after 2 hours Suction port clogged Filter blocked Brushroll failure Brushroll tangled with foreign matter Remove the cover and clean up brushroll according to user guide Belt broken Remove the cover according to user guide and check the belt. If broken, contact after-sale to repair Note:If fault remains after adopting the following solutions, contact after sale service or local distributor immediately.7 Product Specications Technical Parameter Model B6 Pro Rated voltage 220V-240V ~ Rated frequency 50Hz Rated power 600W Circuit diagram 220V-240V ~50Hz Main motor

UV light PCB Left Infrared PCB Dust sensor PCB Right Infrared PCB Main PCB Power supply PCB Ultrasonic generator On/off PCB8 Manufacturer Information Manufacturer Kingclean Electric Co., Ltd Address No.1 Xiangyang Road, Suzhou New District, Jiangsu Province 215009, China Disposal The machine, accessories and packaging should be sorted for environmental-friendly recycling. Do not dispose of the machine into household waste! Only for EC countries: According to the European Guideline 2012/19/EU, machine that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner. Subject to change without notice. Warranty Information This product enjoys one year warranty for the machine
