Product Type	Heated plate rack (under-counter heating unit)
Brand	Bartscher
Model	348207
Power supply voltage	220-240 V ~ 50/60 Hz
Rated power consumption	2000 W
Max current	10 A
Cable type	H05RN-F 3x1.5 mm²
Temperature range	30 °C to 90 °C
Thermostat adjustment	Turn clockwise to increase temperature, counterclockwise to decrease
Ventilation	Fan for uniform distribution of warm air
Approximate capacity	Suitable for about 2 rows of plates with 80 mm spacing for air circulation
Electrical protection	IPX4 (protection against water splashes)
Required power supply	Mandatory grounding
Installation type	On adjustable feet, direct connection or plug
Cleaning	Hot water and mild detergent, sponge or soft brush; do not use water jets
Intended use	Warming and keeping plates hot for dishwashers
Safety	Safety thermostat, heating stops in position "O"
Maintenance	Do not use abrasives; store in a dry place if unused for long periods
Disposal	Dismantle according to local regulations in force

Frequently Asked Questions - 348207 BARTSCHER

How to use the Bartscher 348207 heated plate rack?

Plug the appliance into a grounded outlet. Press button A to position I to turn on. Turn knob C clockwise to set the desired temperature (30-90°C). To turn off, turn knob to O then press button A.

What is the temperature range of the appliance?

The heated plate rack can be set from 30°C to 90°C approximately. Turn the knob clockwise to increase temperature.

How to clean the Bartscher heated plate rack?

Unplug the appliance before cleaning. Use hot water and a mild detergent with a sponge or soft brush. Rinse with a damp cloth. Never use water jets or abrasive products.

Can I use the appliance to warm food directly?

No, this appliance is designed only for warming and keeping hot plates for dishwashers. Any other use is considered improper.

Does the appliance require grounding?

Yes, it is essential to connect the appliance to an effective grounded outlet for safety reasons. If in doubt, contact a qualified electrician.

What if the heated plate rack does not heat up?

Check that the appliance is plugged in and the switch is in position I. Make sure the thermostat is not in position O. If the problem persists, call a qualified technician.

How to install the appliance correctly?

Place the appliance in the desired location and level it by turning the adjustable feet. Ensure the voltage matches the mains (220-240 V) and the supply can support 2000 W. Connect to a grounded outlet.

Can I use the appliance without the ventilation?

No, the fan ensures uniform heat distribution. It must not be obstructed. Leave a gap of about 80 mm between rows of plates for air circulation.

Where is the rating plate of the appliance located?

The rating plate is located inside the appliance, in the upper right part of the heating panel. It indicates the serial number, voltage, power, etc.

How to dispose of the heated plate rack at end of life?

Dismantle the appliance according to local regulations for recycling. Destroy the CE marking and follow local regulations.

USER MANUAL 348207 BARTSCHER

Exterior view of a stainless steel kitchen cabinet with two doors and a control panel (no text or symbols visible)

347107	348107
347127	348127
347147	348147
347167	348167
347187	348187
347207	348207

ISTRUZIONI ORIGINALI - ORIGINAL INSTRUCTIONS- ORIGINALANLEITUNG - INSTRUCTIONS ORIGINAUX

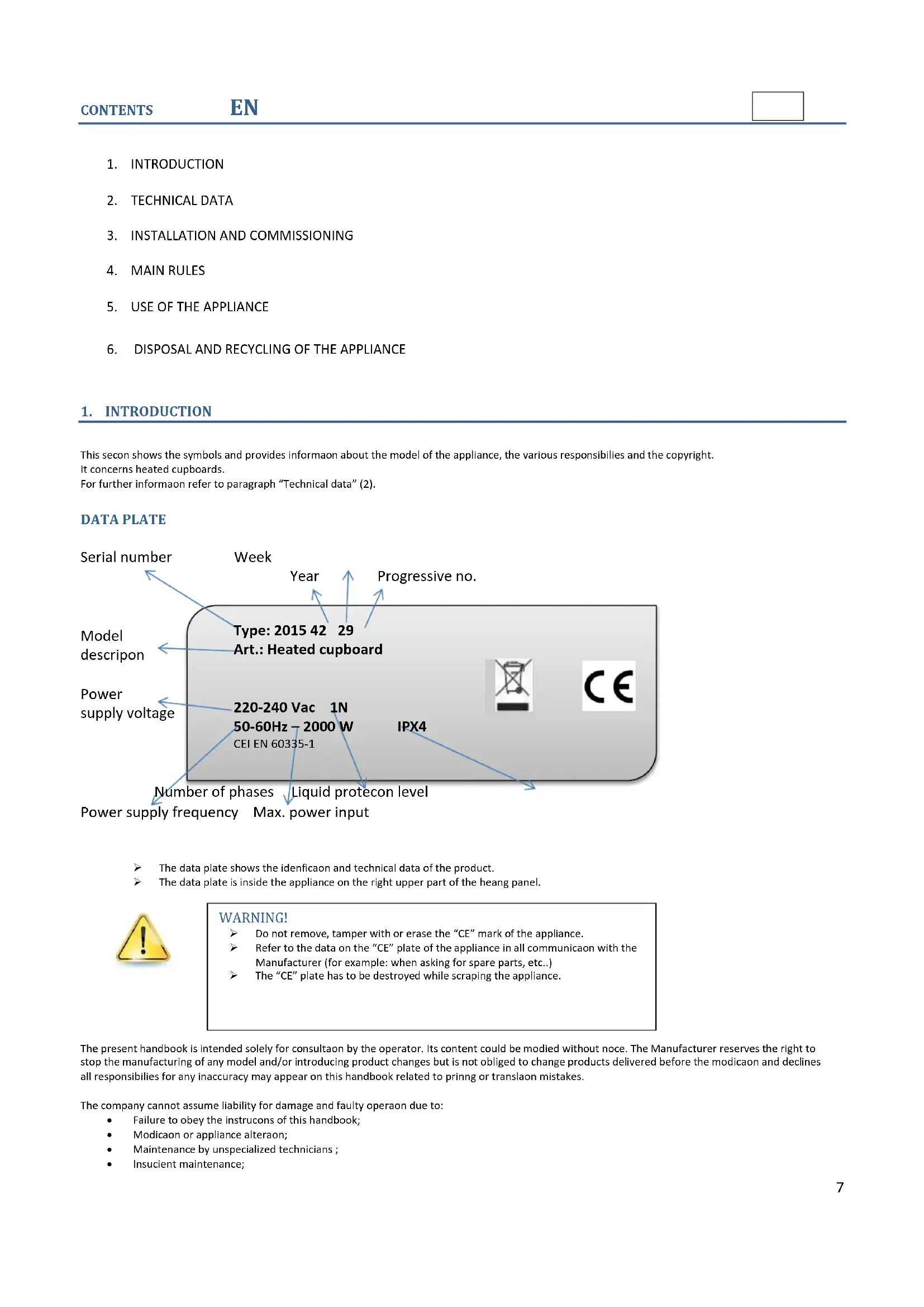

1. INTRODUCTION
2. TECHNICAL DATA
3. INSTALLATION AND COMMISSIONING
4. MAIN RULES
5. USE OF THE APPLIANCE
6. DISPOSAL AND RECYCLING OF THE APPLIANCE

1. INTRODUCTION

This secon shows the symbols and provides informaon about the model of the appliance, the various responsibilities and the copyright. It concerns heated cupboards.

For further informaon refer to paragraph "Technical data" (2).

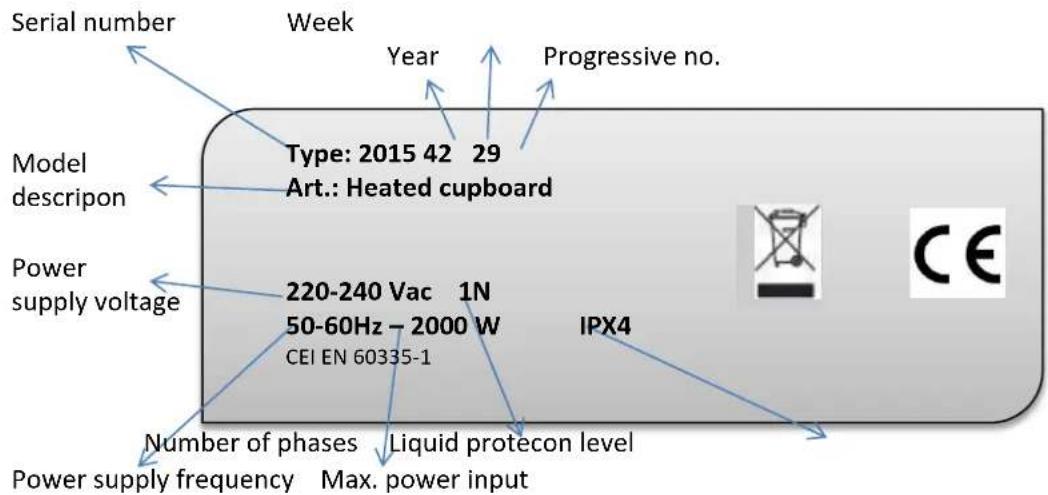

DATA PLATE

Serial number Week Year Progressive no. Model descripon Type: 2015 42 29 Art.: Heated cupboard Power supply voltage 220-240 Vac 1N 50-60Hz - 2000 W CEI EN 60335-1 IPX4 Number of phases Liquid protecon level Power supply frequency Max. power input

The data plate shows the identicaon and technical data of the product.

The data plate is inside the appliance on the right upper part of the heang panel.

WARNING!

Do not remove, tamper with or erase the "CE" mark of the appliance.

Refer to the data on the "CE" plate of the appliance in all communicaon with the Manufacturer (for example: when asking for spare parts, etc..)

The "CE" plate has to be destroyed while scraping the appliance.

The present handbook is intended solely for consultaon by the operator. Its content could be modified without noce. The Manufacturer reserves the right to stop the manufacturing of any model and/or introducing product changes but is not obliged to change products delivered before the modicaon and declines all responsibilities for any inaccuracy may appear on this handbook related to prinng or translaon mistakes.

The company cannot assume liability for damage and faulty operaon due to:

• Failure to obey the instrucons of this handbook;
• Modicaon or appliance alteraon;
• Maintenance by unspecialized technicians;
• Insucient maintenance;

• Improper use of the appliance;
  • Exceponal and unforeseeable events;
  • Unrespect to domestic legislation on health, hygiene and safety at the workplace;
  • The employer is responsible for the periodic training of the operators about the correct use, safety rules and re prevenon.

2. TECHNICAL DATA

RANGE OF HEATED CUPBOARDS

Supply voltage	V	220-240
Frequency	Hz	50-60
Max. power input	W	2000
Max. current requirement	A	10
Power cord	Mmq-H05RN-F	3x1,5
Max. supply Voltage variaon		+/- 10%
Max. Frequency variaon	connuous	+/-1%
Max. Frequency variaon	Short period	+/- 2%

WARNING!

The electric power system and the rooms where the appliance is placed have to respect domesc legislaon on safety, accident prevenon and re regulaons. On the contrary the Manufacturer won't assume liability for direct and indirect damages to people or things.

3. INSTALLATION AND COMMISSIONING

WARNING!

Intervenon on the electric power system must be solely performed by specialized electricians.

Proceed according to the following instrucon before connecng the appliance:

Remove the packaging and then the protective lm taking care not to scratch the surface;
➢ Arrange the appliance and adjust its height and level by means of the adjustable feet;
Make sure the power supply of the appliance shown on the data plate is compatible with the grid voltage;
Check the power supply of the system is set up and able to take the current load, and meets the legal requirements and domestic standards;
The appliance must be earthed;
In case of direct conncon to the electricity grid (without plug), it's necessary providing for a wall switch or a contactor, which grant the complete disconncon according to overvoltage III rate and accordingly to installaon rules;
Have the system tested by a qualified electrician, if operaon of the equipotenal earth conncon or the safety of the electrical system is in doubt, the symbol below idenes the equipotenal conncon:

The Manufacturer declines all responsibilities in case of connecan made by the user or unspecialized sta

WARNING!

Aer installaon dispose of the packaging according to current regulaons.

This appliance is designed and optimized to ensure high performance and efficiency. The sole use of this appliance is to store and heat tableware. Any other use is not permitted (e.g. heang food).

WARNING!

Contact with hot tableware can cause burns.
Use always suitable safety equipment while handling objects

4. MAIN RULES

The Manufacturer does not assume responsibility for faults or damage due to tampering the appliance. This appliance must be used by skilled persons that must be periodically trained for its correct use and according to the safety regulaons and prevenon of accidents. Contact with hot tableware in the appliance can cause health risks. In order to prevent them use safety equipment and act with suitable cauon.

WARNING!

Intervenon on the electric power system must be solely performed by specialized electricians.

5. USE AND CLEANING OF THE APPLIANCE

OPERATING ELEMENTS

A C

USE

Connect the appliance to the electric current.

Press the main switch on the supply panel that powers the appliance.

Switch on the buon "A" to posion "I". When the buon "A" is switched on, it is lighted up and the appliance is under power.

Turn the thermostat control knob "C" to reach the desired temperature (30/90°C). Turn the control knob clockwise to increase the temperature.

To decrease the temperature turn the thermostat control knob "C" to "O" posion. The heang is so disconnected but the appliance is under power.

The fan inside the appliance grants an equally distributed air circulaon.

In order to use the appliance correctly, arrange the plates in two rows inside the compartment, leaving a gap of approx. 80 mm between them so that the air can circulate.

Avoid amassing plates around the holes for air circulaon

Switch o the boom "A" to posion "O" and switch o finally the main power supply line ahead of the appliance.

CLEANING

WARNING!

Before cleaning the appliance turn it o and suspend the power source (take the plug o). The appliance is not suitable to a direct cleaning with a water stream. Don't use high pressure water streams to clean the appliance. Be careful so that the water doesn't leak in the appliance.

Before cleaning take the dishes o. Clean the stainless steel surfaces inside with a damp rag with warm water and neutral soap, rinse thoroughly and dry carefully. Clean the stainless steel surfaces outside with lukewarm water and neutral soap, rinse thoroughly and dry carefully. Don't use abrasive products, steel wools, brushes, etc.

In case of long period of inactivity, store the appliance in a cool and dry place.

Dispose of the appliance responsibly and respect the environment at the end of its useful life. Proceed with its disposal in accordance with domesc regulaon.

Exploded view diagram of a modular kitchen or storage unit with numbered components for identification.

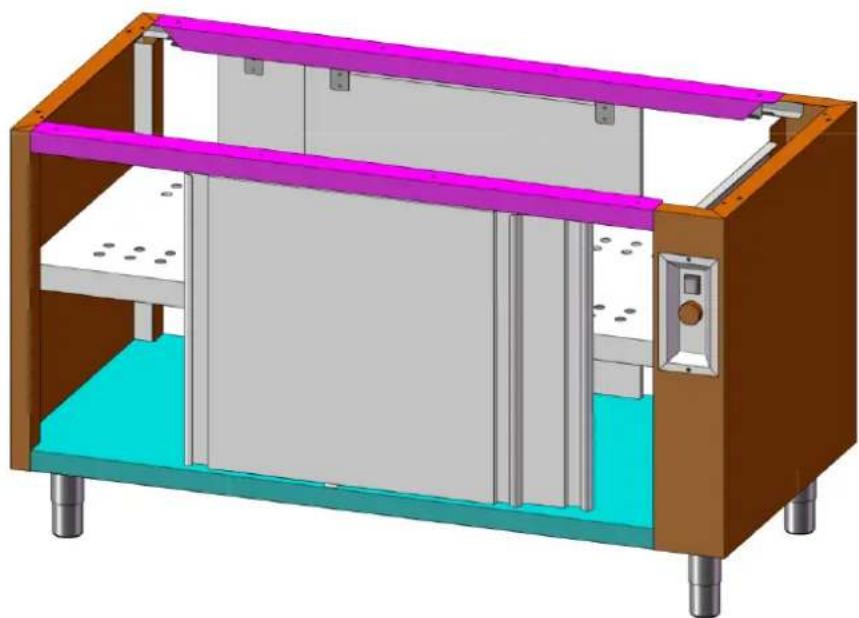

3D CAD rendering of a mechanical assembly with colored components and mounting feet (no text or symbols visible)

POS./POS. CODICE/ITEM NO. DESCRIZIONE/DESCRIPTION/BESCHREIBUNG/DESCRIPTION POS./POS. ART.NR./REFERENCE

1 PORTA SCORREVOLE/SLIDING DOOR/SCHIEBETÜR/PORTE COULISSANTE
2 NS2PST010010 PIASTRINA CON RUOTA/WHEEL SUPPORT FOR SLIDING DOOR/RAD ZUR SCHIEBETÜR/SUPPORT POUR GLISSEMENT PORTE COULISSANTE
3 TRAMEZZA/MIDDLE SHELF/ZWISCHENBORD/ETAGERE
4 NS5MOT010001 CORPO RISCALDANTE/FAN/HEIZELEMENT/ELEMENT CHAUFFANT
5 NS3CRU010001 CRUSCOTTO/CONTROL PANEL/SCHALTBRETT/PANNEAU DE CONTRÔLE
6 NS5INT010001 INTERRUTTORE BIPOLARE LUMINOSO/SWITCH ON-OFF/SCHALTER/INTERRUPTEUR
7 NS5TER010001 TERMOSTATO/THERMOSTAT/THERMOSTAT/THERMOSTAT
8 NS4PIE010001 PIEDINO/FOOT/FÜB/VERIN
9 PANNELLO/PANEL/DECKUNGSBLECH/PANNEAU
