348127 - Table BARTSCHER - Free user manual and instructions

Brand	Bartscher
Model	348127
Product type	Low-heating cabinet (plate warmer)
Supply voltage	220-240 V ~ 1N
Frequency	50-60 Hz
Maximum power consumption	2000 W
Maximum current consumption	10 A
Power cable	H05RN-F 3x1.5 mm²
Protection rating	IPX4 (protection against water splashes)
Temperature range	30 °C to 90 °C (adjustable via thermostat)
Heating function	Electric resistance with forced ventilation for uniform heat distribution
Capacity	Designed for plates arranged on two shelves with 80 mm space for air circulation
Intended use	Heating and keeping dishwasher-safe dishes warm
Cleaning	Hot water and mild detergent; no direct water jet or abrasive products
Installation	Height-adjustable feet; mandatory grounding; disconnection device
Approval	CE, overvoltage category III
Safety	Electrical work by qualified professional; risk of burns
Disposal	Compliant with current recycling standards

Frequently Asked Questions - 348127 BARTSCHER

How to connect this appliance?

The appliance must be connected via an upstream switch. Ensure the voltage matches your mains (220-240 V). Grounding is mandatory. Call a qualified electrician for any electrical work.

How to adjust the temperature?

Turn the thermostat knob (C) clockwise to increase temperature (30-90 °C). Turning it counterclockwise decreases the temperature. The 'O' position stops heating but the appliance remains powered.

What to do if the appliance stops heating?

Check that switch (A) is set to 'I' and the thermostat knob is not on 'O'. If the problem persists, contact a qualified electrician. Do not open the appliance yourself.

How to clean the heating cabinet?

Always unplug the appliance before cleaning. Use hot water with a mild detergent and a soft sponge. Never use a water jet, abrasive products, or steel wool. Rinse with a damp cloth.

Can I use the appliance to heat food?

No, this appliance is designed exclusively for heating and keeping dishwasher-safe dishes warm. Any other use is considered improper and dangerous.

What is the capacity of the appliance?

It is designed to accommodate plates on two shelves leaving about 80 mm space between them for air circulation. Avoid piling plates near the ventilation slots.

Is the appliance safe in case of water splashes?

Yes, it is rated IPX4, meaning it resists water splashes from all directions. However, never clean it with a direct water jet and do not immerse it.

How to install the appliance?

Place the appliance in the chosen location and adjust its height using the adjustable feet. Connect it to an effective ground socket. In case of direct connection, install a disconnection device compliant with overvoltage category III.

What to do in case of failure or malfunction?

Do not modify the appliance yourself. Contact a specialized technician and have the serial number (on the rating plate to the right of the heating panel) ready for any spare parts requests.

How to dispose of the appliance at end of life?

Dismantle the appliance according to the standards in force in your country. Do not dispose of electrical waste with household garbage; recycle them at an approved center.

USER MANUAL 348127 BARTSCHER

Exterior view of a stainless steel kitchen cabinet with two doors and a control panel (no text or symbols visible)

347107	348107
347127	348127
347147	348147
347167	348167
347187	348187
347207	348207

ISTRUZIONI ORIGINALI - ORIGINAL INSTRUCTIONS- ORIGINALANLEITUNG - INSTRUCTIONS ORIGINAUX

1. INTRODUCTION
2. TECHNICAL DATA
3. INSTALLATION AND COMMISSIONING
4. MAIN RULES
5. USE OF THE APPLIANCE
6. DISPOSAL AND RECYCLING OF THE APPLIANCE

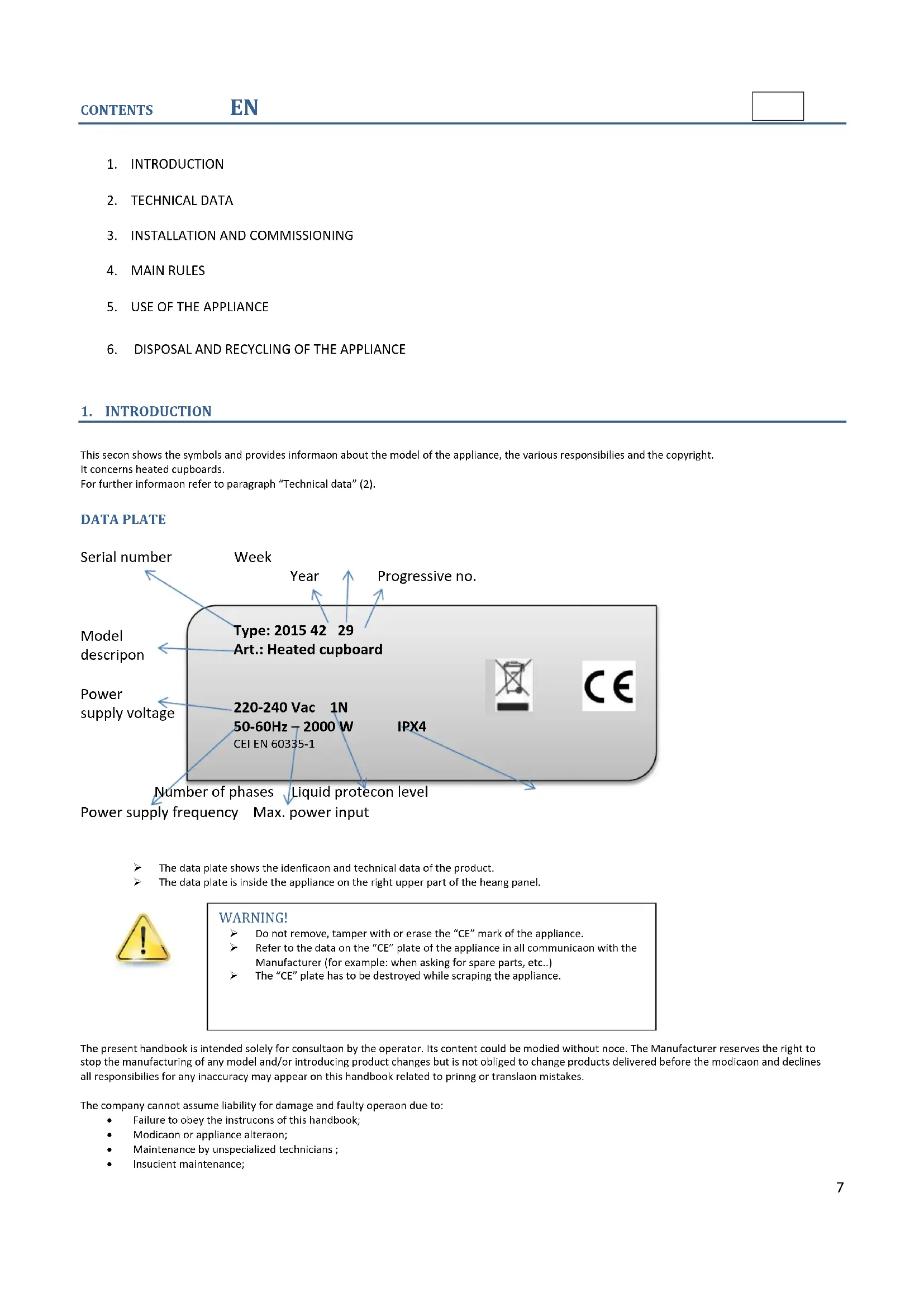

1. INTRODUCTION

This secon shows the symbols and provides informaon about the model of the appliance, the various responsibilities and the copyright. It concerns heated cupboards.

For further informaon refer to paragraph "Technical data" (2).

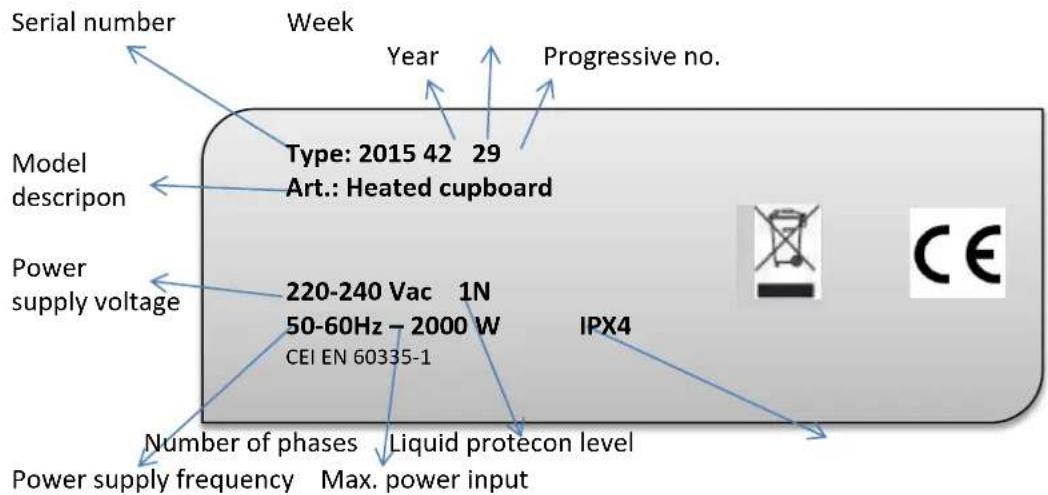

DATA PLATE

Serial number Week Year Progressive no. Model descripon Type: 2015 42 29 Art.: Heated cupboard Power supply voltage 220-240 Vac 1N 50-60Hz - 2000 W CEI EN 60335-1 IPX4 Number of phases Liquid protecon level Power supply frequency Max. power input

The data plate shows the identicaon and technical data of the product.

The data plate is inside the appliance on the right upper part of the heang panel.

WARNING!

Do not remove, tamper with or erase the "CE" mark of the appliance.

Refer to the data on the "CE" plate of the appliance in all communicaon with the Manufacturer (for example: when asking for spare parts, etc..)

The "CE" plate has to be destroyed while scraping the appliance.

The present handbook is intended solely for consultaon by the operator. Its content could be modified without noce. The Manufacturer reserves the right to stop the manufacturing of any model and/or introducing product changes but is not obliged to change products delivered before the modicaon and declines all responsibilities for any inaccuracy may appear on this handbook related to prinng or translaon mistakes.

The company cannot assume liability for damage and faulty operaon due to:

• Failure to obey the instrucons of this handbook;
• Modicaon or appliance alteraon;
• Maintenance by unspecialized technicians;
• Insucient maintenance;

• Improper use of the appliance;
  • Exceponal and unforeseeable events;
  • Unrespect to domestic legislation on health, hygiene and safety at the workplace;
  • The employer is responsible for the periodic training of the operators about the correct use, safety rules and re prevenon.

2. TECHNICAL DATA

RANGE OF HEATED CUPBOARDS

Supply voltage	V	220-240
Frequency	Hz	50-60
Max. power input	W	2000
Max. current requirement	A	10
Power cord	Mmq-H05RN-F	3x1,5
Max. supply Voltage variaon		+/- 10%
Max. Frequency variaon	connuous	+/-1%
Max. Frequency variaon	Short period	+/- 2%

WARNING!

The electric power system and the rooms where the appliance is placed have to respect domesc legislaon on safety, accident prevenon and re regulaons. On the contrary the Manufacturer won't assume liability for direct and indirect damages to people or things.

3. INSTALLATION AND COMMISSIONING

WARNING!

Intervenon on the electric power system must be solely performed by specialized electricians.

Proceed according to the following instrucon before connecng the appliance:

Remove the packaging and then the protective lm taking care not to scratch the surface;
➢ Arrange the appliance and adjust its height and level by means of the adjustable feet;
Make sure the power supply of the appliance shown on the data plate is compatible with the grid voltage;
Check the power supply of the system is set up and able to take the current load, and meets the legal requirements and domestic standards;
The appliance must be earthed;
In case of direct conncon to the electricity grid (without plug), it's necessary providing for a wall switch or a contactor, which grant the complete disconncon according to overvoltage III rate and accordingly to installaon rules;
Have the system tested by a qualified electrician, if operaon of the equipotenal earth conncon or the safety of the electrical system is in doubt, the symbol below idenes the equipotenal conncon:

The Manufacturer declines all responsibilities in case of connecan made by the user or unspecialized sta

WARNING!

Aer installaon dispose of the packaging according to current regulaons.

This appliance is designed and optimized to ensure high performance and efficiency. The sole use of this appliance is to store and heat tableware. Any other use is not permitted (e.g. heang food).

WARNING!

Contact with hot tableware can cause burns.
Use always suitable safety equipment while handling objects

4. MAIN RULES

The Manufacturer does not assume responsibility for faults or damage due to tampering the appliance. This appliance must be used by skilled persons that must be periodically trained for its correct use and according to the safety regulaons and prevenon of accidents. Contact with hot tableware in the appliance can cause health risks. In order to prevent them use safety equipment and act with suitable cauon.

WARNING!

Intervenon on the electric power system must be solely performed by specialized electricians.

5. USE AND CLEANING OF THE APPLIANCE

OPERATING ELEMENTS

A C

USE

Connect the appliance to the electric current.

Press the main switch on the supply panel that powers the appliance.

Switch on the buon "A" to posion "I". When the buon "A" is switched on, it is lighted up and the appliance is under power.

Turn the thermostat control knob "C" to reach the desired temperature (30/90°C). Turn the control knob clockwise to increase the temperature.

To decrease the temperature turn the thermostat control knob "C" to "O" posion. The heang is so disconnected but the appliance is under power.

The fan inside the appliance grants an equally distributed air circulaon.

In order to use the appliance correctly, arrange the plates in two rows inside the compartment, leaving a gap of approx. 80 mm between them so that the air can circulate.

Avoid amassing plates around the holes for air circulaon

Switch o the boom "A" to posion "O" and switch o finally the main power supply line ahead of the appliance.

CLEANING

WARNING!

Before cleaning the appliance turn it o and suspend the power source (take the plug o). The appliance is not suitable to a direct cleaning with a water stream. Don't use high pressure water streams to clean the appliance. Be careful so that the water doesn't leak in the appliance.

Before cleaning take the dishes o. Clean the stainless steel surfaces inside with a damp rag with warm water and neutral soap, rinse thoroughly and dry carefully. Clean the stainless steel surfaces outside with lukewarm water and neutral soap, rinse thoroughly and dry carefully. Don't use abrasive products, steel wools, brushes, etc.

In case of long period of inactivity, store the appliance in a cool and dry place.

Dispose of the appliance responsibly and respect the environment at the end of its useful life. Proceed with its disposal in accordance with domesc regulaon.

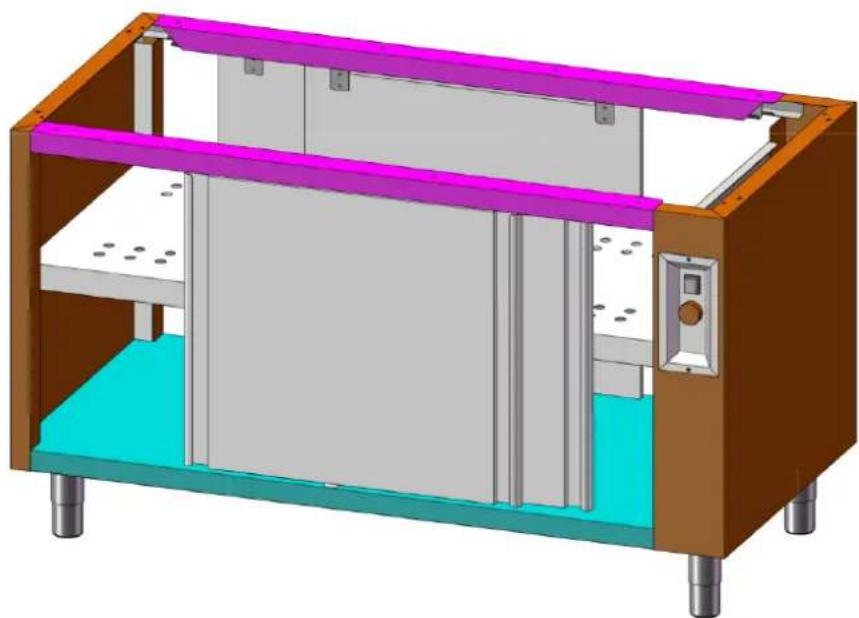

Exploded view diagram of a modular kitchen or storage unit with numbered components for identification.

3D CAD rendering of a mechanical assembly with colored components and mounting feet (no text or symbols visible)

POS./POS. CODICE/ITEM NO. DESCRIZIONE/DESCRIPTION/BESCHREIBUNG/DESCRIPTION POS./POS. ART.NR./REFERENCE

1 PORTA SCORREVOLE/SLIDING DOOR/SCHIEBETÜR/PORTE COULISSANTE
2 NS2PST010010 PIASTRINA CON RUOTA/WHEEL SUPPORT FOR SLIDING DOOR/RAD ZUR SCHIEBETÜR/SUPPORT POUR GLISSEMENT PORTE COULISSANTE
3 TRAMEZZA/MIDDLE SHELF/ZWISCHENBORD/ETAGERE
4 NS5MOT010001 CORPO RISCALDANTE/FAN/HEIZELEMENT/ELEMENT CHAUFFANT
5 NS3CRU010001 CRUSCOTTO/CONTROL PANEL/SCHALTBRETT/PANNEAU DE CONTRÔLE
6 NS5INT010001 INTERRUTTORE BIPOLARE LUMINOSO/SWITCH ON-OFF/SCHALTER/INTERRUPTEUR
7 NS5TER010001 TERMOSTATO/THERMOSTAT/THERMOSTAT/THERMOSTAT
8 NS4PIE010001 PIEDINO/FOOT/FÜB/VERIN
9 PANNELLO/PANEL/DECKUNGSBLECH/PANNEAU
