Brand	Bartscher
Model	348187
Product type	Warming table (heated base cabinet)
Intended use	Warm and keep dishes warm
Supply voltage	220-240 V
Frequency	50-60 Hz
Maximum power consumption	2000 W
Maximum current consumption	10 A
Power cable	H05RN-F 3x1.5 mm²
Temperature range	30-90 °C
Thermostat adjustment	Rotary knob (left: temperature increase)
Features	Fan for even distribution of hot air
Switch	Illuminated bipolar button (I/O)
Stopping	Turn knob to "O" then press the button
Installation	By qualified electrician; earthing mandatory
Installation environment	Comply with national safety and fire prevention standards
External cleaning	Hot water with mild detergent, soft sponge
Internal cleaning	Hot water, soft brush, rinse with clear water
Cleaning precautions	Disconnect the appliance; do not use water jet
Maintenance	If not used for long periods, store in a dry place
Main spare parts	Sliding door, door support, shelf, heating element, control panel, switch, thermostat, adjustable feet, panel
Repairability	Repairs reserved for specialized technicians
Disposal	Dismantle according to current national regulations
CE marking	Present on the appliance; do not alter

Frequently Asked Questions - 348187 BARTSCHER

How to connect the Bartscher 348187 warming table?

Connect the appliance via the upstream switch. Press button A to position I to turn on. Turn the thermostat knob C clockwise to set the temperature between 30 and 90 °C.

What to do if the table does not heat?

Check that the switch is on I and the thermostat is set above room temperature. Ensure the electrical supply is correct (220-240 V, 50-60 Hz). If the problem persists, contact a qualified technician.

What are the power and voltage of the table?

The voltage is 220-240 V, frequency 50-60 Hz, maximum power 2000 W and maximum current 10 A.

How to clean the warming table?

Before cleaning, disconnect the appliance. Use hot water with a mild detergent and a soft brush or sponge. Rinse with a damp cloth. Do not use water jet or abrasive products.

Can the table be used to warm food directly?

No, the appliance is only designed to warm and keep dishes warm, not food. Any other use is considered improper.

What are the important safety instructions?

Electrical installation must be carried out by a qualified electrician. The appliance must be connected to an earth connection. Do not use water jet for cleaning. Avoid touching hot surfaces without protection.

How to adjust the temperature?

Turn the thermostat knob C clockwise. The temperature increases by turning to the left. The range is approximately 30 to 90 °C. To stop heating, turn the knob to position O.

Does the table have ventilation?

Yes, a fan ensures even distribution of hot air inside the cabinet. It is recommended to leave a space of about 80 mm between plates for air circulation.

Which spare parts are available?

Spare parts include: sliding door, door support, shelf, heating element, control panel, switch, thermostat, adjustable feet, and panel. For any order, contact the manufacturer.

How to dispose of the appliance at end of life?

Dismantle the appliance in accordance with the standards in force in your country. The CE marking must be destroyed during dismantling. Comply with local recycling regulations.

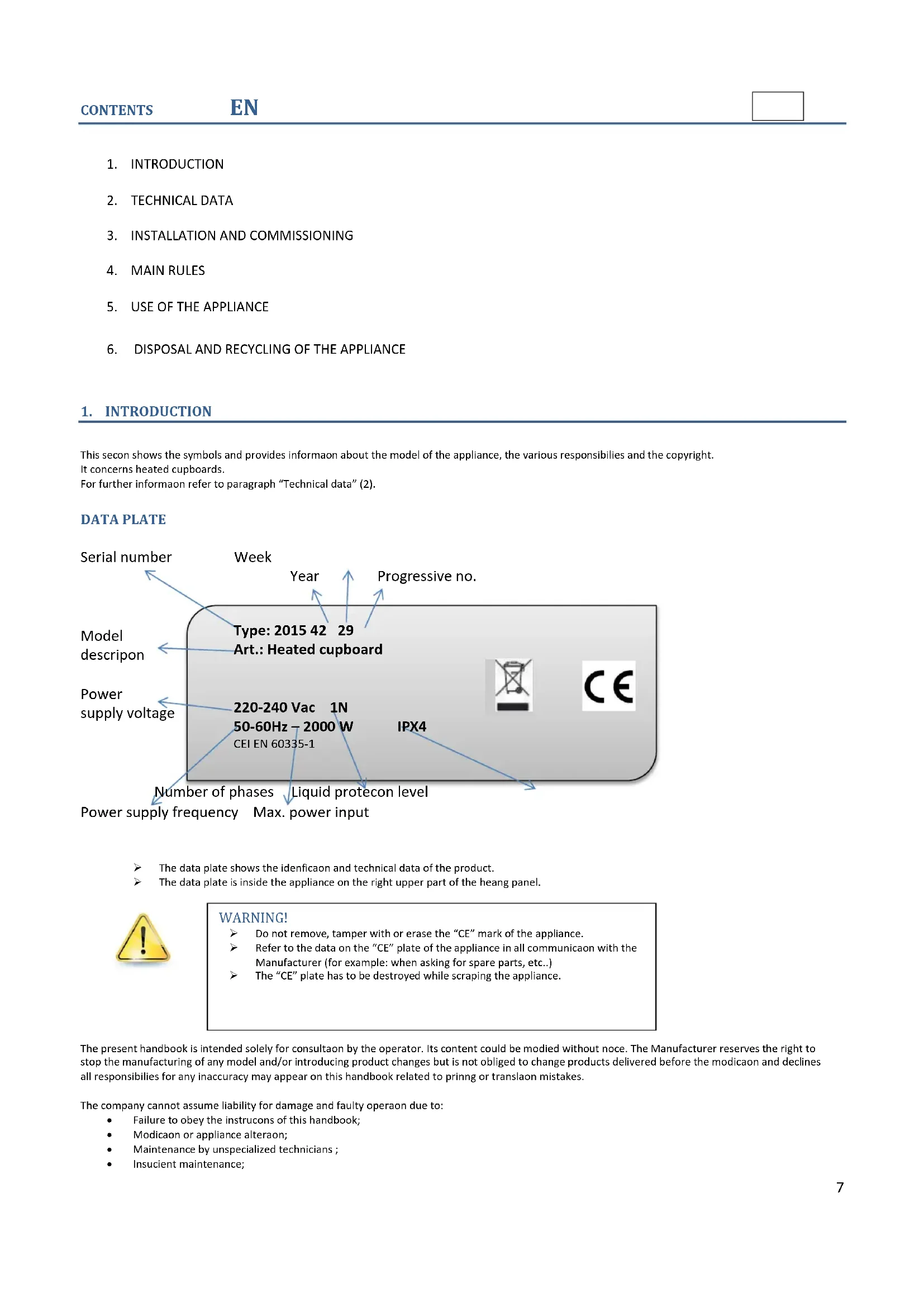

USER MANUAL 348187 BARTSCHER

1. INTRODUCTION
2. TECHNICAL DATA
3. INSTALLATION AND COMMISSIONING
4. MAIN RULES
5. USE OF THE APPLIANCE
6. DISPOSAL AND RECYCLING OF THE APPLIANCE

1. INTRODUCTION

This secon shows the symbols and provides informaon about the model of the appliance, the various responsibilities and the copyright. It concerns heated cupboards. For further informaon refer to paragraph "Technical data" (2).

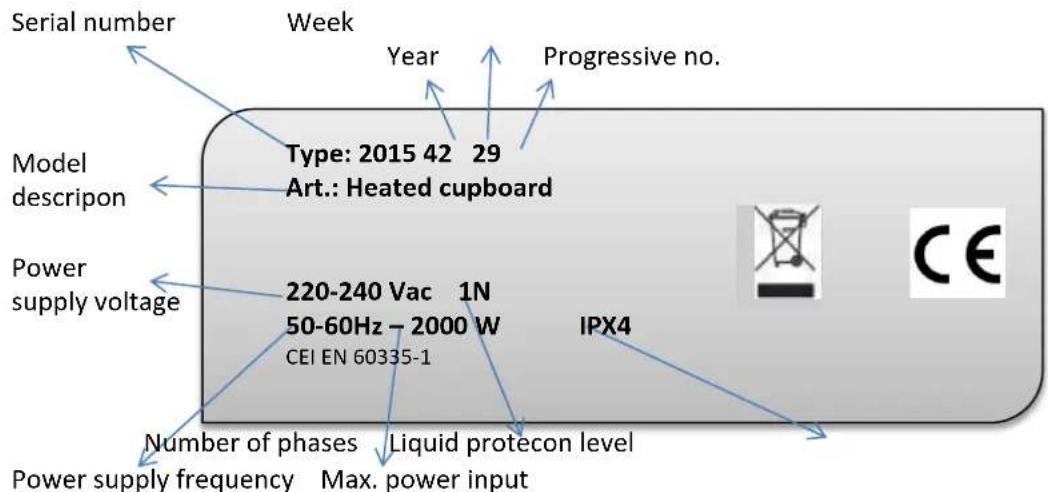

DATA PLATE

The data plate shows the identificaon and technical data of the product.
The data plate is inside the appliance on the right upper part of the heang panel.

WARNING!

Do not remove, tamper with or erase the "CE" mark of the appliance.
Refer to the data on the "CE" plate of the appliance in all communicaon with the Manufacturer (for example: when asking for spare parts, etc...)
The "CE" plate has to be destroyed while scraping the appliance.

The present handbook is intended solely for consultancy by the operator. Its content could be modied without noise. The Manufacturer reserves the right to stop the manufacturing of any model and/or introducing product changes but is not obliged to change products delivered before the modicaon and declines all responsibilities for any inaccuracy may appear on this handbook related to prning or translaon mistakes.

The company cannot assume liability for damage and faulty operon due to:

• Failure to obey the instrucons of this handbook;
  Modicaon or appliance alteraon;

• Maintenance by unspecialized technicians;
  Insucient maintenance;

• Improper use of the appliance;

• Exceponal and unforeseeable events;
  Unrespect to domestic legislation on health, hygiene and safety at the workplace;
  The employer is responsible for the periodic training of the operators about the correct use, safety rules and re prevenon.

2. TECHNICAL DATA

RANGE OF HEATED CUPBOARD

Supply voltage

Frequency

Max. power input

Max. current requirement

Power cord

Max. supply Voltage variaon

Max. Frequency variaon

Max. Frequency variaon

V	220-240
Hz	50-60
W	2000
A	10
Mmq-H05RN-F	3x1,5
	+/- 10%
connnuous	+/-1%
Short period	+/- 2%

WARNING!

The electric power system and the rooms where the appliance is placed have to respect domesc legislao on safety, accident prevenon and re regulaons. On the contrary the Manufacturer won't assume liability for direct and indirect damages to people or things.

3.

INSTALLATION AND COMMISSIONING

WARNING!

Intervenon on the electric power system must be solely performed by specialized electricians.

Proceed according to the following instrucon before connecng the appliance:

Remove the packaging and then the protece Im taking care not to scratch the surface;
Arrange the appliance and adjust its height and level by means of the adjustable feet;
Make sure the power supply of the appliance shown on the data plate is compatible with the grid voltage;
Check the power supply of the system is set up and able to take the current load, and meets the legal requirements and domestic standards;
The appliance must be earthed;
In case of direct connec to the electricity grid (without plug), it's necessary providing for a wall switch or a contactor, which grant the complete disconnec on according to overvoltage III rate and accordingly to installaon rules;
Have the system tested by a qualified electrician, if operaon of the equipotenal earth connecn or the safety of the electrical system is in doubt, the symbol below idenes the equipotenal connecn:

The Manufacturer declines all responsibilities in case of connecn made by the user or unspecialized sta

WARNING!

Aer installaon dispose of the packaging according to current regulaons.

This appliance is designed and optimized to ensure high performance and ciency. The sole use of this appliance is to store and heat tableware. Any other use is not permied (e.g. heang food).

WARNING!

Contact with hot tableware can cause burns.
Use always suitable safety equipment while handling objects

4. MAIN RULES

The Manufacturer does not assume responsibility for faults or damage due to tampering the appliance. This appliance must be used by skilled persons that must be periodically trained for its correct use and according to the safety regulaons and prevenon of accidents. Contact with hot tableware in the appliance can cause health risks. In order to prevent them use safety equipment and act with suitable caun.

WARNING!

Intervenon on the electric power system must be solely performed by specialized electricians.

5. USE AND CLEANING OF THE APPLIANCE

OPERATING ELEMENTS

USE

Connect the appliance to the electric current.

Press the main switch on the supply panel that powers the appliance.

Switch on the buon "A" to posion "I". When the buon "A" is switched on, it is lighted up and the appliance is under power.

Turn the thermostat control knob "C" to reach the desired temperature (30 / 90^) . Turn the control knob clockwise to increase the temperature.

To decrease the temperature turn the thermostat control knob "C" to "O" posion. The heang is so disconnected but the appliance is under power.

The fan inside the appliance grants an equally distributed air circulaon.

In order to use the appliance correctly, arrange the plates in two rows inside the compartment, leaving a gap of approx. 80mm between them so that the air can circulate.

Avoid amassing plates around the holes for air circulaon

Switch o the boom "A" to posion "O" and switch o finally the main power supply line ahead of the appliance.

CLEANING

WARNING!

Before cleaning the appliance turn it o and suspend the power source (take the plug o). The appliance is not suitable to a direct cleaning with a water stream. Don't use high pressure water streams to clean the appliance. Be careful so that the water doesn't leak in the appliance.

Before cleaning take the dishes o. Clean the stainless steel surfaces inside with a damp rag with warm water and neutral soap, rinse thoroughly and dry carefully. Clean the stainless steel surfaces outside with lukewarm water and neutral soap, rinse thoroughly and dry carefully. Don't use abrasive products, steel wools, brushes, etc.

In case of long period of inactivity, store the appliance in a cool and dry place.

Dispos of the apianr sboiy and rce the enmert at the end of its useful life. Proced wth its disposal in accordance with domsc reglaon.
