Product type	Professional dry resistance food warmer
Brand	Bartscher
Model	200255
Nominal power	2000 W
Electrical supply	230 V, 50 Hz, single-phase
Protection	Class I, IPX4
Operating temperature	0 to 35 °C
Material	Stainless steel AISI 304 18/10
Dimensions (W x D x H)	650 x 550 x 450 mm
Net weight	14 kg
Weight with packaging	17 kg
Capacity	GN pans up to 200 mm height
Installation type	Countertop
Temperature control	Adjustable thermostat 0-90 °C, holding >65 °C
Controls	Load-break switch with indicator light, rotary thermostat
Main functions	Keeping food warm, dry resistance
Cleaning	Neutral products, damp sponge, cold machine
Safety	Mandatory grounding, do not use water jet
Spare parts	Available from authorized dealer
Repairability	Intervention by authorized service only
Warranty	According to provided certificate

Frequently Asked Questions - 200255 BARTSCHER

Can I put water in the food warmer's tray?

No, this model is dry resistance. Never add water to the internal tray.

Why does an unpleasant odor occur during first use?

This odor is due to residual machining oils. Heat the appliance at maximum temperature for a few minutes to eliminate them.

How to clean the food warmer?

Unplug the appliance and wait until it is completely cold. Clean with a damp sponge and a neutral detergent. Never use steel wool or abrasive products.

What temperature should I set to keep food warm?

Set the thermostat to at least 65 °C to ensure food safety. The ideal temperature is between 65 and 90 °C.

What to do if the appliance does not heat?

First check that the main switch is on and that the power supply is present. If the problem persists, contact your authorized dealer.

Can I use the food warmer outdoors?

No, the appliance is designed for indoor use. Do not expose it to weather or excessive humidity.

How to install the food warmer?

Place it on a flat, dry, and stable surface. Ensure that the power outlet is nearby and that the installation is properly grounded. Installation must be done by a qualified professional.

What types of containers can I use?

Use GN pans (Gastro-Norm) up to 200 mm height or any other container suitable for food use.

Is the appliance easy to move?

This model is designed for countertop use and is not equipped with wheels. For a mobile version, choose a thermal trolley from the same range.

Where can I find spare parts?

Contact your authorized Bartscher dealer. Always use original parts to guarantee safety and proper operation.

USER MANUAL 200255 BARTSCHER

Exterior view of a large industrial storage unit with three compartments and cooling fans (no visible text or symbols)

Exterior view of a black industrial machine with wheels and handle (no visible text or symbols)

200.255

Exterior view of a stainless steel multi-level food cart with wheels and control panel (no text or symbols visible)

Exterior view of a stainless steel multi-wheeled kitchen appliance with wheels and control panel (no text or symbols visible)

200.254

HEIZTISCHE – THERMOWAGEN MIT TROCKEN- HEIZELEMENT LUNCH COUNTER – THERMAL TROLLEY WITHDRIED HEATING ELEMENT TABLES CHAUFFEES – CHARIOTS TERMIQUES AVEC RESISTANCE A SEC WARMHOUDTAFELS-BAIN-MARIES MET DROOG VERWARMINGELEMENT STOLY GRZEWCZE – BEMARY Z SUCHA GRZALKA

Operation and maintenance manual

Exterior view of a large industrial storage unit with three compartments and control knobs (no visible text or symbols)

Exterior view of a gray industrial machine tool with wheels and handle (no visible text or symbols)

Exterior view of a stainless steel multi-wheeled storage cart with wheels and control panel (no visible text or symbols)

Exterior view of a stainless steel industrial machine with wheels and handle (no text or symbols visible)

Illustration of a forklift loading a cardboard box onto a pallet (no text or symbols)

Exterior view of a gray industrial cart with wheels and a handle (no visible text or symbols)

Exterior view of a large industrial storage unit with three compartments and piping (no visible text or symbols)

Exterior view of a stainless steel multi-wheeled storage cart with wheels and control panel (no visible text or symbols)

Exterior view of a gray industrial cart with wheels and handle (no text or symbols visible)

LUNCH COUNTER – THERMAL TROLLEY WITH DRIED HEATING ELEMENT CONTENTS

1 GENERAL INFORMATION

Purpose of the manual.... 4

Manufacturer and machine identification.... 4

Lunch counter – thermal trolley with dried heating element description.... 5

Technical specifications.... 5

Overall dimensions.... 6

Safety information.... 6

2 INSTALLATION INFORMATION

Packaging and unpacking.... 7

Installation area.... 7

Electrical connections 7

3 USE AND CLEANING INFORMATION

Control descriptions.... 8

Recommendations for use 8

Lunch counter – thermal trolley with dried heating element use 8

End of the day cleaning 8

Extended periods of disuse 8

4 TROUBLE SHOOTING, RECYCLING

Introduction.... 9

Problems, causes, solutions.... 9

Disposal and recycling.... 9

ATTACHMENTS

Spare parts catalogue

Wiring diagram

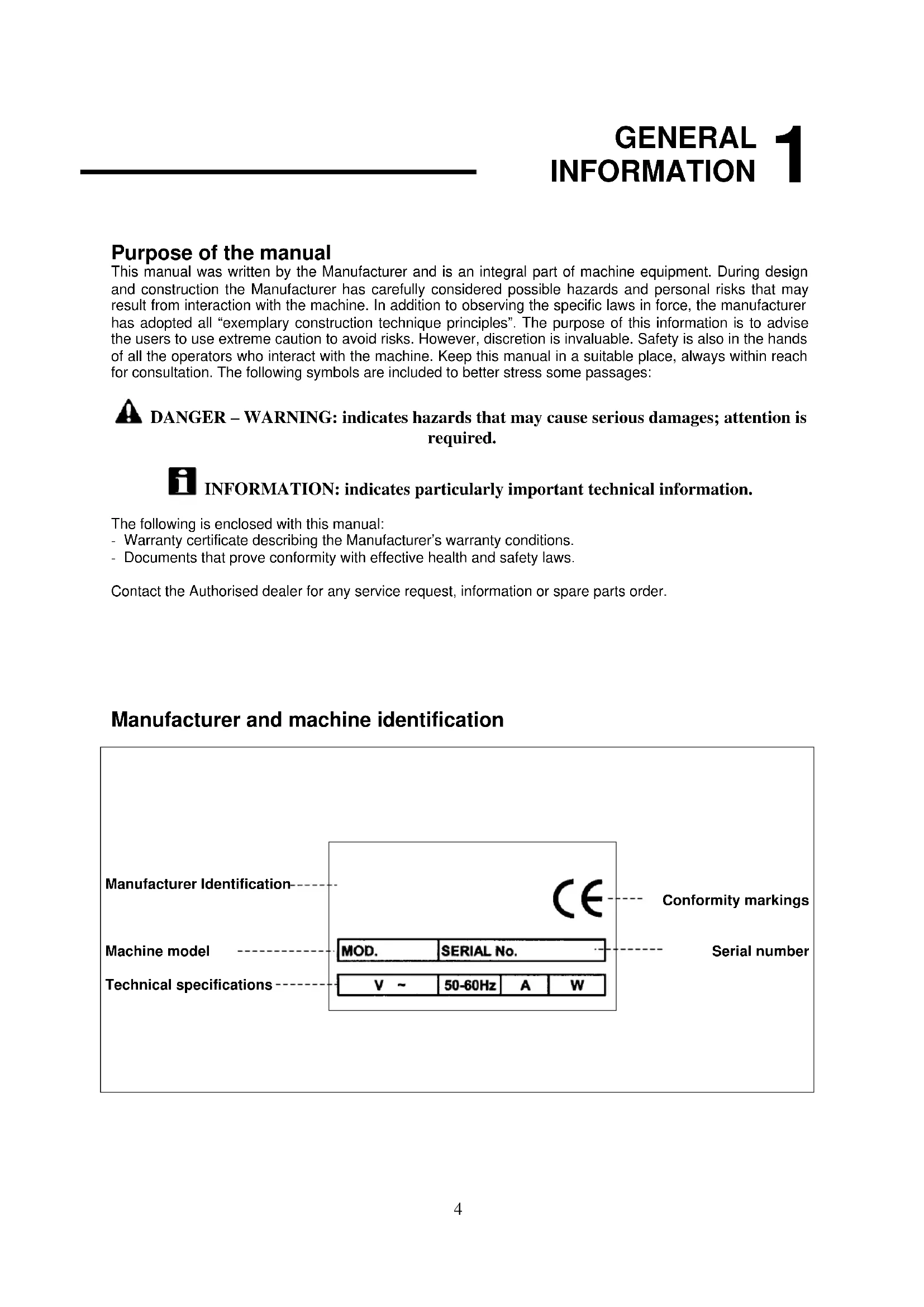

Purpose of the manual

This manual was written by the Manufacturer and is an integral part of machine equipment. During design and construction the Manufacturer has carefully considered possible hazards and personal risks that may result from interaction with the machine. In addition to observing the specific laws in force, the manufacturer has adopted all “exemplary construction technique principles”. The purpose of this information is to advise the users to use extreme caution to avoid risks. However, discretion is invaluable. Safety is also in the hands of all the operators who interact with the machine. Keep this manual in a suitable place, always within reach for consultation. The following symbols are included to better stress some passages:

DANGER – WARNING: indicates hazards that may cause serious damages; attention is required.

INFORMATION: indicates particularly important technical information.

The following is enclosed with this manual:

• Warranty certificate describing the Manufacturer's warranty conditions.
• Documents that prove conformity with effective health and safety laws.

Contact the Authorised dealer for any service request, information or spare parts order.

Manufacturer and machine identification

Manufacturer Identification CC Conformity markings Machine model MOD. SERIAL No. Serial number Technical specifications V ~ 50-60Hz A W

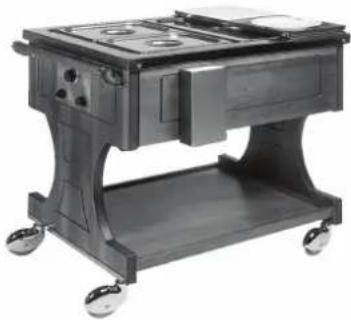

Lunch counter – Thermal trolley with dried heating elements description

This equipment is specifically designed to keep temperature of food constant and over 65^ C. It is characterised by a highly simplified construction in order to reduce the possibility of malfunctions to a minimum and facilitate maintenance.

Their structure is fully constructed with AISI 304 18/10 stainless steel sheet metal, while bain-marie basins are double walled to keep the heat produced by the heating system. The internal basin has been designed to hold G.N. trays for up to 200 hours or other types of food containers.

The top of thermal trolleys mod. CSS1750/1752/1754 has a compass type cover to guarantee a better heat insulation.

All models of thermal trolleys have four castor wheels to allow easy movement.

Note : Absolutely do not pour water in the internal basin of lunch counters and thermal trolleys.

Technical specifications

Descriptions Unit of measure	BMS1781 BMS1783 BMS1785
Nominal power W 2000 2000	2000
Net weight Kg 14 20 30
Packaged weight Kg 17 24 35
Installation		Counter
Descriptions	Unit of measure	CTS1757	CTS1759		CTS1761
Nominal power W 2000 2000	2000
Net weight Kg 24 32 45
Packaged weight Kg 27 36 50
Installation		Stand-alone
Descriptions	Unit of measure	CSS1750	CSS1752		CSS1754
Nominal power W 2000 2000	2000
Net weight Kg 26 35 48
Packaged weight Kg 29 39 53
Installation		Stand-alone
Descriptions Unit of measure	CLS2760C CLS2770C
Nominal power W	2000	2000
Net weight Kg	55	70
Packaged weight Kg	67	82
Installation		Stand-alone
Power supply	V Hz Ph	230V 50Hz 1Ph
Protection level		IPX4
Electrical shock protection		Class I
Conformity with directives and norms		73/23/EEC - 93/68/EEC - 93/44/EEC - 89/336/EEC 89/109/EEC

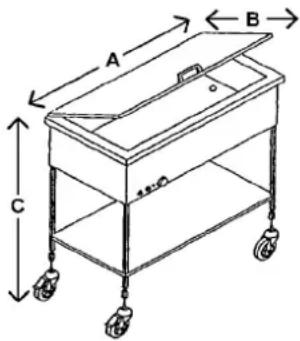

Overall dimensions

mm	A	B	C
BMS1781	650	550	450
BMS1783	850	650	450
BMS1785	1150	650	450
CTS1757	650	550	450
CTS1759	850	650	450
CTS1761	1150	650	450
CSS1750	650	550	450
CSS1752	850	650	450
CSS1754	1150	650	450
CLS2760C	890	650	950
CLS2770C	1230	650	950
mm	A	B	C
BMS1781	600	490	320
BMS1783	780	600	320
BMS1785	1100	600	320
CTS1757	650	560	850
CTS1759	840	650	850
CTS1761	1170	650	850
CSS1750	650	560	850
CSS1752	840	650	850
CSS1754	1170	650	850
CLS2760C	890	650	950
CLS2770C	1230	650	950

Safety information

• Careful consultation of this manual before installation and use is essential. Continual observance of the indications found in the manual guarantee personal and machine safety.
• Never tamper with safety devices for any reason.
• Strict observance of the work safety regulations issued by the responsible organisations in each country is strongly recommended.
  • The manufacturer is not liable for damages to persons or things due to the neglect of safety regulations.
  • Correct machine placement, illumination and cleanliness are important conditions for personal safety.
• Do not expose the machine to the elements.
• Machine connections and start-up must only be performed by qualified technicians.
• Make sure that the system specifications of the room where the machine is installed correspond to the information printed on the plate.
• Make sure the machine is connected to a grounding system.
• The work area around the machine must always be kept clean and dry.
• Use the garments foreseen by work safety regulations.
  • This machine must only be used for its specific purpose; any other use is considered improper and therefore hazardous.
• Do not overload the machine.
• Introducing objects, tools, hands or other within hazardous parts is forbidden.
• Keep the machine away from children.
• Disconnect the power cord from the electrical socket when the machine is not in use.
  • In the event of malfunctions and/or problems, do not attempt to repair the machine. Contact the authorised dealer.
• Use original spare parts.
• Before cleaning the machine, disconnect the power supply by unplugging the machine.
• Do not clean with running water.

INSTALLATION INFORMATION 2

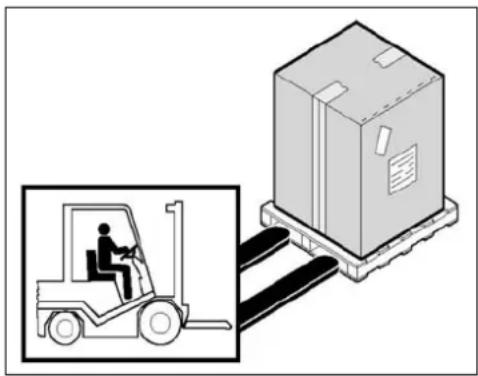

Packaging and unpacking

The machine is packaged in cardboard with polystyrene inserts to guarantee full integrity during transport.

• Handle the packaging according to the instructions.
• Open the packaging and check the integrity of all components. Keep packaging for future moves.
• Lift the machine as indicated and place it in the installation area.

Illustration of a forklift loading a cardboard box onto a pallet (no text or symbols)

Installation area

The arranged area must be suitably illuminated and an electrical socket must be available. The resting surface must be sufficiently ample, even and dry. The machine must be installed in rooms with non-explosive environments. In any case, installation must also be performed in consideration of the work safety laws in force.

Room conditions table

Descriptions Values
Working temperature 0÷35 °C (32÷95 °F)
Storage temperature -15 to +65 °C (from -6.8 to +149 °F)
Relative humidity	Maximum 80% with 20 °C room temperatureMaximum 50% with room temperature between 20÷60 °C
Dustiness Less than 0.03 g/m3

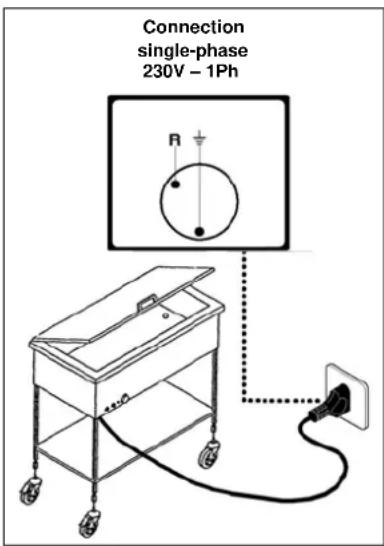

Electrical connections

DANGER – WARNING: Electrical connections to the supply mains must be performed by qualified personnel.

Verify the efficiency of the grounding system in the building. Make sure that line voltage (V) and frequency (Hz) correspond to those of the machine (See the identification plate and wiring diagram). The machine is equipped with a power cord that connects to a multi-polar plug. The plug is to be connected to a wall switch equipped with a circuit breaker.

Connection single-phase 230V - 1Ph

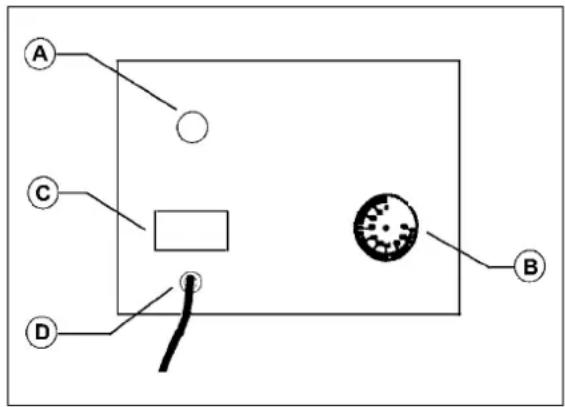

Control descriptions

• Temperature indicator light (A)
• Adjustment thermostat 0°- 90°C (B)
• Loaded circuit breaker (C) with voltage led
• Power cord inlet (D) + cord

A C D B

Recommendations for use

Before using the machine remove, if found, the special protective film.

Unpleasant odours produced during the first minutes of operation are due to the presence of processing grease residues.

On first use, heat the machine to the maximum temperature.

Lunch counter and thermal trolley with dried heating elements use

Note: absolutely do not pour water in the basins since these lunch counters and thermal trolleys have dried heating elements.

The equipment must be installed connecting the power cords to the proper sockets foreseen in the working environment where they must be placed. To turn the machine on, press the main switch -it will light up- and turn the thermostat knob to set the required temperature (al least 65^ C); the red led will light up indicating that the resistance is working correctly. Once the required temperature has been reached, the led will turn off and it will turn back on when the temperature decreases enough (approximately 5^ C) to justify resistance functions.

At the end of the day, turn the main switch off, leaving the temperature set.

End of the day cleaning

• Remove the plug from the electrical socket at the end of the day.
• Accurately clean using neutral products.
• Clean external machine parts with a damp sponge when the machine is fully cooled.
• Do not use metallic pads and abrasive detergents.
• To avoid hazards caused by contact with high temperature parts, only access heating parts after maintenance operations have been completed.

Extended periods of disuse

For extended periods of disuse, turn off the main wall switch, clean the machine and cover it with a cloth to protect if from dust.

Introduction

In the event of breakdown or malfunctioning, disconnect the plug from the socket and contact your Dealer's service centre. Avoid dismantling internal machine parts.

The manufacturer is not liable for any machine tampering!

Problems, causes, solutions

Problem Cause Solution
The machine does not heat	Main switch off Turn on main switch
	No voltage on the power supply Contact your dealer's service centre
	Resistance or thermostat broken Contact your dealer's service centre

Disposal and recycling

The machine was designed and constructed to work for an average of 10.000 hours. When finished using the machine, follow national laws for disposal and recycling.

Please contact the environmental authorities or authorised organisations.

BMS1781 – BMS1783 – BMS1785

CTS1757 - CTS1759 - CTS1761

CSS1750 - CSS1752 - CSS1754

CLS2760C - CLS2770C

F

Exterior view of a large industrial storage unit with three compartments and cooling fans (no visible text or symbols)

Exterior view of a gray industrial cart with wheels and handle (no visible text or symbols)

Exterior view of a modern office building (no signage)

Exterior view of a gray industrial machine with wheels and handle (no text or symbols visible)

TABLES CHAUFFEES – CHARIOTS THERMIQUES AVEC RESISTANCE A SEC

INDEX

1 INFORMATIONS GENERALES

But du manuel.... 4

Illustration of a forklift loading a cardboard box onto a pallet (no text or symbols)

Zone d'installation

Inconvénients, causes, remèdes

Exterior view of a gray industrial machine with wheels and top panel (no visible text or symbols)

Exterior view of a large industrial storage unit with three panels and cooling fans (no visible text or symbols)

Exterior view of a modern office building (no signage)

Exterior view of a stainless steel industrial machine with wheels and control panel (no visible text or symbols)

WARMHOUDTAFELS - BAIN-MARIES MET DROOG VERWARMINGSELEMENT INHOUDSOPGAVE

1 ALGEMENE INFORMATIE

Illustration of a forklift loading a cardboard box onto a pallet (no text or symbols)

Installatieplaats

Illustration of a forklift loading a cardboard box onto a pallet (no text or symbols)

Obszar instalacji
